Fender Design - Wheel Arch Challenge

WHEEL ARC AREA

The wheel arc area determines the horizontal gap between the fender and the wheel. These standards are set by different countries as the main purpose of this is for pedestrians safety.

As we are dealing with European standards we have to look for the clearance it should be greater than 10mm.

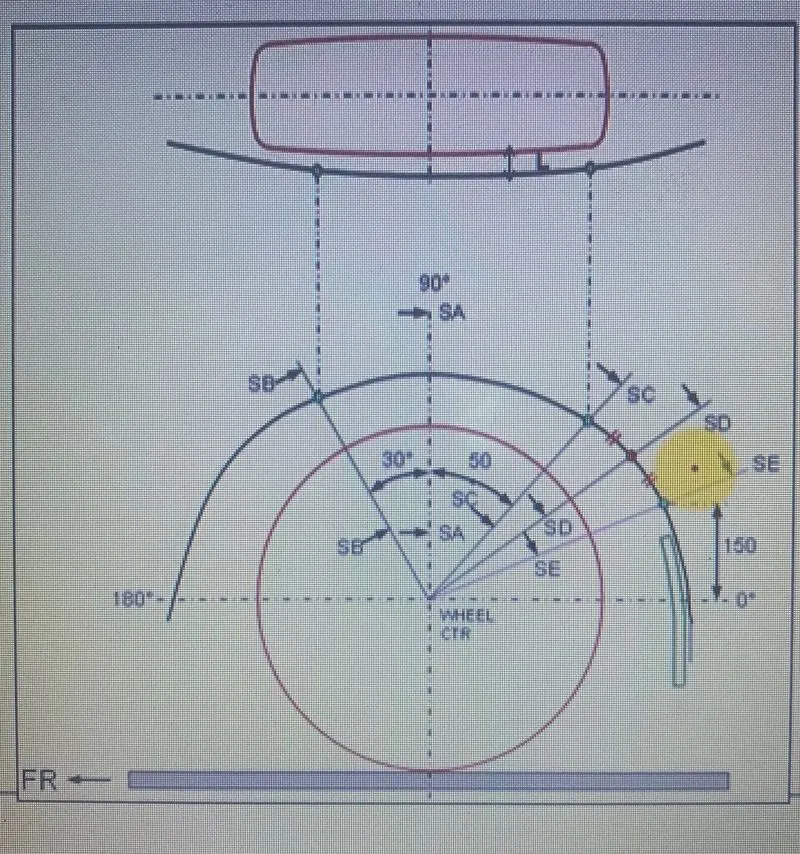

as you can see five sections the clearance (L) value should be more than 10mm.

so we calculated the area for the wheel arc for this challenge.

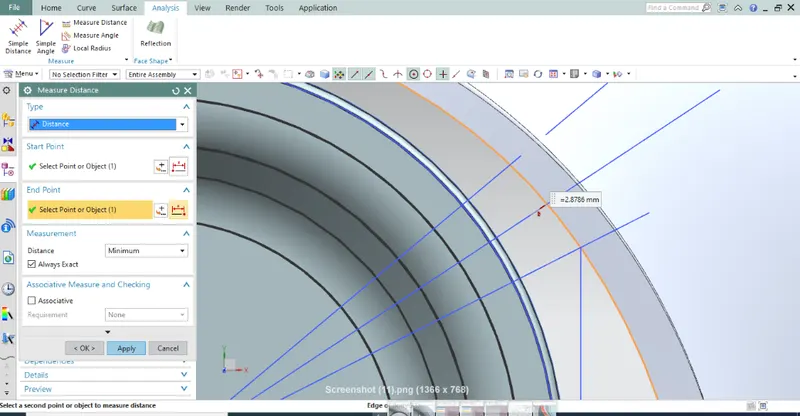

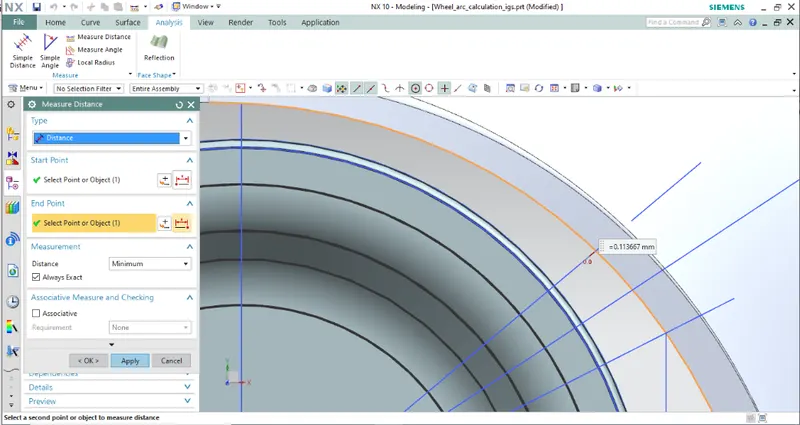

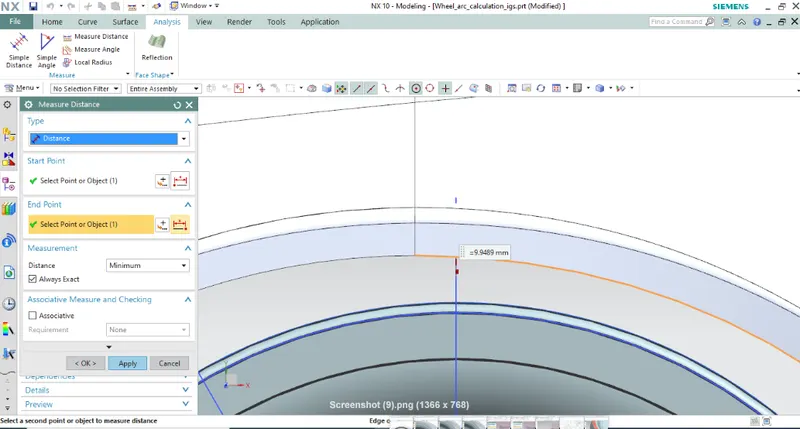

LINE SB

LINE SA

LINE SC

LINE SD

LINE SE

So as you can see only line SB is following European standards and others are not eligible .so this is not eligible for the European standard.
