Week 8 - Challenge 4 - Coin Holder Design

AIM:-

To perform draft analysis on coin holder component. To create class B and C surfaces with the help of class A surface.

Objective:-

By creating tooling we will perform a draft analysis on the coin holder final component .then with the help of class A we will create a class B surface by extracting class A and then with the help of the same class A surface we create a Class C surface . after completing this we will perform analysis on the final component.

Procedure:-

first, we check the whole component if there Is any type of opening that can create a problem after joining the whole class a surface. after visualizing the whole component. we will use join command and create our class a surface. then we will start looking for the best tooling direction. we will extract the base of the coin holder and using the point command to make a point then later create a line in z-direction .that line will be our main tooling axis.

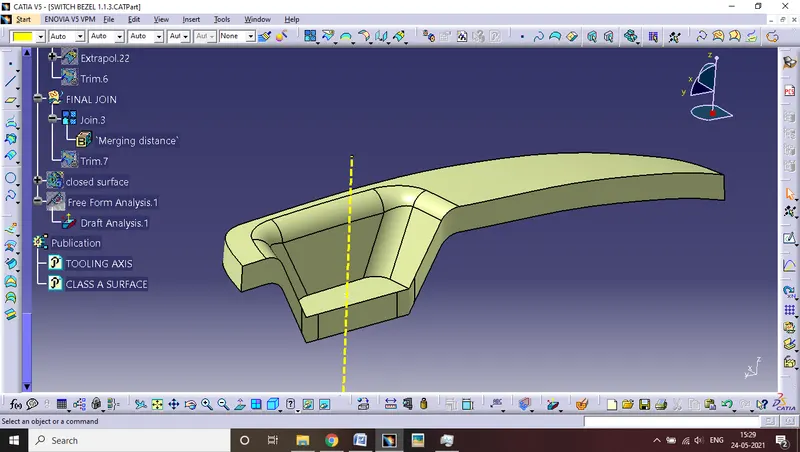

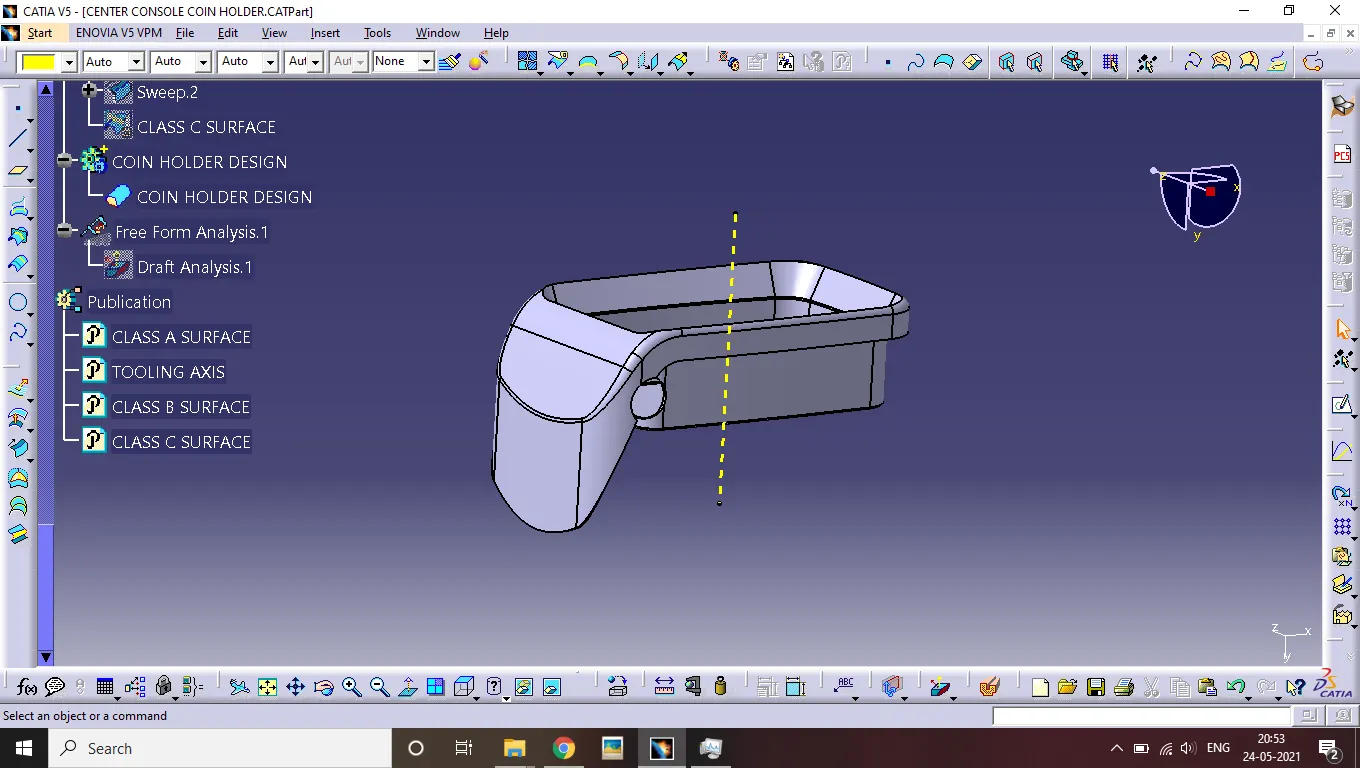

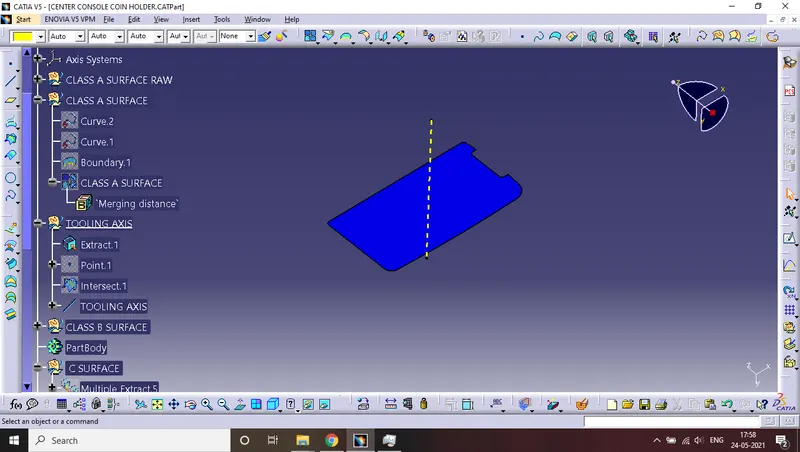

Creation of tooling axis.

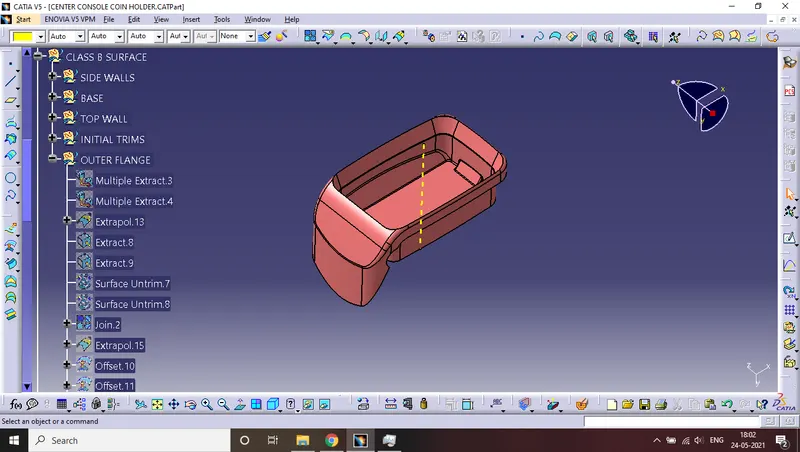

after creating the tooling axis. we will go for class b surface.

Thickness between class a and class b is 2.5mm.

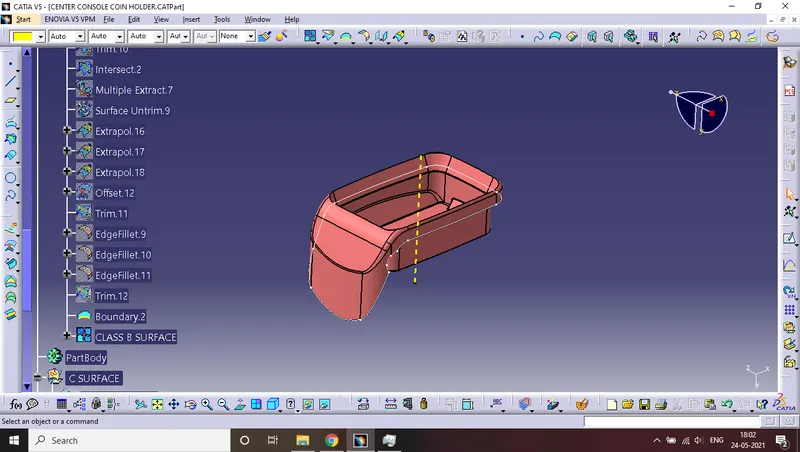

then this is our final design for class b surface.

Now after creating class B we will move on to class C surface.

there are some few point we have to check for creation of class c . we have to check for the unnceary patches that will create over the boundary so we will use smooth curve command to smoothen it.

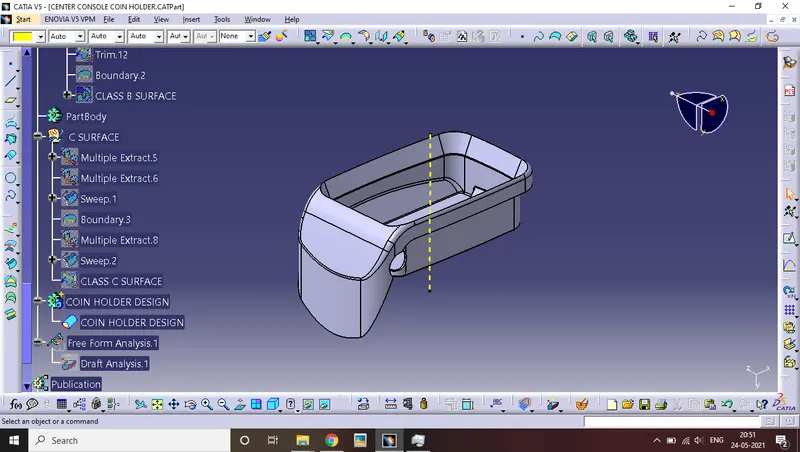

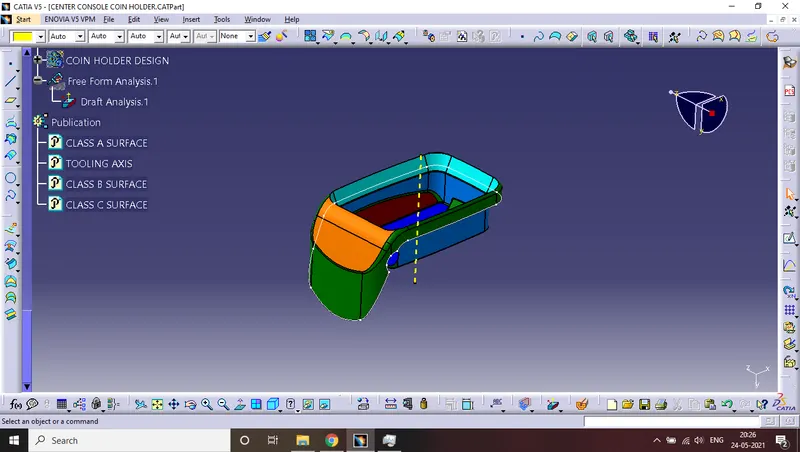

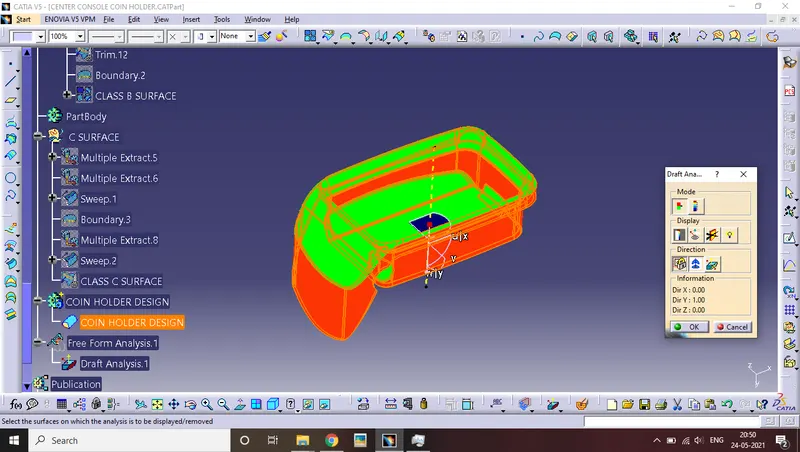

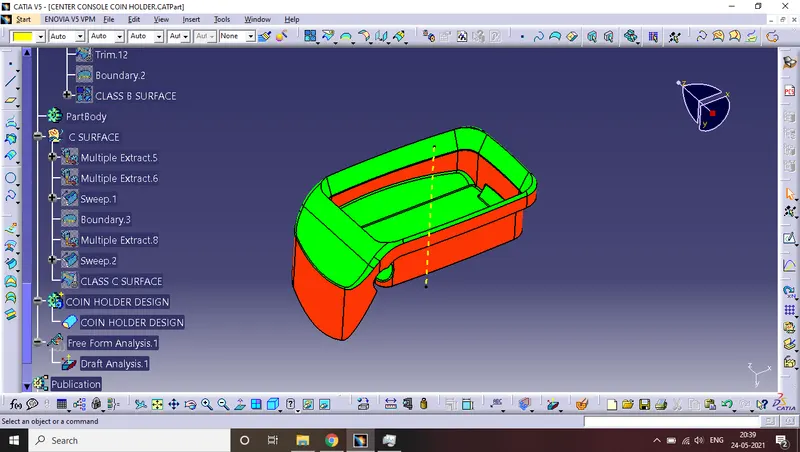

Now after creating c surface we will perform draft analsyis last component.

as you can see my design is not up to the mark so i will contact to the CAS department to look into it for what is the main reason this problem has occurred . we considered all the design parameters and created our final output. but due to some error we didn't get this right.so we will work upon the whole component.

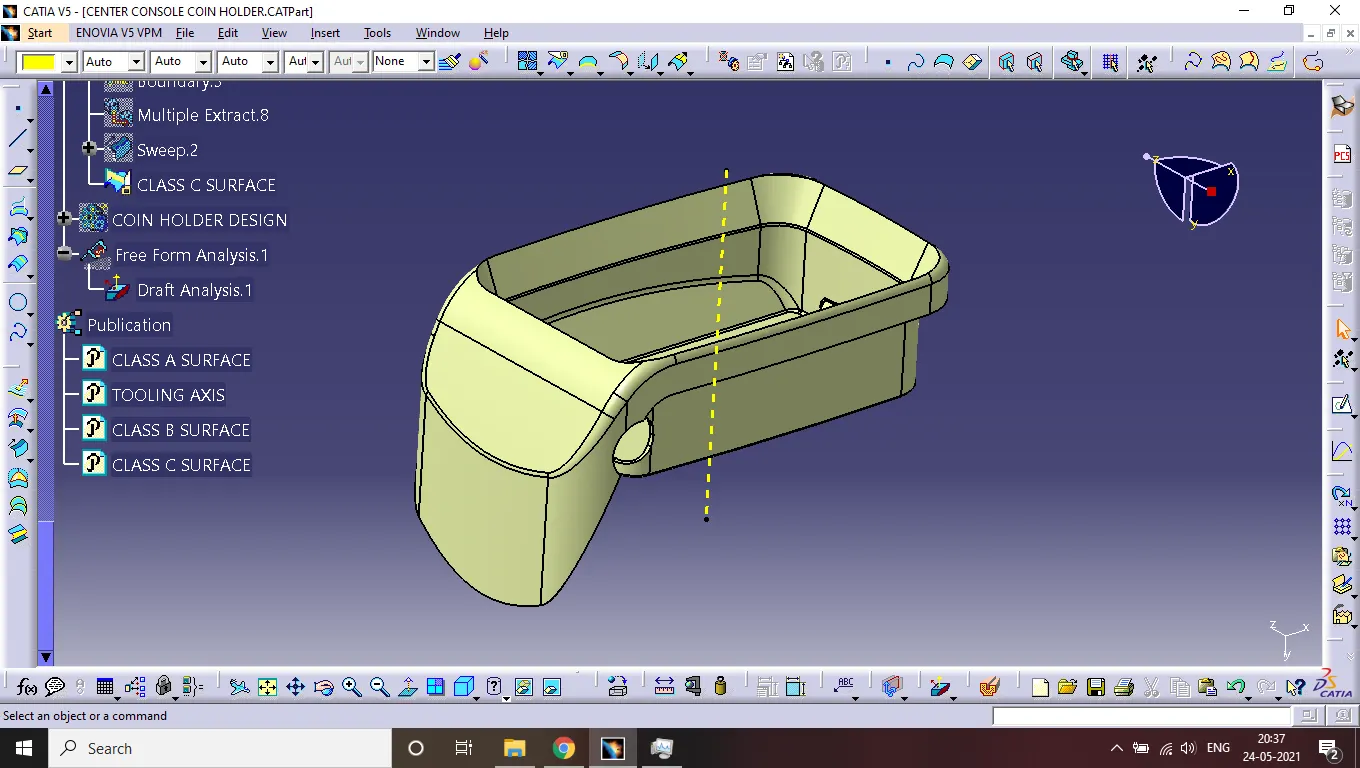

Isometric view

front view

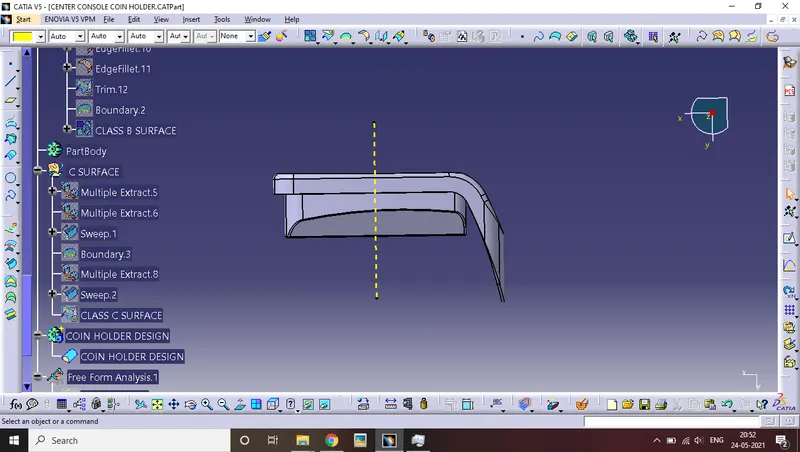

Side view

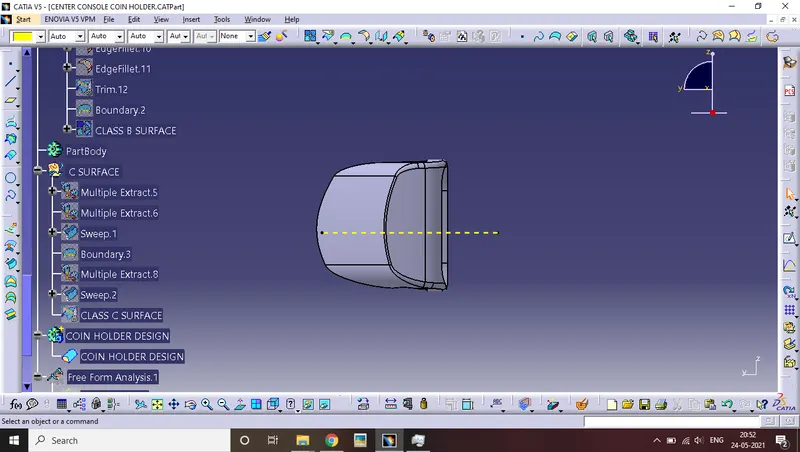

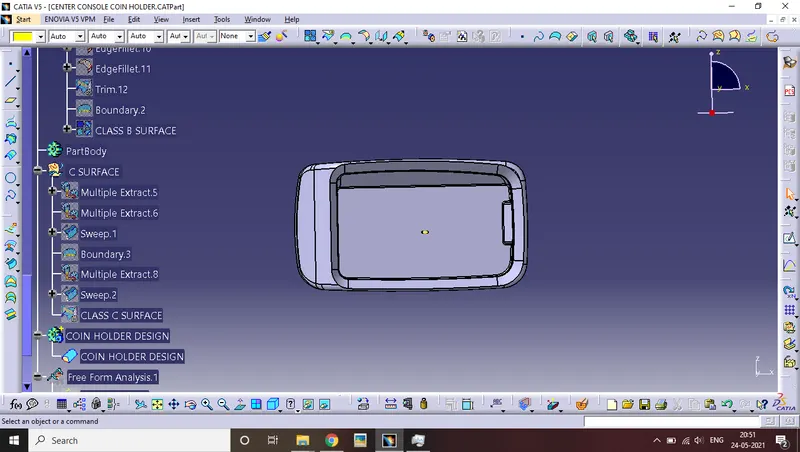

Top view
