Fender Design - Wheel Arch Challenge

Intention of Chellange

Calculate the Wheel Arch gap at required points and check whether the car passes the European standard.

European Standard

Every Country or Region regulates the standers of automobile industries. These Standers enhance passenger and even Pedestrian safety. These standers and regulations will defer depending on the country's Road Condition, People Density, and Average Speed limits.

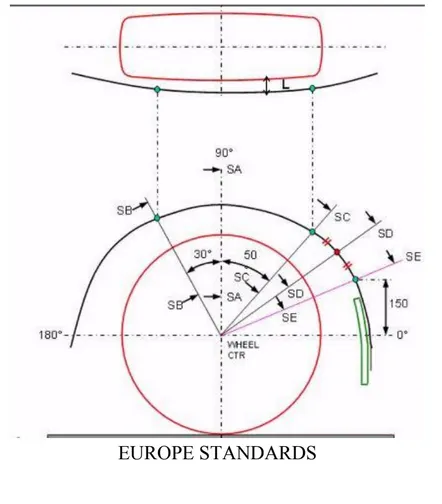

Hence the Europen Countries follow below standers in car wheel arch design.

In Europe Standards L value should be a minimum of 10mm. The wheel shoud be inside the fender.

Conclusion

SECTION	LENGTH	EUROPEAN STAND	RESULT

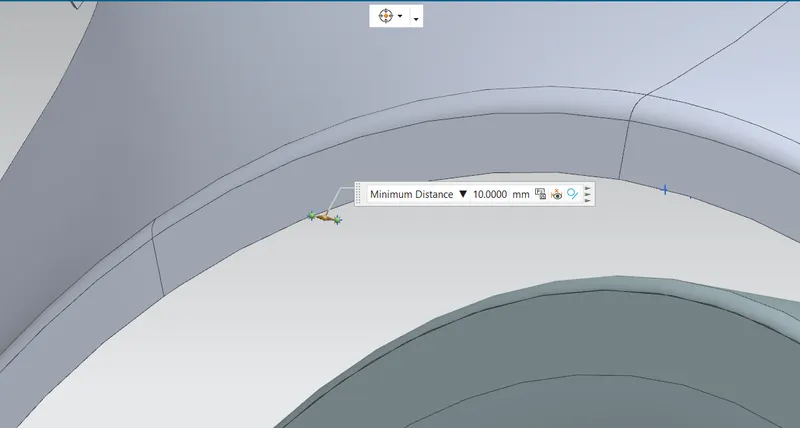

SA	10mm	10mm	Pass

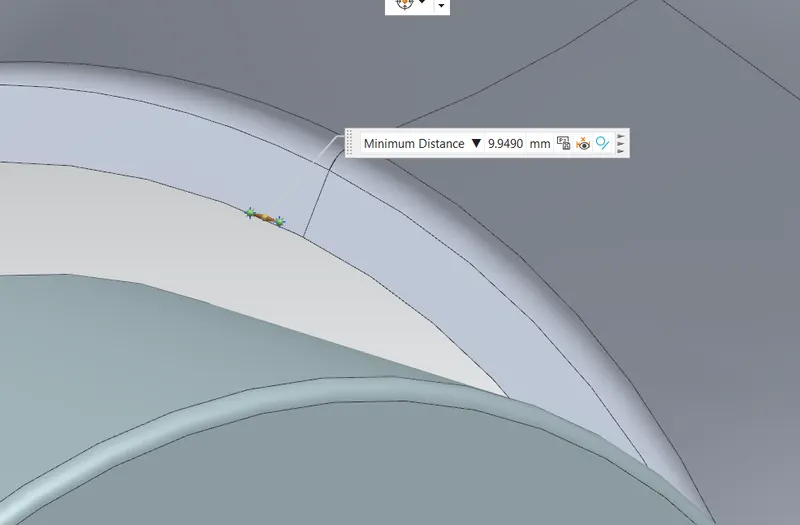

SB	9.95mm	10mm	Fail

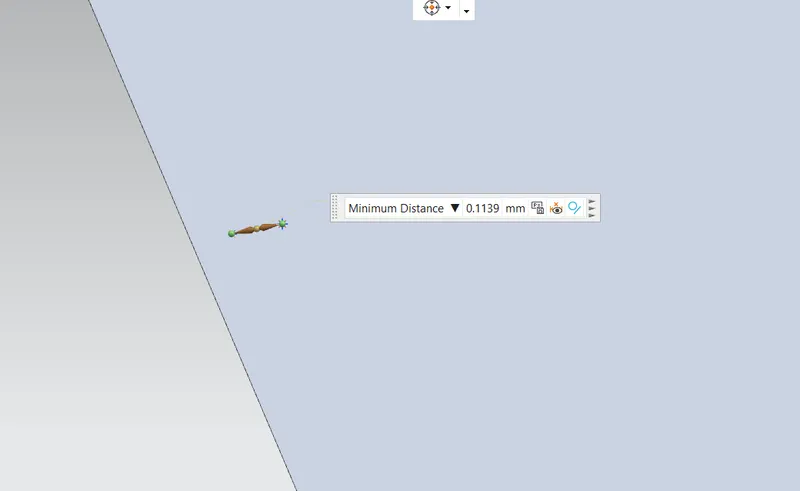

SC	0.1mm	10mm	Fail

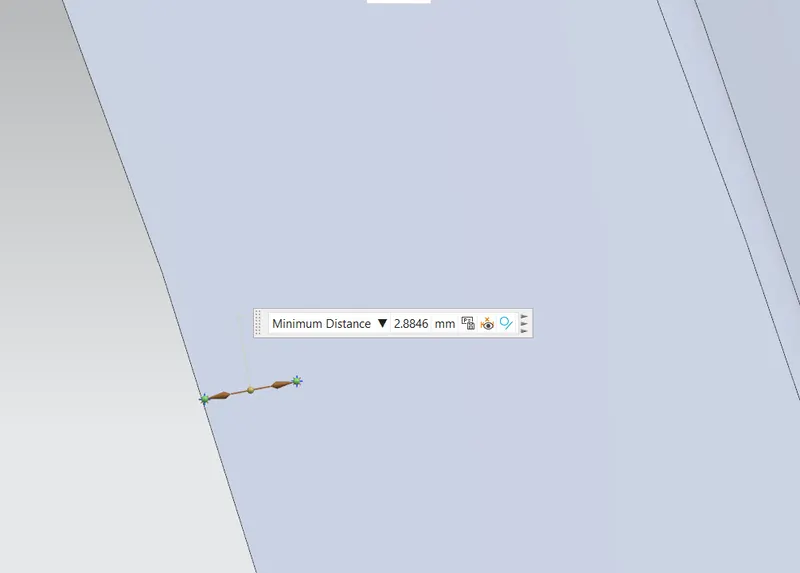

SD	-2.88mm	10mm	Fail

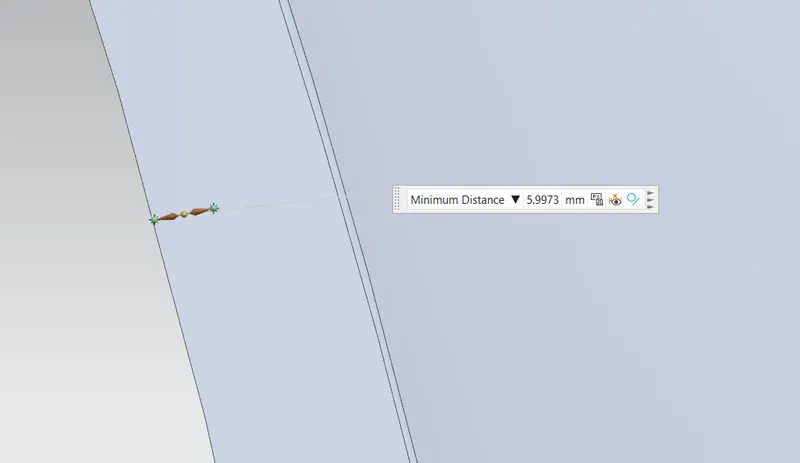

SE	-5.99mm	10mm	Fail

The given wheel arch failed in European Standers. So the design should have been remodeled.
