Week 8 - Challenge 2 - Base Bracket Design

Draft Analysis of Base Bracket

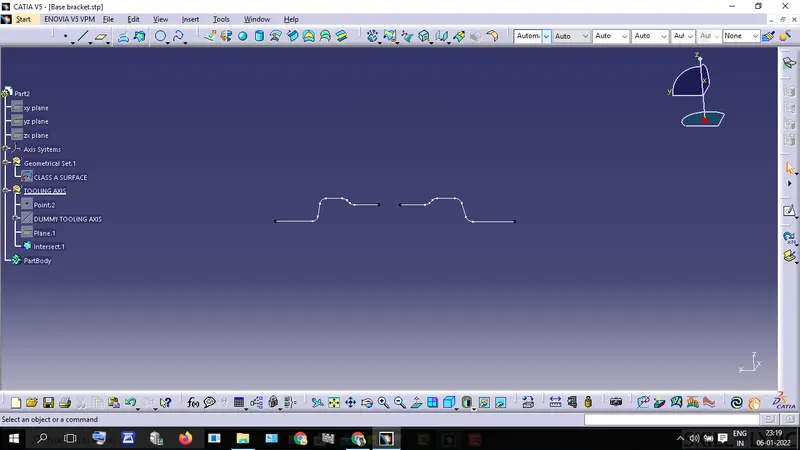

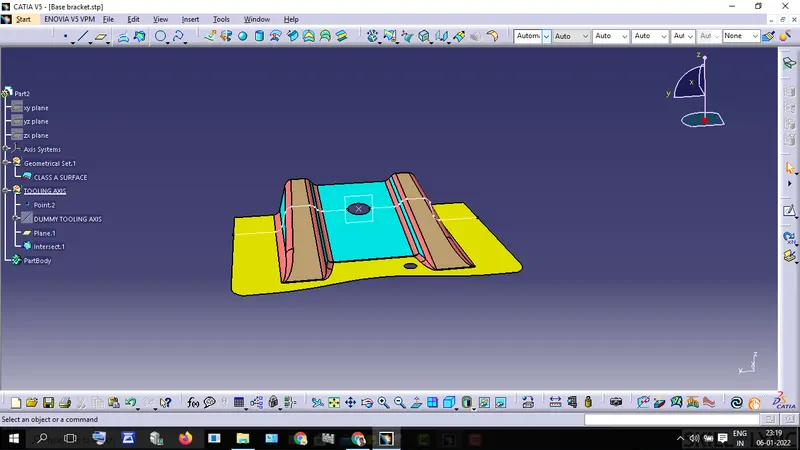

Create an intersection line

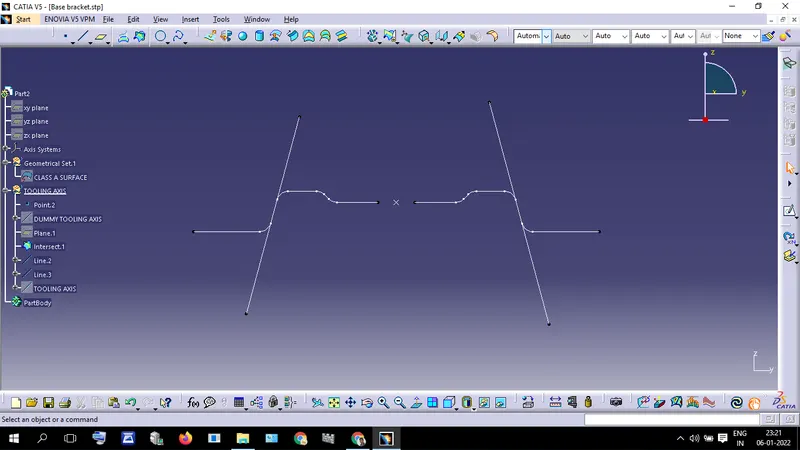

Draw a line in the intersectin

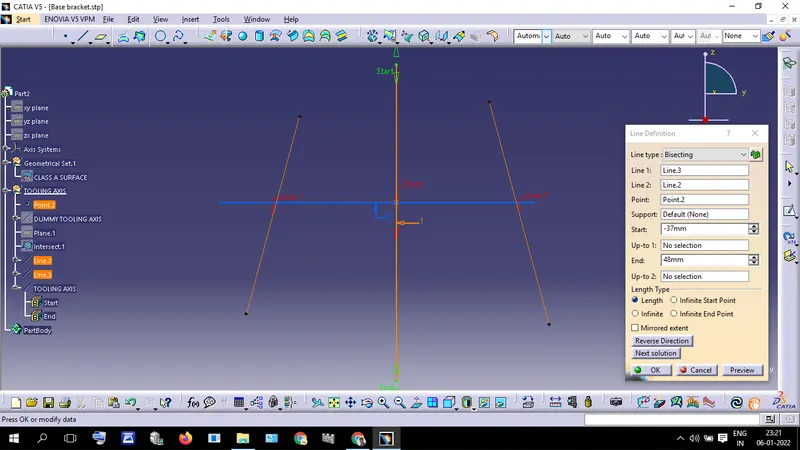

Draw a bisecting line which is tooling axis

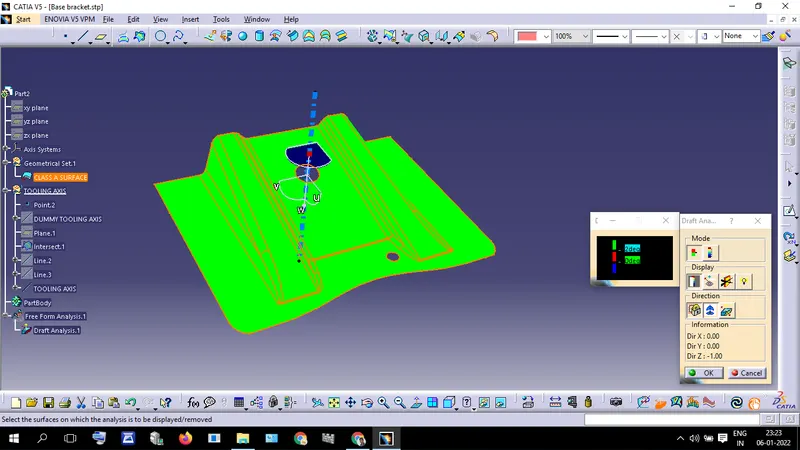

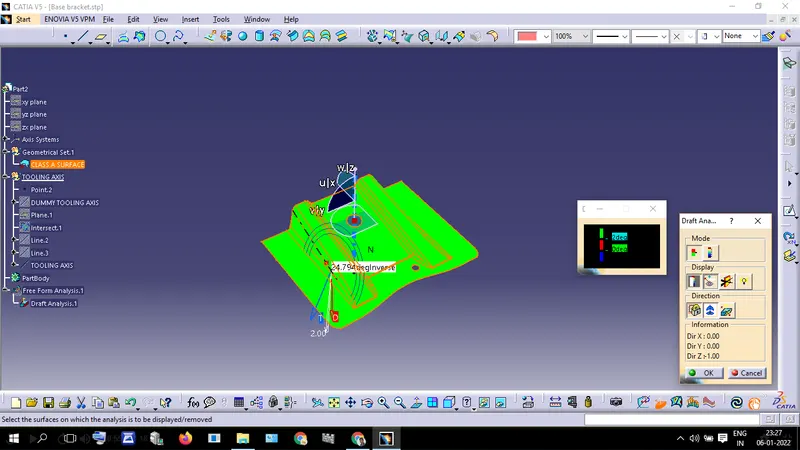

Analyze draft angle

The green color represents the draft angle is greater than the 2degree.

red Coor represents the draft angle is less than 2 degrees.

blue color represents the draft angle is less than 0 degrees.

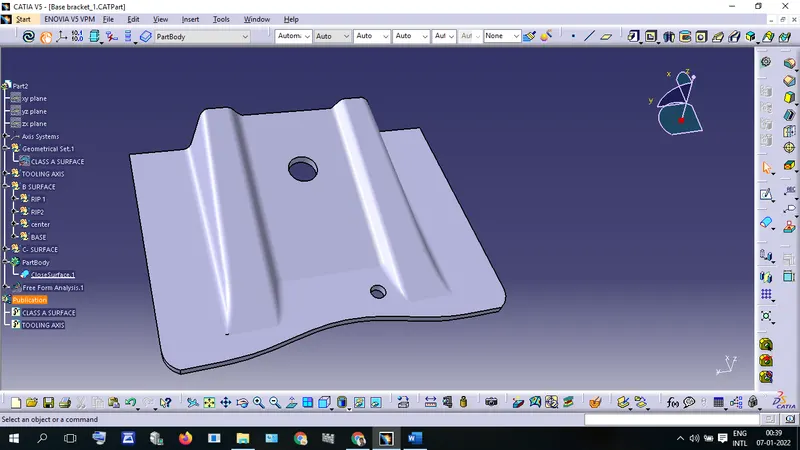

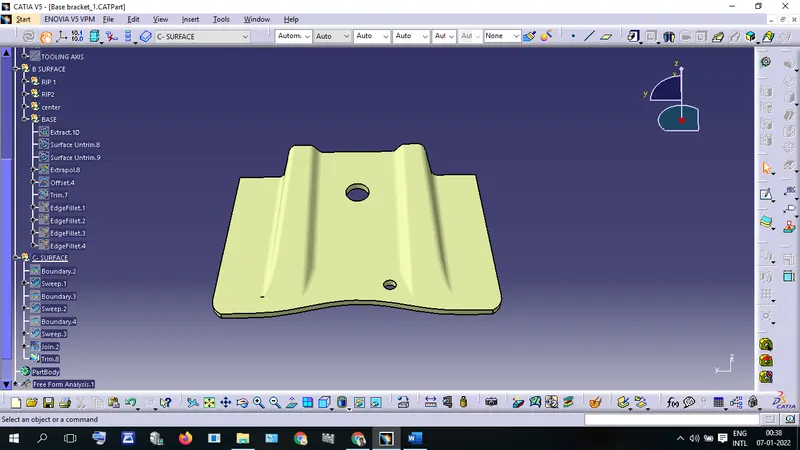

Thicken surface using the close surface tool in part design
