Fender Design - Wheel Arch Challenge
Objective
to calculate wheel arch area and determine wether the car is passed the test or noti
Introduction
wheel arch concept is especially used to enable the front wheels to steered
- it should maintain the required gap between arch and the tyre of the car
- it houses the wheel and it is in a semi circular in shape
EUROPIAN REQUIREMENTS FOR THE WHEEL ARCH PROGRAM

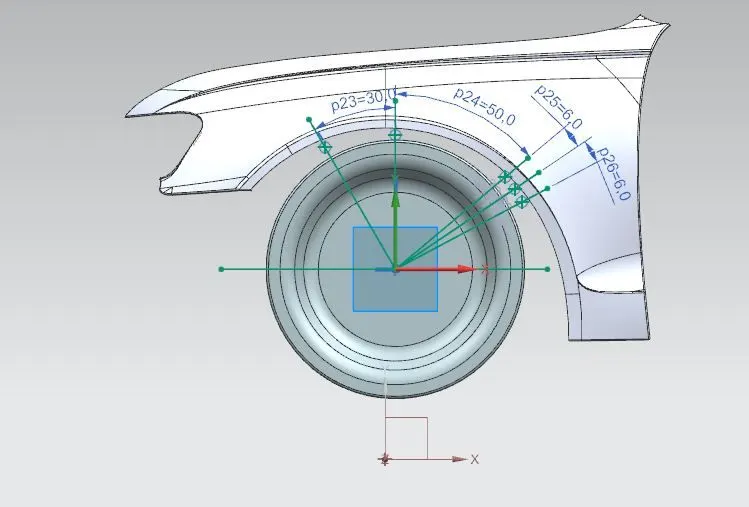

MEASURING SECTION AS PER REQUIREMENTS
| SECTION | REQUIRED CLEARANCE | OBTAINED CLEARENCE | RESULT |
| SA | 10 | 9.9485 IN | F |
| SB | 10 | 10 IN | P |
| SC | 10 | 0.113667 OUT | F |
| SD | 10 | 2.6309 OUT | F |
| SE | 10 | 5.4265 OUT | F |

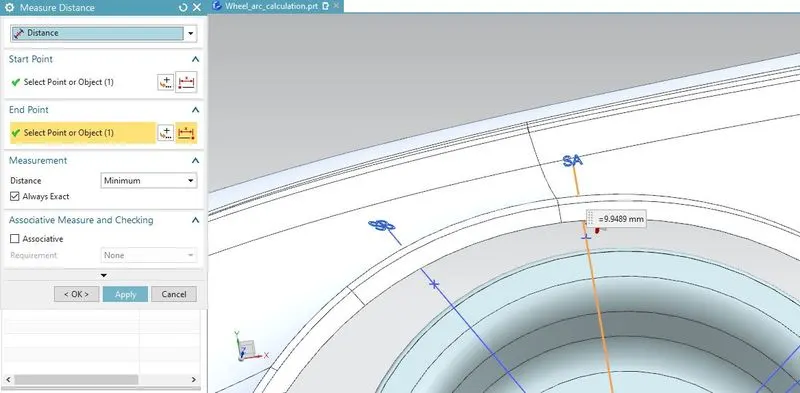

SA

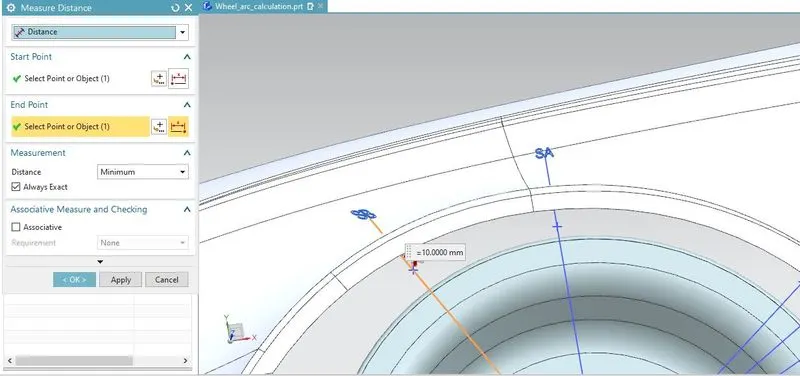

SB

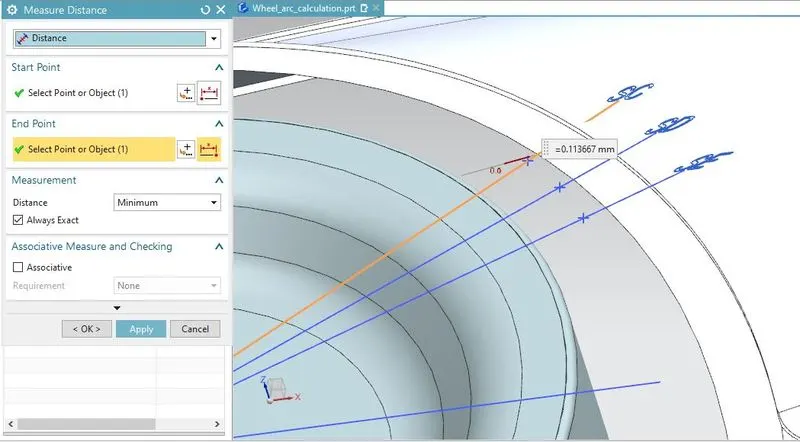

SC

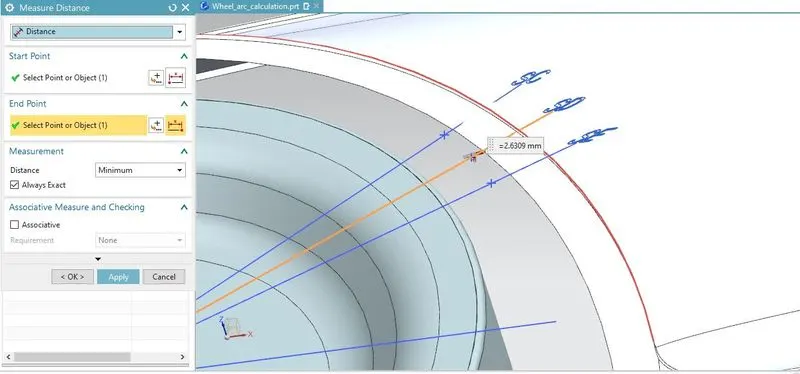

SD

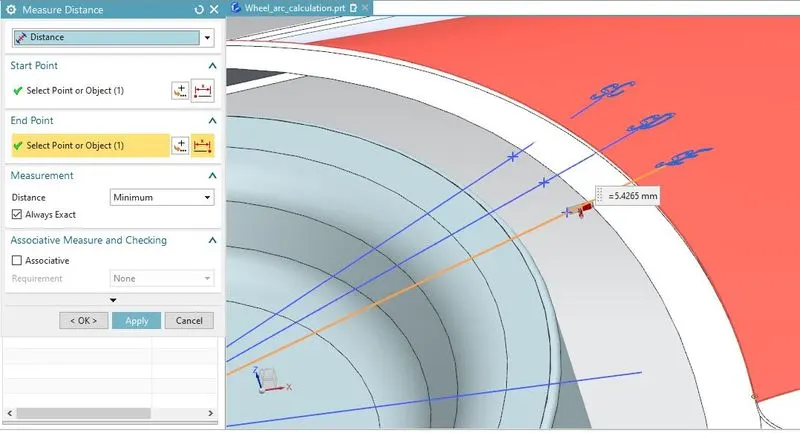

SE

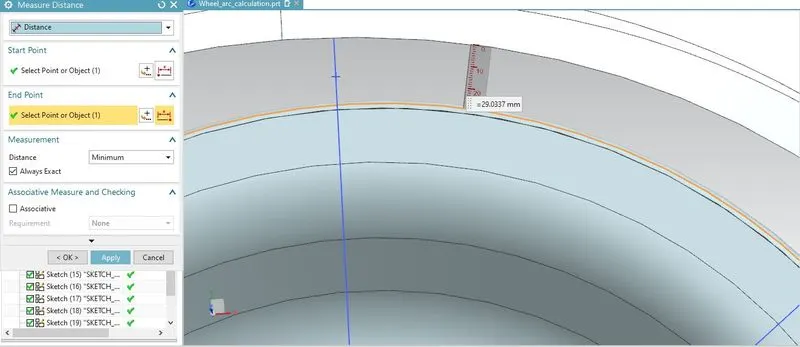

MINIMUM CLEARANCE
CONCLUSION
Hence the given wheel arch assembly is failed for the europian standards
