Fender Design - Wheel Arch Challenge

Objective:

To check whether the fender design will pass European standards .

Answer:

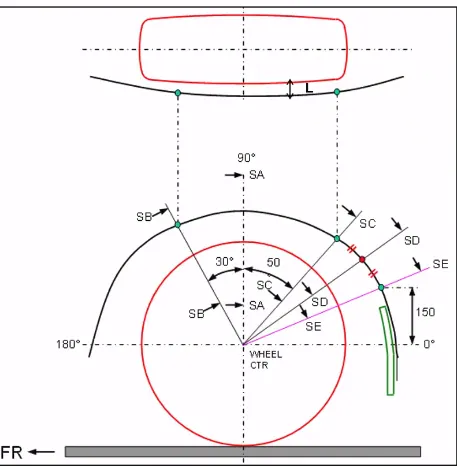

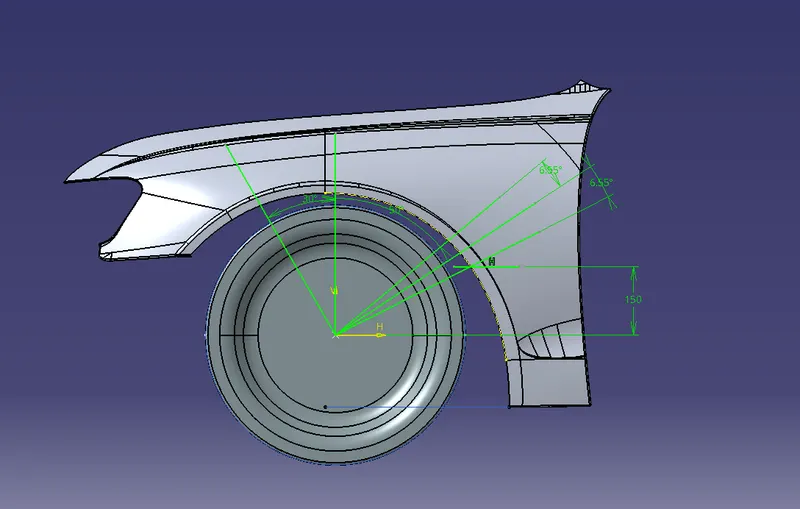

In order to pass EU standards , L at SA,SB,SC,SD,SE should be >10mm .

SL No                  Name                       Distance from fender   L in mm

1                          SA                                          10
2                          SB                                          24.78
3                          SC                                          0
4                          SD                                          0
5                          SE                                          2.072

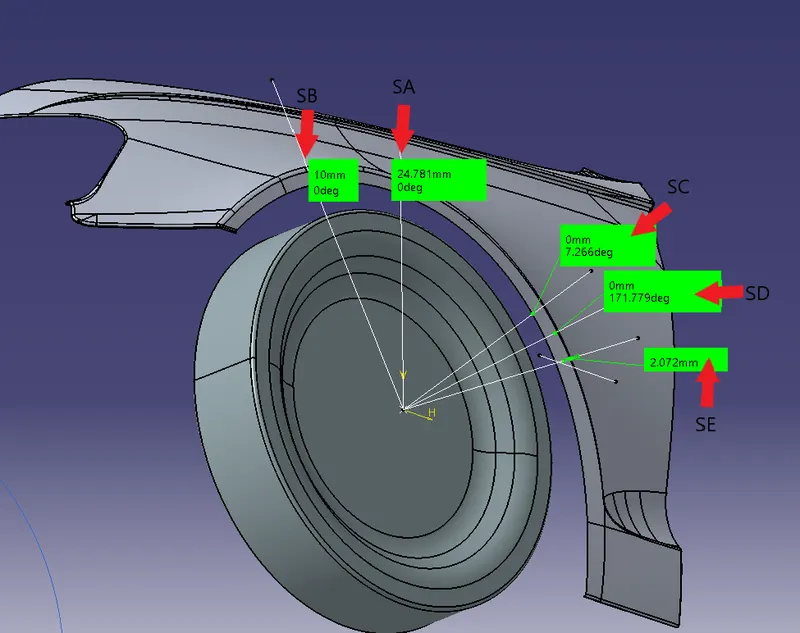

From the measurements we have taken , Fender region corresponding to SC,SD,SE does not meet the requirement of 10mm .

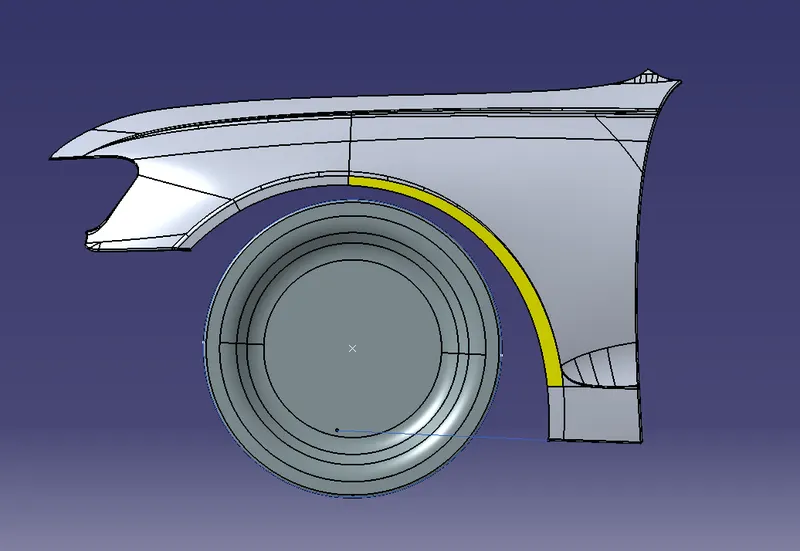

Hence the highlighted surface should protrude by 10mm towards viewing direction inorder to pass EU regulations.
