Week 2- 2R Robotic Arm Challenge
AIM: TO SIMULATE THE 'FORWARD KINEMATICS' OF A 2R ROBOTIC ARM USING MATLAB
OBJECTIVE:
1.Write a program to simulate forward kinematics of a 2R Robotic Arm
2.Animating and creating a movie from the plots obtained from the program

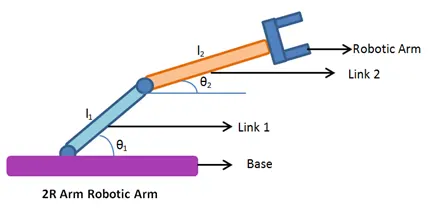

THEORY: A manipulator/end effector movement determines the workspace where the robotic arm can be applicable. Our motive is to animate the movement of robotic arm with the subsequent relative motion between the two-comprising links.
INPUTS:
(x0, y0) = starting point of link1
(x1, y1) = end point of link1 / starting point of link 2
(x2, y2) = end point of link 2
l1 = length of link attached to the base
l2 = length of link between the first link and the end effector
theta1 = angle made by link 1 with x-axis
theta2 = angle made by link 2 with x-axis
CODE:
% forward kinematics of 2R robotic arm manipulator
%inputs
l1=1;
l2=0.5;
theta1=linspace(0,90,10);
theta2=linspace(0,90,10);
ct=1
for i=1:length(theta1)
THETA1=theta1(i);
for j=1:length(theta2)
THETA2=theta2(j);
x0=0;
y0=0;
x1=l1*cosd(THETA1);
y1=l1*sind(THETA1);
x2=x1+cosd(THETA2);
y2=y1+sind(THETA2);
%plotting
plot([x0 x1],[y0 y1],[x1 x2],[y1 y2],'linewidth',3)
axis([-0.1 1.5 0 1.5])
pause (0.03)
M(ct)=getframe(gcf);
ct=ct+1;
end
end
movie(M)
videofile=VideoWriter('forward_kinematics.avi','Uncompressed AVI')
open(videofile)
writeVideo(videofile,M)
close(videofile)
EXPLANATION OF PROGRAM:
1.Initially we define the length of the robotic arms, i.e. l1 and
2.Set of values for theta1 and theta2 are assigned in and array with linspace command.
3.Use of for command for iterating the values of the desired variable.
4.Again using for command for providing movement to the second robotic arm.
5.Defining the coordinates of both the robotic arms.
6.Plotting all the coordinate values and writing commands for changing the appearance of the contours.
7.All figures are assigned to a variable M, one at a time using ct followed by termination of for loop.
8.Lastly, movie command is used to combine all the figures saved in the M file to make an animation/movie and thereafter saving it in .avi format.
ANIMATION LINK:
RESULT:
Thus we have created a program to simulate forward kinematics of a 2R Robotic Arm and animating a movie from the plots obtained from the program.
