Fender Design - Wheel Arch Challenge

CALCULATING WHEEL ARC AREA BY EUROPIAN STANDARDS.

- AS PER EUROPIAN STANDARDS OF CALCULATING WHEEL ARC AREA WE NEED TO HAVE 5 POINTS.

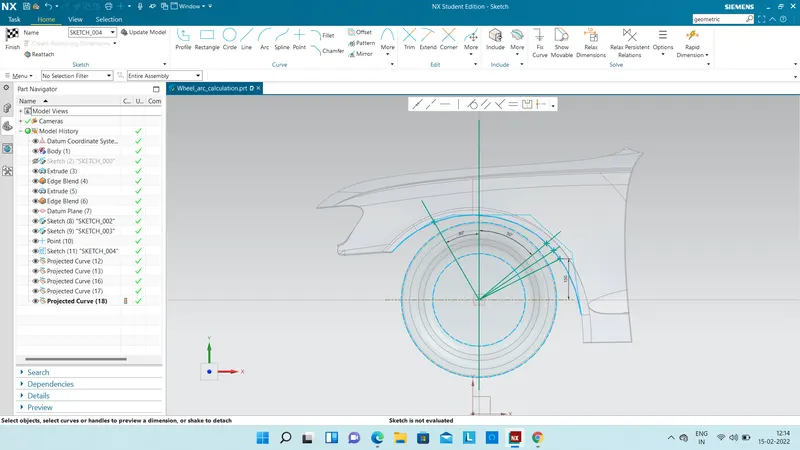

- FIRST WE CREATE A SKECTH WITH A CENTER POINT , AND WILL CREATE LINES AT 90 DEG , 30 DEG AND 50 DEG

- NOW WE 3 LINES AFTER THIS WE NEED TO A LINE AT 150 MM DISTANCE FROM THE ORIGIN SO WE CREATE A POINT ON FENDER ARC AND GIVE A DISTANCE OF 150 MM.

- NOW FROM THE 50 DEG LINE AND THIS LINE AT 150 MM WE CREATE A BISECTING LINE WHICH WILL BE OUR 5TH LINE.

- NOW WE HAVE 5 LINE , SO WE CAN A INTERSCTION POINT FROM ALL THOSE , SO WE GET FIVE INTERSECTION POINTS AS PER RULE.

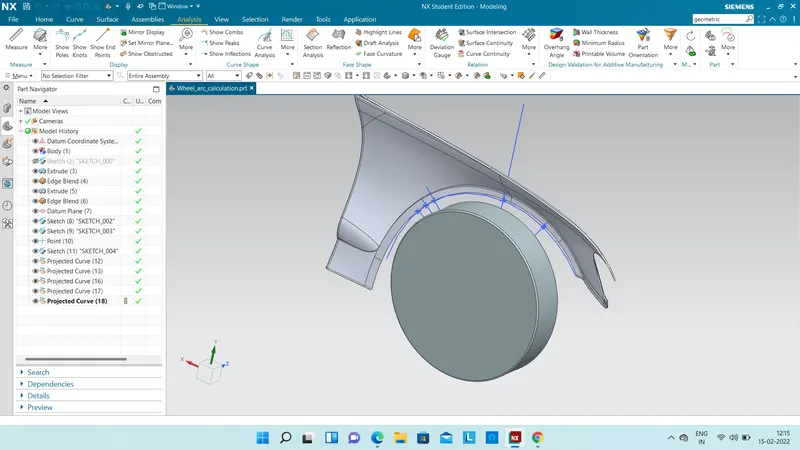

- THAN PROJECT THESE POINTS ON FENDER SURFACE , SO WILL FIVE MORE POINTS ON THE FENDER SURFACE.

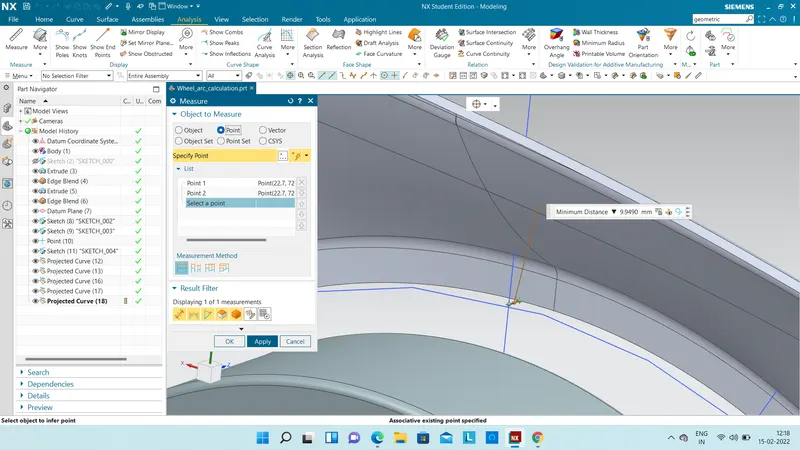

- NOW WE CAN THE DISTANCE BETWEEN TWO POITNS , FROM POINT - POINT DISTANCE.

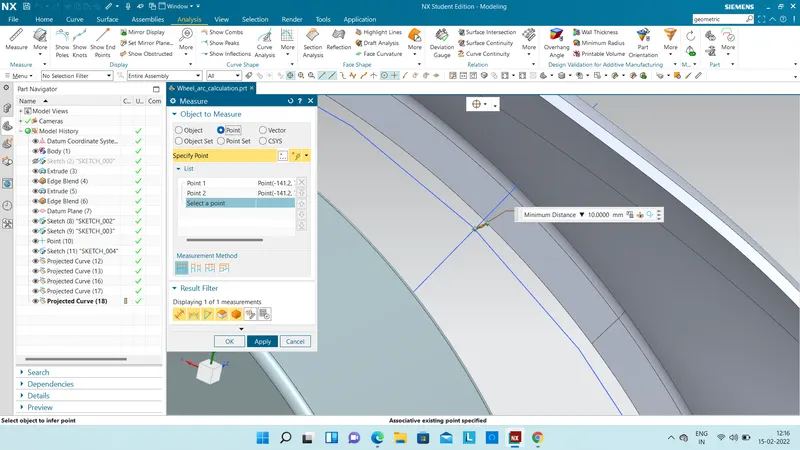

- SO I MEASURED FROM FIRST TWO POINTS AND FOUND THE DISTANCE TO BE 10 MM , SO YESS ITS PASSING THE EUROPIAN STANDARDS.

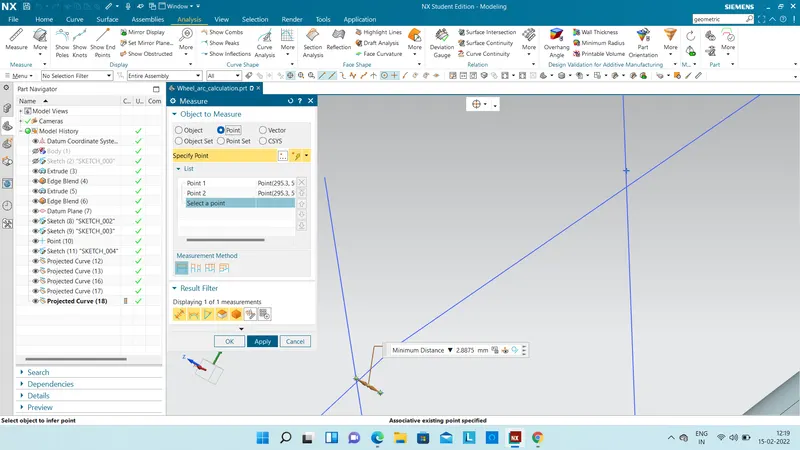

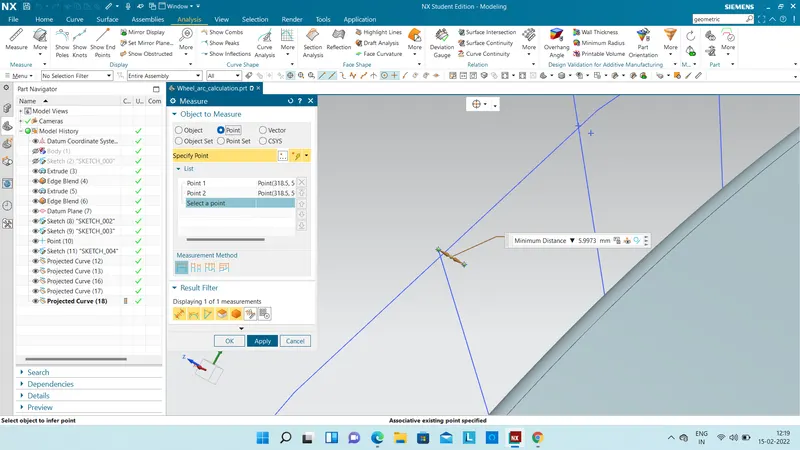

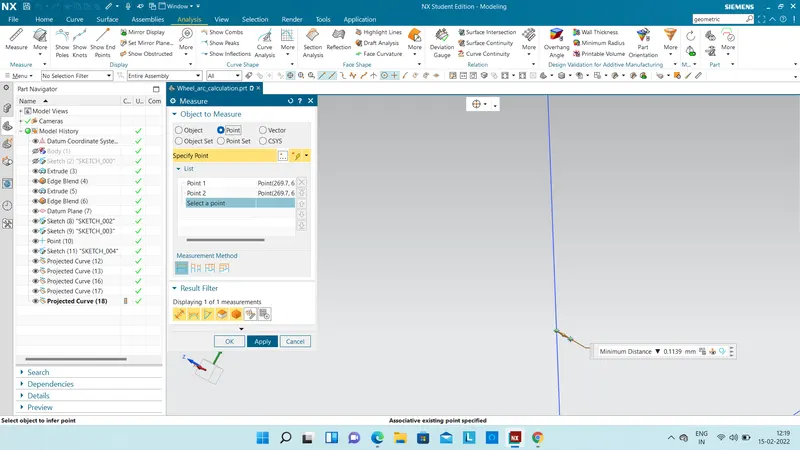

- SIMILARLY I MEASURED TO ALL THE REMAINING POINTS.

- AND YESS EVERY WERE IT WAS PASSING THE STANDARDS.
