Fender Design Challenge

Project Intention

Design a Master section for the given Class A surface of the Front Fender using engineering standards.

Fender

The fender is the part of the car's outer body. Each wheel of a car has a fender. This primary purpose is to prevent the sand, mud, rocks, liquids, and other roads spray from being through into the air by rotating the tire. this prevents injuries to pedestrians. there are two types of fender in a car front fender and Rear fender.

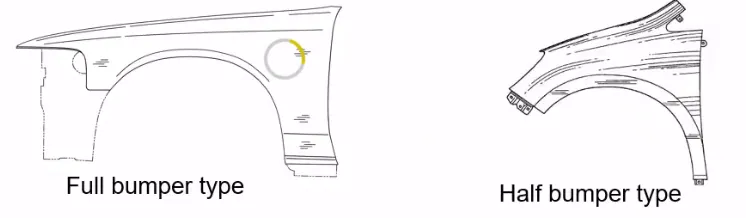

Types of Front Fender

1. Half Bumper Type

2. Full Bumper Type

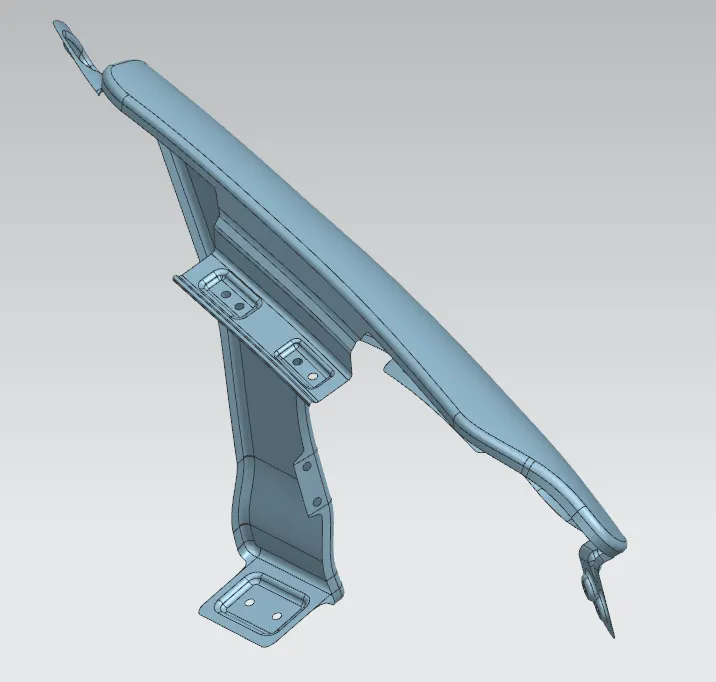

Mounting Area

There are five mounting points in a fender

1. Bumper

2. A-Pillar

3. Sill

4 Cowl

5. Drip

The fasteners are used to hold the Fender with these mounting areas.

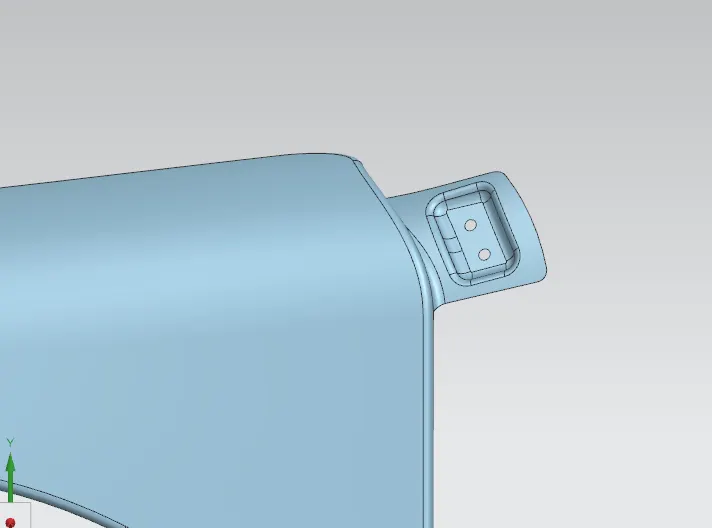

Bumper Mounting Area

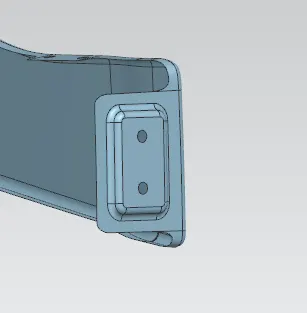

A-Pillar Mounting Area

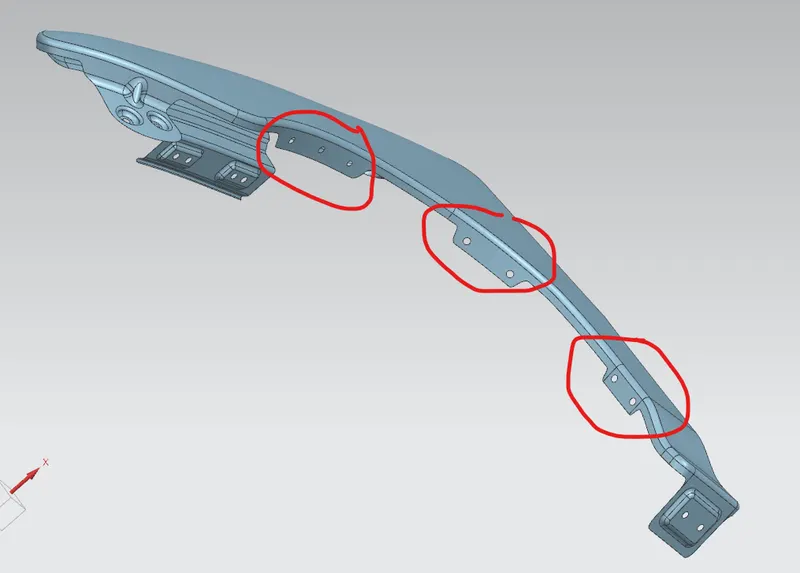

Sill Mounting Area

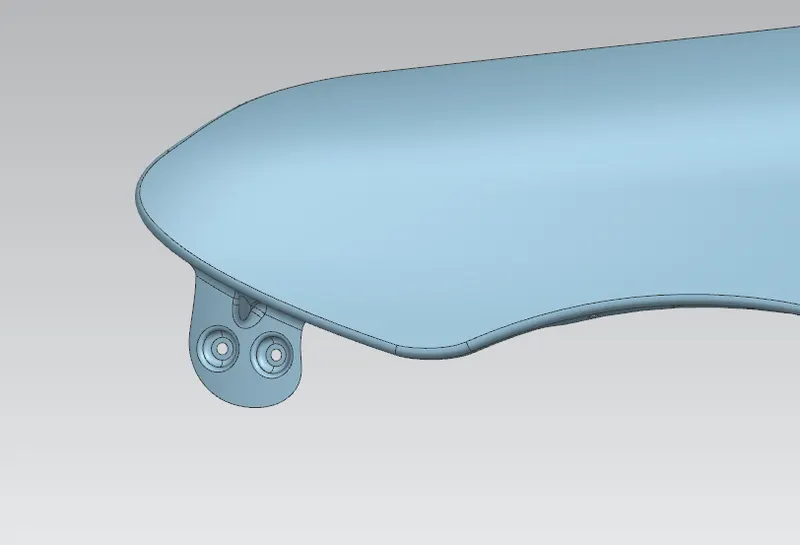

Drip mounting Area

Baffle(Splash) Mounting Area

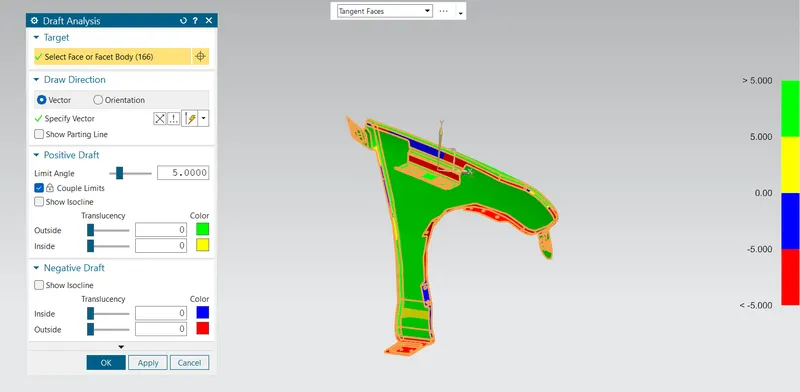

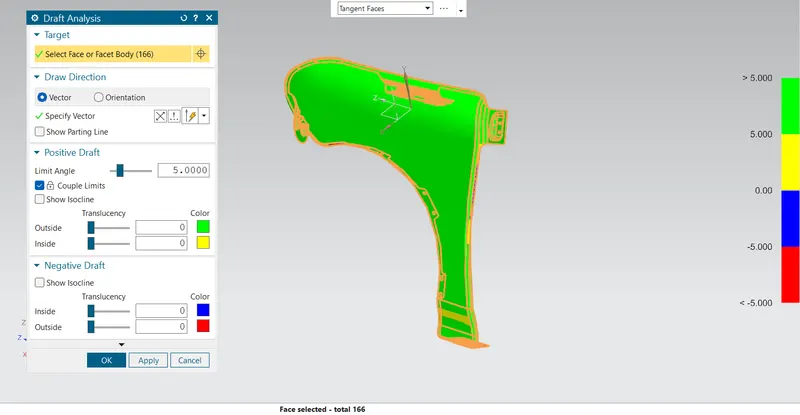

Draft analysis

Deep Drawing angle 20 Degree

Conclusion

Front Fender have designed using design standards.
