Fender Design Challenge

Fender - The main purpose of the fender is to not let the stones or other debris hit the engine compartment and the pedestrians from the wheels.

fender types- Full Bumper type

Half bumper type

Mounts on a fender - Drip mount

Sil mount

Baffle mount

Bumper mount

Design criteria - All edges must be blended as corners absorbs the shocks and easily breaks

2) Creating emboss to give strength to the part

3) Use darts to increase the strength

4) Use thickness as 0.75mm

Manufacturing process-

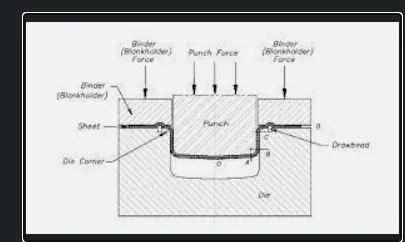

Stamping process- The process of giving the desirable shape using a press is called as a stamping process.

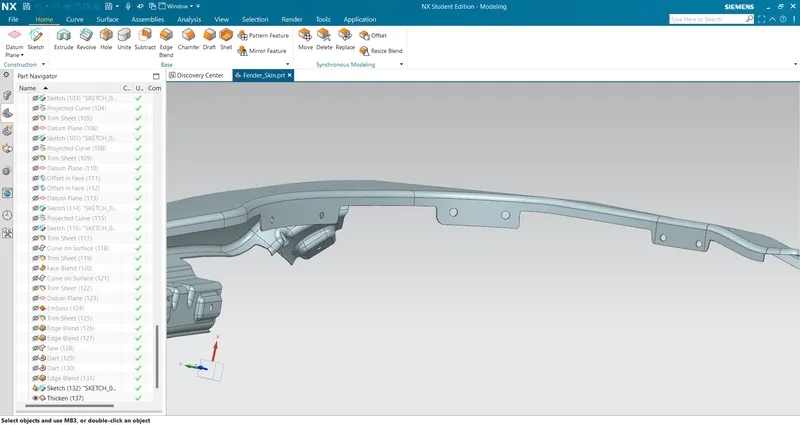

Drip mount -

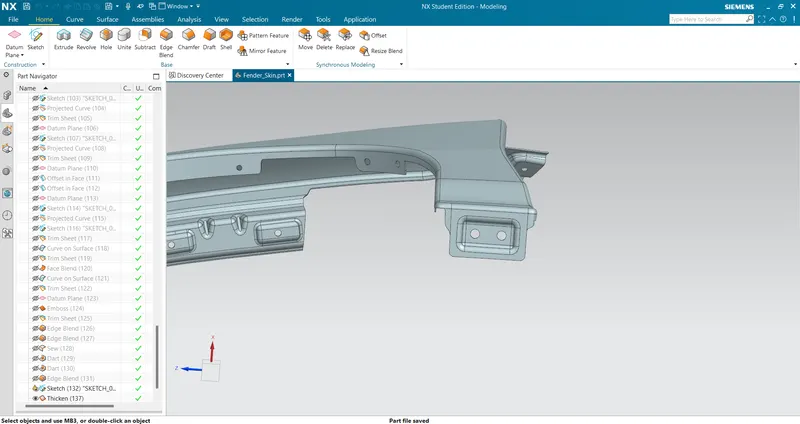

sil mount -

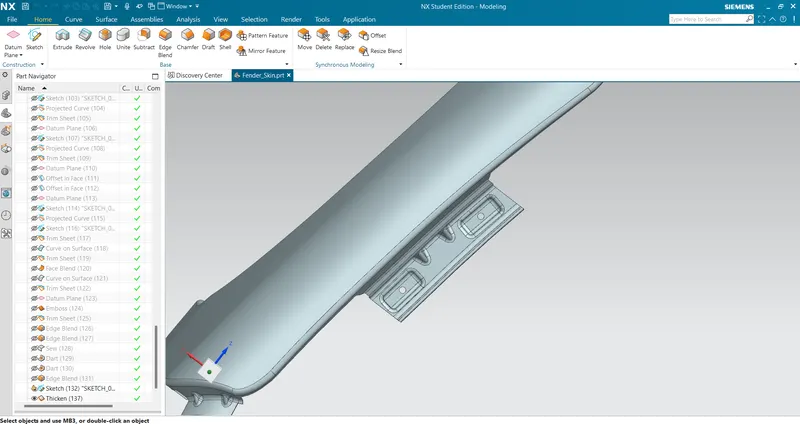

Baffle mount -

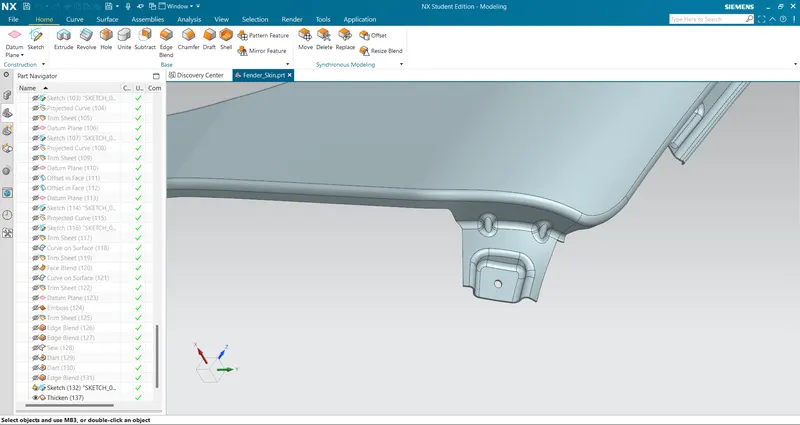

Bumper mount -

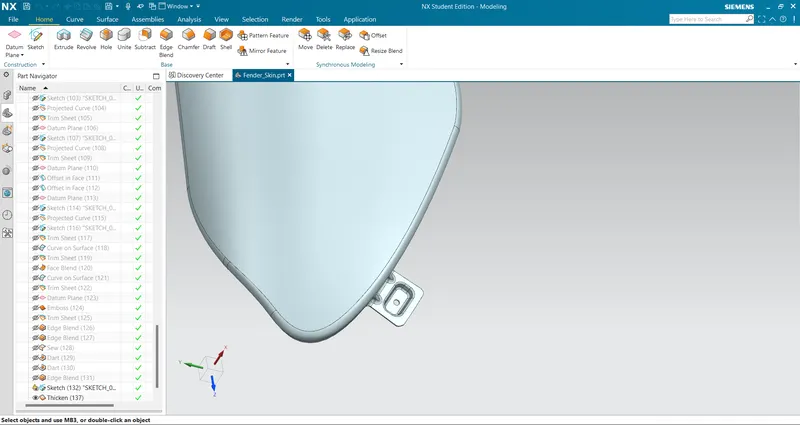

A- pillar mount -
