Fender Design Challenge

AIM: To design the Fender by creating the sill mount, bumper mount, A-pillar mount and drip area with the help of master section.

FENDER:

• Fender is the US English term for the part of an automobile (vehicle body) that frames a wheel well (the fender underside).
• Its primary purpose is to prevent sand, mud, rocks, liquids, and other road spray from being thrown into the air by the rotating tire.
• When vehicle is moving, tyres pick up stones and others and hurl them in all directions. Fenders are basically present to prevent any injuries to pedestrians and contain the motion of these particles
• Most passenger automobiles have four fenders, one over each wheel. For vehicles with a narrow car body that exposes the tire, the fender is an exposed curve over the top of the tire. For wide body vehicles that cover the tire, the fender forms the wheel well surrounding the tire, and is not directly visible from above the car body.
• Wheel wells tend to be much larger than the diameter of the tire, because they do not move with the tire suspension and consequently must be large enough to allow the full range of tire motion on the suspension without touching the interior of the wheel well.
• More elaborate designs include fender skirts for enclosing the outside edge of the wheel well, and stylized pontoon fenders for exposed fenders.

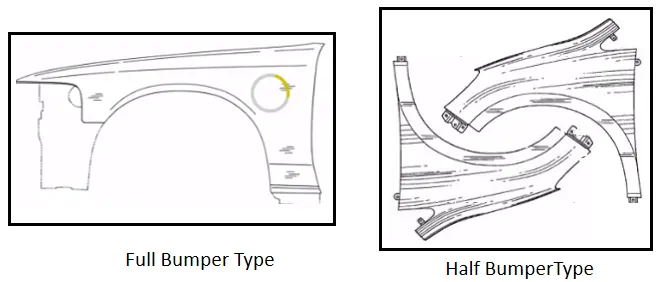

TYPES OF FENDER:

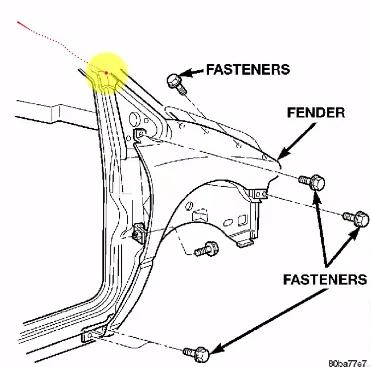

FENDER MOUNTING:

There are five mounting points ina a fender:-

• Body
• A-pillar
• Sill
• Cowl
• Drip

MASTER SECTION FOR DRIP AREA:

INPUT:

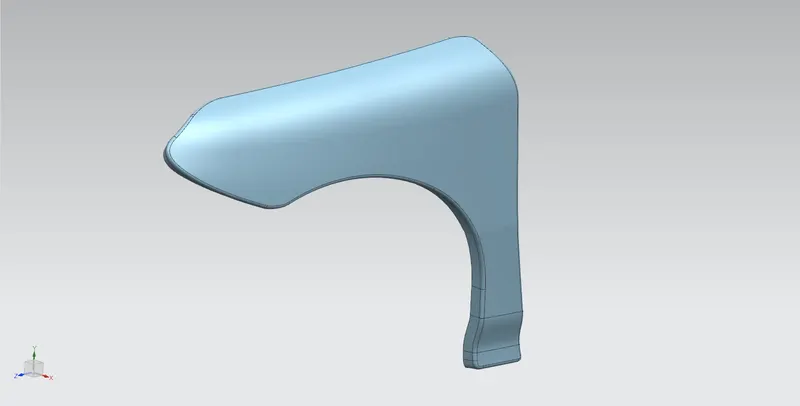

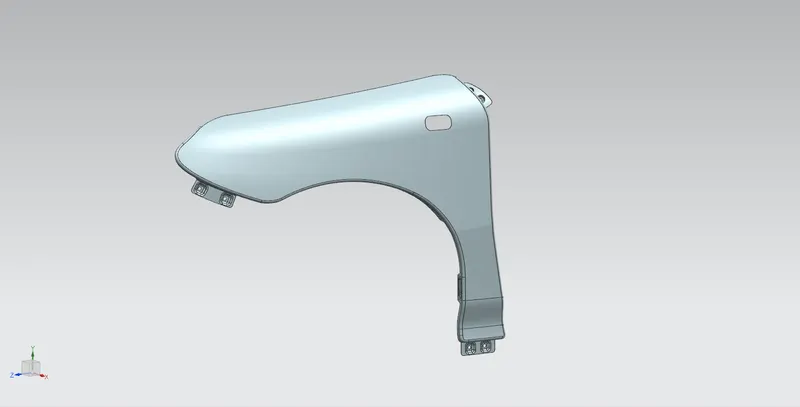

FINAL FENDER:

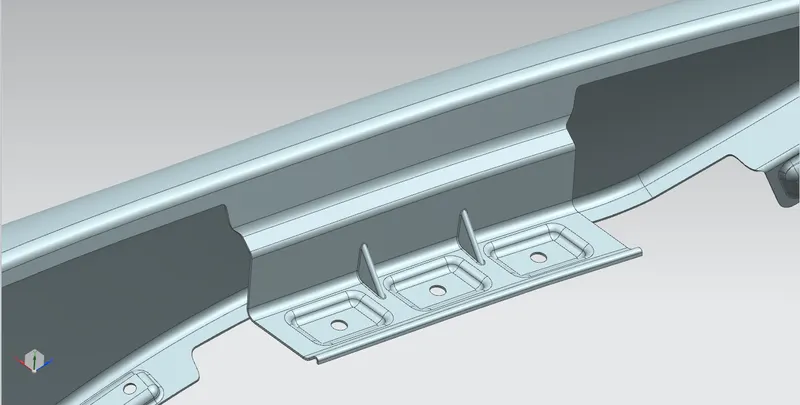

DRIP AREA:

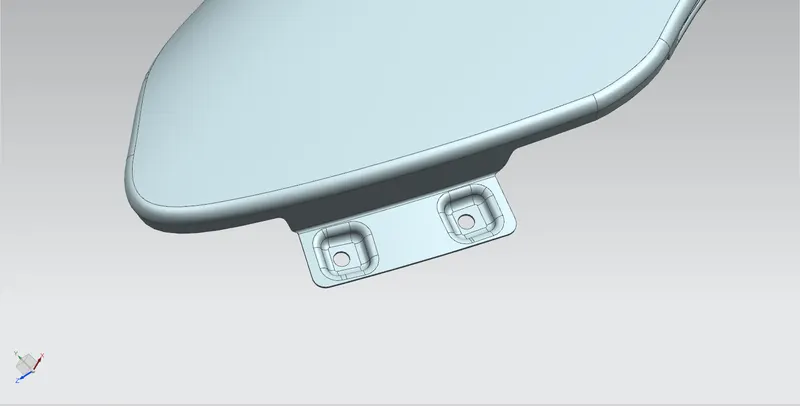

BUMPER MOUNT:

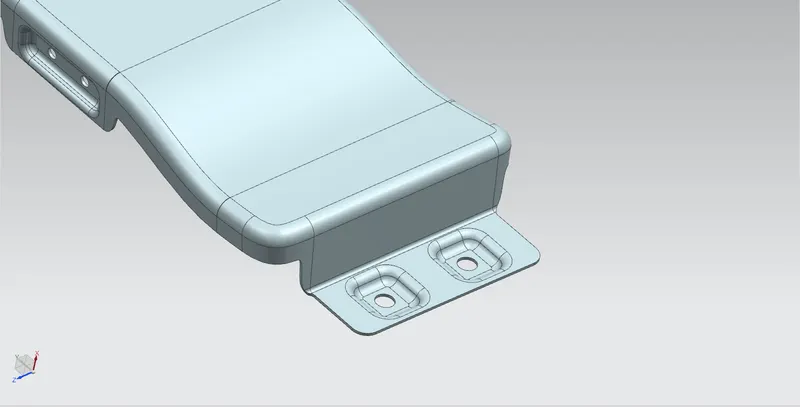

SILL MOUNT:

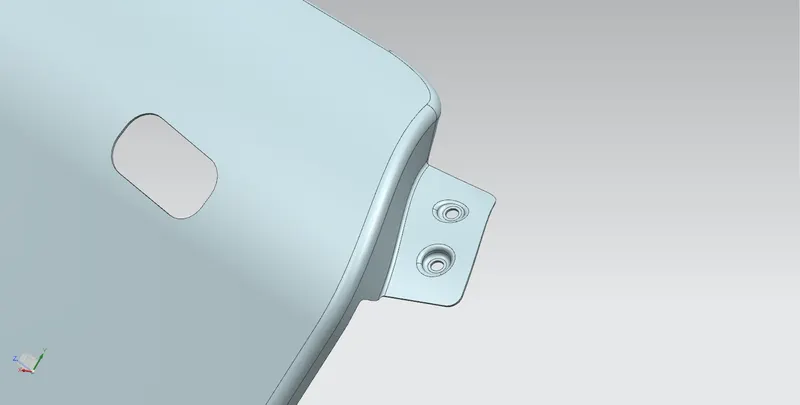

A-PILLAR/BODY MOUNT:

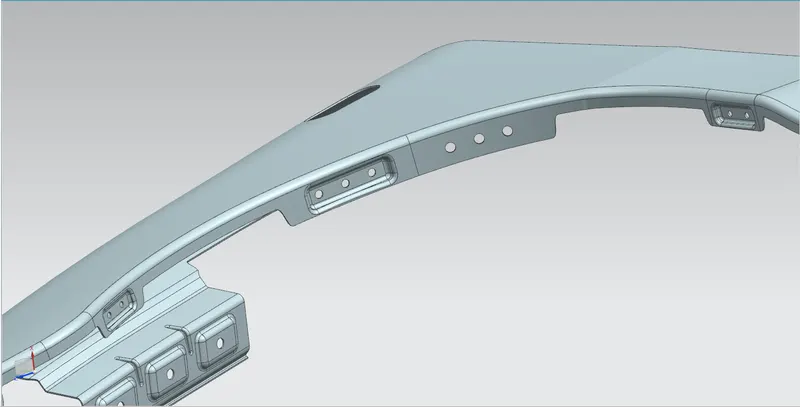

BAFFLE REGION:
