Fender Design Challenge

OBJECTIVE
The main objective of these projects is to design a front fender from given skin data and the master section provided with drip, bumper, A-pillar, splash, and sill mounting areas in NX cad.

FENDER
Fender is the American English term for the part of an automobile, motorcycle, or other vehicle body that frames a wheel well. Its primary purpose is to prevent sand, mud, rocks, liquids, and other roads spray from being thrown into the air by the rotating tire.

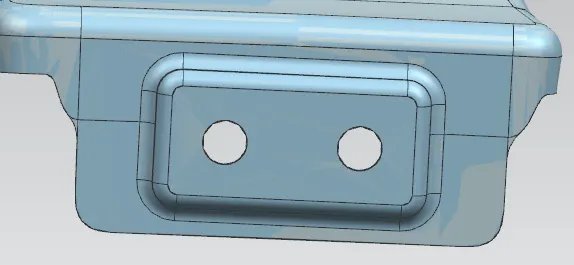

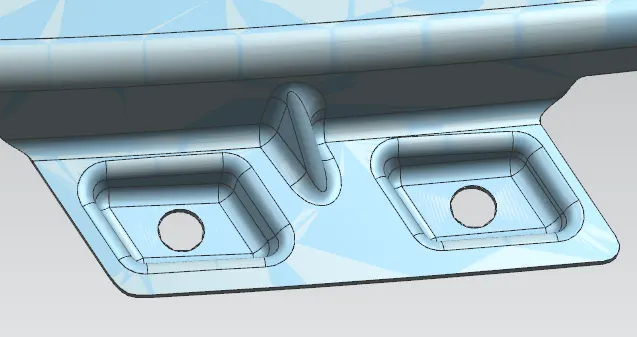

Mounting area in the fender

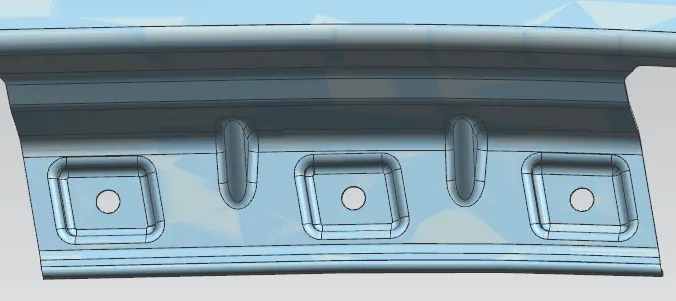

Drip area

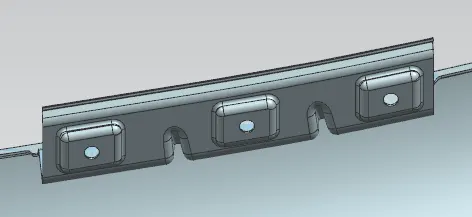

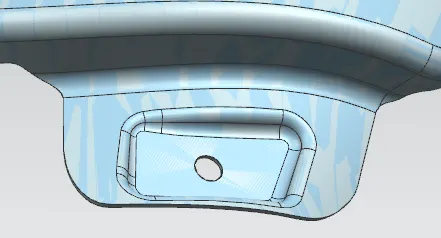

Sill mounting

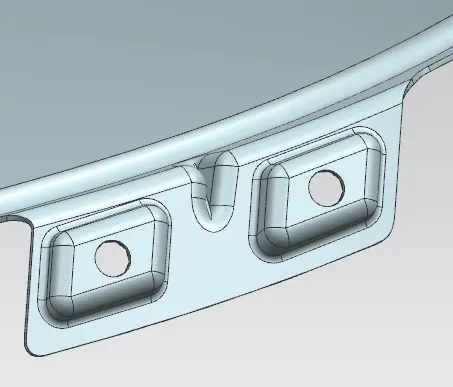

Bumper mounting

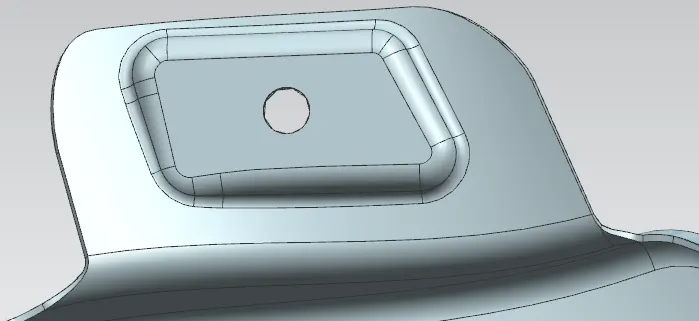

A pillar mounting
Splash cover mounting

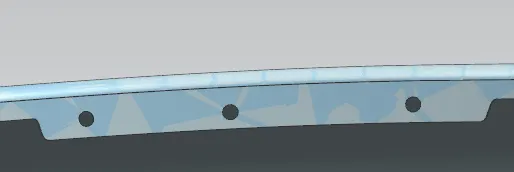

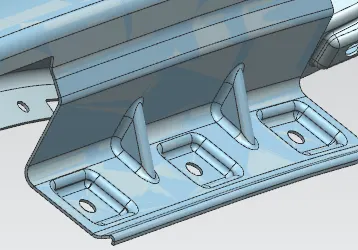

Drip area
It is the area in which the fender is to be fastened to the engine housing. The drip area should have been designed as per the master section, from the front side of the fender there should be 150mm clearance from the headlamp and 200mm clearance from the A-pillar mounting.

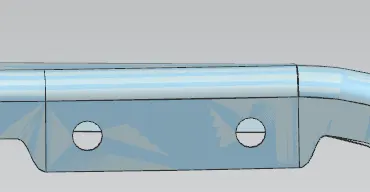

Sill mounting
The sill mounting area is at the bottom of the fender. it is mostly get connected to the door region of the car.

Bumper mounting

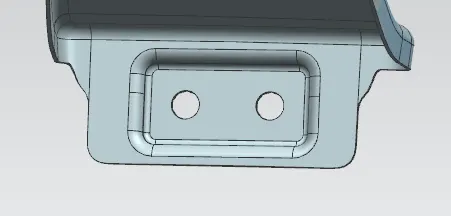

The bumper mounting fender is connected to the bumper.

A-pillar mounting
A-pillar is the front windshield, The fender A-pillar mounting is fastened to the outer side view mirrors.

Splash cover mounting
The fender splash cover mounting is seen above the wheel. it is used to connect skirts or guards with the fenders.

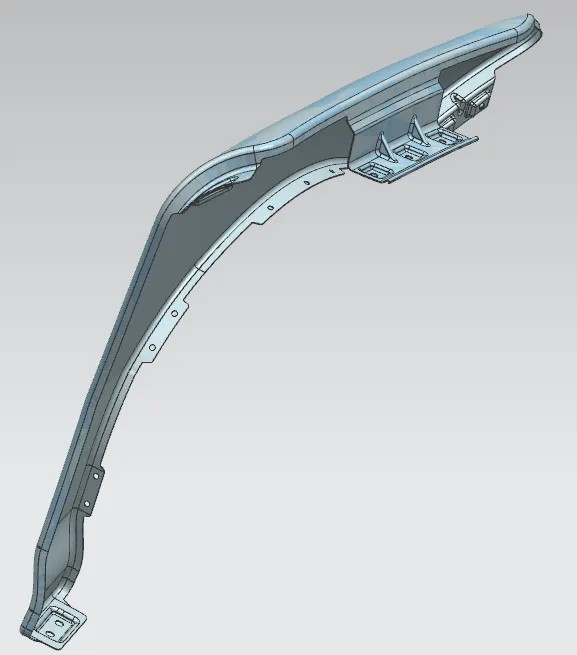

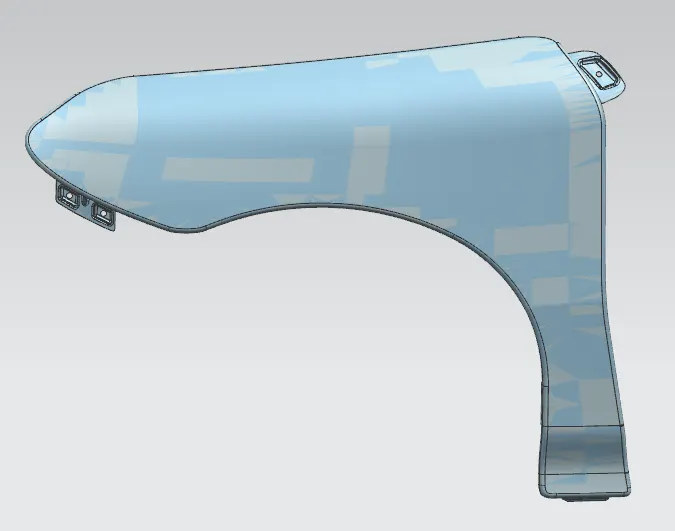

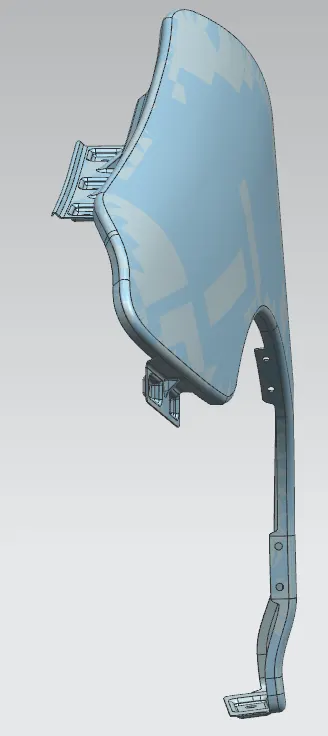

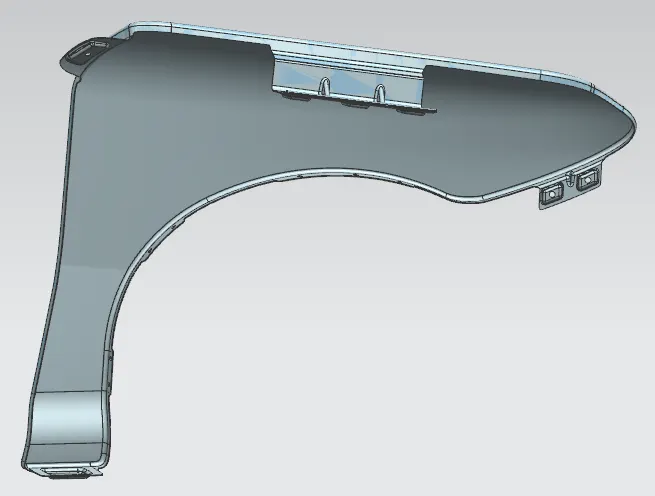

Overall design veiws of fender

Conclusion
Thus the Drip area, A-pillar, Sill area, Bumper mounting, Splash mounting, C-mounting are designed on the fender as per the master section by using NX Cad.
