Fender Design

FENDER DESIGN

FENDER IS THE FRONT SIDE CLOSING CAR BODY.

IT IS FIXED BY FIVE POINTS.

1)A PILLAR

2)DRIP

3)SILL

4)BUMPER

5)BAFFLE

IN GIVEN MODEL THE FLANGE LENGTH IS MORE THAN ENOUGH.SO WE TRIMMED IT UPTO 5MM FROM OUTER SURFACE.

AT JOINING POINTS I DID'NT TRIMMED THAT FLANGE.

USING LAW EXTENSION COMMAND ,WE INCREASED FLENGE LENGTH UPTO REQUIRED SIZE.

FOR CREATING DRIP AREA ,WE HAVE TO REFFER GIVEN MASTER SECTION.

SHARPEDGES CORRECTED BY USING BLEND COMMANDS.PROPER RADIUS PROVIDED FOR ALL FILLETS.

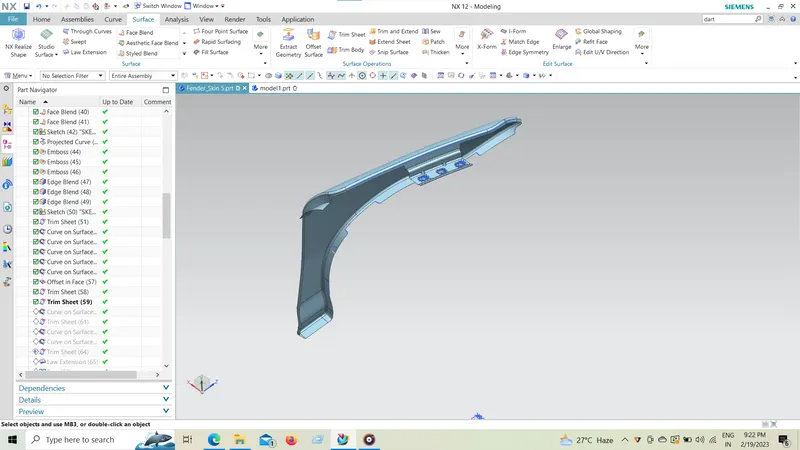

WE NEED FLAT SURFACE FOR FIXING THE FENDER. FOR THAT WE NEED TO CREATE EMBOSSING AT REQUIRED PLACES.

EMBOSSING CREATED WITH DRAFT ANGLE OF 7 DEGREE.

STANDRAD DRAFTING ANGLE FOR SHEET IS MINIMUM 7 DEGREE.

THEN HOLES PROVIDED FOR FIXING PURPOSE.THERE I USED 3MM DIAMETER HOLES.

WHILE HOLES CREATION ,WE HAVE TO MAINTAIN GAP AROUND THE HOLE FOR BOLT HEAD SEATING.

HOLES PROVISION ALSO PROVIDED FOR BAFFLE FIXING.

RIBS ALSO PROVIDED AS SUPPORT AT ALL PERPENDICULA FLANGES.

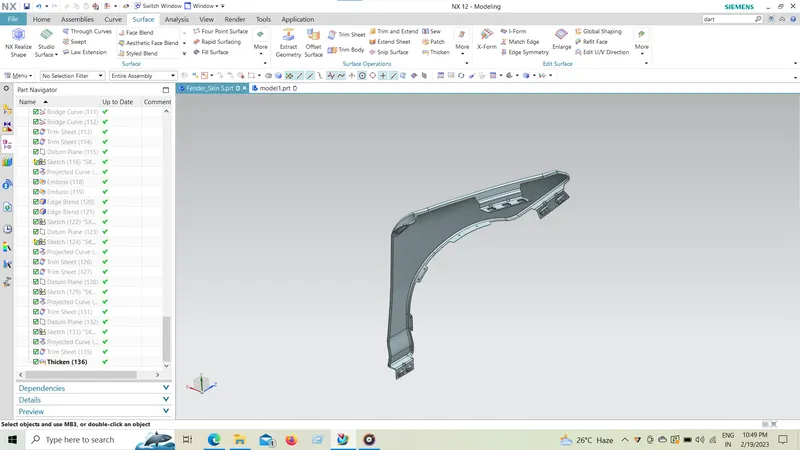

THEN CONVERTED INTO THICKENN FOR 0.75MM.

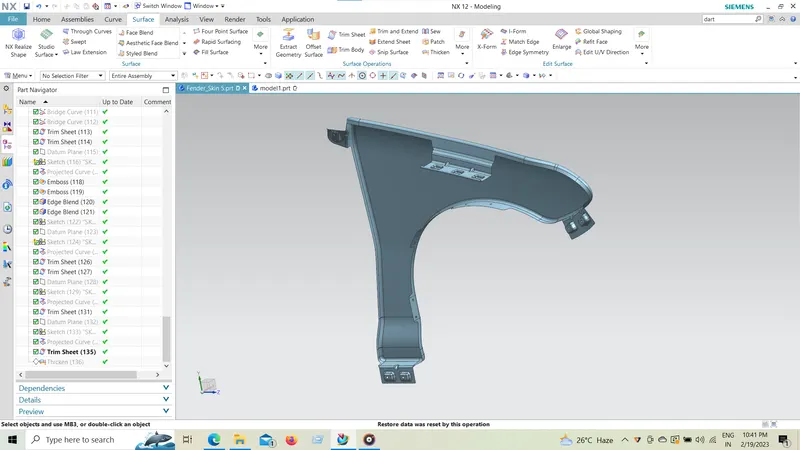

FINAL FENDER MODEL CREATED.
