Fender Design

Aim

To design a fender with the necessary mounts such as- bumper, a-pillar, sill, cowl and drip.

Fender

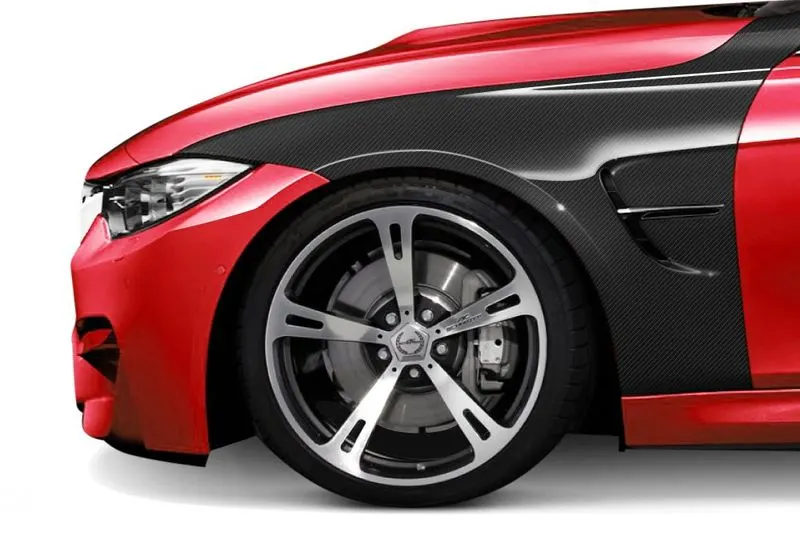

A fender is the part of a car, truck, motorcycle, or other vehicles that frames or covers a wheel well. Its main purpose is to prevent debris, rocks, mud, liquids, sand, and other road debris from getting thrown in the air while the tires rotate.

The “fender” typically refers to the front panel that covers the front wheels, and the “quarter panel” typically refers to the rear panel that covers the wheel that also includes the roof pillar. The “bumper” is the front and rear ends of a motor vehicle to absorb impact in a minor collision.

The fender car part is the body kit or body part installed on the left and right sides of the vehicle. Manufacturers usually attach fenders to the wheel arches. There are different reasons why they are a requirement in vehicles. One obvious reason is to improve the aesthetics of the vehicle.

Fenders also enhance the car’s aerodynamics. So, the primary purpose of the fender car part is to keep road debris of all kinds from being thrown around by the tires of your car. You can say that fenders are housings for wheels that contain or control road debris. If there is nothing that covers your wheels, road debris will always fly around when you drive your car.

The different types of fenders are:

• Full Bumper type

• Half Bumper type

A half bumper reduces the weight of the fender thereby increase the performance. It also reduces the cost of manufacturing.

Master section

Master section for drip area mount is given below:

Mountings on bumper

The different bumper mountings are:

1. Drip area mount

 Drip area mount will be mounted to the engine compartment.

2. Bumper mount

3. A-Pillar mount

4. Sill mount

5. Baffle mount

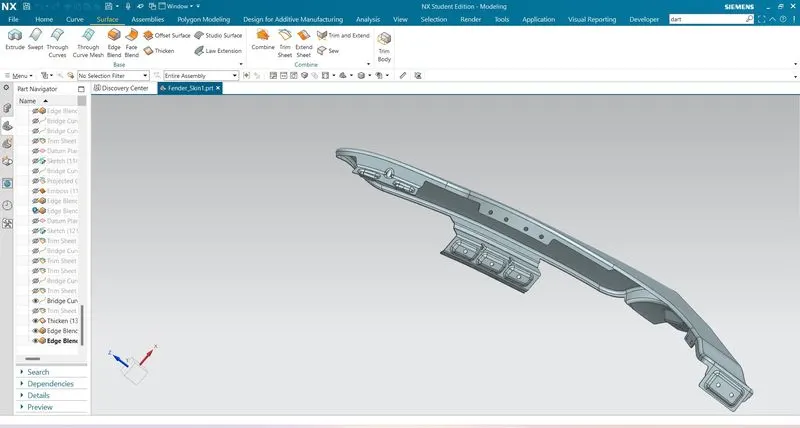

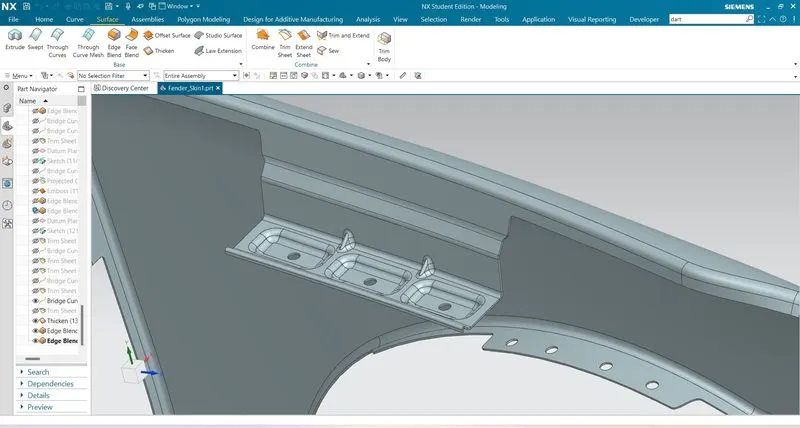

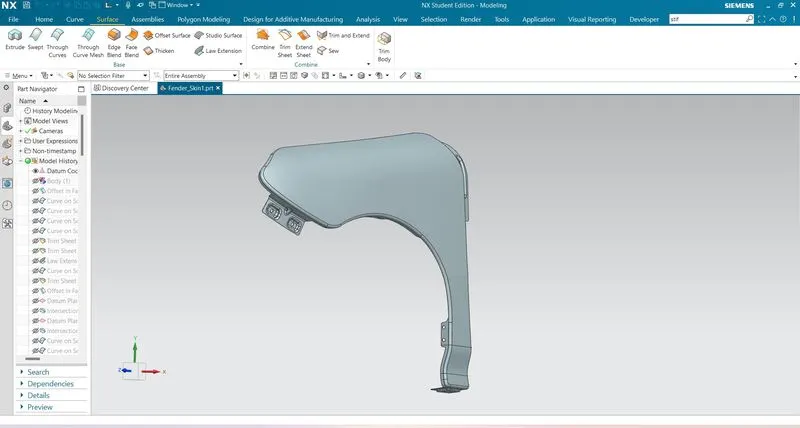

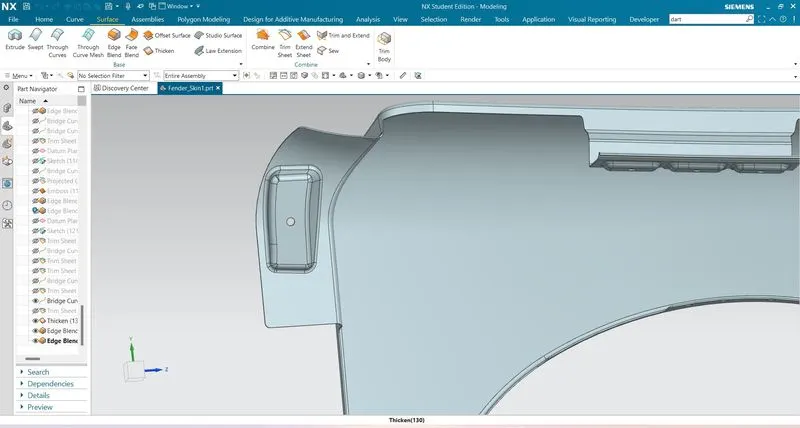

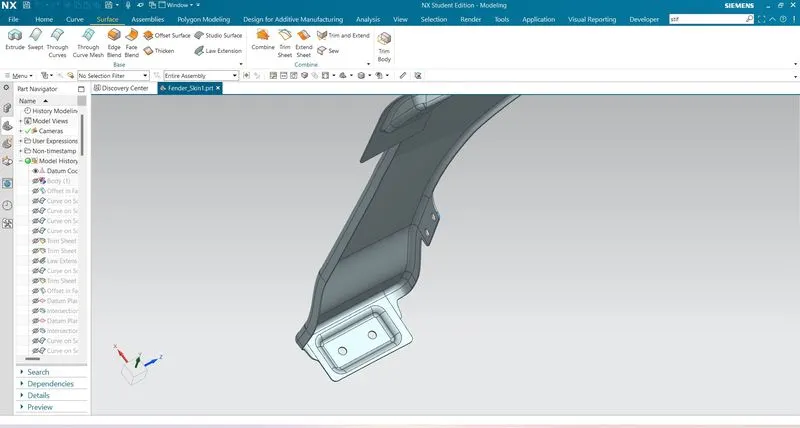

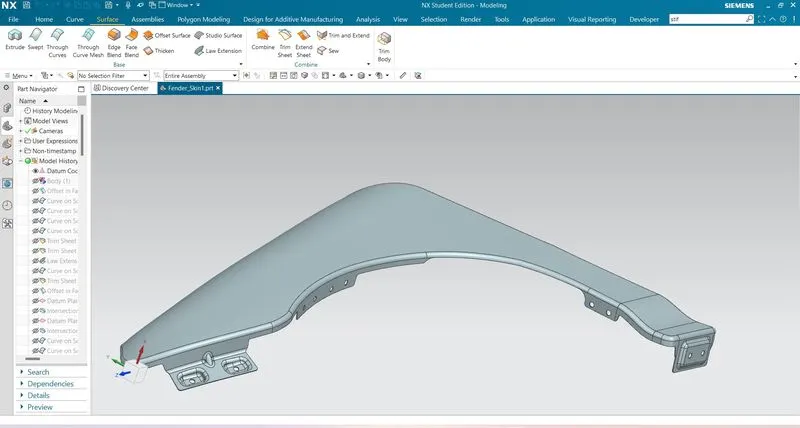

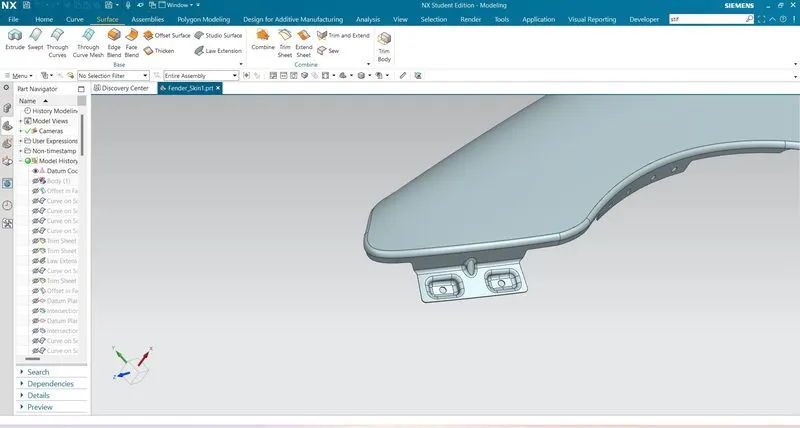

Results

Conclusion

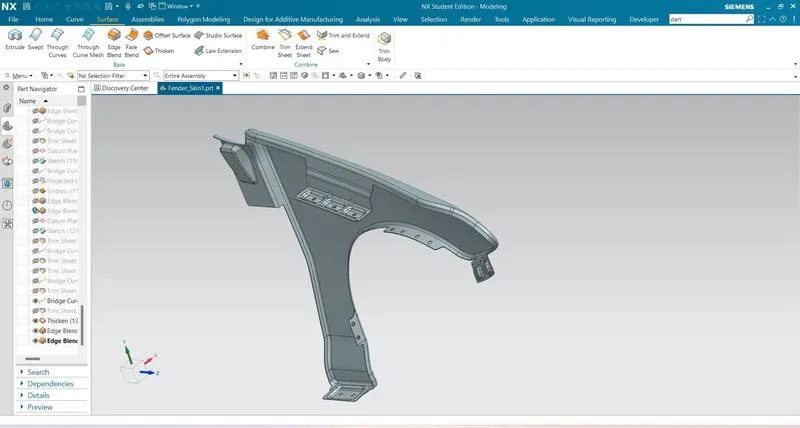

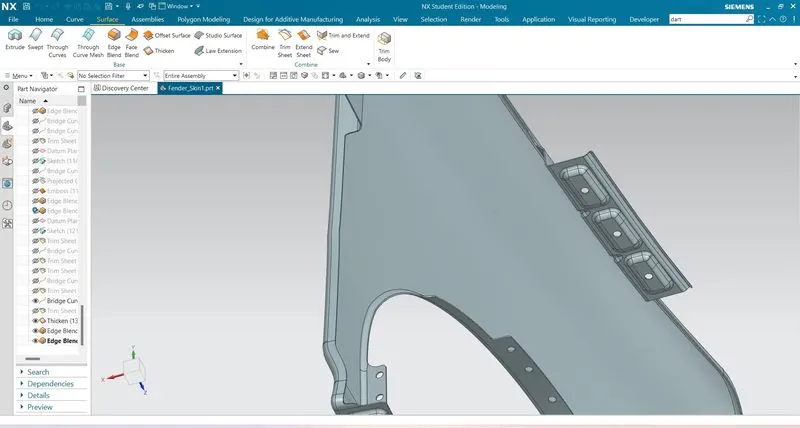

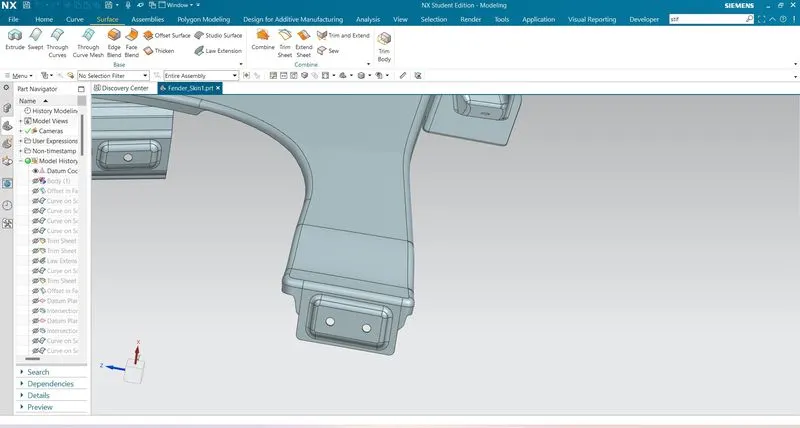

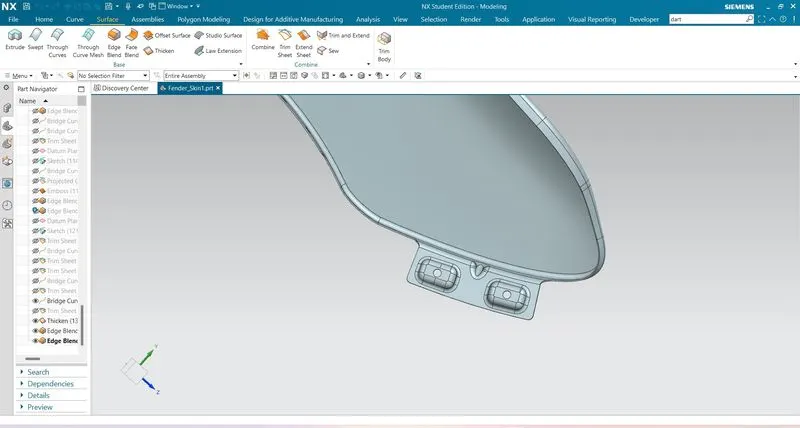

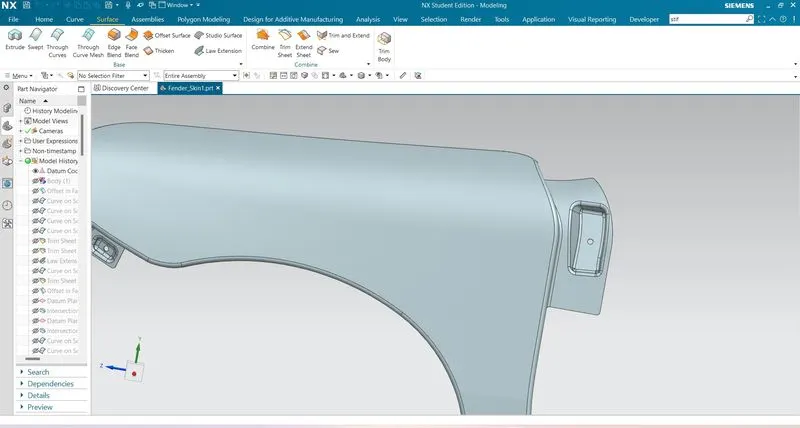

The fender with the necessary mounts such as- bumper, a-pillar, sill, cowl and drip has been designed on NX CAD software(student edition).
