Door Arm Rest Week 8 Challenge

Aim:

To create Door Arm rest and add thickness to it By using line bisecting method.

Procedure:

Tooling axis creation:

• tooling axis is an axis in which the opening af core and cavity occurs.
• first the direction for the tooling axis was determined and then the base area was extracted using multipe extract option.
• after creating the extract the point should be inserted to the surface for determining the axis.

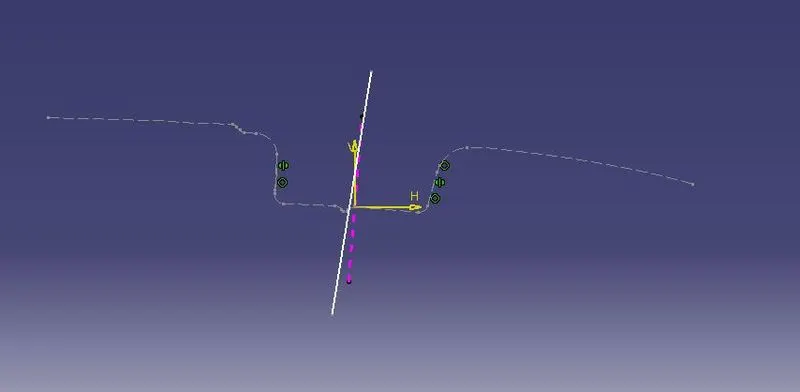

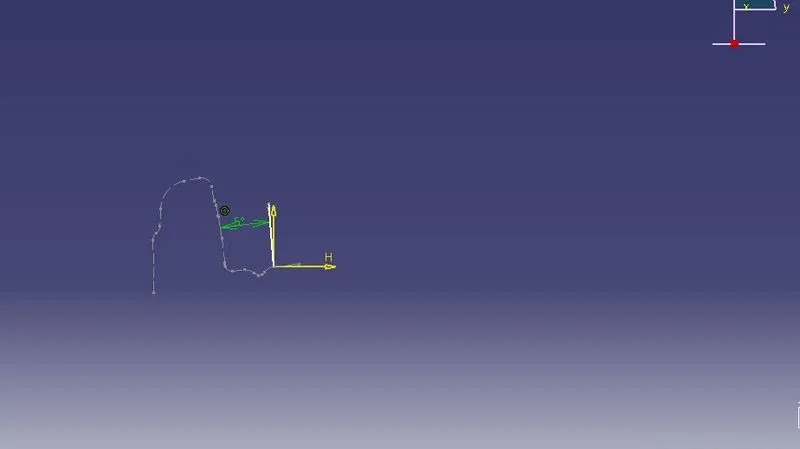

• intersection between the side walls taken and then line was inserted to the intersection line and centre line was created by the line bisecting method. bisecting lines are the lines which will be created between two line bisecting them and it is the major key factor in creating the tooling axis.

• After that bisecting line was created in Y direction and then the line was angled to 5 degree to optain the draft results.

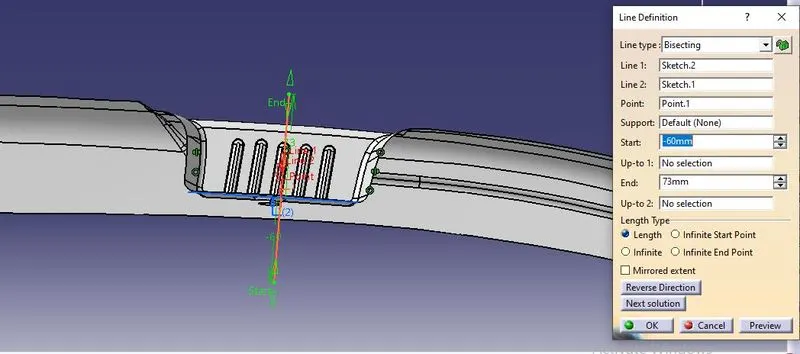

• After that the tooling lineis created using the line bisecting option. In that option the x line and the y line was selected with the point1. that line as the tooling axis for the door arm rest.
•

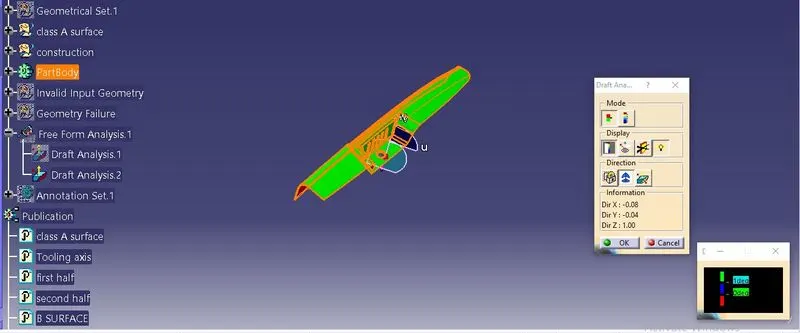

DRAFT ANALYSIS FOR THE GIVEN CLASS A SURFACE

• To create the draft analysis first the view parameter should be changed to the material mode.
•
• the draft analysis was created by feature draft analysis method. the colour scale indicates the degree of the draft .

CLASS B AND C SURFACE:

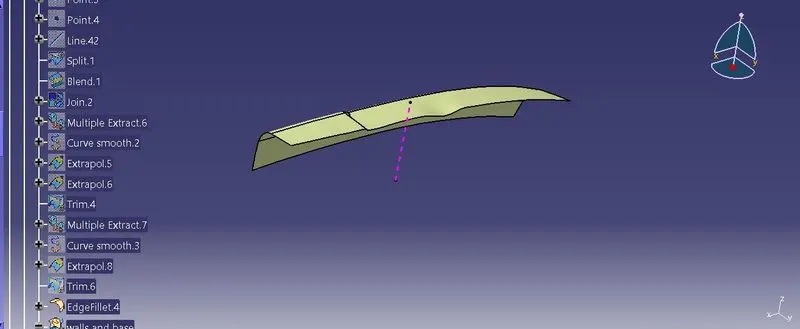

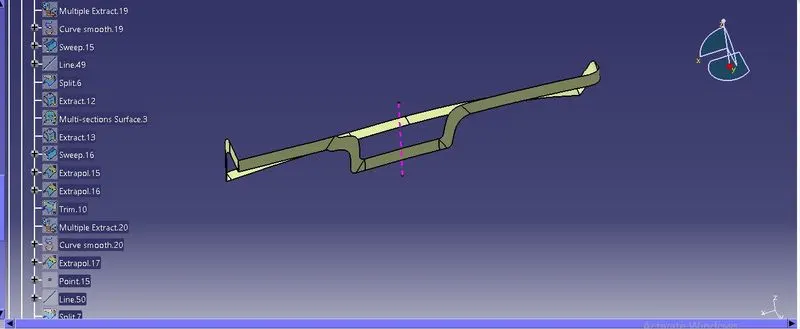

class B and C surface was created by multiple extract followed by trim and join options.

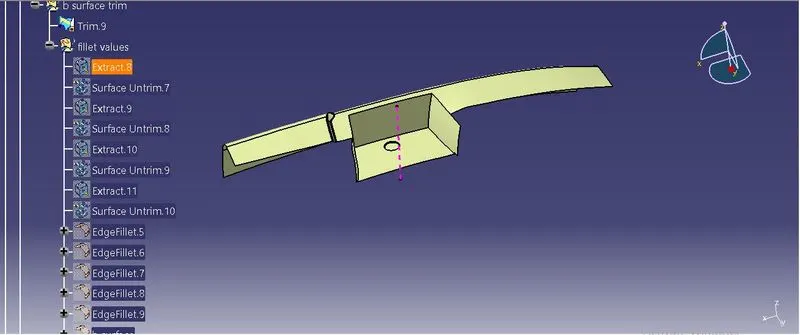

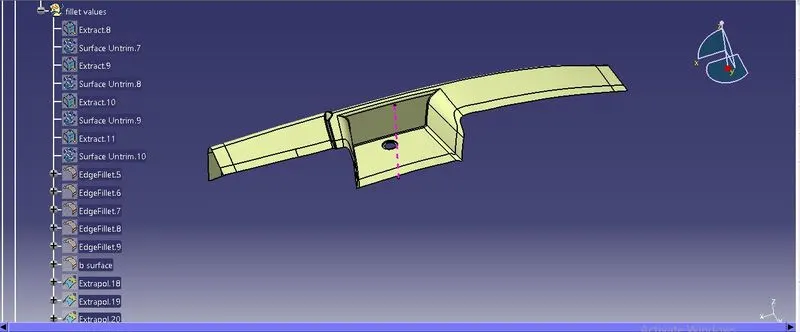

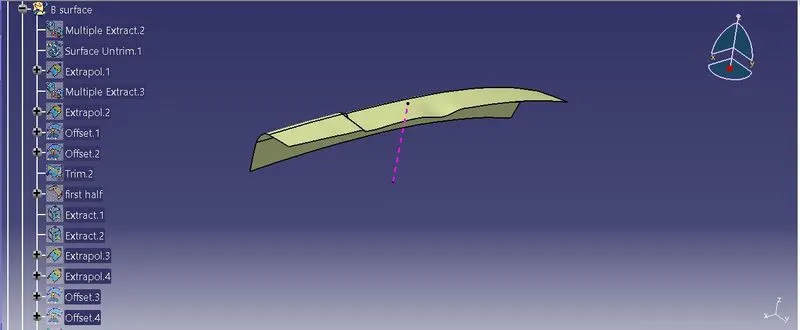

B SURFACE:

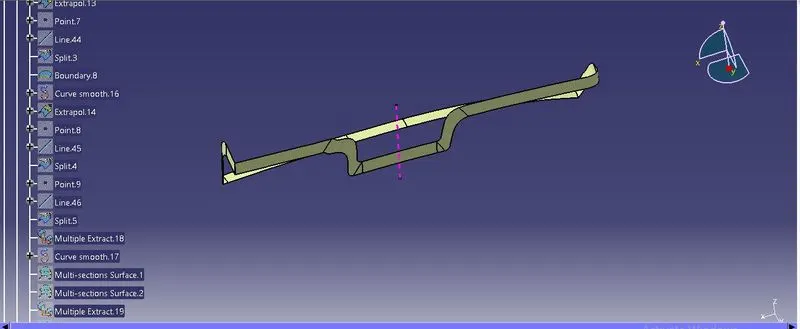

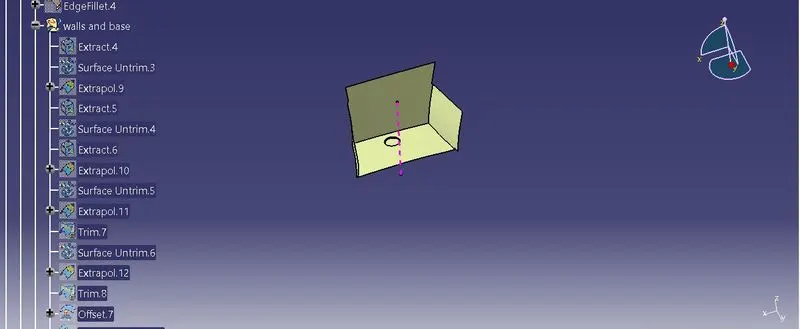

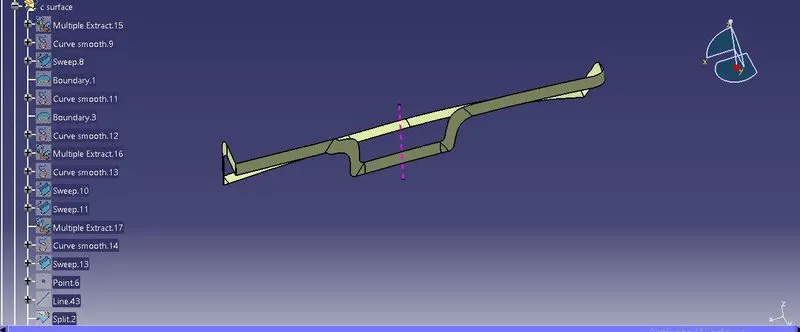

C SURFACE

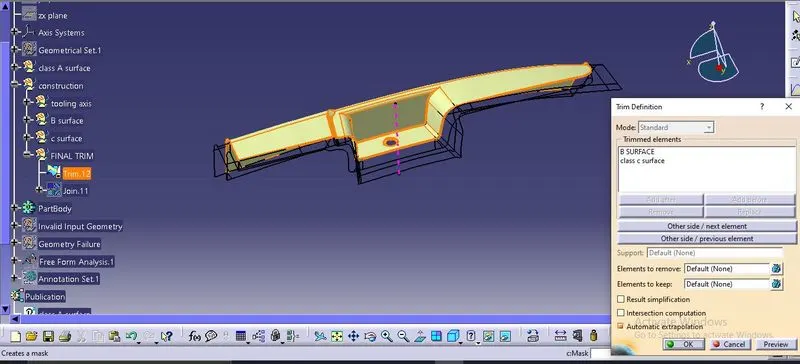

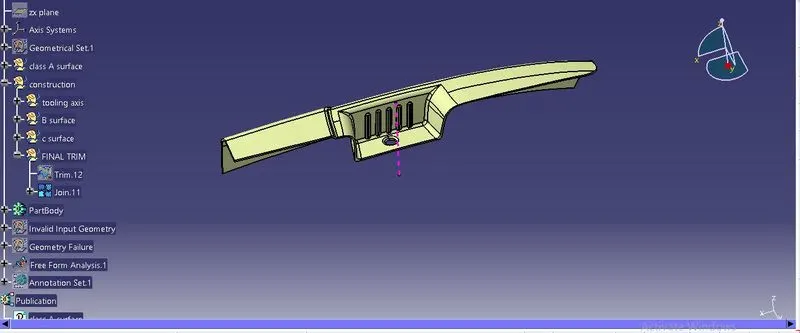

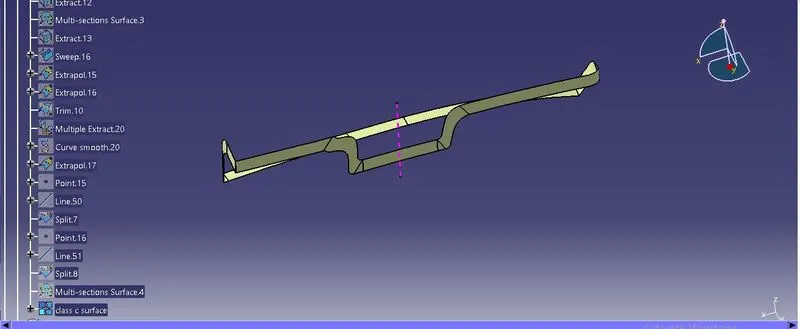

FINAL TRIM AND JOIN

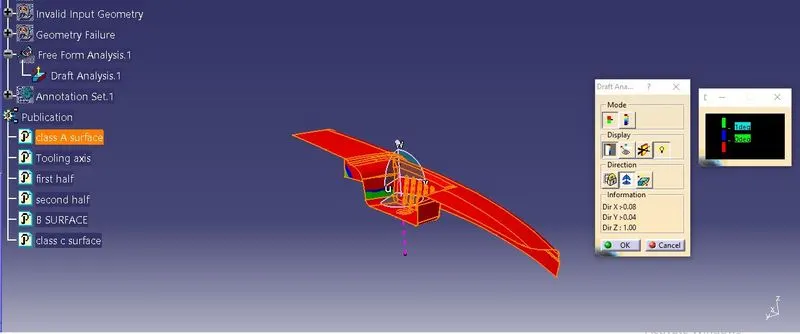

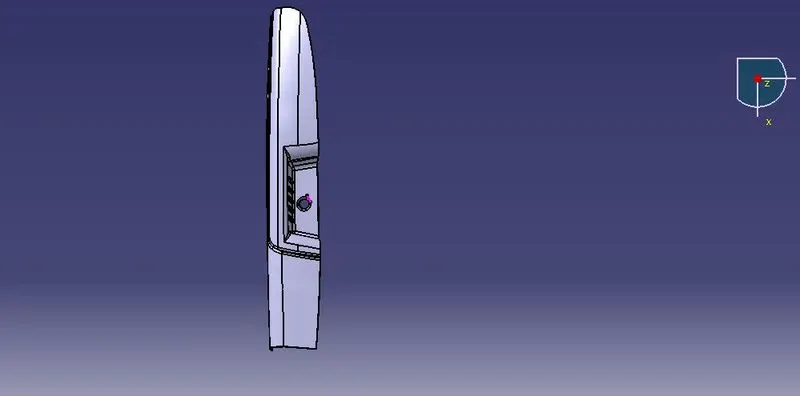

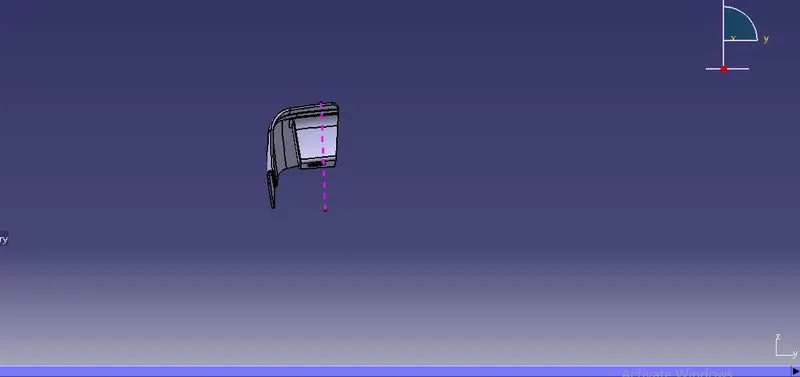

FINAL DRAFT:

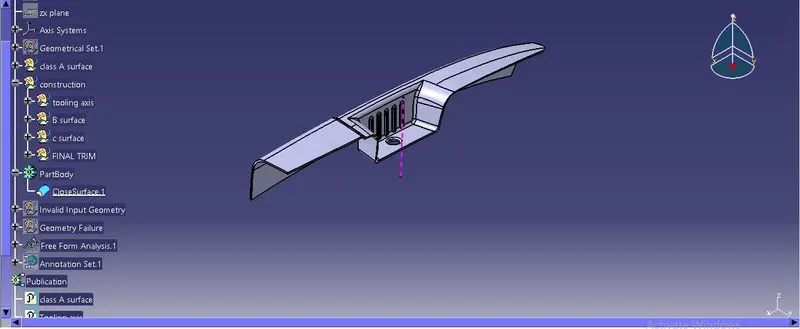

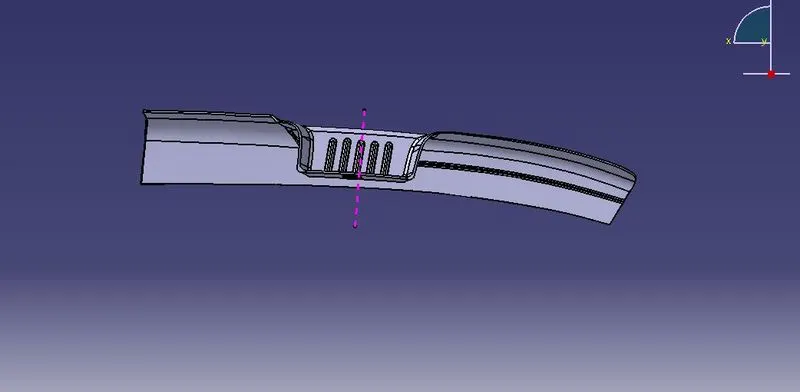

FINAL OUTPUT
