Door Arm Rest Week 8 Challenge

DOOR ARM REST:

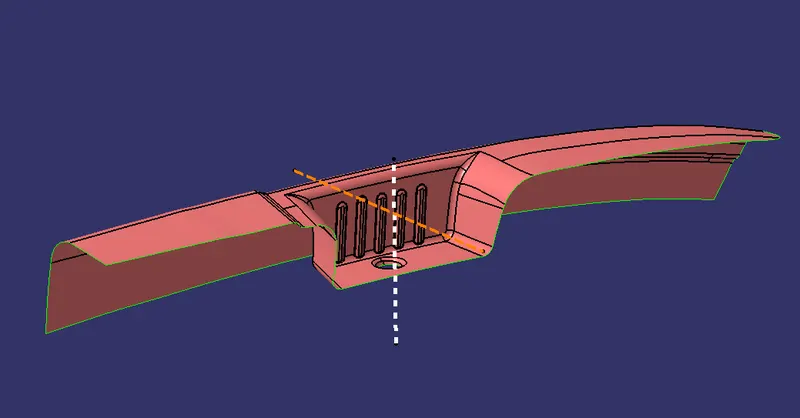

• First the tooling axis created from the A surface as a reference.

The orange axis is the side core axis and the white axis is the main tooling axis.

• Then the B surface is offseted for 2.5mm .
• Then the C surface is created using the boundaries from the A surface .
• Then the A surface is joined with the B surface as shown in the below image .

• Then finally the B surface is extropolated wherevere necessary and then trimmed with the A and C surface .
• And later having a joined the A B & C i have created a closed body or a solid part out of it . Below shown images are closed surface in various views.

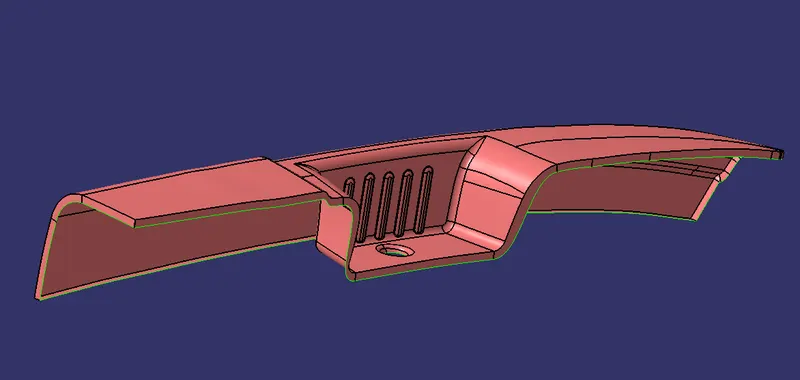

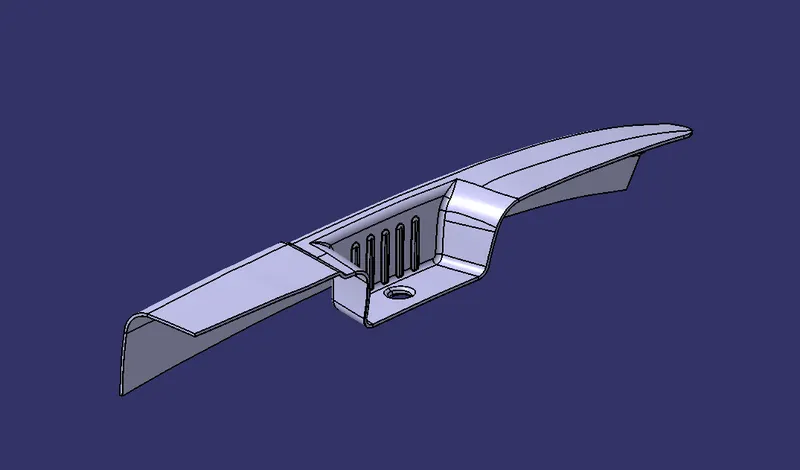

Isometric view:

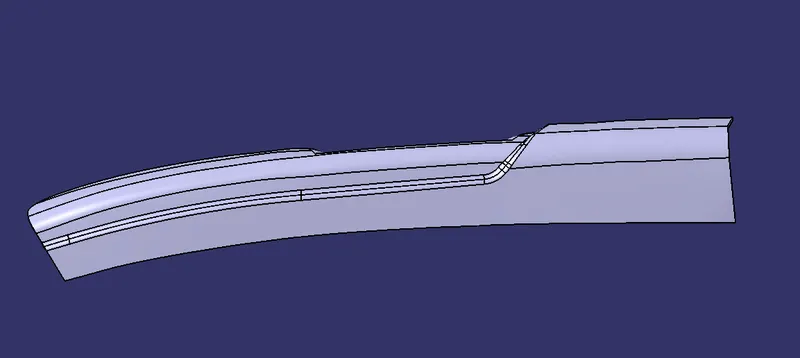

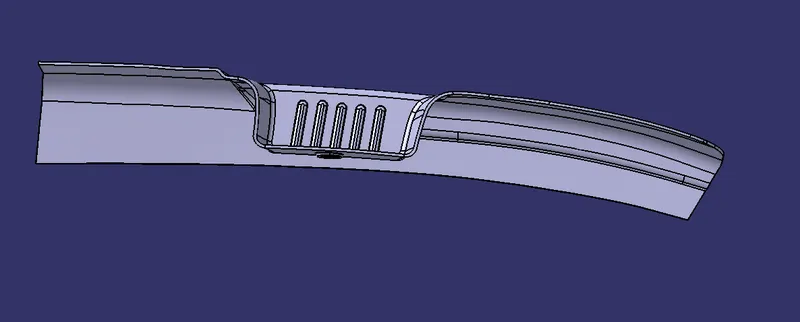

Front view:

Back view:

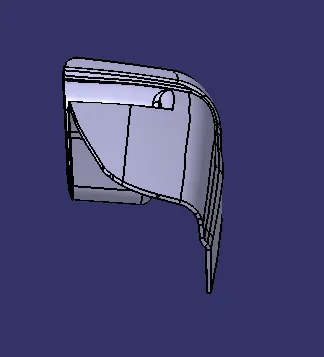

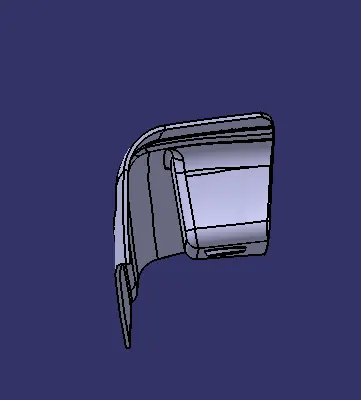

Left view:

Right view:

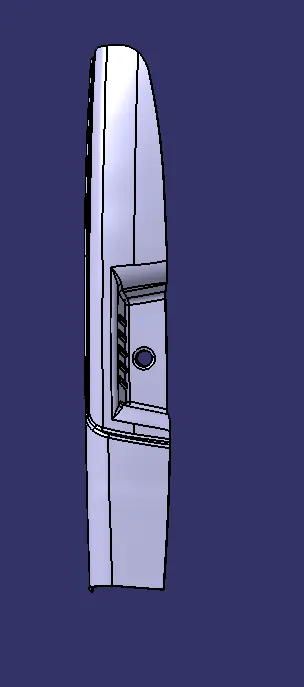

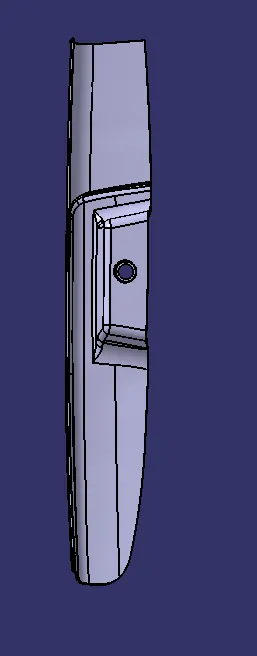

Top view:

Bottom view:

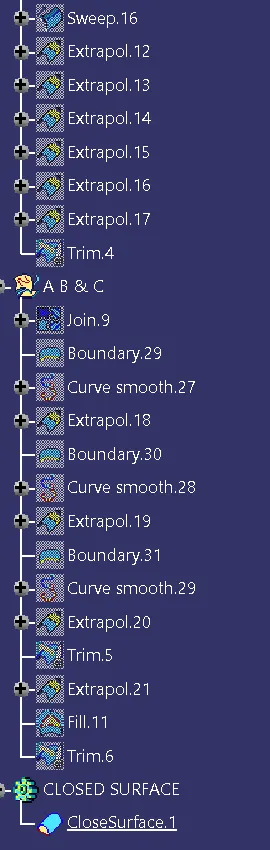

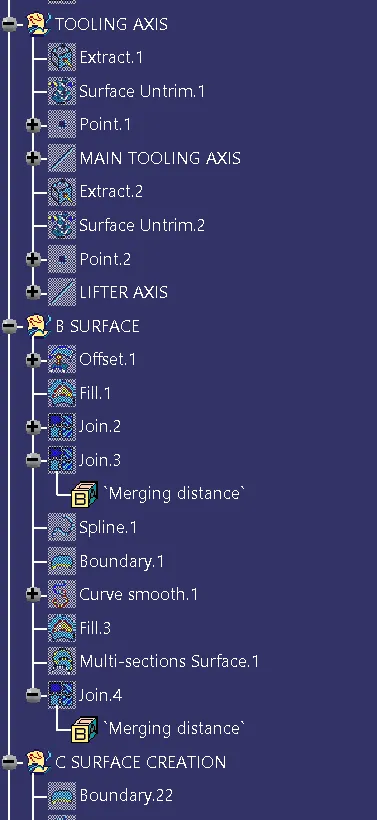

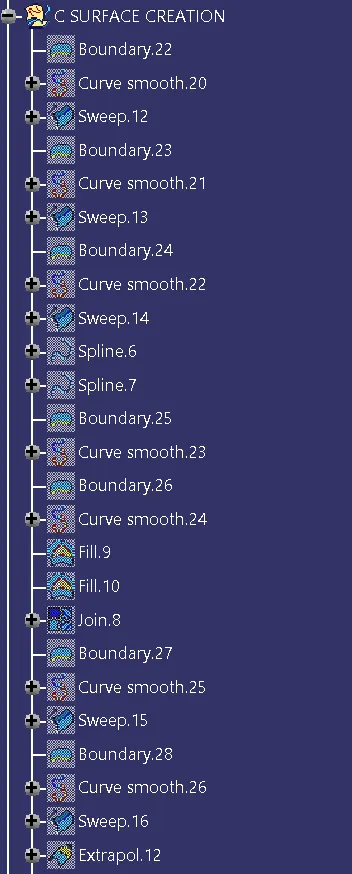

Tree structure:

Draft Analysis:

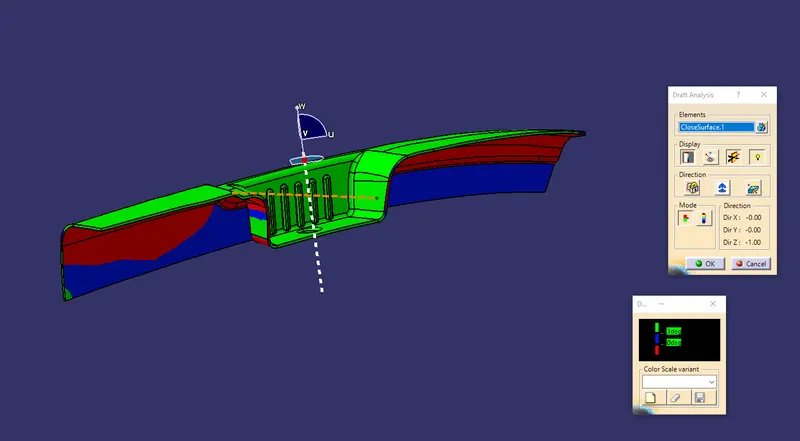

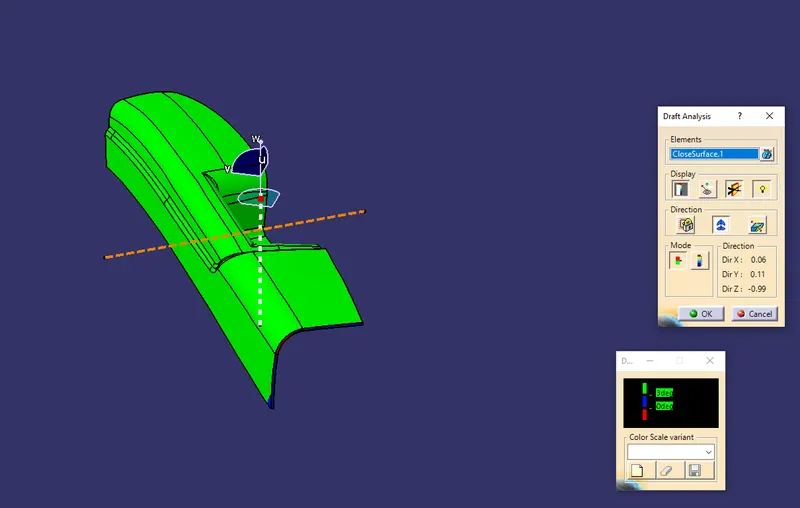

Main axis draft analysis:

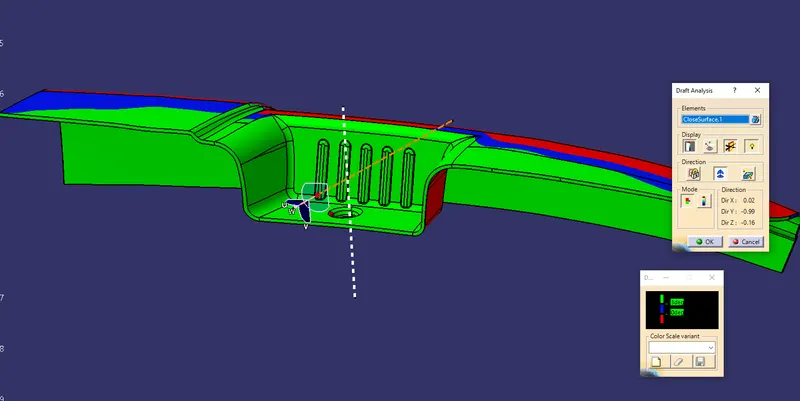

Side core axis draft analysis:
