Door Arm Rest Week 8 Challenge

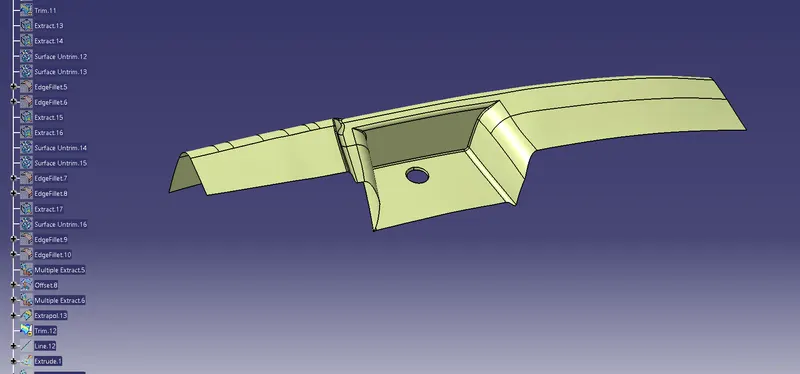

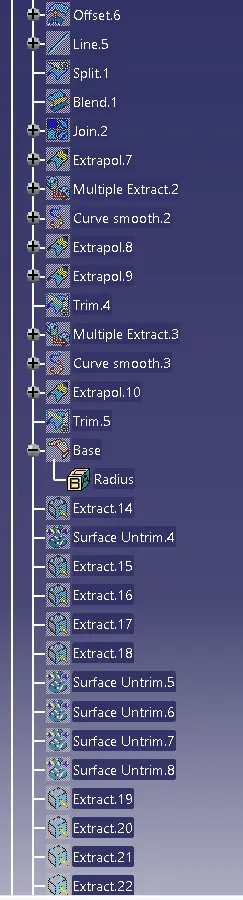

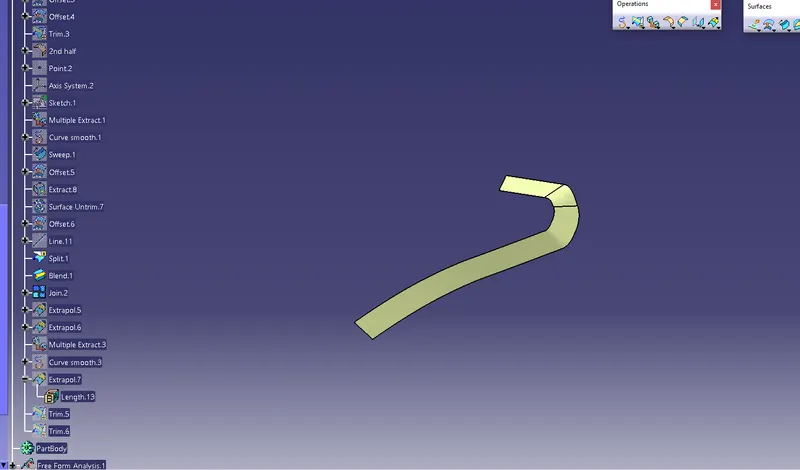

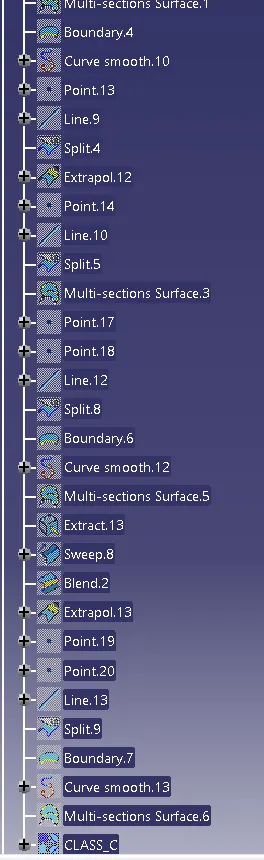

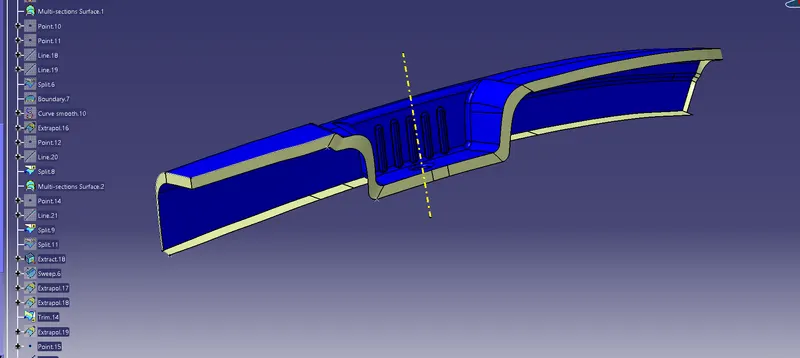

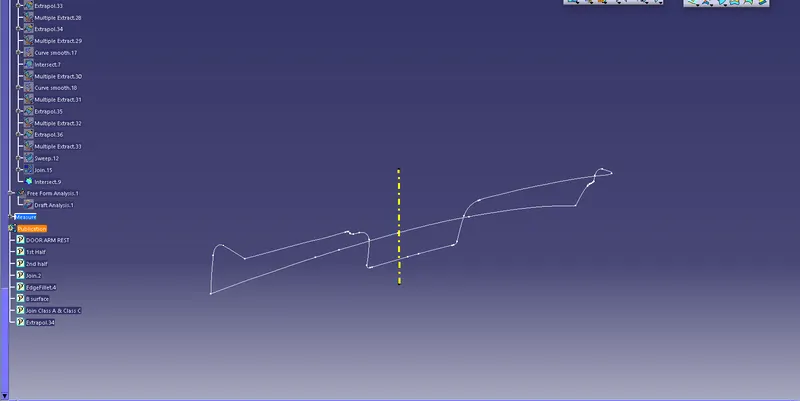

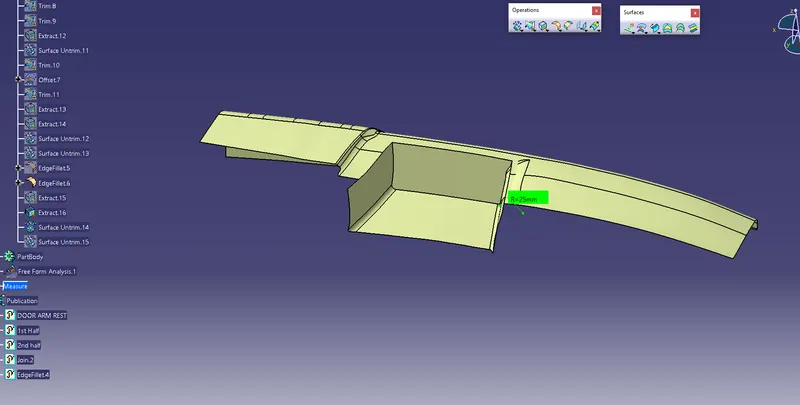

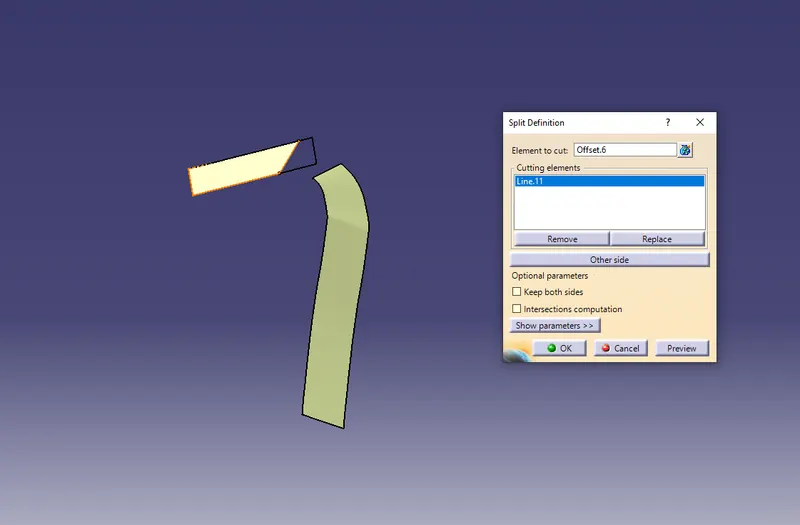

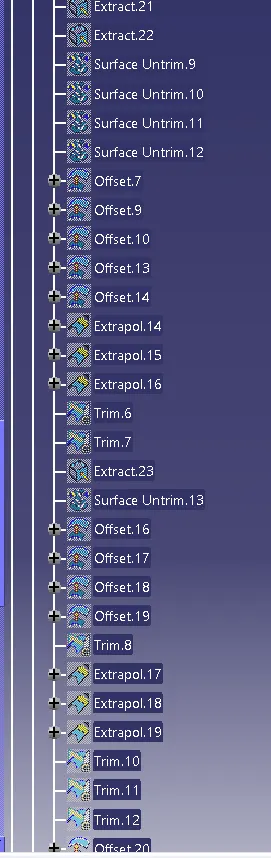

Aim: To Creation of CAD model considering Class A surface, Nominal thickness and Attachment strategy. Objective: 1.To Creation of CAD model considering Class A surface, Nominal thickness and Attachment strategy.2.Create thickened part using master section for reference3.Create the mounting features as per design guidelines…

In this challenge. I have to design part models and assemble the parts from the 2D sketches and dimensions provided to me. QUICK RETURN MECHANISM: • A quick return mechanism is an apparatus to produce a reciprocating motion in which the time taken for travel in return stroke is less than in the forward stroke. It…

Aim : Design B-Pillar through master section Development. Step 1 : Create tooling axis. For creating the tooling axis first we extract this 4 boundries. Took a point between this 2 lines. then draw a bisecting line between this two line by using point. again bisect the remaining two lines. and finally bisect the resultant…

Aim : Create the screw boss and Dog House for the Centre console coin holder. Screw Boss We already created a coin holder.Now,We have to create a screw boss which is one of the B side feature. To create screw bose draw a scetch on base surface with diameter of 5.2mm.For screw boss thickness should be of 0.6 times…

Aim: To create the rib for the Centre console coin holder considering the design rules. Introduction: Plastic parts design is a very complex process and it requires the involvement of many factors like functional requirements, process constraints, material selection and assembly or structural issues. Wall thickness, Draft,…

Aim: Design a coin Holder From Class A surface. For that we follow the previous Procedure. Creation of tooling Axis 1.Intersect the model with the plane perpendicular or to an axis system. 2 Extend the lines which are perpendicular to the plane. 3.Again intersect the model with another plane and extend the lines perpendicular…

Aim : Create the screw boss and Dog House for the Centre console coin holder. Screw Boss We already created a coin holder.Now,We have to create a screw boss which is one of the B side feature. To create screw bose draw a scetch on base surface with diameter of 5.2mm.For screw boss thickness should be of 0.6 times…

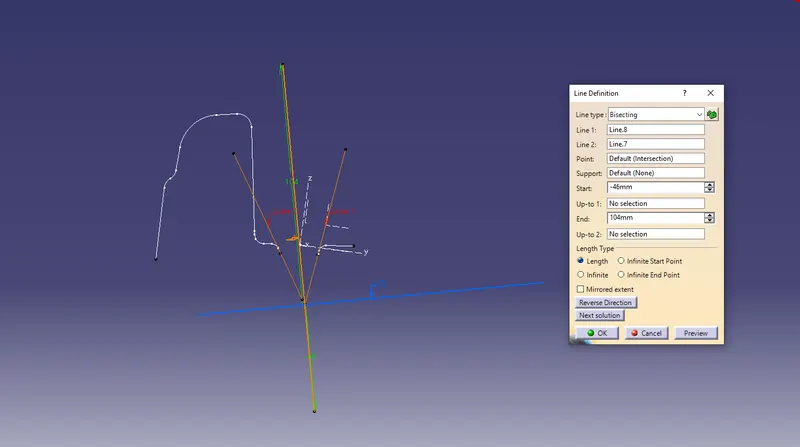

 Aim : To create a switch bezel by using Class-A,B& Class-C surface. For that,We have to create a tooling axis. Tooling axis :For creating atooling axis we check all x,y,z direction.then we Consider one base surfae extrude it.then we took a center then we bisect the zx plane first &then intersect…

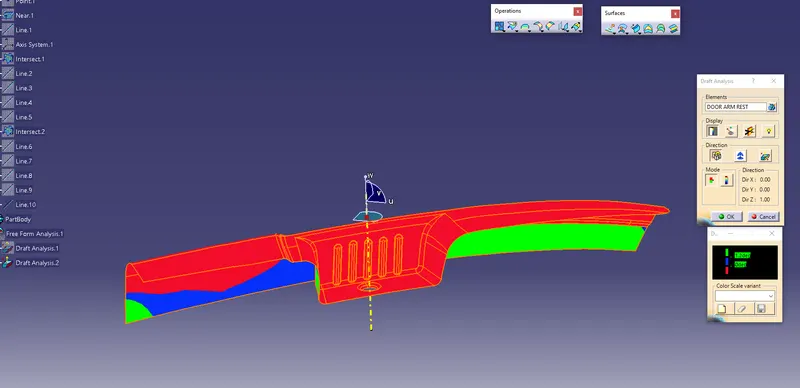

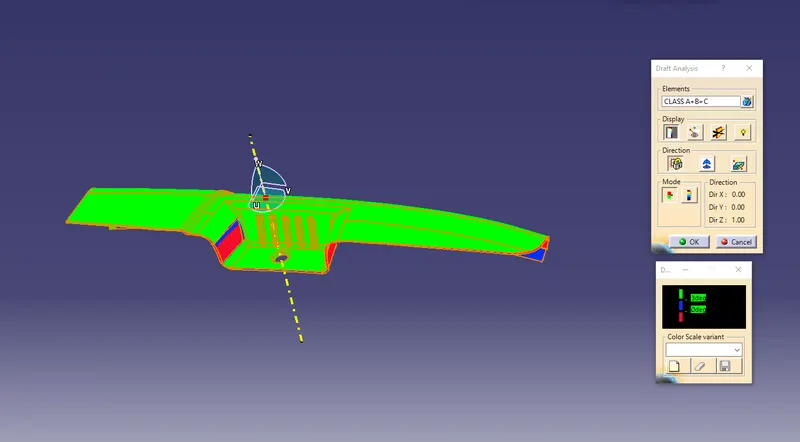

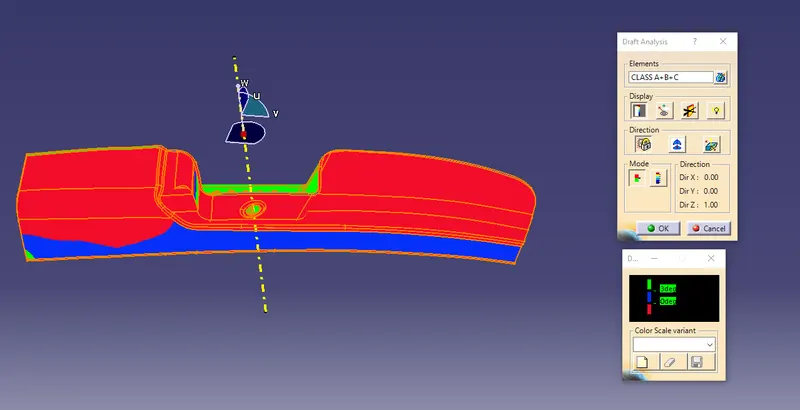

Aim: Design of core & cavity of switch panel bezel. Draft analysis: The Draft Analysis command enables you to detect if the part you drafted will be easily removed. This type of analysis is performed based on color ranges identifying zones on the analyzed element where the deviation from the draft direction at any…

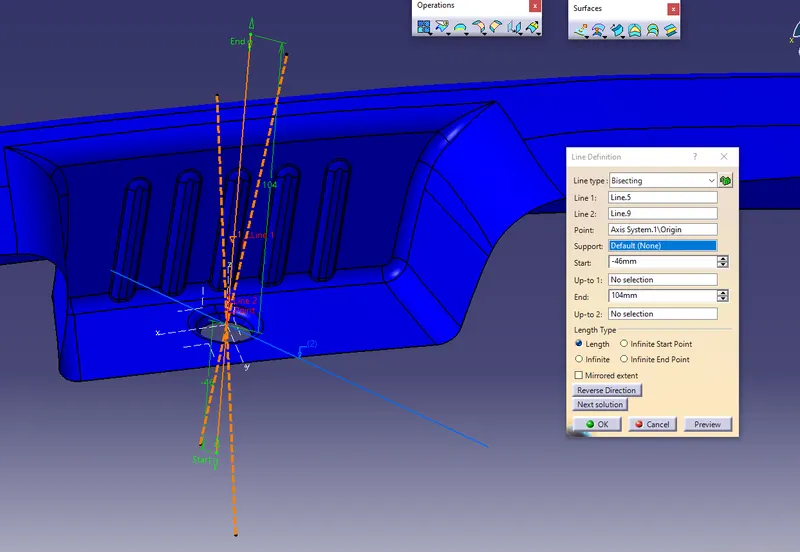

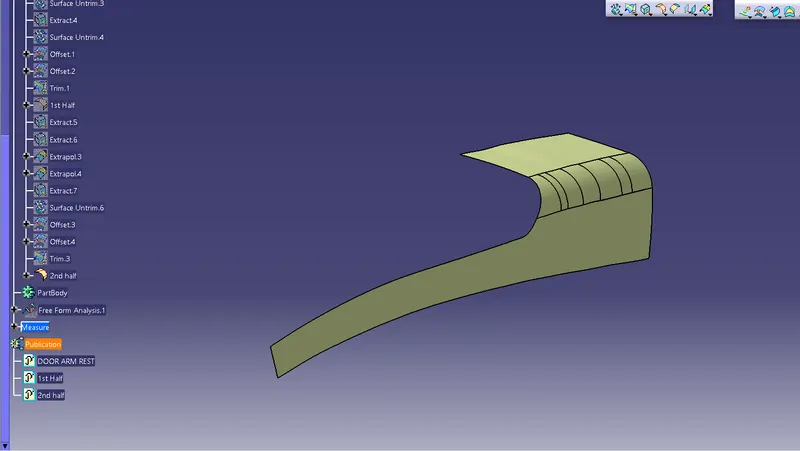

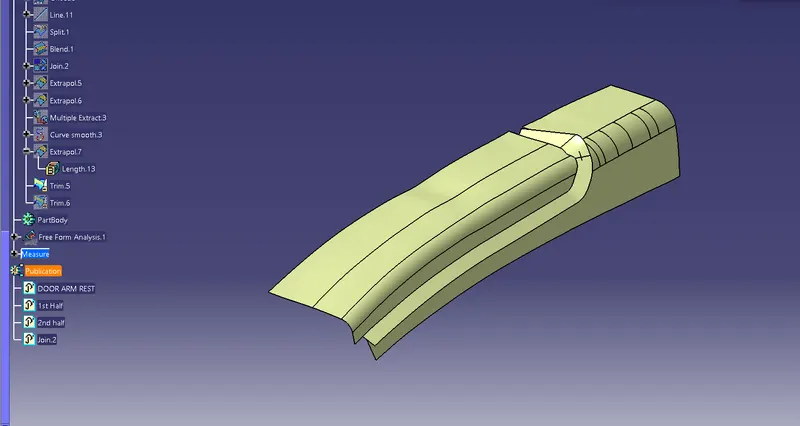

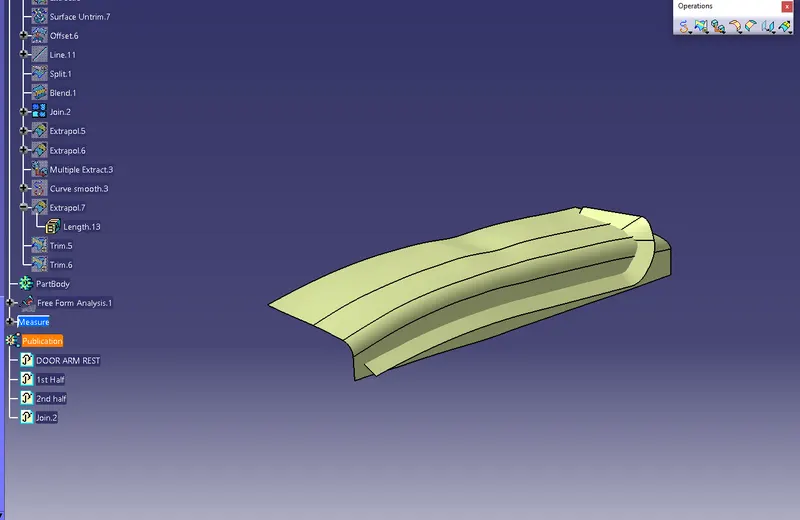

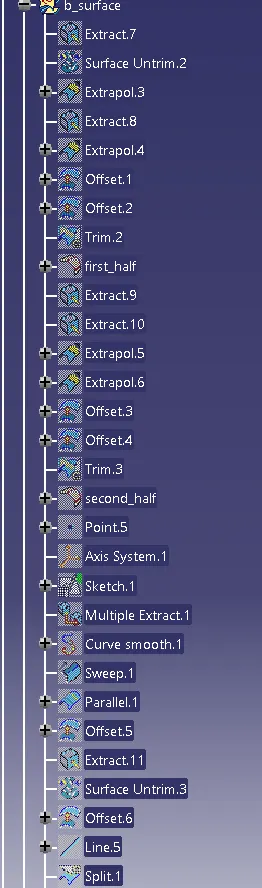

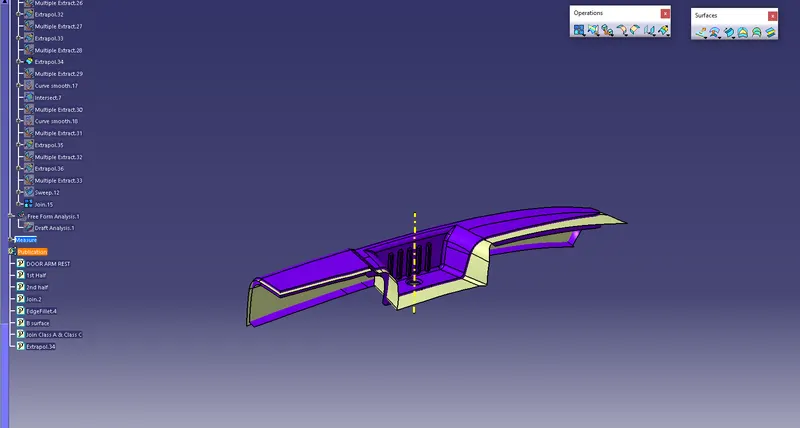

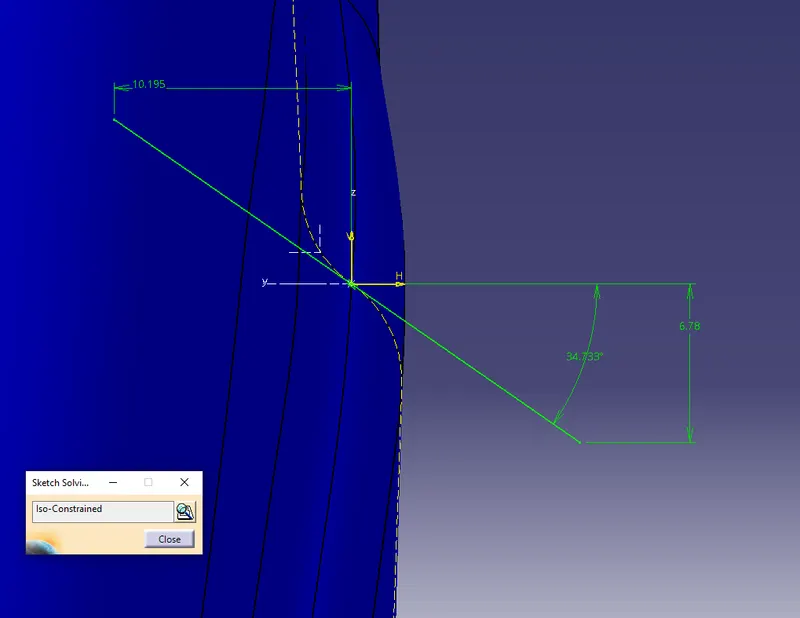

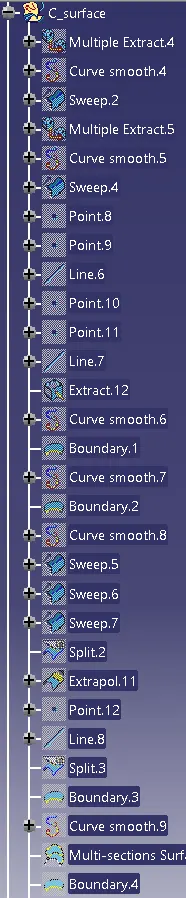

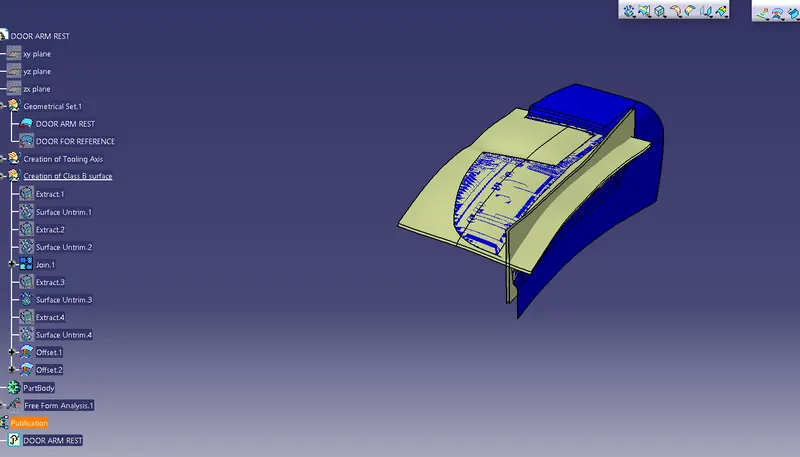

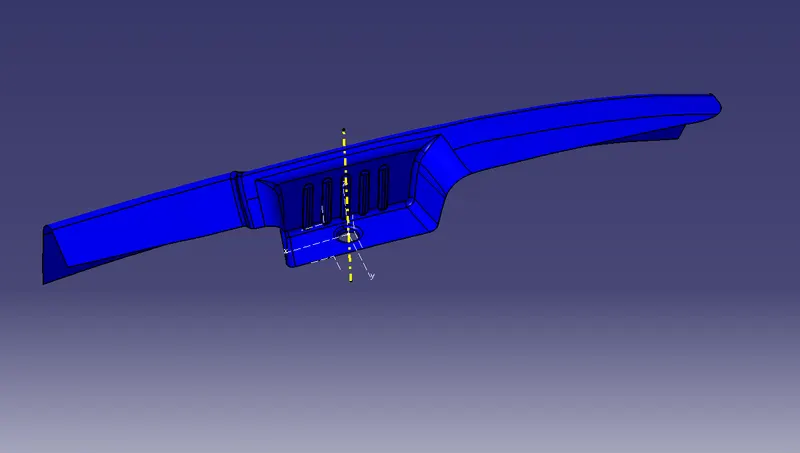

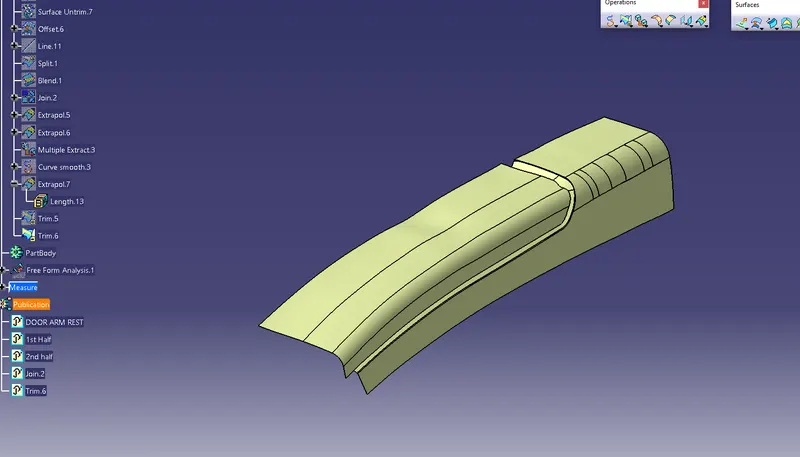

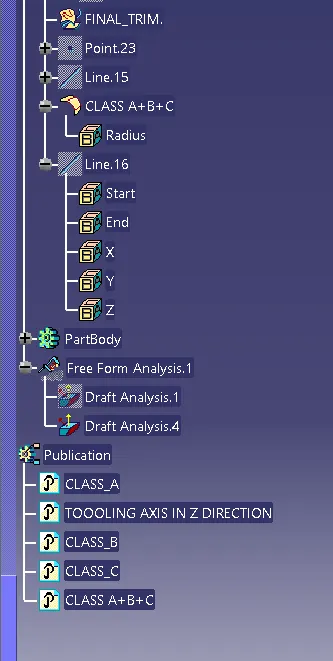

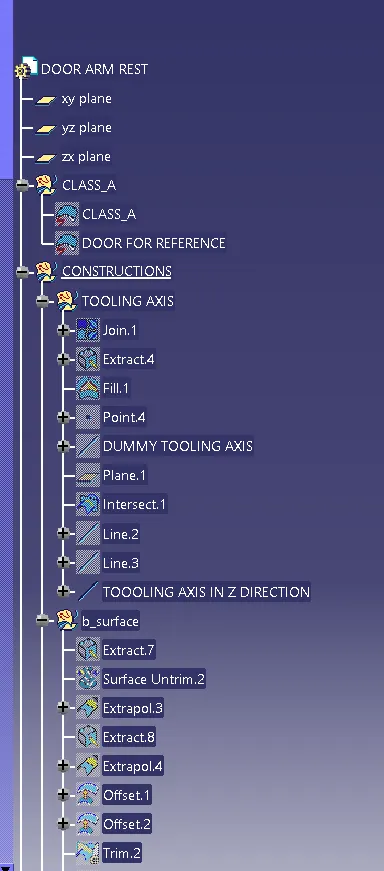

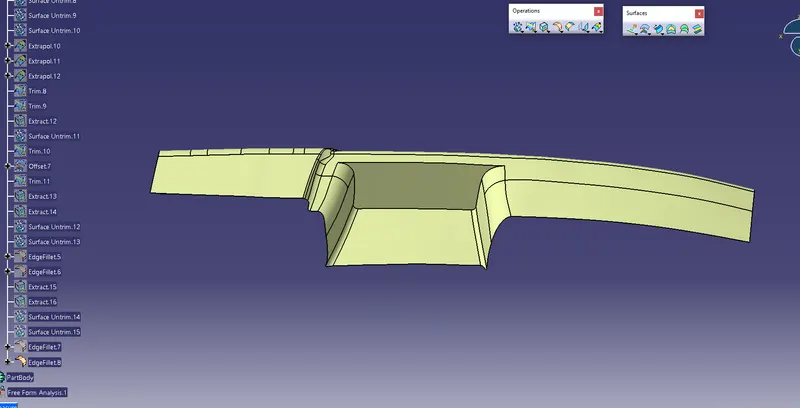

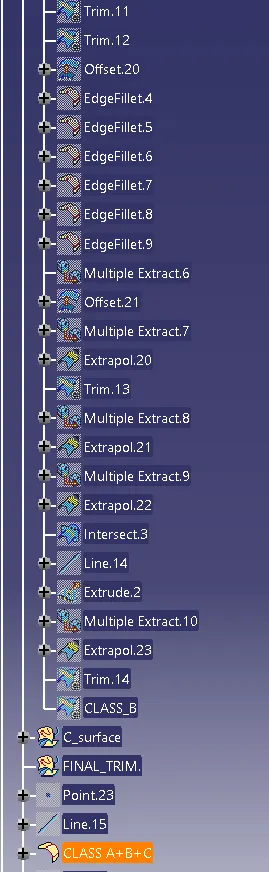

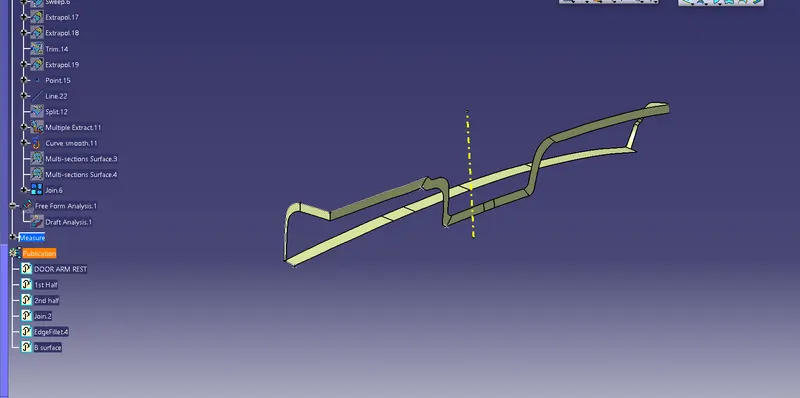

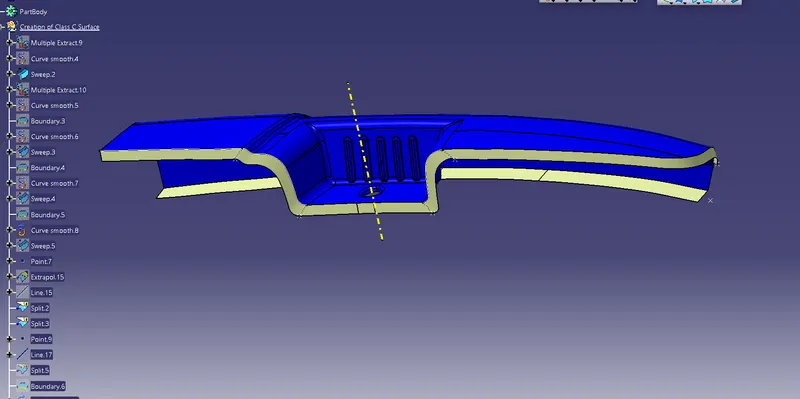

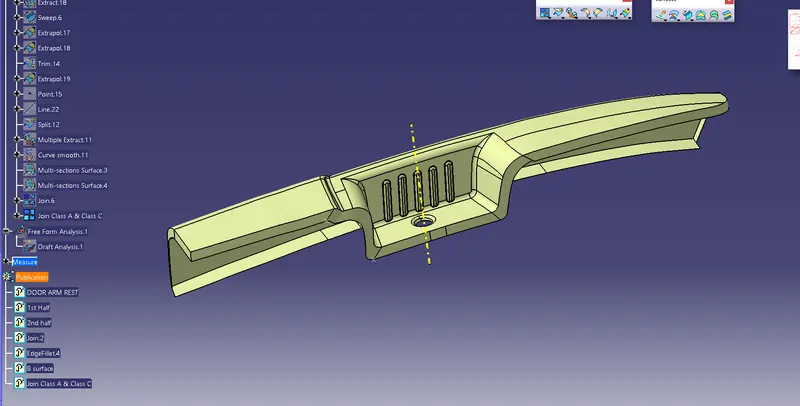

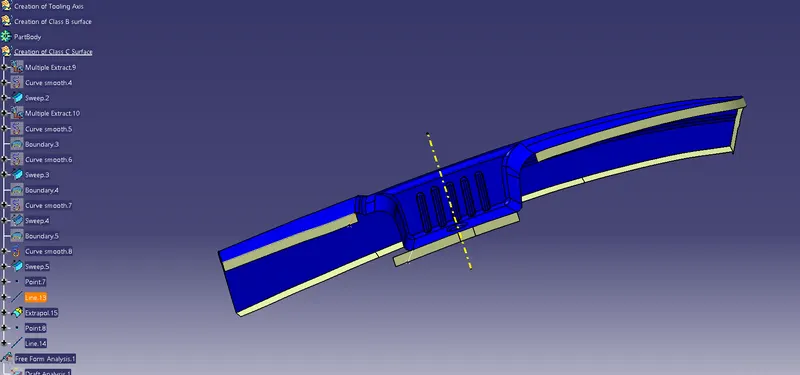

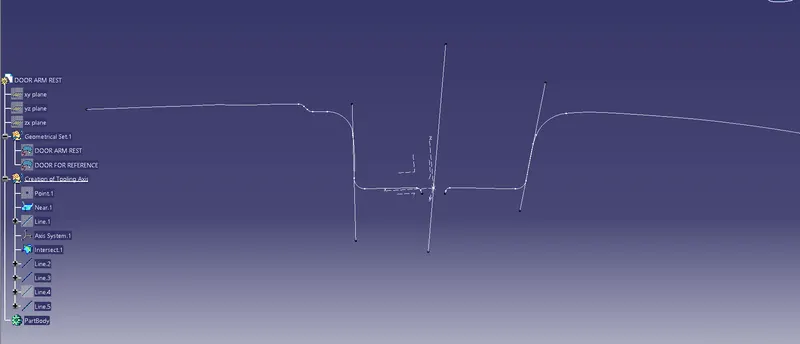

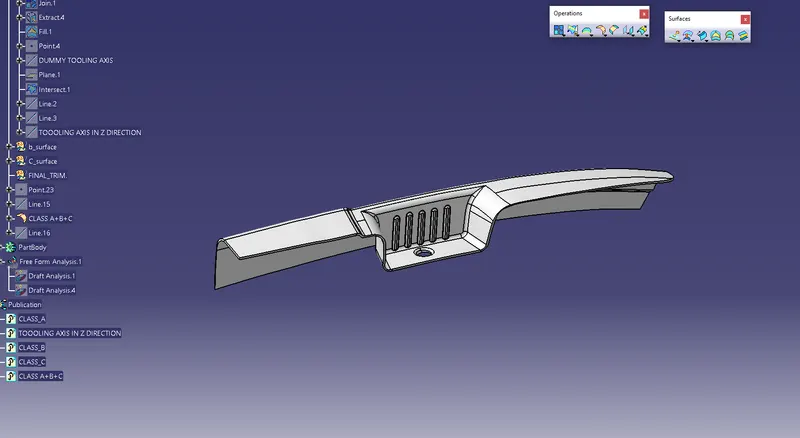

 Aim : To Create a Class B & classs C surfaces from the given Class A surface of door arm rest & to draft analysis the surface of given model. Creation of tooling axis :  Tooling for x axis Tooling for y axis is Then By using bisection method Bisect the resultant Lines Now,we got our tooling axis…

Aim : to create a base Base Bracket design with help of a class A Surface with a tooling axis by performing draft analysis. Introduction: 1. class A surface : A surface that is given to the plastic modeler which is of aesthetic and outermost surface . the surface made by the design is known as a classic A surface. 2.class…

What is the draft? it is defined as molded parts to make them easier to remove from molds. there are two of determing the object to draft either by expiicitly selecting the object by selecting the netual element , which makes the application detect the approximate face to use. major industries use the minimum draft angleis…

Title of the Project:  Sheet Metal Design Using NX Cad  Objective: To design a metal Bracket using sheet metal tool in nx cad Introduction: sheet metal is one of the basic forms used in metal works, using sheet metal tool serval operations can be performed , to design models, and in odd or various shapes. …

Title of the Project:  Sheet Metal Design Using NX Cad  Objective: To design a Bracket using sheet metal tool in nx cad Introduction: sheet metal is one of the basic forms used in metal works, using sheet metal tool serval operations can be performed , to design models, and in odd or various shapes.   Methodology:…

Title of the Project:   sheet metal design using NX CAD  Objective:  To design a ODD SHAPE ENCLOSER. Introduction:  Sheet metal tool is used to desgin  sheet metal objects. sheet metal is one of the fundamental from used for sheet metal works,and in this tool wecan used various number of functions…

Title of the project:- Advanced Sheet Metal Design Using NX Cad Challenge_2_Box Assembly. Objective:To design a Box assembly and create  drafting using sheet metal tool using Siemens Nx. Introduction:- Sheet metal tool is in siemens i a complete set of tools to design/ Moduling  sheel metal models in…
