Advanced Sheet Metal Design Using NX Cad Challenge_7_ Metal bracket-II
Title of the Project: Sheet Metal Design Using NX Cad
Objective: To design a metal Bracket using sheet metal tool in nx cad
Introduction: sheet metal is one of the basic forms used in metal works, using sheet metal tool serval operations can be performed , to design models, and in odd or various shapes.

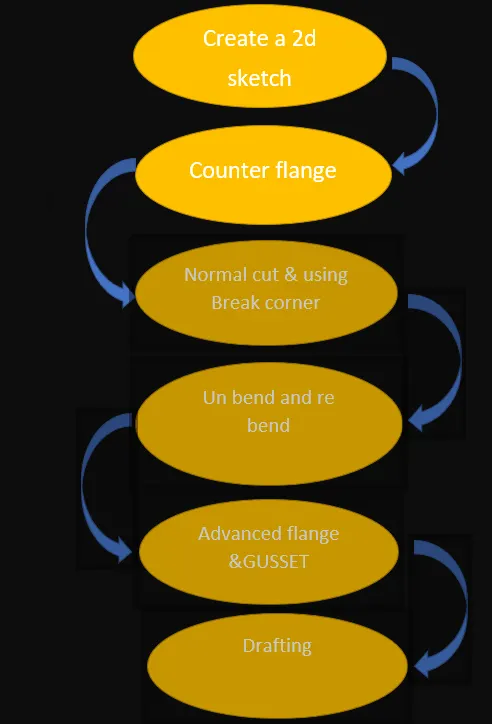

Methodology:
2D sketch: Its a basic 2d sketch to any design.
counter flange:creates a base feature by extuding a sketch along a vector or adds material by sweeping a sketch along an edge or chane of edge.
Normal cut:Cuts material by projecting a sketch onto the model and then cutting perpendicular to the face intersecting by the projection.
Break corner:Rounds or chamfers a sharp corner of a tab or flange.
Unbend:Flattens a bend and the material adjacent to the bend
Rebend: Restore an unbend feature to its previous bent stage , along with any feature added after the unbend feature.
advanced flange:adds a flang an edge using a bend angle or a reference face. the edge and reference face can be curved.
holes: to drill holes.
gusset: creating a stiffing gusset on the part , its gives strength to the part.
View orientation:

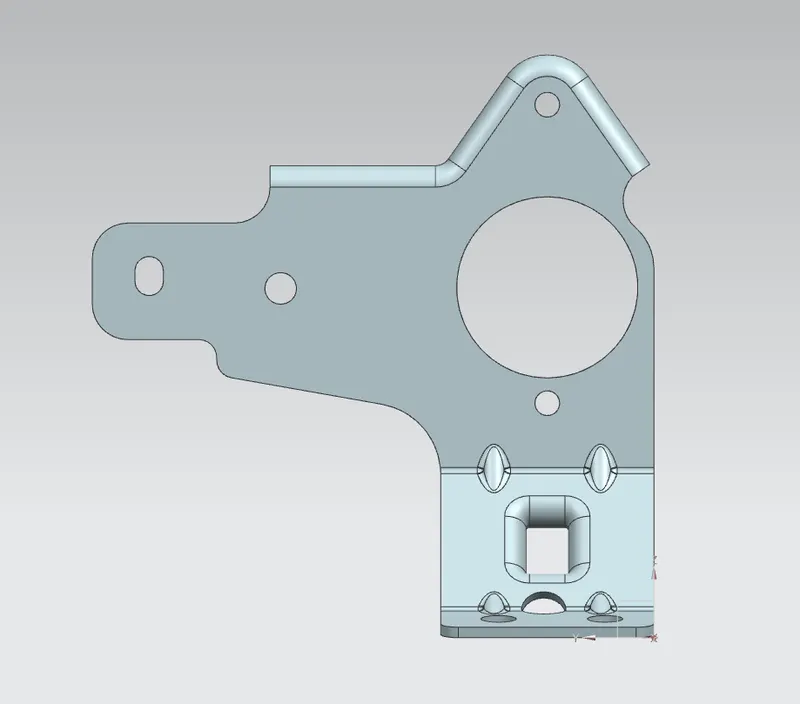

front view:

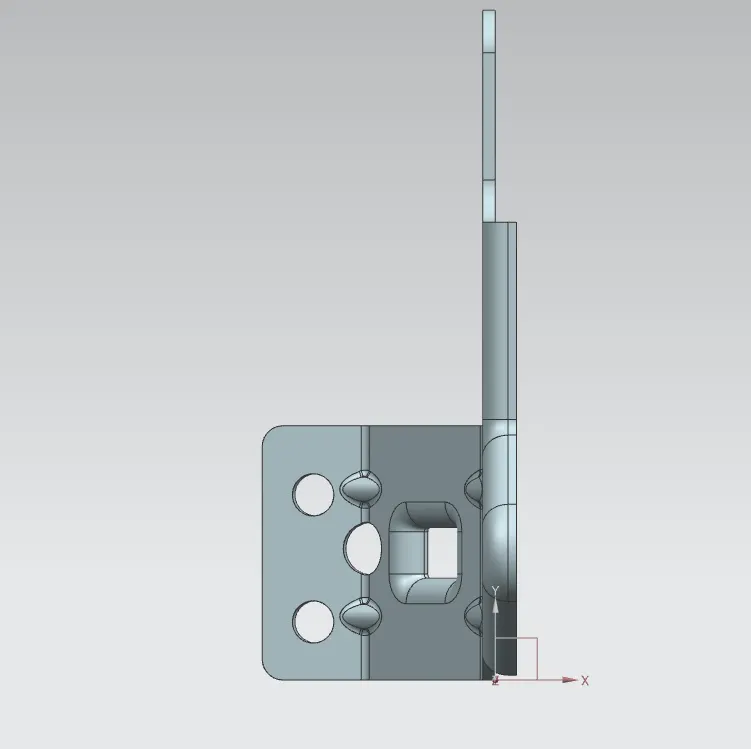

left view:

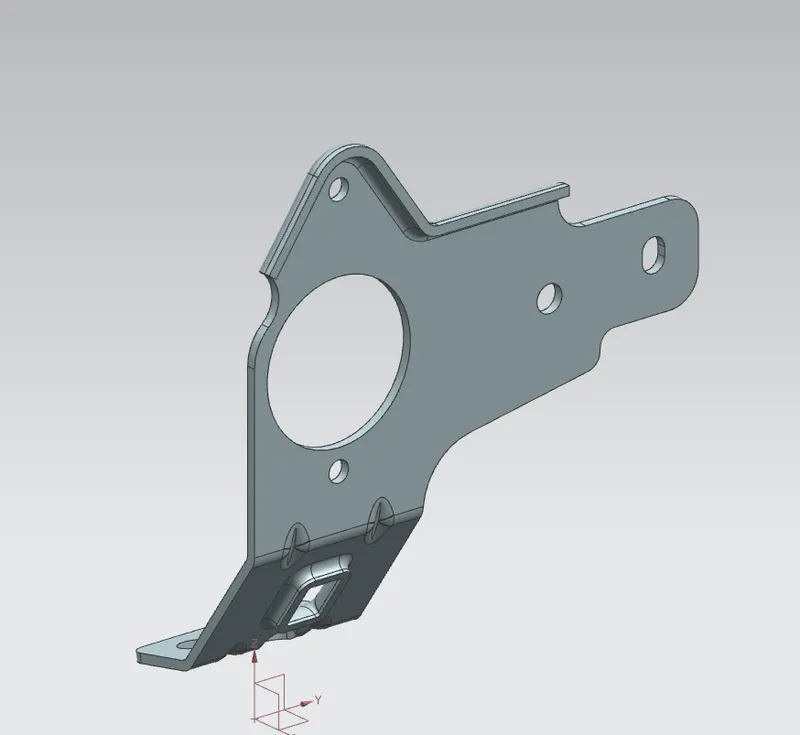

isometric view:

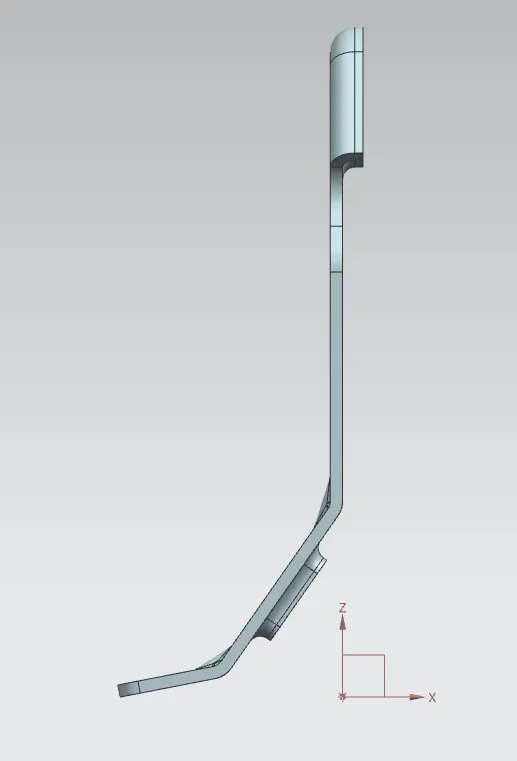

top view:

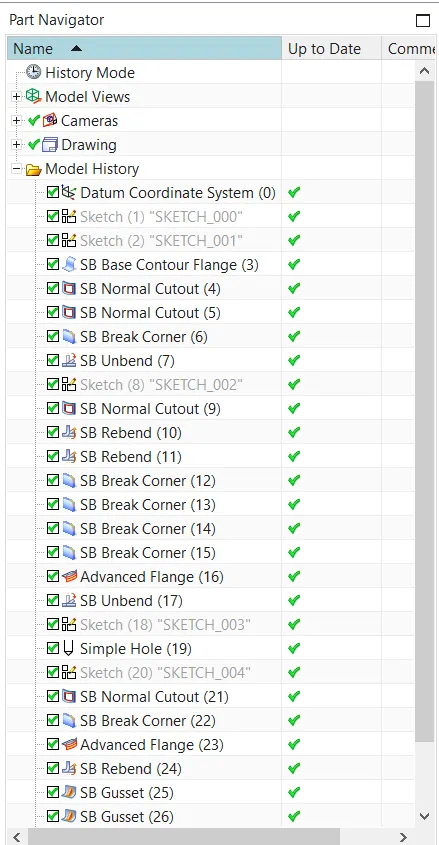

Tree feature:

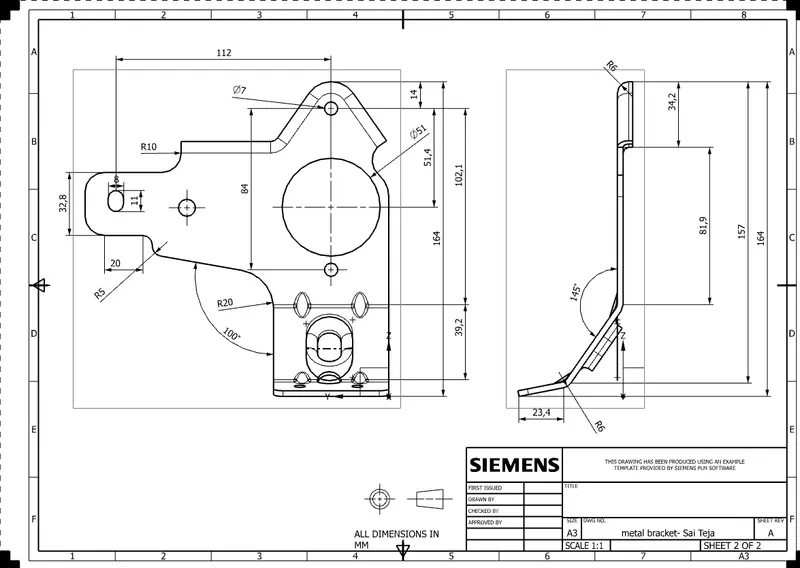

Drafting:

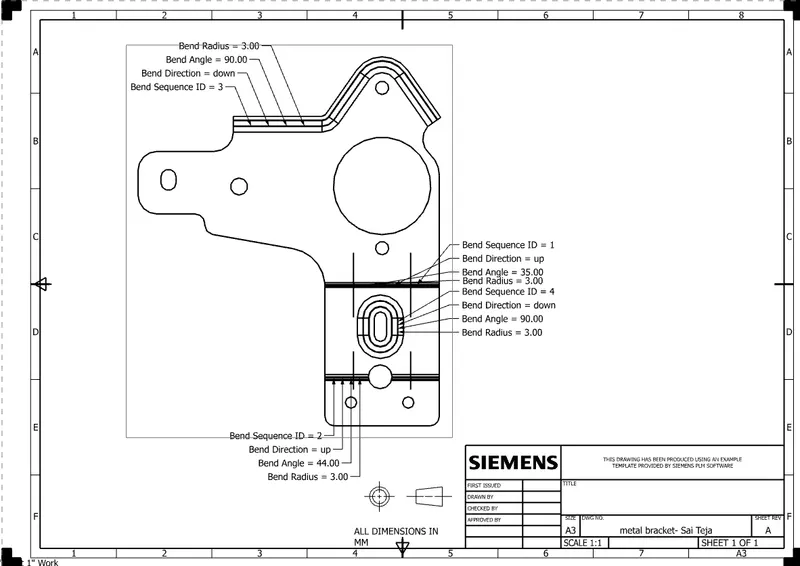

bend angles:
