Door Arm Rest Week 8 Challenge

DOOR ARM REST

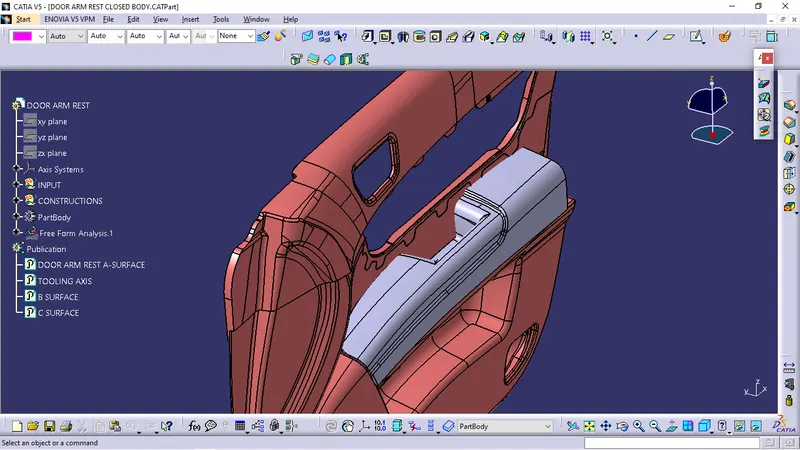

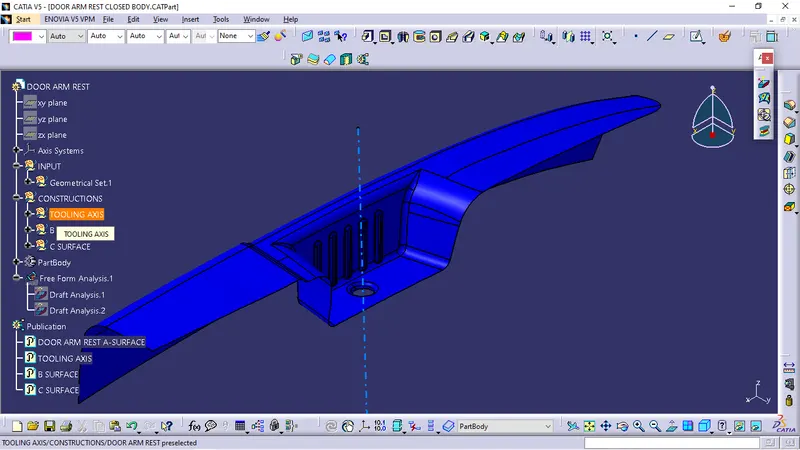

First creating the tooling axis for class A-Surface

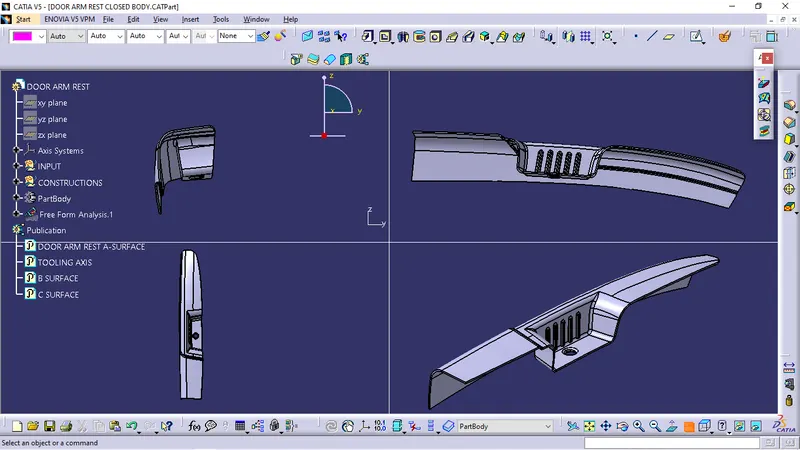

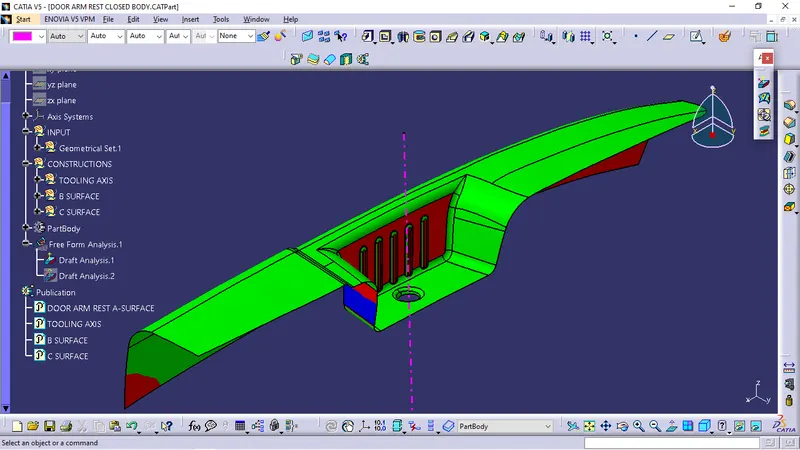

Draft analysis

In this tooling axis the A-surface is not clearing the draft analysis

now by the line bisecting method an another tooling axix is created, with this tooling axis the given A-surface is clearing the draft analysis

After the draft analysis the Class B-Surface is created

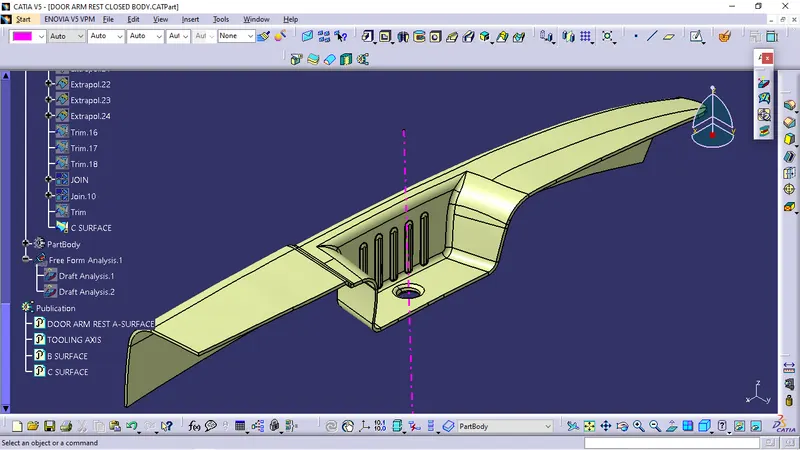

After the B-surface, Class C-Surface is created as shown below.

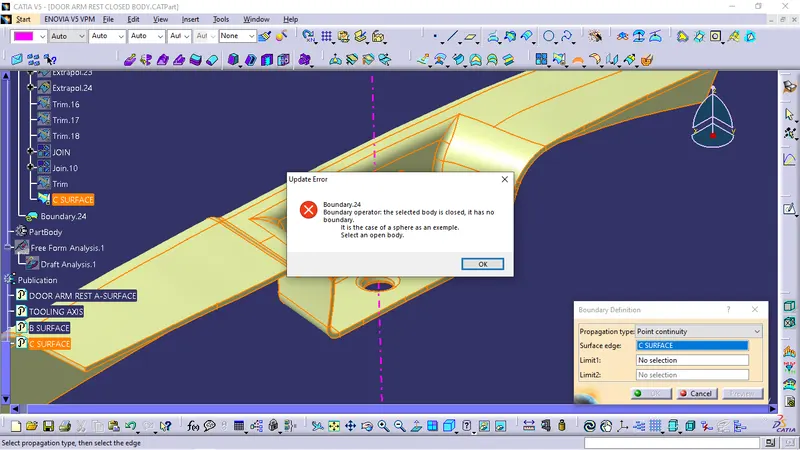

checking weather an openings are present by creating a boundary

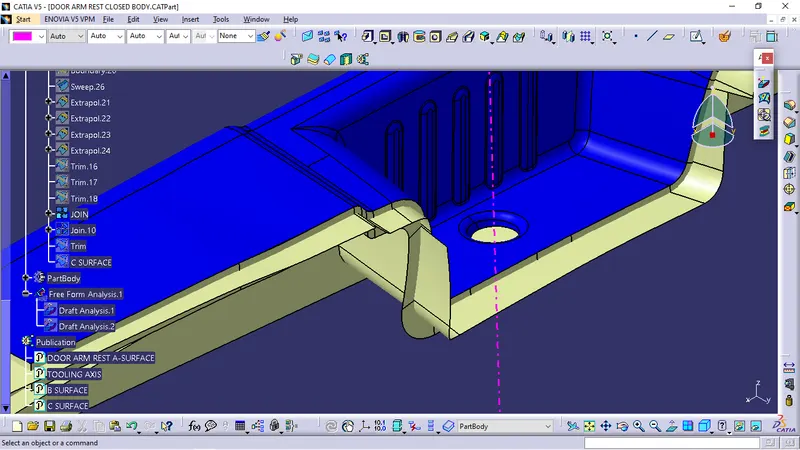

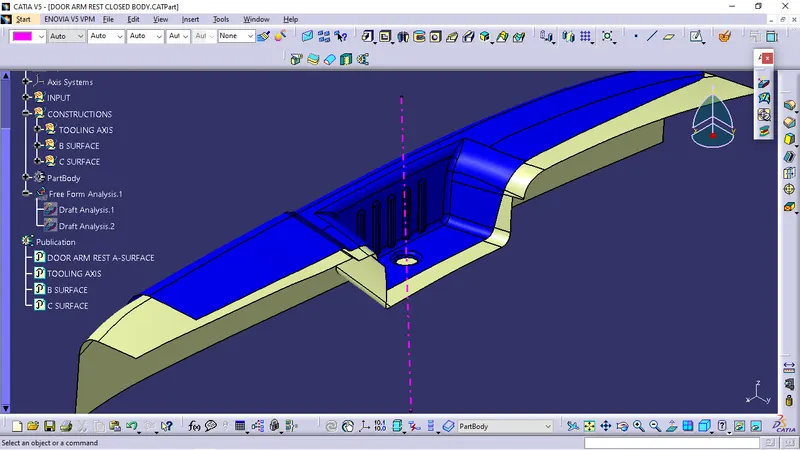

closed surface is created using C-Surface

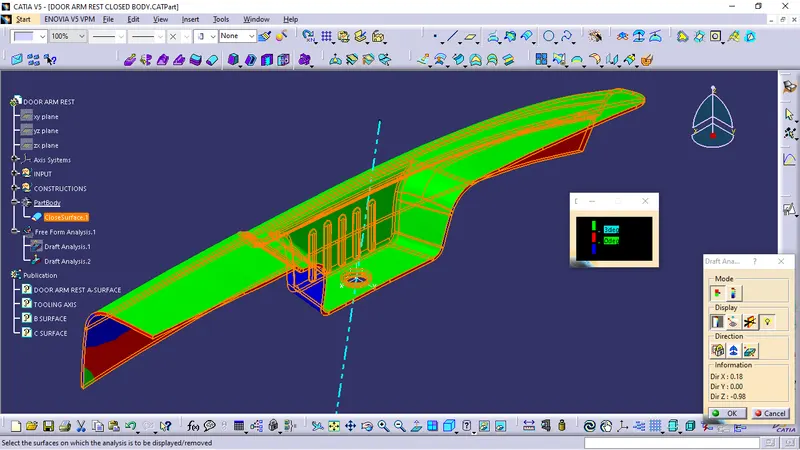

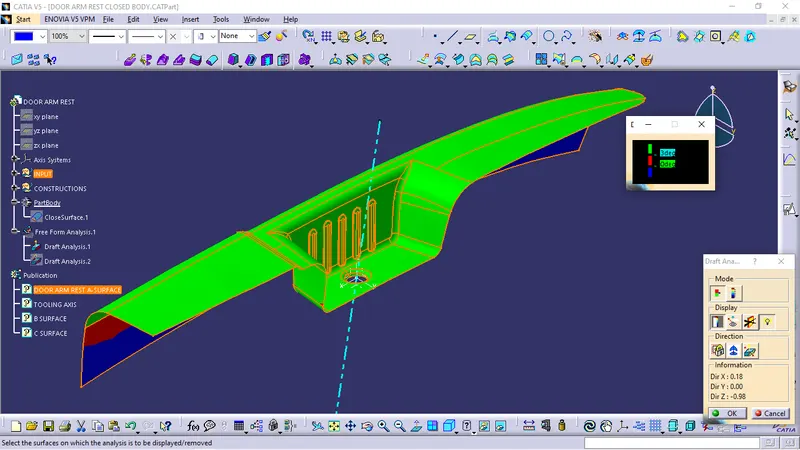

again the draft analysis is done on the closed surface obtained finally.

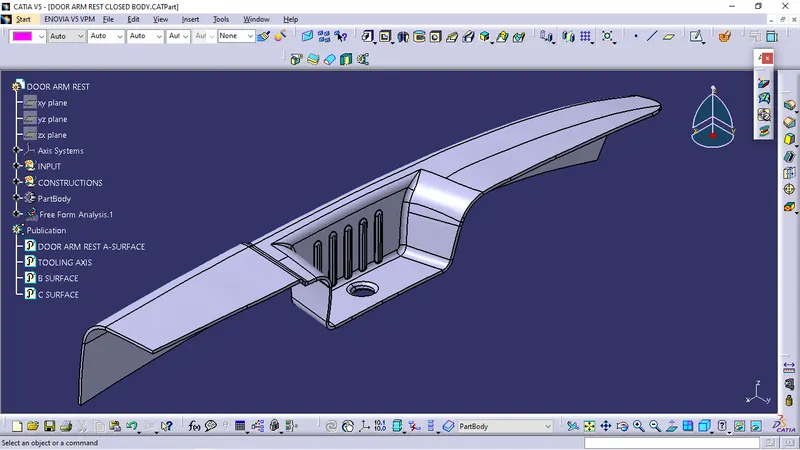

Hence a Closed surface of a door arm rest is created using class A-surface.
