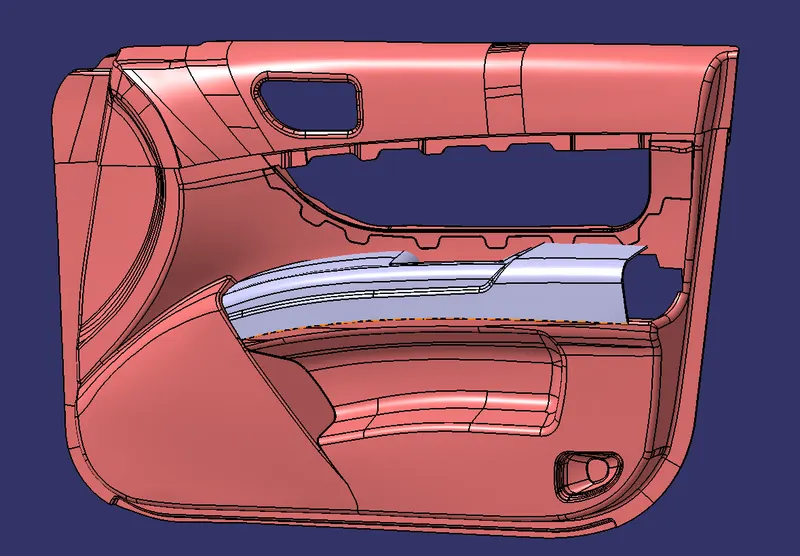

Vehicle Door Arm Rest

Aim.

To Create the Class B and Class C surfaces from the given class A surface of the door armrest and to Draft analysis the surface of the given model.

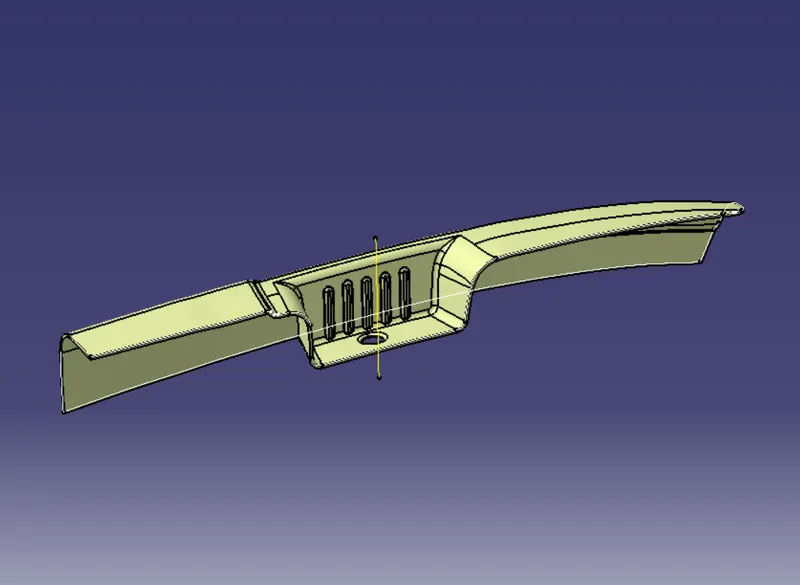

Input Surface.

The styling team gives this surface.

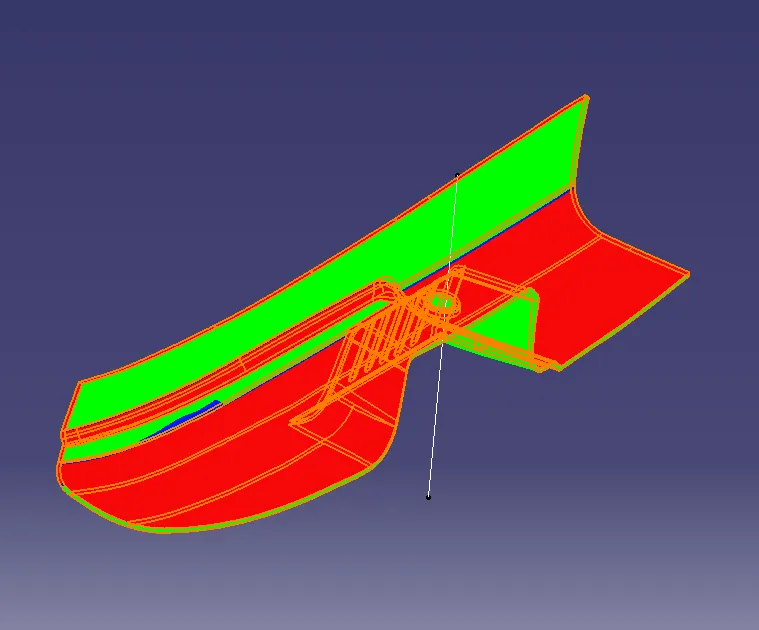

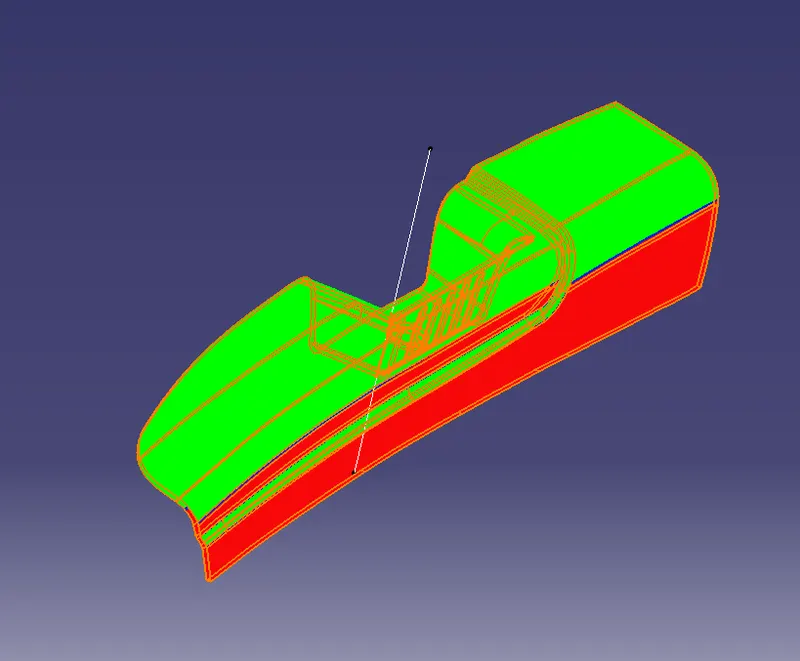

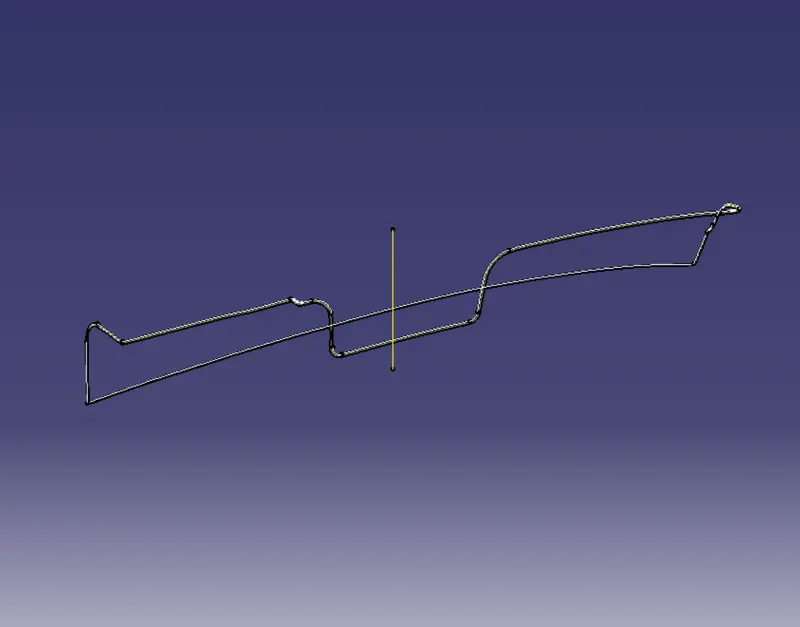

Checking Draft Deraction In Class A-surface

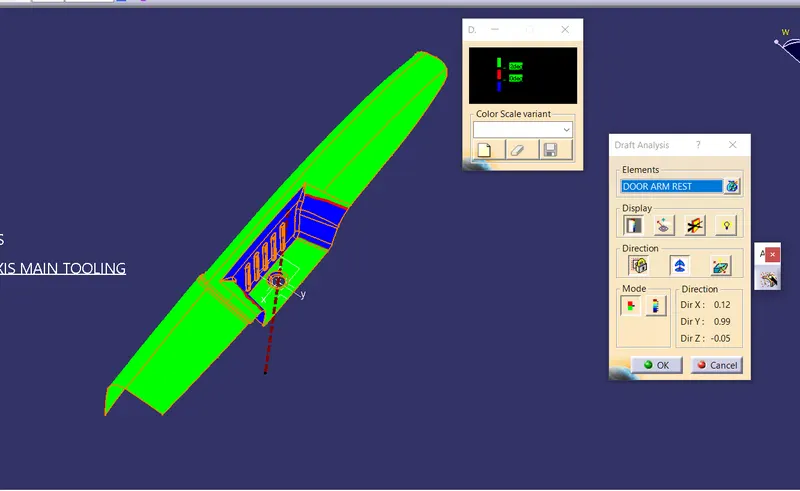

Tooling-Deraction

Slider-Dereaction

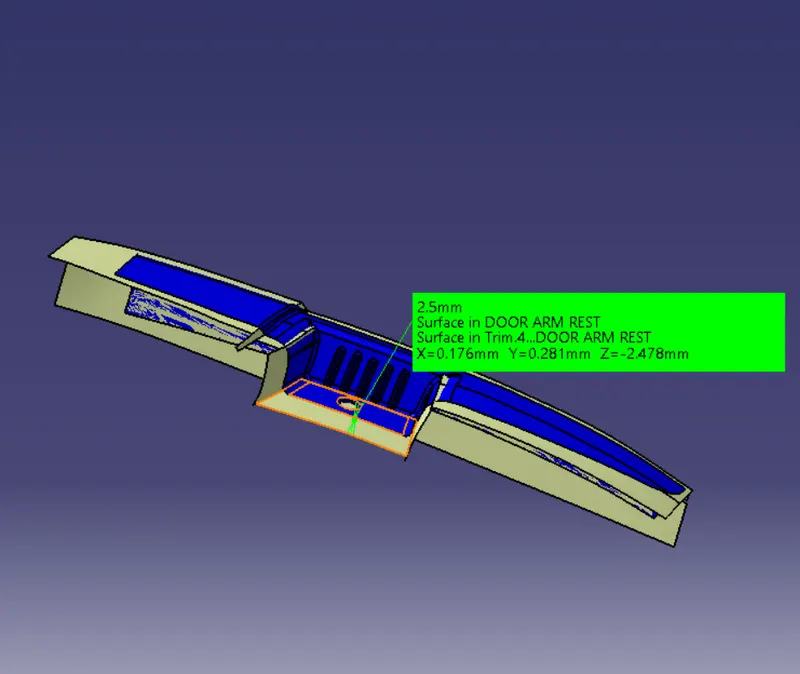

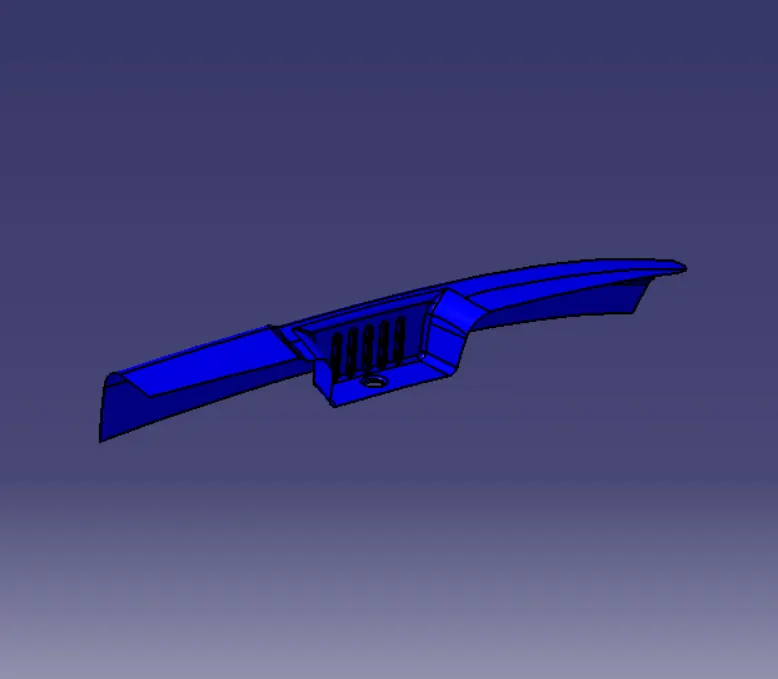

From this surface offset B-surface.

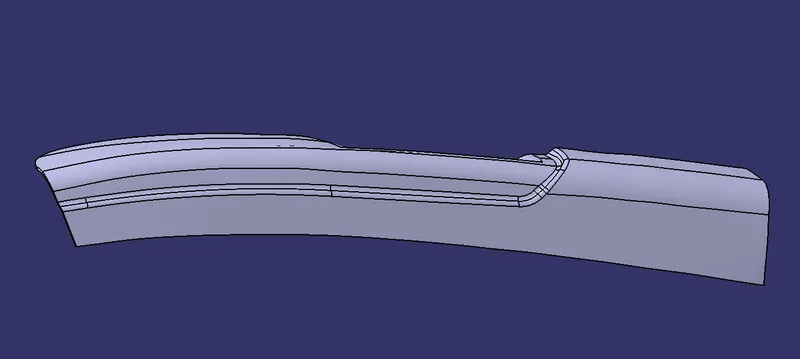

B-Surface

Assigning edge Fillet

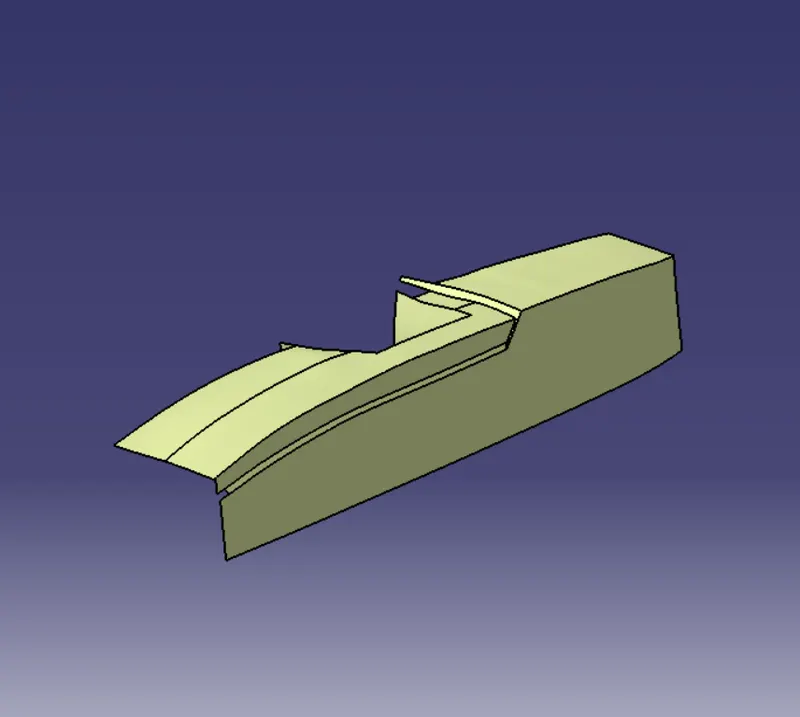

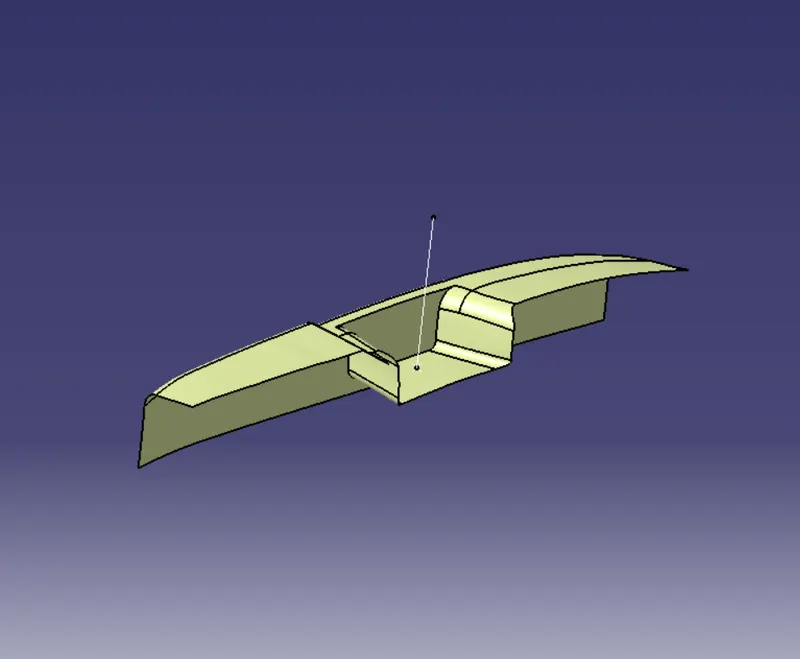

Crate C-surface

C-Surface Cratting by using Sweep, multisection tool.

Trim A, B & C surface.

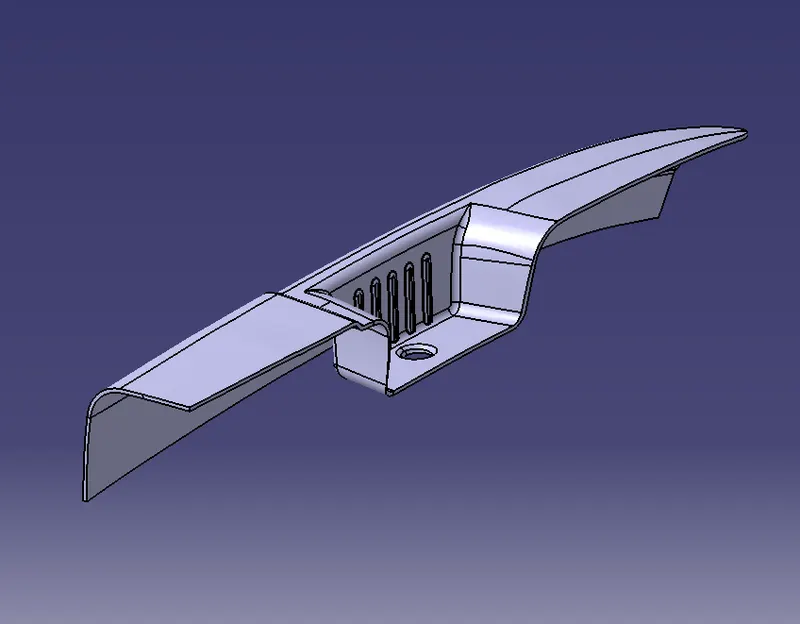

After creating the closed surface, fill the solid in the closed surface component.

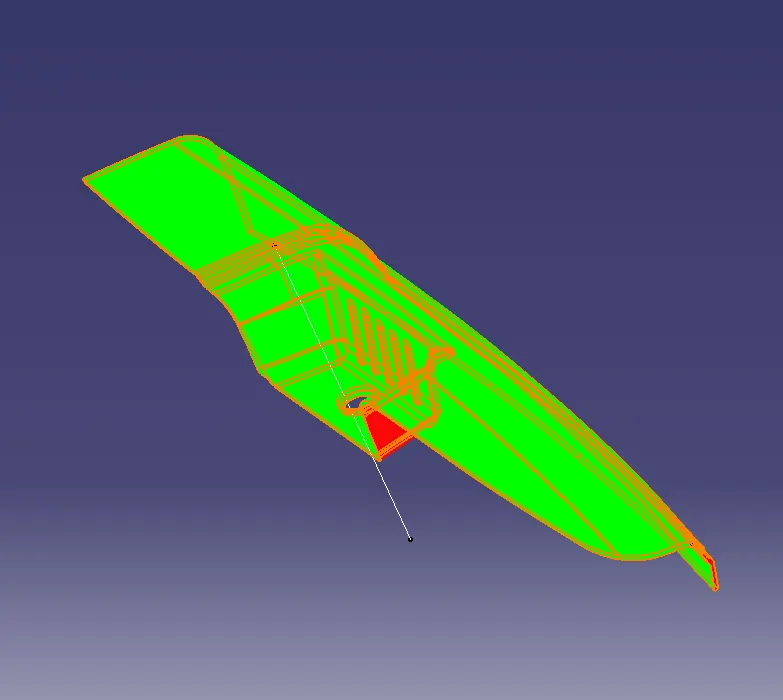

Checking Draft Analysis.

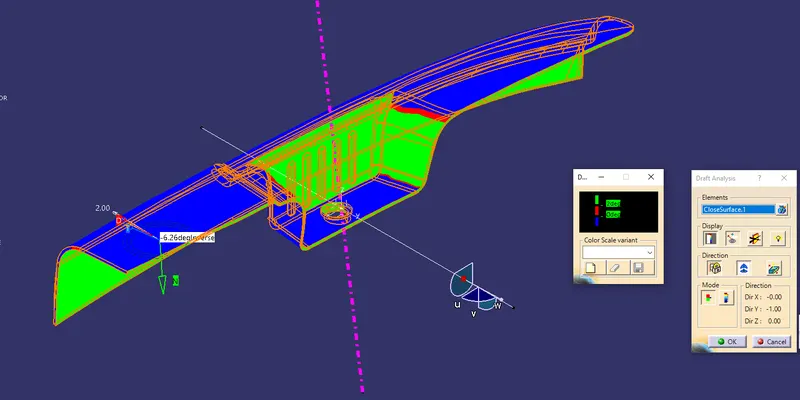

Fig 16: Draft analysis side view Fig 17: Draft analysis Bottom view

Fig 18: Draft Analysis top view.
