Design of Shallow Foundation (Isolated Footings)

Design a square footing for a column size of 400x400. The compression axial load for the load combination of (1.5 DL + 1.5 LL) is 2000 KN. The safe soil bearing capacity is 150 KN/m2 at a depth of 2 meters below E.G.L. Participants are free to go for either a tapered or stepped footing. Besides the total axial load, also account for the self-weight of the footing and soil above it. Assume M25 concrete grade. Do the following checks:

• If the gross bearing pressure under the footing is within the safe bearing capacity
• Provide sufficient depth and longitudinal steel for resisting bending and shear
• Sufficient anchorage for column steel into the footing
• If the bearing pressure at the column-footing joint is within 0.45 times the maximum concrete compressive strength

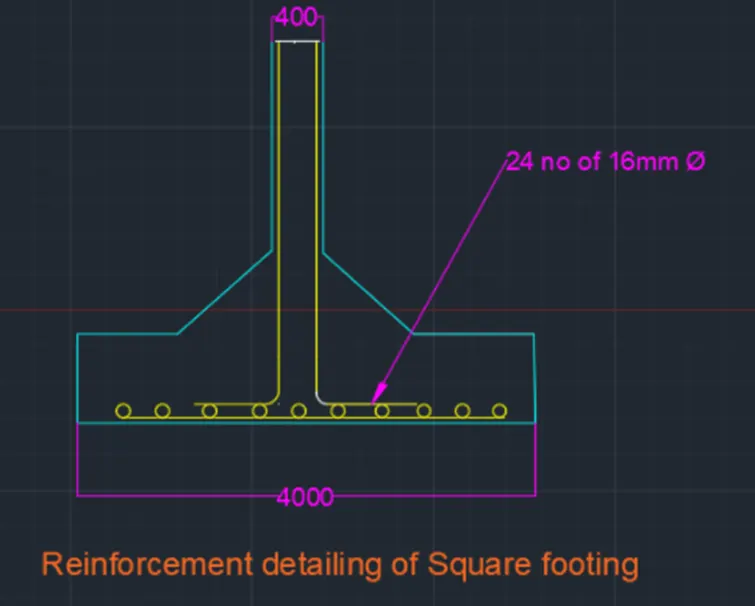

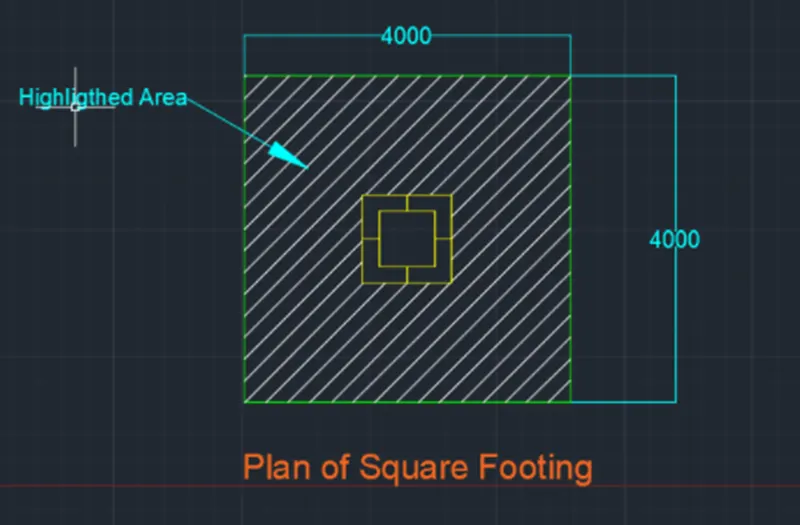

Provide a simple sketch showing the size of the footing, maximum and minimum depth of the section, flexural reinforcement in both directions, and anchorage of column steel.

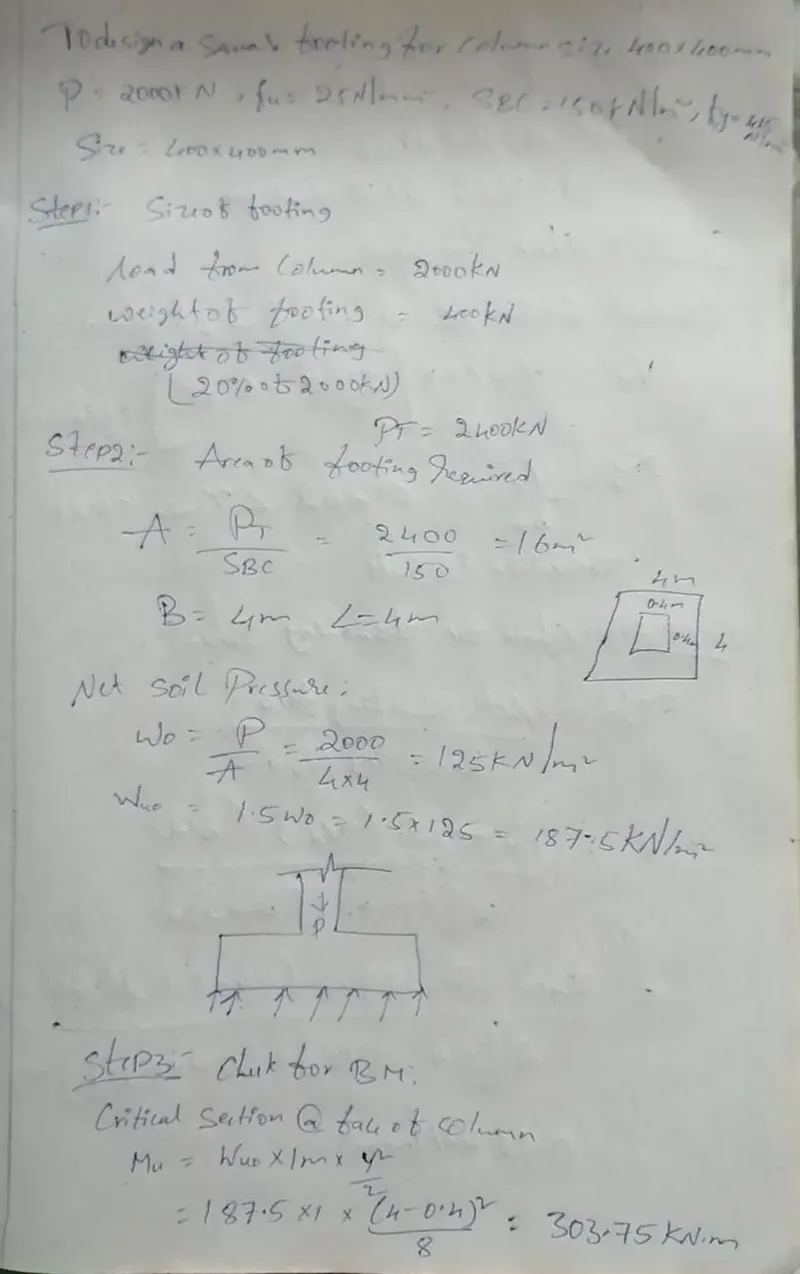

AIM: To manually calculate the spread footing dimensions and reinforcement details with respect to limit state design of soil and structure.

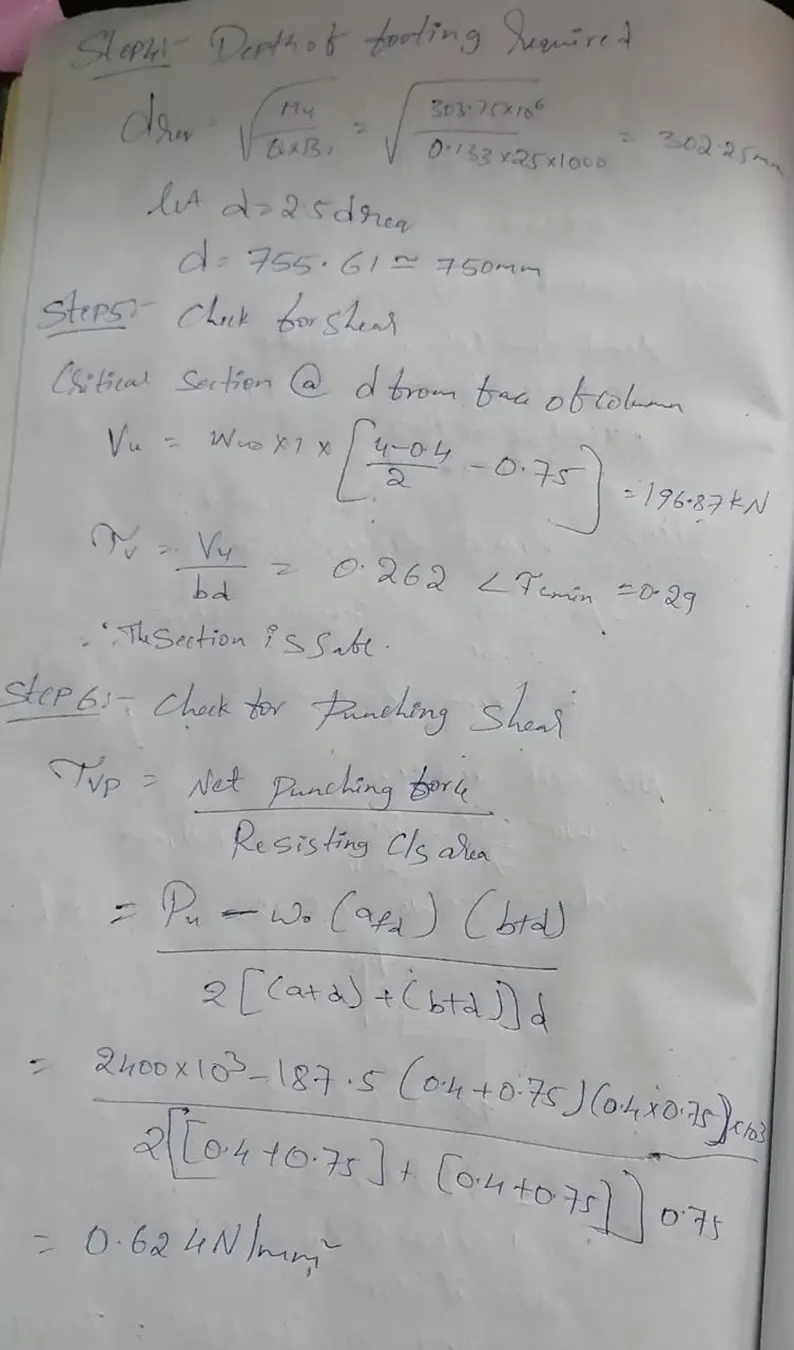

Procedure:

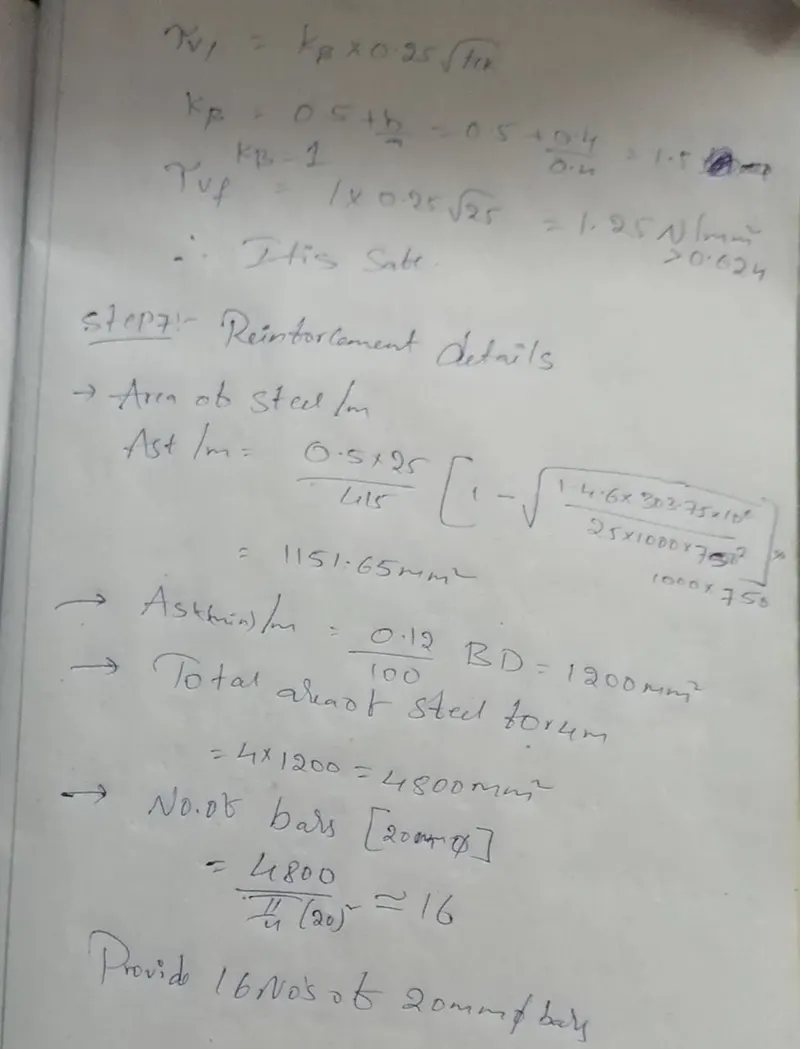

RESULT: Reinforcement detail drawings.

Thus the required spread footing is designed and detailed as per the given details and all the required limit state criteria are verified and found safe.
