ABSTRACT

As a part of my Internship with Skill-Lync, I was offered to do a project of creating a CAD model of Car Grab Handle which is an Automotive Plastic Product. An image of the Grab handle was provided which was further used to develop the model. This model in accordance with the concepts acquired from the Skill Lync’s course work “Automotive Plastic Design using CATIA v5”.

Grab handles are mainly there so people can climb in and out of cars with ease. If you’re getting into a large vehicle, for example, you might use the handle to hoist yourself up into the car, and then again to lower yourself back down onto the step or sidewalk without having to jump. The handles are especially useful for people with disabilities, older people, and pregnant people. Grab Handles are generally available only at the passenger’s side. As for why the driver’s door often lacks a grab handle, there are few possible reasons. For drivers the steering wheel can act as a makeshift grab handle and also if drivers tend to hold the grab handle during driving it might be a risk as the driver has to continue driving with a single hand holding the steering.

As this is a plastic product design, initially concept sketches were made which was useful in the creation of Class-A surface. As for the dimensions, it was referred from an actual car and some modifications in the dimensions were made as per the shape of the handle present in the image that was provided. This handle was made into two halves each containing B-side features of their own. After the creation of Class-A surface, the Class-B and Class-C surfaces were created separately for the top and bottom portion of the grab handle. A solid component was formed using these surfaces and the necessary B-side features were also created.

Further the Draft analysis was performed to ensure the smooth manufacturing of the product. The necessary moulds were created for the top and bottom portions of the component consisting of core, cavity and parting surface.

1. STAGES OF PRODUCT LIFE CYCLE IN AUTOMOTIVE INDUSTRY

The Product Lifecycle also defines on how fast the OEM will need to work either to upgrade the model or bring the next model in the pipeline. Agility of the carmaker will make all the difference here. OEMs who can assess the market condition well in advance and are able to upgrade or launch a new model will have higher chances to gain market share.

• The various stages of product life cycle in Automotive Industry are,
• Concept Sketching
• Styling Class-A
• Feasibility Check
• Concept Validation
• New Product Design
• Development Stage
• Prototype Build
• Design Validation
• Pilot Production
• Mass Production

1.1 Concept Sketching

The purpose of concept sketching in engineering domain is to provide communication at early stages of the design which is a collection of visual cues sufficient to suggest the design to an informed observer.

Free hand sketching is typically used with often a considerable number of iterations which generates visual thinking through series of sketches.

1.2 Styling Class-A

In this phase the initial concept sketch is validated for design aestheticism and CLASS A Skin is developed through software such as Alias. In this phase the initial 2D SKETCHES from Concept design get transformed in to 3D using Design Software such as Autodesk Alias.

A Clay model will be developed based on the inputs and Finally the model is scanned and fed to the CAD Engineers to develop the for the next stage.

1.3 Feasibility Check

This phase kick starts the design engineering process and the received Class A surface is validated for further stages of production feasibility.

In this phase, Feasibility study involves carry over designs for some parts from previous models and can be used in the new models.

In this way lead time is improved and also the functional and aesthetic traits are carefully validated

This is the stage that does the market study of various components and also incorporates the feedback from the customers and stakeholders and updates that to the downstream processes.

Instance: If there is a feedback from the customer about lack of space to keep wallet and phone in the centre console for a car then that will be validated and new concept is developed to create bin in the console and it will be passed on to the downstream processes to ensure it is attainable.

1.4 Concept Validation

In this phase Initial Concept Validation of perceived model is done. This is where all the design rules were validated and various studies such as Visibility Check, Safety Check from driver’s perspective were studied and all parts are started building around it

For instance, an interior trims firm does a Meter Visibility study to check the driver's vision range and carefully devise the mandatory information and tachometer reading within the visible range of the rider. All the research carried out were used to prepare a master section that will be used to develop different parts involved in the Interior Design such as IP, Infotainment systems, Steering Column.

Master Section is formed at the end of initial concept validation which will processed for further downstream.

1.5 New Product Design

The major work of product designer starts from this phase. After the Concept validation stage, the designer starts developing CAD sketches of every component in the car.

The main objective of the product designer is to incorporate all the inputs from the previous stages and ensure it is 100% manufacturable in the upcoming stages.

Then the role of designer is to do all the design work within the specified rules and design engineering standards of the organization

1.6 Development

This stage forms as the bridge between the Design team and Manufacturing Team. The role of Development team is to collaborate with manufacturers to ensure the design is feasible to manufacture and feasible to assemble

They work with the tool makers, Mould and fixtures and also with various outsourced vendors and stakeholders to kick start the manufacturing of the designed part

1.7 Prototype Build

The next stage is to do proto-build of the designed part. A complete prototype is built to study the feasibility of the manufacturing process and materials used in the components

1.8 Design Validation

The Design validation stage inspect about any failures in the prototype like Plastic deformation or Dimensional instability and thy rectify the process and materials. This is the phase where further design modifications are freezing and only minor changes are allowed.

1.9 Pilot Production

The main role of the pilot production is to devise the lead time and manufacturing processes of various components and any defects in the Production line will be identified and an assembly line is devised with different stations.

1.10 Mass Production

After ensuring all the above stages the Production of the components will be made live to Mass Production. These are the stages of an Automotive Life Cycle.

2. CLASS A SURFACE

2.1 CLASS A

In automotive design, a class A surface is any of a set of free form surfaces of high efficiency and quality. The minimum math requirement for Class A Surface is that the transition across the edge is a continuous curvature.

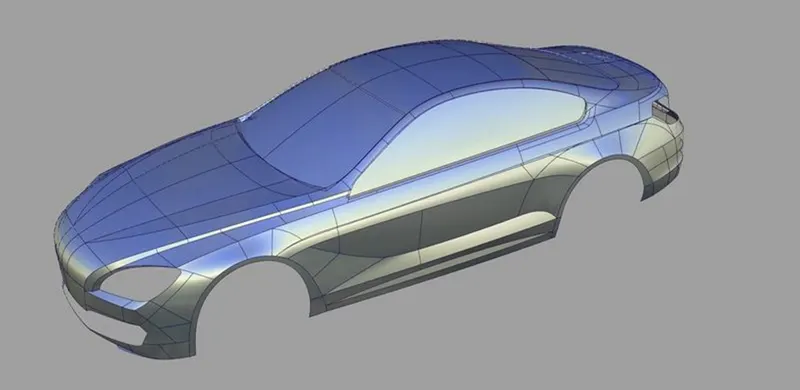

FIG 2.1.2 CLASS-A SURFACE

Another way to describe this is in a situation where a reflection is cast upon the surfaces and you would not be able to tell where one patch ends and the other begins. Class-A Surfacing needs a fine blend of keen visualization skills, artistic insight Engineering, experience and domain knowledge.

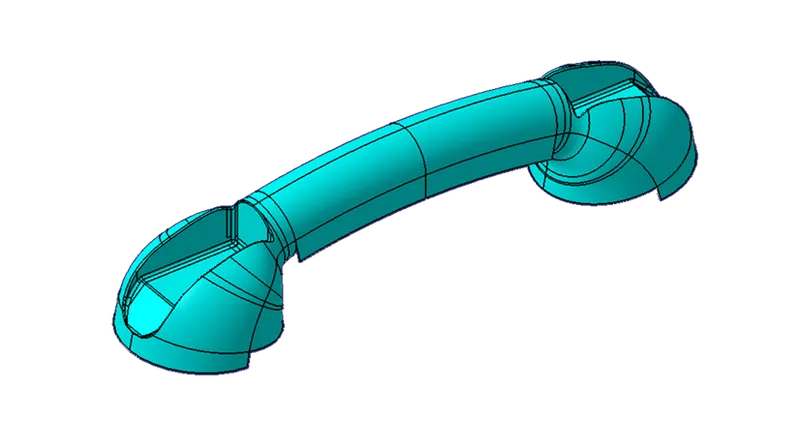

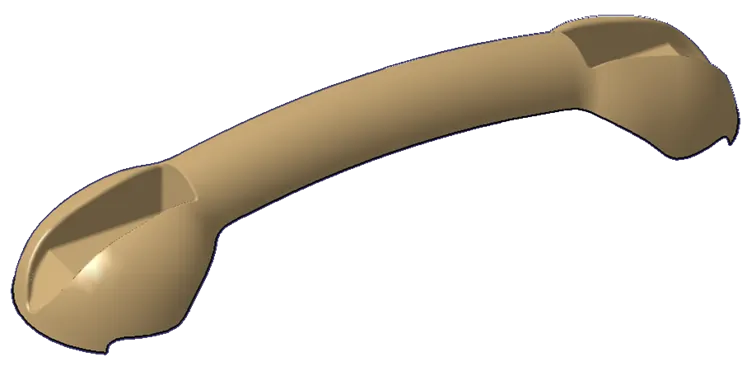

Fig 2.1.2 Class-A surface of Grab Handle -Top

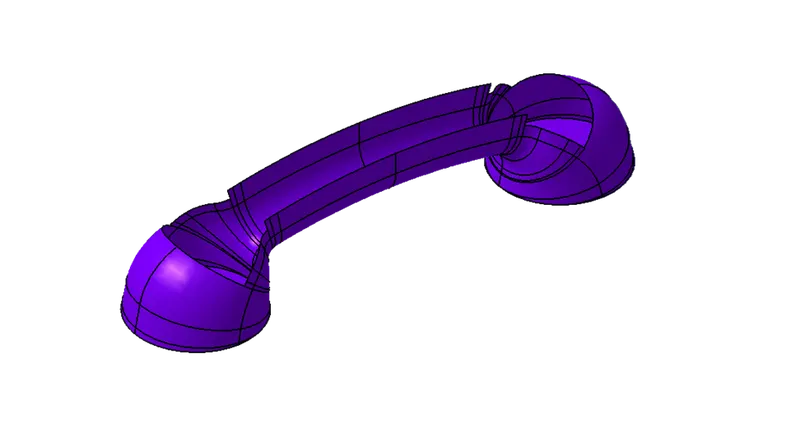

Fig 2.1.3 Class-A surface of Grab Handle -Bottom

2.2 Types of Continuity

Surface continuity defines how smooth one surface transitions to another. The smoothness of a junction is generally defined using an index ‘G’. If the two surfaces are not touching it can be represented as ‘No-G’

The four types of surface continuities which are differentiated based on the contact which the establish with each other are

• G0 – Position (touching)
• G1 – Tangent (angle)
• G2 – Curvature (radius)
• G3 – Acceleration/Torsion (rate of change of curvature)

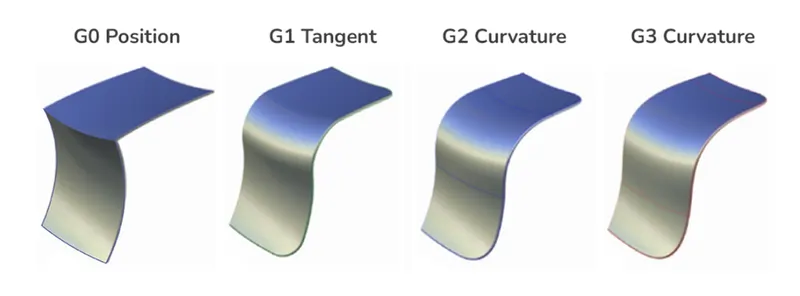

Fig 2.2.1 Types of Continuity

3. CLASS B SURFACE

Class-B surface resembles an offset surface from Class-A. The thickness to which extent the actual component is required is basically the offset distance for the Class-B surface.

The Class B surface has minimal imperfections and are not often visible outside. For plastic components the offset is generally around 2-3 mm.

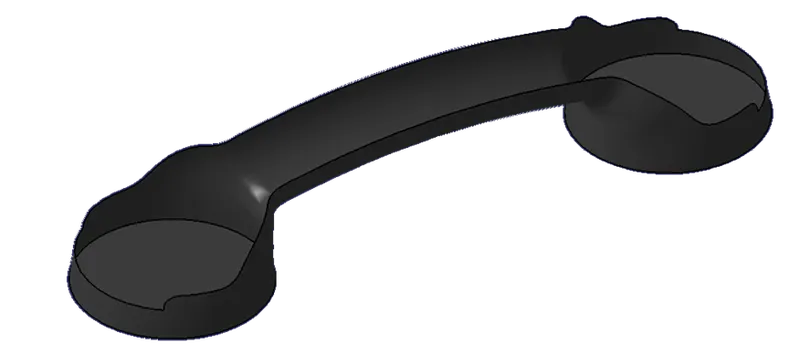

Fig 3.1 Class-B surface of Grab Handle – Top

Fig 3.2 Class-B surface of Grab Handle – Bottom

4. CLASS C SURFACE

Class-C surface is the surface that binds the Class-A and Class-B surface and forms a closed surface. In the Class-C surface, more imperfections are allowed compared to the Class-A and Class-B surfaces.

These surfaces are also not readily visible and are accessed only during installation or during the service of a particular component.

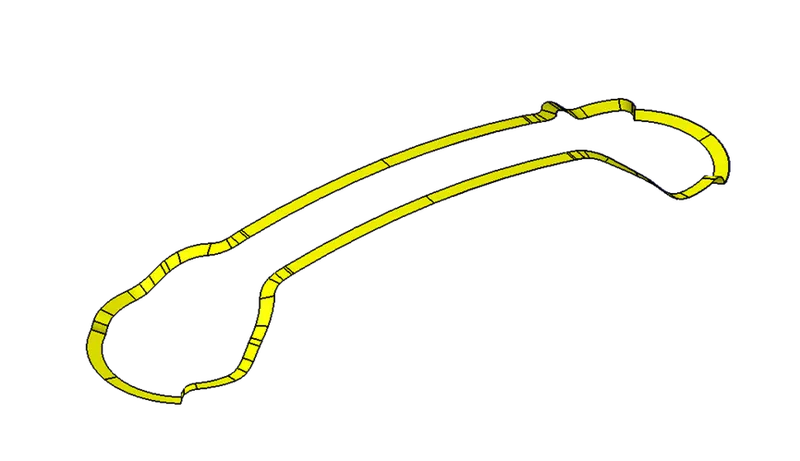

Fig 4.1 Class-C surface of Grab Handle

5. DRAFT ANALYSIS

5.1 DRAFT

Draft is a method of ensuring that the plastic component is ejected out of the mould cavity without any damage to its surfaces. Basically, a taper is provided to the surface of the component so that it is not exactly parallel to the direction of mould opening.

A single value of draft cannot be applied to all the components. There are various factors that influence the draft angle for a particular component such as wall thickness, shrinkage rate, ejection, material selection. It is also known as Taper allowance.

Generally, a minimum draft of 3 degree is used for plastic components for a shutoff and a draft of 0.5 degree is used for the vertical surfaces.

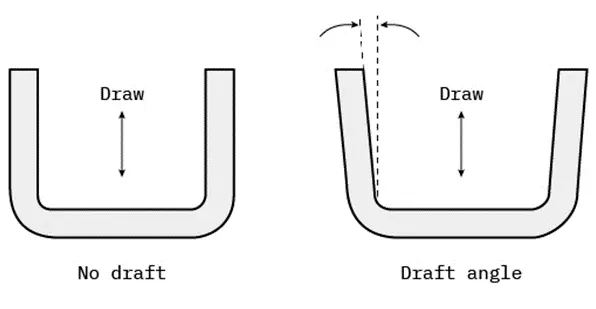

Fig 5.1.1 Draft angle

Providing draft also helps in improving the surface finish of a component. If the draft is not provided, the component might rub against the mould cavity during ejection which results in poor surface finish.

5.2 DRAFT ANALYSIS ON GRAB HANDLE

The component clears the draft angle of 3 degree and the ribs clear a draft of 0.5 degree.

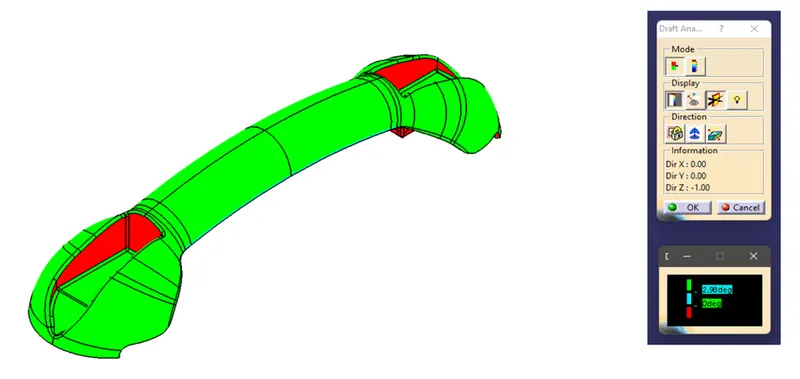

Fig 5.2.1 Draft Analysis on the Grab Handle - Top

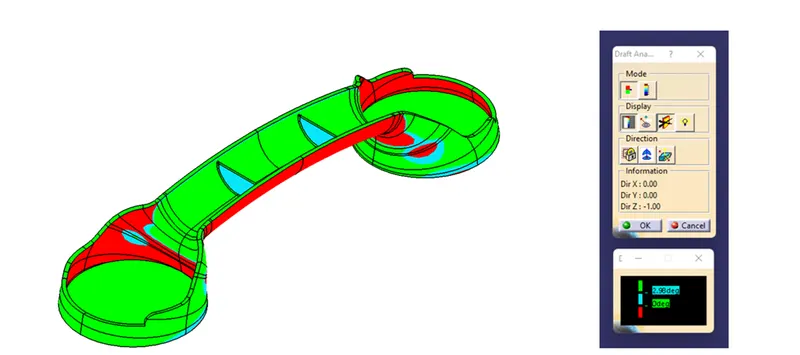

Fig 5.2.2 Draft Analysis on the Grab Handle – Bottom

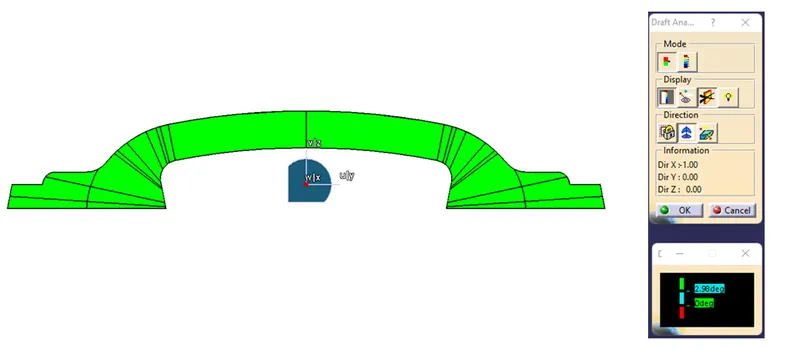

Fig 5.2.3 Draft Analysis based on Side core axis

6. FACTORS INVOLVED IN MATERIAL SELECTION

In manufacturing process selection of materials for the design of a machine is an essential step to accomplish the reliable functionality of the machine.

The selected material should satisfy both the availability as well as the function and many other factors such as,

• Mechanical Forces or Loads,
• Wear and tear
• Electrical insulation
• Thermal properties
• Availability & cost

6.1 Mechanical Forces or Loads

There is the different type of mechanical forces can act on machine members and produces different stress and strains. These following actions produce the different types of forces in the machine parts.

• Self-weight of the machine
• Energy Transmitted
• Change of temperature
• Frictional resistance
• The inertia of reciprocating parts
• Unbalance of Moving parts.

6.3 Wear and Tear

As the moving parts or sliding parts needed to withstand the wear and tear as they getting aged. So, this is also a factor that makes the difference in selecting a material for the machine parts.

6.3 Electrical insulation

It is very important that whether the component should resist the electric current between the two mated components, or it is not necessary to insulate the current. So there are some special materials available to resist the electric current. PVC, glass and asbestos are the examples of Insulation material. These insulating materials can be used in between the mating parts to resist the electrical current.

6.4 Thermal properties

Thermal properties of the materials, that are necessary to consider while picking a material for a machine part. it might affect the mechanical properties of the materials due to the heat. In some applications, it is necessary to insulate the thermal energy to flow between the mating parts.

6.5 Availability & Cost

Finally, the most important factor is that the availability of the material resource. From the economical point of view, the material should be easily available in nature. This availability decides the cost of the material. So, it is necessary to consider this factor as the major one in the selection of materials for the engineering purpose.

By considering these factors, we can select a suitable material that can fulfil the designer requirement from all perspectives such as the functionality, Cost, availability to build reliable machines.

7. PLASTICS IN AUTOMOTIVE SECTOR

While a car from the 1950s had almost no plastic, the typical automobile today has more than 120 kilograms of plastic. Plastics are a very appealing material for automobiles because their use leads to greater fuel efficiency. It has been determined that every 10 percent drop in vehicle weight equals a 5 percent to 7 percent decrease in fuel usage.

There are two different types of plastics which are commonly used in the manufacturing of Automotive Plastic products which are,

• Thermosetting Plastics
• Thermoplastics

7.1 Thermosetting Plastics

A Thermosetting polymer, resin or plastic often called a thermoset, is a polymer that is irreversibly hardened by curing from a soft solid or viscous liquid prepolymer or resin Curing is induced by heat or suitable radiation and may be promoted by high pressure or mixing with a catalyst. It cannot be recycled.

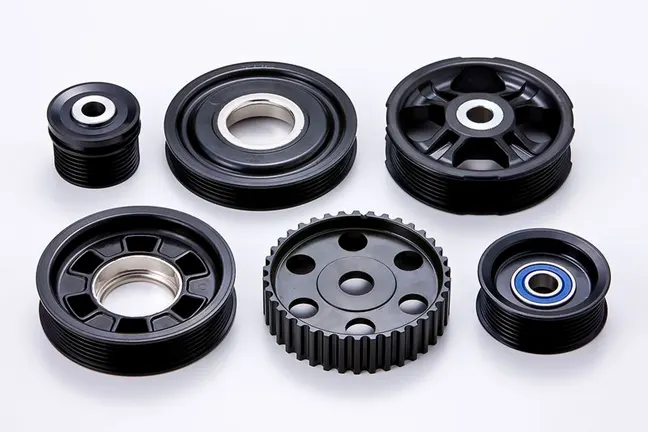

Fig 7.1.1 Examples of Thermosets

In general, thermoset products are made through liquid moulding processes. The polymers and other agents are fed into tanks or barrels, where they are heated to a liquid state and mixed.

Then the liquid polymers and other agents are injected into a mould cavity. As the material cools and hardens to the configuration of the cavity, it goes through a curing process where the polymers cross-link together.

That process forms an irreversible chemical bond that prevents the risk of melting, softening or warping when or if the finished product is subjected to high heat or corrosive environments. This makes thermosets perfect for high-heat applications and outdoor use.

There are two primary liquid moulding processes used to produce thermoset plastics,

• Compression moulding
• Thermoset Injection moulding
• Sheet moulding component

7.2 Thermoplastics

A Thermoplastic or Thermosoftening plastic is a plastic polymer material that becomes pliable or mouldable at a certain elevated temperature and solidifies upon cooling. Most thermoplastics have a high molecular weight. It can be melted and recycled.

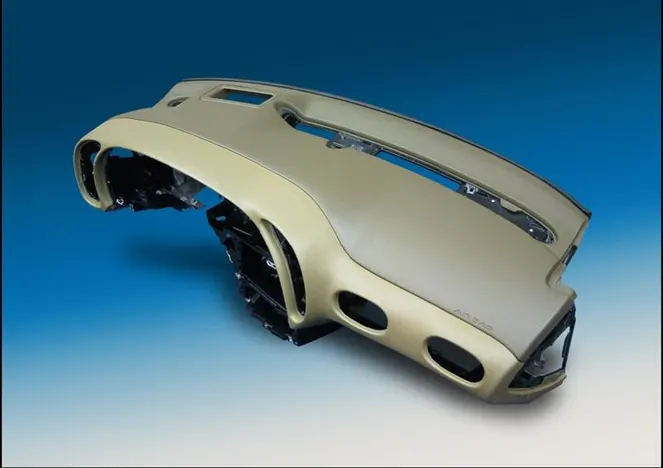

Fig 7.2.1 Example of Thermoplasts

Thermoplastic sheets are manufactured from raw materials, including polymer resins, colorants, and additives, depending on the specific formulation required. Raw materials are blended to exacting standards to ensure uniformity throughout the batch and consistency between batches.

Once the raw materials are blended, they are heated, pressed through an extrusion die, and drawn into a sheet through a set of rollers. While the sheet is still warm, it passes through additional roller sets to reach the desired thickness and specified surface texture.

Thermoplastics are characterized by their pliability above a specific temperature, and ability to re-solidify upon cooling. This allows them to be easily shaped and moulded without changing the properties of the thermoplastic material.

• The manufacturing processes include,
• Injection moulding
• Extrusion
• Blow moulding
• Reaction Injection moulding

8. INJECTION MOULDING

Injection moulding is one of the most commonly used production processes for plastics. This is rightly so as it offers a viable solution for the mass production of high-quality injection automotive parts from a broad range of polymers. In the automotive industry, where consistency, safety, and quality are of utmost importance, automotive plastic injection moulding is an important manufacturing process.

Some of the raw materials used in the Injection Moulding process are,

• Acrylonitrile butadiene styrene
• Polyamide / Nylon
• Polyvinyl Chloride
• Polypropylene
• Polyurethane

8.1 Types of Injection Moulding Machines

The various types of Injection moulding machines include

• Plunger Type Injection Moulding Machine.
• Screw Plunger Type Injection Moulding.
• Plunger-Plunger Type Injection Moulding.
• Reciprocating Screw Injection Moulding.

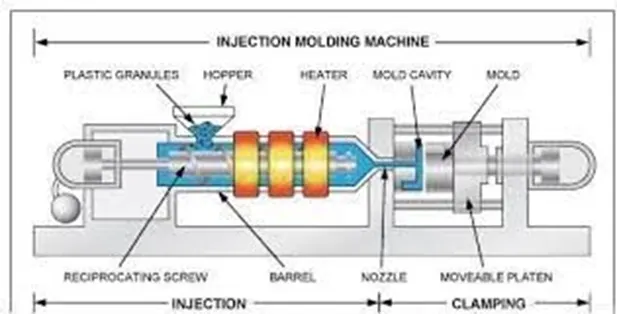

Fig 8.1.1 Injection Moulding Machine

8.2 Types of Injection Mould

The various types of Injection mould are

• Two Plate Mould
• Three Plate Mould
• Hot Runner Mould.
• Cold Runner Mould.
• Single Cavity Mould.
• Multi Cavity Mould.
• Family Mould

9. MOULD DESIGN

Mould design is an important part of the development process when considering the production of a new moulding. Some considerations are given below.

The shape of the moulded part has a direct effect on the time involved in making the mould, the cycle time of the moulding. For example, undercuts and deep screw threads often require a separate moving part which increases the cycle time of each moulding operation.

The surface finish of the moulding needs to be decided before the mould is completed. Embossing, etching and other finishes can be added to the moulding to enhance the aesthetic qualities of the moulding. Any imperfection on the finish of the moulding will transfer to every mould made.

Weight, surface area and thickness of the moulding directly affect cycle time. Where mouldings have significantly varying thickness, cooling has to be controlled very carefully otherwise depressions form (sink marks) on the outer surface of the moulding caused by excessive shrinkage of the thick section of the moulding.

The various components of a mould are as follows,

• Core
• Cavity
• Parting surface and Parting line

9.1 Core

Core is a preformed, bonded, sand insert placed into the mould to shape the interior of a casting or a part of the casting that cannot be shaped by the pattern.

Core is the male part which forms the internal shape of moulding. Cores are often used to create hollow sections or cavities in a casting.

9.2 Cavity

Cavity is the combined open area of the moulding material and core, where the metal is poured to produce the casting. The cavity is the female part which forms external shape of moulding.

9.3 Parting surface and Parting line

A Parting surface is a surface in the model that you designate to split a workpiece, die block, or another volume. A Parting line is the line of separation on the plastic part where the two halves of the plastic injection mould meet.

9.4 Mould Design for the Grab Handle

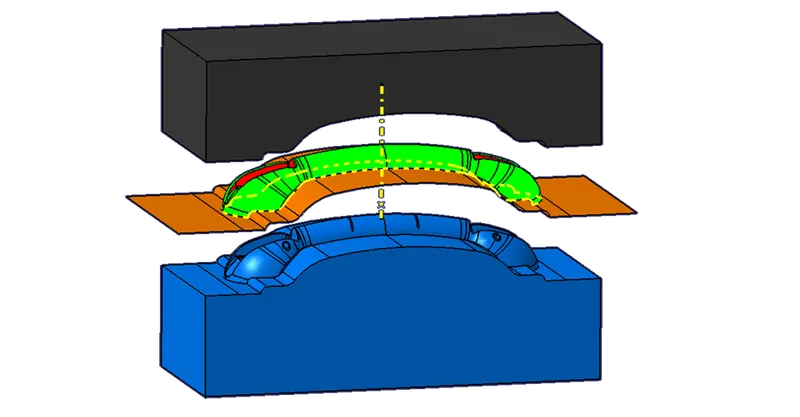

Fig 9.4.1 Mould Design for Grab Handle – Top

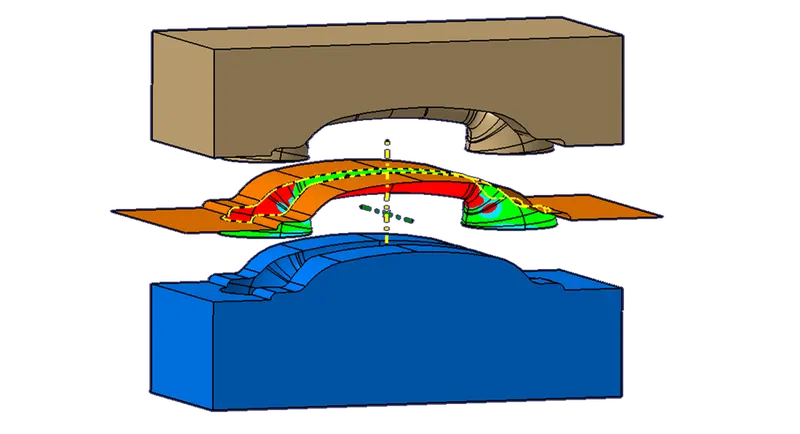

Fig 9.4.2 Mould Design for Grab Handle – Top

10. CONCLUSION

The solid model of the Grab handle was created with top and bottom portions separately. This solid model was made through Class-A, Class-B and Class-C surfaces which were created using CATIA V5.

Following the solid component, the required B-side features were also created which includes ribs and locators.

The Draft analysis for the component was performed and it was made sure that the component cleared the minimum draft in both the directions i.e., Main tooling axis and the side core axis.

Necessary mould designs for the component for top and bottom portions respectively.
