Design of backdoor

DESIGNING OF BACKDOOR

OBJECTIVE

Making use of the surface provided design the back door of the car.

Image 1: back door image.

It is a movable board or door that may be raised or lowered during loading and unloading. It is located at the rear of the vehicle.

Other names for the back door include 'Hatch','Tailgat','Trunk-lid' and 'Boot door'. It is teh area of the car closest to the back features mounts for the tail lights, hinges, wiper motor, gas stay etc.

DESIGN CONSIDERATIONS

• Backward visibility.
• Accessibility and boot space.
• Filtering flange.
• Supporting elements such as hinges and gas stays.
• Wiper motor, tail light and other wiring loops mounting brackets.
• Regulation on rear crashes.
• Joining methods include spot welding, hemming etc.
• Gap and flush specifications.

USES OF THE BACKDOOR

• It safegaurds against damage to the passengers belongings and luggage.
• It is integrated with tail lamp assembly, the wiper motor and other parts.
• It acts as apoint of entry and exit for passengers and luggage.
• It has windscreen glass, which improves visibility from behind.
• It has parking sensors and a rearview camera attached.

TYPES OF BACKDOOR

TOP MOUNTED DOOR

A station waggon, pickup truck and a few other sports utility vehicles employ this style of back door. Modern automobiles include top mounted tailgating deices that are motorised and gas powered. Compared to other models, these tailgates offer better rear view.

SIDE MOUNTED DOOR

Typically van-type MPVs,SUVs and pickup trucks employ it. Compared to top mpunted ones, these side mounted ones these side mounted doors and barn doors can usually be opened quickly. Typically tiny in size, when ine door is left open these doors are more practical for goods handlers moving long pipes and bulky products. It prevents unintentional head blows as well. In cars with side mounted doors, it is more simpler to load and unload cargo.

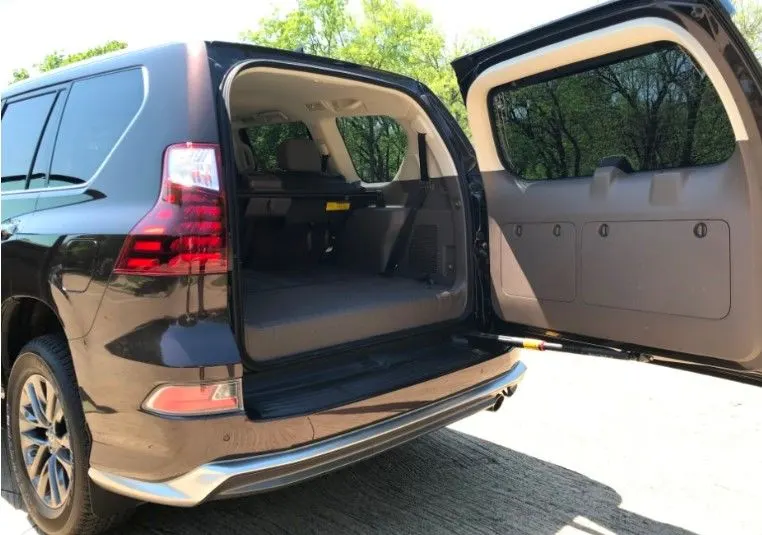

Image 2: side door image.

BOTTOM MOUNTED DOORS

Estate cars, pickup trucks and some upscale SUVs use bottom type or split type backdoor systems. These are the most practical backdoors, with the bottom split serving as a support or perhaps a table for travellers.

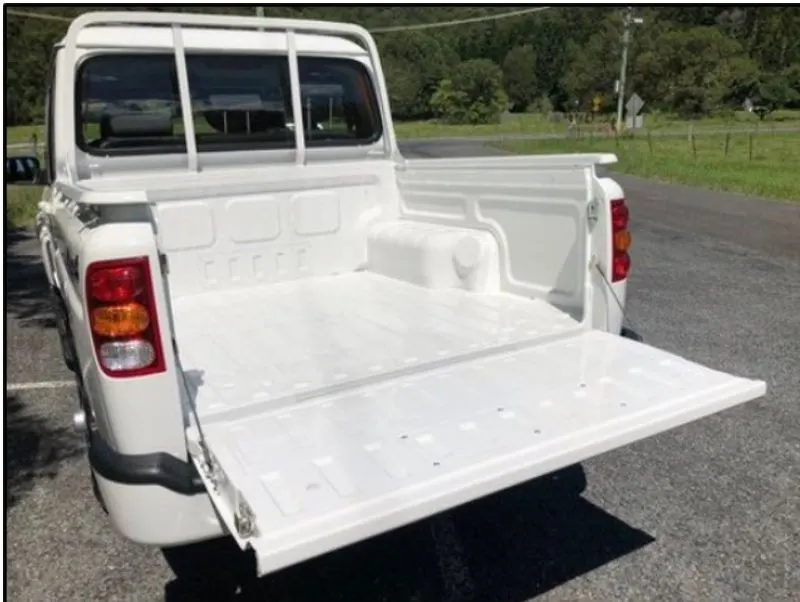

Image 3: bottom mounted door image.

MATERIALS USED FOR MANUFACTURING

The back door's overall weight is significantly influenced by the material choice. Steel and aluminium are the most often utilised materials. Because steel has a denser composition than aluminium, the door is heavier. The backdoor's construction material is determined by the car's budget most low cost cars utilized steel because it is less cost than aluminium.

Another thing to keep in mid is that using cast aluminium parts rather than deep srawn steel parts eliminates the need for reinforcements and reduces the car's overall weight by about 5 to 10 kg improving performance.

Additionally the deep drew components have a draught angle of 7 to 10 degrees fr cast parts, which helps to increase cabin and luggage space.

DESIGNING COMPONENTS

OUTER PANEL

It is back door's outside styling skin surface. It features multistage coatings that provide properties like scratch resistance and corrosion avoidance.

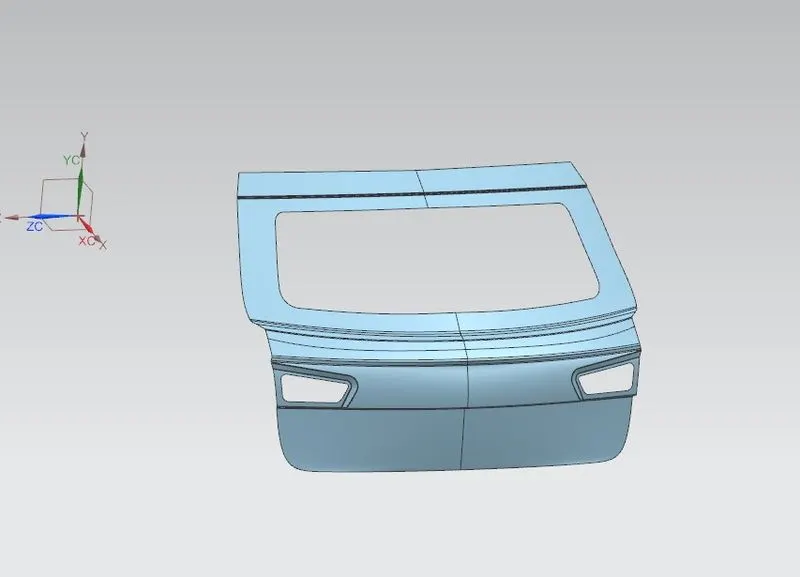

Image 4: Outer panel back door.

It is the back door's outside styling skin surface multistage coatings that provide properties like scractch resistance and corrosion avoidance. Through the process of hemming it is wrapped arounnd the inside panel.

INNER PANEL

One of the most crucial parts of the backdoor assembly is the inner panel. With the aid of the embossed patterns o it, it offers strength and aids in the absorption of external pressures. It mounting accessories like as hinges, wiper motor, gas stays, latch and strikers among others.

The inner panel is made either through casting or deep drawing.

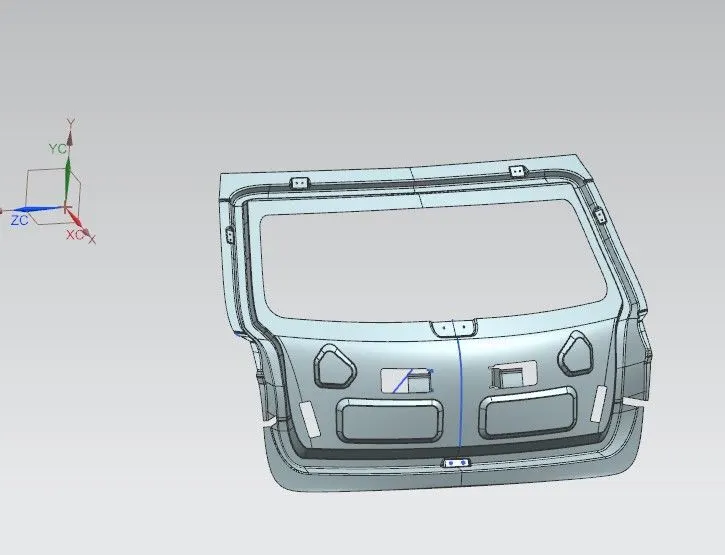

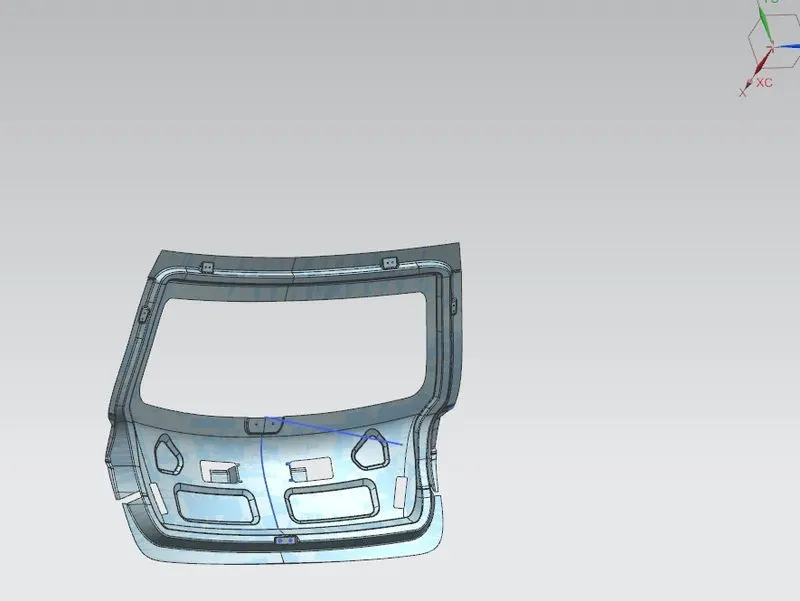

Image 5: Back Door Inner Panel Image 1.

Image 6: Back Door Inner Panel Image 2.

The majority of aluminium parts are cast and the steel inner panels are made using the deep drawing process. These must be atooling direction via which that panel must be deep drawn if such is the case.

EMBOSSING

It is offered to provide sheet metal panels more strength and to aid in chaneling forces and energy in a particular direction. Here embossing in v or y shape are made in such a way that they face the exterior of the backdoor as seen in the illustration.

MASTIC SEALANTS

We can't utilize bolting, spot welding or any other joining technique that detracts from the outer panel's asethetic appearance since we know that is provides the car its aesthetic appearance. Mastic sealeants are thus present to bind the inner and outer panel parts. The distance between places where mastics are to be applied must not be less than 5mm.

Image 7: Flange for mastic sealant.

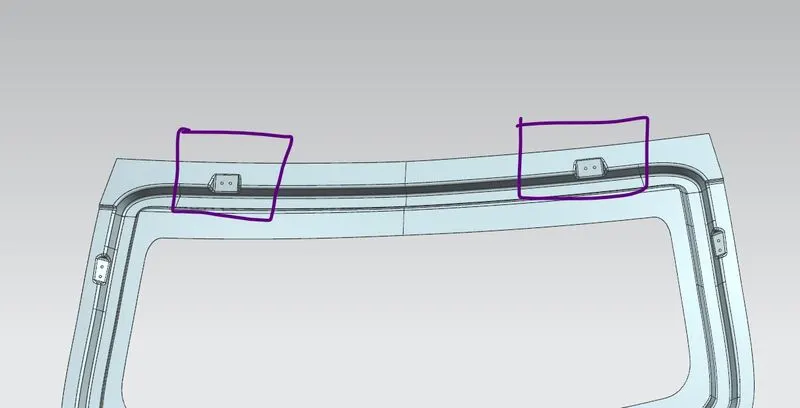

HINGES

The backdoor's whole weight is supported by the hinge, a ivoting device. As a result, reinforcements are added for rigidity of the panel assembly, reinforcements are typically placed to increase the strength of panel in specific localised areas that are relatively small compared to sheet parts for absorbing loads imposed thereon and aissipating such loads throughout the panel assembly.

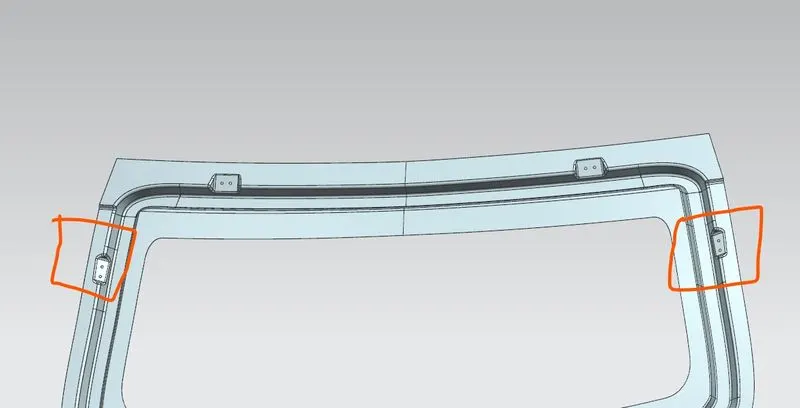

Image 8: Hinges of Back Door.

GAS STAY

The backdoor is raised automatically by a gas stay, which also serves to support the backdoor while it is is open. It comes in two varieties, both partially and entirely automated.

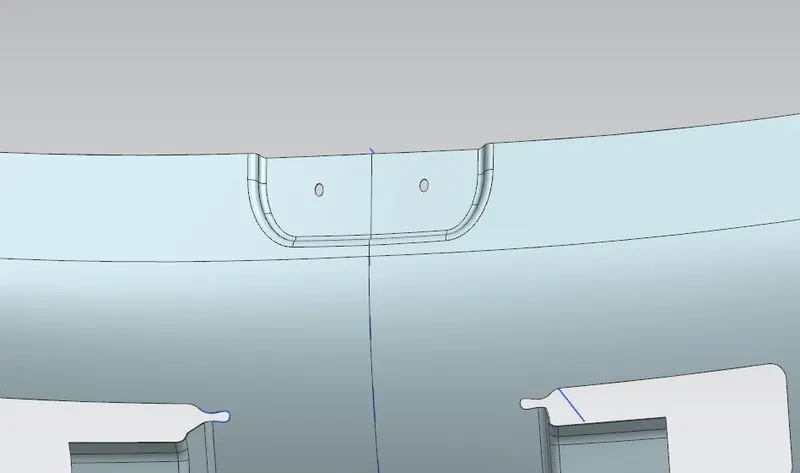

Image 9: Gas Stay of Back Door.

WIPER

The rear visibility is affected by dust and wetness on the windscreen, which is removed with a wiper. The motor, which is located on the interior panel, operates it. The inner panel becomes distorted as a result of the motor's vibration and heat, which reduces the panel's strength and stiffness and causes poor noise, vibration, and harshness (NVH). In order to prevent these circumstances, reinforcement is given.

Image 10: Wiper of backdoor image.

LATCH

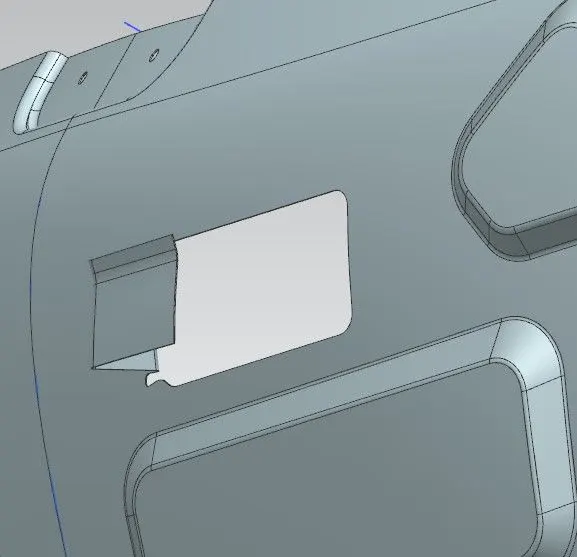

For the placement of the latch and striker assembly, an emboss is made in the bottom portion of the panel. The door is being opened and closed abusively and repeatedly, necessitating the installation of reinforcing.

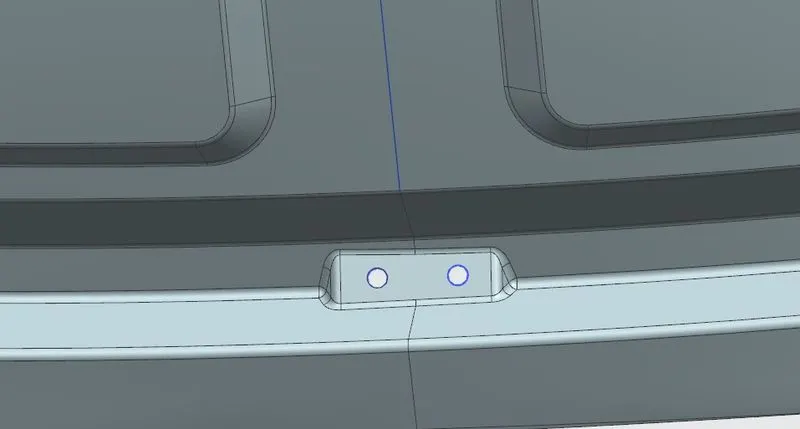

Image 11: Latch Position of The Latch.

POSITION OF LATCH TRAJECTORY

The backdoor's swinging portion revolves around the hinge axis. For the backdoor to open and close correctly, the latch striker's position and orientation are crucial. The striker is passed through at the proper position in relation to the inner panel by a circle whose centre serves as the hinge's axis.

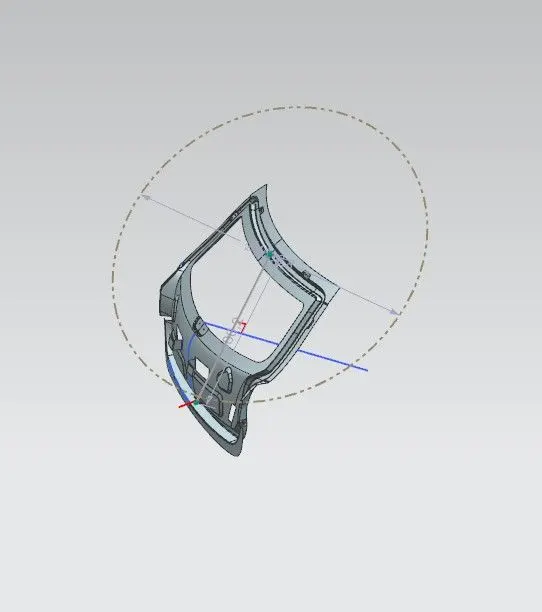

Image 12: Latch Projection.

ASSEMBLY

The inner panel of this assembly was constructed utilising several NX tools and instructions using a style surface that was provided. Then, one by one, the additional parts were modelled in accordance with the specifications.

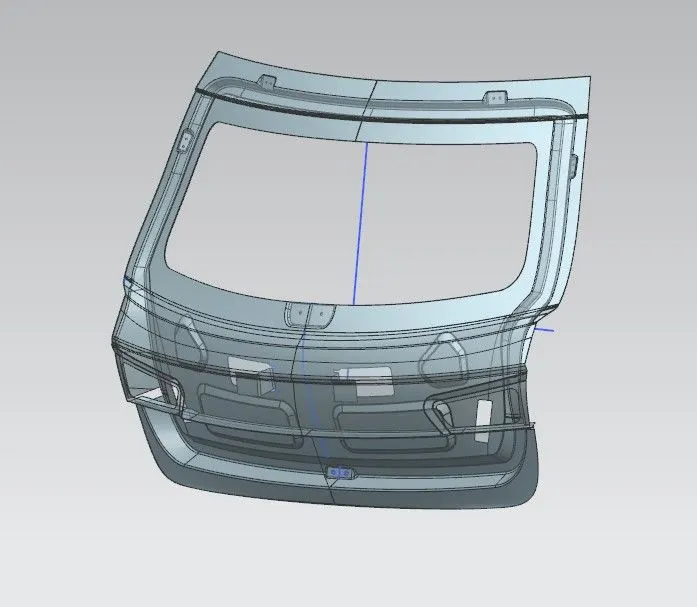

Image 13: Assembly of Back Door.

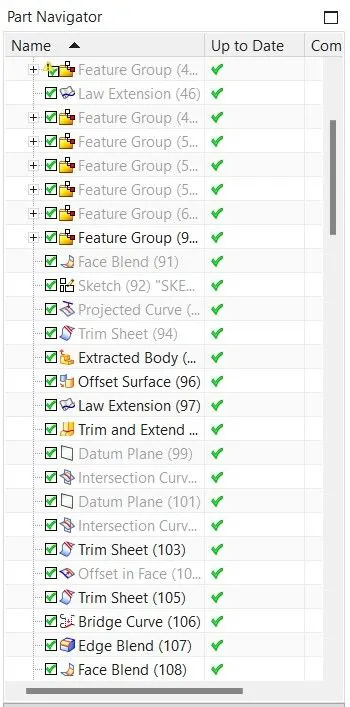

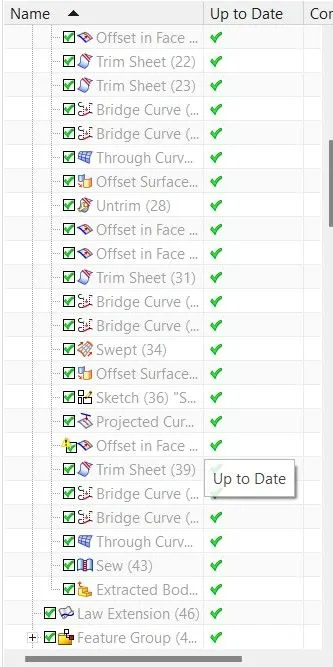

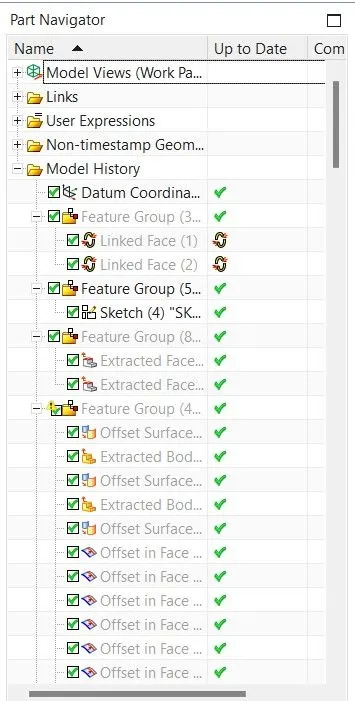

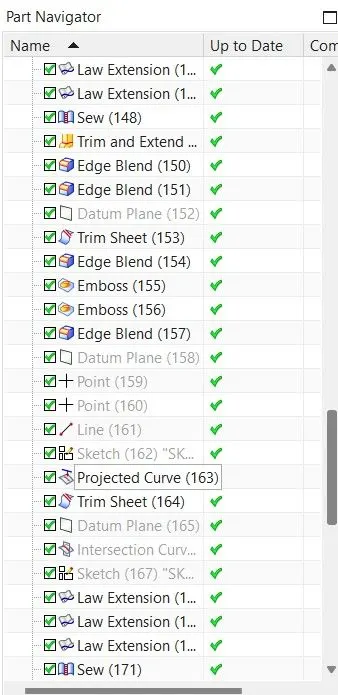

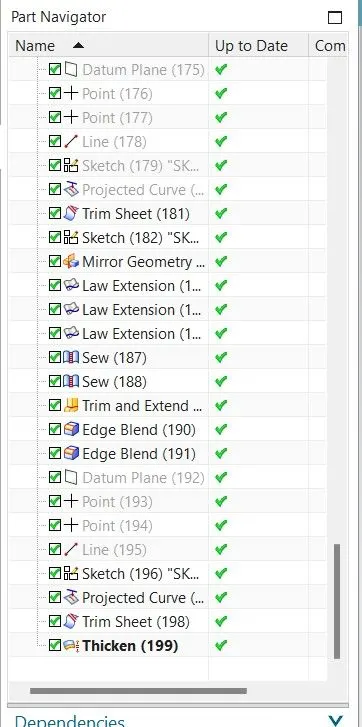

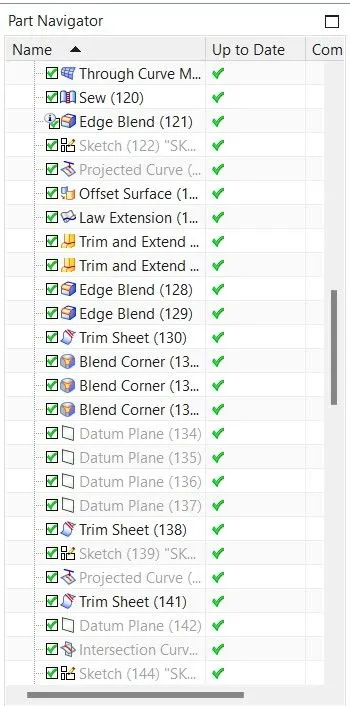

PART NAVIGATOR OF INNER PANEL CONSTRUCTION

Image 14: Part Navigator 1.

Image 18: Part Navigator 2.

Image 19: Part Navigator 3.

Image 20: Part Navigator 4.

Image 21: Part Navigator 5.

Image 22: Part Navigator 6.

DRAFT ANALYSIS

Positive draught is necessary on the faces that are parallel to the tooling direction for every object that is produced for every object that is produced using a press tool or another forming tool. On these faces if we don't provide any draught (Zero Draft) or provide any negative draughts, the mould will stick to the surface of the mould and when mould is in motion it will obliterate the surface, ;owering the surface finish. Therefore, using the draft analysis command we can determine whether or not the component we have drafted can be easily expelled. Additionally it provodes information on the crucial zones allowing for any necessary design modifications.

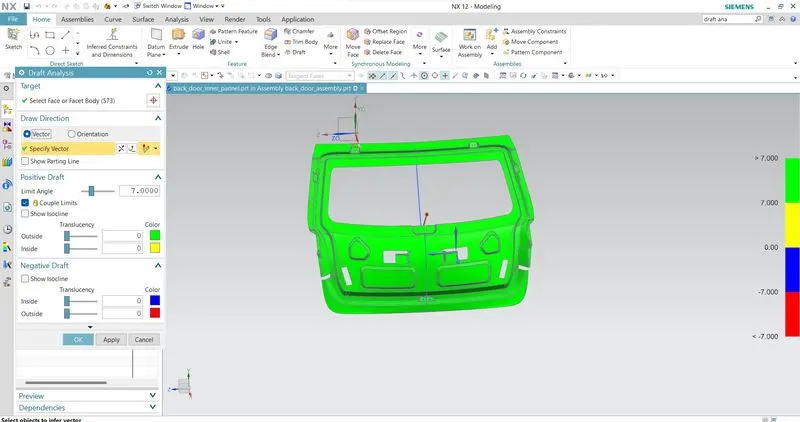

Image 23: Back Door's Inner Panel Draft Analysis result.

CONCLUTION

• The appropriate methods were used to construct the back door assembly by provided styling surface and it is successfully built.
• Also the draft analysis was performed and it cleard the test.
