Design of backdoor
Design a BIW Back Door of the Car Using NX CAD
OBJECTIVE:
To design a car backdoor using the given styling surface and come up with a new backdoor design assembly with all necessary mountings attached using NX CAD software.
INTRODUCTION:
Back Door which can also be called as TailGate consist of various components such as Inner panel, Outer Panel, Side Mountings such as Gas stay, Hinge mounting, Wiper motor reinforcements, latch and striker and its reiforcements. The parts are either be manufactured using steel or aluminium considering the weight, strength and other considerations depending on the use of car.
By using Auminium, the number of parts manufactured can be reduced by varying thicckness of the sheet and hence improves strength. the only disadvantage is it cost more than that of steel. hence it can be mostly seen in costly premium cars. whereas Steel, can be only stamped or punched unlike alulmium and variations in the sheet metal cannot be adjusted and hence more number of parts will be manufacted and hence there will be increase in weight of the car.
MAJOR PARTS NAD REINFORCEMENTS:
The backdoor consists of the following basic components:
- Backdoor Outer Panel (Upper)
- Backdoor Outer Panel (Lower)
- Backdoor Inner Panel
- Hinge Reinforcements (LH & RH)
- Gas-Stay Reinforcements (LH & RH)
- Latch and Striker Reinforcement
- Wiper motor Reinforcement
Since the Outer panel has separated as two parts as upper and lower, and is given as a refence surface from the styiling team, designing of the backdoor totally depends on the styling surface and if ther are any errors, we as engineers have to rectify and resolve it before starting the designing procedure.

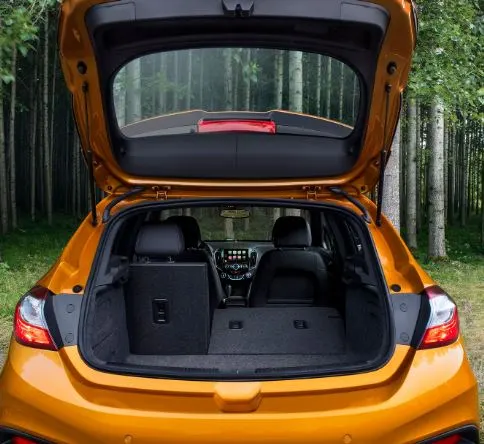

TAILGATE:
Tailgate is a door at the back of a truck or car, that is hinged at the bottom so that it open downwards.
DESIGN INTENT
The intent of the project is to design a Body In White Back Door of the vehicle considering the engineering standards and manufacturing requirements which satisfies the Deep Drawing Process.
DESIGN CONSIDERATION OF A BACKDOOR:
- Functional Requirement of Hinge and gas stay
- Rear visibility criteria
- Luggage volume
- Crash Analysis
- Bend Test, Dent Test, Torsion Test & Endurance Test
- Rear Crash Regulation
- Gap and flushness Requirements

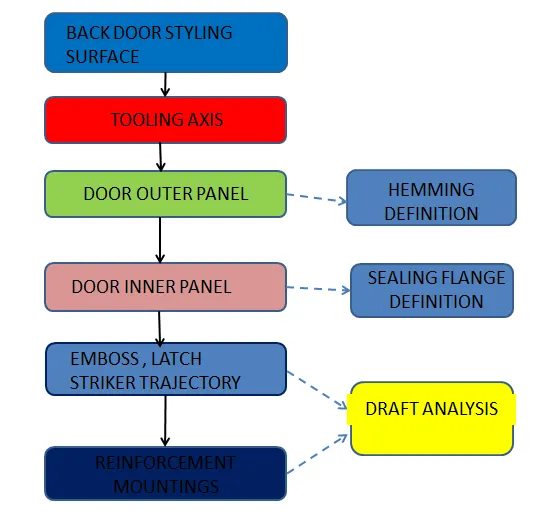

DESIGN METHODOLOGY:
DESIGN OF BACKDOOR OUTER PANEL:
The Outer Panel is the styling surface of the back door. Other components of the backdoor are designed with reference to the outer panel. It acts as the outer cover and deals with the aesthetics of the car.
In this design outer panel is divided into two parts
- Outer Upper Panel
- Outer Lower Panel

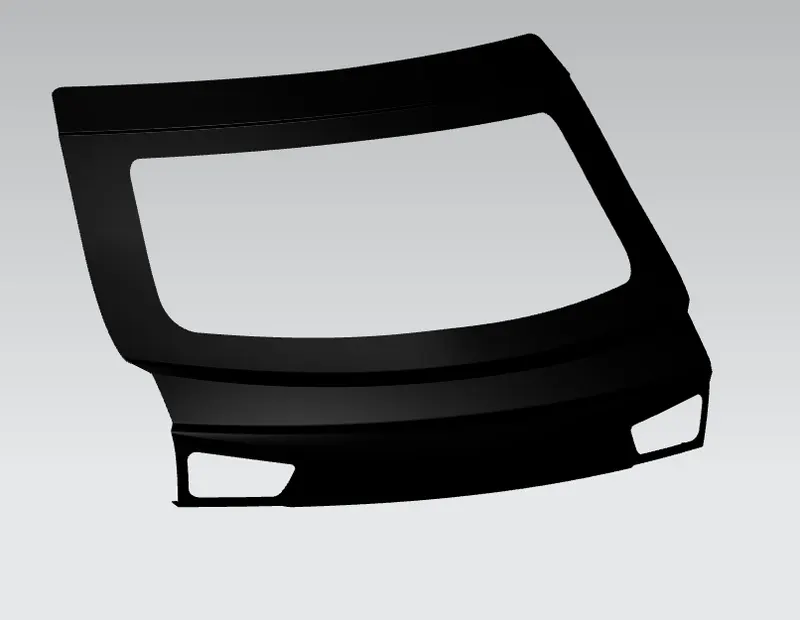

Outer Upper Panel:
The Outer Upper Panel Extracted from a styling surface.
The panel is altered for the required design with the surface tools of NX CAD
The thickness provided for the outer panel is 0.75 mm
Hemming is provided with the corner relief.
Outer Upper Panel

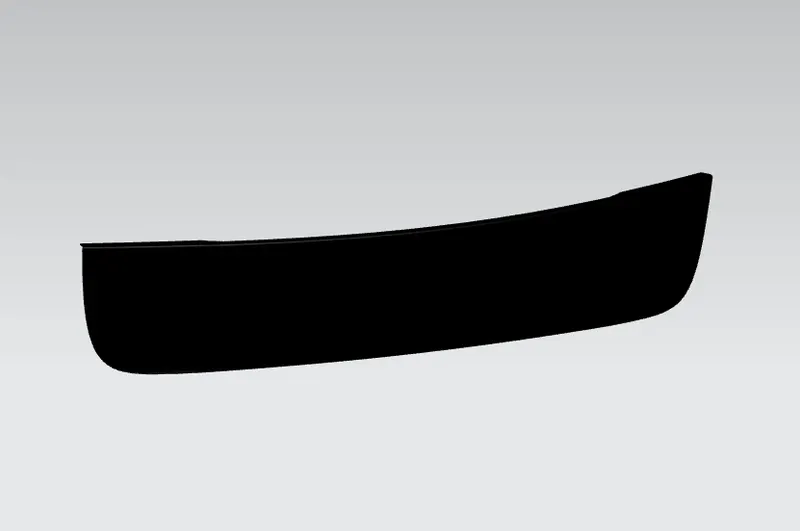

Outer Lower Panel:
The Outer Upper Panel Extracted from a styling surface.
The panel is altered for the required design with the surface tools of NX CAD
The thickness provided for the outer panel is 0.75 mm
Hemming is provided with the corner relief.
Outer Lower Panel

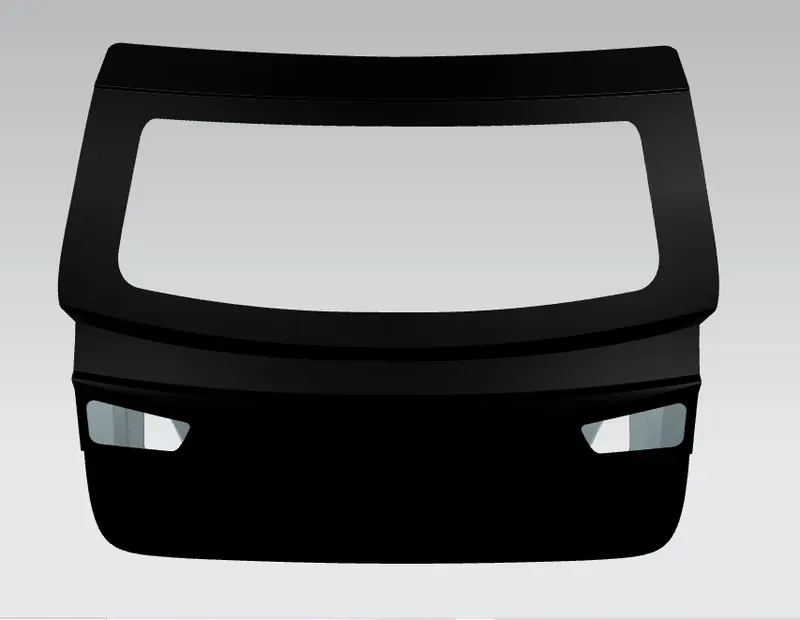

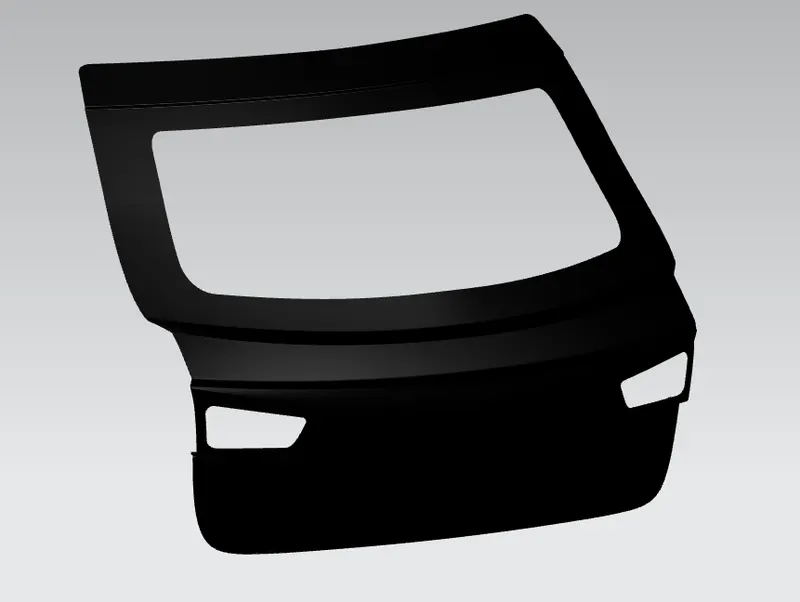

Backdoor Outer Panel
Tooling Direction:
- Before starting to design the inner panel of the back door the tooling direction for Deep Drawing purpose should be created.
- Then the styling surface needs to be checked and analyzed since it might have irregularities, hence it must be fixed first.
- Then the back door was designed using the top-down approach.

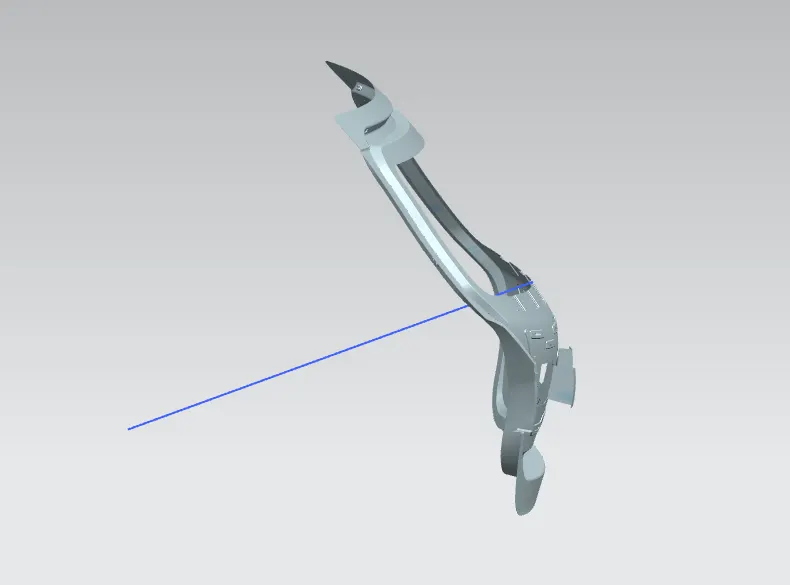

Tooling Direction

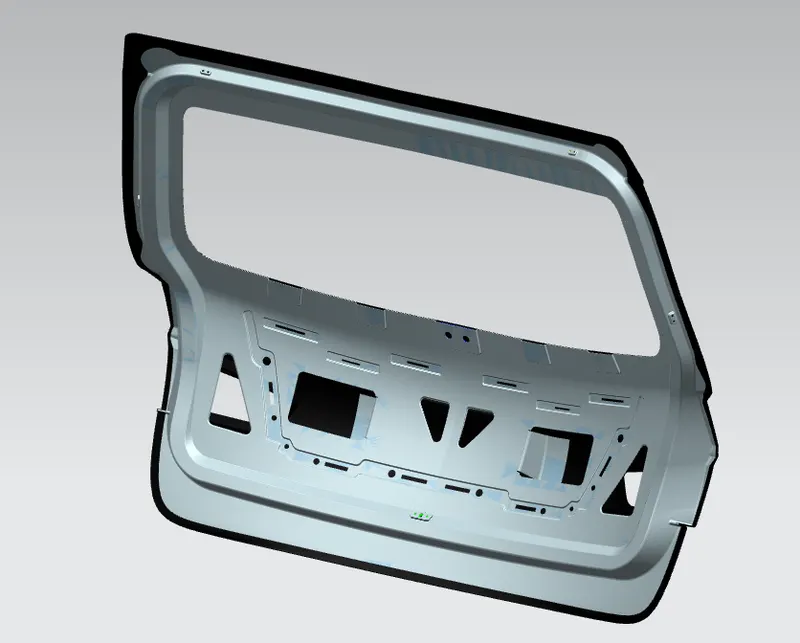

DESIGN OF BACKDOOR INNER PANEL:
The Inner Panel Extracted from a styling surface.
The panel is altered for the required design with the surface tools of NX CAD
The thickness provided for the outer panel is 0.75 mm

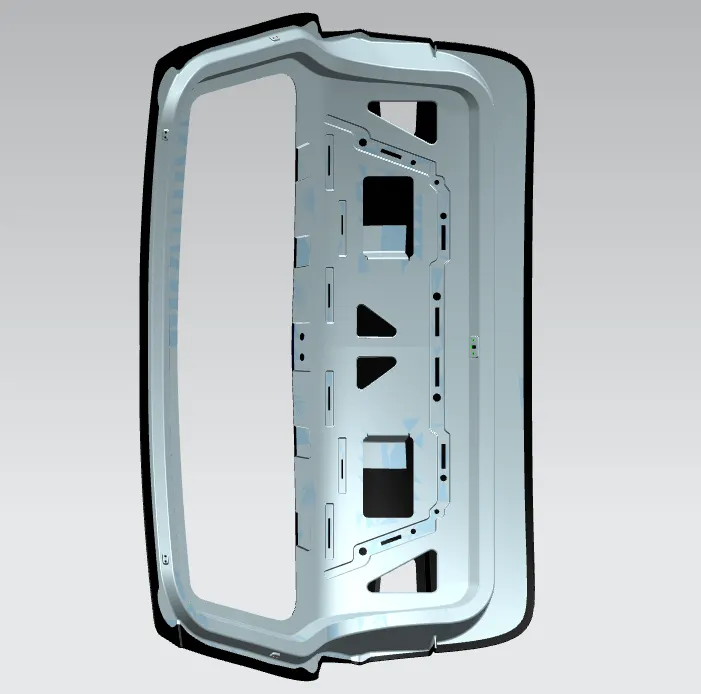

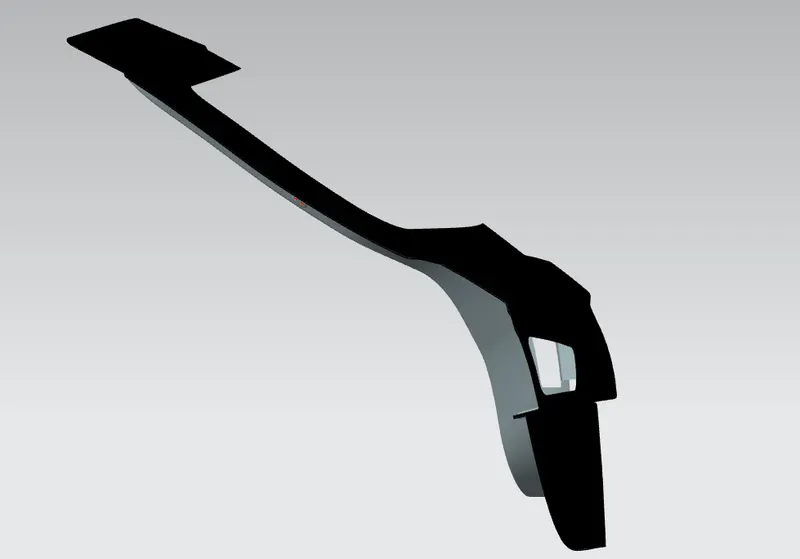

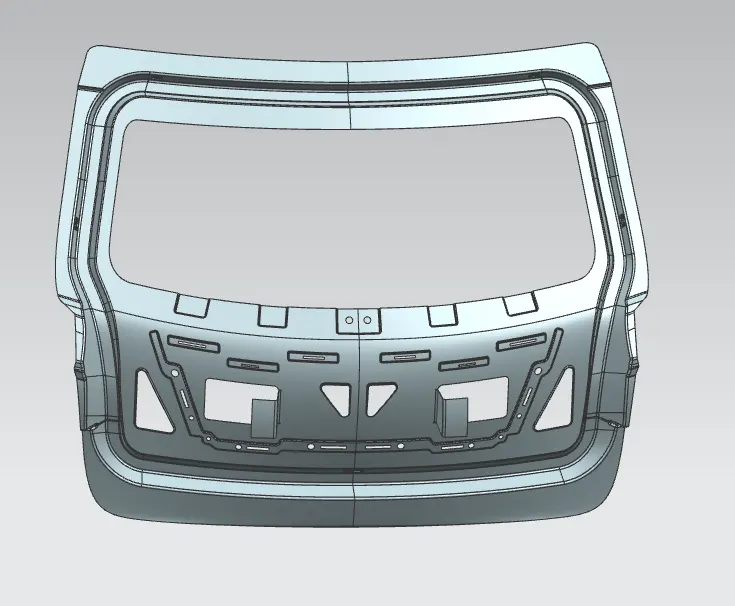

Inner Panel
- After creating the tooling direction the design of the inner panel will begin where we will first develop an effective sealing flange by checking all the boundaries and by following the shape of the inner panel design.
- By creating multiple flanges and by using surface modeling techniques the concept design of the inner panel was created.
- After the concept of the inner panel is developed, then the child components like a hinge, latch, gas-stay locations, and their reinforcements must be designed. Which completes the overall design of the tailgate.
- The embosses were created in ‘V-Shape or Y-Shape’ so that if the vehicle undergoes the crash then the force dissipates over it which reduces the damage transferred to the trunk space.

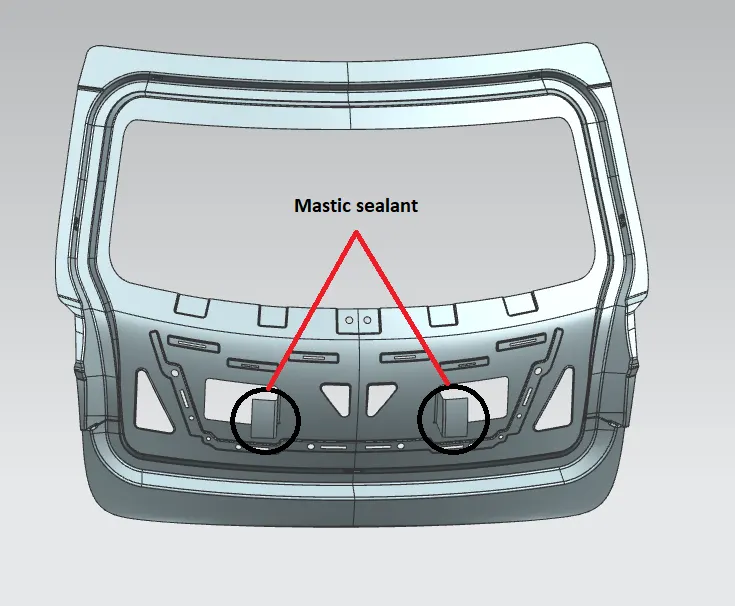

MASTIC SEALANT:
The mastic sealant is used to fix the inner panel with the outer panel which increases the NVH factor and stiffness of the back door.

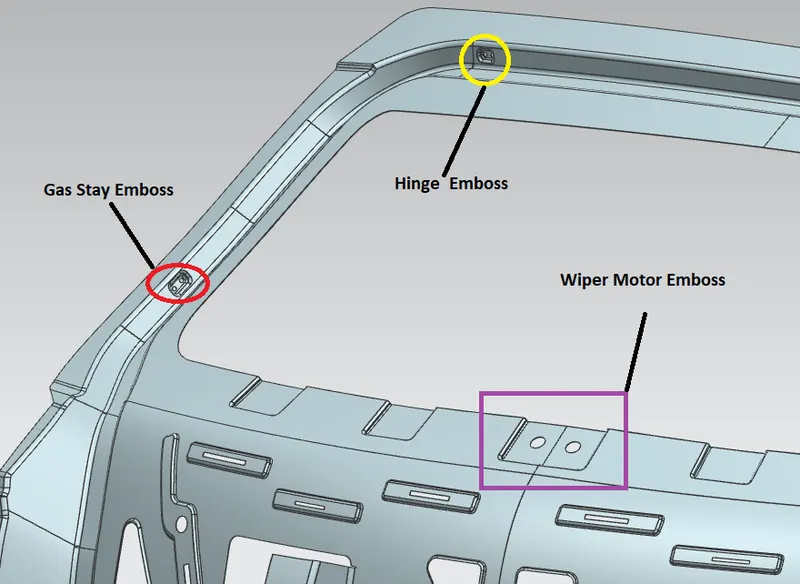

HINGE, GAS STAY & WIPER MOTOR EMBOSS:
The Orange circle denotes the hinge emboss which was created using the datum plane and emboss feature in NX. It was also designed in a way that the emboss should have a flat surface for assembling the hinges using it.
The violet circle denotes the gas stay emboss which was created using the surface of the connecting flange.
The yellow circle denotes the Wiper motor emboss which was created using the surface of the connecting flange.

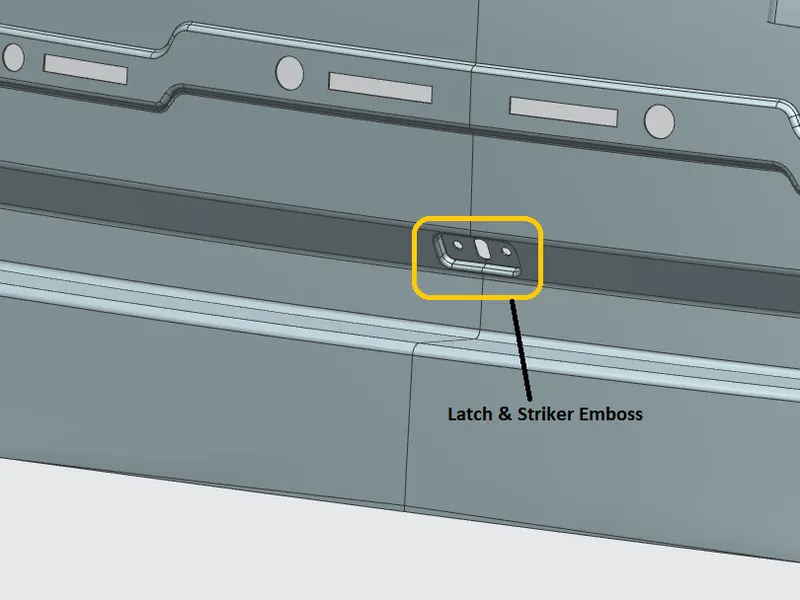

LATCH AND STRIKER EMBOSS:
The Latch and Striker emboss were designed by creating a trajectory that follows the opening and closing of the back door with respect to the hinge axis.

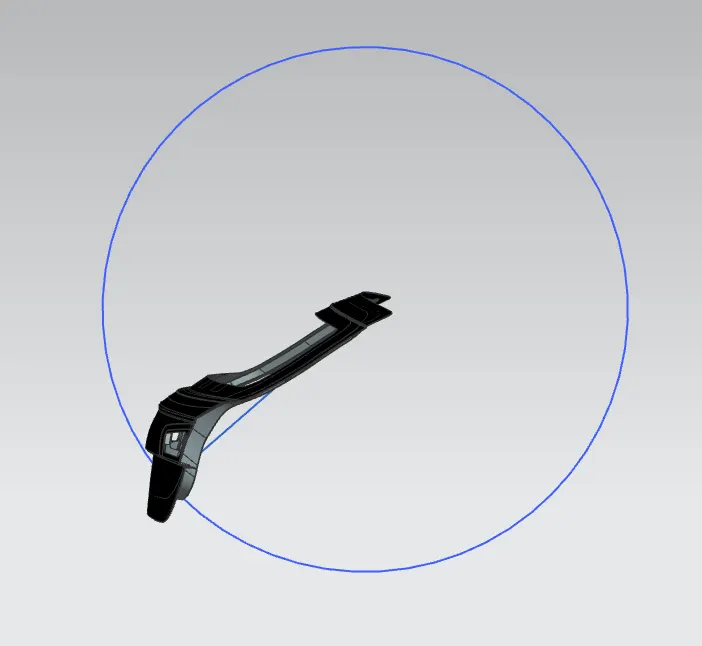

STRIKER POSITION:
The position of the hinge should be perpendicular to the latch when the latch and striker meets. The circle is drawn from the center of the hinge axis to find the path of the striker and positioned perpendicular to the path.

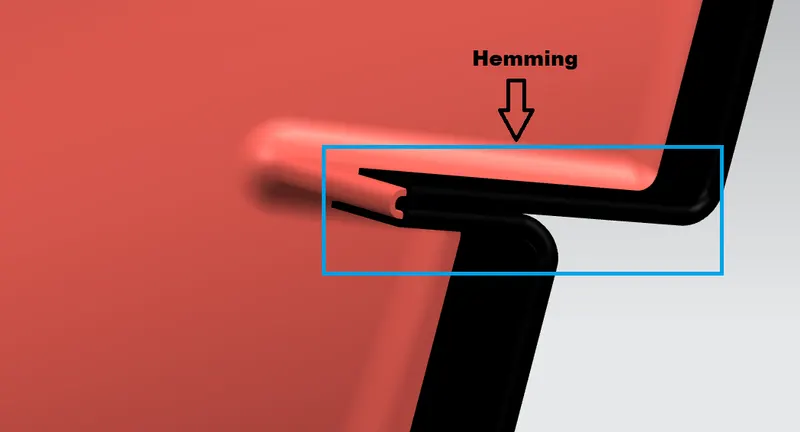

HEMMING:
Hemming and seaming are two similar metalworking processes in which a sheet metal edge is rolled over onto itself. Hemming is the process in which the edge is rolled flush to itself.
- The outer panel was designed as two separate parts named as outer panel upper and outer panel lower.
- After designing the outer panel the Hemming was created by offsetting the surface with the help of face blend and swept surface.
- The two separate outer panels will be joined using Blanking
Hemming on Inner Panel

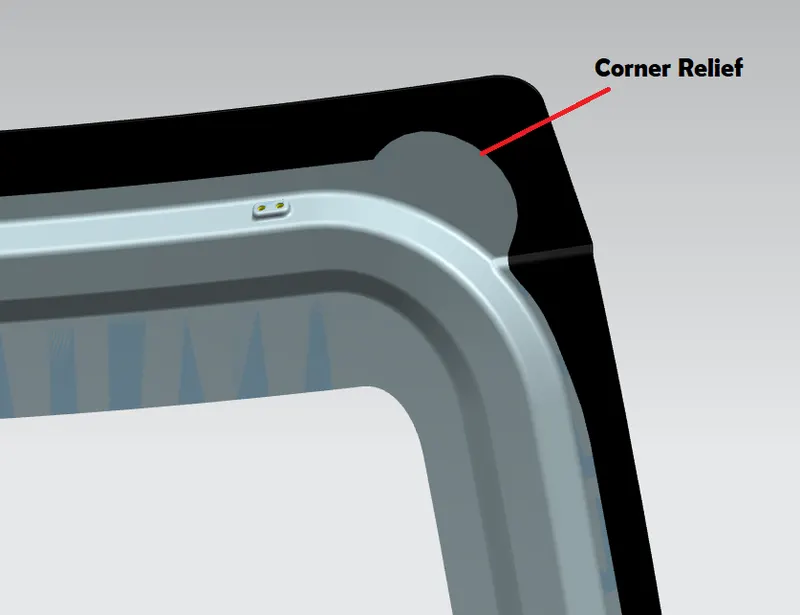

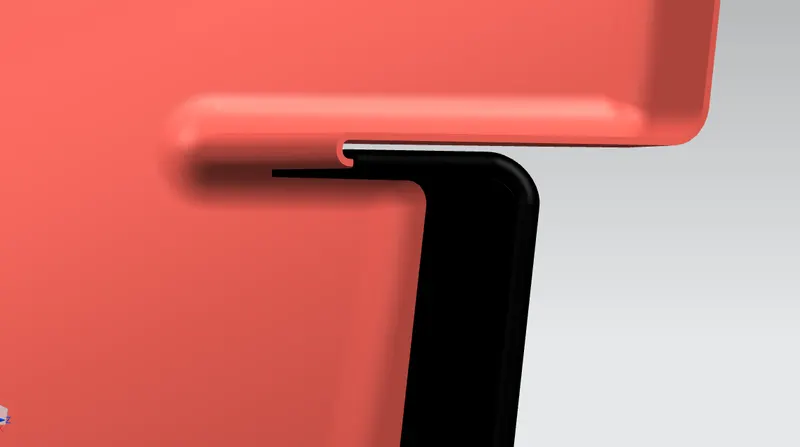

CORNER RELIEF:
During the hemming process, when giving the Corner Relief helps to control sheet metal material behavior and to prevent unwanted deformation during unbend operations and also helps to reduce the number of passes in hemming.

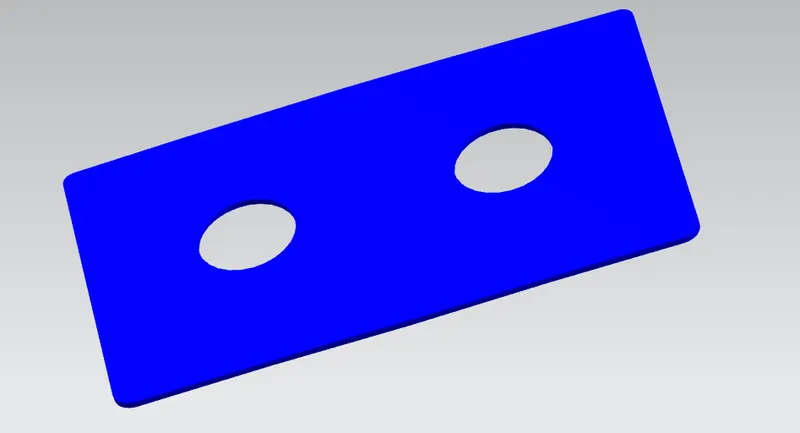

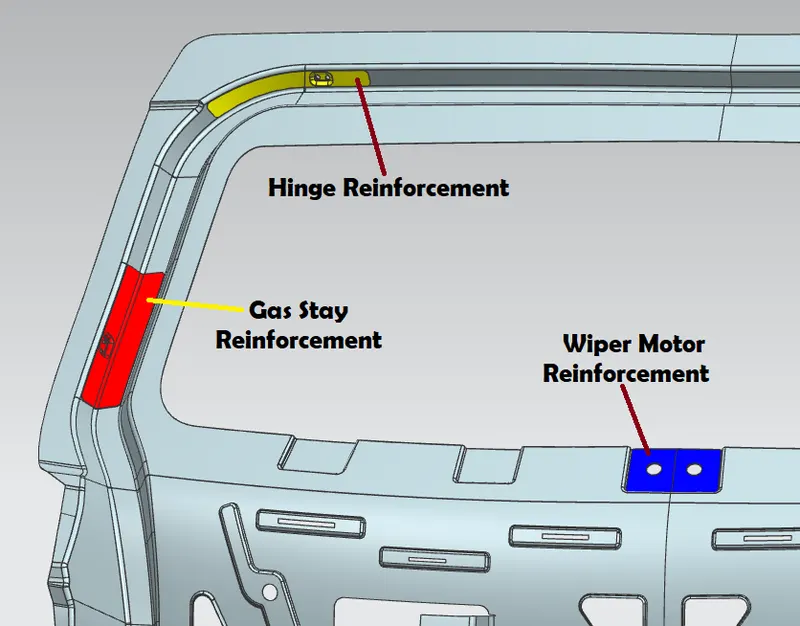

DESIGNING THE REINFORCEMENTS:
The thickness provided for all reinforcements is 1 mm
- HINGE REINFORCEMENT
- GAS STAY REINFORCEMENT
- WIPER MOTOR REINFORCEMENT
- LATCH REINFORCEMENT
All the reinforcements were created using the same method, first, the linked body was created separately for each with the help of extract geometry and then the required portion was trimmed out and then thickened.

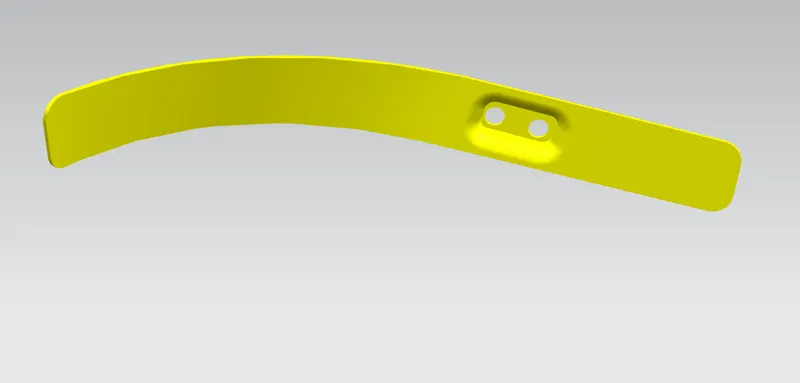

Hinge reinforcement
Hinges enable the opening and closing of the back door. One end of the hinge is fixed on the backdoor and the other end on the Roof, on both sides. Hinges can be placed outside or inside the backdoor.
The hinge reinforcements are added to compensate for the weak region due to the acting load over it.
Gas Stay Reinforcement:
Gas Stay is a device used for supporting the back door in its open position. Gas stay requires no manpower and is engaged into support position automatically as the back door opens. One end of the Gas Stay is fixed on the backdoor and the other end on the Body Side or on the Back door stationary area.
Embossing is provided at the Gas Stay mounting area to compensate for weakness and improve strength.
Wiper Motor Reinforcement:
Wiper motor reinforcement is created to mount the wiper motor assembly.

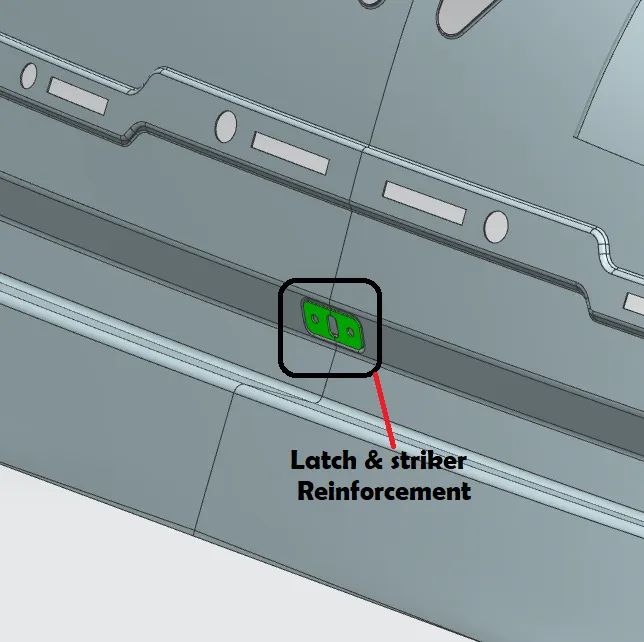

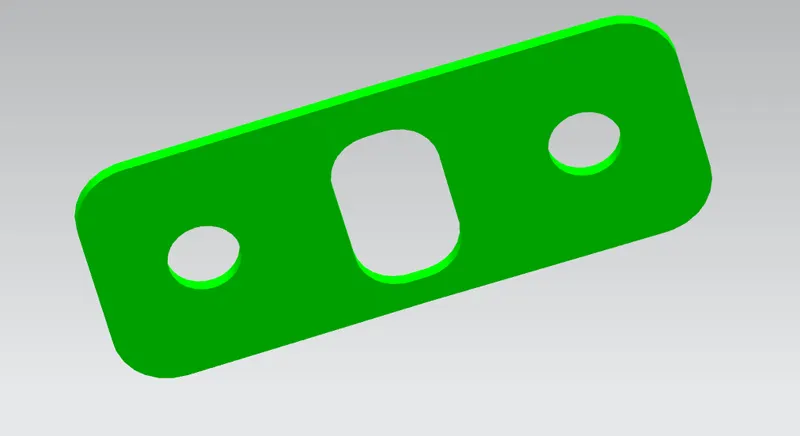

Latch and Striker Reinforcement:
The Latch & Striker forms the locking mechanism of the backdoor with the car. Due to regular opening, closing, and over slamming of the backdoor, there is stress developed in the Latch and Striker area. To compensate for the same, reinforcements are added in this area.

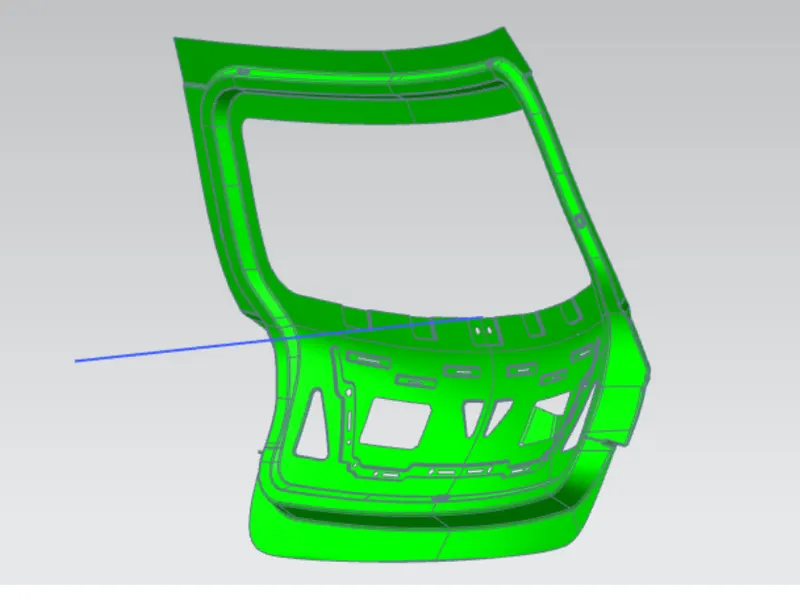

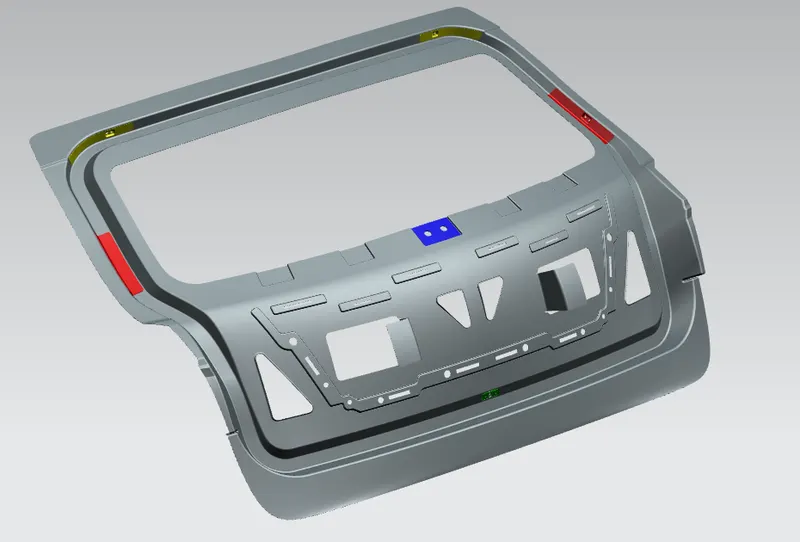

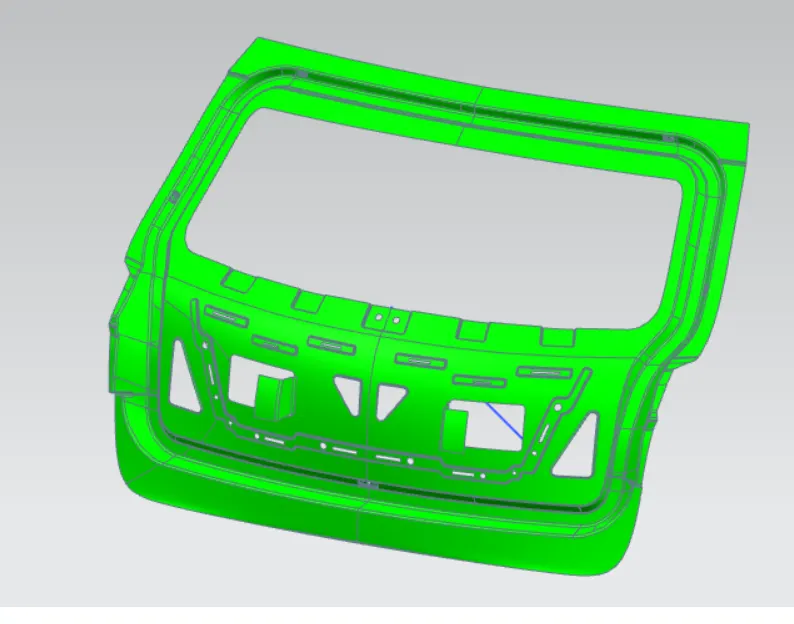

DRAFT ANALYSIS:
- The draft analysis will be performed for the tooling direction created at first and checked that the model is suitable for manufacturing.
- Then to get a complete green portion the necessary changes to the draft angle of the embosses were carried out by optimizing the model.
- The Draft Analysis command enables us to detect that the part drafted will be easily removed or not.
- This type of analysis is performed based on color ranges identifying zones on the analyzed element where the deviation from the draft direction at any point, corresponds to specified values.

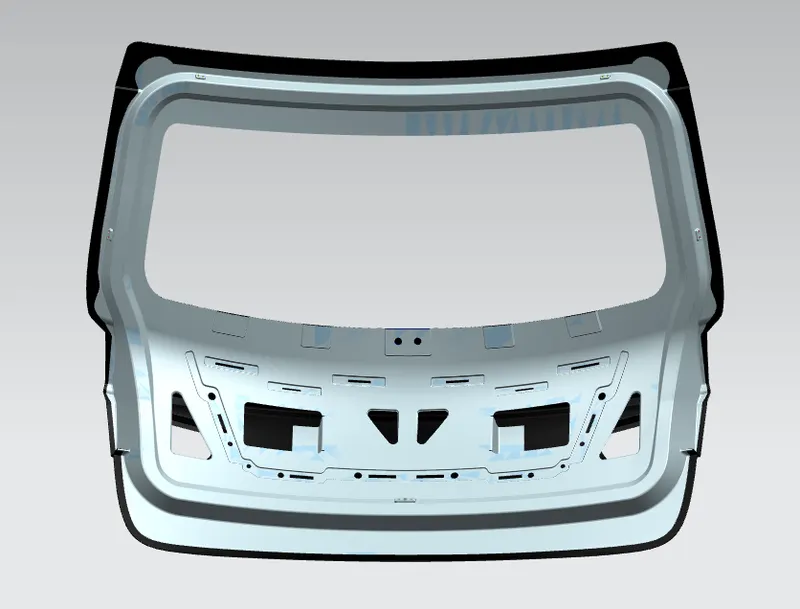

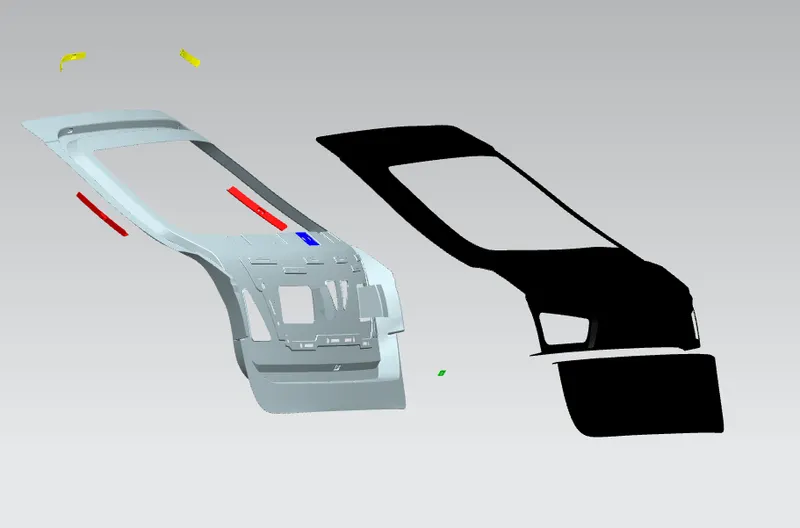

BACKDOOR ASSEMBLY:

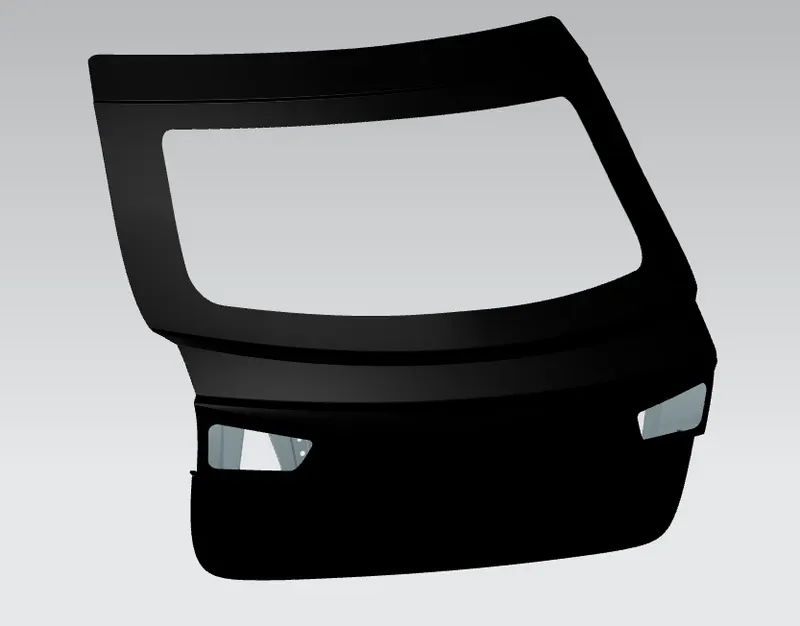

BACKDOOR MODEL VIEWS
CONCLUSION:
Thus the Body In White Back Door of a car was designed following the engineering standards and also the deep drawing requirements were satisfied.
