A REPORT ON BACK DOOR DESIGN

INTRODUCTION

What is BIW?

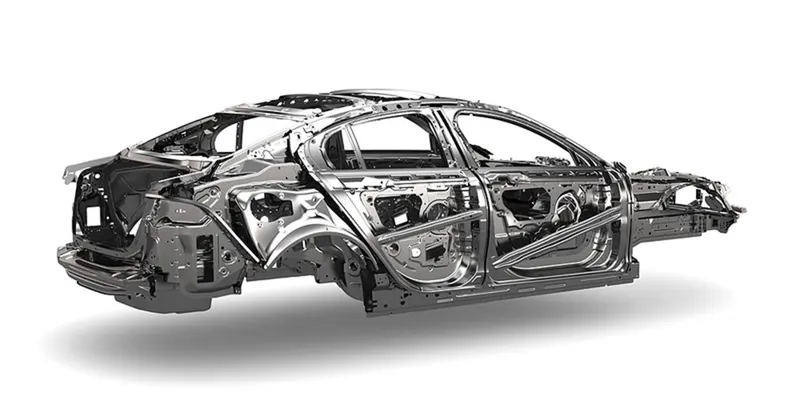

Body in white (BIW) is the stage in automobile manufacturing in which a car body's frame has been joined together, that is before painting and before the motor, chassis sub-assemblies, or trim (glass, door locks/handles, seats, upholstery, electronics, etc.) have been integrated into the structure. Assembly involves different techniques such as welding (spot, MIG/MAG), riveting, clinching, bonding and laser brazing. Body in white refers to the stage in automotive manufacturing when a car’s sheet metal components are welded together which include:

Hood
Trunk lid
Roof
Front and rear fender
Side wall
Side Doors
Tail Gate (Back Door)

The term BIW derives from manufacturing practices before steel unibody monocoques — when automobile bodies were made by outside firms on a separate chassis with an engine, suspension, and fenders attached .The manufacturers built or purchased wooden bodies (with thin, non-structural metal sheets on the outside) to bolt onto the frame. The bodies were painted white prior to the final colour.

A folk etymology for "body in white" is the appearance of a car body after it is dipped into a white bath of primer (undercoat paint) despite the primer's actual grey colour. BIW could also refer to when car bodywork would be made of timber - all timber products, furniture, etc., are considered to be "in the white" when at the stage of raw timber before finishing or varnishing.

In car design, the "body in white" phase is where the final contours of the car body are worked out, in preparation for the ordering of the expensive production stamping die. Extensive computer simulations of crash-worthiness, manufacturability, and automotive aerodynamics are required before a clay model from the design studio can be converted into a body in white ready for production

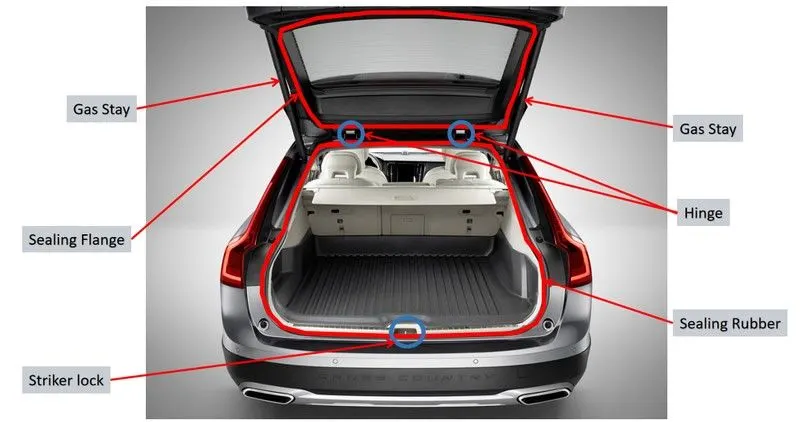

TAIL GATE ( BACK DOOR )

The Tail gate or the Back door of a car is the Door at the rear end of the car , which provides access to the luggage compartment. In most of the cars, these back doors are operated with the help of gas stay which in turn reduces the effort required to lift open the door. Some luxury cars have powered backdoor which is driven by an electric motor. This kind of system is also called a powered trunk lid system. The Back door is also responsible for dissipating the force created while rear collisions, away from coming inside the car.

DESCRIPTION

In this project we are going to create the Assembly of a Back Door using previously given Styling surface (outer panel surface) as the reference. The software used here to model the Tail gate is Siemens NX

The assembly of Back Door consist of various components such as Outer panel Upper, Outer panel Lower, Inner panel, Hinges, gas stay, Latch and the Reinforcements. Here we are mainly dealing with, the design of inner panel.

For creating a Tail gate, there are several Factors and standards a Design engineer should consider Some of them are below

MAJOR FACTORS TO CONSIDER

Material selection
Rear visibility criteria
Hinge position
Latch position
Drawability ( Minimum 7 degrees open)
Hemming parameters
Holes (to drain the primer from the cavities)

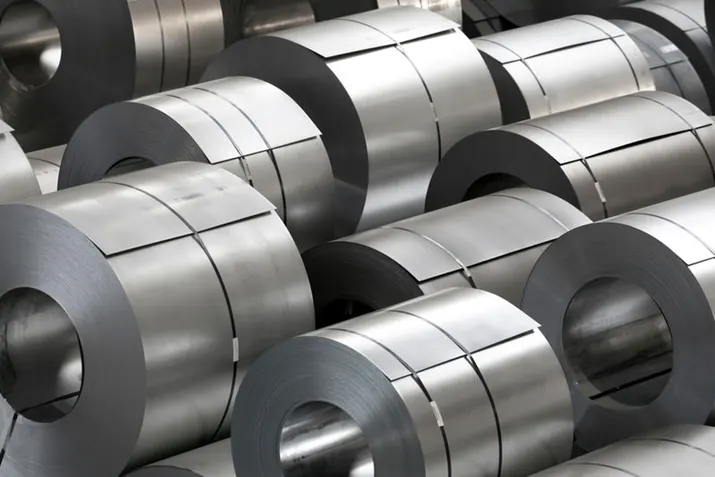

MATERIAL SELECTION

Tail gate BIW is expected to possess a number of significant properties. It must have high tensile strength as well as high stiffness—bending, torsional, static, and dynamic. It must also provide good quality safety both to the car body and to its occupants against crashes of all kinds—front, rear, side, or even rollover, meeting the Federal Motor Vehicle Safety Standard No. 208 [44]. It should also be able to protect occupants from noise, vibration, and/or harshness (NVH) by absorbing or reducing these conditions. Also, it should be easy to weld and form, as well as be highly paintable and easy to design. It should provide a good surface finish that is smooth, and should also be corrosion resistant. Improvement of fuel economy also necessitates the use of lightweight materials in BIW, as it constitutes a significant share of car’s weight; in addition, given environmental concerns in recent times, it is also expected to be recyclable. Given such extensive requirements, only steel and aluminium have been used for making BIW; the former is preferred for its high strength and low cost, while the latter is preferred for its lower density that helps reduce car weight.

Material	Yield Strength (MPa)	Ultimate Tensile Strength (MPa)
Steel	210–1250	340–1520
Aluminium	90	195

Here we are assuming Stainless steel as the material for the Designing of Back Door

Stiffness, strength and weight of the part

As the Back door protects the passengers from rear collisions, it should have enough strength and stiffness .Stiffness ,strength and weight of the part depends up on major two factors .The first is the material selection ,which is discussed above and the second one is the Design of the part.

A Design engineer can easily increase and reduce the stiffness of the part through his or her designs. The methods of increasing stiffness and strength of the parts are adding Embosses in the models.

EMBOSSING

Sheet metal embossing is a stamping process for producing raised or sunken designs or relief in sheet metal. This process can be made by means of matched male and female roller dies, or by passing sheet or a strip of metal between rolls of the desired pattern .Adding of embosses to a sheet metal part drastically increase the strength of the part.

REAR VISIBILITY CRITERIA

This criteria deals with the visibility of passengers backwards through the rear wind shield glass.it mainly depends up on the Wind glass area .Here in this case as we already have a styling surface wind already included the wind shield area we need not to worry about the Rear visibility criteria

HINGE POSITION

Hinges are the part which helps to open the Back Door to the luggage space. One part of the hinge is connected to the inner panel of the Back Door while the other is connected with the Roof There are a few things to consider while the positioning of hinges The surface where the hinges to be mounted must be flat in order to keep the hinge tightly in touch with the inner panel , otherwise it leads to loosening of the nuts and bolts resulting in NVH ( Noise ,Vibration and Harshness) Reinforcements must be provided on both hinges .Because in sheet metals adding another solid body or a sheet body on it ,will results in decreasing the strength of the part. To overcome this problem Reinforcements are used The central line or the axis of each hinges must be colinear

LATCH POSITION

Placing Latch/striker is on of the major factor to take care of .As a Latch/striker is separate body and itself a reinforcement , there is no need to add extra reinforcements. But like in hinges its compulsory to have a flat surface to mount it. The striker in the Body and the Latch in the back door must be normal to a trajectory path to have a smooth locking and unlocking .

DISTANCE FROM THE OUTER PANEL TO MASTIC POINTS

The Mastic sealant or the Mastic point is an elastic compound that behaves like a rubber. The mastic points are defined on the hood inner panel where the hood can easily deform. They help the hood outer panel to come back to its original shape after it gets deformed.

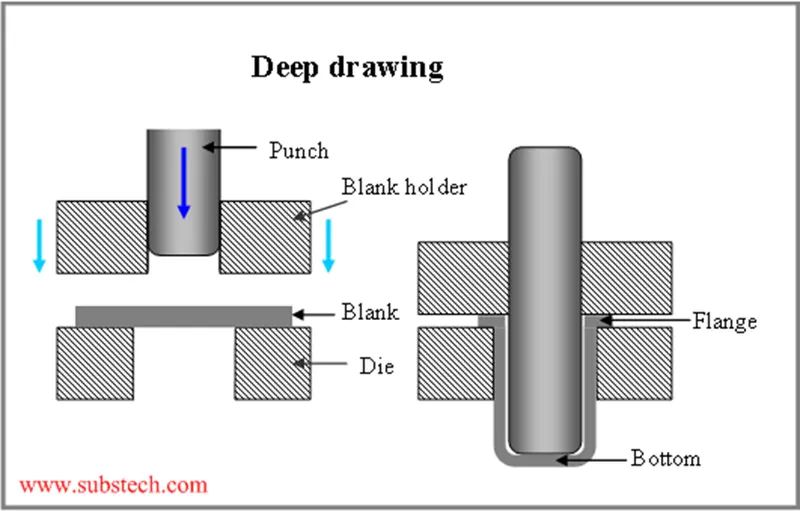

DEEP DRAWING

Deep drawing is a sheet metal forming process in which a sheet metal blank is radially drawn into a forming die by the mechanical action of a punch. It is thus a shape transformation process with material retention. The process is considered "deep" drawing when the depth of the drawn part exceeds its diameter. This is achieved by redrawing the part through a series of dies. The flange region (sheet metal in the die shoulder area) experiences a radial drawing stress and a tangential compressive stress due to the material retention property. These compressive stresses (hoop stresses) result in flange wrinkles (wrinkles of the first order). Wrinkles can be prevented by using a blank holder, the function of which is to facilitate controlled material flow into the die radius. The feasibility of this deep drawing is called Drawability.

Draft analysis in Siemen NX is one of the tool used to study the deep drawing feasibility easily through checking draft angle in the various faces .The Designer should Define a tooling direction in-order to check the draft angles Holes (to drain the primer from the cavities)

In the inner side of the Tail gate we can see several holes in the hood. Every holes in it have its purposes. Apart from the holes for the fasteners ,these holes allow e-coating, surface prep, and primer to drain from the cavities in between the tail gate skin and tail gate skeleton after the chassis is dipped into these during production.

COMPONENTS TO DESIGN

Here in this project we are not creating the hinges as well as the latches., only we are creating Back Door outer panel ,Back Door inner panel ,Reinforcements for Hinge , Gas stay and Viper mount So in this case we need to assume the hinge position and hinge axis appropriately.

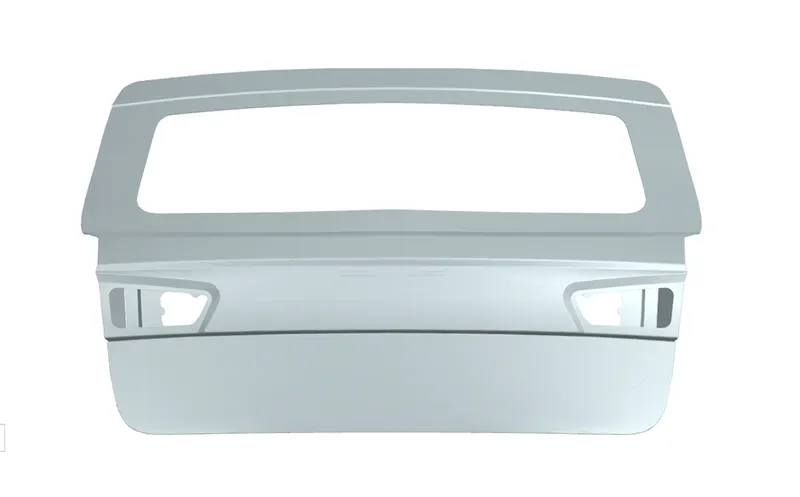

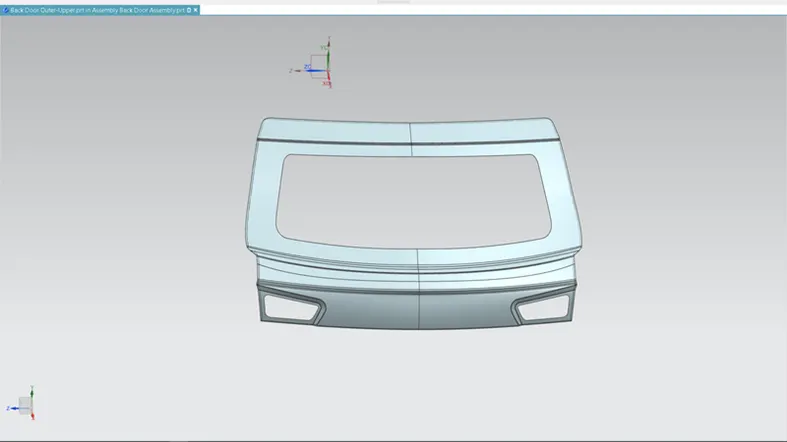

BACK DOOR OUTER PANEL

As we have the styling surface as the reference we need not to work more on the outer panel only need to create the hem flanges after the creation of inner panel. Here the outer panel of the tailgate consist of two parts which are the Outer panel upper and the Outer panel lower. These two components are joined using the Laser Brazing method

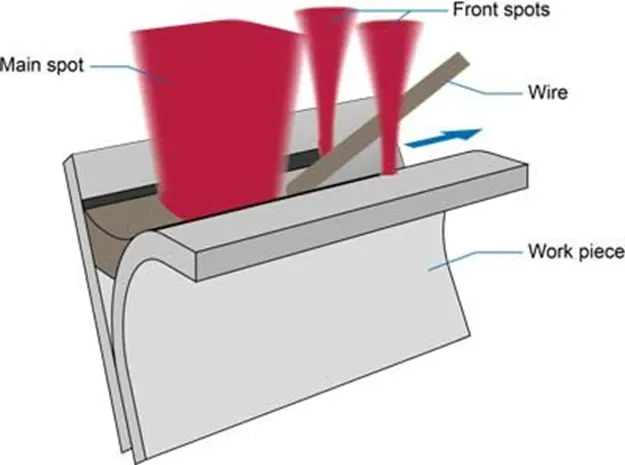

LASER BRAZING

Joining methods, in which the brazing solder is melted with the help of an industrial laser, have been used mainly in the mass production of vehicle bodies. There, laser beam brazing is mostly used for joining galvanized metal sheets or lightweight components made of aluminium, but also for other brazing material. Laser automobile brazing is usually realized with a brazing optic that is integrated in a robot. The laser beam is guided along the joint where it melts the brazing solder – e.g. a copper-silicon-wire – and in so doing connects the components. The success of the brazing process is based on whether the firmness is similar to the welding seams and the high aesthetic quality of the joints: brazing seams that were generated with lasers are known for their sealed, smooth and clean structures. This is visually attractive and reduces post-processing to a minimum. Car body construction, for example, can often be lacquered immediately after cleaning.

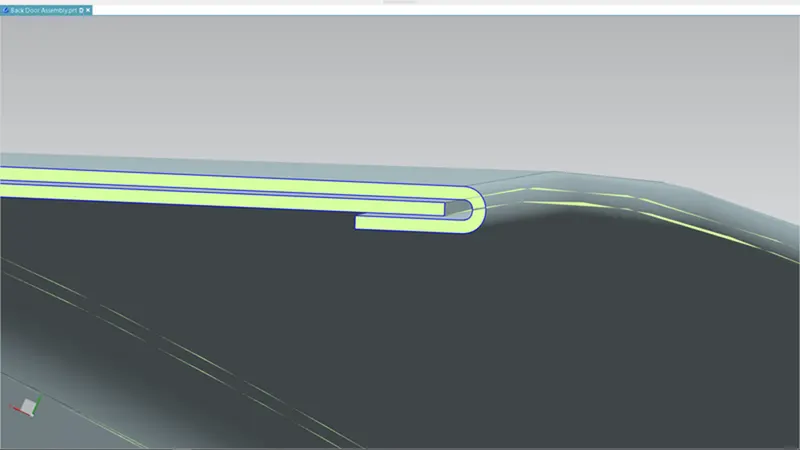

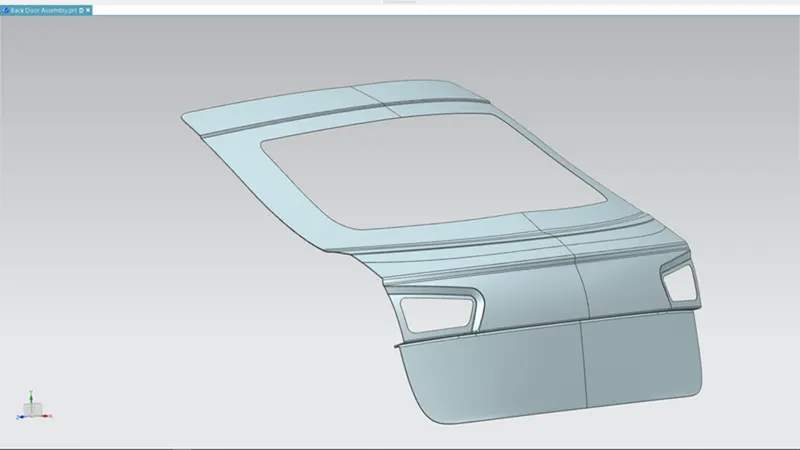

I have created the hem flanges appropriately by considering all hemming parameters. I have maintained a 0.2 mm gap in between the sheet metals in hemming area and another 2 mm gap between the edge of the inner panel and the hem flange of the outer panel.

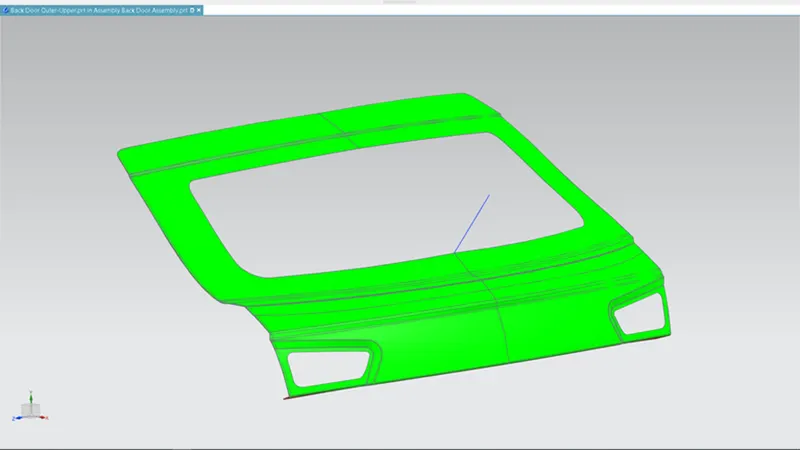

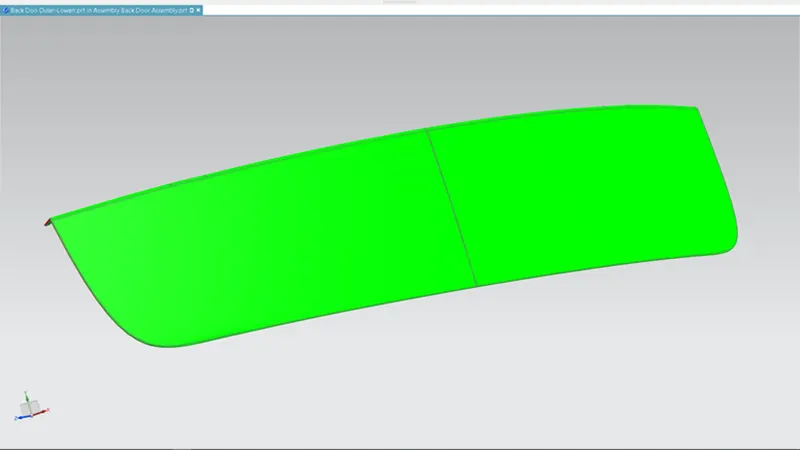

DRAFT ANALYSIS

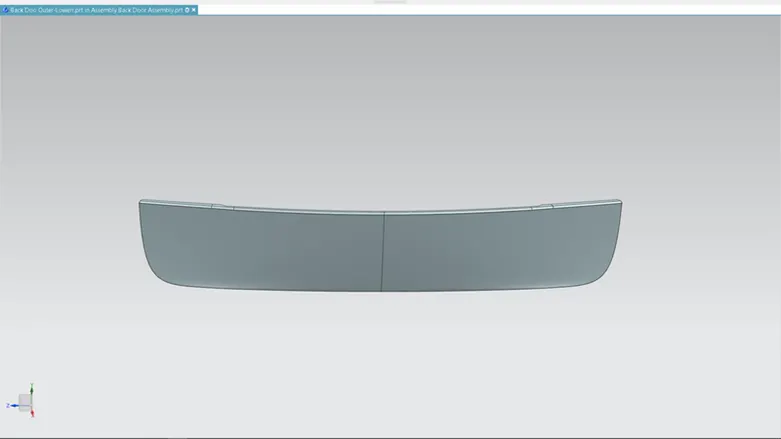

For each upper and lower outer panel I could find positive draft

BACK DOOR INNER PANEL

Inner panel is the part which gives enough strength to the outer panel as well as the it is the part where the viper, Latch , hinge and the gas stays are mounted along with the Reinforcements. Modelling of the inner panel is little Riskier while comparing all the other components of the Back door.

The first thing I have created is the sealing flange of the Tail gate

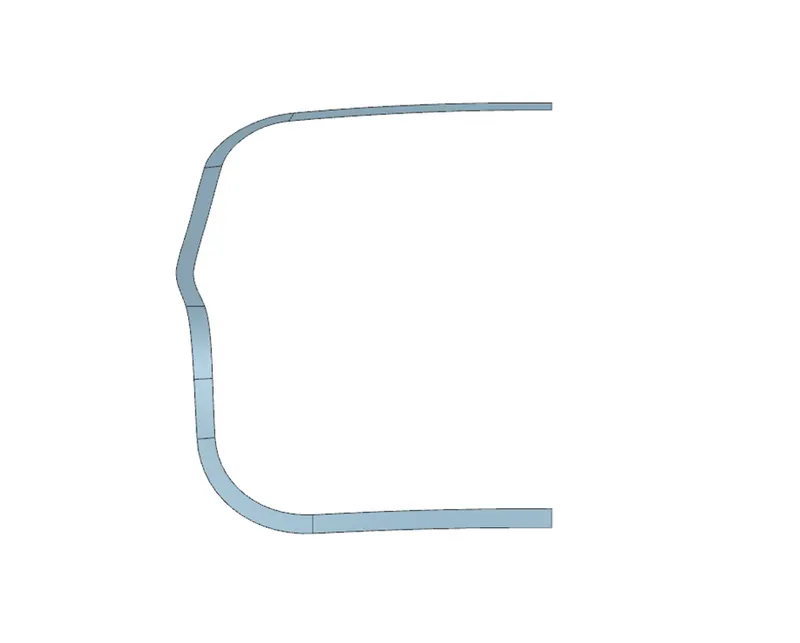

SEALING FLANGE

Sealing flange is the part of the tail gate where it touches and presses the rubber gasket on the Body side outer in order to avoid the entering of water to the luggage area.Sealing flange is created by offsetting the outer panel to the required distance and also by creating some studio surfaces guided by some bridge curves.

EMBOSSES FOR HINGE, WIPER MOUNT AND GAS STAYS

I have made one emboss for the Hinge in the appropriate position and another one emboss for the Gas stay mount. Also I have made flat surface on the embosses as the hinge and the gas stay need to be mounted on it.

FLANGES FOR THE JOINING

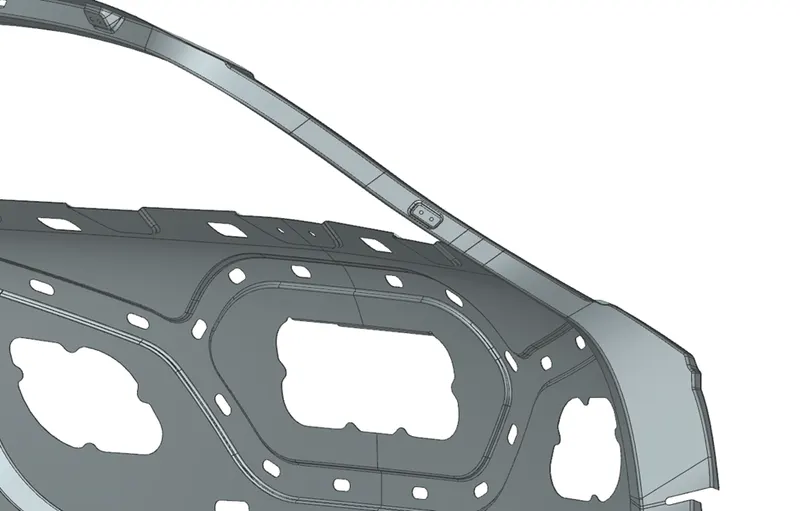

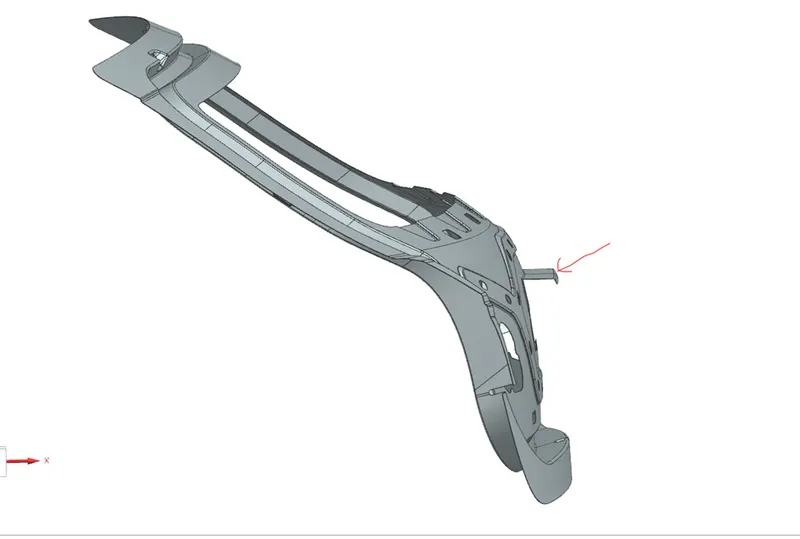

Apart from the hemming the outer panel of the tail gate must be supported using some flange from the inner panel and some mastics on it. So I have created some cut out and created some flange from the edge of the cut out for creating the mastic points as shown in the figure.

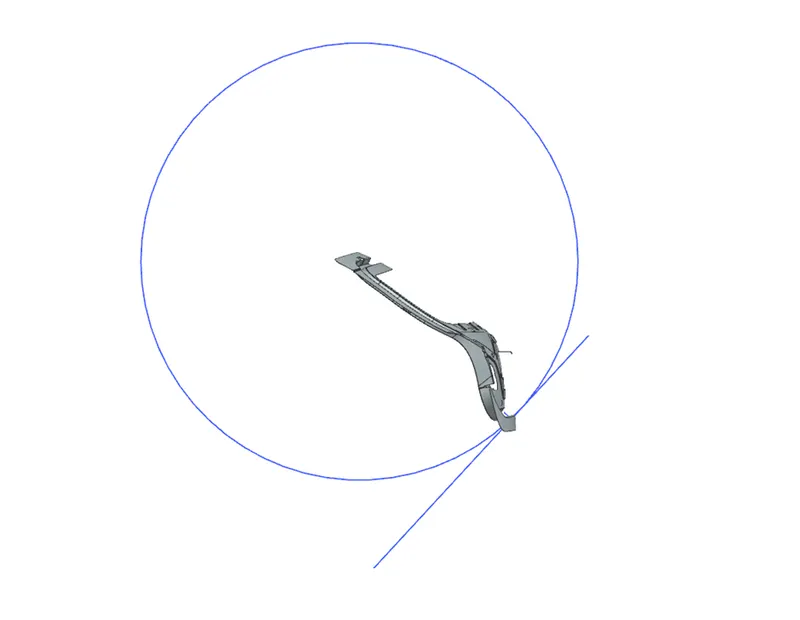

LATCH POSITION

Latch positioning is one of the critical operation in the designing of the inner panel. For positioning the latch , first a line is drawn from the axis of one hinge to the axis of the other hinge. After that a trajectory circle is drawn from the centre of the that line as it crosses the surface where the latch is placed. And then make the latch axis tangent to the trajectory circle.

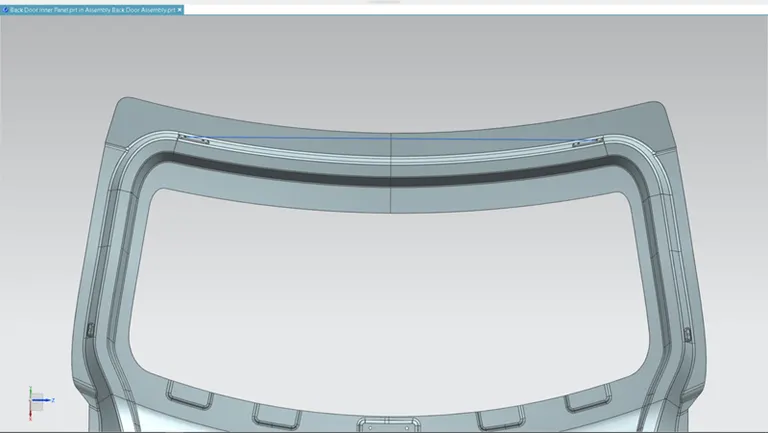

Here as I doesn’t have the Hinges as well as the Latch , I am drawing a line from the emboss pf the hinge to the other .from that line I have drawn circle and an emboss is created for the Latch where the circle crosses the inner panel.

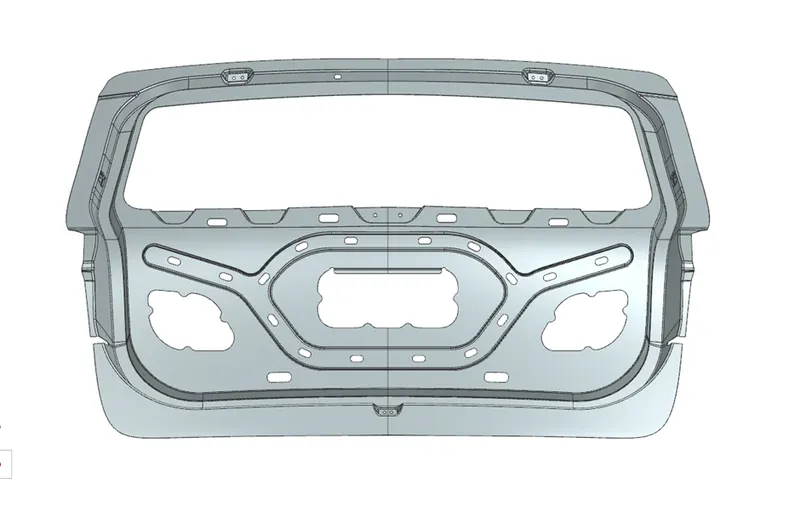

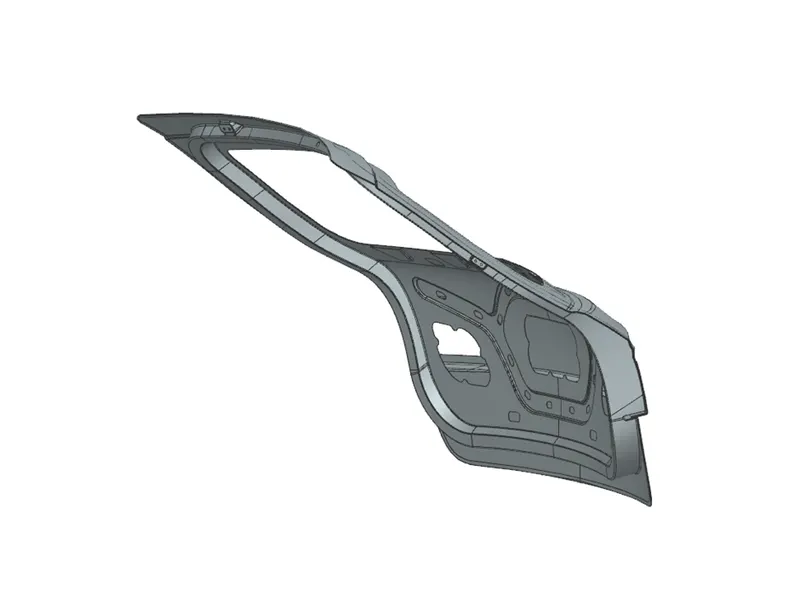

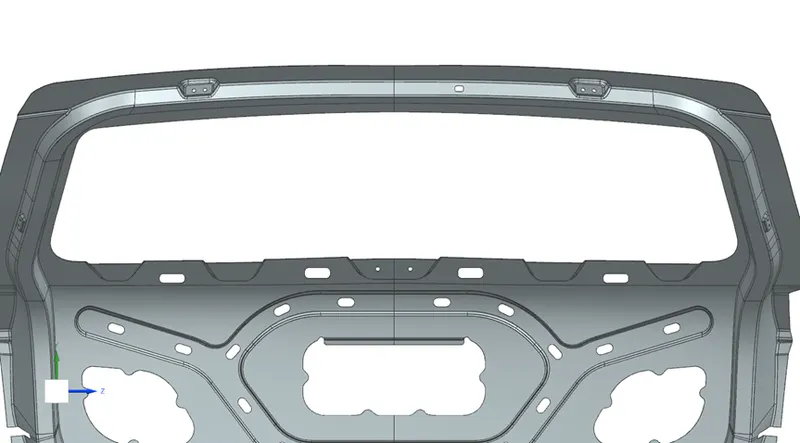

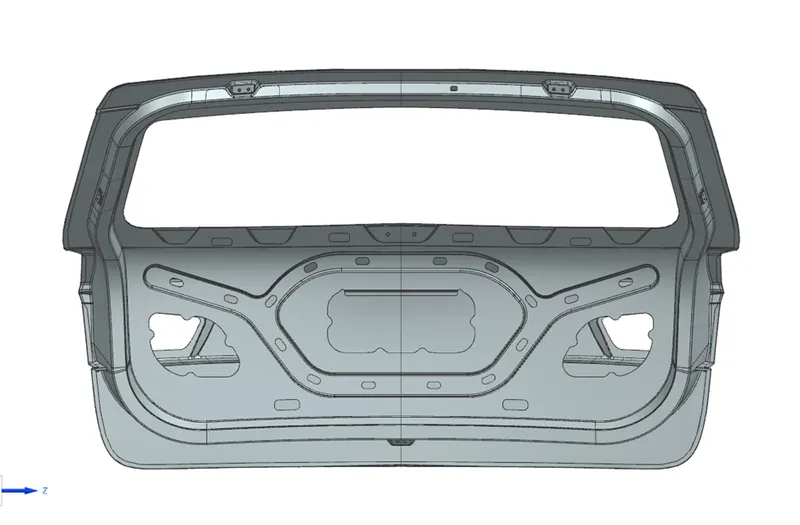

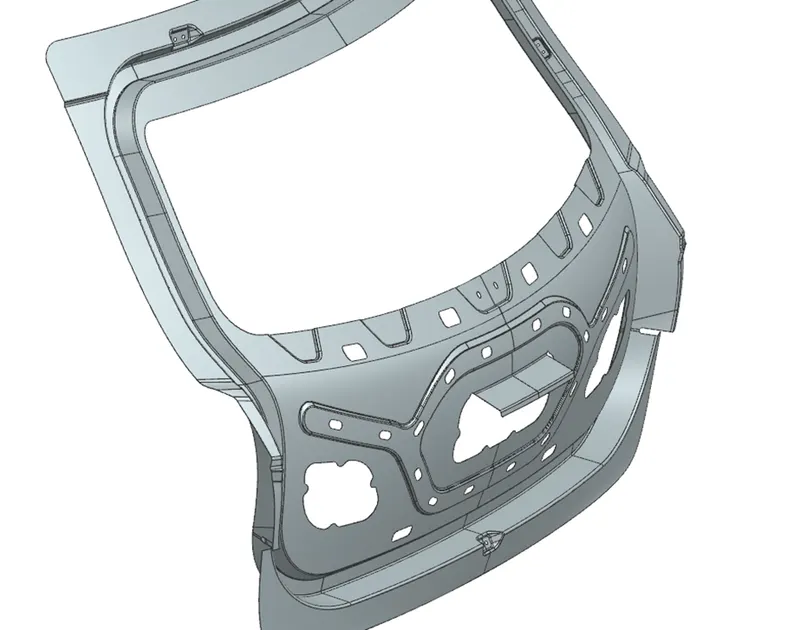

COMPLETE INNER PANEL

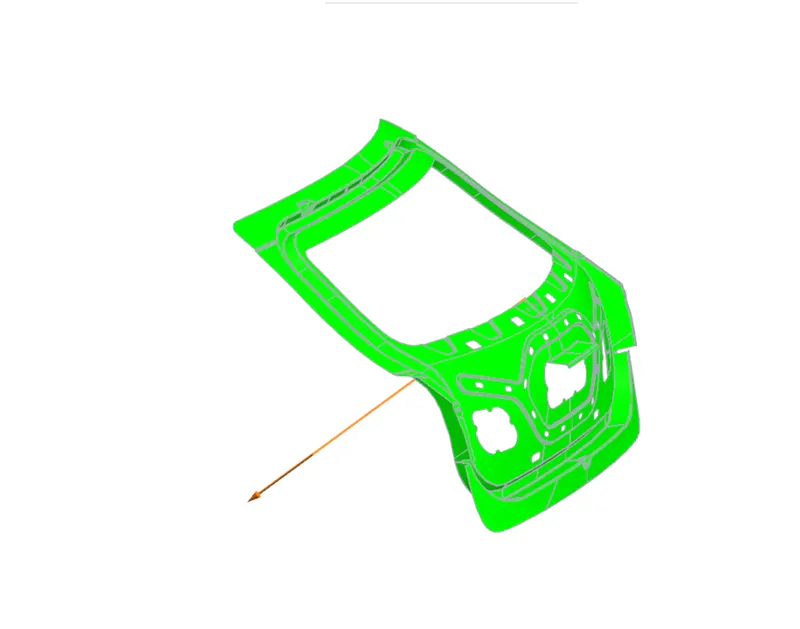

DRAFT ANALYSIS

I have created a line for the tooling direction and after draft analysis I could find some embosses with negative draft. But in this case its negligible as all the embosses cannot be deep drawn in a single stretch.

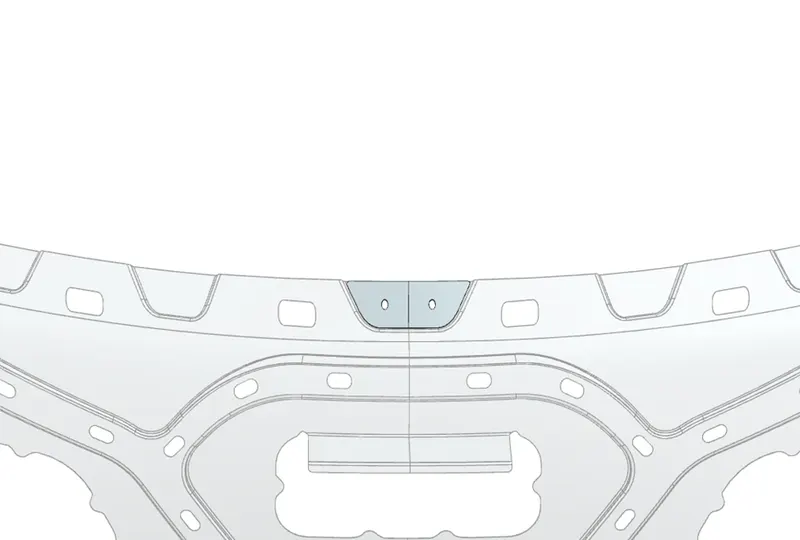

REINFORCEMENTS FOR HINGE , GAS STAY AND WIPER MOUNT

Reinforcements are used in the areas of a sheet metal where another components are attached. The reinforcements compensate Reduced strength of the sheet metal while another component added on it.

Reinforcements are the most easier part to create among all other parts in the Tail gate. These are made by using the command wave geometry linker . The proper surface from the inner panel is extracted and trim it to desired shape an then thicken it to get the Reinforcements.

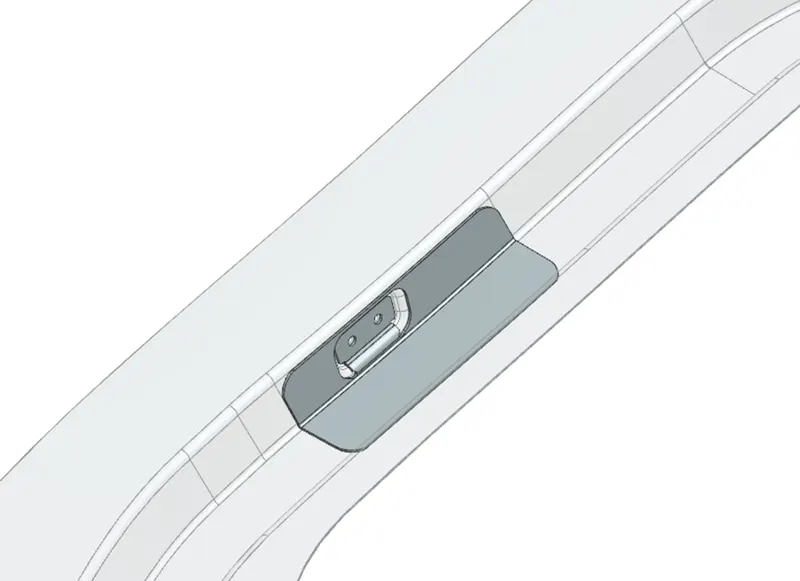

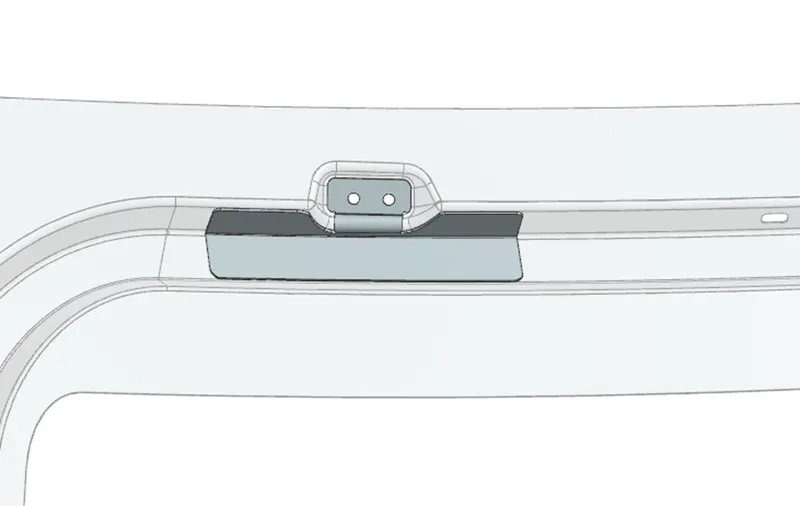

HINGE EMBOSS
