Design of backdoor

CAR BACK DOOR DESIGN

Aim: To design back door of car using given outer class 'A' surface and perform draft analysis.

Back door of a Car: A door which is located at the rear side of a car which gives access for the boot space to store luggage, spare wheel etc.

These doors can be operated manually or electric powered. In most of the luxury cars door is electrically operated.



Types of doors used in cars,

1. Top Mounted Door
2. Side mounted Door
3. Bottom Door

Back Door Assembly:

• Inner panel
• Outer panel
• Hinge and its reinforcement
• Wiper motor reinforcement
• Latch & striker and its reinforcement

Different Sheet metal processes used for manufacturing the Back Door

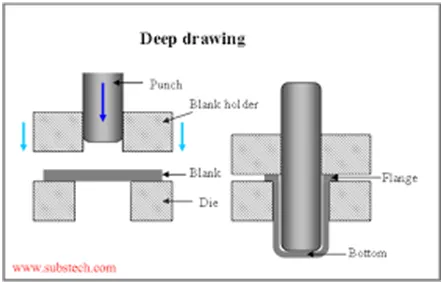

Deep Drawing:

The metal deep drawing process is an effective method of manufacturing of cups, cansand other similar deep drawing products. The deep drawings having two main categories.

1. First- stage drawing: The blank shape of metal is placed on the die and contact with thepunch. When the metal specimen is flat piece of sheet metal used in forming and finish theproduct. Initially the punch moves in downward direction. The outer rim of blank issubjected to pure radial drawing (drawing toward in vertical axes) between die and blank metal. The metal become a bend and sliding over die and also stretched between die and punch. The metal in vicinity of punch head and contact with it bend and slide over radii and stretch over punch head.

2. Redrawing: The components drawn from first stage again it is redrawn convert into more depth to form a cup shape in the die and punch. The second stage of drawing is called as redrawing.

Embossing:

Embossing is a metal forming process for producing raised or sunken designs or relief insheet materials by means of matched male and female roller dies, theoretically with no change in metal thickness or by-passing sheet or a strip of metal between rolls of the desired pattern. Metal sheet is drawn through the male and female roller dies producing a pattern or design on the metal sheet. Depending on the roller dies used, different patterns can be produced on the metal sheet.

Materials commonly used in the metal embossing process include:

• Aluminum alloys
• Steel alloys
• Zinc
• Copper
• Galvanized steel
• Brass
• Cold rolled steel

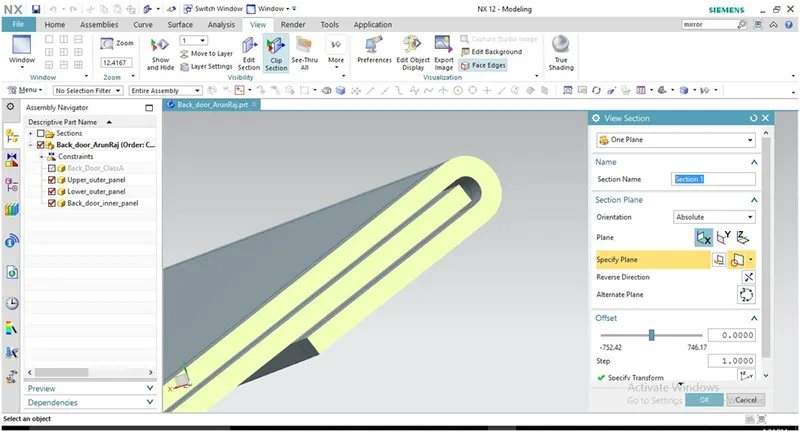

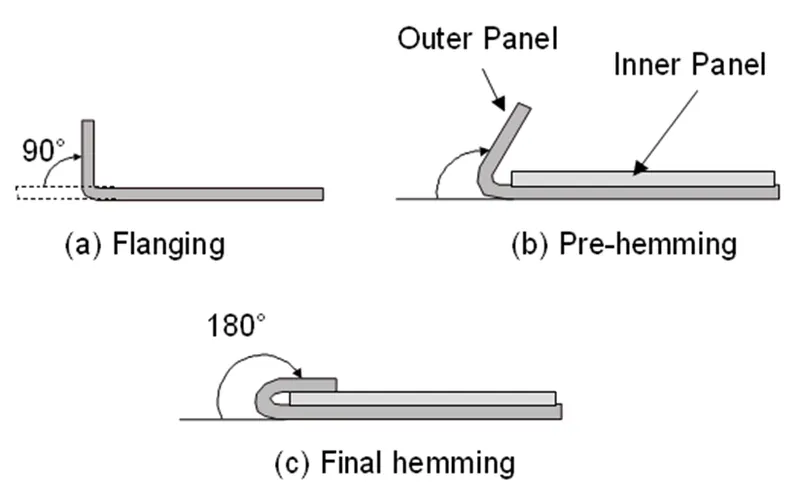

Hemming:

Hemming is a forming operation in which the edges of the sheet are folded or folded over another part in order to achieve a tight fit. Normally hemming operations are used toconnect parts together, to improve the appearance of a part and to reinforce part edges.

In car part production, hemming is used in assembly as a secondary operation after deepdrawing, trimming and flanging operations to join two sheet metal parts (outer and inner)together. Typical parts for this type of assembly are hoods, doors, trunk lids and fenders.

There are various types of hemming operations:

1. Conventional die hemming:

In conventional die hemming, the flange is folded over the entire length with a hemming tool.

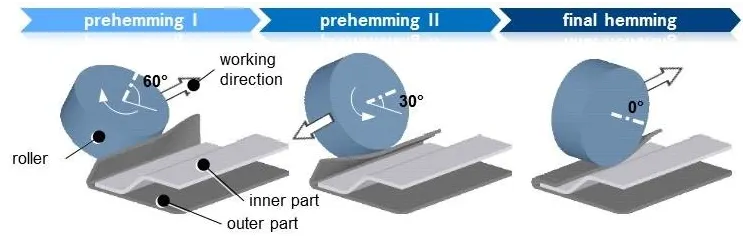

2. Roll hemming:

In roll hemming, the hemming roller is guided by an industrial robot to form the flange.

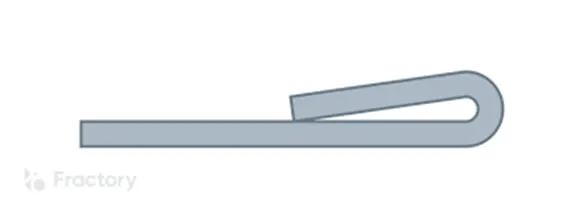

Tear drop Hem:

In tear drop hem the bend angle is greater than 180 degrees.

Closed Hem: Hems without any inside radius are called as closed hem. Closed hems are not recommended if the hem geometry is to be painted or if the material used is SST or Aluminum.

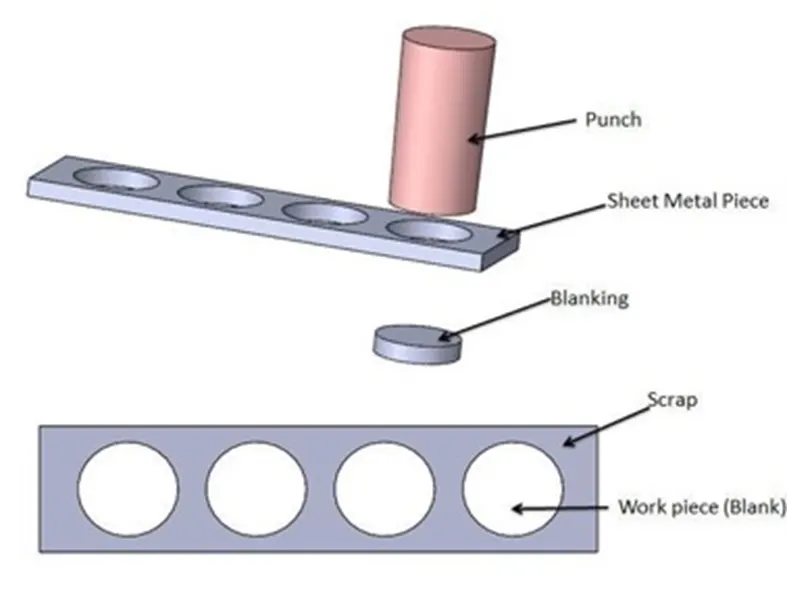

Blanking:

Blanking is a cutting operation of a flat metal sheet and the article punched out is known as blank. Blank is the required product of the operation and the metal left behind is considered as a waste.

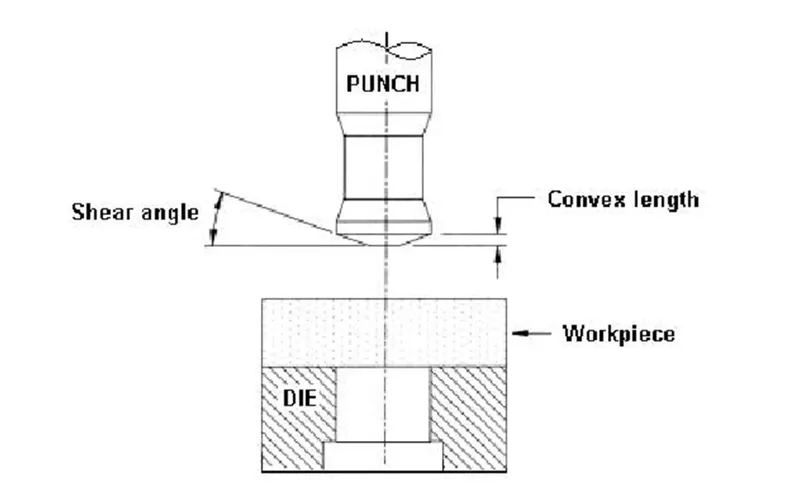

Punching:

It is similar to blanking only the main difference is that, the hole is the required product and the material punched out from the hole is considered as a waste.

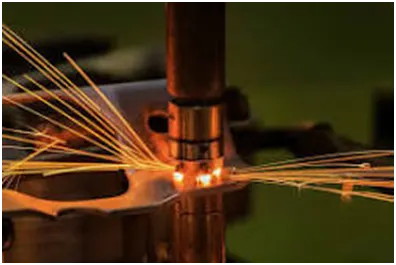

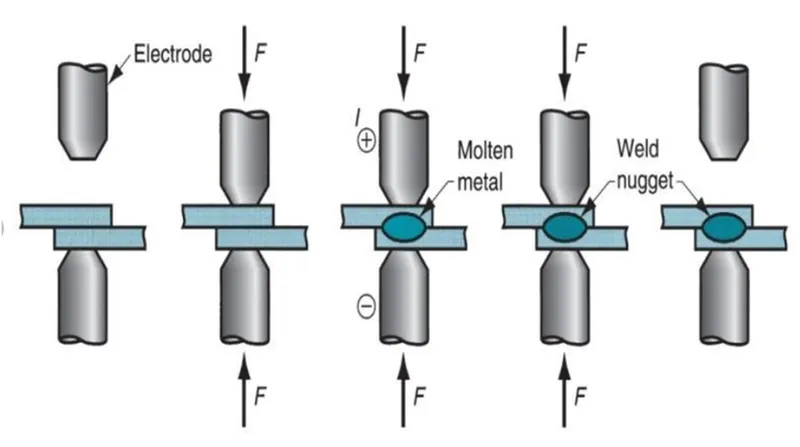

Spot Welding:

It is a form of resistance welding also known as Resistance Spot Welding (RSW).Spot Welding involves using heat produced by resistance to an electrical current to joinmaterials together. The current heats the materials to a point where they become malleable. The use of strong pressure bonds them together.

Another form of resistance welding is Projection Welding. This process involves fusing a fastener’s embossed or coined projections to the metal base material to form a weld. As the materials never melt, they do not intermix. This means the resulting weld is more like a forging of the materials.

Spot welding is only suitable for a small selection of base materials. Low carbon steel is the most suitable material for spot welding. This is because it is more resistant to electricity and has a lower thermal conductivity than the copper electrodes used to create the required electrical current.

High carbon steels and aluminium alloys can form brittle welds that don’t last with the spot welding process. Pure aluminium can qualify for spot welding but requires higher current levels. This is because it has a lower resistance to electricity than low carbon steel.

The outer panel upper and outer panel lower are joined through the spot welding .Sothere must be no gap between the outer panel upper and outer panel lower.

Door parts thickness is given below,

1. Outer Panel - 0.75 mm
2. Inner Panel - 0.75 mm
3. Reinforcements - 1.5 mm

COMPONENTS OF BACKDOOR:-

• Inner panel
• Outer panel upper
• Outer panel lower
• Hinge reinforcement Left & Right
• Gas stay reinforcement Left & Right
• Wiper motor Reinforcement
• Latch reinforcement

Class-A Surface:

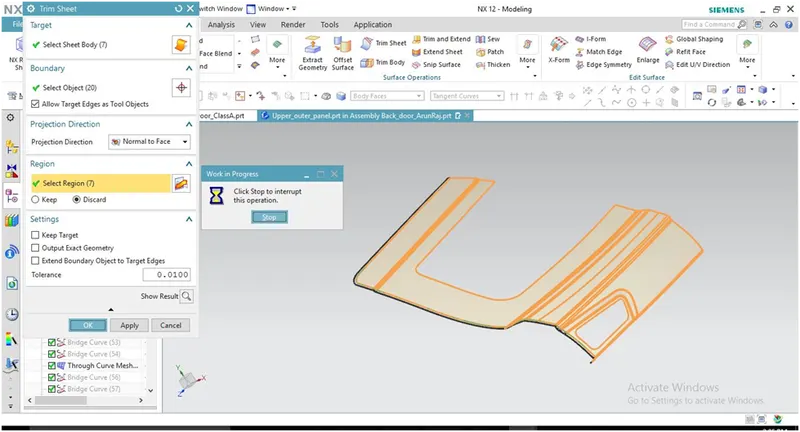

Given surfaces has to be repaired according to the smoothness. After repairing the surfaces, the door is divided into two parts as door outer upper and door lower panel.

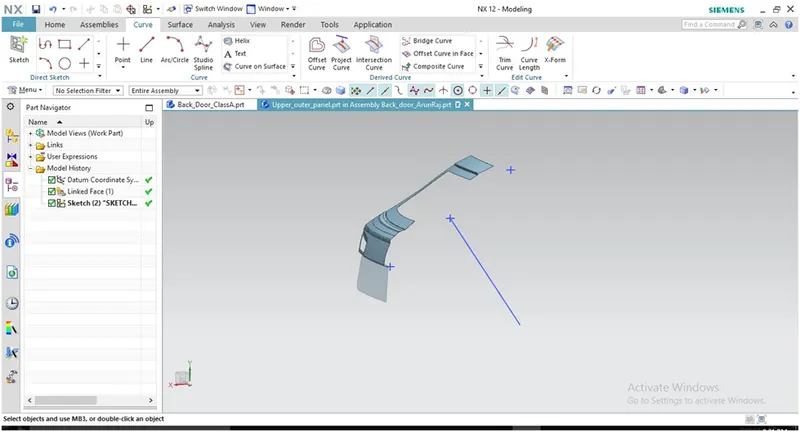

First, we need to create the Tooling direction for the Deep drawing operation. It shows that all the operations like embossing is done by considering this vector direction and it will help in manufacturing the part.

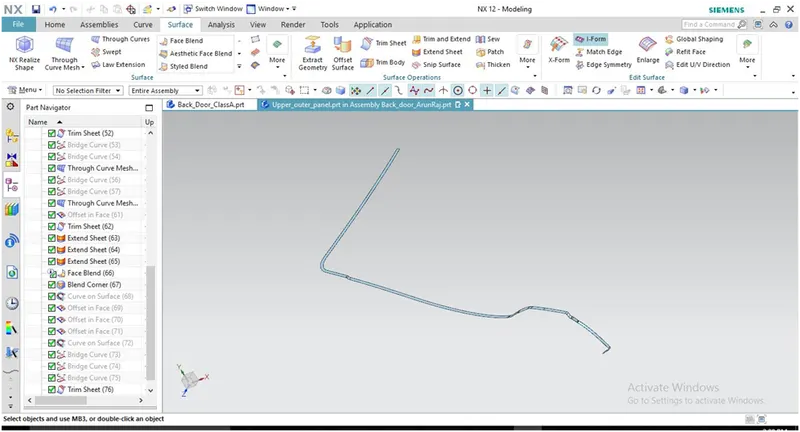

After that we have to create Sealing Flange by offsetting the outer panel to the specific distance.

Then we will be creating the Back door inner panel flange by offsetting the outer surface at a distance considering the sheet thickness and thickening direction.

Then created the connecting flange to join the inner panel and sealing flange.

Then for the windshield panel mounting, windshield panel is created and joined with sealing flange.

Then to improve the strength of the inner panel and to reduce the weight 'Y' type emboss and other cut-outs are created. Also, for Latch and Striker mounting cut-out is created. This cut-out is also done on other side of the inner panel to maintain the centre of gravity of the Back door.

Then the Door is thickened for 0.75mm.

Parts Of the Backdoor:

Inner Panel

Hinge Mounting Bracket ( Left & Right )

Gas Stay Bracket (Left & Right)

Wiper Motor Support Bracket

Latch

Latch Reinforcement

Hinge reinforcement (Left & Right)

Gas Stay Reinforcement (Left & Right)

INNER PANEL:

Inner door panel is a component which is use for strengthening the door assembly and it is one of the most important components on witch all accessories are mount like hinges, glass guide channel and gas stay. Back door inner panel is mounted with the Roof. Inner is mounted with the outer panel with the help of hemming process.

Materials used for the Inner panels are steels, Aluminum.



For giving more strength to the inner panels we can add extra reinforcements to strengthen the parts.

In the Inner panel i used embosses, Outer panel and inner panel mounting area, space for Harness, Wind Glass Mount and fillets, No sharp corners.

OUTTER PANEL UPPER AND LOWER:

Outer panel is the styling surface of the back door. Glass for rear visibility is mounted on the outer panel upper. Rear light is also mounted on the outer panel upper. Number plate is mounted on the outer panel lower. Spot welds and other manufacturing process should do only on the inner panel because the outer panel is styling surface which should not have any scratches or welds. Because it will affect the style of the car which leads to bad impression to the customer.

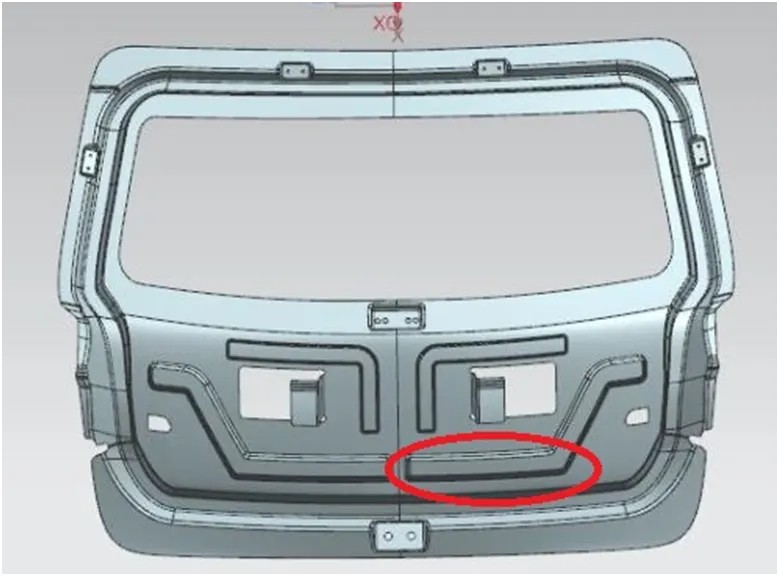

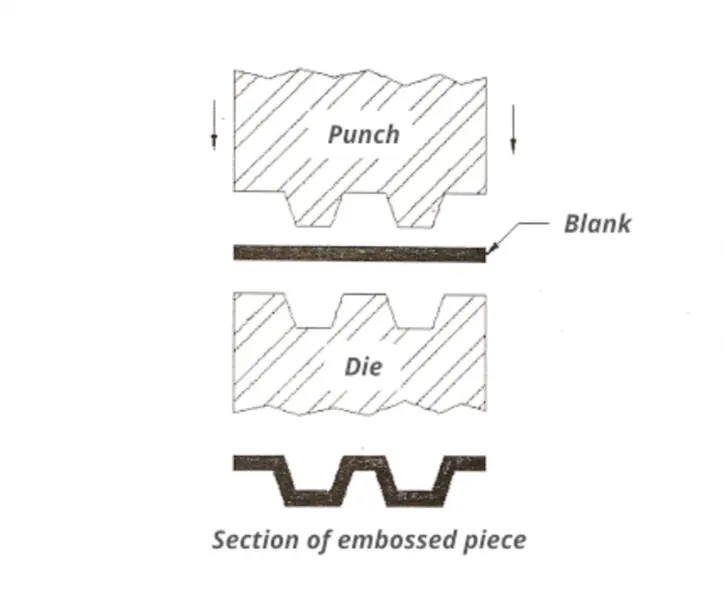

Embossing:

Embossing is a metal forming process for producing raised or sunken designs or relief insheet material by means of matched male and female roller dies, theoretically with nochange in metal thickness, or by passing sheet or a strip of metal between rolls of the desired pattern.

Metal sheet is drawn through the male and female roller dies producing a pattern or designon the metal sheet. Depending on the roller dies used, different patterns can be produced on the metal sheet.

Emboss should be in 7° to 25° incline in angle and it should not be in 90° angle, why because when we do stamping in manufacturing the stamping tool fits the sheet metal hence it will not come out of that sheet metal, So this is the main reason why the emboss face is in angle.

Characteristics of the metal embossing process include:

• It’s ability to form ductile metals.
• Its use in medium to high production runs.
• The ability to maintain the same metal thickness before and after embossing.
• The ability to produce unlimited patterns, depending on the roll dies.
• The ability to reproduce product with no variation.
• Located within the embossing stand itself are two engraved and mated hardened steel rolls, geared together to maintain top-to-bottom pattern registration. The width and diameter of these rolls depends on the strip width, material thickness, pattern depth, and material tensile strength and hardness.
• In most machines, the upper roll blocks are stationary, while the bottom roll blocks are movable. The pressure with which the bottom roll is raised is referred to as the tonnage capacity. This figure also depends on the aforementioned parameters.
• Embossing machines are generally sized to give 2" of strip clearance on each side of an engraved embossing roll. Many embossing machines are custom-manufactured, so there are no industry-standard widths. It is not uncommon to find embossing machines in operation producing patterns less than 6' wide all the way up to machines producing patterns 70+ wide.
• The illustration that follows provides a two-dimensional look at a typical embossing line setup with an embossing roller in the middle. The illustration shows the metal sheet entering the roller, and then the embossed sheet leaving toward the drawing rollers.
• Embossed metals are used in industry for two reasons: aesthetic and functional. Aesthetic applications also include appliance panels, building products, elevator panels, garage door panels, automotive trim, metal office furniture, and others.
• Functional applications are those in which a performance characteristic is enhanced. This can include a metal products ability to disperse liquid more effectively, reduction friction and static, increase a metal panel’s stiffness and rigidity, increase a metal surface area for acoustic or heat transfer applications, and improve traction.
• The embossing process can produce a variety of patterns. Some of the most common patterns include stucco, leather grain, wood grain, weather grain, and rough sawn cedar. Most embossers will tool to form any needed pattern, depending on the cost parameters involved.

Materials commonly used in the metal embossing process include:

Aluminum (All Alloys)

Aluminum (T1/T2)

Brass

Cold rolled steel

Copper

Galvanized steel

High strength, low alloy, steel

Hot rolled steel

Steel (All Alloys)

Zinc

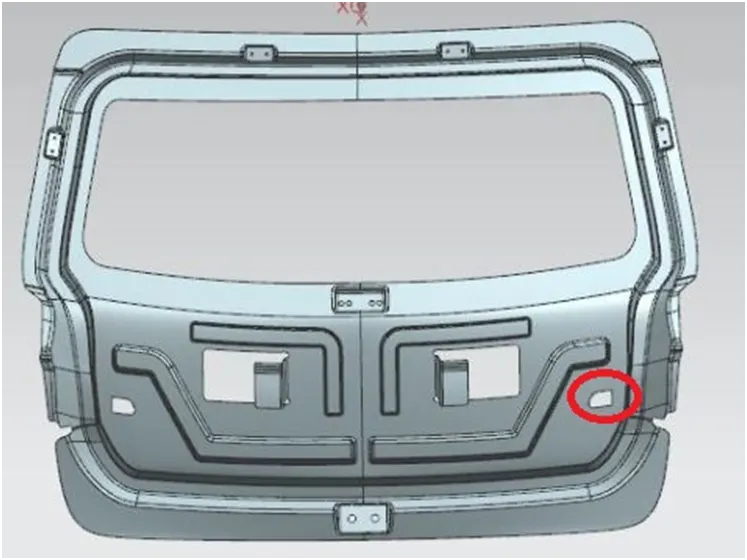

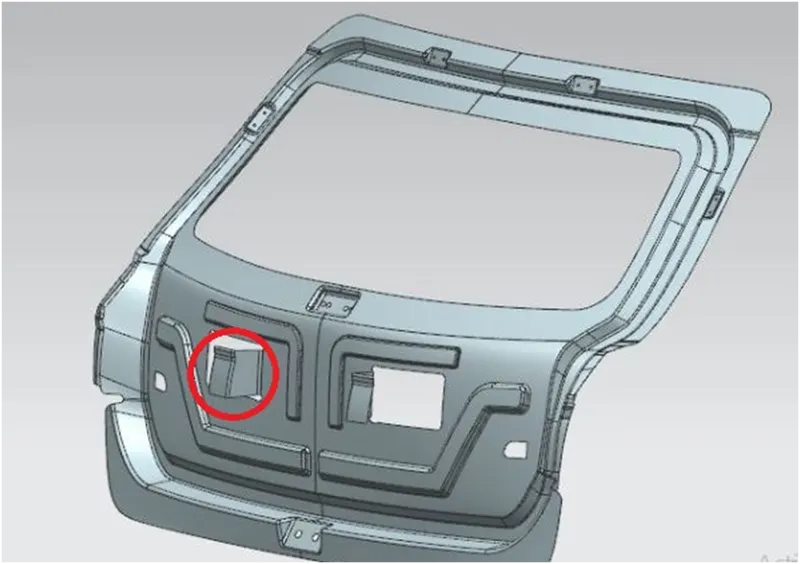

Cable Harness Gaps:

Here we left some gap for Headlamp Harness and tailgate light harness cables and some gap also dissipates the force when collision happens. Also too much of cutting the inner panel leads to weaken the panel.

Inner & Outer Panel Mounting Flange (Flange for mastics):

Highlighted red spot is the mounting portion of inner panel to the outer stylish part.

We provided two mounting Flanges for mounting the inner panel with outer stylish panel.

Two flanges is enough strength for holding the outer and inner panels with the help of sealants.

In between inner a mastic sealant is a type of liquid sealant that cures in an elastic state, thus making it flexible while holding the bond of the surfaces that has attached together. It adheres to just about any material making an all-purpose type of sealant.

The main purpose of the outer panel is for the aesthetic looks. Thus we cannot use bolts or welding. This has to be done with the help of the hemming and mastic sealants. Mastic sealants are elastic compound that behaves like the rubber. It is placed between the outer and inner panel. Initially is it in paste form, but after the hot furnace baths it gets hardened thus joining the outer and inner panel. Mastic sealant has the tendency to increase the strength of the panel and has influence of 80mm diameter and thickness around 5mm.

Advantages:

One positive characteristic of mastic sealant is that it has a very smooth exterior while keeping its rigid form underneath.

Surfaces do not have to be primed when using this type of sealant, and although appliedthick, it adheres smoothly to any surface. It is important that the area to be joined or sealedbe clean and dry, just like any other sealant on the market.

Mastic sealant may be used outdoors as well because of its waterproof quality. It can be applied on rain duct leaks outdoors, for example.

It is also favored for areas under high or low temperatures such as heater vents or drier vents and contains ultraviolet inhibitors to make sure that it is protected from damaging effects of the sun that will often weaken other types of sealants. That makes it a good choice for use on roofs, or any surface that is constantly exposed to sunlight. Most mastic sealants will also work well with metal because they do not corrode over time.

It functions well in areas with mild vibration and heat, like heating ducts.

Disadvantages:

Mastic sealant is not recommended for areas that have too much joint movement, or anything that will be moved a long length.

It works well with constant pressure on it, but not constant movement.

It also works best when applied thickly and is not recommended if only a thin layer is needed such as touch ups. Another sealant is a better choice for those types of repairs.

Sealant space in between inner and outer panel. As we see in the above picture represents the how the mounting takes place in between inner and outer panel.

Transparent panel is outer panel and charcoal color represents inner panel of the backdoor.

Mounting the inner panel and outer panel with the help of sealants.

We gave the  gap between inner and outer panel about 4-5mm for sealants. Sealants can hold the outer and inner panel and also it reduces the NVH of the vehicle.

WIPER MOTOR MOUNTING:

Above picture represents wiper motor mounting area, Highlighted red spot area is for wiper motor mounting area. Four holes for Mounting the wipermotor.

REINFORCEMENT:

Vehicle Door reinforcement structures as provided to reduce impact in collisions. In one embodiment, the structure is to include a lower reinforcement panel configured to mount to a vehicle chassis and an upper reinforcement panel welded to the lower reinforcement panel wherein the deflection of a front deformable wall of the upper reinforcement panel is configured to trigger deflection of rear deformable wall of the lower reinforcement panel.

Why we need Reinforcement?

Hinge rotates in the rotational axis in that it will lose some strength there, It means huge Back door opens with the help of small hinges only in this case hinge needs extra strength, For this we providing extra strength in the form of Reinforcement

Hinge Reinforcement thickness be 1.2mm to 1.5mm.

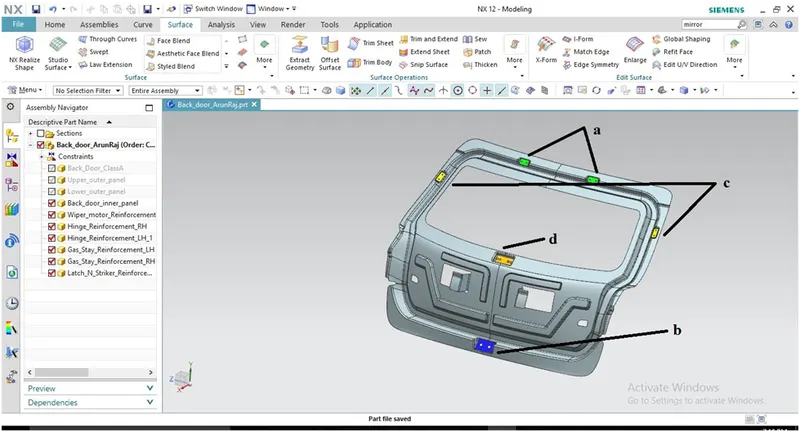

Types of Reinforcement used:

1. Hinge Reinforcement
2. Latch & Striker Reinforcement
3. Gas Stay Reinforcement
4. Wiper motor Reinforcement

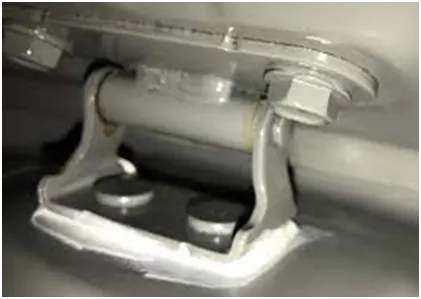

HINGE:

Hinges are simple mechanical bearing devices that are used to connect two parts and allow them to rotate relative to each other about a fixed axis. Depending on the type employed, the components can move (most commonly) within a limited arc or with 360°freedom.

Material Used for Hinge:

Due to the applications in which they are applied, hinges need to be able to withstand the stress of consistent opening and closing. To fulfill this requirement, many hinges are made of stainless steel as the strength of steel materials allows the hardware to bear heavy components, and the stainless characteristics prevent rust and corrosion. The latter is important because hinges used in external applications, especially near the ocean or salt lakes, can experience fatigue and failure much quicker due to exposure to moisture and salt in the environment.

What is Gas Stay?

Gas springs, or gas struts, are rods that provide support for doors, hatches, lids and covers that are horizontally hinged. They act as support in a variety of ways including, lifting, positioning and lowering. because of this versatility they are used in a wide range of applications.

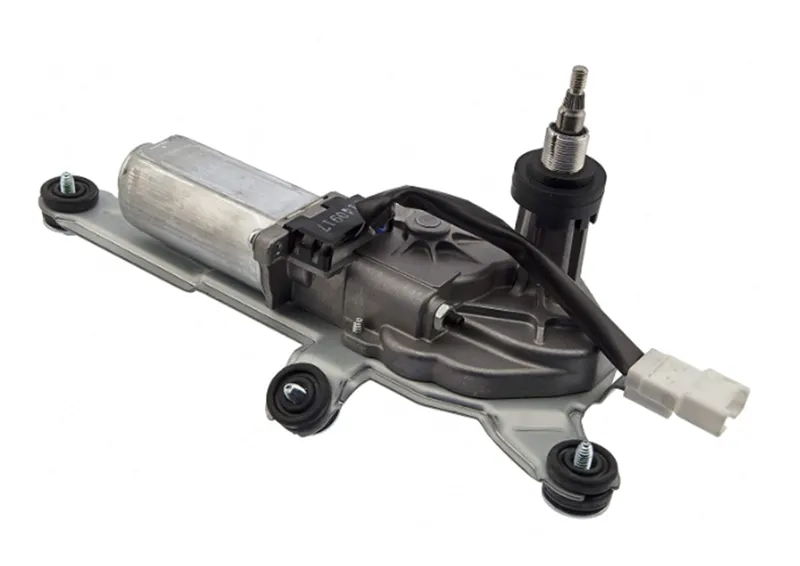

What is Wiper Motor?

Windshield wipers are powered moves the wiper arms back and forth. On vehicles with a rear window wiper, a separate motor powers the one in the rear. Due to the vibration and heat created by the motor the inner panel where the motor is mounted gets deforms and parts attached to the motor starts to vibrate which leads to poor NVH. So we have to provide the reinforcement where the wiper motor is placed.

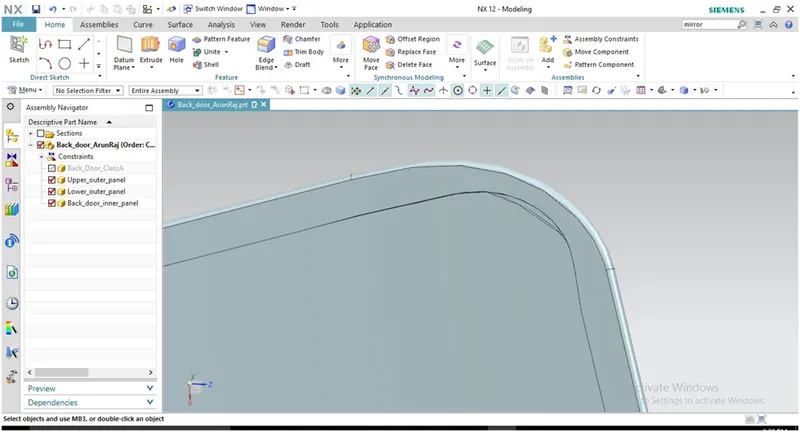

RELIEF CORNER:

Relief is provided onto the part or component in order to remove any stresses developed in  particular area that is sharp corners that takes place during the hemming process is carried out. Thus corners are rounded or chamfered.

We are giving 2 mm from sheet metal for Roll hemming process.

POSITION OF LATCH:

Position of latch and striker is perpendicular to the hinge then only the latch and striker mechanism works properly when the door closing and opening position.

For the proper opening and closing of the Door, the striker should be perpendicular to the trajectory of the Door. For this, hinge is assembled at its position. Once it is placed, hinge axis is drawn.

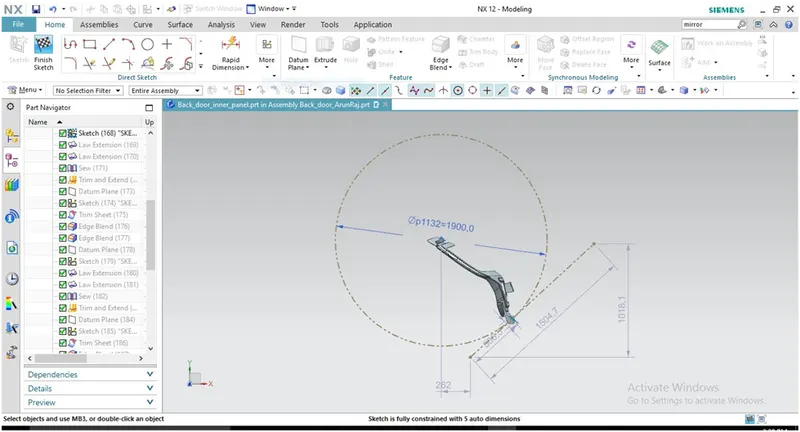

To check the hinge axis as the center we draw a big circle to the position the latch in such away that it is perpendicular to the hood trajectory.

In between the two hinges the striker is perpendicular to the midpoint of two hinges, because while closing and opening of latch and striker the opening position be similar actions.

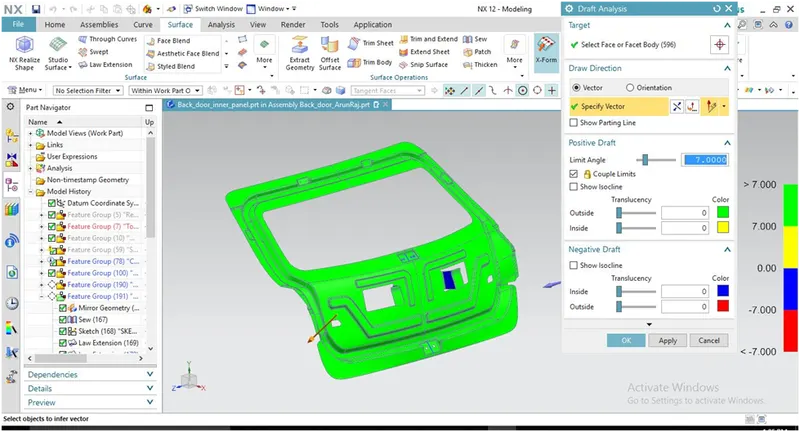

DRAFT ANALYSIS:

Draft analysis of inner panel is carried out through the tooling direction only. Only the green areas are acceptable and in worst case yellow region are acceptable but the blue and red region are never accepted.

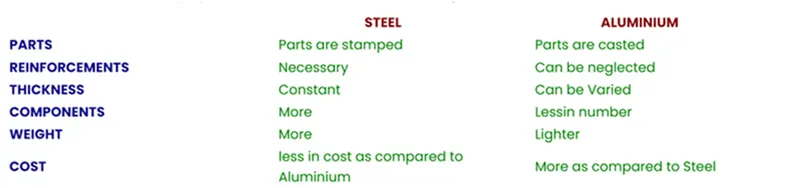

The draft angle for aluminium casted panel is 2 to 3° is enough but if its steel then the angle is more than 7°.

In this project we considered it as steel and used 7° as draft angle and direction is chosen as tooling direction which is the deep drawn direction.

CONCLUSION:

For the provided styling surface of a back door design, we used appropriate design methodologies and provided the necessary embosses for the Backdoor also the draft analysis is done.

Final Screen shots:

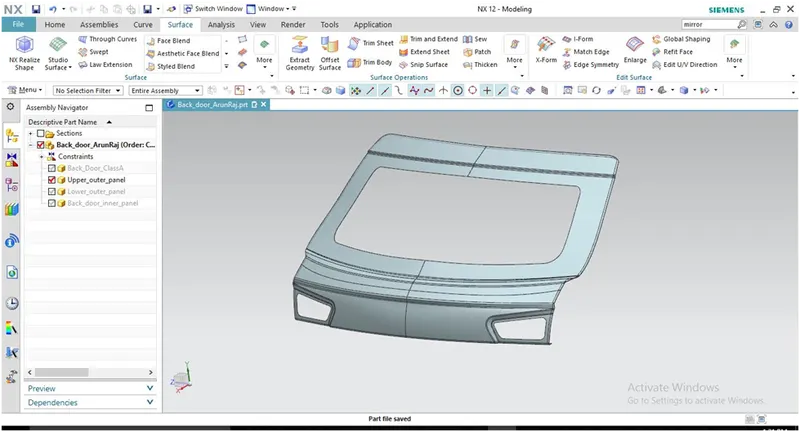

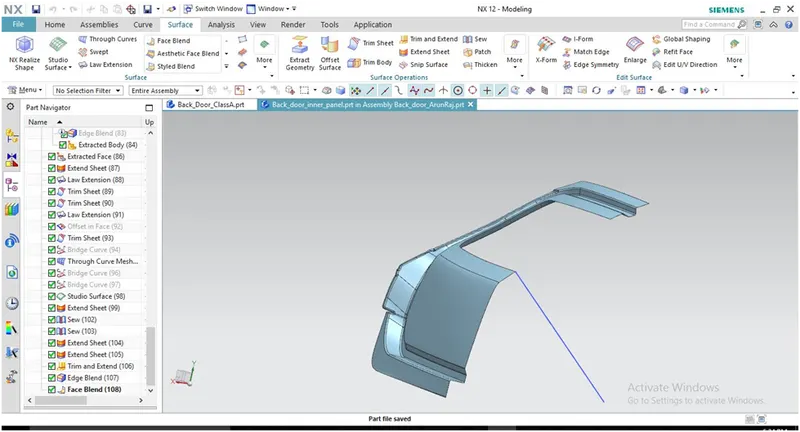

1. Upper outer panel:

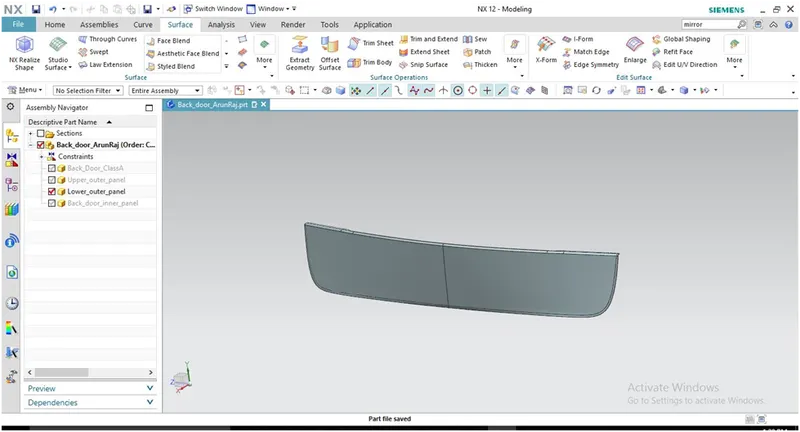

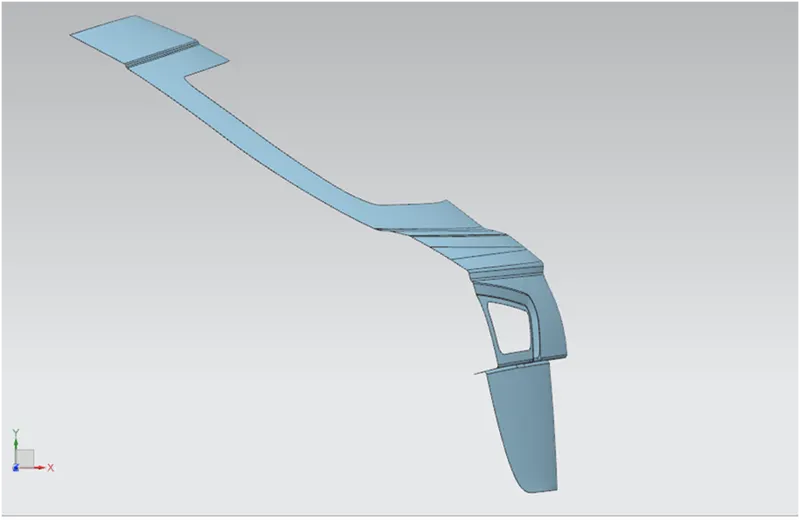

2. Lower Outer panel:

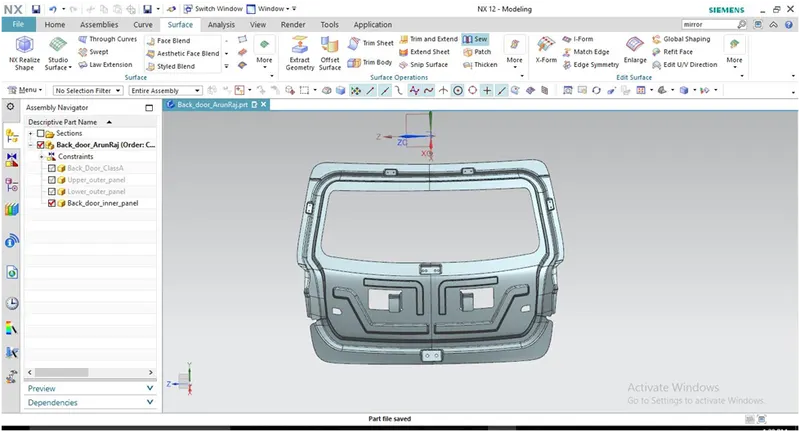

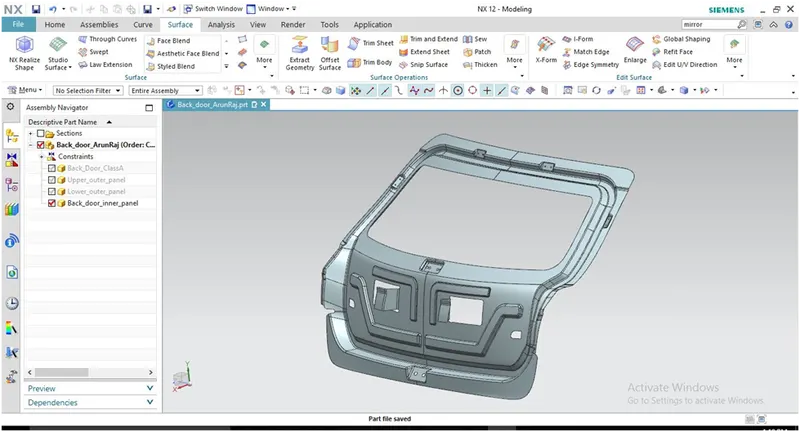

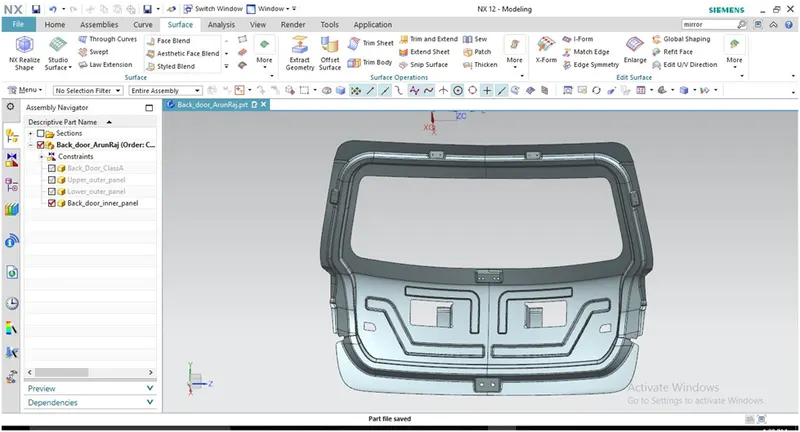

3. Inner panel:
