Creation of Multiple viewports, Scaling the drawing and setting in Template in AutoCad

AIM: TO Create a layout of a plan and section A of the Project in the Challenge 7.

INTRODUCTION:

• Use of template in the layout in order create paper print of the project.
• In order to plot the project Drawing in layout, use of VIEWPORTS and creating VIEWS are essential.
• To define the view through ribbon tab>> view>> viewconfiguration >> enter.
• Use of MV command in the layout , In oder to control and fix the drawings in the paper space and model space.

PROCEDURE:

1. Open Existing Drwaing file of the project in the challenge 7.

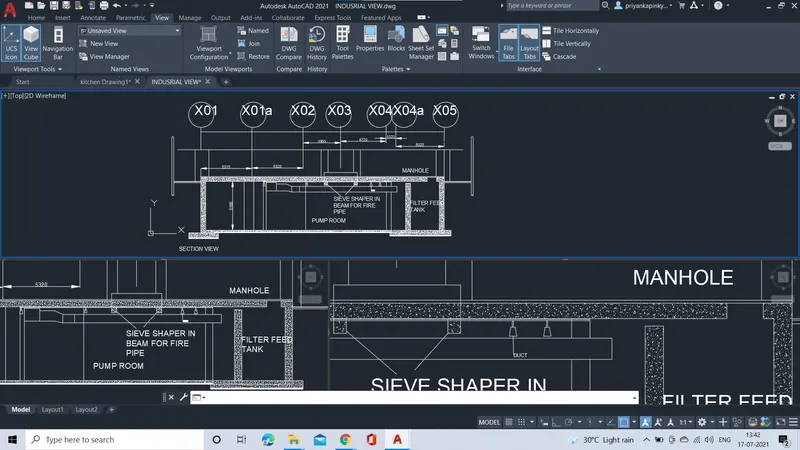

2. Then from Ribbon tab>> click >> view tab>>ok, then choose the view configuration.
3. From drop down of the veiw configuration select the type of view.

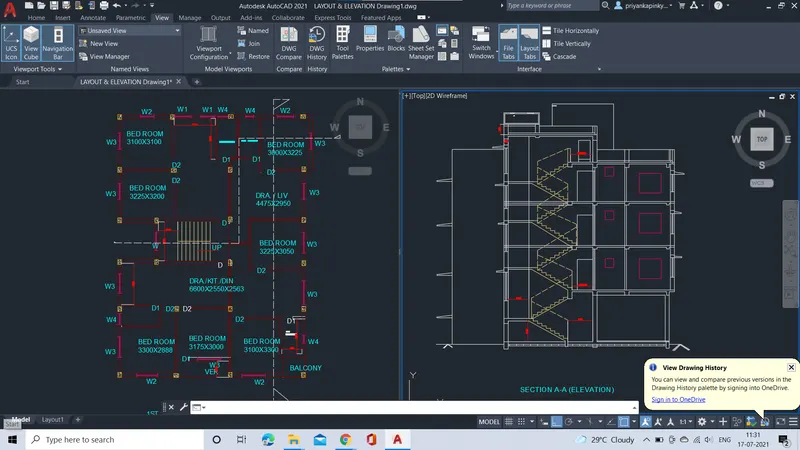

4. Then it displays the view of the Drawings, then create the view by giving names of the view.
5.

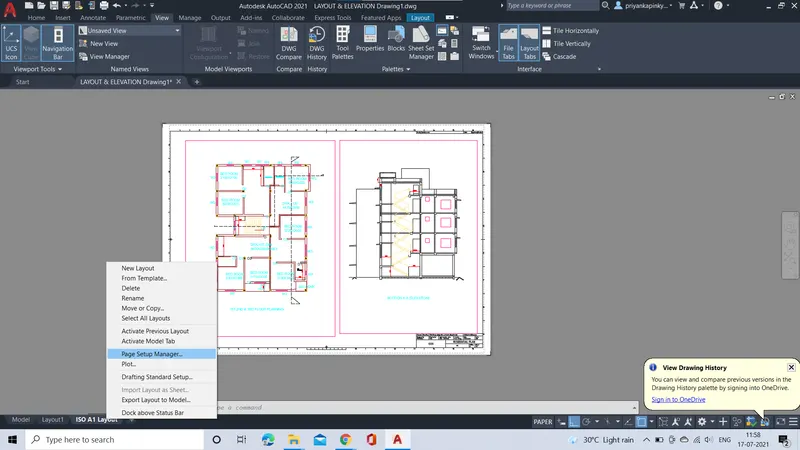

6. Then switch to the layout, Then the drawing will dispaly on the layout page.
7. In order to create the template on the layout, from command prompt give LAYOUT.

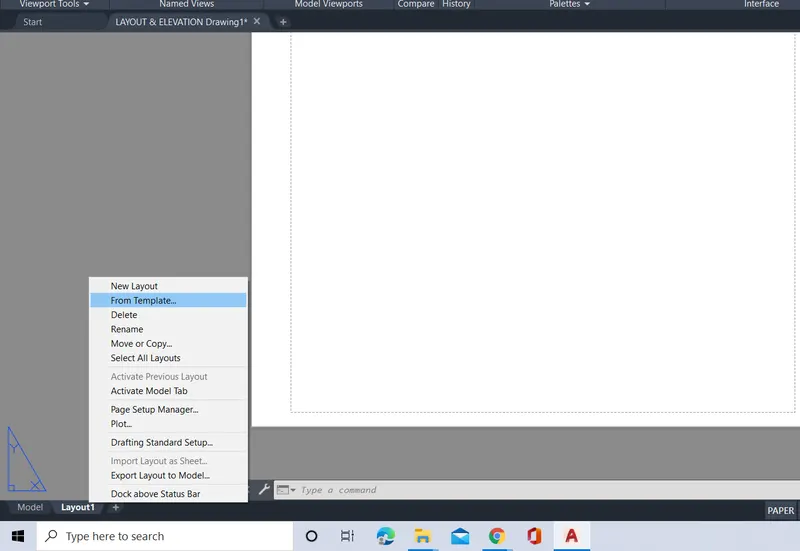

8. It specifies TEMPLATE or else we can choose by right clicking on layout >> template.
9.
10. Then select template tutorial-mArch.dwt.

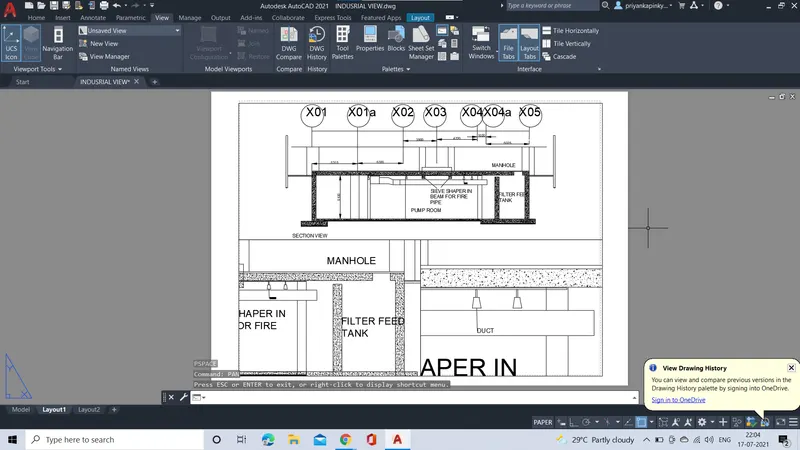

11. Then using MV command from command prompt specify the views on model space.
12. In oder to work on modelspace in layout, Use MS command and edit the drwings and to scale the drawing.
13. In order to switch on for paperspace , Use PS comand.

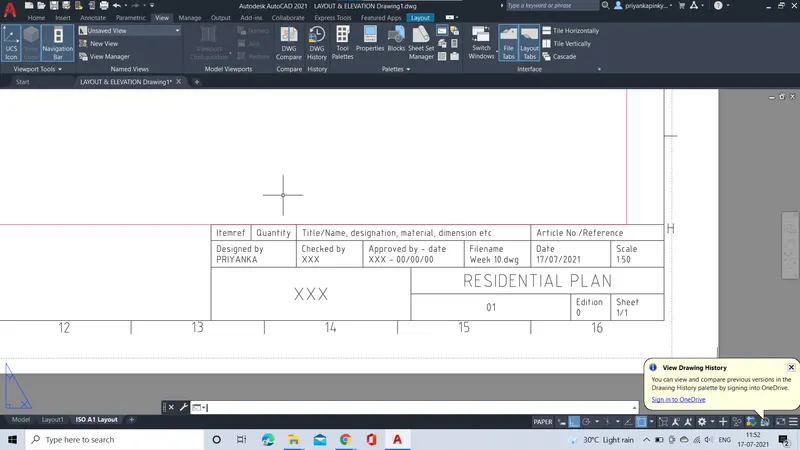

14. Using ATTEDIT command, insert the names in to the block of the tittle box.
15. Finally to plot the drawing, First the paper set manage and select to accordingly and previw the layout and plot the drawing finally.
16.

RESULT:

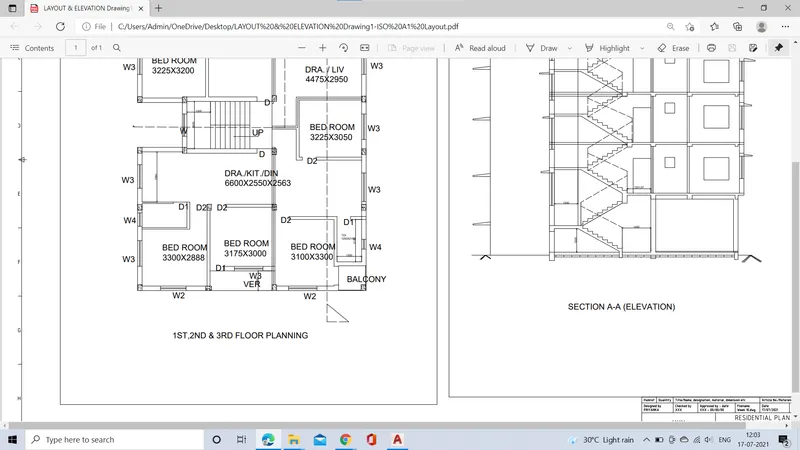

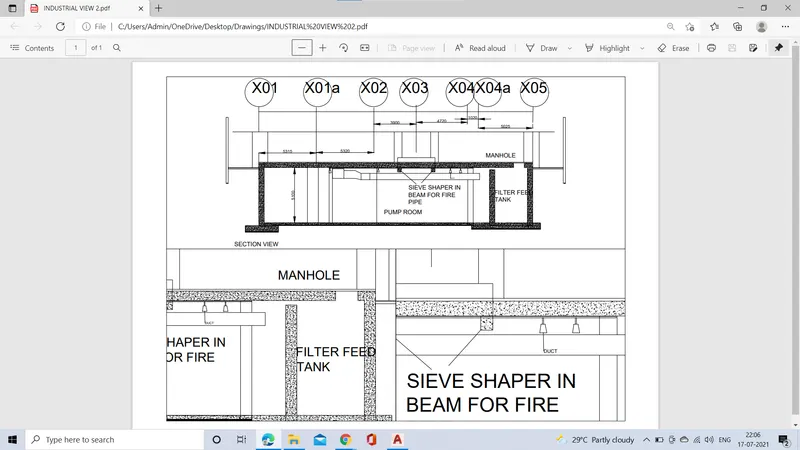

THE PDF FORMAT OF THE DRAWING IN TEMPLATE

2,

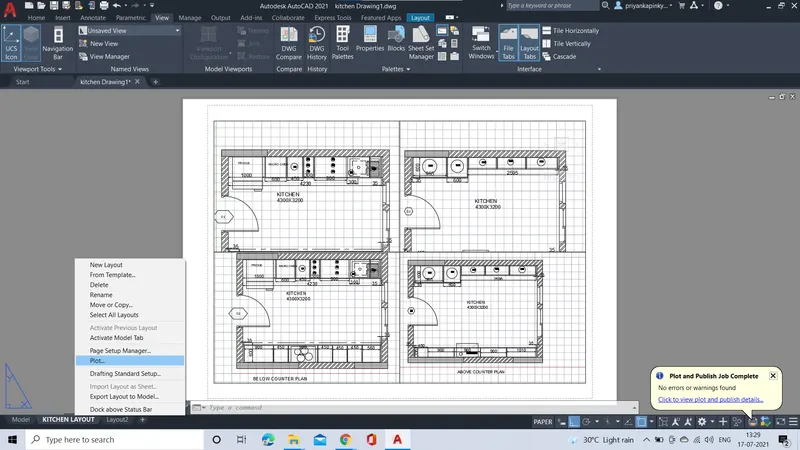

AIM: TO Create the layout of the kitchen in challenge 9.

INTRODUCTION:

• Use of template in the layout in order create paper print of the project.
• In order to plot the project Drawing in layout, use of VIEWPORTS and creating VIEWS are essential.
• To define the view through ribbon tab>> view>> viewconfiguration >> enter.
• Use of MV command in the layout , In oder to control and fix the drawings in the paper space and model space.

PROCEDURE:

1. Open existing kitchen drawing in challenge 9.
2. Then from Ribbon tab>> click >> view tab>>ok, then choose the view configuration.
3. From drop down of the veiw configuration select the type of view.

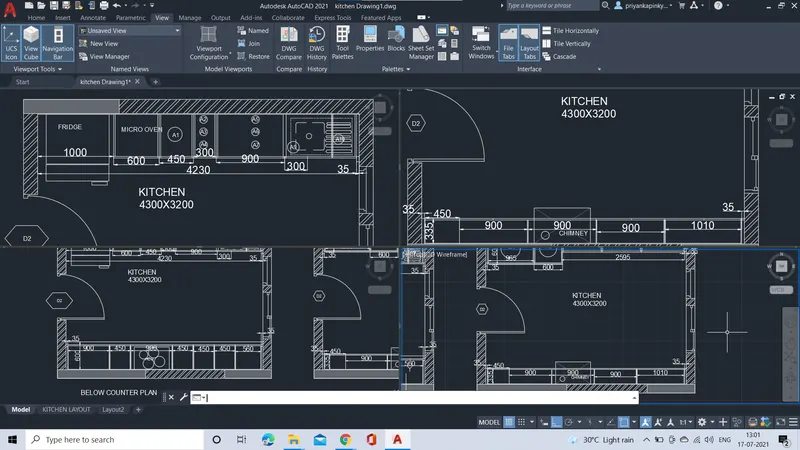

4. Then it displays the view of the Drawings, then create the views by giving names of the view.
5.
6. Then switch to layout, it shows the drawings on layout page.
7. Using MV command,insert the created views on layout page.
8. Using the MS command scale the deawings in the viewports.
9.
10. Then use PS command, plot the drawing on layout.

RESULT:

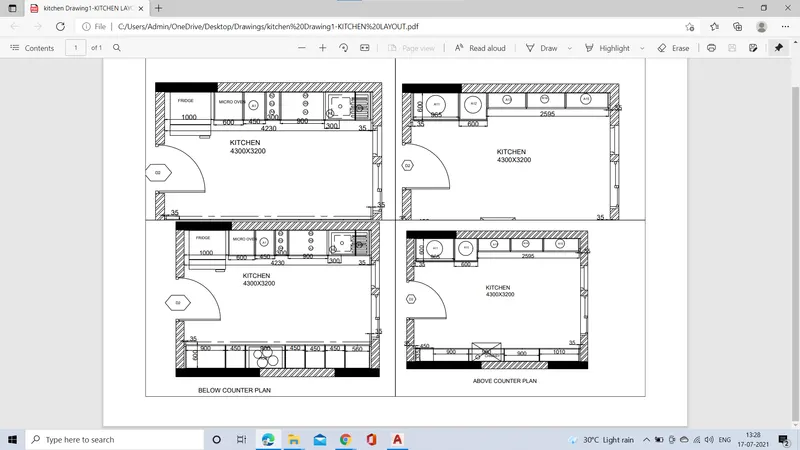

THE PDF FORMAT OF THE KTCHEN LAYOUT

3,

AIM: TO Create layout of the section from challenge 9.

INTRODUCTION:

1. Use of template in the layout in order create paper print of the project.
2. In order to plot the project Drawing in layout, use of VIEWPORTS and creating VIEWS are essential.
3. To define the view through ribbon tab>> view>> viewconfiguration >> enter.
4. Use of MV command in the layout , In oder to control and fix the drawings in the paper space and model space.

PROCEDURE:

1. Open existing Section drawing in challenge 9.
2. Then from Ribbon tab>> click >> view tab>>ok, then choose the view configuration.
3. From drop down of the veiw configuration select the type of view.
4. Then it displays the view of the Drawings, then create the views by giving names of the view.
5.
6. Then switch to layout, it shows the drawings on layout page.
7. Using MV command,insert the created views on layout page.
8. Using the MS command scale the deawings in the viewports.
9. Then use PS command, plot the drawing on layout.
10.

RESULT:

THE PDF FORMAT OF THE DRAWING
