Creation of geometries by Coordinate system methods using AutoCad

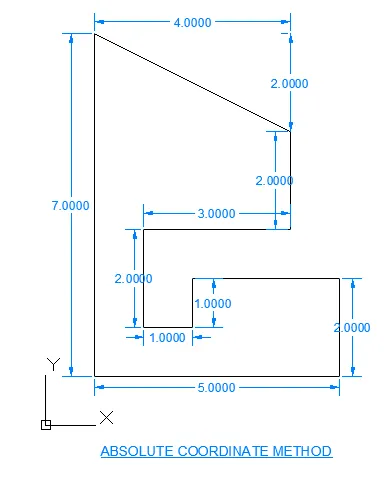

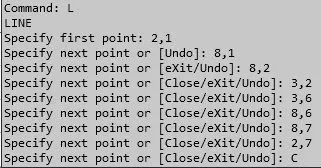

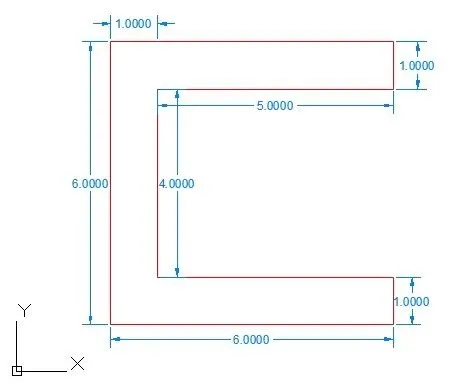

P1 - ABSOLUTE COORDINATE METHOD
Command: L
LINE
Specify first point: 2,1
Specify next point or [Undo]: 8,1
Specify next point or [eXit/Undo]: 8,2
Specify next point or [Close/eXit/Undo]: 3,2
Specify next point or [Close/eXit/Undo]: 3,6
Specify next point or [Close/eXit/Undo]: 8,6
Specify next point or [Close/eXit/Undo]: 8,7
Specify next point or [Close/eXit/Undo]: 2,7
Specify next point or [Close/eXit/Undo]: c

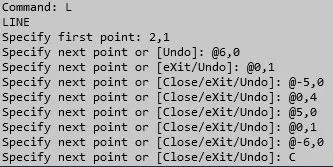

P1- RELATIVE RECTANGULAR COORDINATE METHOD
Command: L
LINE
Specify first point: 2,1
Specify next point or [Undo]: @6,0
Specify next point or [eXit/Undo]: @0,1
Specify next point or [Close/eXit/Undo]: @-5,0
Specify next point or [Close/eXit/Undo]: @0,4
Specify next point or [Close/eXit/Undo]: @5,0
Specify next point or [Close/eXit/Undo]: @0,1
Specify next point or [Close/eXit/Undo]: @-6,0
Specify next point or [Close/eXit/Undo]: C

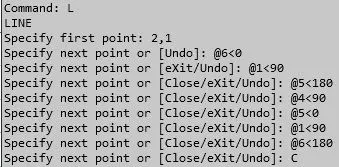

P1- RELATIVE POLAR COORDINATE METHOD
Command: L
LINE
Specify first point: 2,1
Specify next point or [Undo]: @6<0
Specify next point or [eXit/Undo]: @1<90
Specify next point or [Close/eXit/Undo]: @5<180
Specify next point or [Close/eXit/Undo]: @4<90
Specify next point or [Close/eXit/Undo]: @5<0
Specify next point or [Close/eXit/Undo]: @1<90
Specify next point or [Close/eXit/Undo]: @6<180
Specify next point or [Close/eXit/Undo]: C

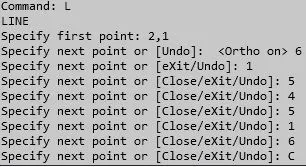

P1-DIRECT DISTANCE ENTRY METHOD
Command: L
LINE
Specify first point: 2,1
Specify next point or [Undo]: 6
Specify next point or [eXit/Undo]: 1
Specify next point or [Close/eXit/Undo]: 5
Specify next point or [Close/eXit/Undo]: 4
Specify next point or [Close/eXit/Undo]: 5
Specify next point or [Close/eXit/Undo]: 1
Specify next point or [Close/eXit/Undo]: 6
Specify next point or [Close/eXit/Undo]: C

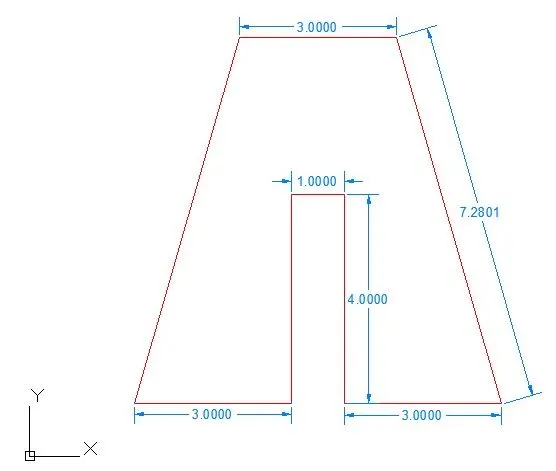

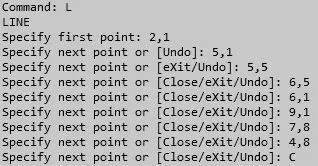

P2- ABSOLUTE COORDINATE METHOD
Command: L
LINE
Specify first point: 2,1
Specify next point or [Undo]: 5,1
Specify next point or [eXit/Undo]: 5,5
Specify next point or [Close/eXit/Undo]: 6,5
Specify next point or [Close/eXit/Undo]: 6,1
Specify next point or [Close/eXit/Undo]: 9,1
Specify next point or [Close/eXit/Undo]: 7,8
Specify next point or [Close/eXit/Undo]: 4,8
Specify next point or [Close/eXit/Undo]: C

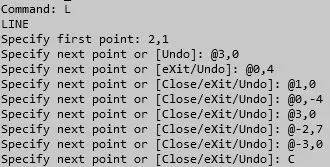

P2- RELATIVE RECTANGULAR COORDINATE METHOD
Command: L
LINE
Specify first point: 2,1
Specify next point or [Undo]: @3,0
Specify next point or [eXit/Undo]: @0,4
Specify next point or [Close/eXit/Undo]: @1,0
Specify next point or [Close/eXit/Undo]: @0,-4
Specify next point or [Close/eXit/Undo]: @3,0
Specify next point or [Close/eXit/Undo]: @-2,7
Specify next point or [Close/eXit/Undo]: @-3,0
Specify next point or [Close/eXit/Undo]: C
P2- RELATIVE POLAR COORDINATE METHOD
LINE command.
Specify next point or [Close/eXit/Undo]: @4<270
Specify next point or [Close/eXit/Undo]: @3<0
Specify next point or [Close/eXit/Undo]: @7.28<106
Specify next point or [Close/eXit/Undo]: @3<180
Specify next point or [Close/eXit/Undo]: C

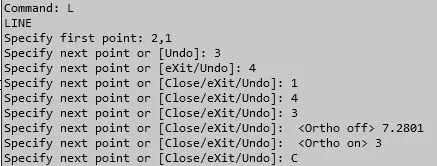

P2- DIRECT DISTANCE ENTRY METHOD
Command: L
LINE
Specify first point: 2,1
Specify next point or [Undo]: 3
Specify next point or [eXit/Undo]: 4
Specify next point or [Close/eXit/Undo]: 1
Specify next point or [Close/eXit/Undo]: 4
Specify next point or [Close/eXit/Undo]: 3
Specify next point or [Close/eXit/Undo]: 7.2801
Specify next point or [Close/eXit/Undo]: 3
Specify next point or [Close/eXit/Undo]: C

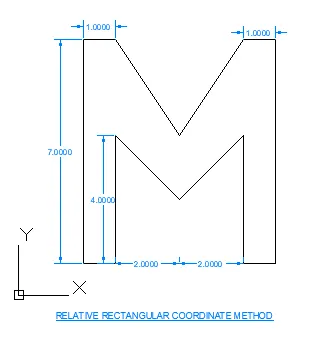

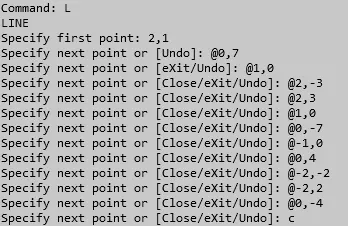

P4-RELATIVE RECTANGULAR METHOD
Command: L
LINE
Specify first point: 2,1
Specify next point or [Undo]: @0,7
Specify next point or [eXit/Undo]: @1,0
Specify next point or [Close/eXit/Undo]: @2,-3
Specify next point or [Close/eXit/Undo]: @2,3
Specify next point or [Close/eXit/Undo]: @1,0
Specify next point or [Close/eXit/Undo]: @0,-7
Specify next point or [Close/eXit/Undo]: @-1,0
Specify next point or [Close/eXit/Undo]: @0,4
Specify next point or [Close/eXit/Undo]: @-2,-2
Specify next point or [Close/eXit/Undo]: @-2,2
Specify next point or [Close/eXit/Undo]: @0,-4
Specify next point or [Close/eXit/Undo]: c

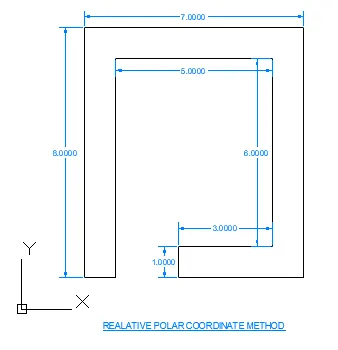

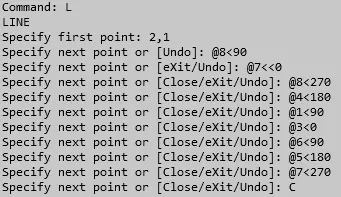

P-5 RELATIVE POLAR COORDINATE METHOD
Command: L
LINE
Specify first point: 2,1
Specify next point or [Undo]: @8<90
Specify next point or [eXit/Undo]: @7<<0
Specify next point or [Close/eXit/Undo]: @8<270
Specify next point or [Close/eXit/Undo]: @4<180
Specify next point or [Close/eXit/Undo]: @1<90
Specify next point or [Close/eXit/Undo]: @3<0
Specify next point or [Close/eXit/Undo]: @6<90
Specify next point or [Close/eXit/Undo]: @5<180
Specify next point or [Close/eXit/Undo]: @7<270
Specify next point or [Close/eXit/Undo]: C

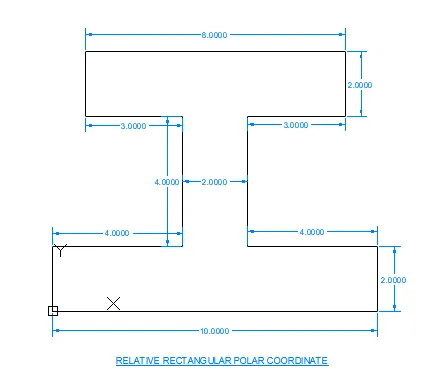

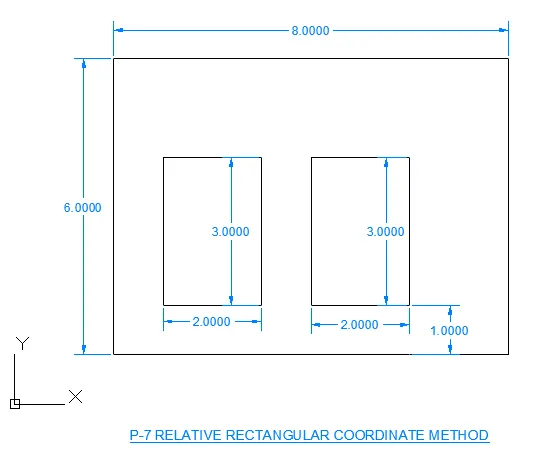

P-7 RELATIVE RECTANGULAR POLAR COORDINATE METHOD
Command: L
LINE
Specify first point: 2,1
Specify next point or [Undo]: @0,6
Specify next point or [eXit/Undo]: @8,0
Specify next point or [Close/eXit/Undo]: @0,-6
Specify next point or [Close/eXit/Undo]: C
Command:
Automatic save to C:\Users\Admin\AppData\Local\Temp\P4_1_28718_ca8b3e6a.sv$ ...
Command:
Command: L
LINE
Specify first point: 3,2
Specify next point or [Undo]: @0,3
Specify next point or [eXit/Undo]: @2,0
Specify next point or [Close/eXit/Undo]: @0,-3
Specify next point or [Close/eXit/Undo]: C
Command: L
LINE
Specify first point: 6,2
Specify next point or [Undo]: @0,3
Specify next point or [eXit/Undo]: @2,0
Specify next point or [Close/eXit/Undo]: @0,-3
Specify next point or [Close/eXit/Undo]: C

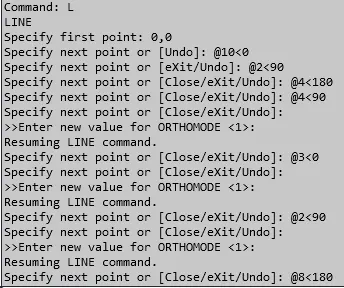

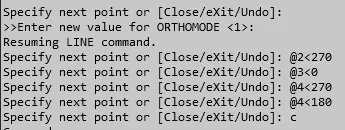

P-8 RELATIVE RECTANGULAR COORDINATE METHOD

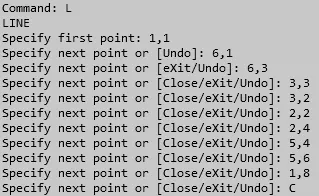

P-9 ABSOLUTE COORDINATE METHOD
Command: L
LINE
Specify first point: 1,1
Specify next point or [Undo]: 6,1
Specify next point or [eXit/Undo]: 6,3
Specify next point or [Close/eXit/Undo]: 3,3
Specify next point or [Close/eXit/Undo]: 3,2
Specify next point or [Close/eXit/Undo]: 2,2
Specify next point or [Close/eXit/Undo]: 2,4
Specify next point or [Close/eXit/Undo]: 5,4
Specify next point or [Close/eXit/Undo]: 5,6
Specify next point or [Close/eXit/Undo]: 1,8
Specify next point or [Close/eXit/Undo]: C

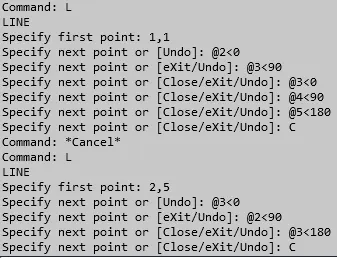

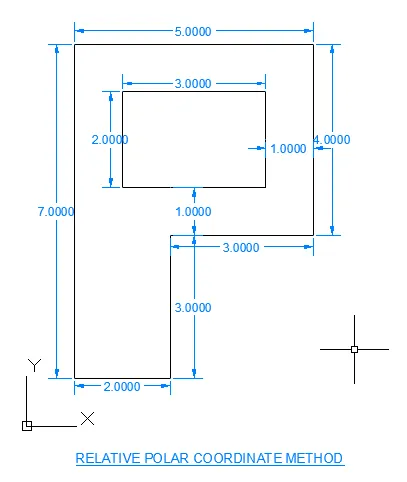

P-10 RELATIVE POLAR COORDINATE METHOD
Command: L
LINE
Specify first point: 1,1
Specify next point or [Undo]: @2<0
Specify next point or [eXit/Undo]: @3<90
Specify next point or [Close/eXit/Undo]: @3<0
Specify next point or [Close/eXit/Undo]: @4<90
Specify next point or [Close/eXit/Undo]: @5<180
Specify next point or [Close/eXit/Undo]: C
Command: *Cancel*
Command: L
LINE
Specify first point: 2,5
Specify next point or [Undo]: @3<0
Specify next point or [eXit/Undo]: @2<90
Specify next point or [Close/eXit/Undo]: @3<180
Specify next point or [Close/eXit/Undo]: C

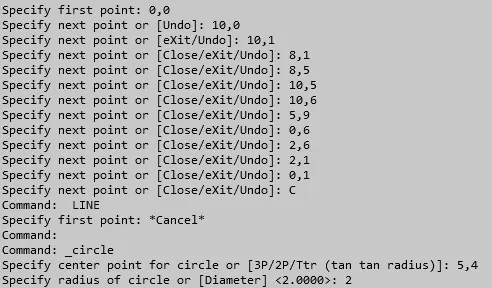

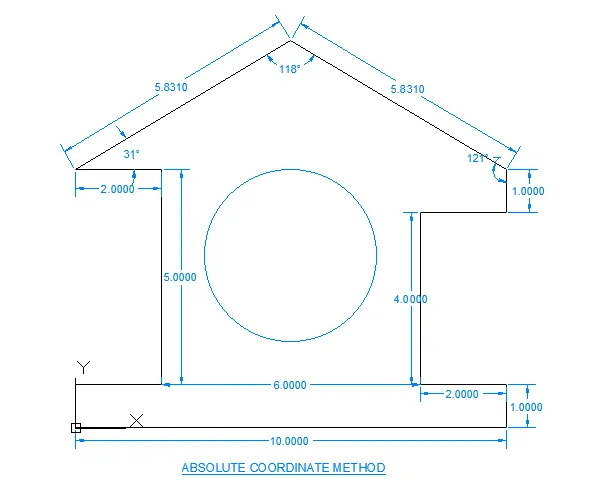

PROFILE WOOD
Specify first point: 0,0
Specify next point or [Undo]: 10,0
Specify next point or [eXit/Undo]: 10,1
Specify next point or [Close/eXit/Undo]: 8,1
Specify next point or [Close/eXit/Undo]: 8,5
Specify next point or [Close/eXit/Undo]: 10,5
Specify next point or [Close/eXit/Undo]: 10,6
Specify next point or [Close/eXit/Undo]: 5,9
Specify next point or [Close/eXit/Undo]: 0,6
Specify next point or [Close/eXit/Undo]: 2,6
Specify next point or [Close/eXit/Undo]: 2,1
Specify next point or [Close/eXit/Undo]: 0,1
Specify next point or [Close/eXit/Undo]: C
Command: LINE
Specify first point: *Cancel*
Command:
Command: _circle
Specify center point for circle or [3P/2P/Ttr (tan tan radius)]: 5,4
Specify radius of circle or [Diameter] <2.0000>: 2

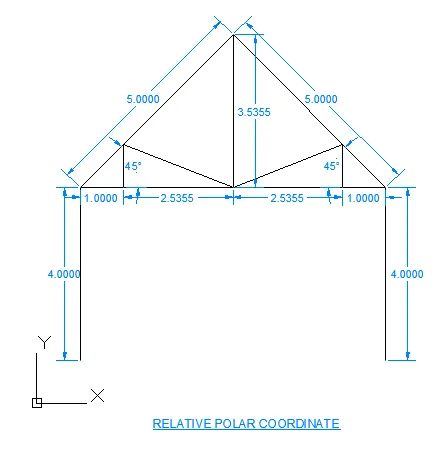

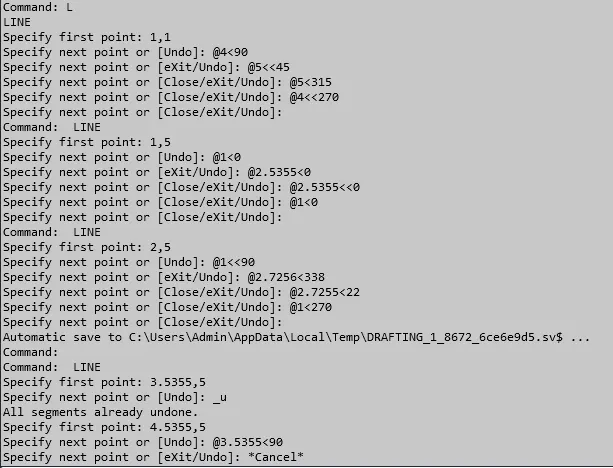

QUEEN POST
Command: L
LINE
Specify first point: 1,1
Specify next point or [Undo]: @4<90
Specify next point or [eXit/Undo]: @5<<45
Specify next point or [Close/eXit/Undo]: @5<315
Specify next point or [Close/eXit/Undo]: @4<<270
Specify next point or [Close/eXit/Undo]:
Command: LINE
Specify first point: 1,5
Specify next point or [Undo]: @1<0
Specify next point or [eXit/Undo]: @2.5355<0
Specify next point or [Close/eXit/Undo]: @2.5355<<0
Specify next point or [Close/eXit/Undo]: @1<0
Specify next point or [Close/eXit/Undo]:
Command: LINE
Specify first point: 2,5
Specify next point or [Undo]: @1<<90
Specify next point or [eXit/Undo]: @2.7256<338
Specify next point or [Close/eXit/Undo]: @2.7255<22
Specify next point or [Close/eXit/Undo]: @1<270
Specify next point or [Close/eXit/Undo]:
Automatic save to C:\Users\Admin\AppData\Local\Temp\DRAFTING_1_8672_6ce6e9d5.sv$ ...
Command:
Command: LINE
Specify first point: 3.5355,5
Specify next point or [Undo]: _u
All segments already undone.
Specify first point: 4.5355,5
Specify next point or [Undo]: @3.5355<90
Specify next point or [eXit/Undo]: *Cancel*
Command:
Command: *Cancel*

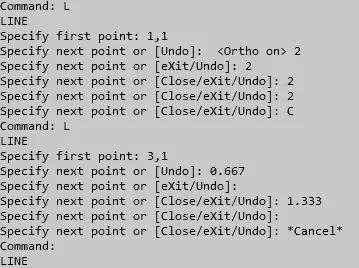

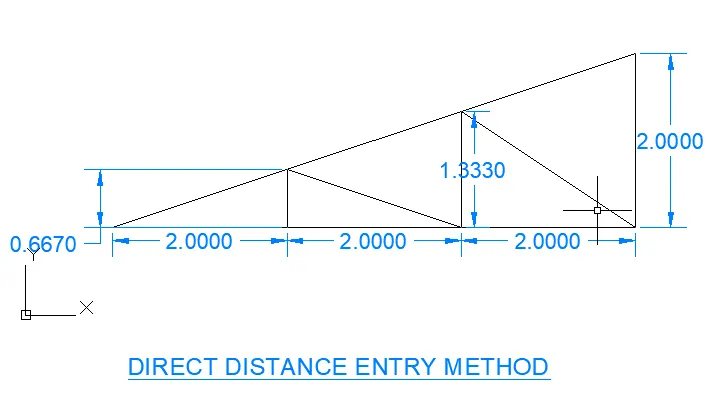

MONO PITCH
Command: L
LINE
Specify first point: 1,1
Specify next point or [Undo]: <Ortho on> 2
Specify next point or [eXit/Undo]: 2
Specify next point or [Close/eXit/Undo]: 2
Specify next point or [Close/eXit/Undo]: 2
Specify next point or [Close/eXit/Undo]: C
Command: L
LINE
Specify first point: 3,1
Specify next point or [Undo]: 0.667
Specify next point or [eXit/Undo]:
Specify next point or [Close/eXit/Undo]: 1.333
Specify next point or [Close/eXit/Undo]:
Specify next point or [Close/eXit/Undo]: *Cancel*
