Creating Walls, Partition walls and Floors for a residential layout using REVIT

AIM

To use the project file created from Week 2. Use it for this assignment. Based on your layout from week 2, using floor tool under architecture tab and select the floor with appropriate material and thickness using the property browser create a layout in the Ground floor Level. Align the floor plan with grids created from week 2

INTRODUCTION

Autodesk is a BIM(Building Information Modeling) software civil engineers, architects, mechanical,electrical,plumbing (MEP )engineers

PROCEDURE

Step 1:Open Revit software

Open the assignment file saved in week 2

Step 2:Select architecture tab

Select floor

Select ‘pick boundary’ option

Pick the boundary and click tick mark

Step 3:Select the floor

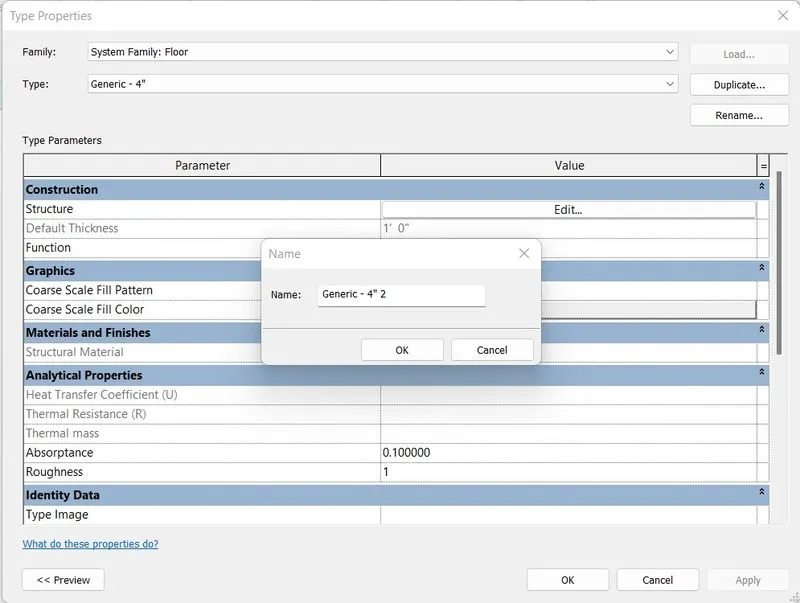

Select ‘edit’ option in property browser

Select duplicate

Rename the floor

Change the thickness to 4”

Step 4:Select the floor

Select ‘edit’ option in property browser

Select material

Then ok

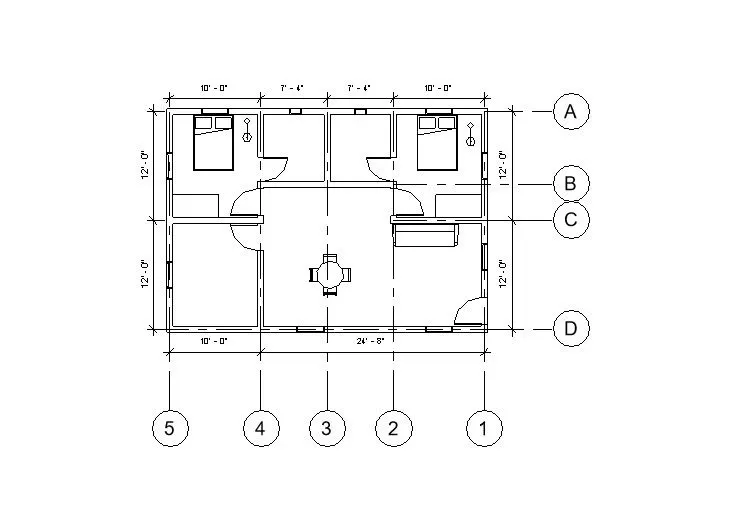

Step 5:Select grid option in architecture tab

Draw grids through wall center line

RESULT

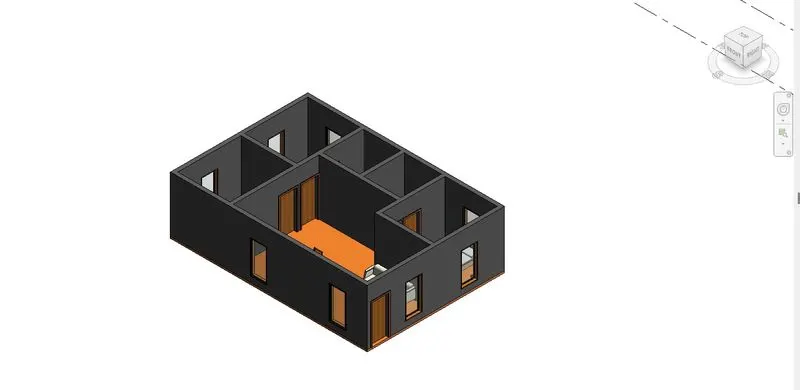

Floor of wooden material and thickness of 4" is created

AIM

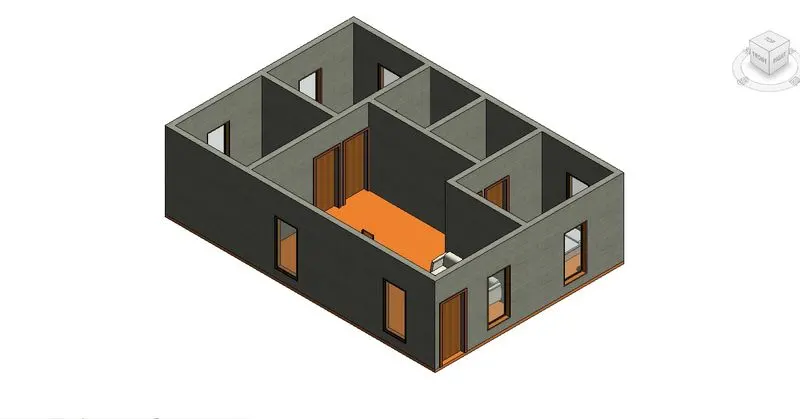

To add walls based on the floor layout. Pick lines or use the draw tool to modify the boundary of walls. Use the property browser to select appropriate material and thickness for walls. After creating the walls verify using the property browser to see if the top and bottom of the walls are constrained.

INTRODUCTION

Autodesk is a BIM(Building Information Modeling) software civil engineers, architects, mechanical,electrical,plumbing (MEP )engineers

PROCEDURE

Step 1:Open Revit software

Step 2:Open new project

Step 3:Select architecture tab

Select wall

Draw the wall using line option

Step 4:Select wall

Select edit type in property browser

Select edit option

Edit material and thickness

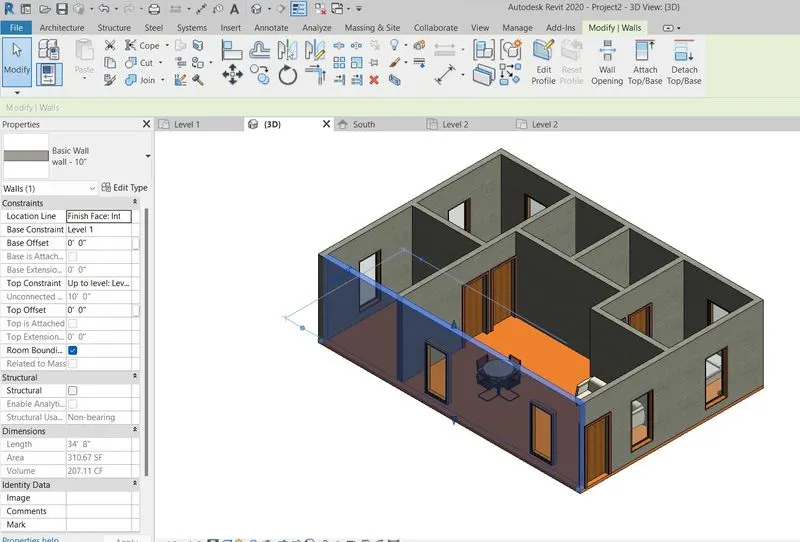

Step 5:Select property brower

Check the top and bottom of wall is constrained

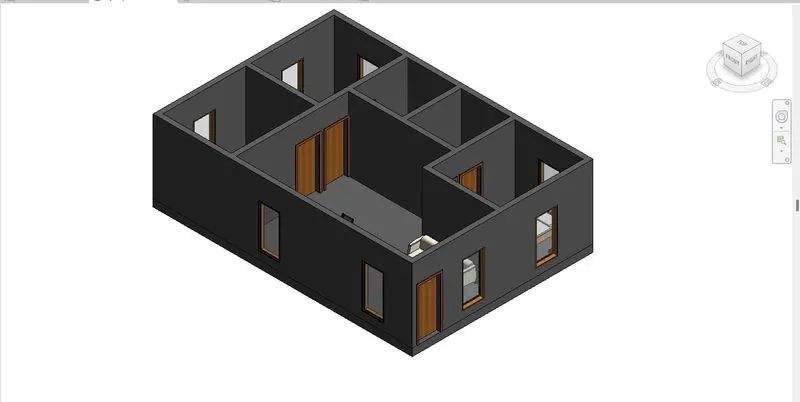

RESULT

1. Based on your observation, what is beneficial for connecting walls with associated levels rather than being Unconnected

If we connect the walls with associated levels, we can easily edit the wall height by changing the level height or any changes that made to level will also reflect on walls

Therefore editing is easy

1. Which option is convenient for modeling walls, By Height or By Depth?

If we select height wall is created above the level

If we select depth wall is created below the level

AIM

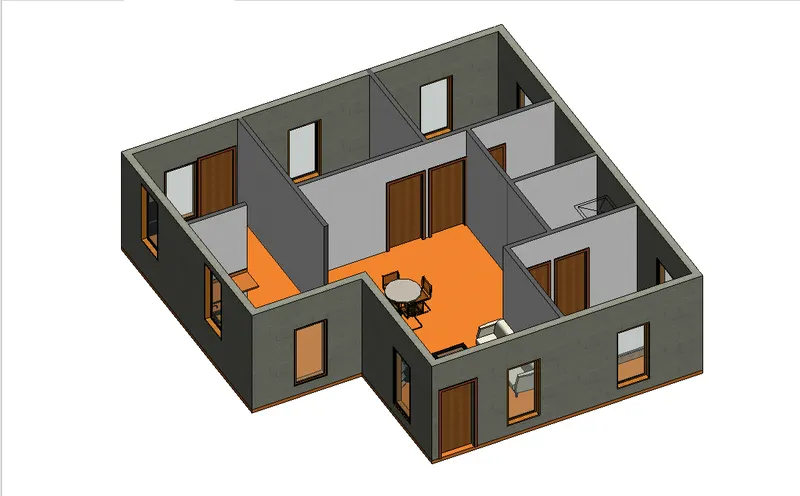

To copy the model elements ( wall, floor ) modeled to Ground Floor Level and paste it aligned to First Floor Level . Use modify tab to utilize copy and paste options to align

elements to a different level

INTRODUCTION

Autodesk is a BIM(Building Information Modeling) software civil engineers, architects, mechanical,electrical,plumbing (MEP )engineers

PROCEDURE

Step 1:Open the ground floor file

Select walls and floor

Step 2:Select ‘copy to clipboard’ option

Step 3:Then select ‘aligned to selected level’ in paste option

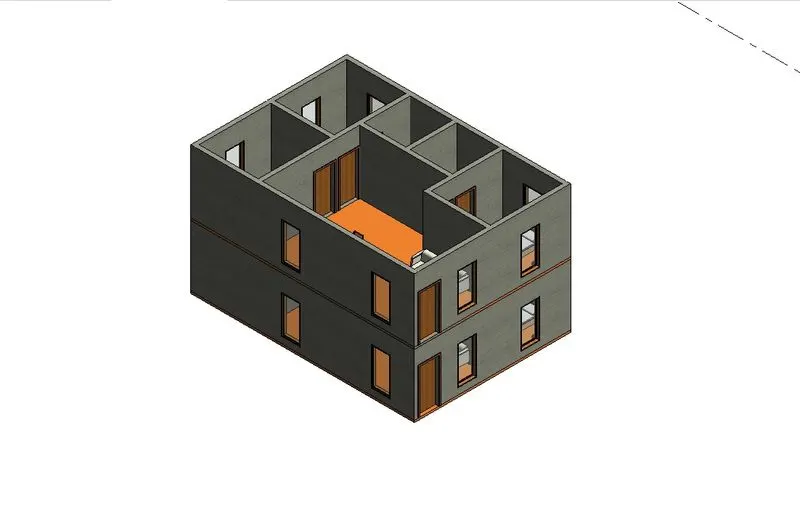

RESULT

AIM

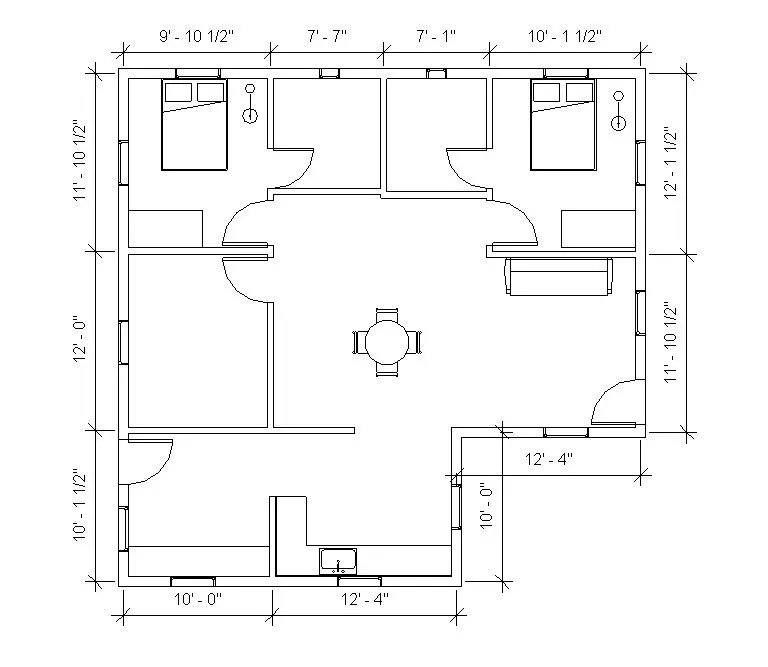

To use interior partition walls to create separate rooms within your residential unit. The model must include the following rooms

1. Living Room/ Drawing Room ( 15’ X 18’)
2. Dining Room (9’ X 11’)
3. Bed Room ( 9’ X 12’ and 15’ X 11’)
4. Rest Room ( 10’ X 12’ )
5. Kitchen (8’ X 10’)

INTRODUCTION

Autodesk is a BIM(Building Information Modeling) software civil engineers, architects, mechanical,electrical,plumbing (MEP )engineers

PROCEDURE

Step 1:Open Revit software

Step 2:Open new project

Step 3:Select architecture tab

Select wall

Draw exterior wall

Step 4:Select architecture tab

Select wall

Draw interior wall

Change the type to partition wall

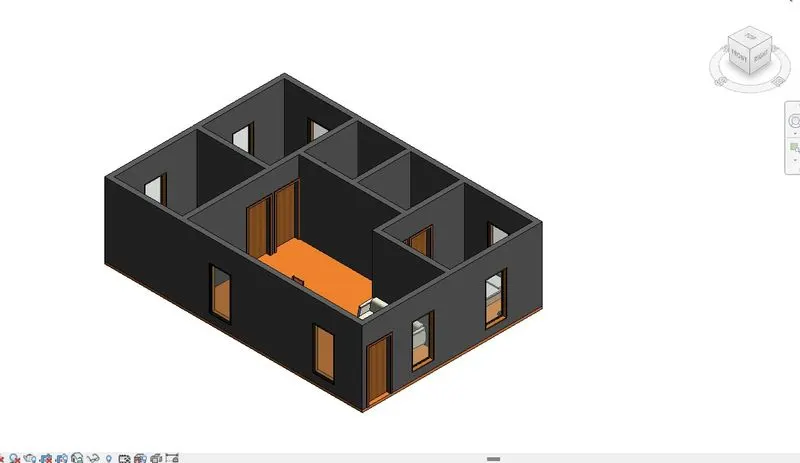

RESULT

AIM

Based on week 2 assignment, the components to be included in a residential unit were inserted to the Revit file. Place these components in appropriate locations to add details to your residential model

1. Place Doors and windows in the wall at appropriate locations
2. The Living Room must include furniture set, couch table and TV desk and shelf cabinets
3. The Dining Room must include a table and chairs serving the purpose of eating
4. Bed Room must include a bed set, shelf, lighting and individual study desk and chair
5. Rest room should include bath tub and plumbing fixtures discussed in class
6. Kitchen should include countertops, gas stove cabinet and shelves to store food items
7. The wash/storage room can include washing machines and shelves to store clothes

All the components are available in Revit Library. Use them to place at appropriate locations to add details to your model. Use 3D navigation to check the model and its authenticity on a real time basis to verify the mode

INTRODUCTION

Autodesk is a BIM(Building Information Modeling) software civil engineers, architects, mechanical,electrical,plumbing (MEP )engineers

PROCEDURE

Step 1:Open the assignment 2 file

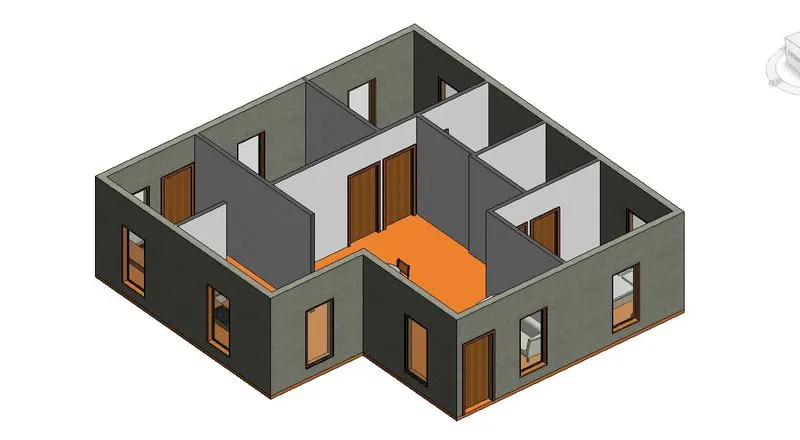

Step 2:Place doors and windows correctly

Step 3:Load family

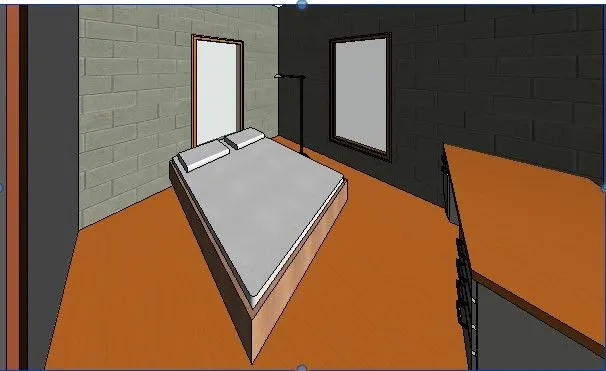

Insert bedroom room furnitures

Step 4:Load family

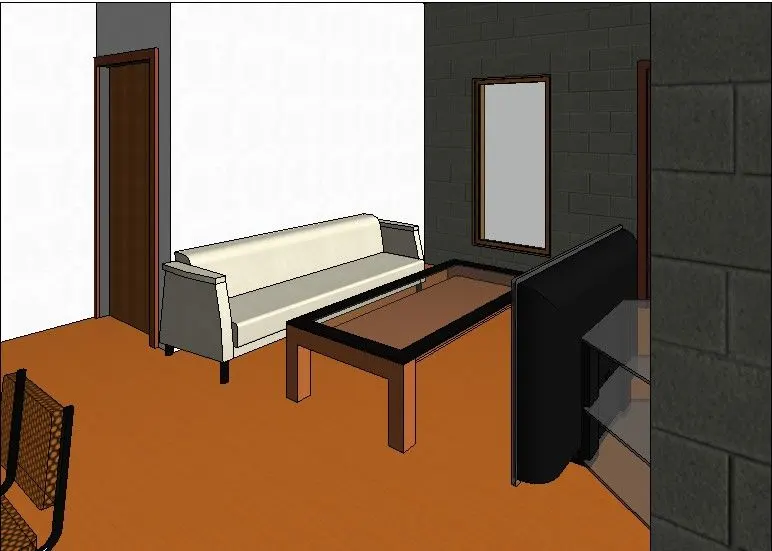

Insert living room furnitures

Step 5:Load family

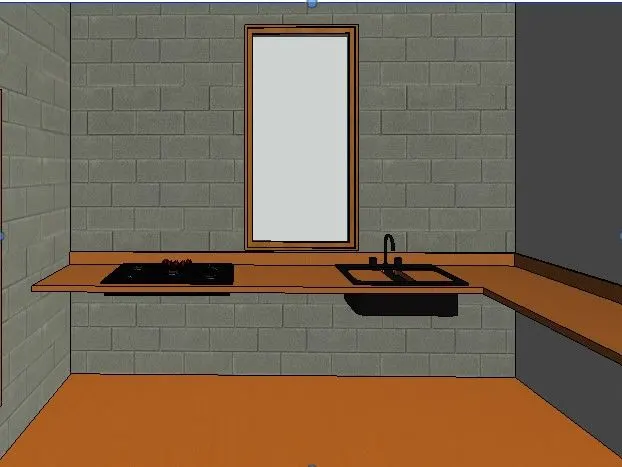

Insert kitchen appliances

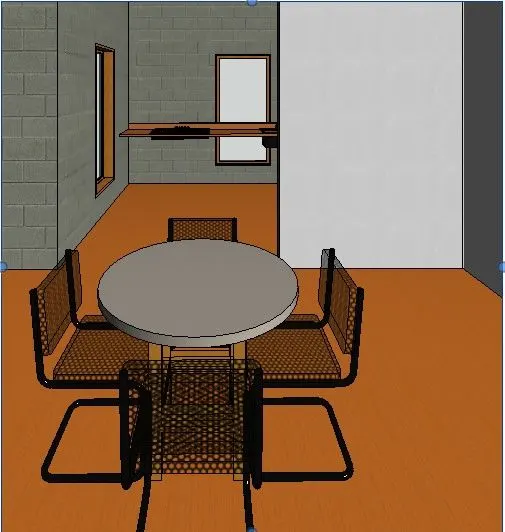

Step 6:Load family

Insert dining table

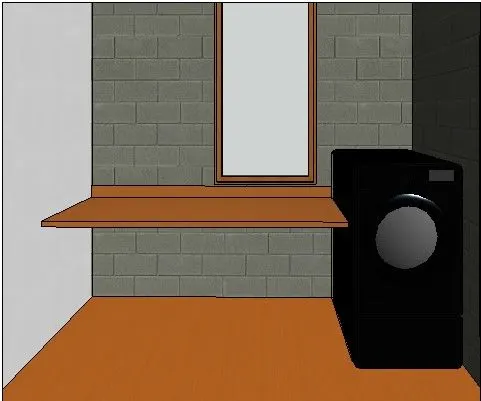

Step 7:Load family

Insert washing machine

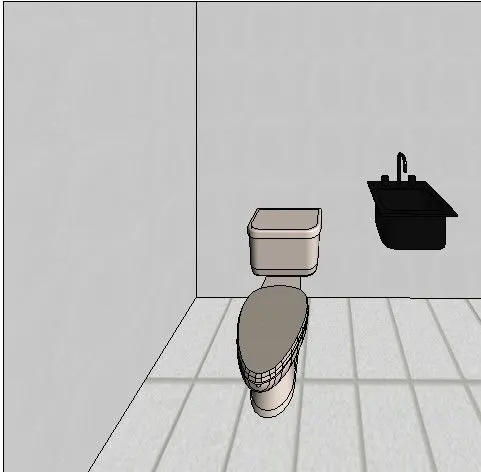

Step 7:Load family

Insert Toilet fittings

RESULT

Studied about using familes and element in Revit

Studied about camera option in Revit
