Creating Walls, Partition walls and Floors for a residential layout using REVIT

1.) AIM: select the floor with appropriate material and thickness using the property browser create a layout in the Ground floor Level.

INTRODUCTION : In this assignment, i am using project file that is created in week2. so i have to select the floor with appropriate material and thickness.

procedure :

• project in week2 challenge
•

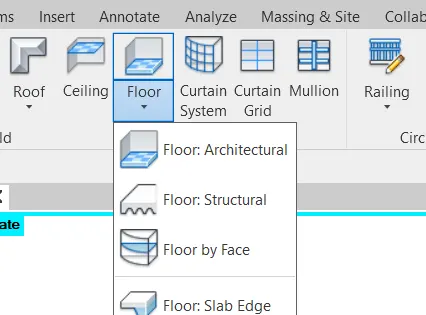

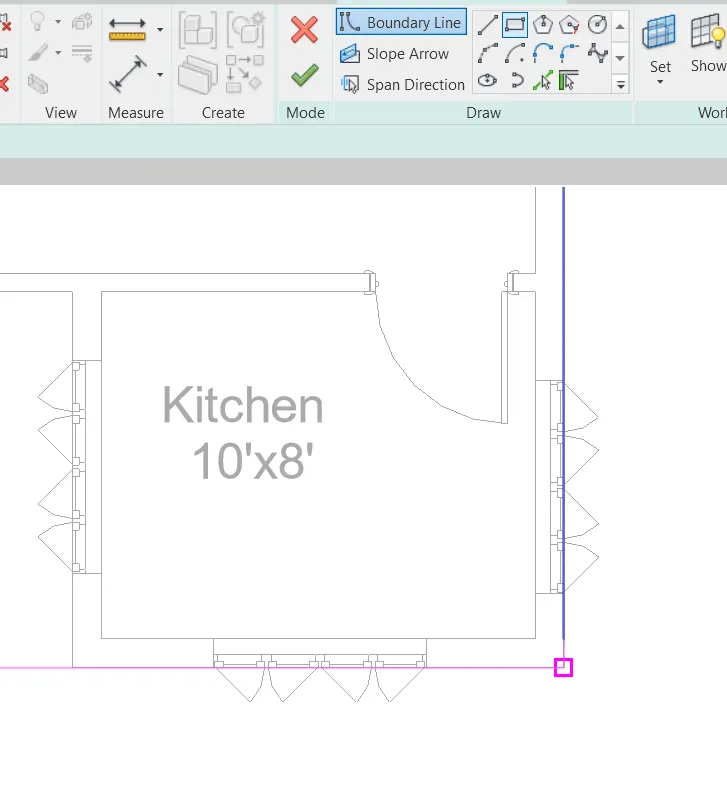

• go to floor in architecture tab
•
• draw the floor as per needed

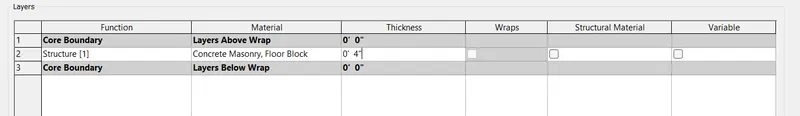

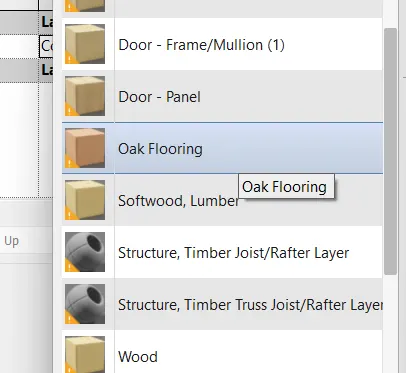

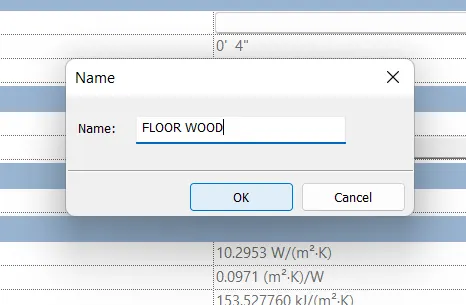

• now go to property and edit the thickness and material of floor

• now after assigning the thickness and material property

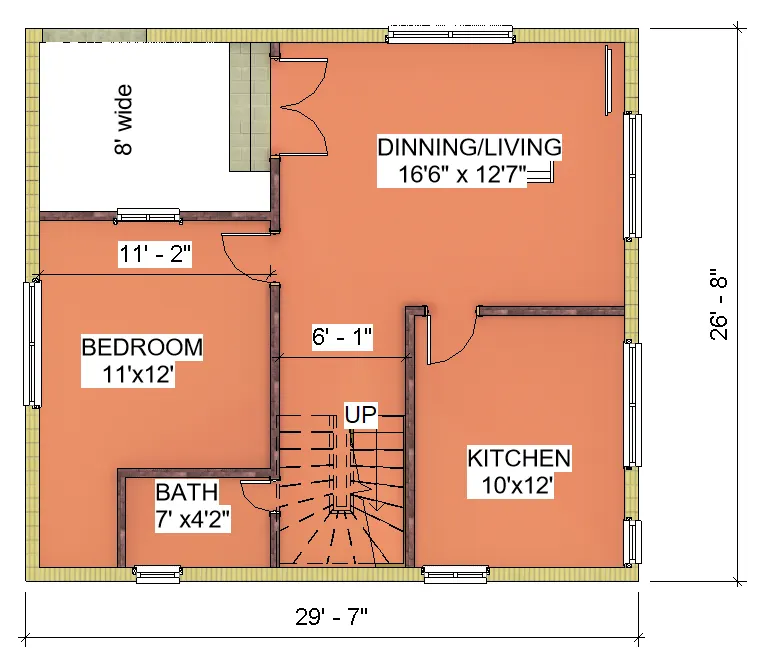

RESULT :

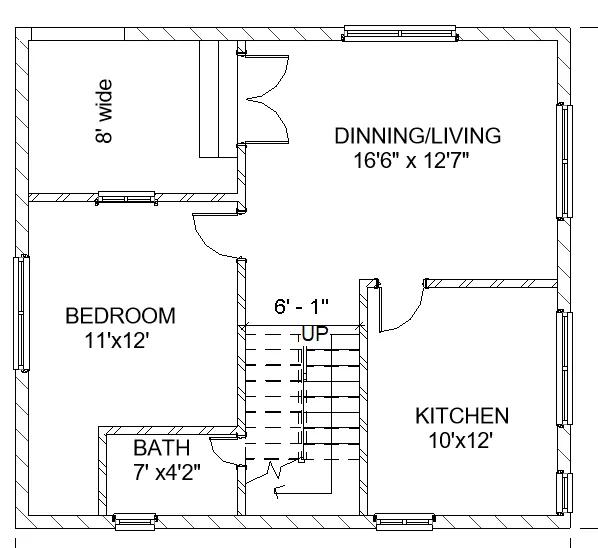

2.) AIM: select the WALLwith appropriate material and thickness using the property browser create a layout in the Ground floor Level.

INTRODUCTION : In this assignment, i am using project file that is created in week2. so i have to select the WALLwith appropriate material and thicknes

PROCEDURE :

• Project in week2 challenge

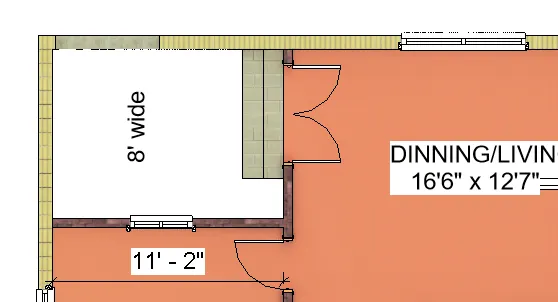

• In week2 challenge, i used 10" wall and 5" wall with red brick material

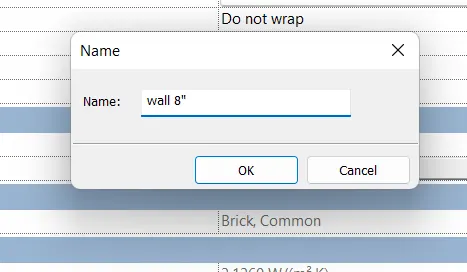

• now change 10" wall into 8" wall

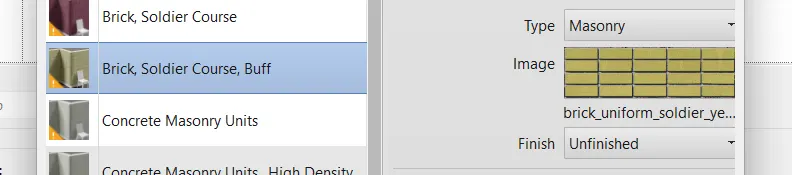

• and change the material from red brick to solid yellow brick

• now the external wall is 8" and solid yellow bricks

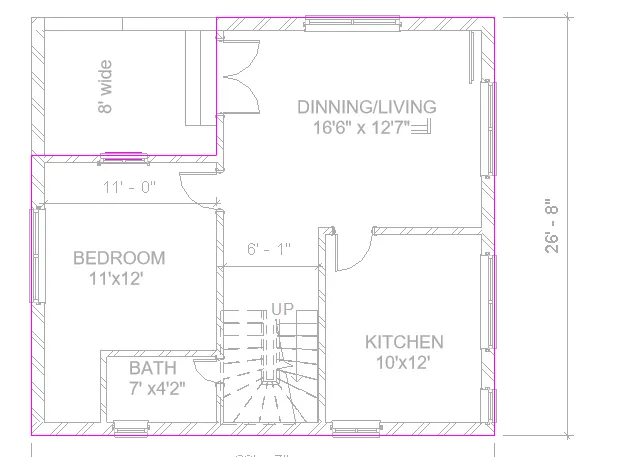

Result:

a.) Benefits for connecting walls with associated levels rather than being Unconnected:

• wall height is dependent on level of building
• automatic adjust its height or depth according to level.

b.) By height option is convenient for modeling walls.

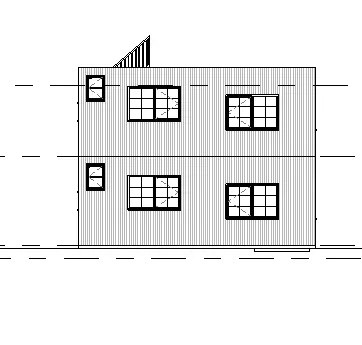

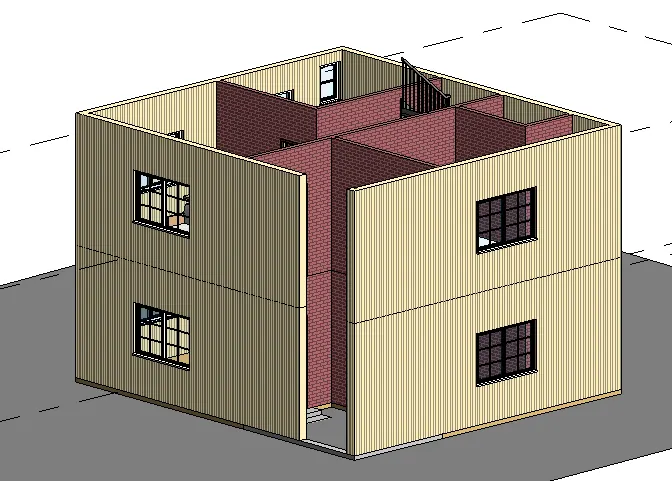

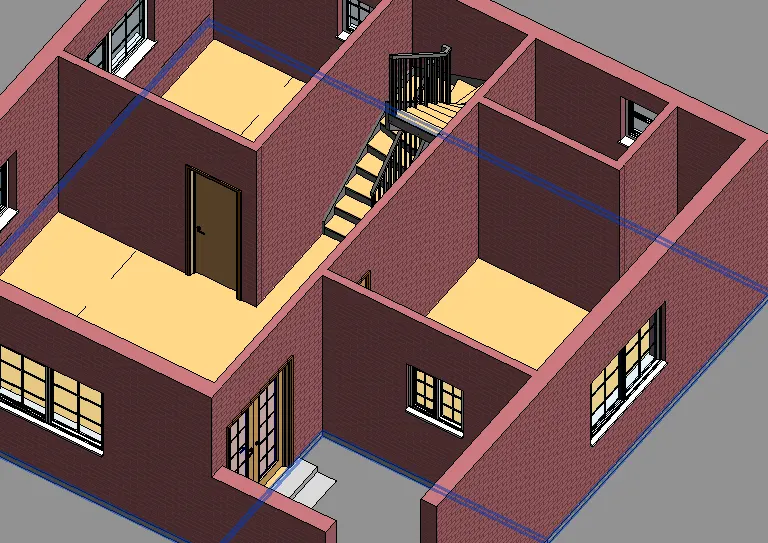

3.) AIM:Copy the model elements ( wall, floor ) modelled to Ground Floor Level and paste it aligned to First Floor Level

INTRODUCTION : In this assignment, i am using project file that is created in week2.

PROCEDURE :

• Project in week2 challenge

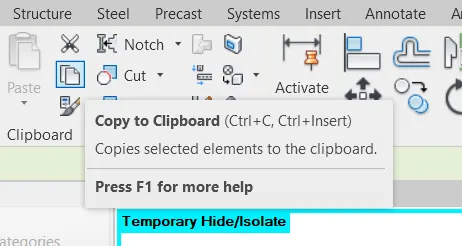

• Select the wall floor and copy to clip board in either 3D view or in elevation view

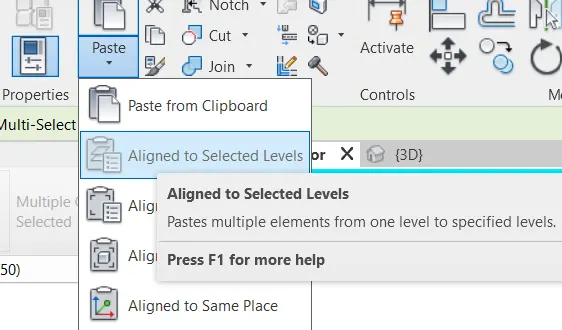

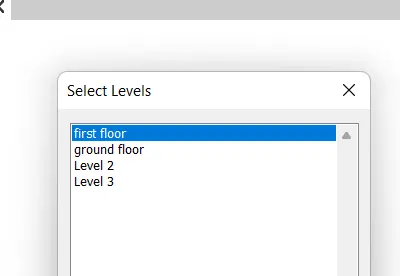

• paste it into selected level( first floor)

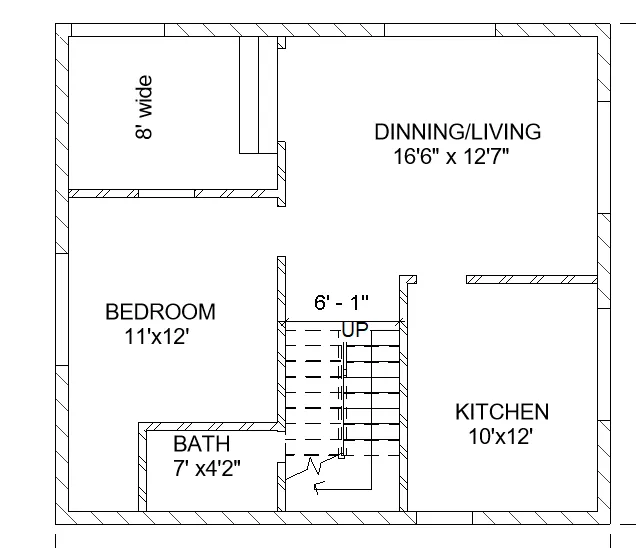

Result :

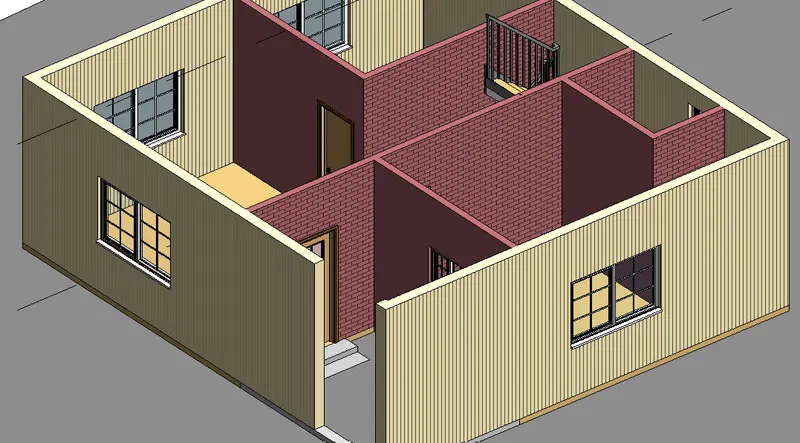

4.) AIM : Use interior partition walls to create separate rooms within your residential unit.

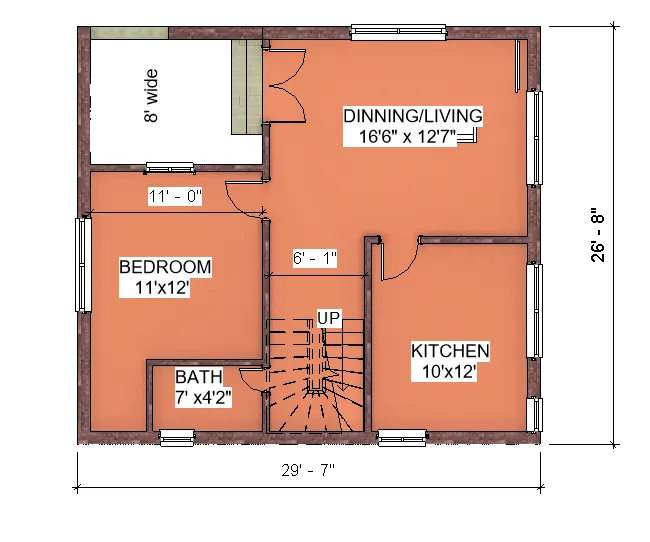

INTRODUCTION : I am going to create residential unit using partition wall and i use 8" wall external wall and 5" wall internal wall. The room size,drawing wall ,kitchen size is given in question.

Living Room/ Drawing Room ( 15’ X 18’)
Dining Room (9’ X 11’)
Bed Room ( 9’ X 12’ and 15’ X 11’)
Rest Room ( 10’ X 12’ )
Kitchen (8’ X 10’)

In residential building, all these unit must be present along with staircase.

PROCEDURE :

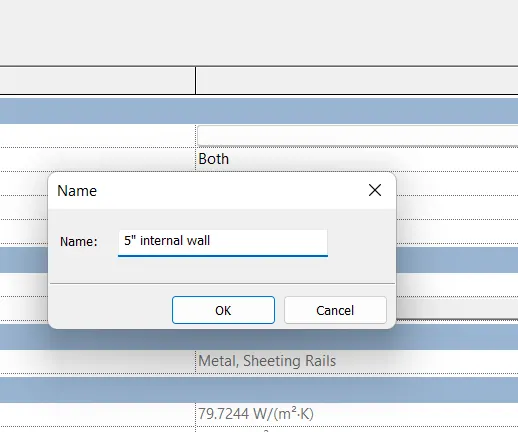

• First create 5" wall and 8" wall

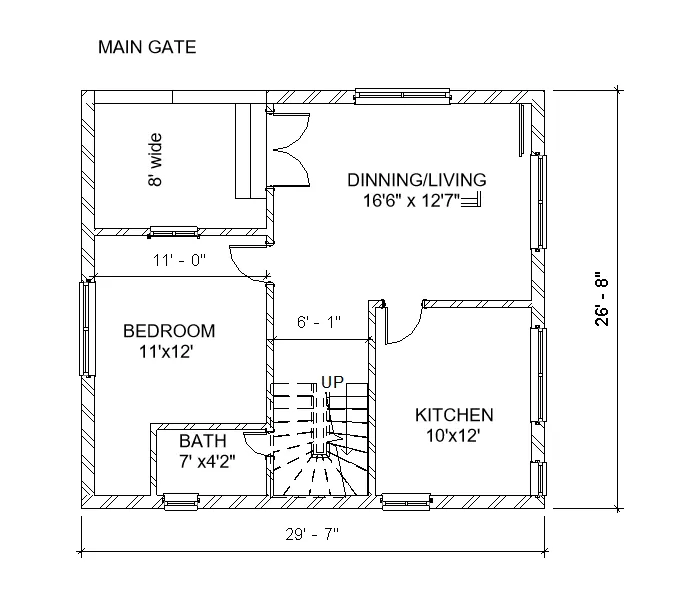

• now create layout using walls according to your imagination with given dimensions of room and kitchen

• now insert door and window in layout plan and name it

• now insert floor in it.

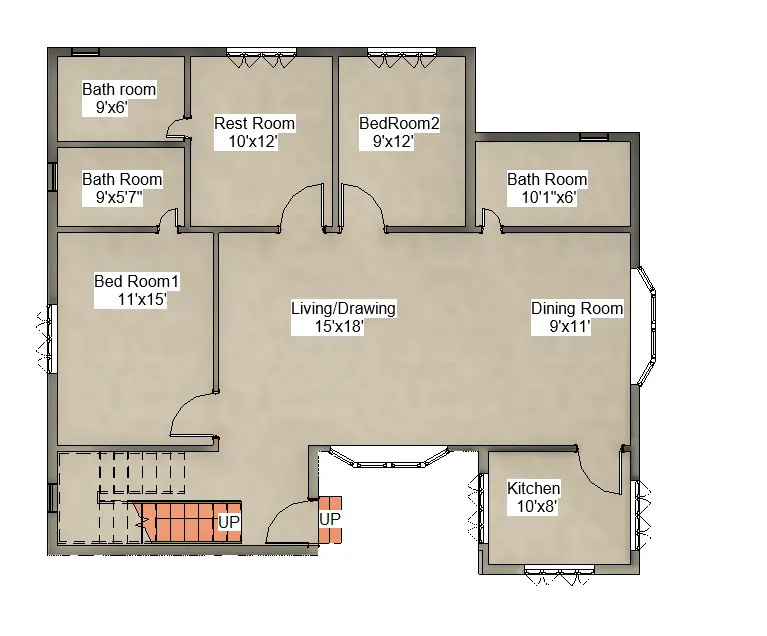

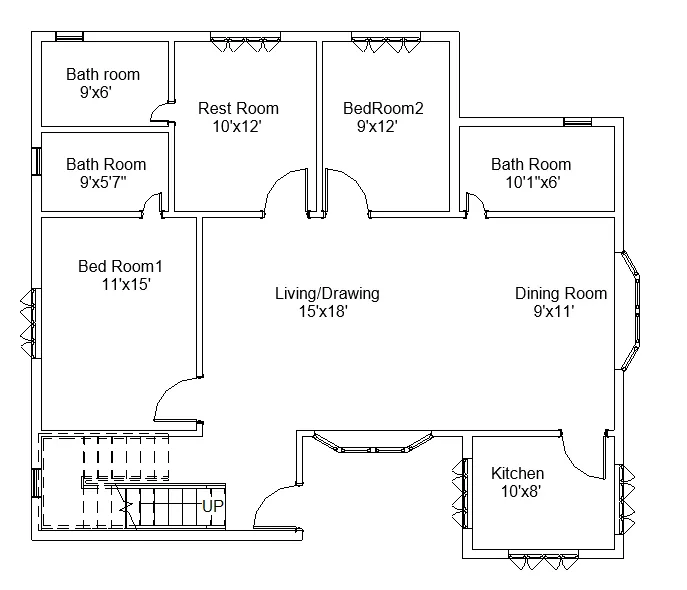

Result :

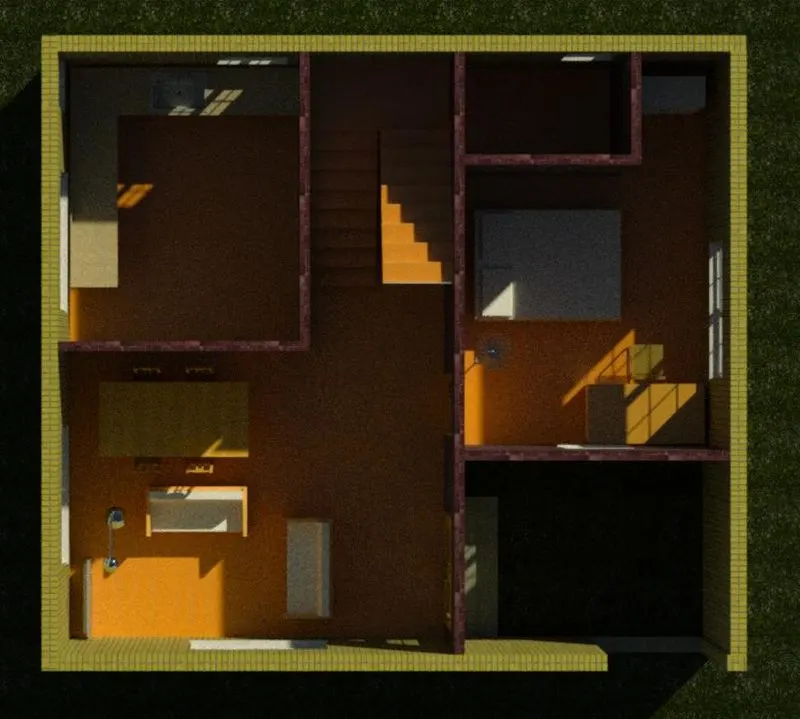

5.) AIM : Place these components in appropriate locations to add details to your residential model

INTRODUCTION : IN week 2 project, I have to insert components in kitchen,room,bathroom,store room ,dining room,living room.

Place Doors and windows in the wall at appropriate locations.
The Living Room must include furniture set, couch table and TV desk and shelf cabinets..
The Dining Room must include a table and chairs serving the purpose of eating.
Bed Room must include a bed set, shelf, lighting and individual study desk and chair.
Rest room should include bath tub and plumbing fixtures discussed in class.
Kitchen should include countertops, gas stove cabinet and shelves to store food items.
The wash/storage room can include washing machines and shelves to store clothes.

PROCEDURE :

• Project in week2

• now go to insert and load family

first insert door and window in it.

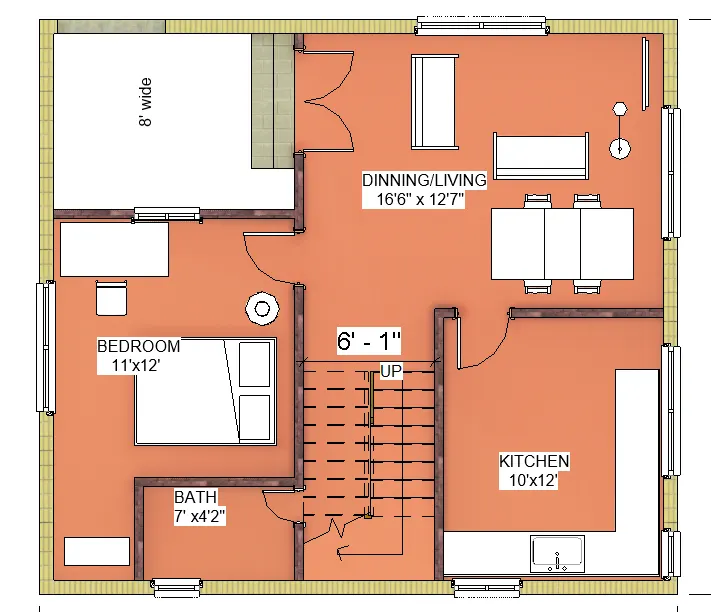

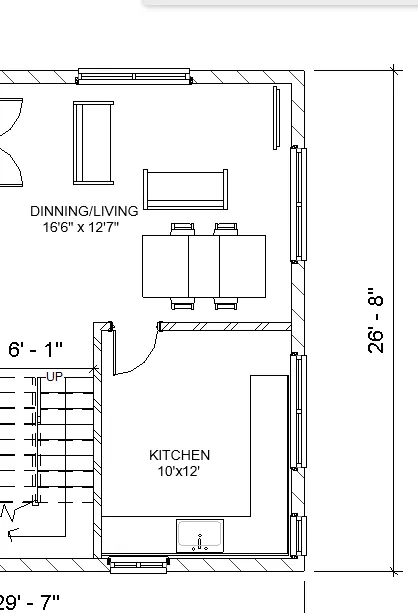

• now add components in dining/living and kitchen

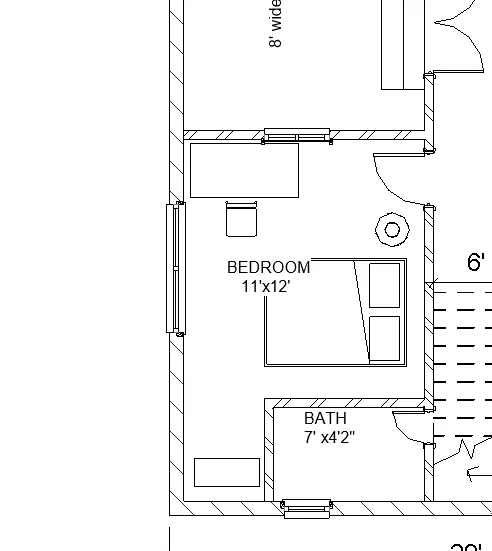

• adding lightning, table ,chair and bed to bedroom

RESULT :

=============XXXXX==========

THANK YOU.
