Creating Walls, Partition walls and Floors for a residential layout using REVIT

1. AIM

To create a floor plan and need to apply the materials and thickness using the property browser to align the floor plan with grids created from week 2

INTRODUCTION

• Building material is material used for construction. Many naturally occurring substances, such as clay, rocks, sand, and wood, even twigs and leaves, have been used to construct buildings
• Apart from naturally occurring materials, many man-made products are in use, some more and some less synthetic
• Floor plans are the most critical element of your house plans Drawn to scale and shown from above, floor plans illustrate how rooms spaces, and physical features work in relation to each other within the home.
• They're the key documents that show how people will move through the space and interact with their home.
• Floor plans show the extent to which a space will work for its intended purpose.

PROCEDURE

STEP-1

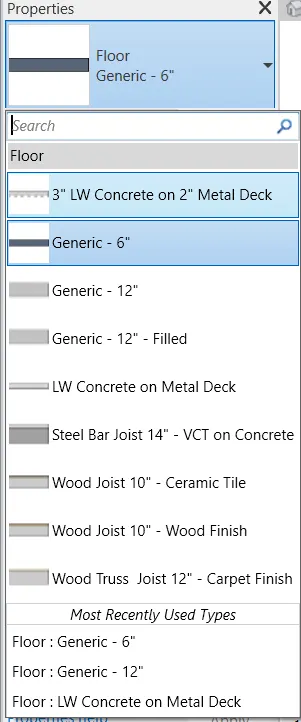

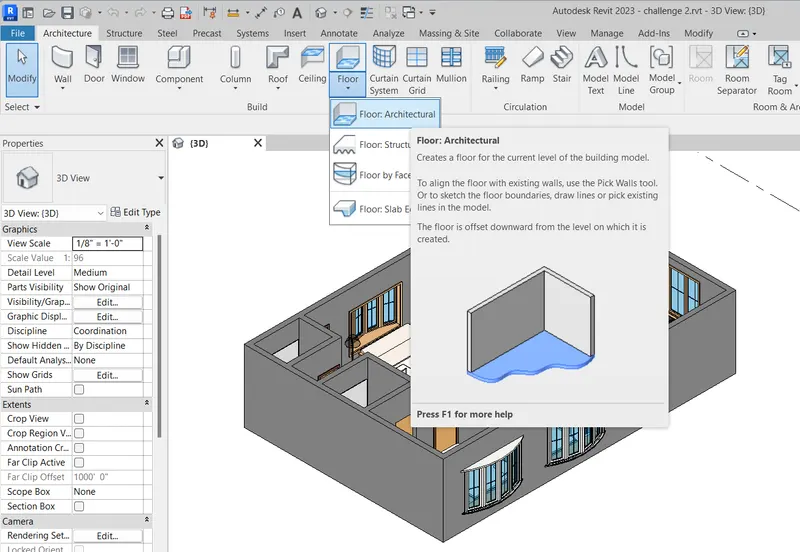

• First, we select the floor as shown below.
• After selecting the floor, click the edit type from the properties browser, as shown below.

STEP-2

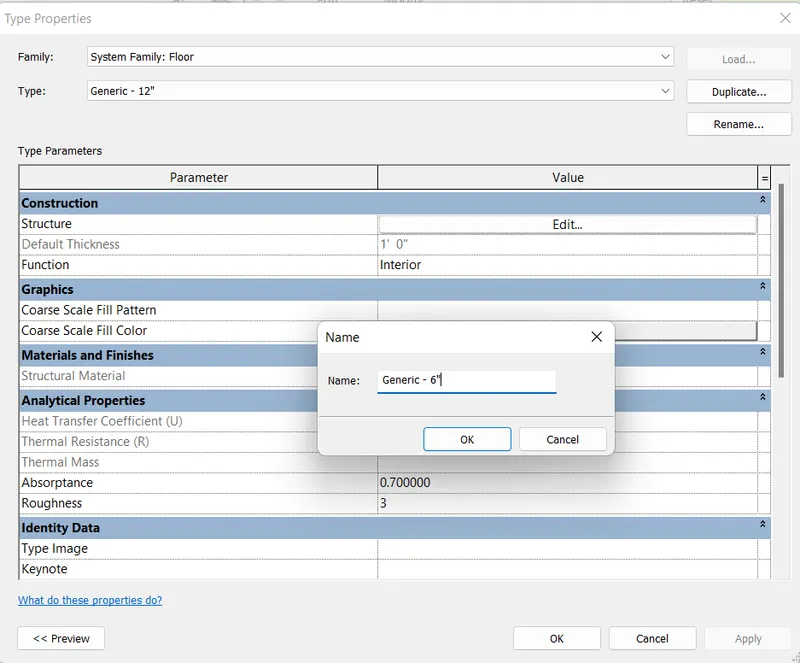

• After clicking the edit type, the type properties tab will be visible on the screen, shown below.
• Next, we change the material type by clicking the edit option as shown below.

STEP-3

• After clicking the edit option, the edit assembly tab appears
• We select the material type in 2nd room as shown below

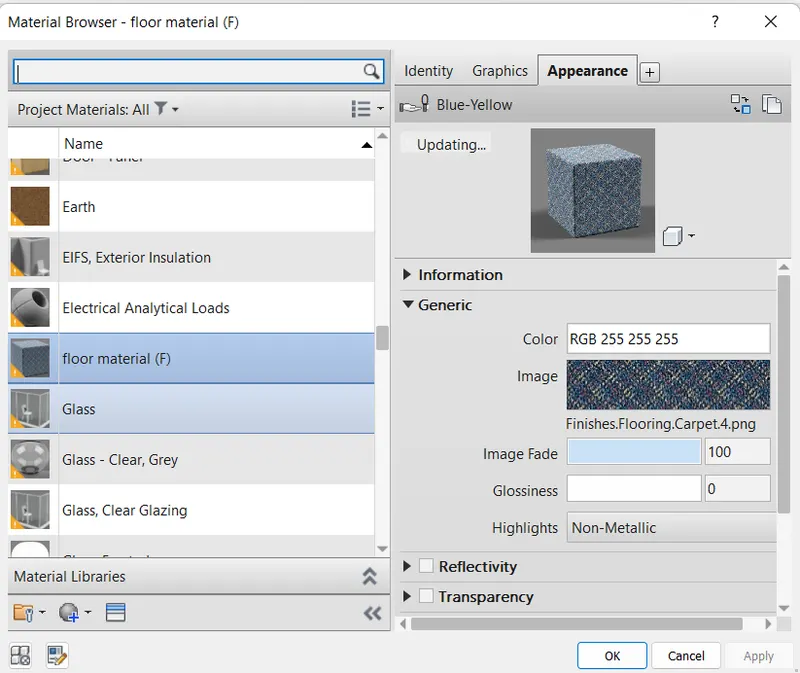

• After clicking that, the material browser appears, then select the material type as Concrete, cast-in-place as shown below

STEP-4

• Finally, the material is applied to the floor as shown below

STEP-5

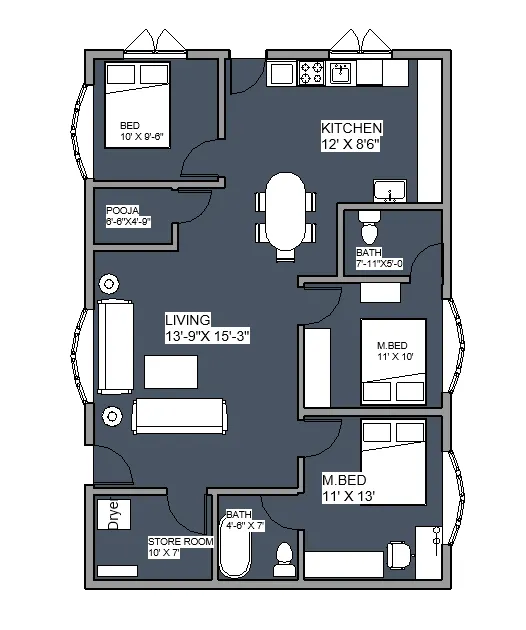

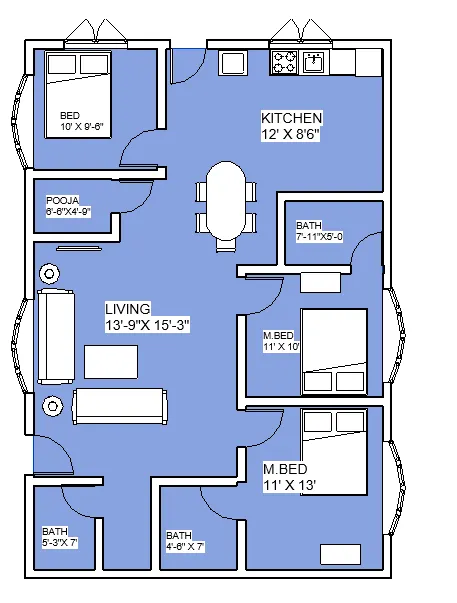

• Next Floor plan is aligned to the grids, as shown in the below figure.

RESULT

The materials are applied to the floor and the floor plan is successfully aligned with the grids.

2. AIM

To create a floor plan and need to apply the materials and thickness using the property browser for walls: Verity using the property browser to see if the top and bottom of the walls are constrained. Need to understand the benefits of connecting walls with associated levels rather than being Unconnected. Need to know which option is convenient for modeling walls. By Height or By Depth

INTRODUCTION

• Walls are arguably one of the most important elements of any building. As such, the Wall Tool is a prominent function of Autodesk Revit Architecture
• Building material is material used for construction. Many naturally occurring substances, such as clay, rocks, sand, and wood, even twigs and leaves, have been used to construct buildings.
• Apart from naturally occurring materials, many man-made products are in use. some more and some less synthetic.

PROCEDURE

STEP-1

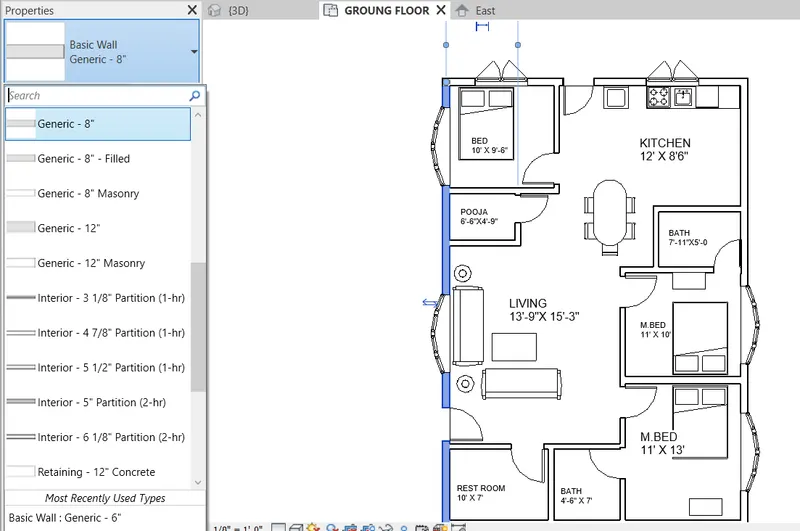

• First, we select the wall as shown below.

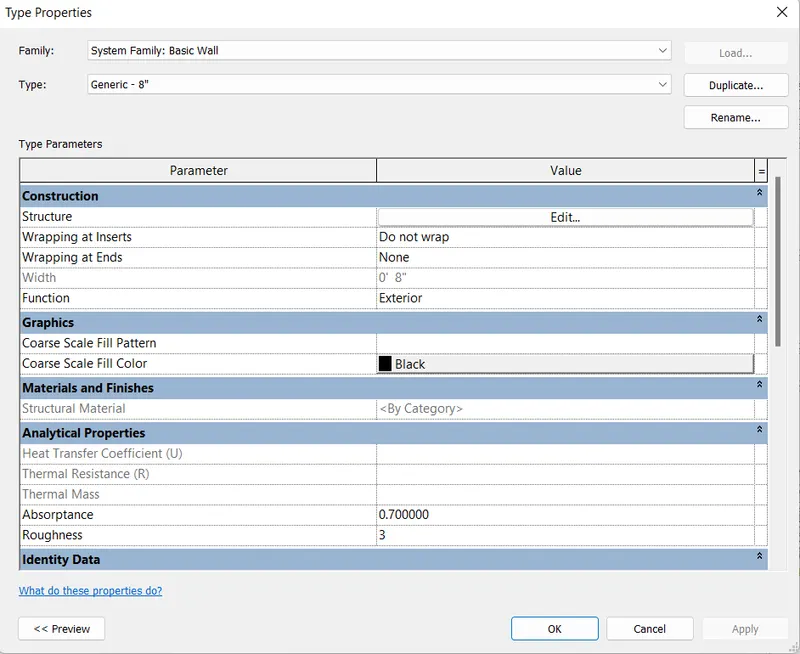

• After selecting the wall click the edit type from the properties browser, as shown Below

STEP-2

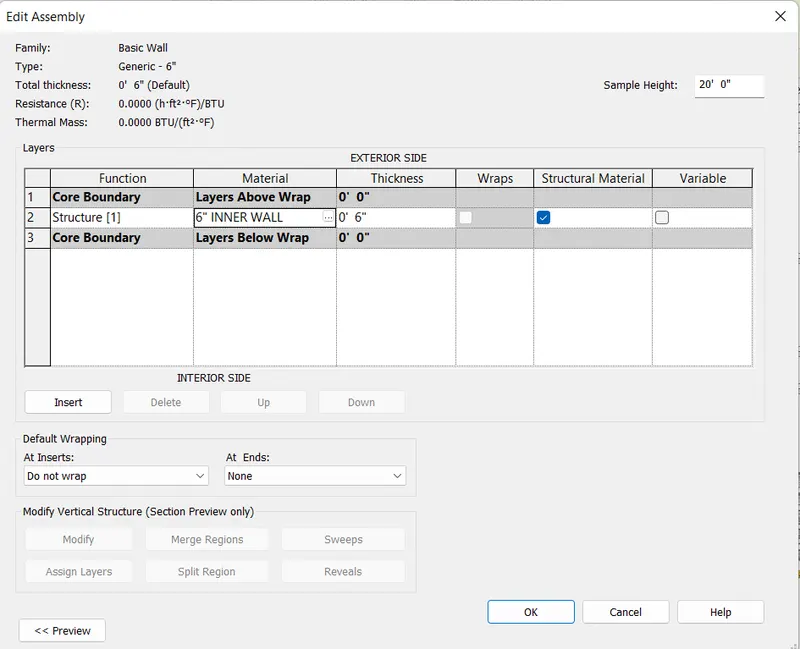

• After clicking the edit option, the edit assembly tab appears.
• We select the material type in 2nd room as shown below.
• After clicking that, the material browser appears, then select the material type as Brick, Soldier Course as shown below.

STEP-3

• After applying the material to the walls, we need to zoom the wall to see the material type very closely, as shown below.

STEP-4

• Finally, the material has been applied to the walls as shown below.

STEP-5 ( answer for a,b)

• Based on your observation, what is beneficial for connecting walls with associated levels rather than being Unconnected.
• If we select the top constraint as Up to level: Level-2 The height of the wall changes with the levels
• When we put the level height to the 20: then height of the wall is also changes to the 20, as shown below.
• The height of level is changed and the height of the wall is also changes, as shown on the below figure
• If we select the top constraint as Unconnected. The height of the wall doesn't change with the levels.
• When we put the level height to the 20, The only level height is changing the wail height will not be changed.

RESULT

Successfully applied materials to the walls.

3. AIM

Use modify tab to utilize copy and paste options to align elements to a different level

INTRODUCTION

• Floor plans are the most critical element of your house plans Drawn to scale and shown from above, floor plans illustrate how rooms, spaces, and physical features work in relation to each other within the home.
• They're the key documents that show how people will move through the space and interact with their home.
• Floor plans show the extent to which a space will work for its intended purpose

PROCEDURE

STEP-1

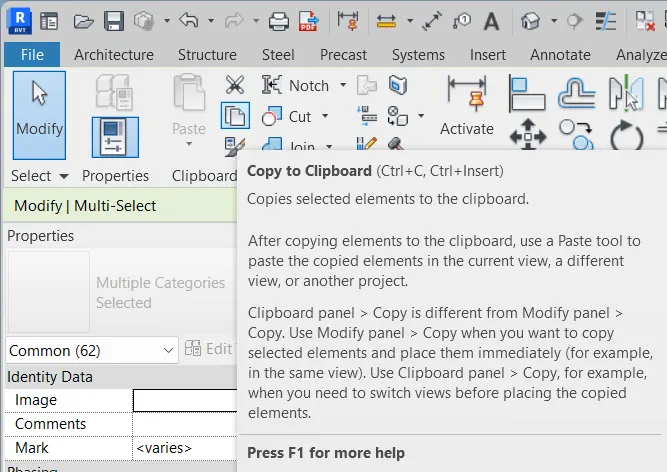

• First, we select the total ground floor, then we ground floor is copied to clipboard.
• Hence use paste option to align elements to a different level as shown below

STEP-2

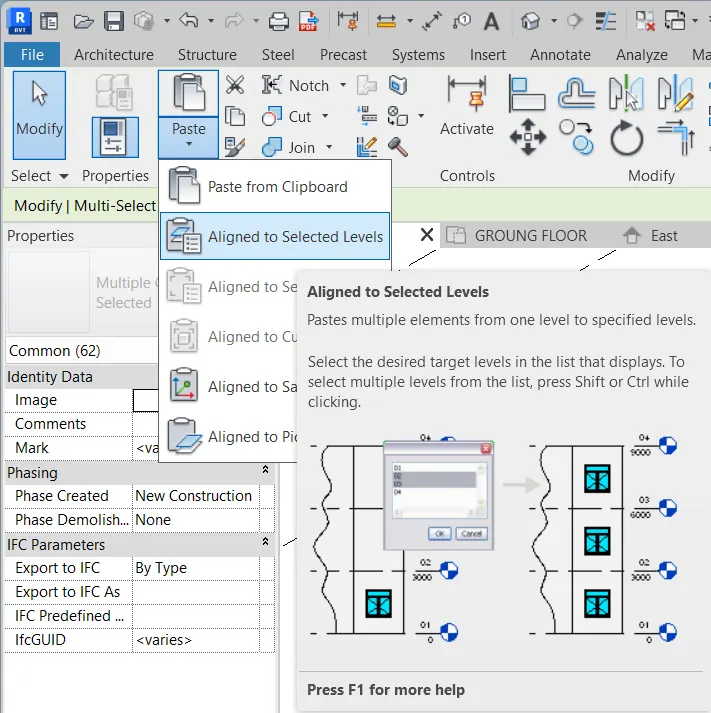

• Next use paste option to align the selected objects to levels

STEP-3

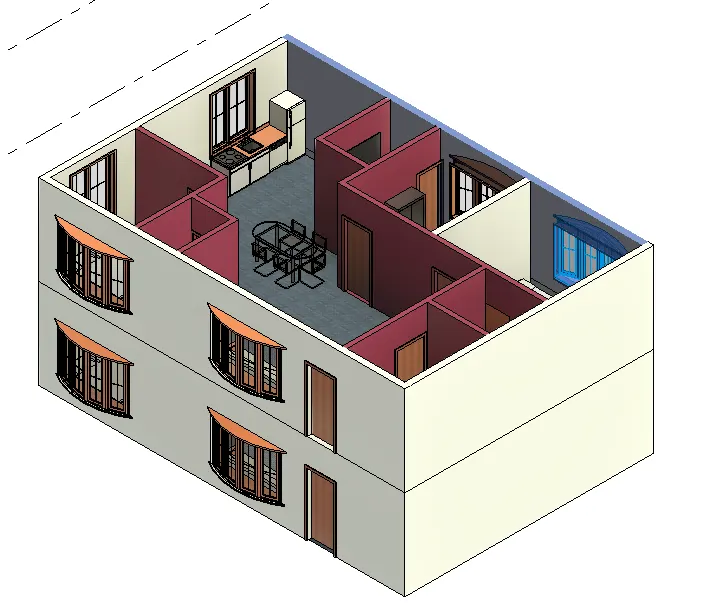

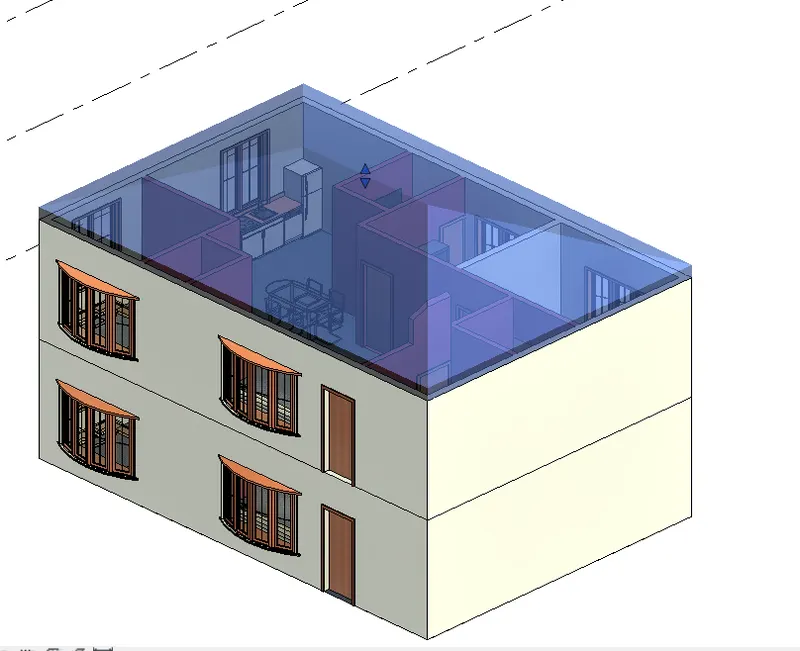

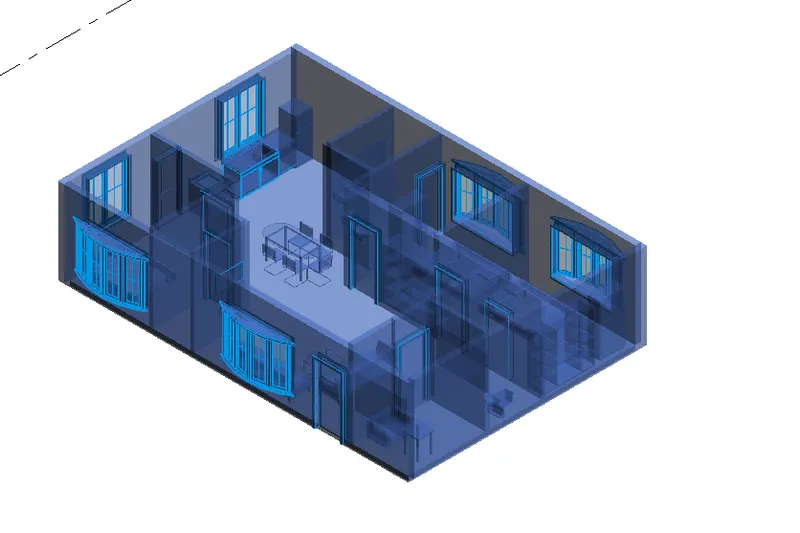

• Finally, the elements are aligned to different levels

RESULT

The elements are successfully aligned to different levels using copy and paste options

4. AIM

To create separate rooms within your residential unit using the interior partition walls.

INTRODUCTION

• The walls that make for division or privacy in the interior portion of a building and not Carried the ceiling load And floor load and that would make with bricks, glass or other more materials are called partition walls
• It has many types like folding, collapsible and fixed types
• if they came a load of the walls and ceilings, then it's called an interior wall The partition wall is the none load-bearing wall, it doesn't support the floor or celling. used only for design purpose and partition purpose.
• Partition wall connects the floor and ceiling

PROCEDURE

STEP-1

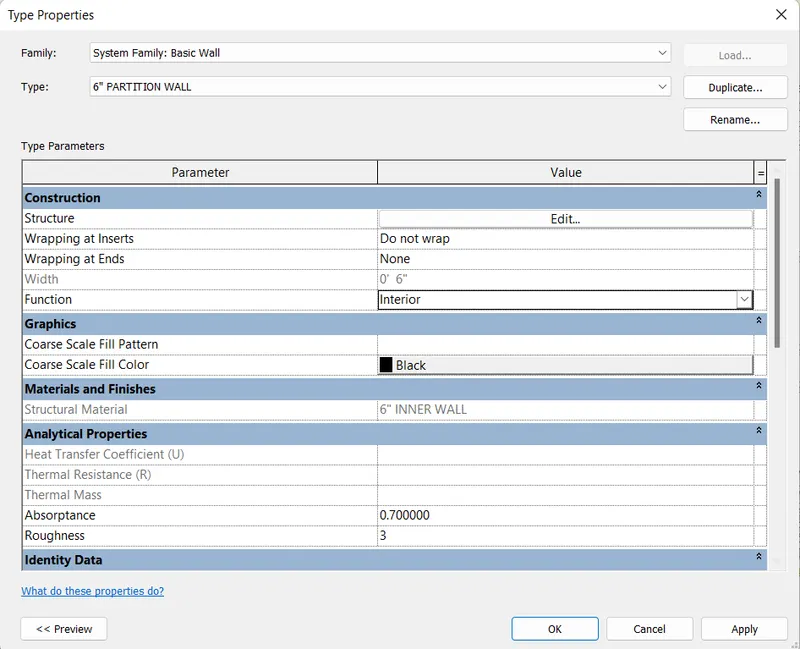

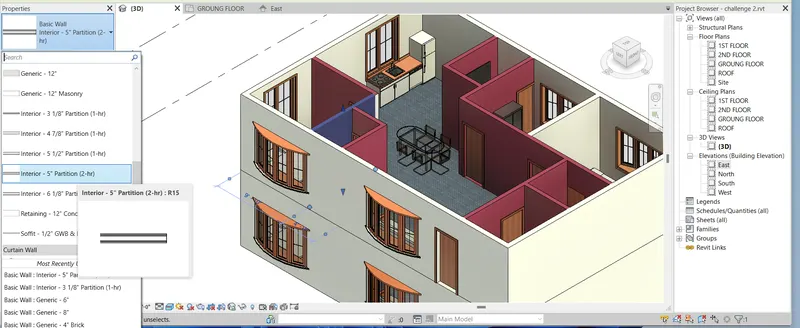

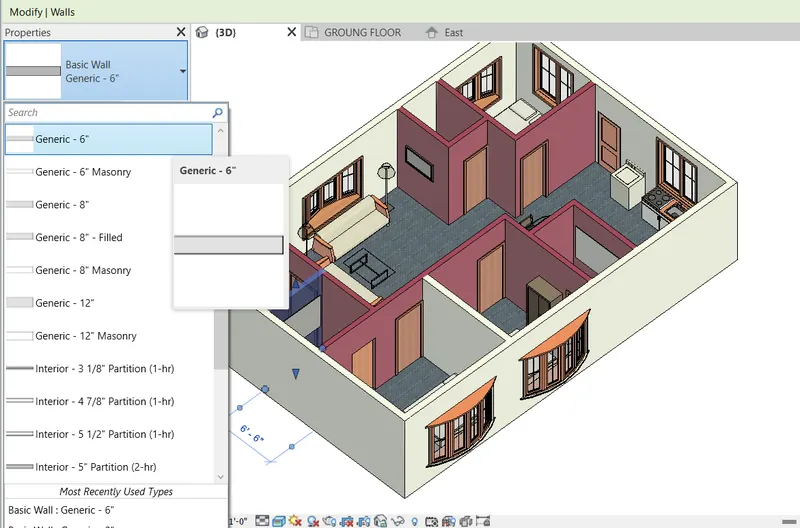

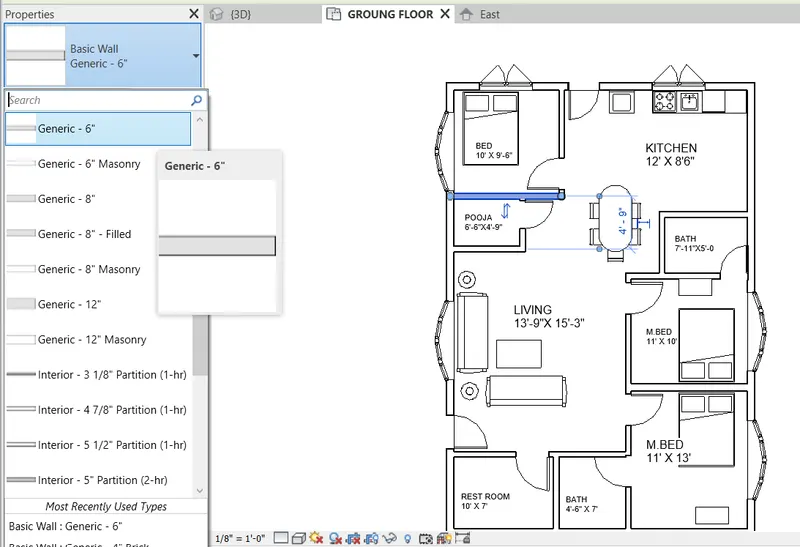

• First select the interior walls and change the wall types and name it as partition wall

STEP-2

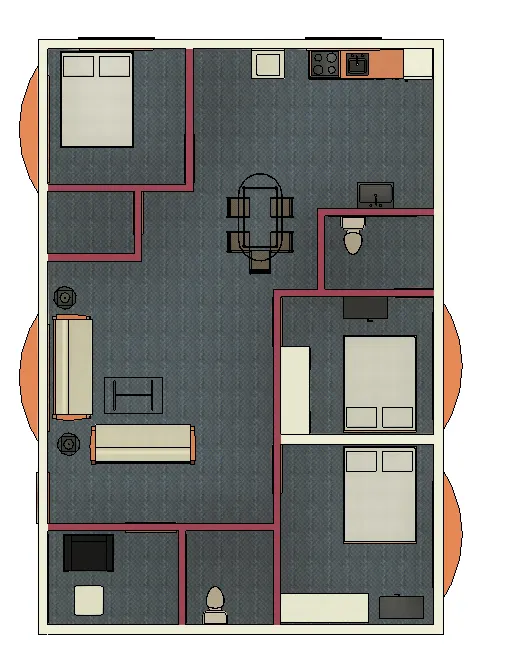

• The interior partition walls are created

RESULT

The interior partition walls are created successfully.

5. AIM

To insert the components in appropriate locations to add details to the residential model, based on the work challenge-2

INTRODUCTION

• The residential model components are furniture set couch table, TV desk shelf cabinets, bed set shell, lighting individual study desk chair, bath tub and plumbing fixtures discussed in class
• These components are very important in the building model for construction
• coming to the 3d modeling in the revit, these components are present in the library and we need to insert them into the model

PROCEDURE

STEP-1

• Placing the door and windows in proper position

STEP-2

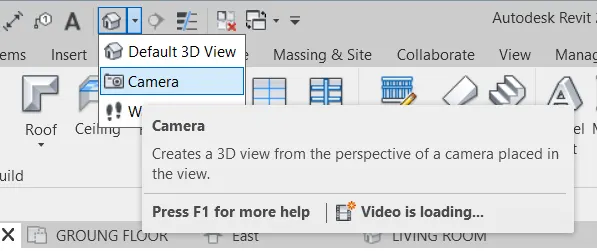

• Select the cemara and place in the plan, as shown below figure

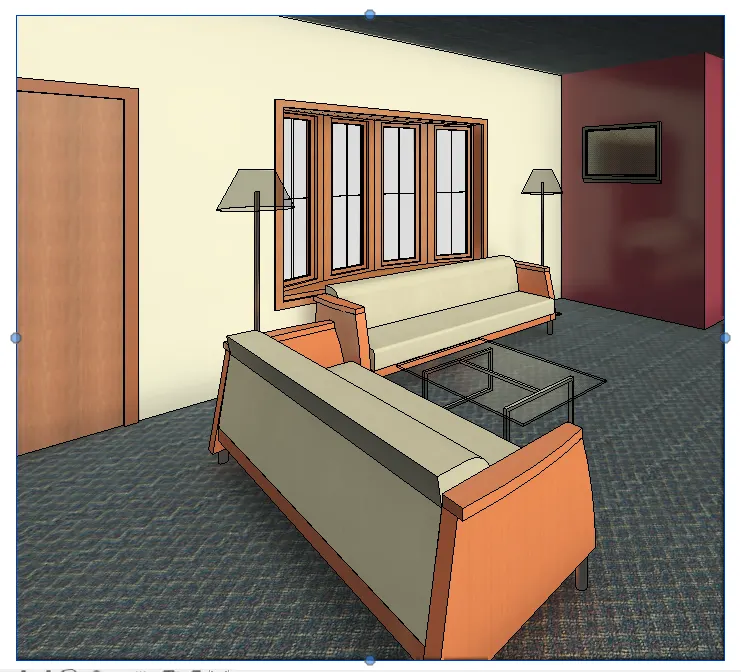

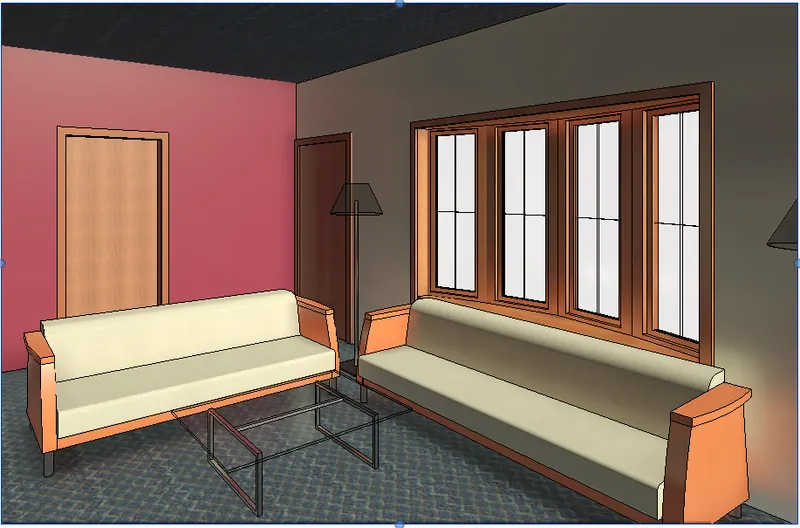

• Fast we insert the furniture components in the hall as shown below.

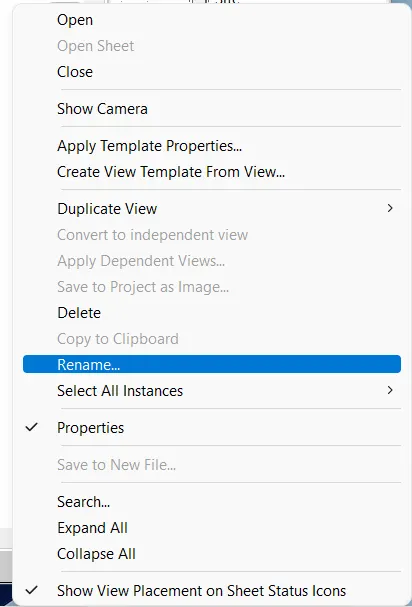

• And rename the view inthe project browser

STEP -3

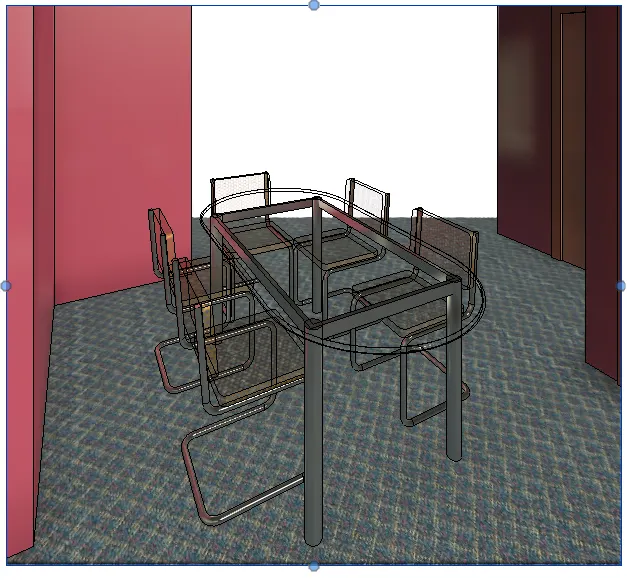

• Insert the Dinner hall components from the library as dining table with chairs, as shown below figure

STEP-4

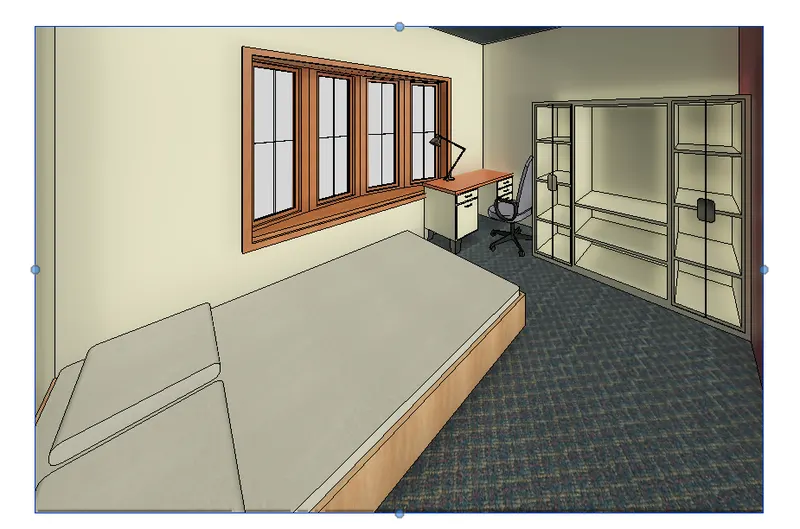

• Insert the bedroom components from the library as bed set, lighting, study dest with chair, as shown below figure

STEP-5

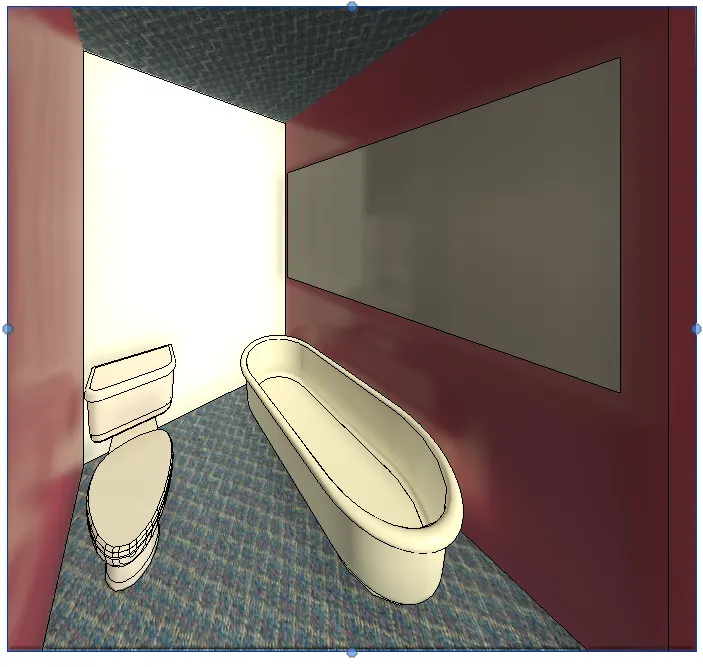

• Insert the rest room components from the library, as bath tube, plumbing fixtures, mirror as shown below figure

STEP-6

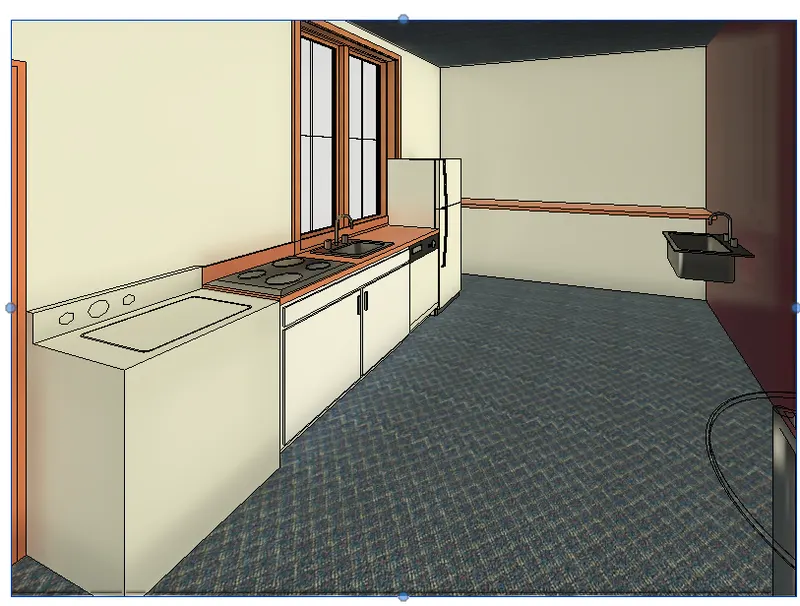

• Insert the kitchen components from the library, as countertops, gas stove, shelves to store food items as shown below figure

STEP-7

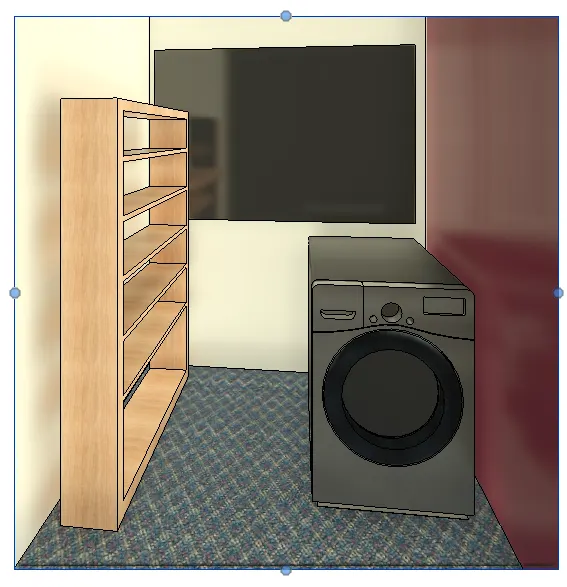

• Insert the storage room components from the library, as washing machine and shelves to store cloths as shown below figure

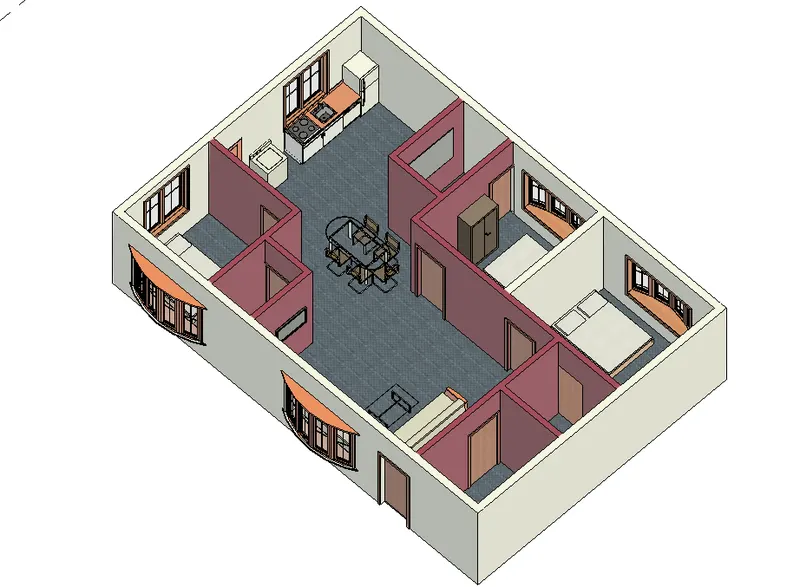

RESULT

All the components are inserted from the library successfully using revit software,
