Creating Walls, Partition walls and Floors for a residential layout using REVIT

1) Use the project file created from Week 2. Use it for this assignment. Based on your layout from week 2, using floor tool under architecture tab and select the floor with appropriate material and thickness using the property browser create a layout in the Ground floor Level. Align the floor plan with grids created from week 2.

ANS:-

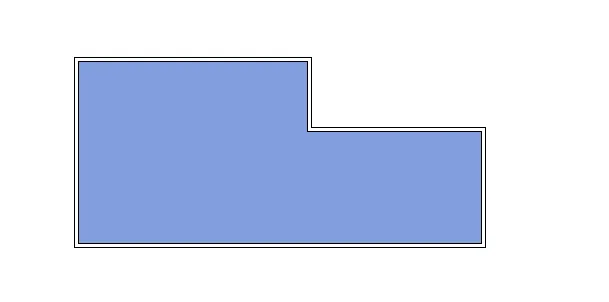

AIM:- TO CREATE A FLOOR IN DRAWEN LAYOUT.

PROSEDURE:-

• first open last week project in revit.

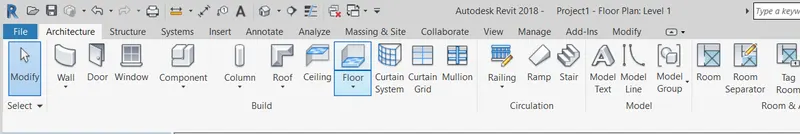

• now go to architecture tab and select floor option.

• now using "by line " option create a floor.

• by using edit option we can assign different material to the floor with different size of floor.

2) Add walls based on the floor layout. Pick lines or use the draw tool to modify the boundary of walls. Use the property browser to select appropriate material and thickness for walls. After creating the walls verify using the property browser to see if the top and bottom of the walls are constrained.

a. Based on your observation, what is beneficial for connecting walls with associated levels rather than being Unconnected
b. Which option is convenient for modeling walls, By Height or By Depth?

ANS:-

AIM:- TO PROVIDE A REQUIRED THICKNESS TO THE WALL .

PROSEDURE:-

• continue with the last question open last layout to the revit.

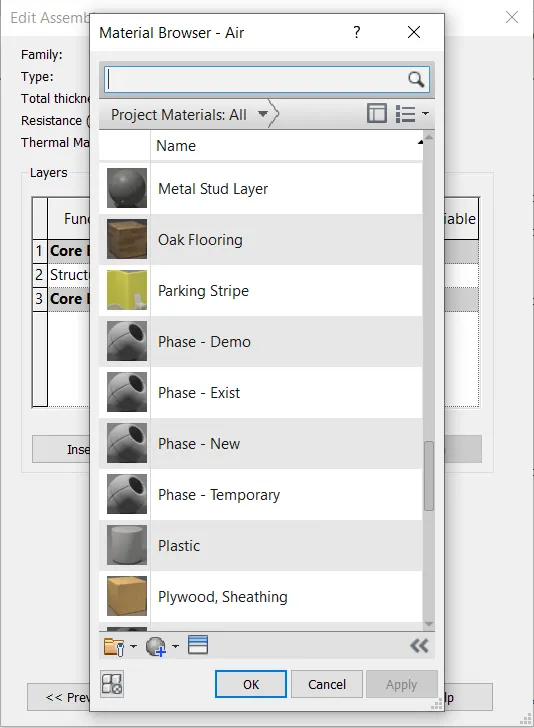

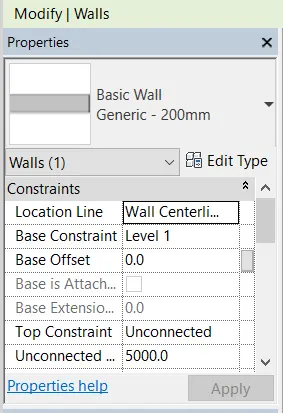

• now using properties manager we can change thickness of wall and also we can assign or change material.

• after assigning select realastic view for better view.

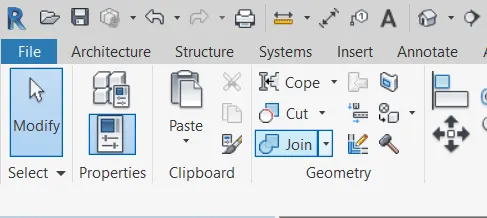

3) Copy the model elements ( wall, floor ) modelled to Ground Floor Level and paste it aligned to First Floor Level . Use modify tab to utilize copy and paste options to align
elements to a different level.

ANS:-

AIM:-TO COPY GROUND LEVEL FLOOR AND PASTE FROM CLIPBORD.

PROSEDURE:-

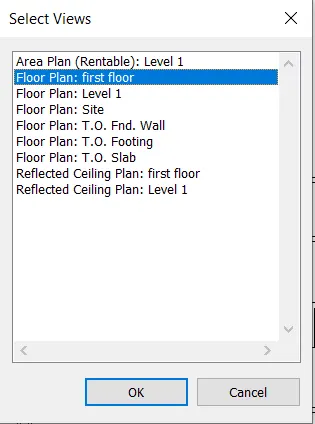

• first open que 2 project in revit.
• now select whole layout and copy it.

• now using paste option paste to the first floor.

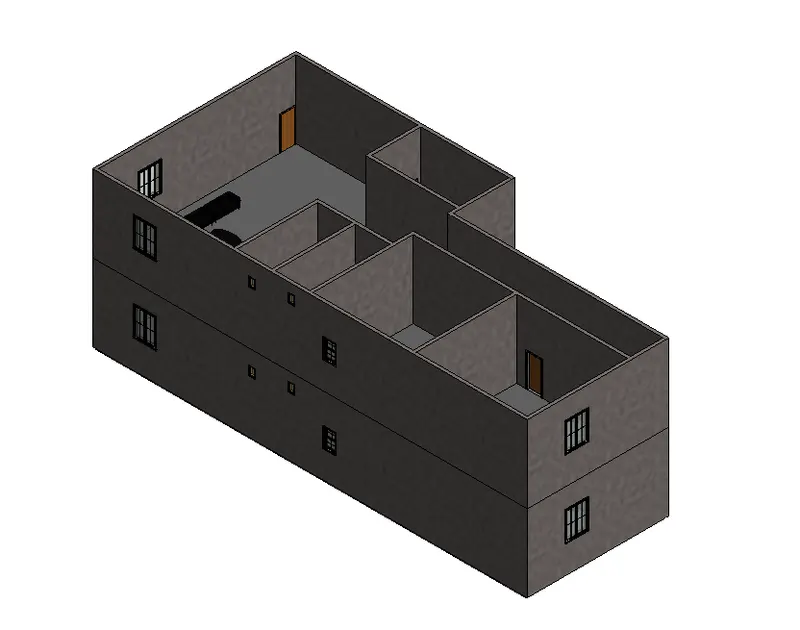

• after pasting your plan will be look like this.

4) Use interior partition walls to create separate rooms within your residential unit. The model must include the following rooms

a. Living Room/ Drawing Room ( 15’ X 18’)
b. Dining Room (9’ X 11’)
c. Bed Room ( 9’ X 12’ and 15’ X 11’)
d. Rest Room ( 10’ X 12’ )
e. Kitchen (8’ X 10’)

The above are for examples. You can use them or use your measured entities to create your model based on your layout. You may include entry walkway, Patios or Guest
rooms based on your creativity and purpose of modeling. Convert units if you are using metric system.

ANS:-

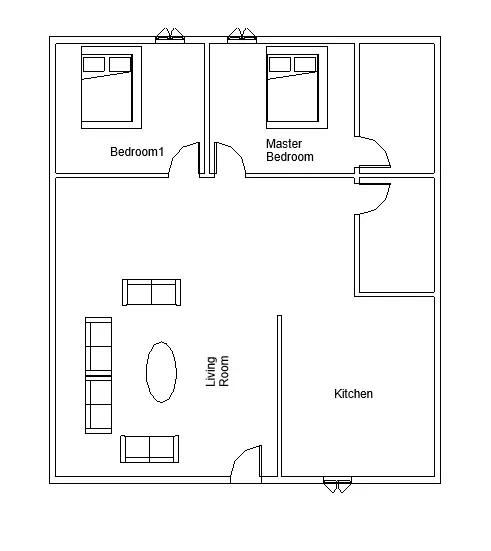

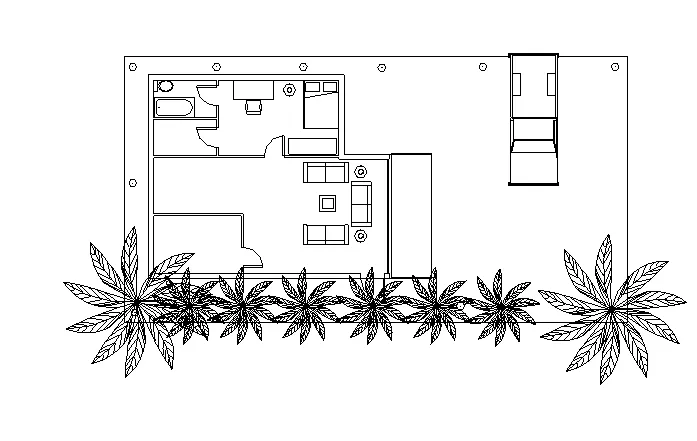

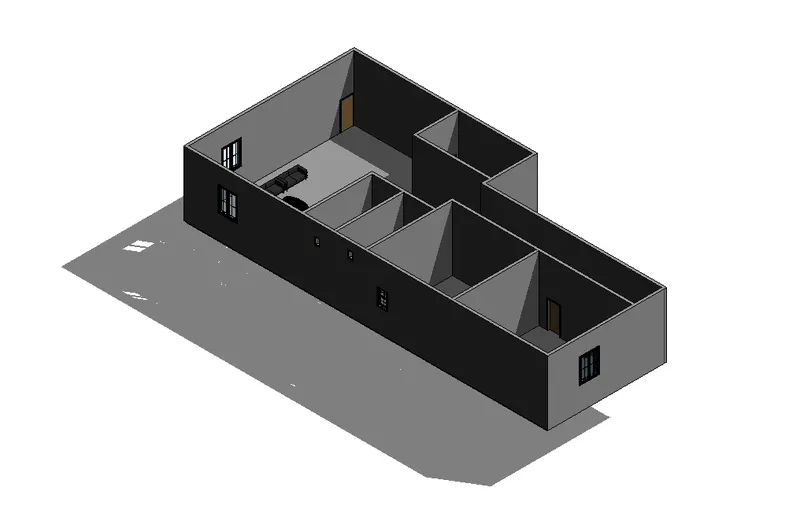

AIM:-TO CREATE A LAYOUT USING GIVEN DIMENSION .

PROSEDURE:-

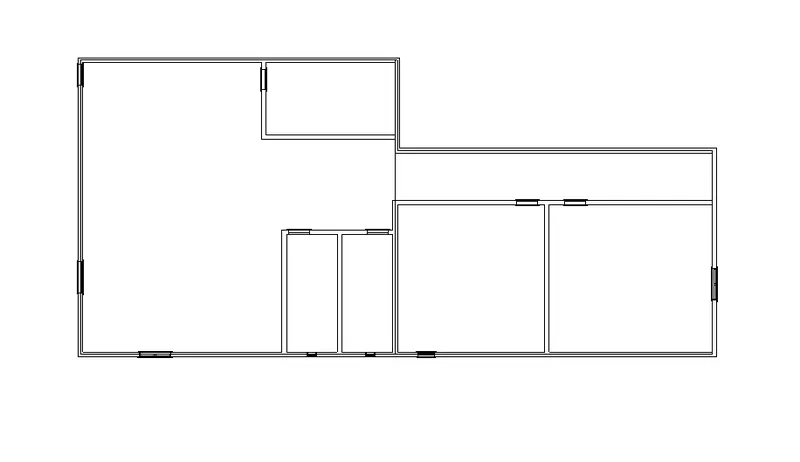

• first open revit and select architectural template.
• now draw the layout of given dimension.

• now use different family option assign furniture , doors, windows.

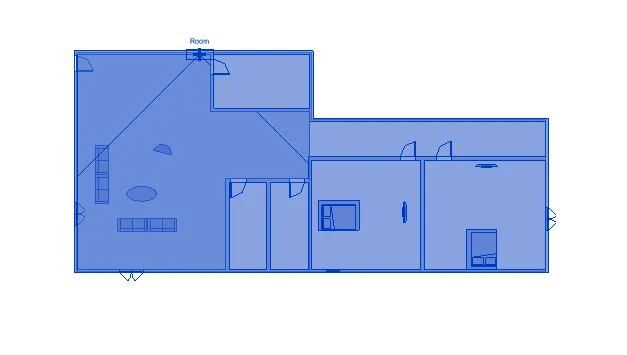

5)Based on week 2 assignment, the components to be included in a residential unit were inserted to the Revit file. Place these components in appropriate locations to add details to your residential model

a. Place Doors and windows in the wall at appropriate locations
b. The Living Room must include furniture set, couch table and TV desk and shelf cabinets
c. The Dining Room must include a table and chairs serving the purpose of eating
d. Bed Room must include a bed set, shelf, lighting and individual study desk and chair
e. Rest room should include bath tub and plumbing fixtures discussed in class
f. Kitchen should include countertops, gas stove cabinet and shelves to store food items
g. The wash/storage room can include washing machines and shelves to store clothes

All the components are available in Revit Library. Use them to place at appropriate locations to add details to your model. Use 3D navigation to check the model and its authenticity on a real time basis to verify the model.

ANS:-

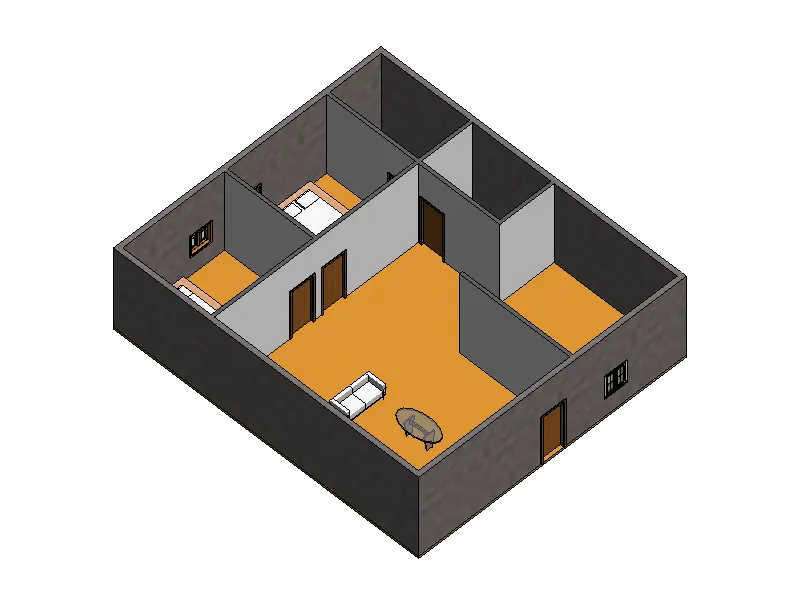

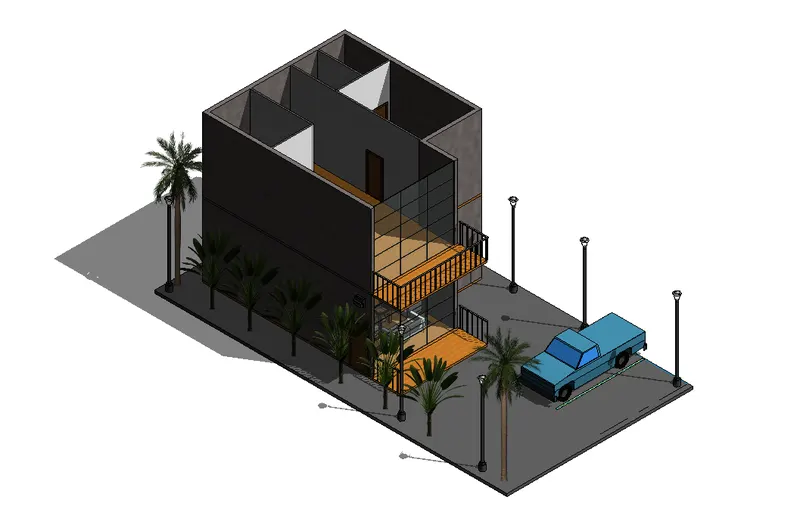

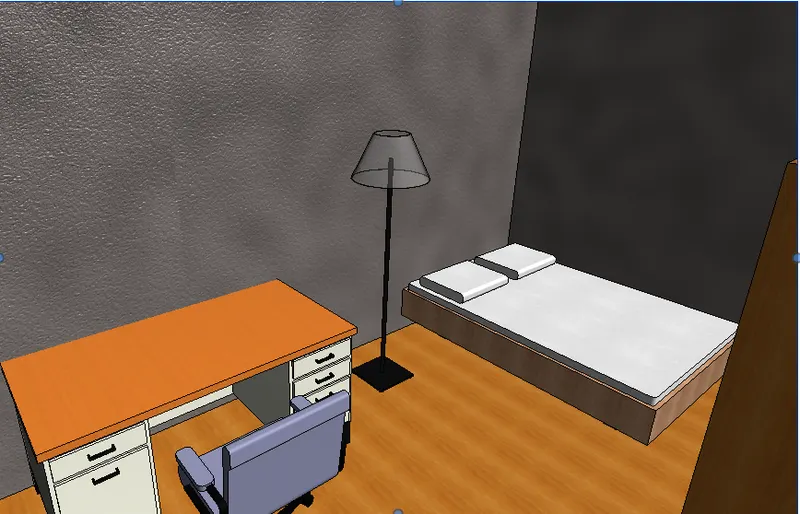

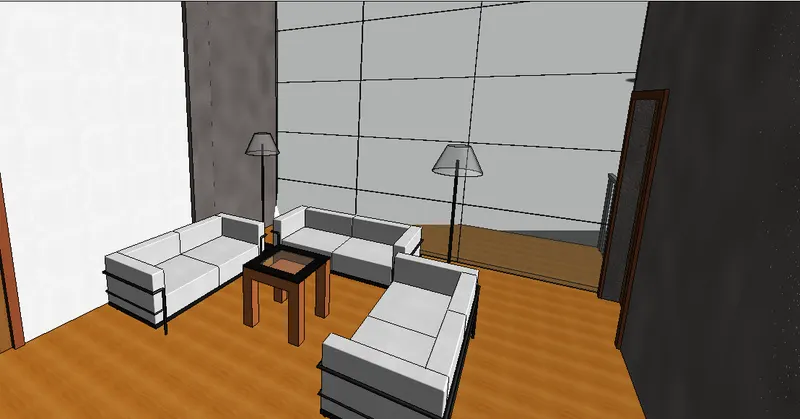

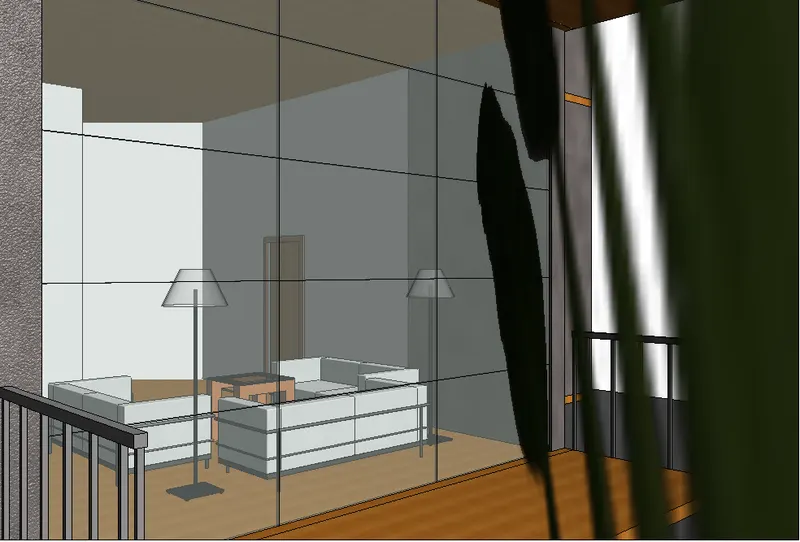

AIM:- CREATE A SAMPLE HOUSE USING REVIT.

PROSEDURE:-

• first open revit and open architectural template.
• now create a layout
• i drawen a layout with my refrence.

• now create proper 3dviews or create render views for proper visulization.
