Creating Kitchen layout, Hatching of Architectural elements and sectional view of an Industrial Building in AutoCad

Aim& Introdiction : To draw the layouts of the Kitchen and provide hatches pattern as shown. Also, use blocks wherever
required and provide appropriate dimensions in the plan.

Procedure:

• Open new drawing file
• Set units in millimetre

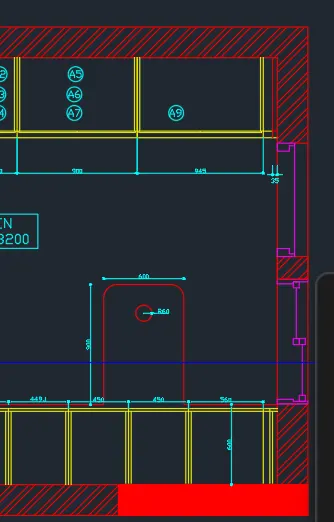

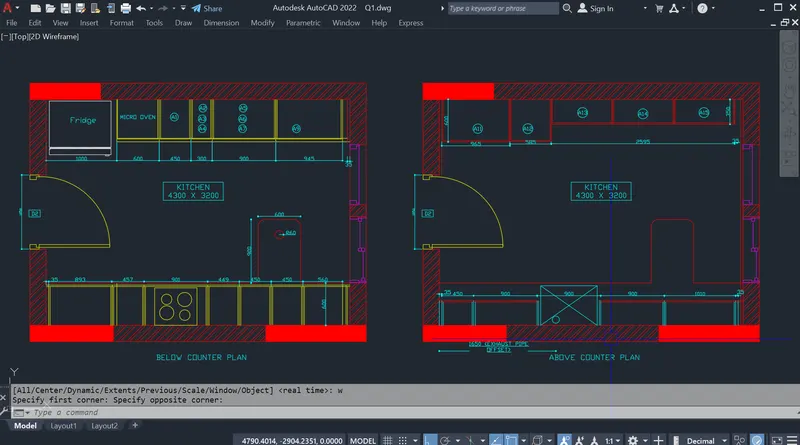

1.Creating a below counter plan:

• Draw a rectangle of 4300 mm,3200mm by using Rectangle command
• Rectangle >Specify first point > dimenstion >4300,3200 > Enter
• OFFSET > ENTER > 230> select rectangle > select inside of the rectangle.
• Create doors , windows and objects by using LINE, OFFSET, CIRCLE and RECTANGLE command.

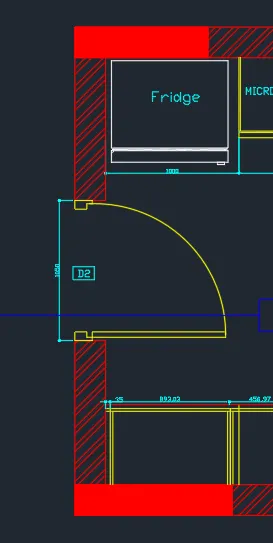

• Create a dynamic block of door, windows
• BLOCK > specify base point > select object to block

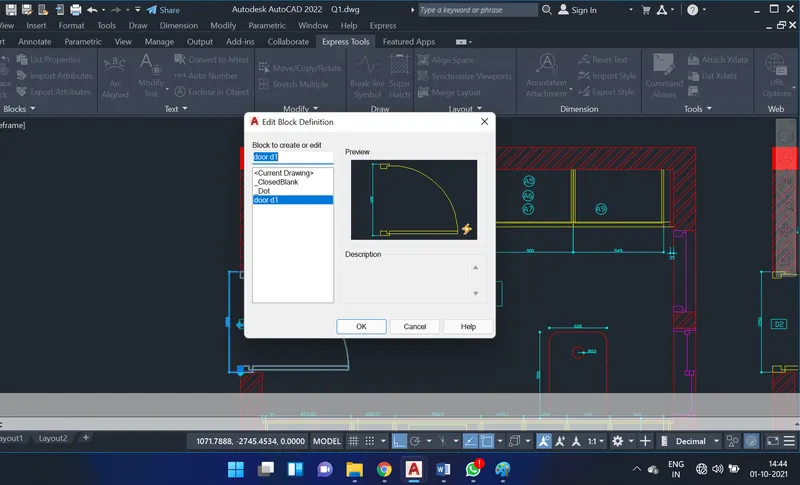

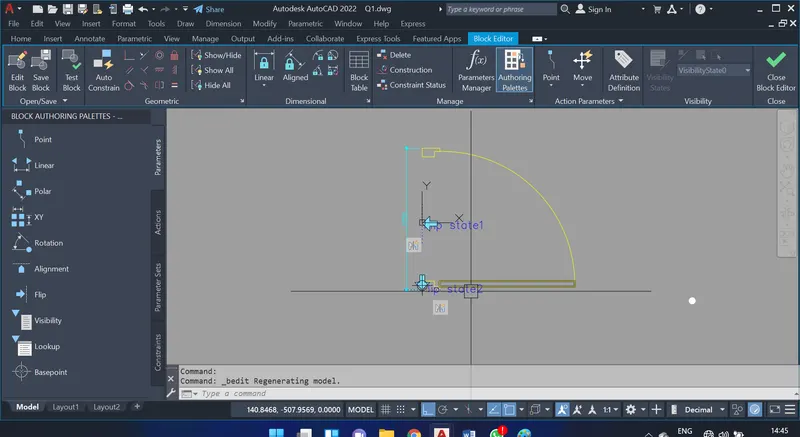

• BE > select the block > add perimeters and actions to the block
•
•
• Repeate the above block command steps for doors and windows
• Group >select the hub circle > enter
• Provide required dimensions with the help of "DIMENSION LINEAR" option
• DIMLENIAR > Select staring line > select ending line
• DIMCONTINUE > select line
• Place a text by using DTEXT command
• Enclose the textg with circles
• Go to express toos option > select enclose object > select the text > enter offset as 0.1 > circle > enter

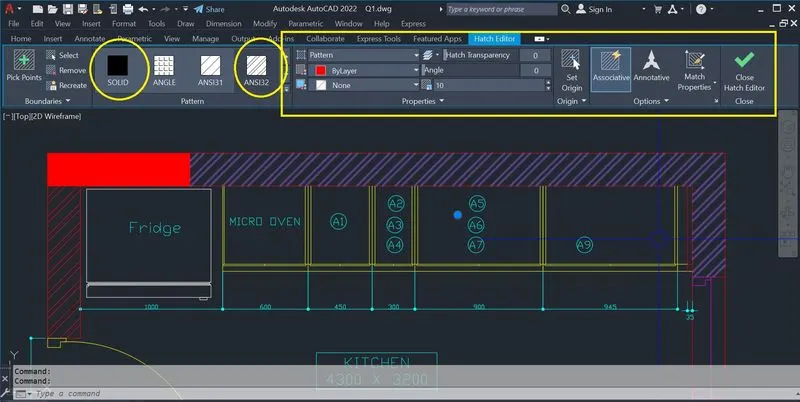

• Apply hatches to the wall area
•

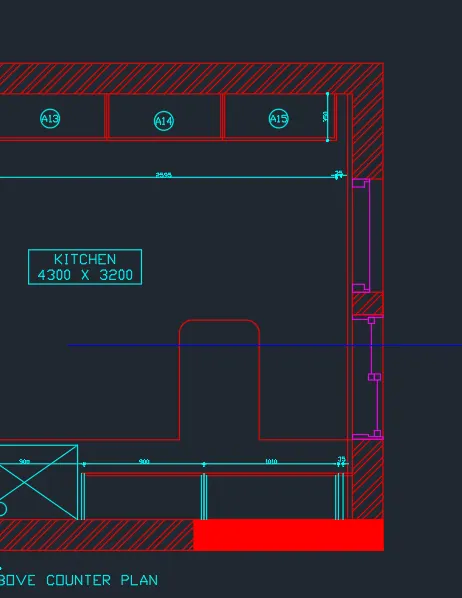

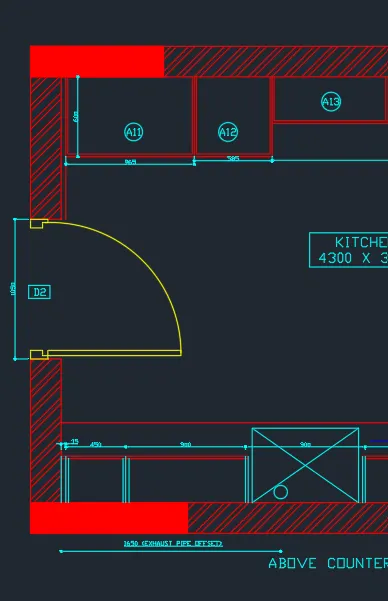

2.Creating a above counter plan:

• Draw a rectangle of 4300 mm,3200mm by using Rectangle command
• Rectangle >Specify first point > dimenstion >4300,3200 > Enter
• OFFSET > ENTER > 230> select rectangle > select inside of the rectangle.
• Create doors , windows and objects by using LINE, OFFSET, CIRCLE and RECTANGLE command.

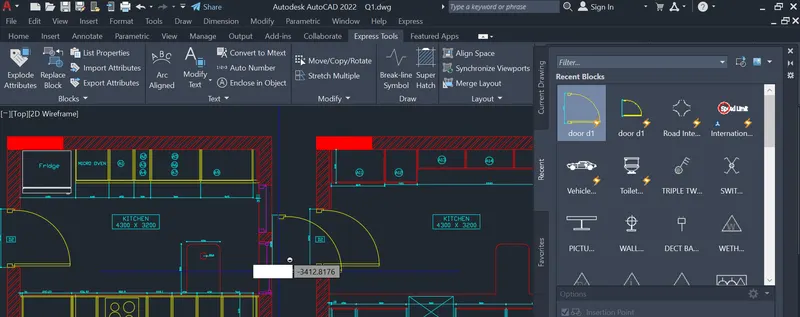

• Insert the block of doors and windows
• Insert > select the block name shown in the tab > specify the point in model tab to insert the tab
•
• Repeat the above Insert block command steps for doors and windows
• Group >select the hub circle > enter
• Provide required dimensions with the help of "DIMENSION LINEAR" option
• DIMLENIAR > Select staring line > select ending line
• DIMCONTINUE > select line
• Place a text by using DTEXT command
• Enclose the textg with circles
• Go to express toos option > select enclose object > select the text > enter offset as 0.1 > circle > enter
• Apply hatches to the wall area
•

•

Result:

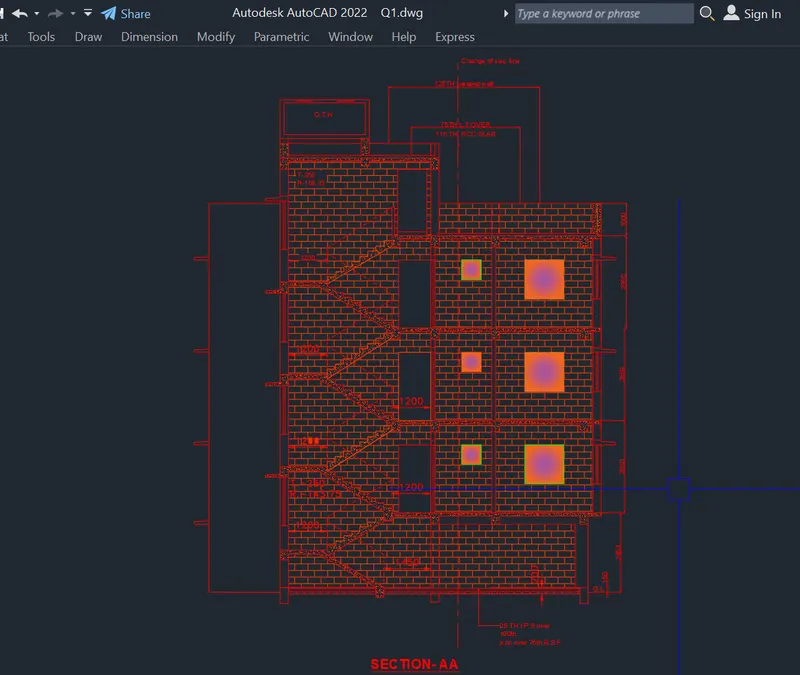

Aim& Introdiction : To Create the elevation of the plan created in the Challenges 7 and apply proper hatch in the walls, doors,
windows, and other architectural elements with the refrence to dimensions in Plans and sections in Challenges 7.

PROCEDURE:

Command used :

line

poline

Hatch

gradient

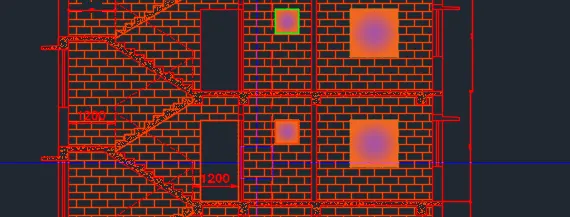

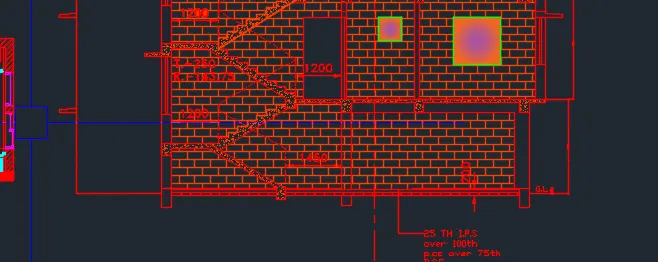

1) Draw the elevation

Create the doors and windows

Create the block of doors and windows

Apply hatch by using hatching command

Result:

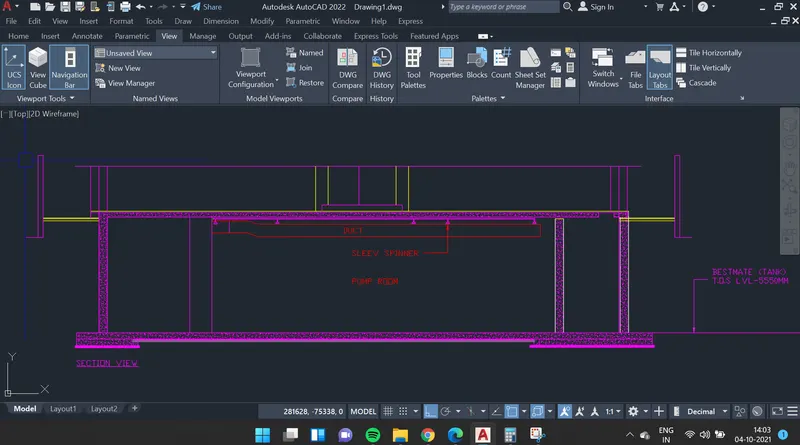

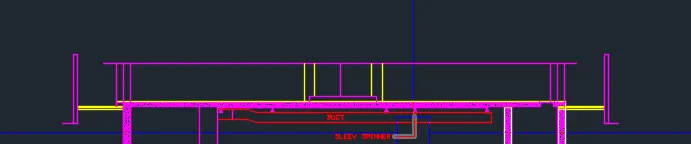

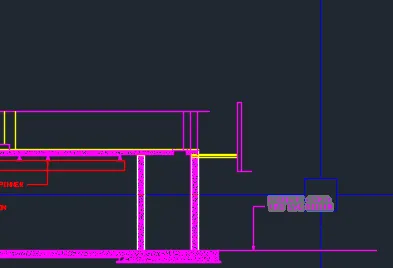

AIM&INTRODUCTION: To Create the section view of an industrial building as shown in Figure by Provide appropriate hatches anddimensions wherever required and also, provide annotations to the drawing

PROCEDURE:

Command used :

• line
• poline
• hatch
• copy
• Dimension linear
• Trim
• Extend
• Open new drawing file
• Set units in millimetre

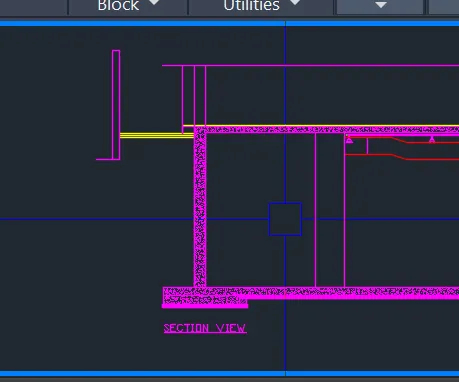

1.Drawing a section:

Result:
