Creating Kitchen layout, Hatching of Architectural elements and sectional view of an Industrial Building in AutoCad

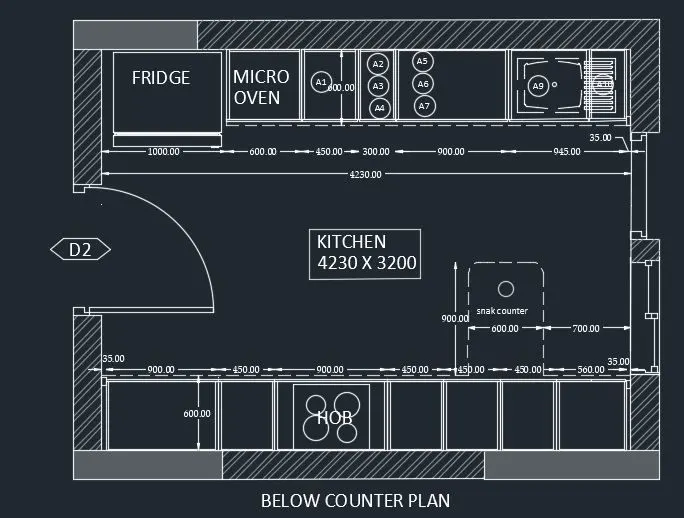

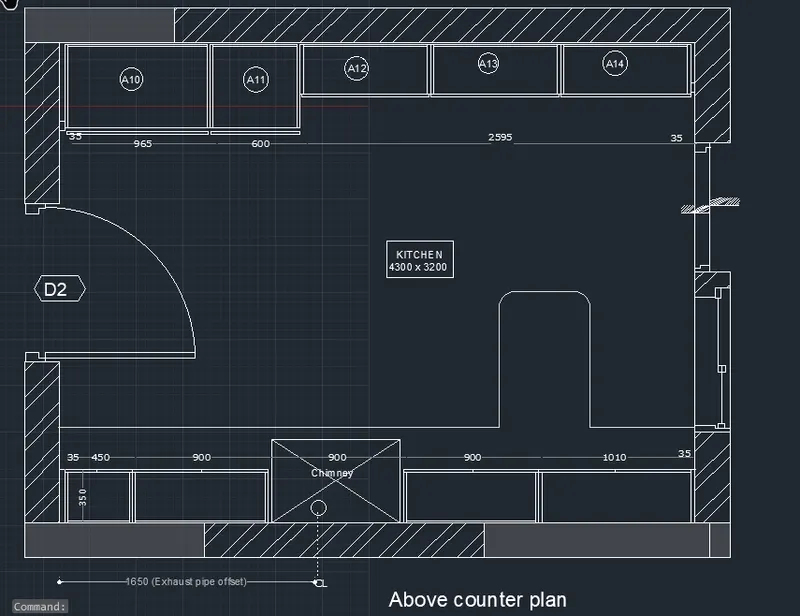

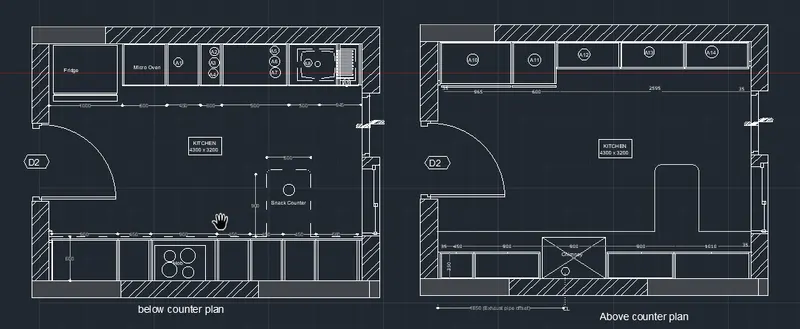

Create the layouts of the Kitchen and provide hatches pattern as shown. Also, use blocks wherever required. Provide appropriate dimensions in the plan. Assume the size of doors, appliances and others as per the standards.

AIM : To Create the kitchen layout and to also, use proper dimension techniques to dimension the kitchen layout also, insert text whereever required all dimensions are in mm

PROCEDURE

• Units are set to mm
• Limits and limmax are also set
• Zoom command is also used

Step 1

• In Command Promptb type rec and the dimensions are 4734 * 3688 mm
• In Command Prompt type offset and Offset it to the distance of 230mm
• using ARC and Lines the door is drawn
• In the command prompt type hatch to hatch the model
• In the command prompt type rec > dimensions , to do the fridge
• In the command prompt type offset and offset it to the desired distance to get the micro oven
• In the command prompt type trim and trim the extras
• In the command prompt type offset and offset it to the horizontal distance of 350,450,900,450,450 and 560
• In the command prompt type offset and offset it to the vertical distance of 600
• In the command prompt type trim and trim the extras
• In the command prompt type line type and load the dotted lines
• In the command prompt type dimensions to give the dimensions to your plan
• In the command prompt even the leader command is used to name the dimensions

RESULT

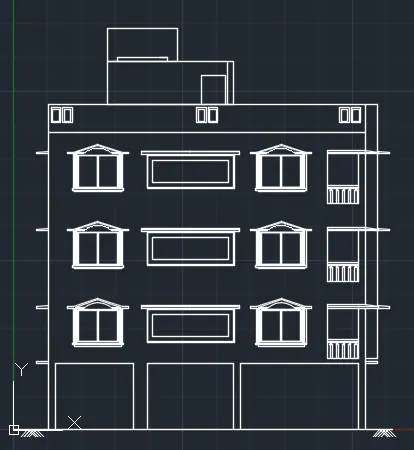

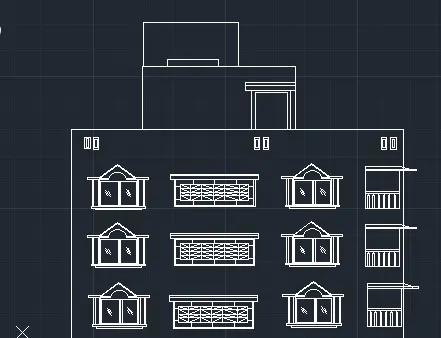

Create the elevation of the plan created in the Challenges 7 and apply proper hatch in the walls, doors, windows, and other architectural elements. Refer to the dimensions in Plans and sections in Challenges 7

AIM : To Create the elevation of the plan with hatch

PROCEDURE

• In the command prompt type I to draw the lines
• In the command prompt type rec to draw the rectangle
• In the command prompt type ARC to draw the ARC
• Therefore,the window is created
• In the command prompt type I to draw the lines
• In the command Prompt type rec to draw the rectangle
• In the command prompt type I to draw the lines

• In the command prompt type rec to draw the rectangle
• In the command prompt type rec to draw the rectangles

Result

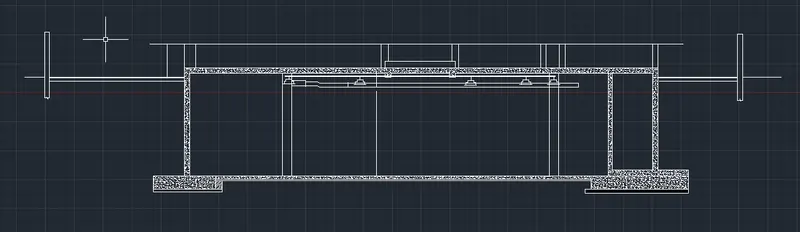

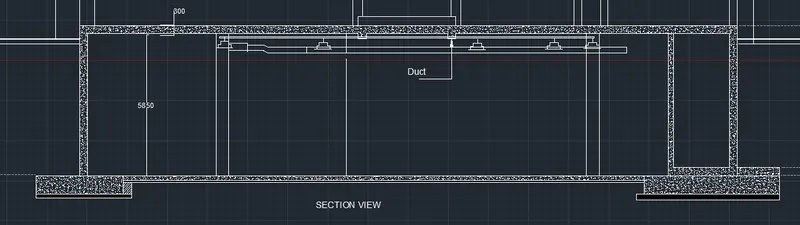

_{Create the section view of an industrial building as shown in Figure. Provide appropriate hatches and dimensions wherever required. Also, provide annotations to the drawing.}

_AIM

_{To Create the section view of an industrial building}

_Procedure

• In the command prompt type I to draw the lines
• In the ribbon bar > Hatch>AR.CONC
• In the command prompt type rec to draw the rectangles
• In the ribbon bar > Hatch > AR-Conc

• In the command prompt type LT to get the dotted lines
• In the command prompt type c to draw the circle
• In the command prompt type MT to draw the text
• In the command prompt type dim to draft the dimensions

RESULT
