Creating Conceptual mass in REVIT and Creation of Sinusoidal curve and a Parametric stadium using Dynamo

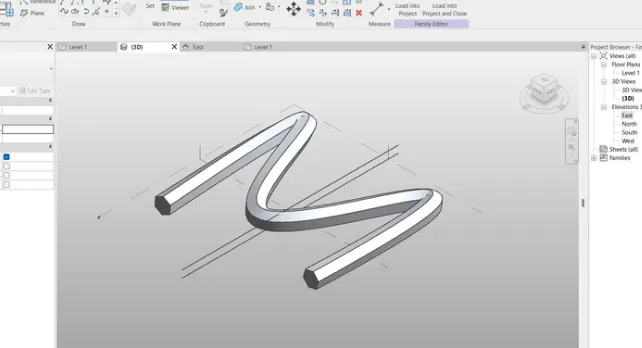

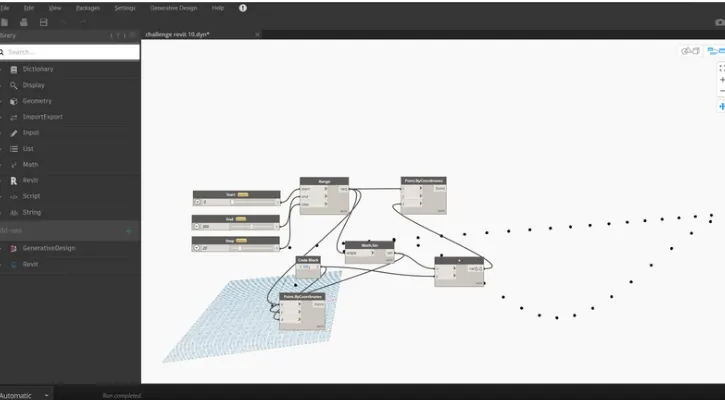

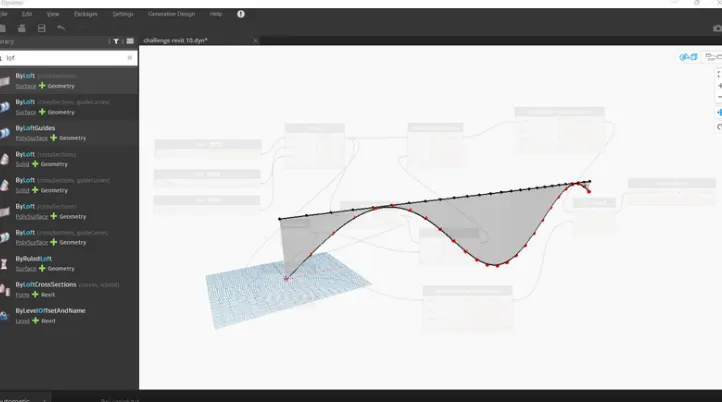

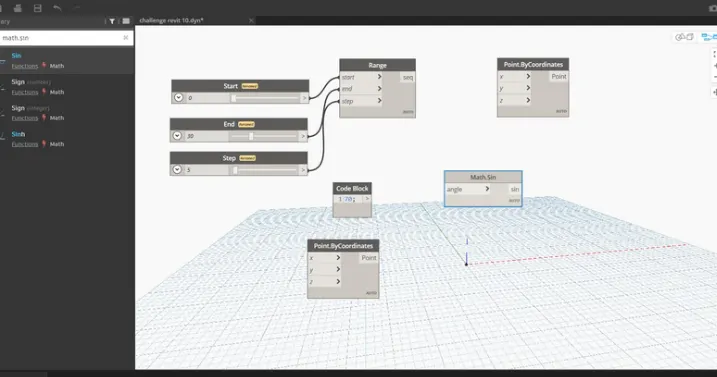

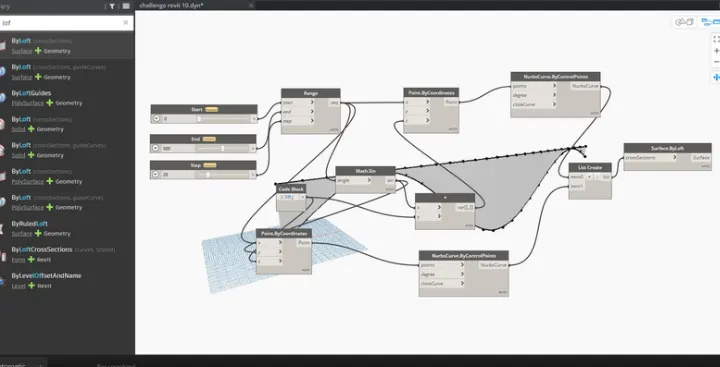

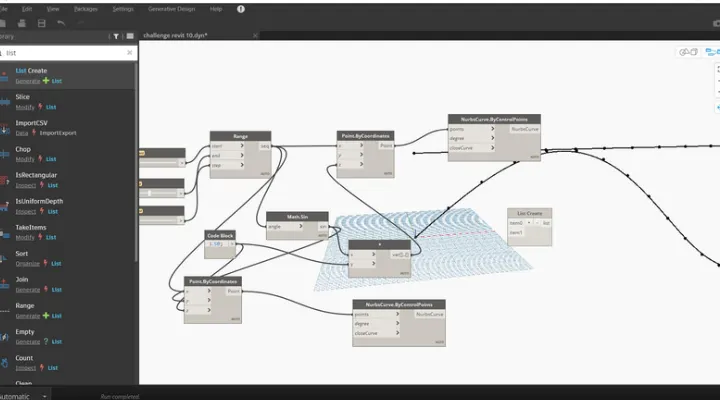

1. Using Dynamo creates a set of sinusoidal points and creates a curve and creates a surface out of the curve.

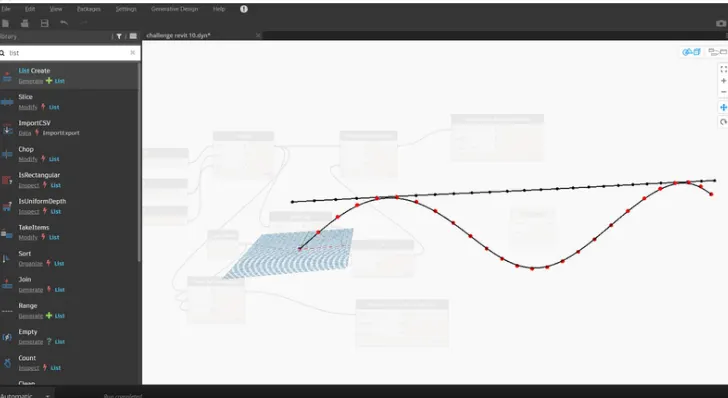

Aim:- TO create a sinusoidal points curve and surface using dynamo
Procedure: • Go to select new template> select architecture
temoplate> press ok • Go to the manage tab and select Dynamo

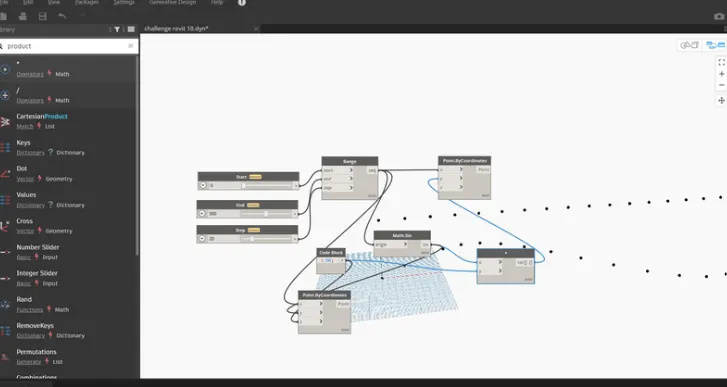

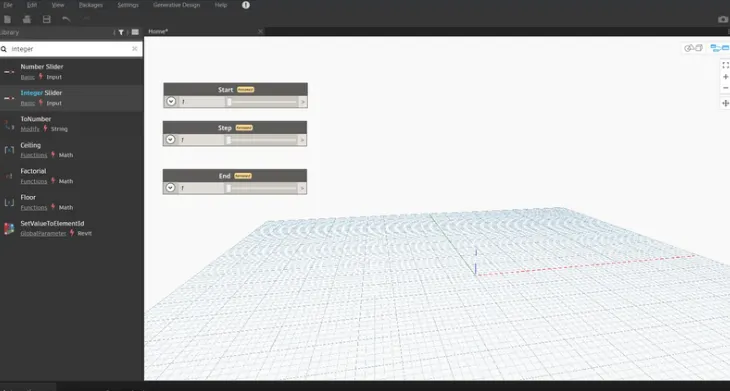

- open integer slider
- add code block and math
- used product
- add curve by control point

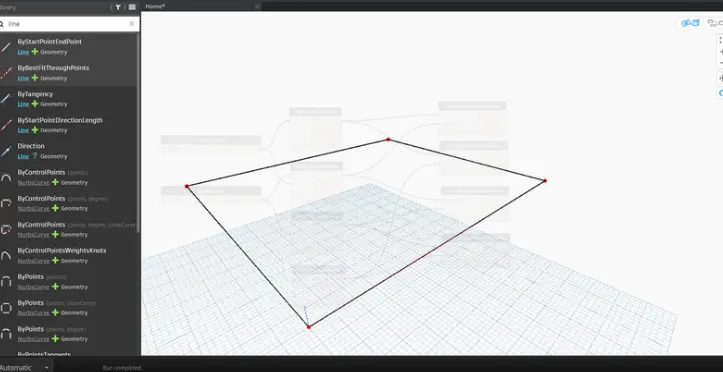

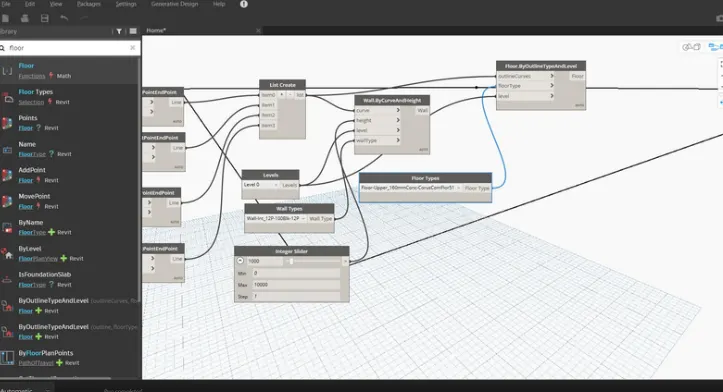

2. Create a conceptual layout of the floor plan in dynamo. Using the tools available in dynamo link the lines to appropriate model elements in Revit by choosing the wall types and parameters. Make use of the sliders to slide through the height of the wall and the length of the wall.

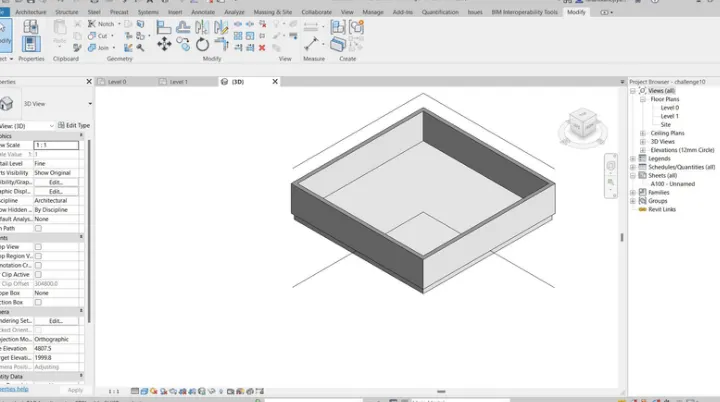

Aim: To create a Floor plan and use Wall properties (like height, type etc) using Dynamo
Procedure:

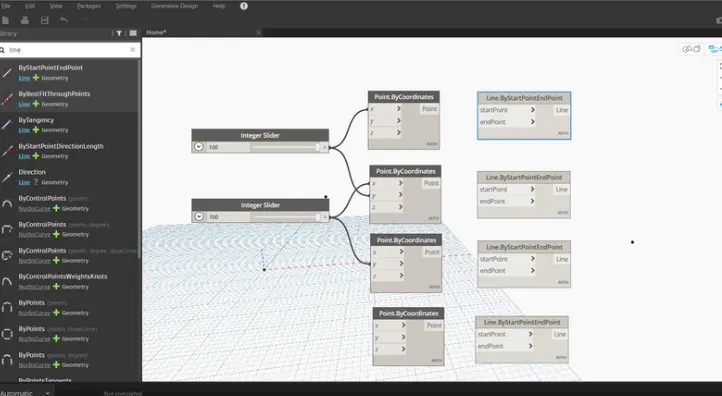

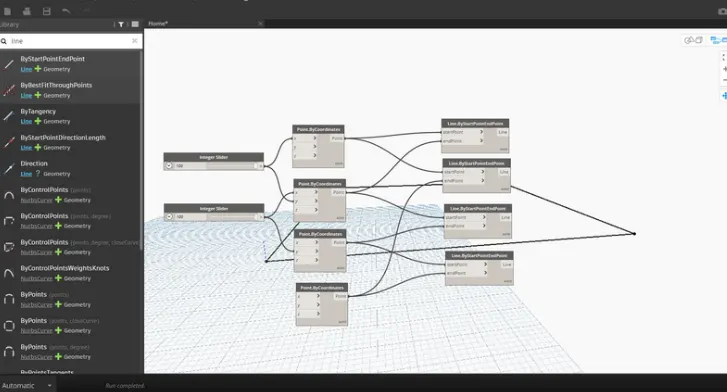

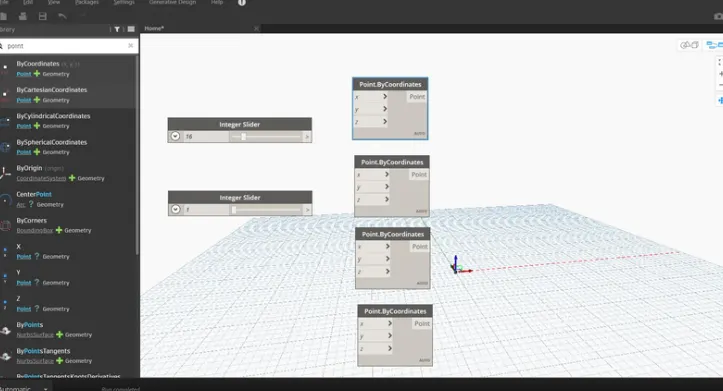

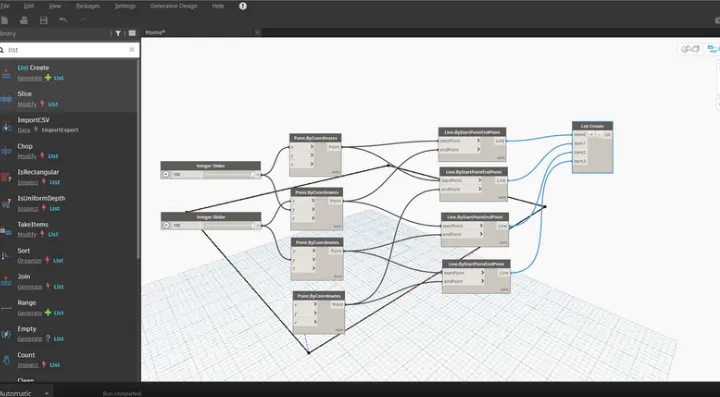

• First, open dynamo and add integer slider • Then add share by coordinates 4 times
- add lines by starting and end points 4times
3. Create an array of model elements in Revit. Use dynamo to vary the properties of model
elements by using the slider or code block
Aim:- To create an array elements and Change the property using Slider or code block
Procedure:
• Open the architectural template

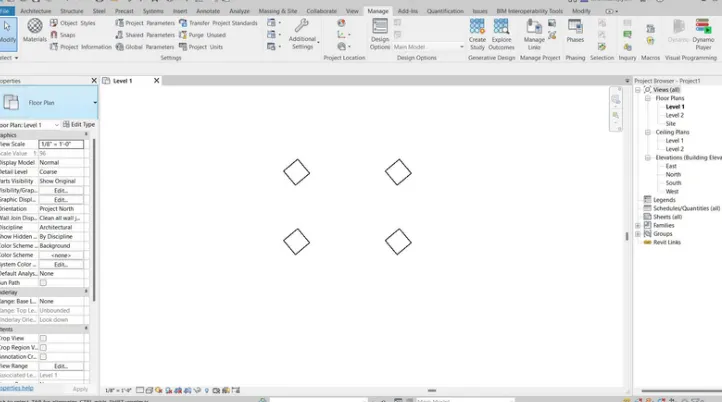

• Create 4 columns and then open dynamo
this is how we use the array option in dynamo

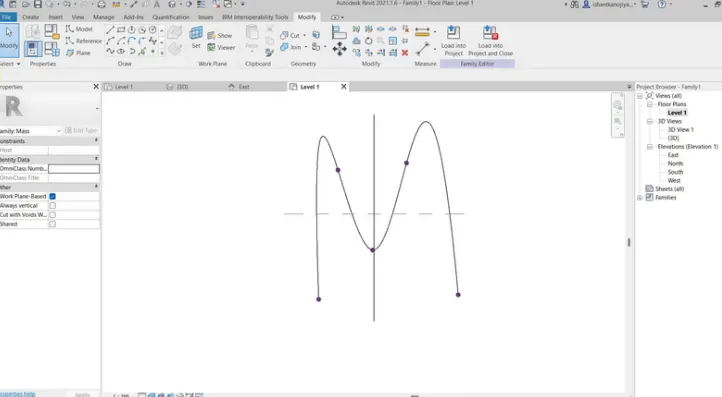

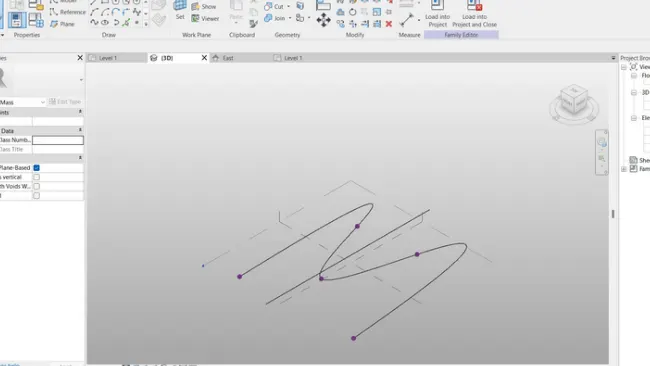

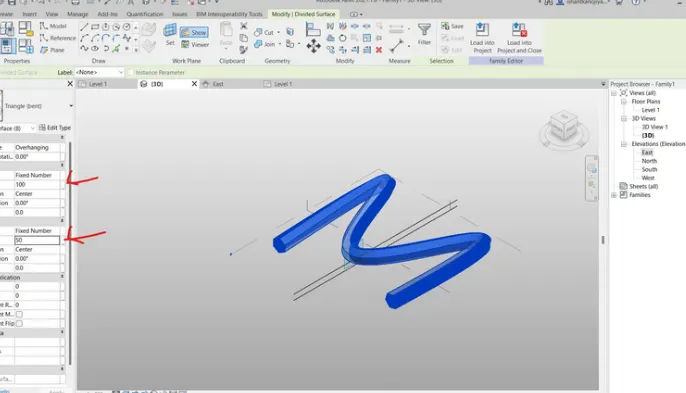

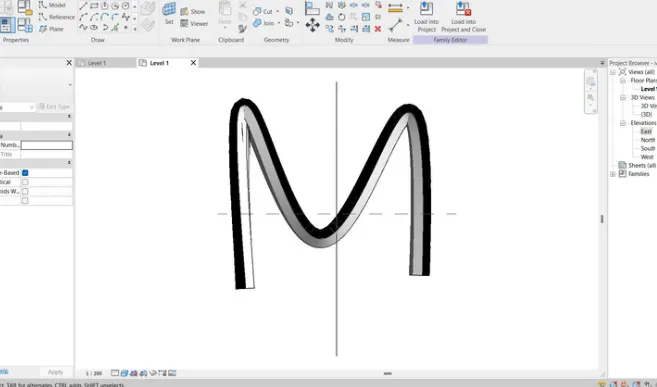

4. Create a conceptual mass in Revit and develop a parametric column by dividing the surfaces and applying concepts similar to those used in parametric walkway modeling. Use triangular bent or square shaped panels to add a finish to the parametric column
Aim:- To create conceptual mass and develop parametric columns or assign conceptual mass
Procedure:
• First,, we create the conceptual mass

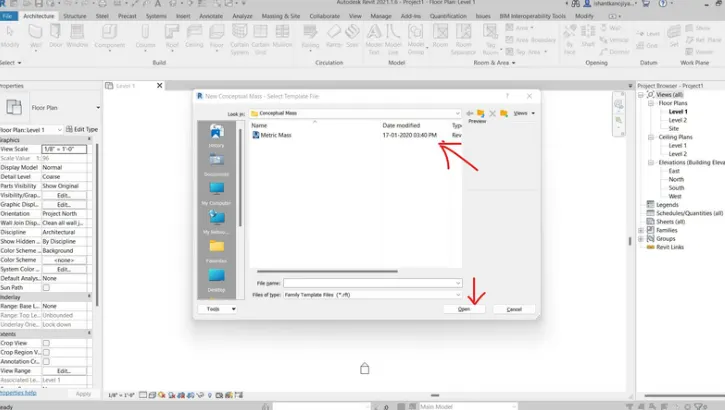

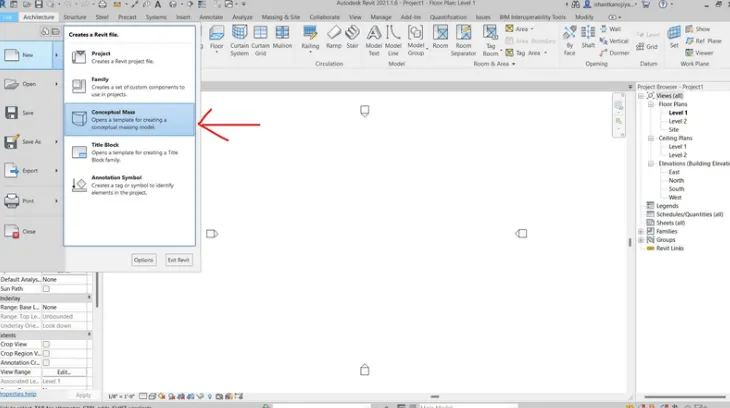

• Go to new select > Select Conceptual Mass

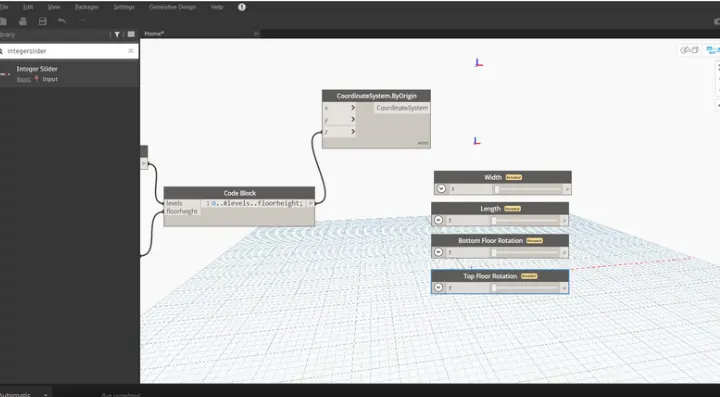

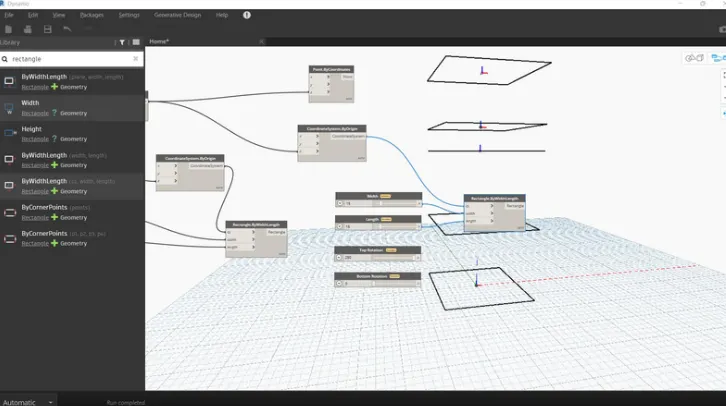

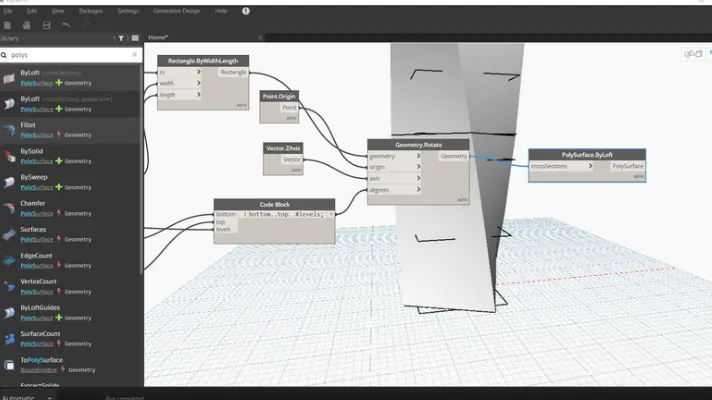

5. Use Dynamo to work on developing a Parametric Stadium. List your parameters and use the visual programming approach to complete the modelling, You can use the concepts discussed in parametric high
rise tower in class for reference.

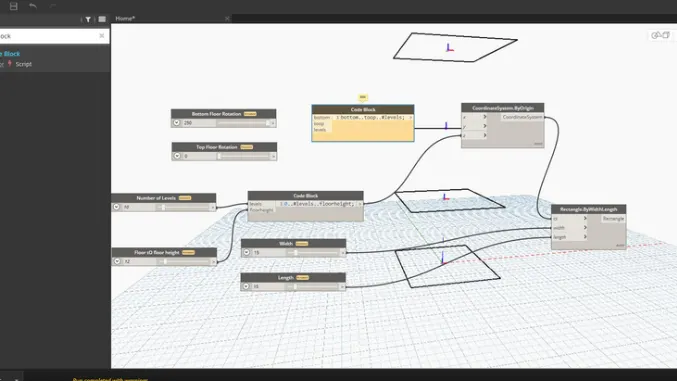

Aim:- To create a Parametric stadium using Dynamo
Procedure:

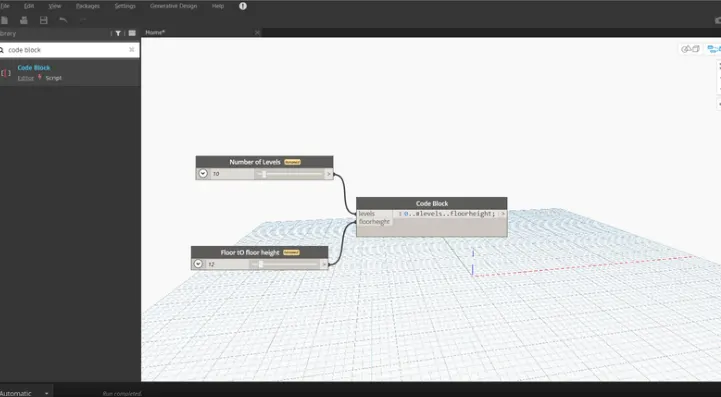

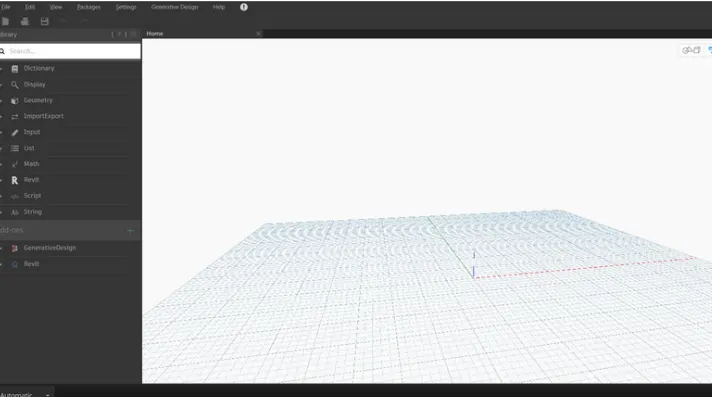

• Open a new file in Dynamo

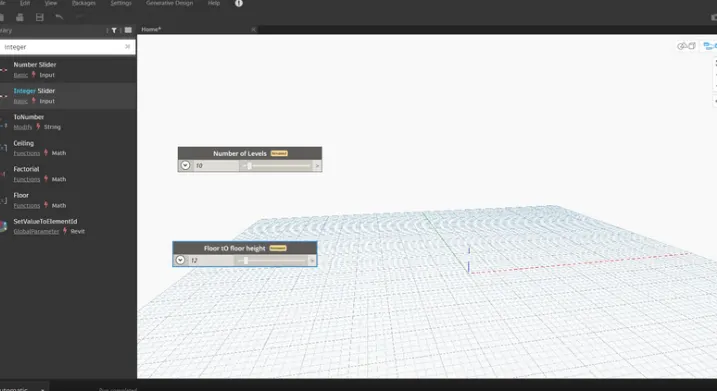

• Add 2 integer slider
