Creating Conceptual mass in REVIT and Creation of Sinusoidal curve and a Parametric stadium using Dynamo

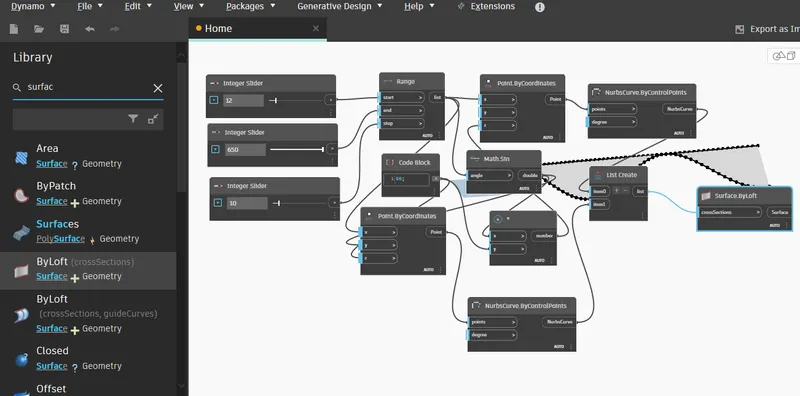

Q.1) Using Dynamo create a set of sinusoidal points and create a curve and create a surface out of the curve.

ANS 1)

AIM : To create a seet of sinusoidal points and create a curve and create a surface out of the curve.

TOOLS USED :

• Dynamo.
• Code block.
• Range.
• Mat.sin.
• Integer slider.
• Product (*).
• Add (+).
• Points by coordinate.
• List.

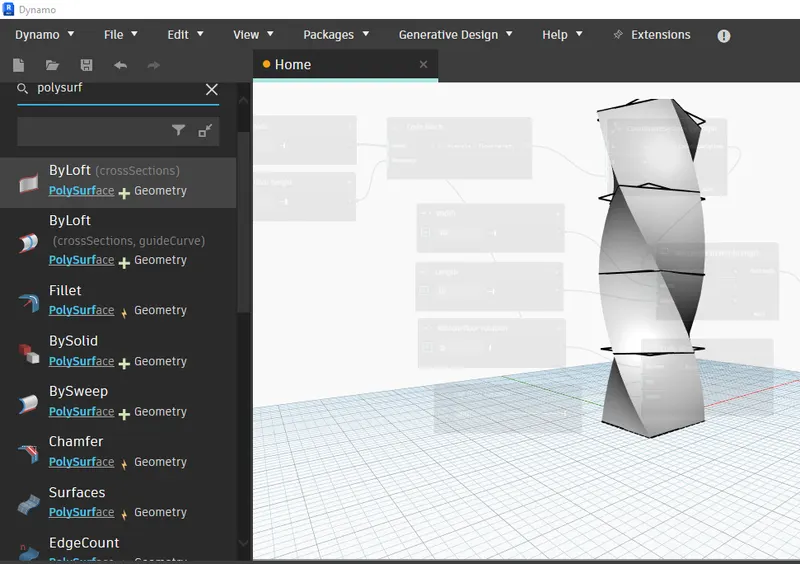

• Surface by loft.

PROCEDURE :

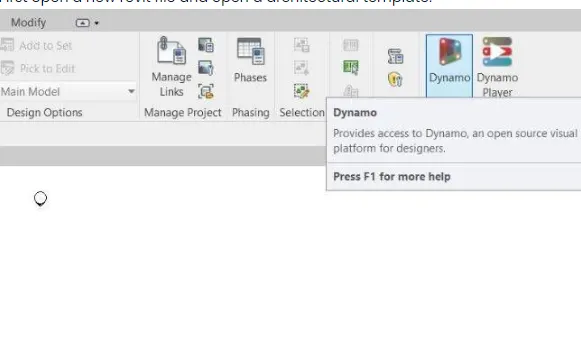

1. First open a new revit file and open a architectural template.

Q.2) Create a conceptual layout of floor plan in dynamo . Using the tools available in dynamo link the lines to appropriate model elements in Revit by choosing the wall types and wall parameters. Make use of the sliders to slide through the height of the wall and length of the wall.

ANS 2)

AIM : To create a conceptual layout of floor in dynamo. Use appropriate parameters like wall types, wall paramenters and use sliders for wall height and length.

TOOLS USED :

• Integer slider.
• Code block.
• Point by coordinates.
• Line by start and end point.
• List.
• Wall type.
• Levels.

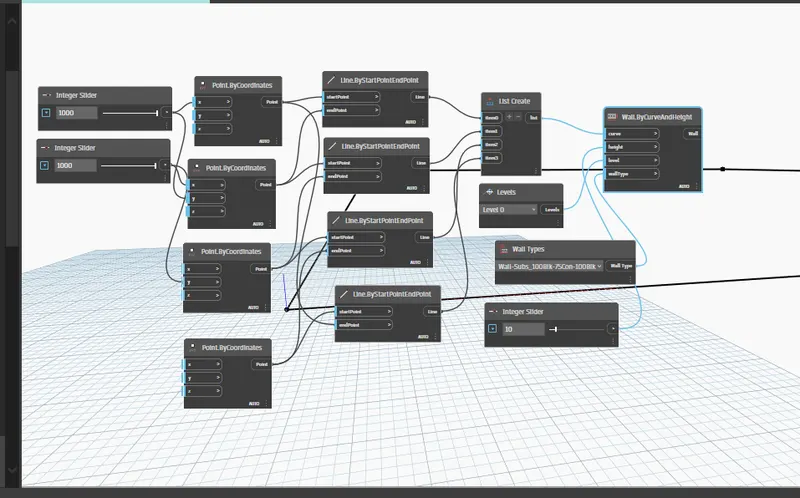

• Wall by curve and height.

PROCEDURE :

1. First open a architectural template.

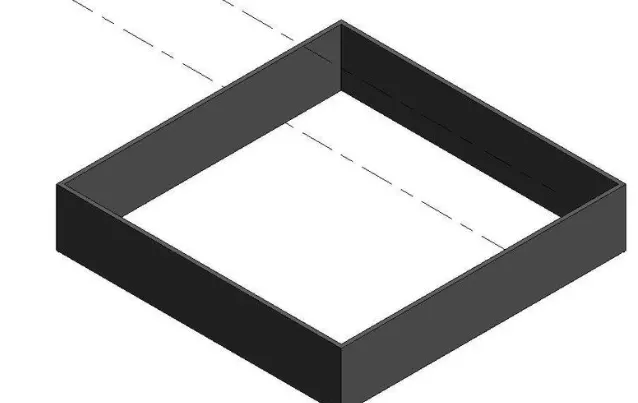

Now we can go to the revit file and see the wall in 3D view.

Q.3) Create an array of model elements in Revit. Use dynamo to vary the properties of model elements by using the slider or code block.

AIM : To create an array of elements in revit using dynamo.

TOOLS USED :

• Architectural.
• Columns.
• Dynamo.

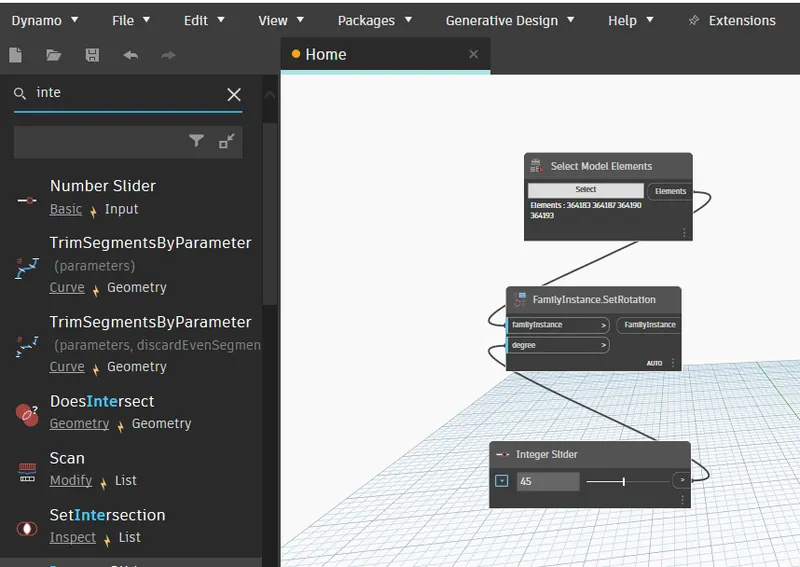

• Set rotation.
• Integer slider.
• Code block.
• Select model element.
• View.
• Default 3D view.

PROCEDURE :

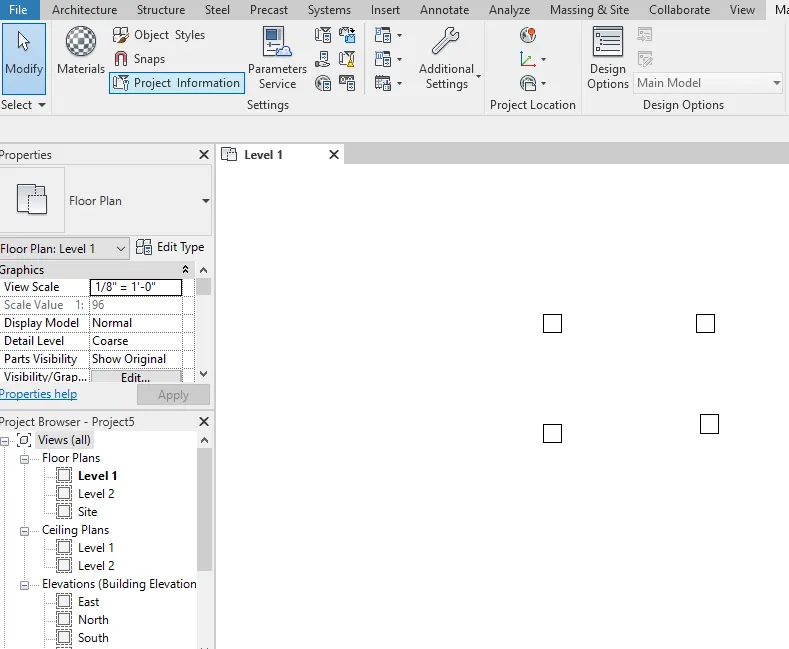

first open architecture template in revit and draw a architectural column.

Next go to manage tab and select dynamo option.

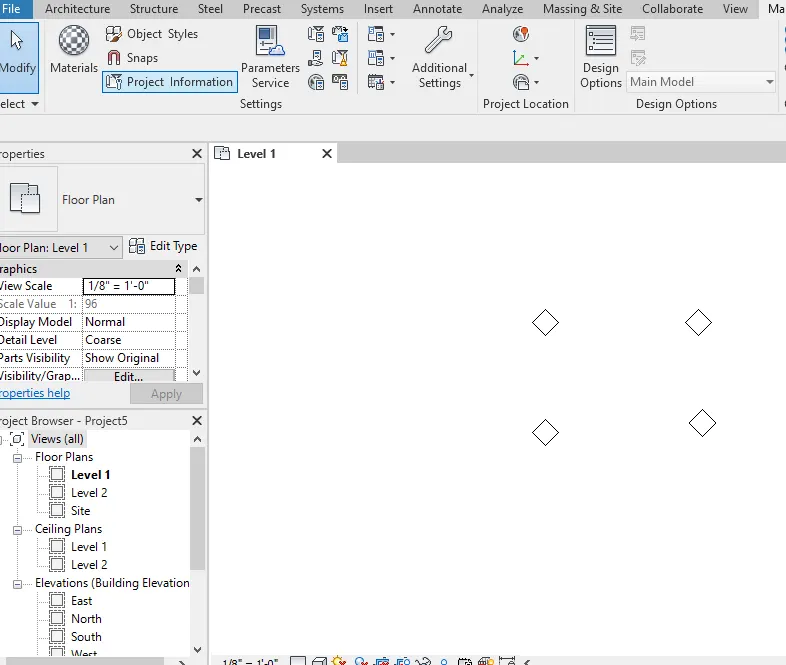

now we can change the values on the integer slider and see the rotation of the columns simultaneously in the revit file with different values.

Q.4) Create a conceptual mass in Revit and develop a parametric column by dividing the surfaces and apply the concepts similar to used in parametric walkway modelling. Use triangular bent or square shaped panels to add finish to the parametric column.

ANS 4)

AIM : To create a conceptional mass in revit and develop a parametric column and apply surfaces similar to as used in parametric walkway modelling.

TOOLS USED :

• Families.

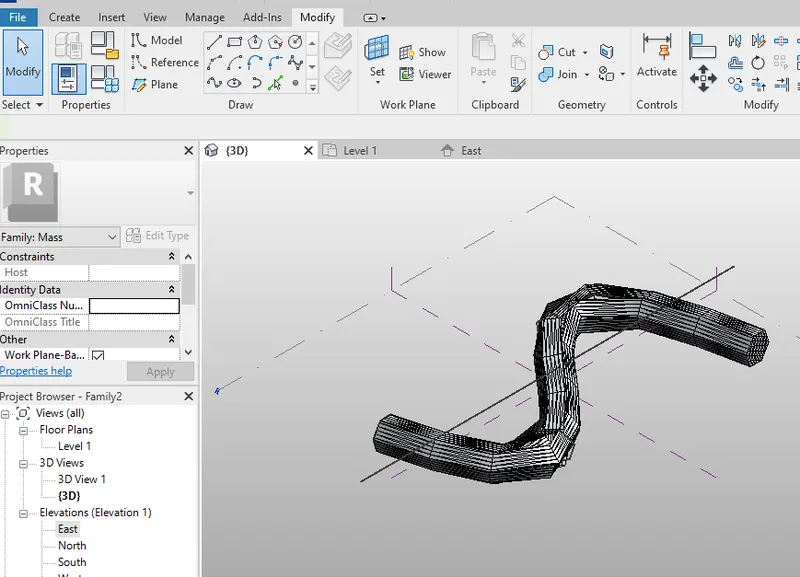

• Conceptual mass.
• Level.
• Set.
• Referance.

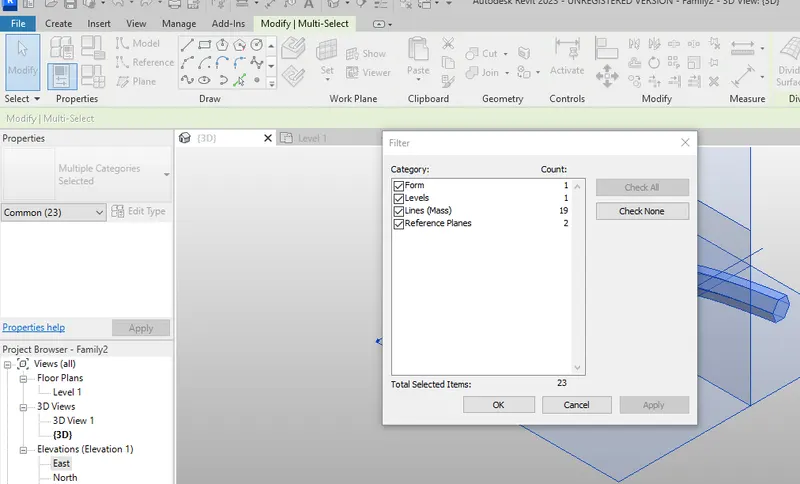

• Filter.
• Pattern.
• Divide surface.
• Create form.

PROCEDURE :

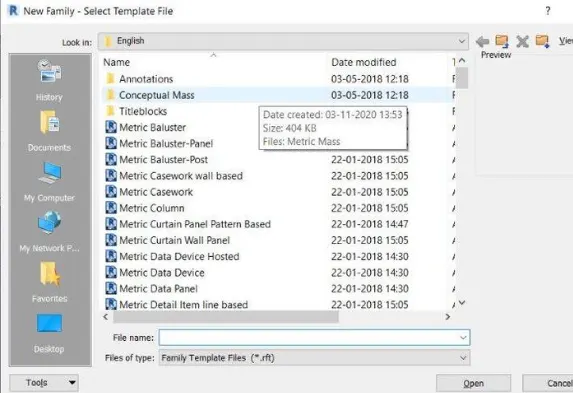

1. First open revit and select new family, under that select conceptual mass and click ok.

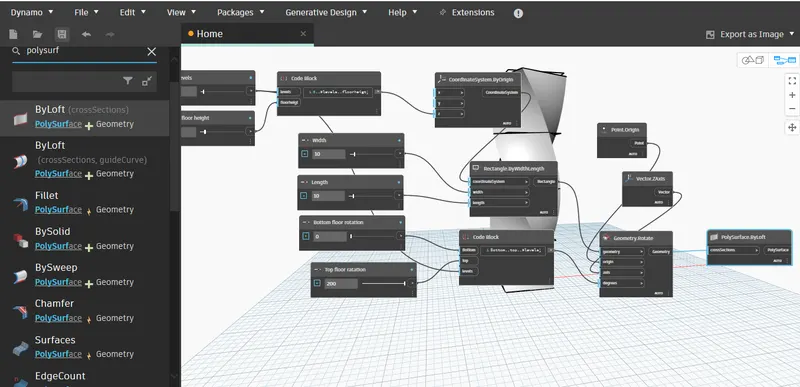

Q.5) Use Dynamo to work on developing a Parametric Stadium. List your parameters and use the visual programming approach to complete the modelling, You can use the concepts discussed in parametric high rise tower in class for reference.

ANS 5)

AIM : To create a parametric stadium with the help of dynamo.

TOOLS USED :

• Dynamo.
• Integer slider.
• Code block.
• Coordinate system by origin.
• Rectangle by width and length.

PROCEDURE :

1. First open the revit file and go to manage tab and select dynamo tools.

Now we can go to the revit file and see the wall in 3D view.
