Creating Bar Bending schedule, Different Door types, and Creation of standard drawing templates using AutoCad

AIM:- To Create Bar Bending schedule, Different Door types, and Creation standard drawing templates using AutoCad

INTRODUCTION:-

• Drawing template files are drawings that store styles, settings, layers, and layouts in a drawing including title blocks. When you create a new drawing based on a drawing template, the new drawing gets a copy of the styles in the template, but it is a one-time copy. Doors are drawn in plan view as a heavy line in small-scale drawings, or as a double line, to indicate their thickness, in large-scaled plans. A swing door has a thinner curved line drawn to denote the direction of its swing. The drawings of doors are drawn by the architects in the construction projects.
• Electrical symbols are used for universal recognition of the building plan by different persons who will be working on the construction. Not all possible electric symbols are used on a certain plan, so the symbols used in the current home plan are included in a legend. The electrical home plan may be added as a separate document to a complete set.
• Bar Bending Schedule is a definitive list of reinforcement bars for any structural element that includes a mark, shape, size, location, length, and bending details of the reinforcement. It is often referred to as BBS. Tabular view representation of each reinforcement bar used in any structural element is known as BBS.

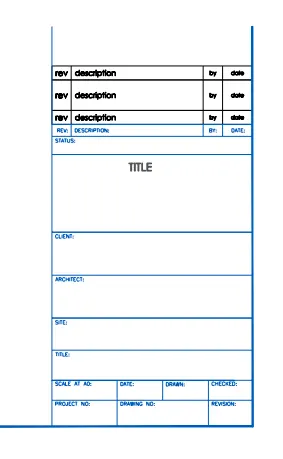

1) Create the templates as shown in the Figures. Take the size of the title block as per industry standards or you can assume it as per the size of the paper. Use text and attributes wherever required. After creating the title block you need to save it as a block with names: Custom1_titleblock and Custom2_titleblock, respectively.

Procedure:

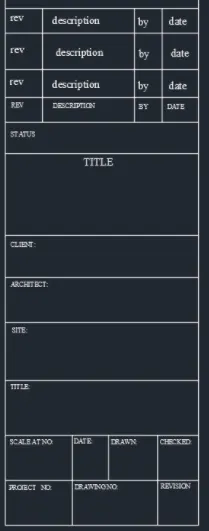

a) Custom 1_title block

• Create a rectangle of 66.63mm and 158mm.
• Divide the line for the text into columns.
• For rows take offset of 5,10,5,5,8,30,15,15,20,20,10,15mm.
• By multiline text, type rev, description, by date, the date on the first row by text height 2.5 and style as Times New Roman.
• Again use multiline text and type the required text in caps with text height 1.5 and style as Times New Roman.
• Now create the block using block command give the name as Custom 1_title block-select pick point and select a point in the table-select the object-select the whole table including the text.
• Select convert to block option and give scale uniformly and tick allow exploding.

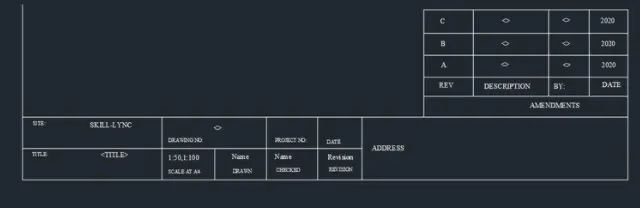

b) Custom 2_title block

• Draw a rectangle of 252 and 46mm.
• With lines divide the required rows and columns.
• Using multiline text insert the following height 2.5.
• Create a small rectangle at the right corner, explode it, create rows and columns.
• By attributes create the text inside it.
• Command "ATT"-attribute definition dialogue box appears.
• Create attributes similarly for the rest of the text.
• Now create the block using the block command with the name Custom 2_title block, select the whole title block and make it a block.
• After creating it as a block we can see that all attributes will change to their default values.

Result: Custom 1_title block and Custom 2_title block are created

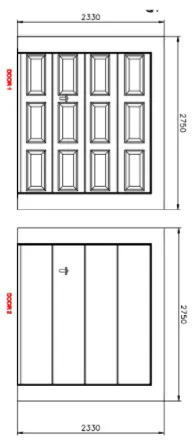

2) Create the doors type for the warehouse as shown in the Figure. You need to create each door type as per standard size or given dimensions. Create the blocks of this door type after creating them.

Procedure:

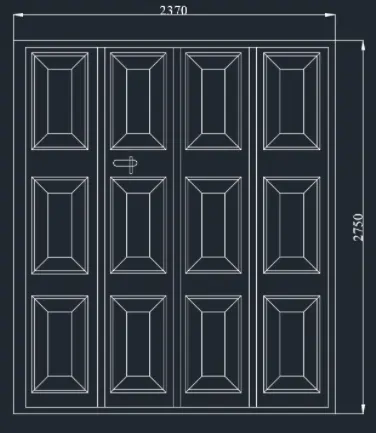

a) Door 1- 2330x2750mm

• Create a rectangle of size 2330x2750mm.
• Offset 50mm as a frame and 90mmfor the left side and explore the rectangle.
• Using the divide command divides the top line segment into 4 segments.
• From the division point draw line vertically to divide it into shutters.
• Offset 25mm on both sides for the thickness and delete the centerline.
• Now create a rectangle to show the panels.
• Offset 20mm from the 1st rectangle and offset 100mm from the 2nd rectangle.
• Draw lines joining the corners of the outside and inside the rectangle.
• Create the panel as a block.
• Array the panels, taking rectangular array, rows 3 distance between them 900mm and columns 4 distance between them 567mm.
• Create the lock by rectangular command and fillet the corners with a radius of 5mm.
• The layer is created and all the objects are kept in different layers.
• Create the block using block command and give name as door 1, select corner point, select object, select the full object.
• Select scale uniformly and allow exploding.

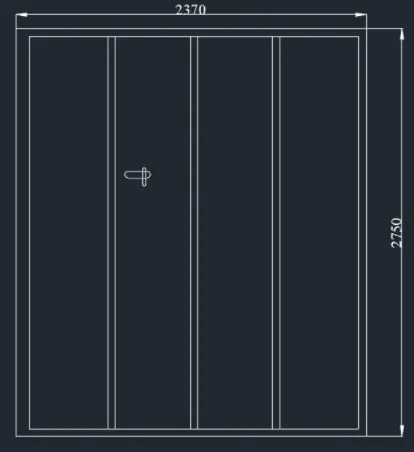

b) Door-2330x2750mm

• Create a rectangle of size 2330x2750mm.
• Offset 50mm as frame and 90mm for the left side and explore the rectangle.
• By divide, the command divides the top line into 4 segments.
• From the division point draw line vertically to divide it into shutters.
• Offset 25mm on both sides for the thickness and delete the centerline.
• The layer is created and all the objects are kept in different layers.
• Create the block using block command and give name as door 2, select corner point, select object, select the full object.
• Select scale uniformly and allow exploding.

Result:

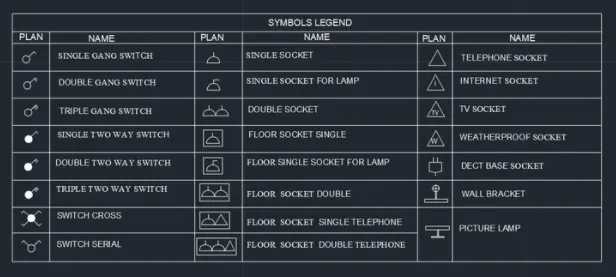

3) Create each symbol as a block with the name given in the legend. After creating the blocks arrange them in the legend as shown in the Figure.

Procedure:

a) Creating electrical symbols:

• Single gang switch: draw a circle of radius 64mm and with line draw an inclined line vertical line and horizontal line perpendicular to the inclines as required.
• Double gang switch: Draw a circle and draw two horizontal lines and a vertical incline line.
• Triple gang switch: Draw circle, 1 vertical line, and three horizontal lines.
• Single two-way switch: draw same as single gang switch and with donut command give internal dia as zero and for external diameter give 64mm.
• Double two-way switch: draw the same as double gang switch and create donuts.
• Triple two-way switch: draw same as triple gang creates a donut.
• Switch cross: create a circle and donut inside and with line command draws an incline vertical and perpendicular horizontal and mirror the line in both directions.
• Switch serial: copy the switch cross and delete two bottom lines, remove the donut also.
• Single socket: Create a circle, divide it into half and draw a line at the top.
• Single socket for the lamp: from the single socket, draw a horizontal line perpendicular to vertical.
• Double socket: draw the single socket and copy it to create and place it.
• Floor socket single: draw a rectangle surrounding a single socket.
• Floor single socket for the lamp: draw a rectangle surrounding a single socket for the lamp.
• Floor socket doubles: create two single sockets and place a rectangle surrounding them.
• Floor socket single telephone: draw a single socket, a triangle, and surrounded by a rectangle.
• Floor socket double telephone: draw 2 single sockets and a triangle surrounded by a rectangle.
• Telephone socket: draw a triangle.
• Internet socket: insert text "i" in the triangle.
• Tv socket: insert text"TV" in the triangle.
• Weatherproof socket: insert text"w" in the triangle.
• Dect base section: draw a rectangle, select the bottom grip point, select add vertex, and then pull the vertex to create a bend, and with lines draw the lines.
• Wall bracket: with rectangular draw the base, create a circle, draw a line connecting the rectangle and circle, draw a cross line inside the circle.
• Picture lamp: Draw two rectangles connected by a line.

b) Creating them as blocks:

• Give command B and give name as single gang switch, pick a point, select object, tick scale uniformly, and allow exploding options.
• Similarly, define each one of them as a block giving the respective names.

c) Creating and arranging them in layers:

• First, create a rectangular table having 10 rows and 6 columns.
• Place each of the blocks in the respective rows and columns.
• To enter text with the block from the insert tab, select field, select object, and finally select block.
• Place the text in the respective rows give text height as 100.
• Similarly, place all the titles inside the legends.

Result:

4) Create the door type for a residential building as a block. Save the name of the blocks as type. Use given dimensions or assume dimensions as per industry standards.

Procedure:

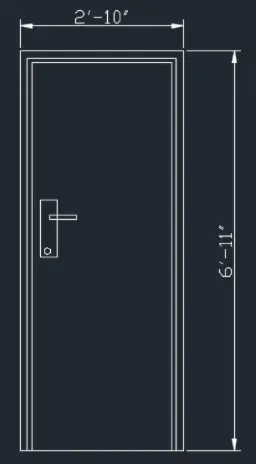

a) D1-2'10"x6'11"

• Draw a rectangle with dimension as 2'10"x6'11".
• Draw offset 1.5" for the frame then 1" for the shutter.
• Draw lock by two rectangles perpendicular to each other and fillet the corners with radius 0.1" circle.
• Write the text by multiline text" D1".
• Create it as a block "B" give name as type-D1- pick a corner point, select the object and then block is created.

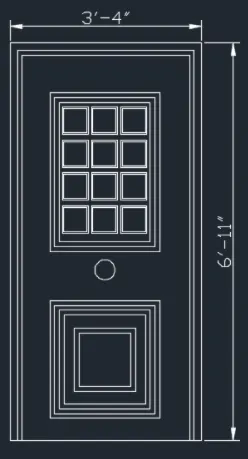

b) D2-3'4"x6'11"

• Draw a rectangle with dimension as 3'4"x6'11".
• Draw offset 1.5" for the frame then 1" for the shutter.
• Draw a rectangle for panels 1'11" and 2'9" then offset 1" two times.
• Draw rectangle of 5.4"x5.7" and offset 0.3".
• Copy the 3 rectangles to 4 rows.
• For the second panel draw a rectangle o 1'11"X2'6" and offset 1" 3 times.
• Draw another rectangle inside it of 1'0.8"x1'1.10" and offset 1".
• Draw lock by a circle in between the two panels.
• Write the text by multiline text "D2".
• Create it as block"B" give name as "type-D2" pick a corner point, select object.

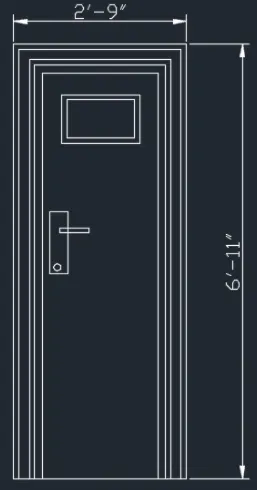

c) D3-2'9"x6'11"

• Draw a rectangle of 2'9"x6'11".
• Offset 1" for thickness,2" offset for the frame, and offset 1.5" as shutter thickness.
• Draw a rectangle at the top for ventilation 1'3"x9.3" and give offset 1" for thickness.
• Hatch the rectangle.
• Create it as a block-give name as type d3-pick point, select object, tick scale uniformly and explode all.

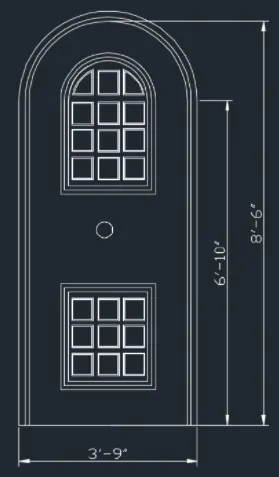

d) D4- 3'9"x8'7"

• Draw a rectangle of 3'9"x8'7".
• Explode it to create an arc with the 2 point method with both points as the endpoints.
• Offset the arc and the line with 1.5" and then offset 1".
• Offset 8" from arc and rectangle for panel and divide it into two.
• Take 1" offset 2 times to show thickness.
• Create the rectangle inside the panel.
• Make it as a block, name it as D4-pick a point and select object tick the uniform scale, and explode all.

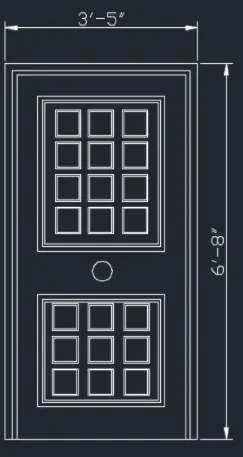

e) D5- 3'5"x6'8"

• Draw a rectangle of size 3'5"x6'8".
• Offset 1.5" for frame and 1" for shutter thickness.
• Create another rectangle with an offset of 4.4".
• Create another rectangle on the bottom 2'2.9"x2'2.6".
• Offset 1" two times for both the rectangles.
• Create the rectangle inside for panels with an offset of 0.5".
• Create it as block give name as type D5-pick point, select object, tick scale uniformly and explode all.

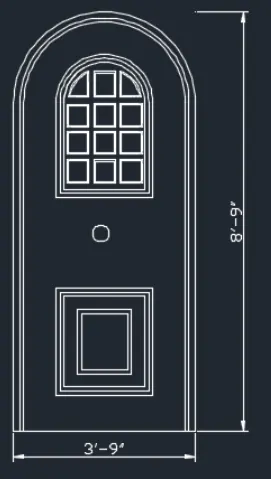

f) D6- 3'9"x8'9"

• Draw a rectangle of size 3'9"x8'9".
• Explode it and create an arc with the 2 point method with both points as the endpoints.
• Offset the arc and the line with 1.5" and then 1" for the frame.
• Offset 8" from arc and rectangle for panel divide it into two.
• Take offset 8" from arc and rectangle for panel and divide it into two.
• Take 1" offset 2 times to show the thickness on the top figure and bottom rectangle.
• Create rectangles inside the top panel,3 rows, and 4 columns.
• For the bottom panel offset the rectangles by 1" 3 times and 3.3" and again 1".
• Make it a block, name as type D6, pick a point and select the object tick the dialogue box of uniform scale and explode all.

Result:

5) Create each shape as a block as shown in the Figure. Save the block and insert them on the table as shown in the Figure.

Procedure:

a) Drawing each shape:

A-20mm

• Draw a line of 750cm for the straight bar.
• Create an arc for the bend. Create on one side and mirror it on another side.

B-16mm

• Draw a line of 300mm for the straight bar.
• Draw a vertical line of 41 cm and extend a horizontal line and draw a line inclined at 45 degrees from the base of the vertical line up to the horizontal line.
• Trim off the extra lines using the trim command.
• Copy the same on the other side.
• Draw a horizontal line of 139cm and copy it on the other side.
• Draw bend with arc and mirror the same on the other side.

C-16mm

• Draw a line of 210cm.
• Draw a vertical line of 41 cm and extend a horizontal line and draw a line inclined at 45 degrees from the base of the vertical line up to the horizontal line.
• Trim off the extra lines using the trim command.
• Copy the same on the other side.
• Draw a horizontal line of 180cm and copy it on the other side.
• Draw bend with arc and mirror the same on the other side.

D-12mm

• Draw a line of 750cm for the straight bar.
• Draw an arc downwards.
• Copy it on the other side.

E-10mm

• Draw a rectangle of 23cm and 43cm.
• Fillet the corner with a fillet radius of 5cm.
• Draw two lines of 120cm.

b) Creating each of them as a block:

• Command "B" gives a name as A-pick a point, select object, select delete, tick scale uniformly and explode all.
• Similarly, create 5 blocks: A, B, C, D, E and insert each of the bars as blocks.

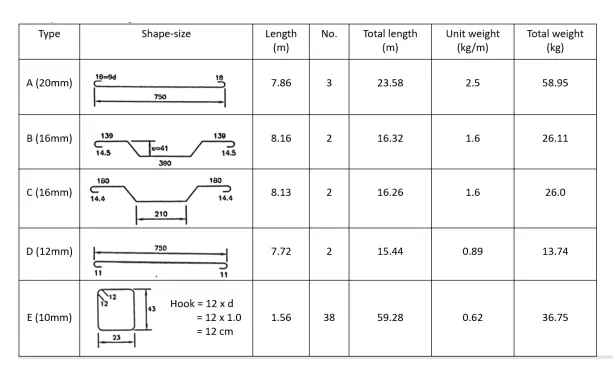

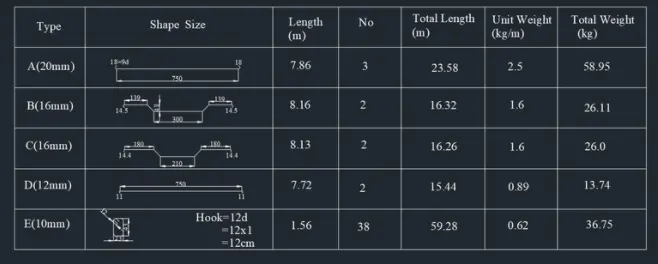

c) Inserting it in the table:

• Create a table with a rectangle and divide it into 6 rows and 7 columns.
• With multiline text enter type,shape size,length no,total length,unit weight,total weight.
• By insert command, inserts each of the blocks in respective columns.

Result:

CONCLUSION:-

In this extensively elaborated exercise, almost all the majorly used commands like – LINE, RECTANG, OFFSET, EXTEND, TRIM, CIRCLE, MIRROR, ROTATE, ARRAY, COPY, MOVE, ARC, PLINE, CIRCLE, TEXT, MTEXT, DIMLIN, DIMBREAK, LAYER, DIMSTYLE, PDFIMPORT, TABLE, BLOCK, EXPLODE to name a few. Apart from these other properties like the thickness of lines were also extensively use.
