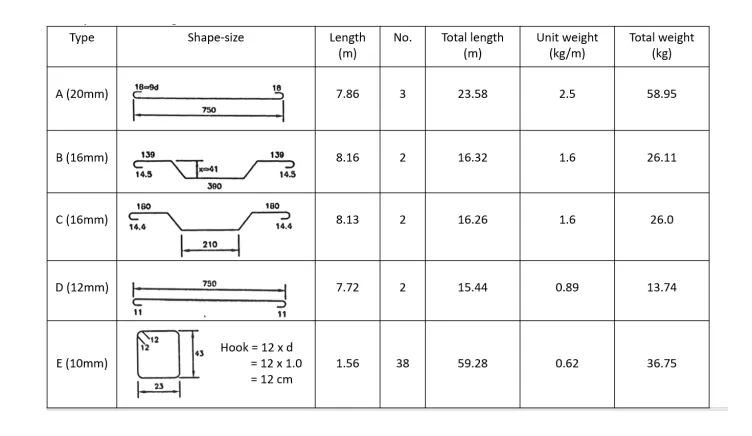

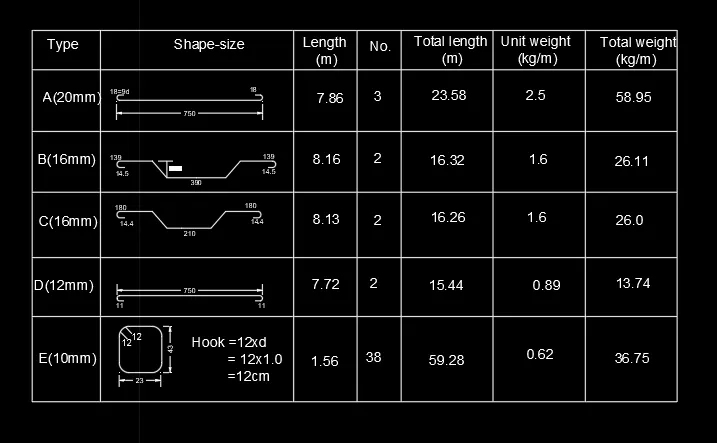

Creating Bar Bending schedule, Different Door types, and Creation of standard drawing templates using AutoCad

AIM

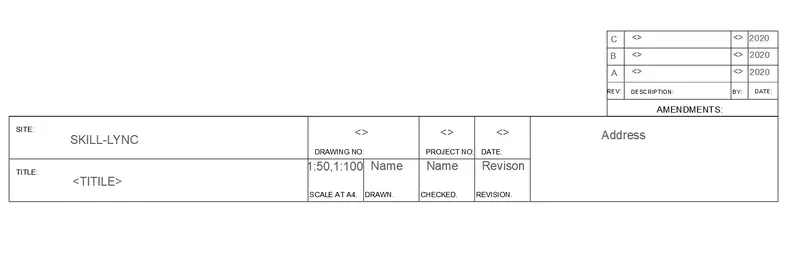

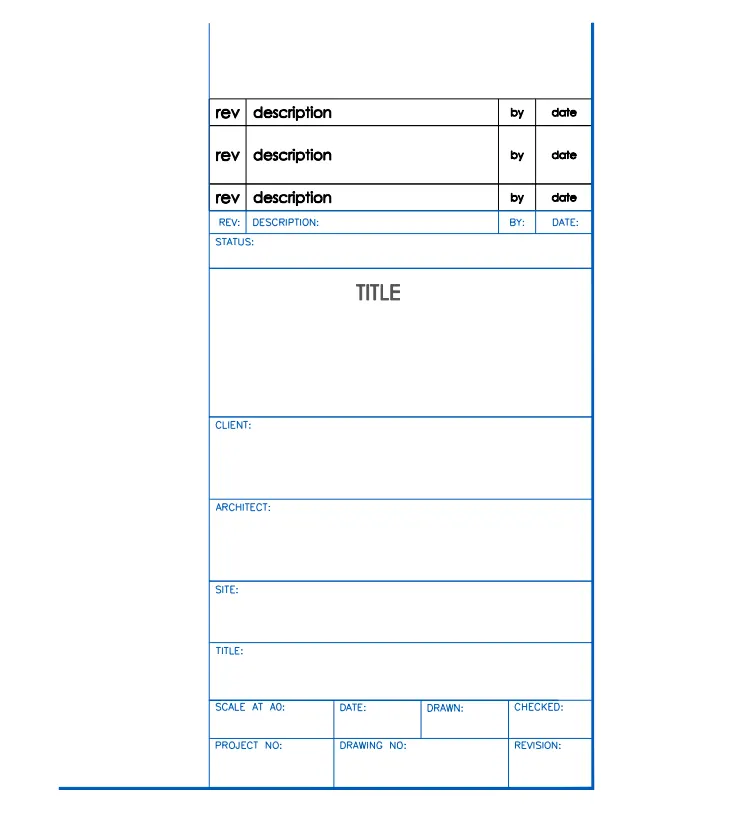

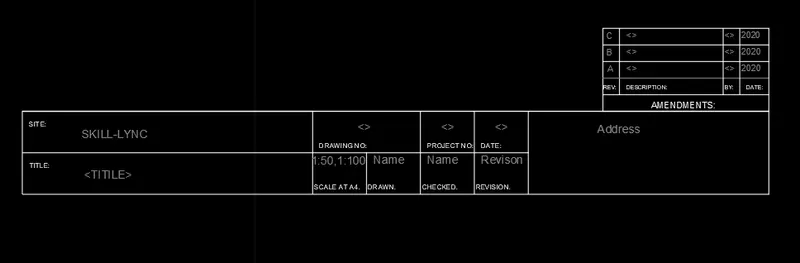

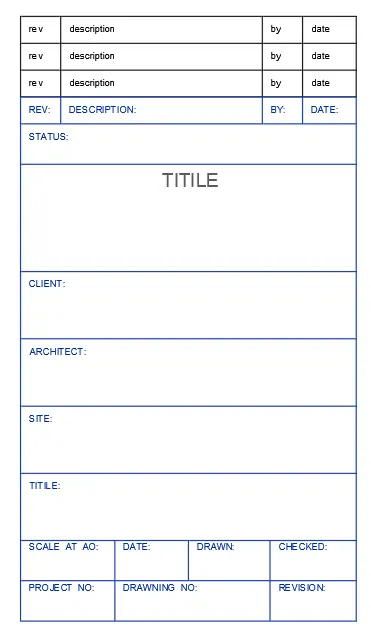

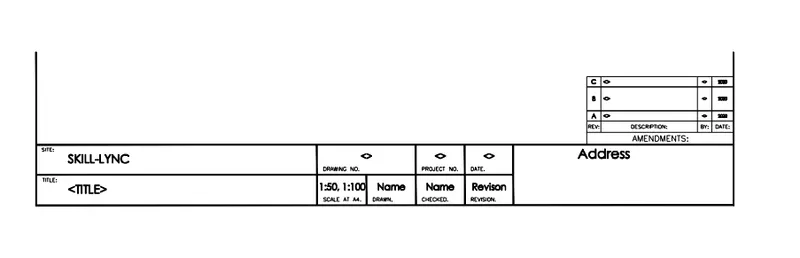

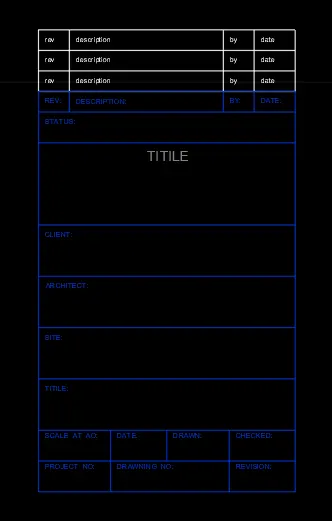

To create the templates as shown in Figures. Take the size of the title block as per industry standards or you can assume it as per the size of the paper. Use text and attributes wherever required. After creating the title block you need to save it as a block with names: Custom1_titleblock and Custom2_titleblock, respectively

INTRODUCTION

Here we are using block option

We can block the elements in AutoCAD and can use where we need using insert option

Here we are using line tool,offset tool,trim,construction line to draw the table

PROCEDURE

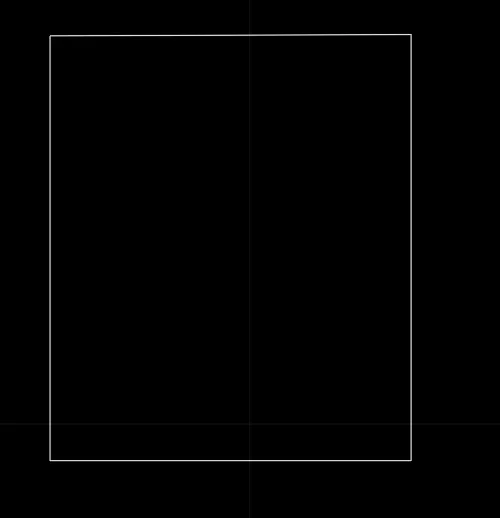

Step 1:Draw the table using line tool,offset tool,construction line

Step 2:Add the given data to the table

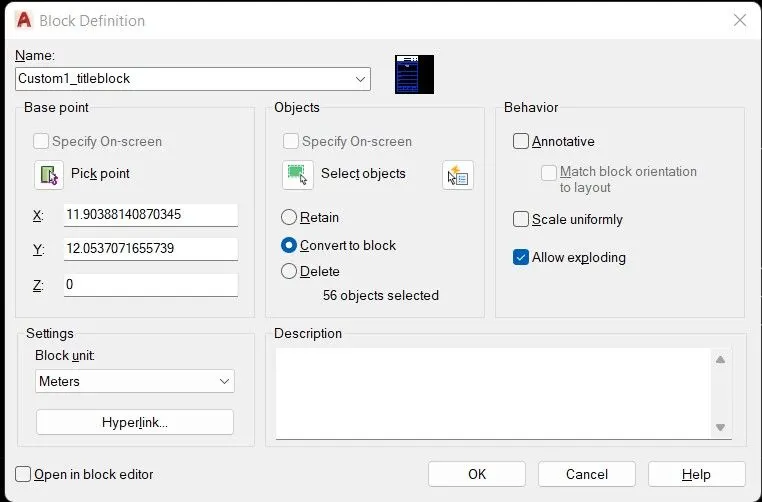

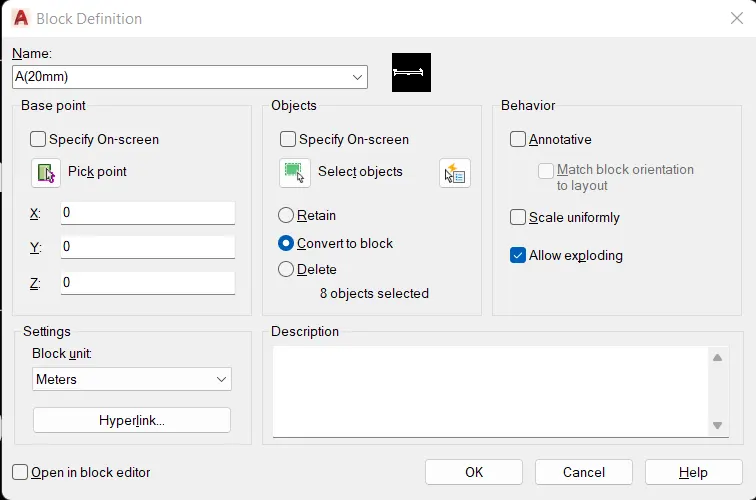

Step 3:Then use the command ‘B’ to block the elements

Select the object

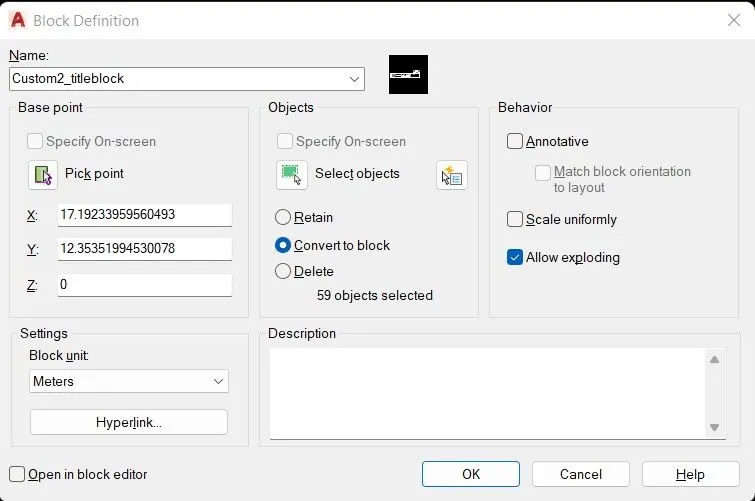

Enter the name ‘Custom1_titleblock’

Step 4:Draw the second table using line tool,offset tool,construction line

Step 5:Add the given data to the table

Step 6:Then use the command ‘B’ to block the elements

Select the object

Enter the name ‘Custom2_titleblock’

RESULT

AIM

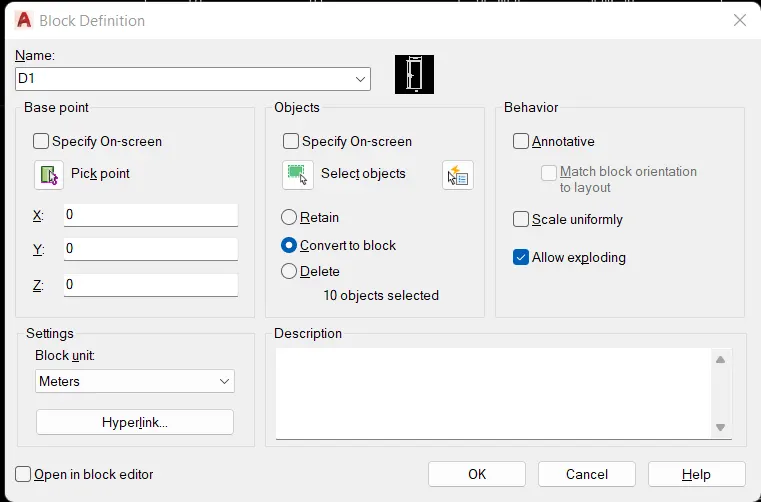

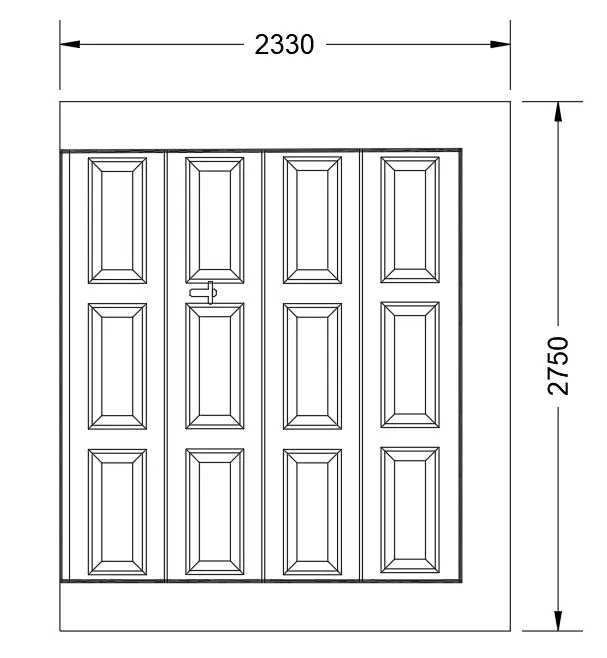

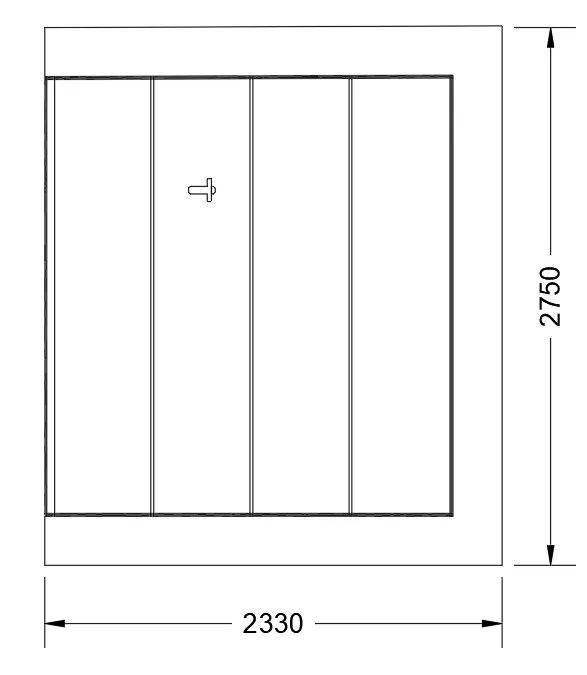

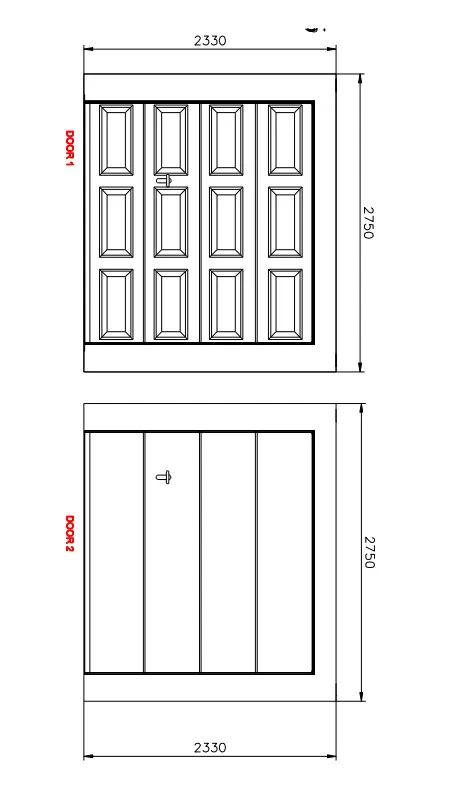

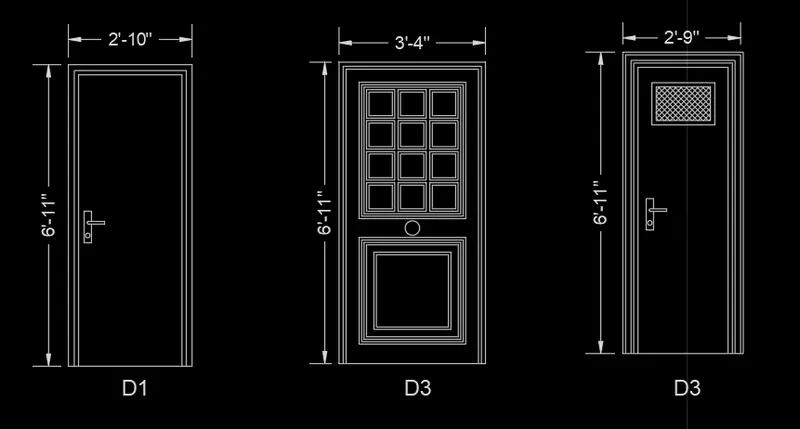

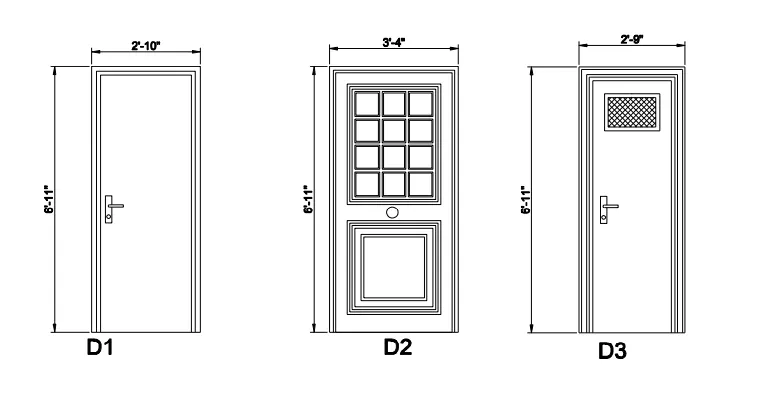

To create the doors type for the warehouse as shown in the Figure. Create the blocks of this door type after creating them

INTRODUCTION

Here we are using block

We can block the elements in AutoCAD and can use where we need using insert option

Here we are using line tool,offset tool,trim,construction line to draw the door

PROCEDURE

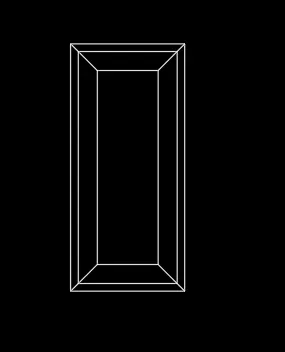

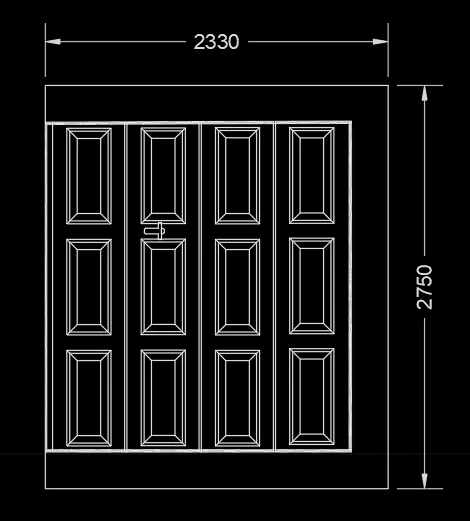

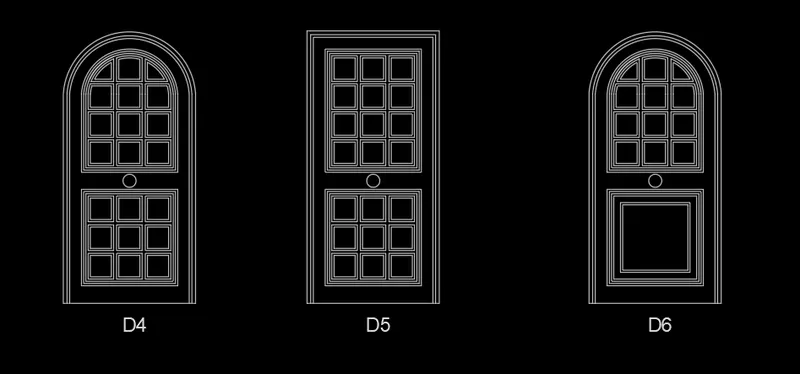

Step 1:Draw the door 1 outline

Step 2:Draw the door outerlines using line tool offset tool,construction line

Step 3:Draw the patern

Step 4:Copy and paste the paterns

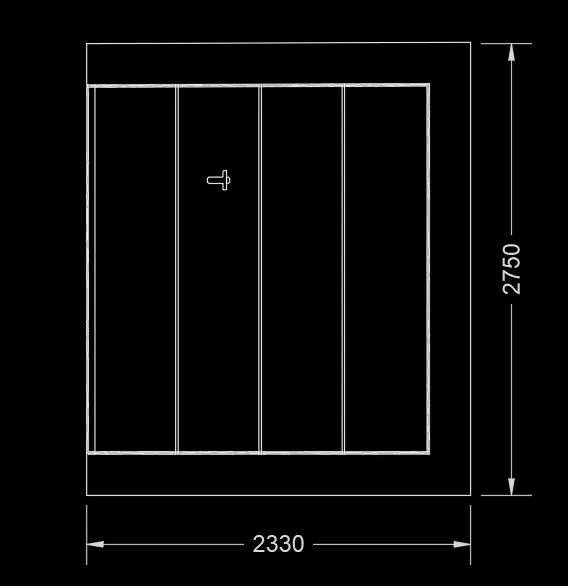

Mark the dimensions

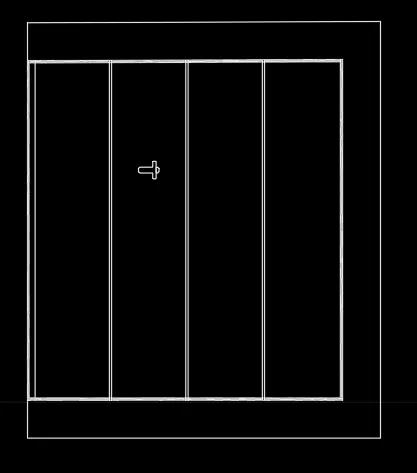

Step 5:Draw the door 2 outline

Step 5:Draw the door 2 using line tool offset tool,construction line

Step 6:Mark dimensions

RESULT

AIM

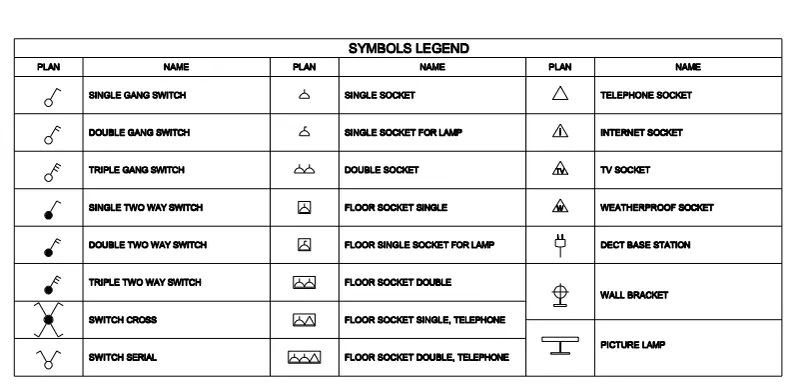

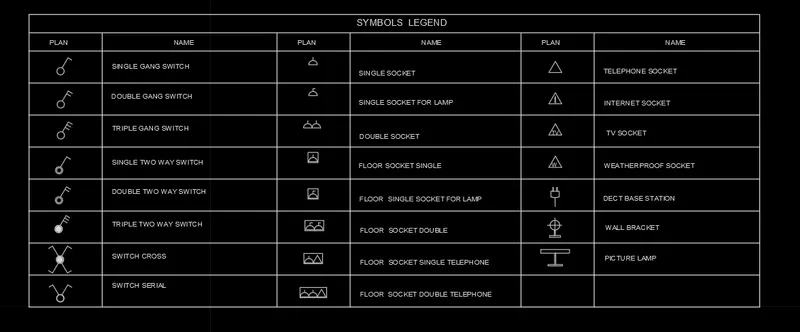

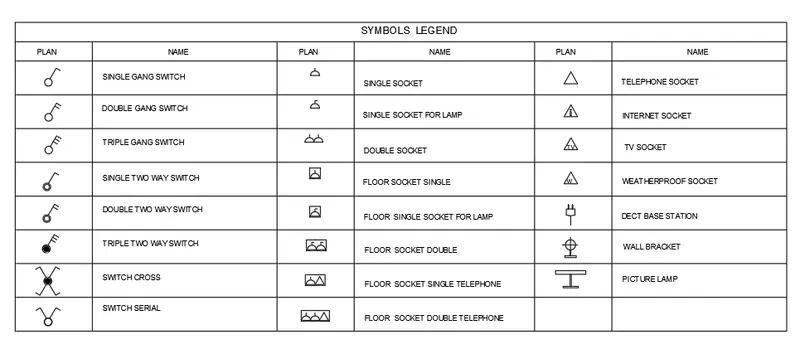

To create each symbol as a block with the name given in the legend. After creating the blocks, arrange them in the legend as shown in the Figure.

INTRODUCTION

Here we are using block

We can block the elements in AutoCAD and can use where we need using insert option

Here we are using line tool,offset tool,trim,construction line to draw the table

PROCEDURE

Step 1:Draw the table using line tool,offset tool,construction line

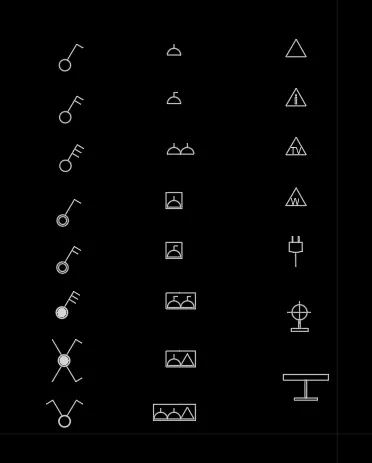

Step 2:Draw the symbols using line tool,circle,offset,hatch etc.

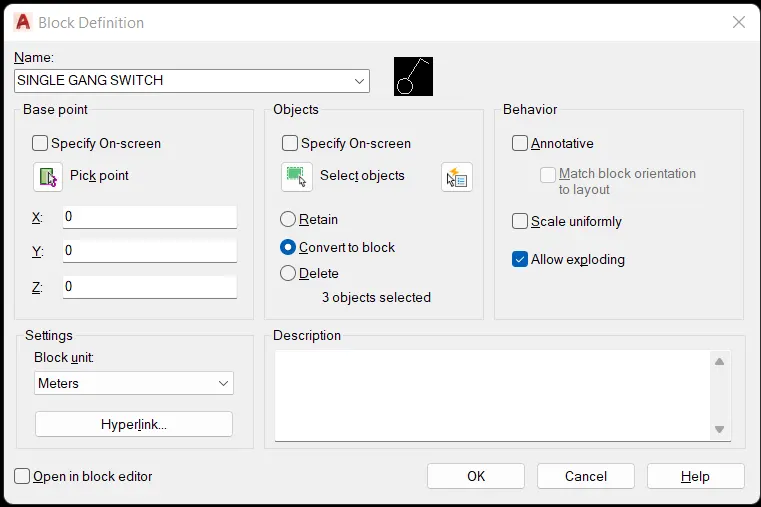

Step 3:Block the symbols

Add the name as in the figure

Step 4: Insert the block using insert option

RESULT

AIM

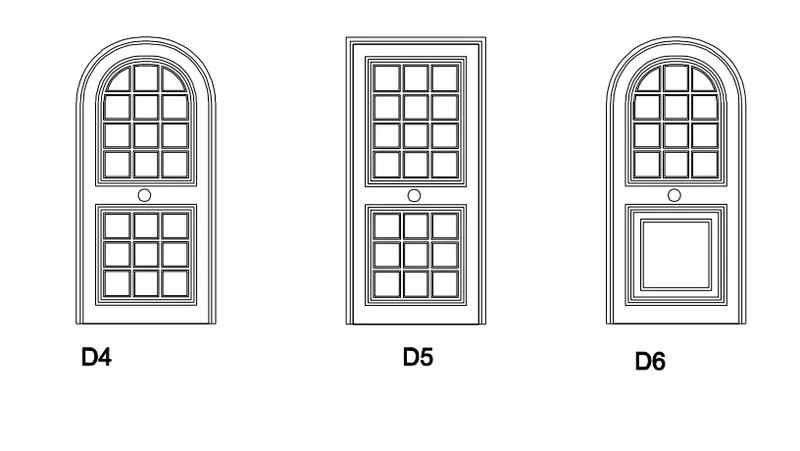

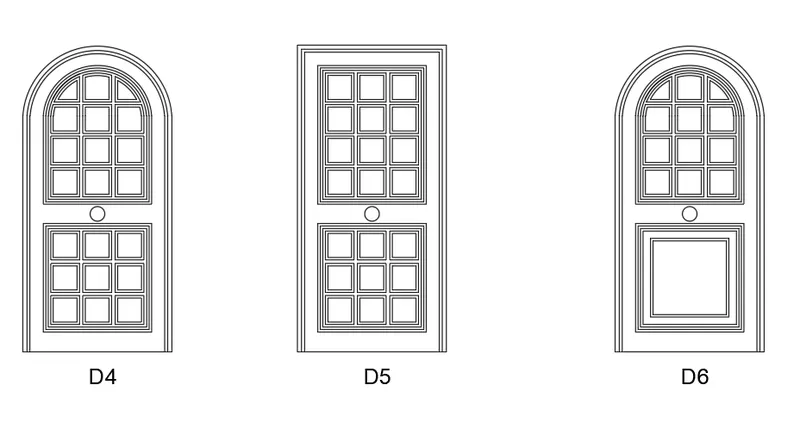

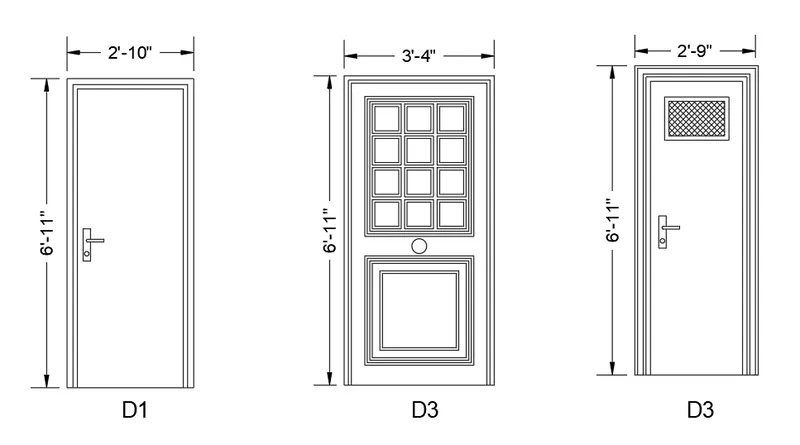

To create the door type for residential buildings as a block. Save the name of the blocks as type.

INTRODUCTION

Here we are using block

We can block the elements in AutoCAD and can use where we need using insert option

Here we are using line tool,offset tool,trim,construction line to draw the doors

PROCEDURE

Step 1:Draw the doors using line tool,offset tool,construction line

Step 2:Mark the dimensions

Step 3:Then block the doors one by one

Name the block as in the figure

RESULT

AIM

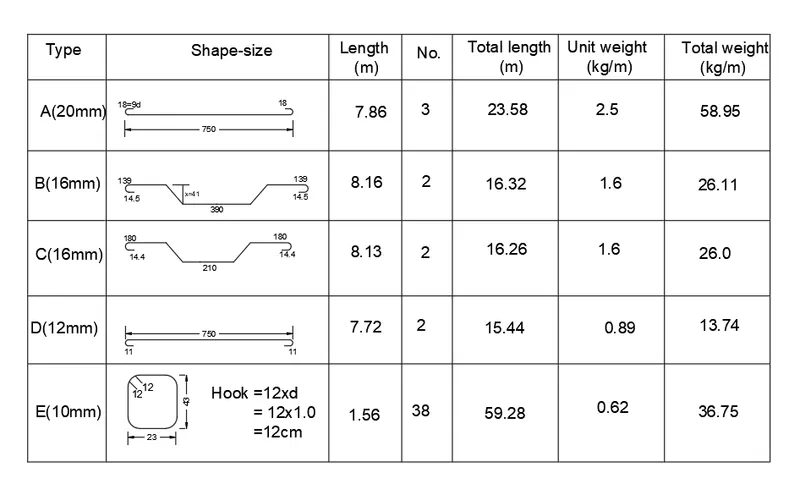

To create each shape as a block as shown in the Figure. Save the block and insert them on the table as shown in the Figure.

INTRODUCTION

Here we are using block

We can block the elements in AutoCAD and can use where we need using insert option

Here we are using line tool,offset tool,trim,construction line to draw the table

PROCEDURE

Step 1:Draw the table using line tool,offset tool,construction line

Step 2:Draw the symbols using line tool,circle,offset,arc etc.

Step 3:Block the symbols

Step 4:Insert it on the table

RESULT

RESULT

Here we studied about block

How to create legends

Insertion of block in the drawing
