Creating Architectural and Structural model with 3D rendering using REVIT
1) Select the type of structure you want to build from one of the three below:
a. Multi-Unit Residential Apartment
b. Office Buildings
c. School
Ans. In this poject I will choose Office Buildings
2) Assume reasonable assumptions for geographic and location details for your project modeling. Based on assumptions and type of structure selected identify the modeling requirements from NBC
Ans.
- The width of the road abutting the building is taken as 9m
- Plot size is taken 100 ft x 150 ft = 15000 Sq.ft and individual floor area is 12800 Sq.ft
- This is a business building, The FAR value shall be tken as 2.9
- The open space around the building shall nt be less than 4.5m

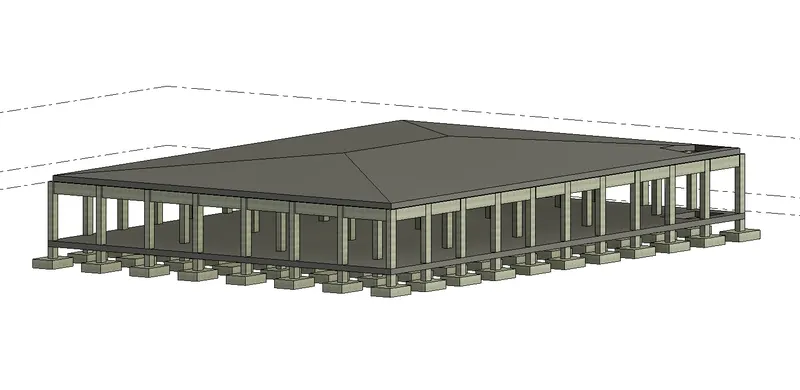

3) Using the structural model, include the following components based on the type of structure selected
a. Foundation – Isolated / Wall/Matt Foundation
b. Columns
c. Beams Connected to Columns
d. Roof Framing/ Truss
e. Floor / Decks
f. Floor Openings for Elevators and Stairs
Introduction : It is a process to add diffrent types of structural elements for the building
Procedure :
Open an structural model
by Structure > Footing / Column / Beam / Wall / Roof
4) Using the architectural model, include the following components based on the type of structure selected
a. Wall Layout with appropriate material and finishing
b. Exterior façade with fancy finish
c. Interior partition walls to size rooms
d. Components to add details to a room ( Desk, Chair, Lighting, Plumbing fixtures)
e. Add components such as stairs Elevators
f. Have at-least one side of the building with curtain walls and glass panels
g. Include interior and exterior lighting fixtures

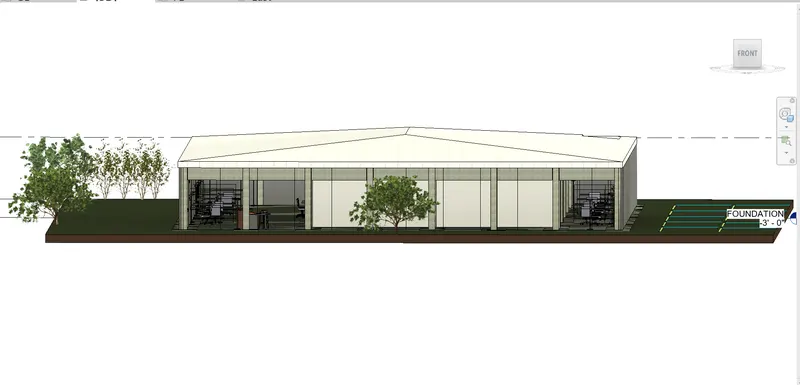

h. Place proper topographic components from outside ( Trees, Parking, Plants) to add details to the model
Introduction : It is a process to add diffrent types of architectural elements for the building
Procedure :
by Insert > load family > ( Use diffrent things like lightning, furniture)
by Massing and site > ( Toposolid, Tree )
5) Provide a set of drawings in an architectural and structural model to list the following details with categories and appropriate sheet templates included

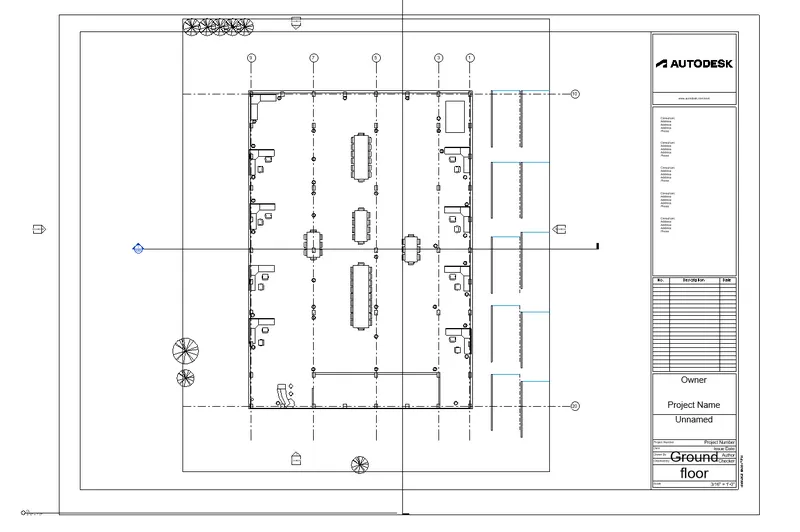

a. Floor Plans with Annotations

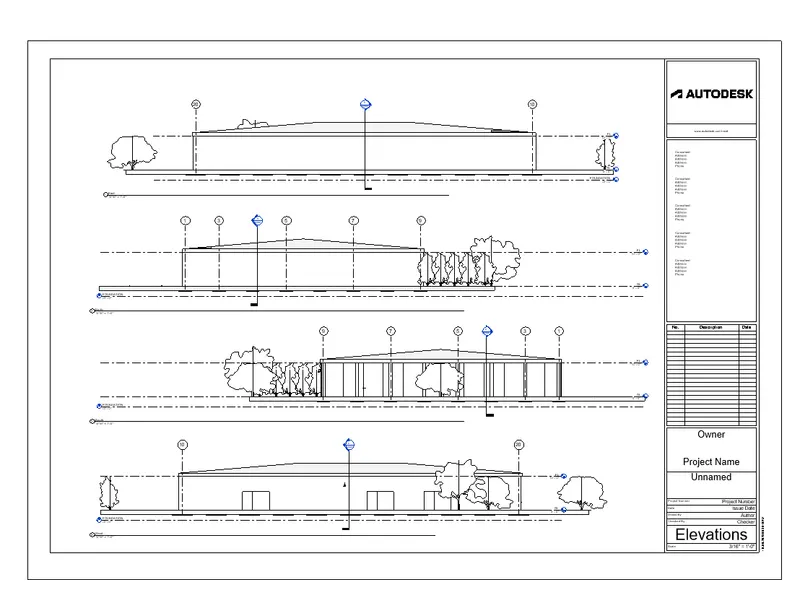

b. Elevations

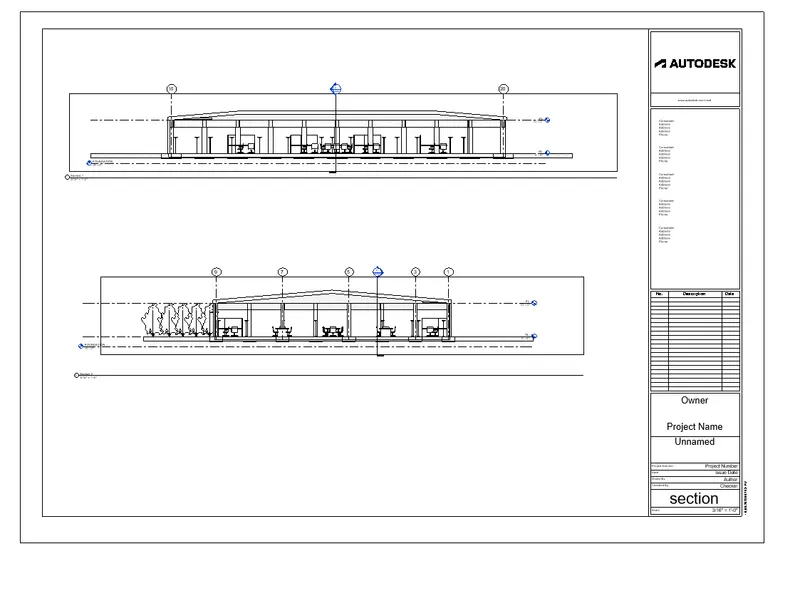

c. Sections
Introduction : It is a process to add diffrent sheets
Procedure is same like previous challanges
6) Using the Rendering settings, Render images of the 3D model produced and include the rendered images to the drawing sheets
a. Rendering from interior rooms
b. Rendering from out showing topographic features
c. Rendering through structural framing
Introduction : It is a process to make diffrente render views
Procedure is same like previous challanges
One Additional command for rendering is "RR"
7) Print the set of drawing sheets created and submit the drawings from the architecture and structure model
Ans. Attached Pdf file herewith
Introduction : It is a process to PRINT
Procedure :
CTRL + P
For pdf select pdf format otherwise print it.
