Creating Architectural and Structural model with 3D rendering using REVIT
1) Select the type of structure you want to build from one of the three below:
a. Multi-Unit Residential Apartment
b. Office Buildings
c. School
* I want to build the school building.
2) Assume reasonable assumptions for geographic and location details for your project modeling. Based on assumptions and type of structure selected identify the modeling requirements from NBC
AIM:
To assumptions for geographic and location details for project modelling.Identify the project modeling requirements from NBC.
PRCEDURE:

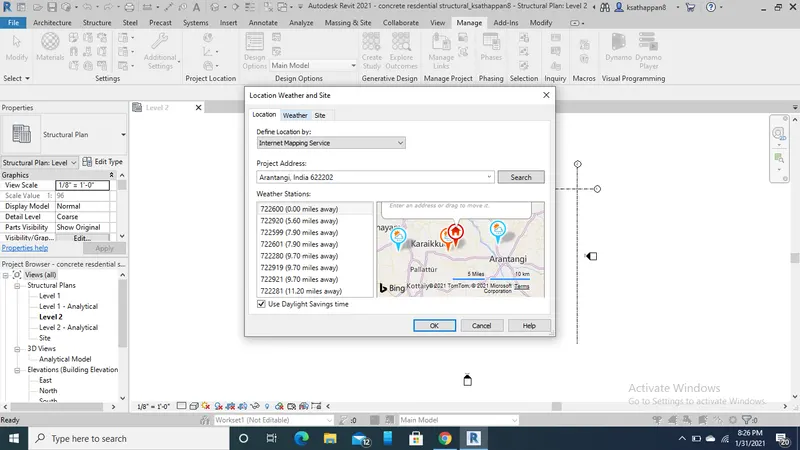

* Click the manage tap and open the location option add the location details for project site.
* Selected identify the modeling requirements from NBC for the selected project type.
* If a select the school project,check the ventilation,fire safty,emergency exit,staircase ,room size,
and check the importent function of the project from the NBC .
RESULT:
Assumptions for geographic and location details for project modelling.Identify the project modeling requirements from NBC.

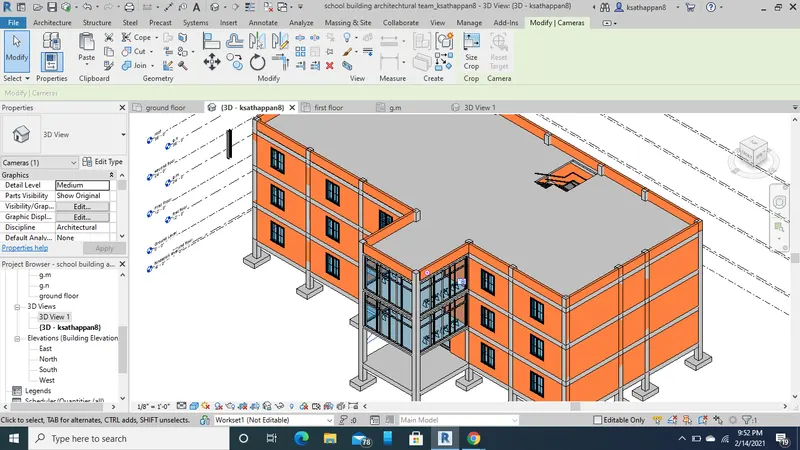

3) Using the structural model, include the following components based on the type of structure selected
a. Foundation – Isolated / Wall/Matt Foundation
b. Columns
c. Beams Connected to Columns
d. Roof Framing/ Truss
e. Floor / Decks
f. Floor Openings for Elevators and Stairs

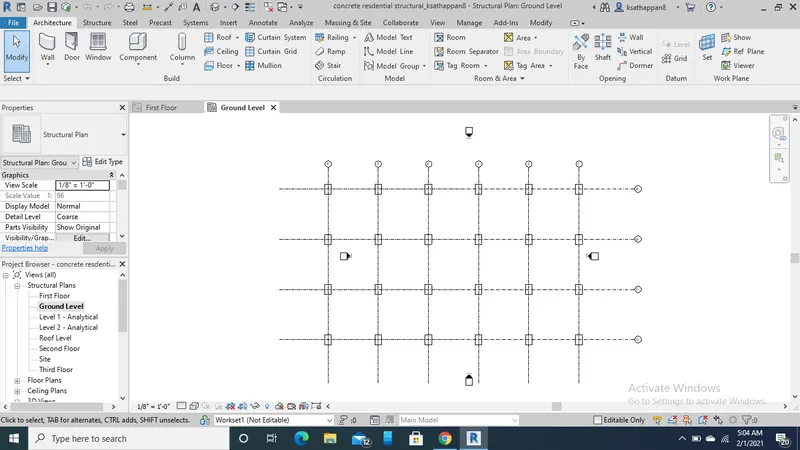

a. Foundation – Isolated / Wall/Matt Foundation
* Open the structural model and click the foundation option choose the type of foundation for different type of project
* Edit the foundation size in property browser window.
* Fix the foudation level

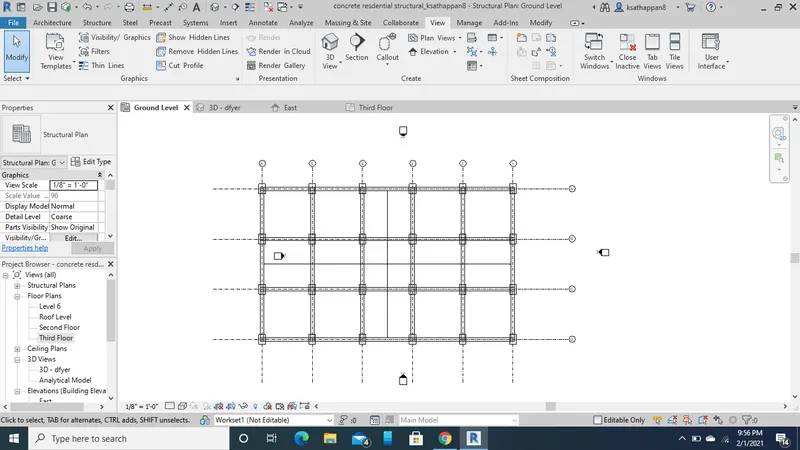

b. Columns

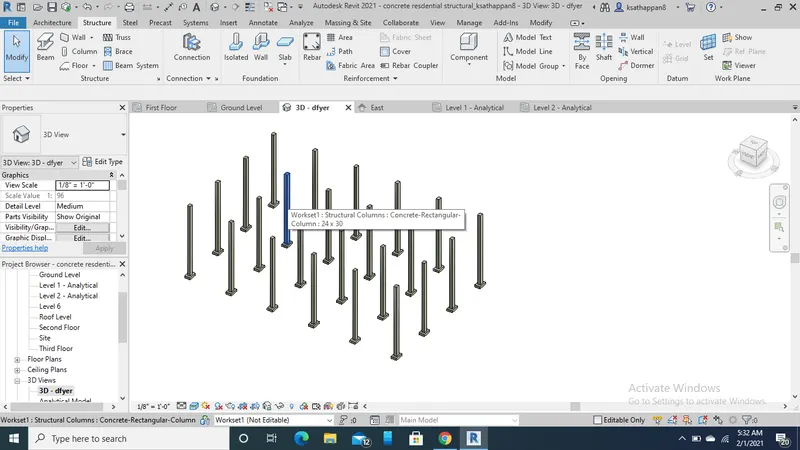

* Click the column tab and choose the column type.
* change the column size and type in property browser tap.
* change the levels of column
d. Roof Framing/ Truss
c. Beams Connected to Columns
* Open the beams option and select the beam type.
* Select the level for locate the beam.
* Edit the beam size in property browser.

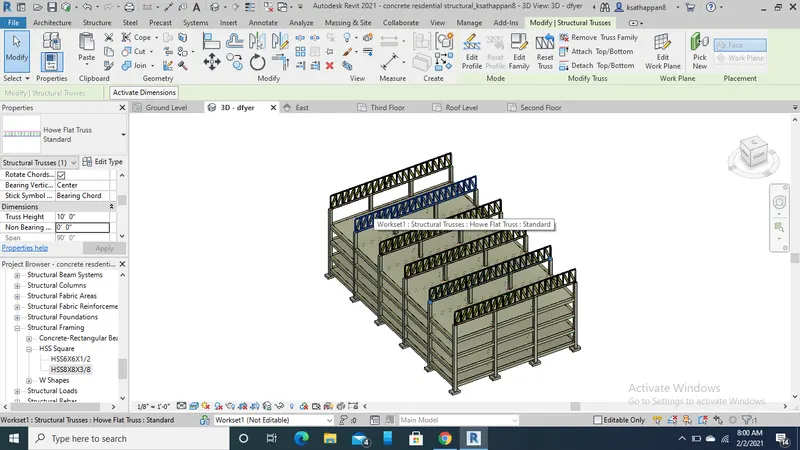

d. Roof Framing/ Truss
* Open the structural template and click the truss option
* modify the truss type and fonctions.t
* Draw the truss line in roof level.

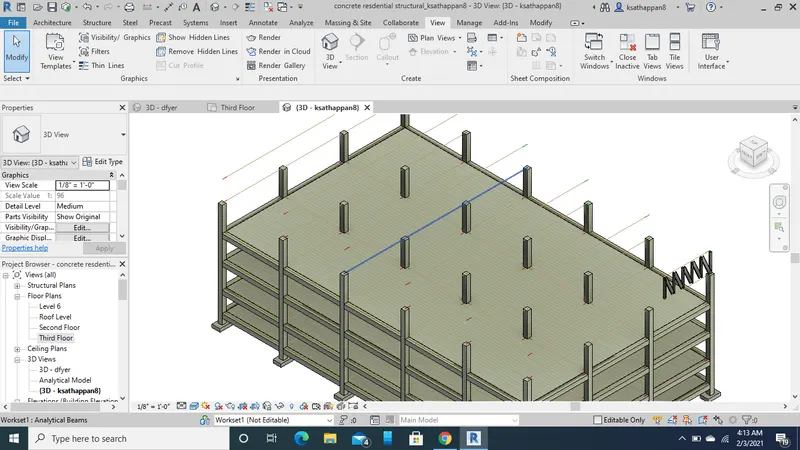

e. Floor / Decks:
* Click the floor option in structural template
* Modify the floor type and thickness.
* draw the floor line on the levels.
* If a need for multi floor click and copy the floor and past the levels
f. Floor Openings for Elevators and Stairs:
* Open the strectural model tap and click the shaft option.
* modify the shaft height level, draw the shaft boundary line.
* open the architectural model tap and click the stair family and modify the tread,rise size.
4) Using the architectural model, include the following components based on the type of structure selected
a. Wall Layout with appropriate material and finishing
b. Exterior façade with fancy finish
c. Interior partition walls to size rooms
d. Components to add details to a room ( Desk, Chair, Lighting, Plumbing fixtures)
e. Add components such as stairs Elevators
f. Have at-least one side of the building with curtain walls and glass panels
g. Include interior and exterior lighting fixtures
h. Place proper topographic components from outside ( Trees, Parking, Plants) to add details to the model

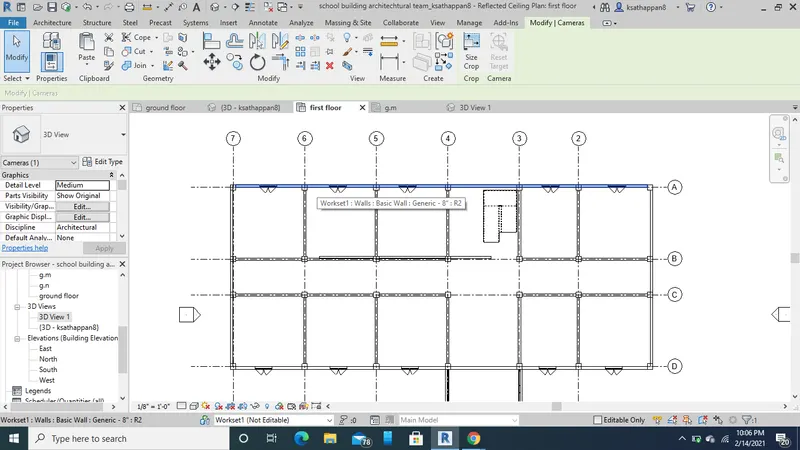

a. Wall Layout with appropriate material and finishing
* Open the architectural model tap and click the wall family
* choose the wall type and modify the meteriyal and finishing in property browser.
b. Exterior façade with fancy finish.
* exterial wall draw the exterior foudary of plan and modift the material for fancy finishing.
c. Interior partition walls to size rooms
* Draw the partition wall for requirement size of rooms
d. Components to add details to a room ( Desk, Chair, Lighting, Plumbing fixtures)

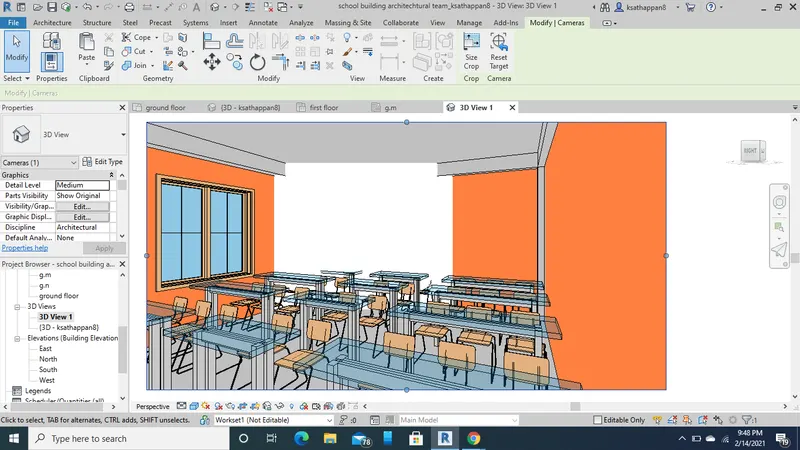

* Add the detail components for rooms of desk,chair,lighting etc.
* Insert the new familyes from revit family file

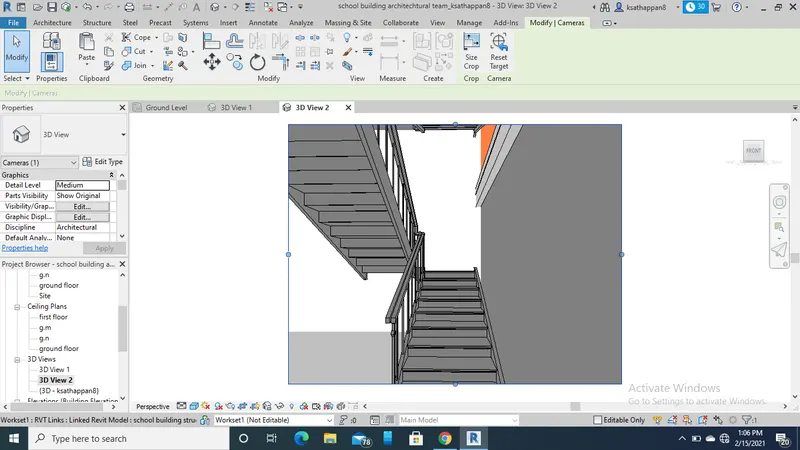

e. Add components such as stairs Elevators
* stair components for railing and stair handle stair post etc.

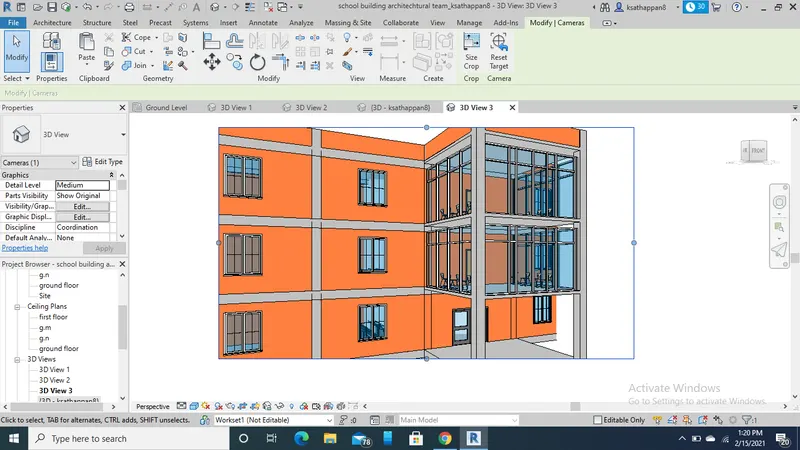

f. Have at-least one side of the building with curtain walls and glass panels
* Add the material for glass curtain wall and glass panels it's increase the project fancy elevation for beautyfull look for watch outside of building.
5) Provide a set of drawings in an architectural and structural model to list the following details with categories and appropriate sheet templates included
a. Floor Plans with Annotations
b. Elevations
c. Sections

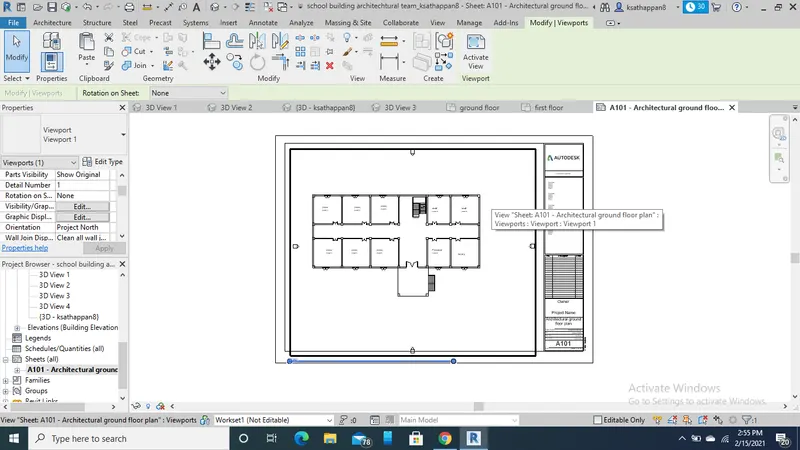

a. Floor Plans with Annotations

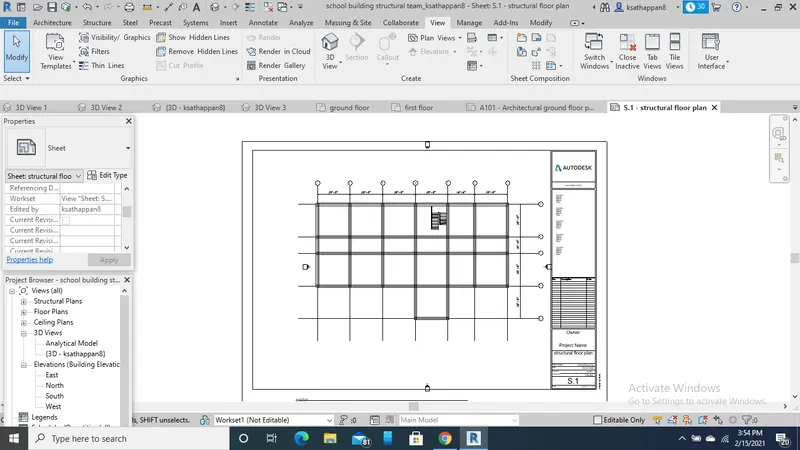

* Create a sheet template and add the both floor plan views.

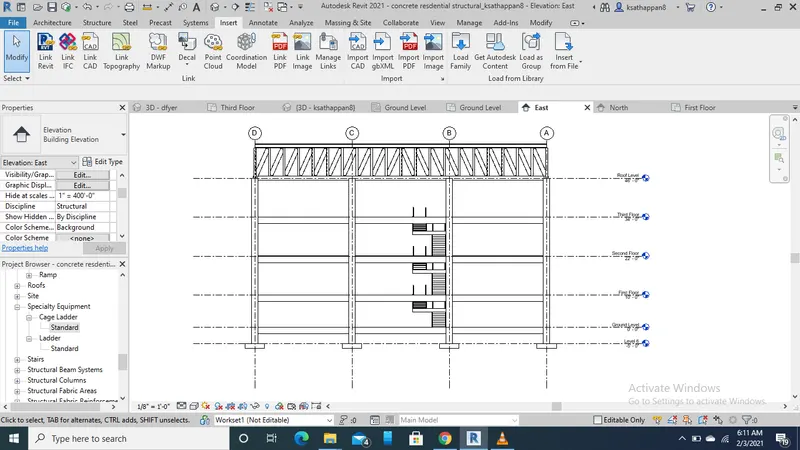

b. Elevations

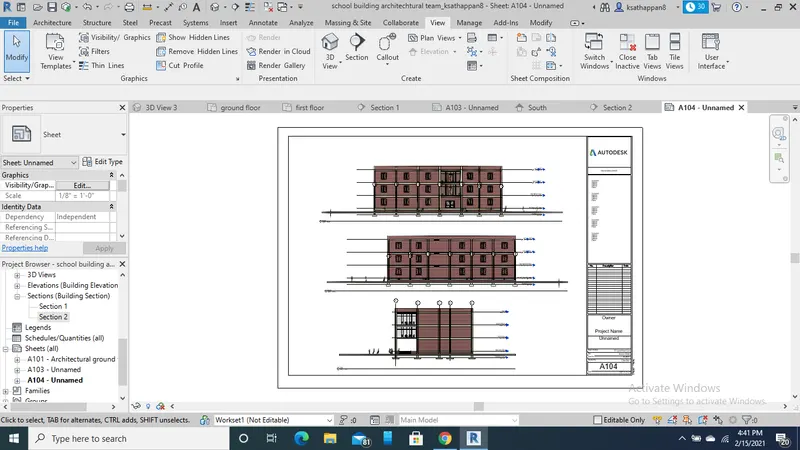

* Create the sheet template add the elevation views.

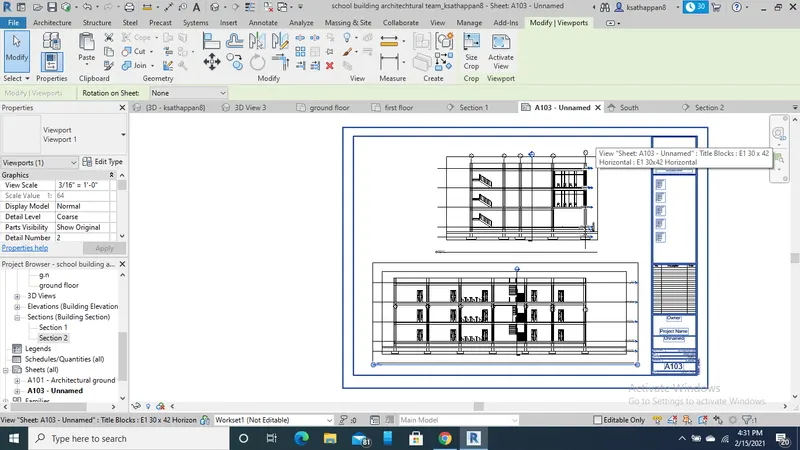

c. Sections
* Create the sheet template and add the section views.
6) Using the Rendering settings, Render images of the 3D model produced and include the rendered images to the drawing sheets
a. Rendering from interior rooms
b. Rendering from out showing topographic features
c. Rendering through structural framing

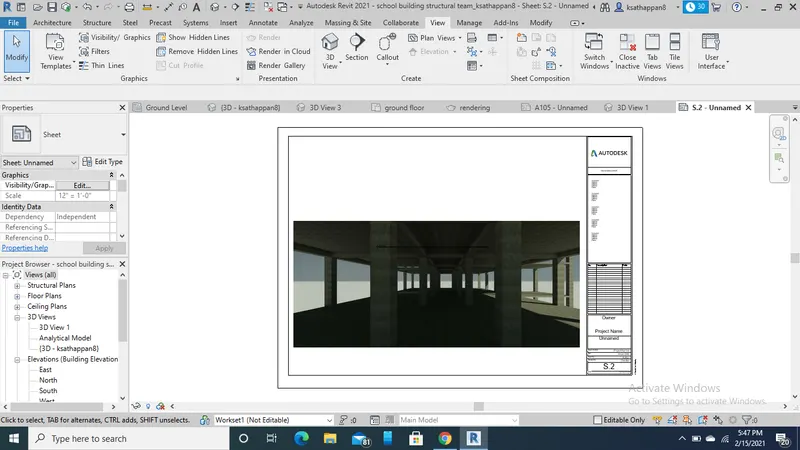

a. Rendering from interior rooms

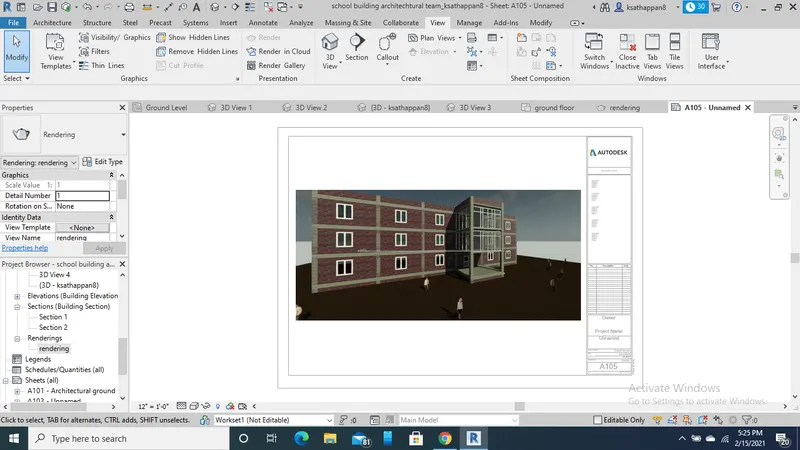

* rendering the inside of rooms and add the views in sheet template
b. Rendering from out showing topographic features
* Rentering the topographic features and add the views in sheet template .
c. Rendering through structural framing
* Rendering the structural framing and add the views in the sheet template.
7) Print the set of drawing sheets created and submit the drawings from the architecture and structure model

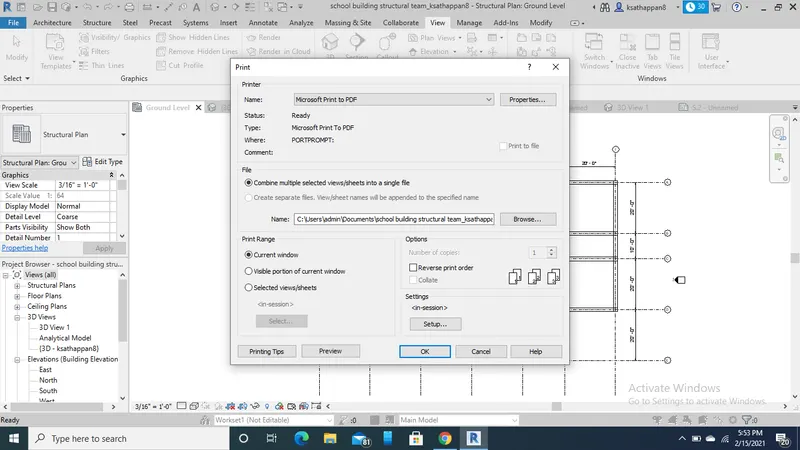

* Click the print option and select the view and select the paper size and click ok .
