Creating Architectural and Structural model with 3D rendering using REVIT

AIM : Creating Architectural and Structural model with 3D rendering using REVIT

PROCEDURE :

1) Select the type of structure you want to build from one of the three below:
a. Multi-Unit Residential Apartment
b. Office Buildings
c. School

ANS- type of structure have been chosen = b.OFFICE BUILDING

2) Assume reasonable assumptions for geographic and location details for your project modeling. Based on assumptions and type of structure selected identify the modeling requirements from NBC.

ANS-

- the assumed location is Nagpur, Maharashtra

- the open spaces around the building should not be less than 4.5m

- the width of the road abutting the building is taken as 9m

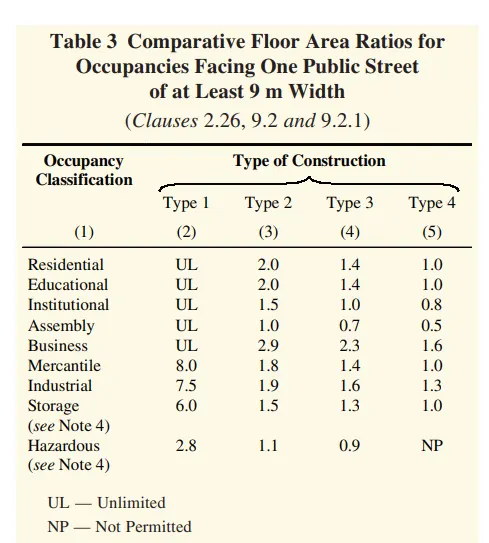

- floor area ratio for type 2 construction building is 2.9

- calculating floor area for project

- built up area = 64' x 38' = 2432 sq.ft

- plot area = 3500 sq.ft

- floor area ratio= total floor area of all floor of building / plot area

- the FAR of current project is less than 2.9m and within NBC limit

3) Using the structural model, include the following components based on the type of structure selected
a. Foundation – Isolated / Wall/Matt Foundation
b. Columns
c. Beams Connected to Columns
d. Roof Framing/ Truss
e. Floor / Decks
f. Floor Openings for Elevators and Stairs

ANS-

STEP-1

- open revit software

- select new > select structural template

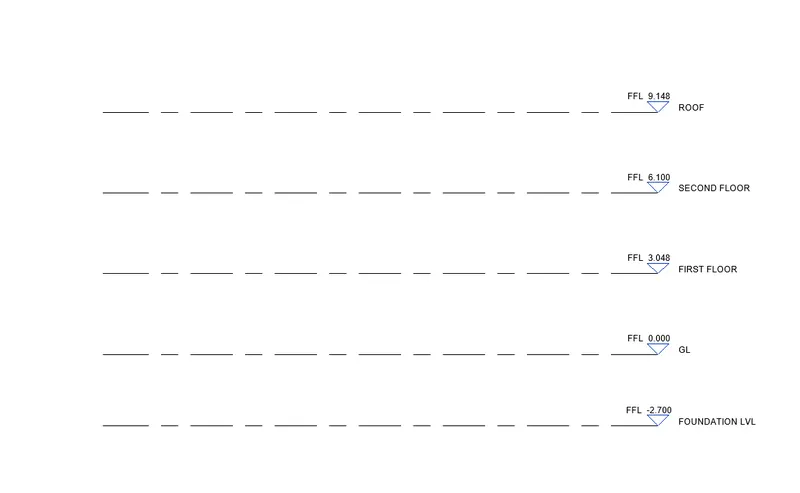

- first make the levels for project by making levels in elevation

STEP-2

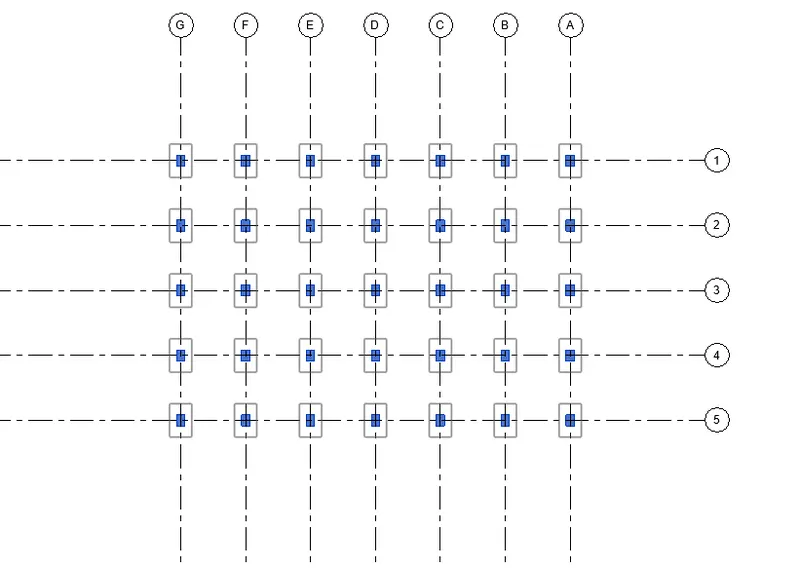

- make grids for project

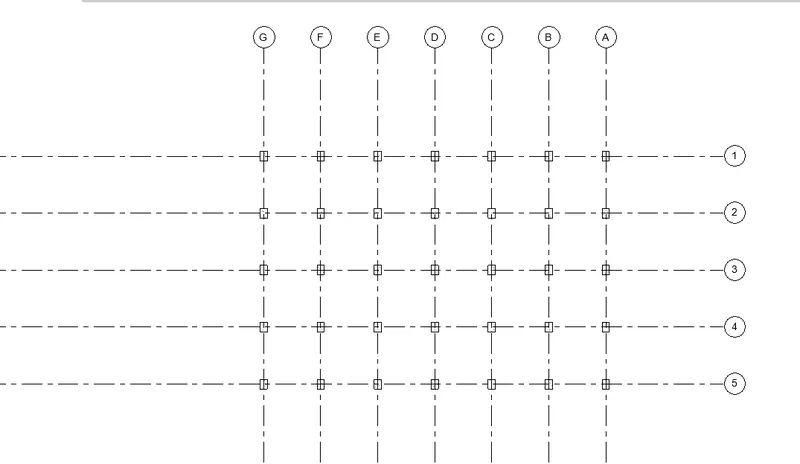

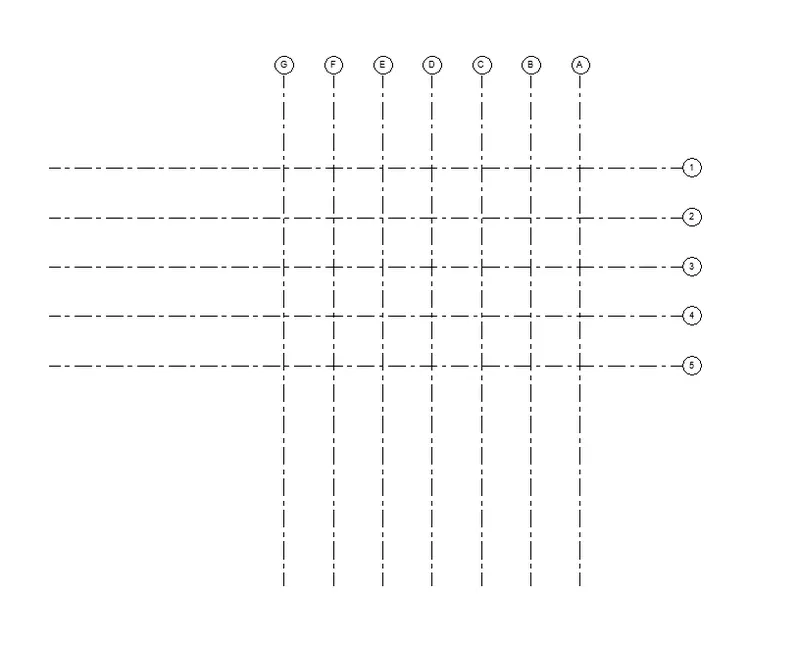

- go to structure > select grids > make vertical and horizontal grid

- go to manage > select coordinate > select specify coordinate at point

- give offset of 3.5m for every grid make grid out of it

STEP-3

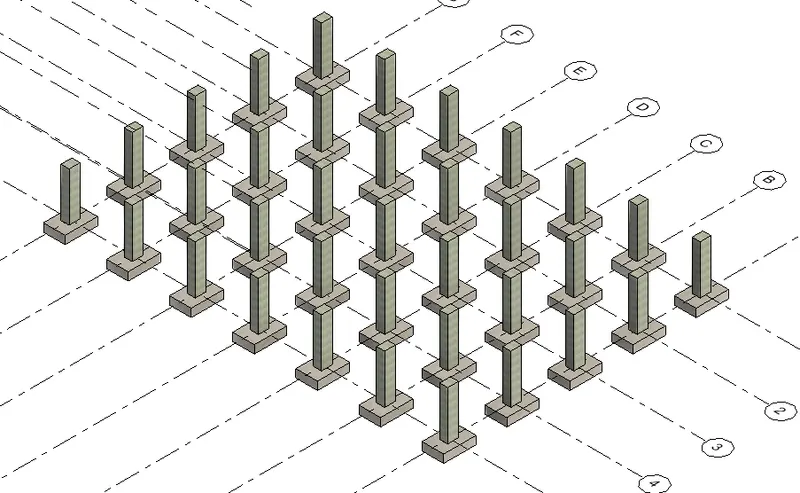

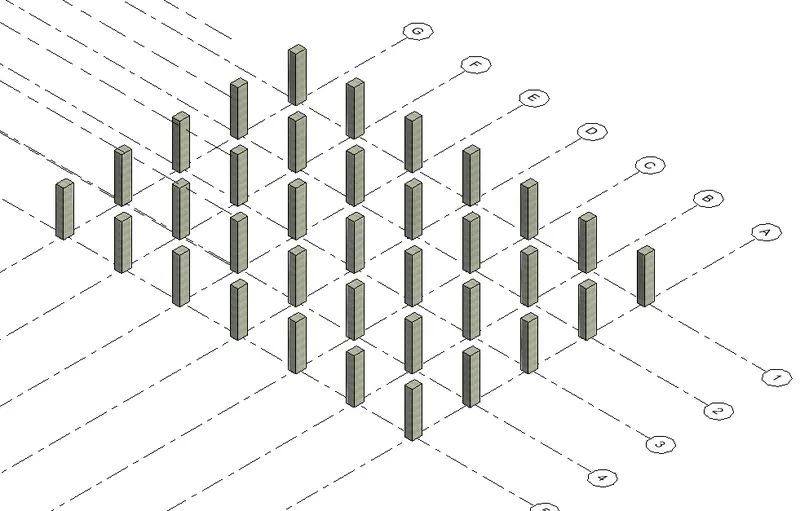

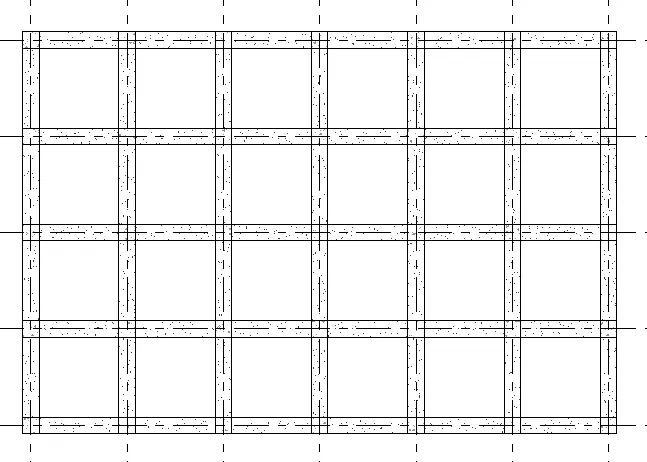

Provide column on grid intersection

- go to structure > select column > select column at grids > select grid point > finish

- we have provided column size as 600 x 600mm

STEP-4

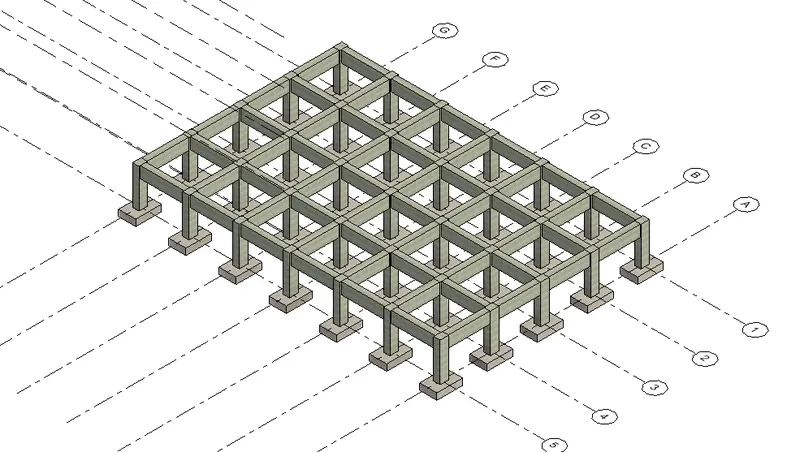

- we have Provided isolated foundation size 1800 x 1200

- go to structure select > isolated foundation > select column and finish

STEP-5

provide beam

- go to architecture select beam > select size of beam > join the beam to column

STEP-6 :

- provide floor to structure

- go to architecture > select floor > draw floor in floor plan

- i have select thr gf plan and copy to multiple level

- select the ground floor plan > copy to clipboard > allignedd to selected levels

STEP-7

Floor Openings for Elevators and Stairs

- we have provided opening for elevators or stairs using shaft option in structure tab

4) Using the architectural model, include the following components based on the type of structure selected
a. Wall Layout with appropriate material and finishing
b. Exterior façade with fancy finish
c. Interior partition walls to size rooms
d. Components to add details to a room ( Desk, Chair, Lighting, Plumbing fixtures)
e. Add components such as stairs Elevators
f. Have at-least one side of the building with curtain walls and glass panels
g. Include interior and exterior lighting fixtures
h. Place proper topographic components from outside ( Trees, Parking, Plants) to add details to the model

ans -

- open revit

- go to architrctural termplate

- copy the grids which were created in previous structural template and copied it

- with the help of paste from clipboard option paste the grid in the architectural template

- create levels for model

- go to elevation > select levels from architecture tab and make levels

- draw the exterior walls and interior walls as per plan and grids point

- select wall architectural for exterior wall we have taken 200mm wall and for interior wall 150mm.

- by using edit type we have selected material for walls

- insert doors, windows and components such as desk, chair, fan, light and plumbing fixtures

- we have inserted elvators for office use

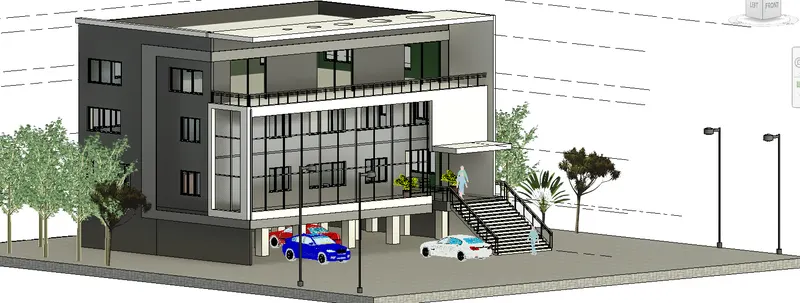

- we have provided glass panel and curtain wall at front face of building

- provided interior lighting fixtures to ceilings

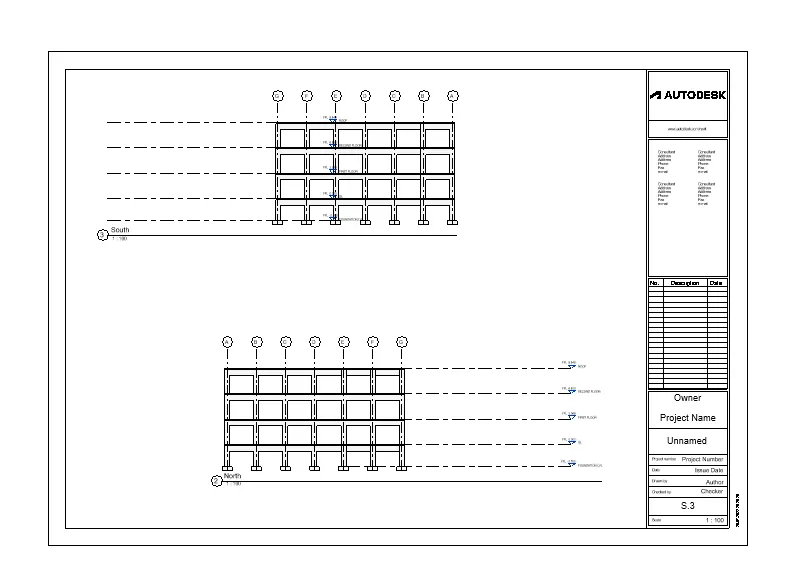

5) Provide a set of drawings in an architectural and structural model to list the following details with categories and appropriate sheet templates included
a. Floor Plans with Annotations
b. Elevations
c. Sections

ANS-

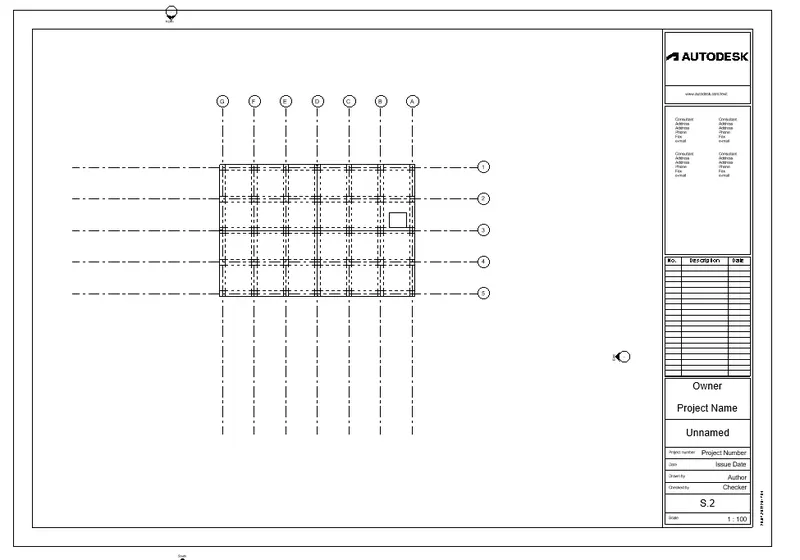

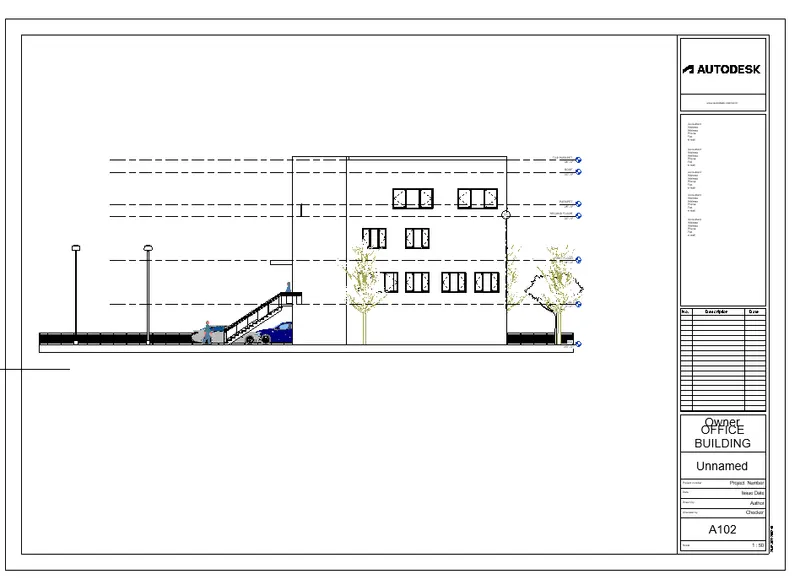

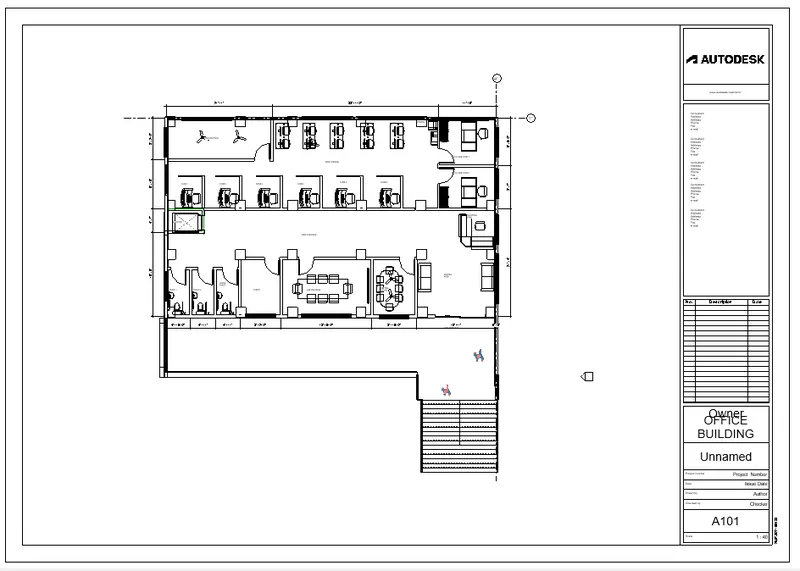

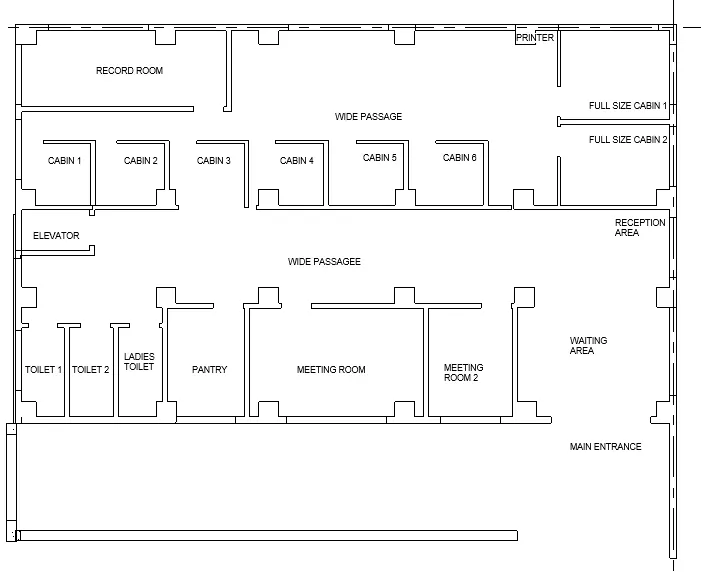

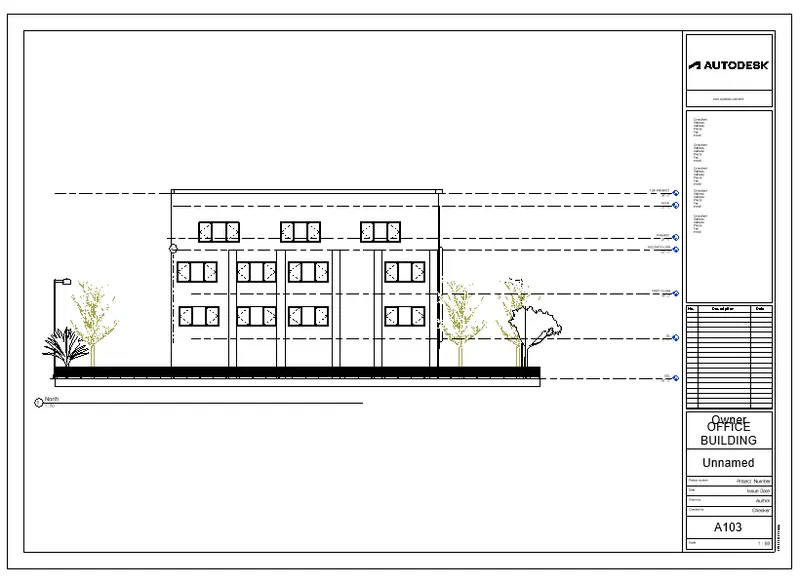

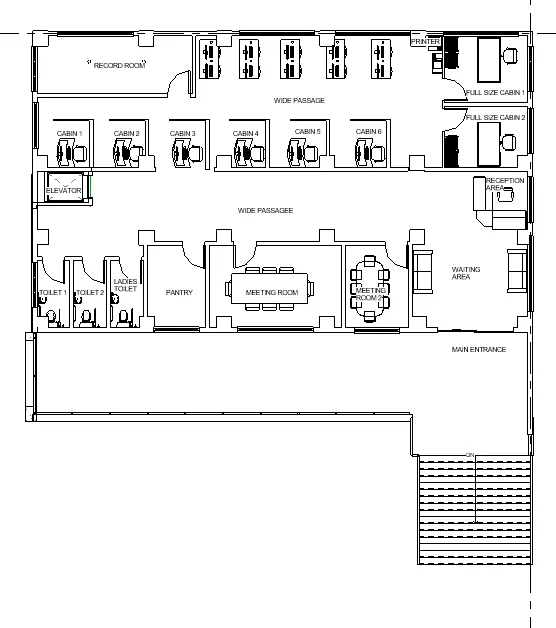

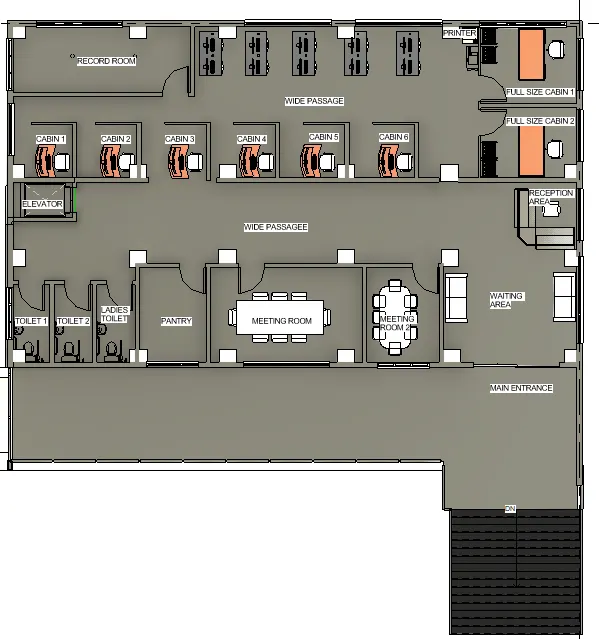

a. Floor Plans with Annotations

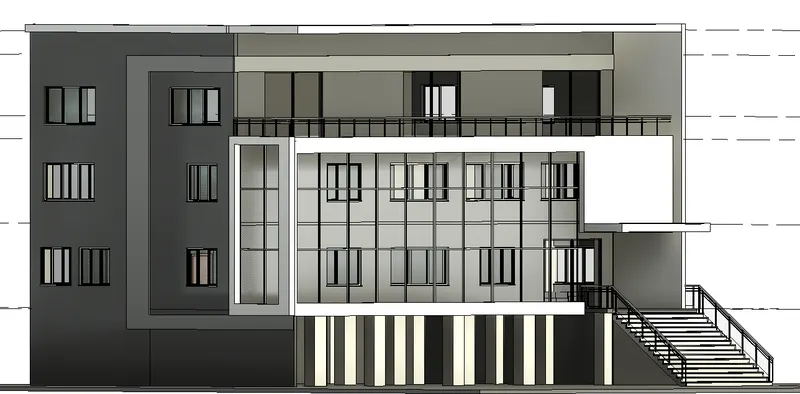

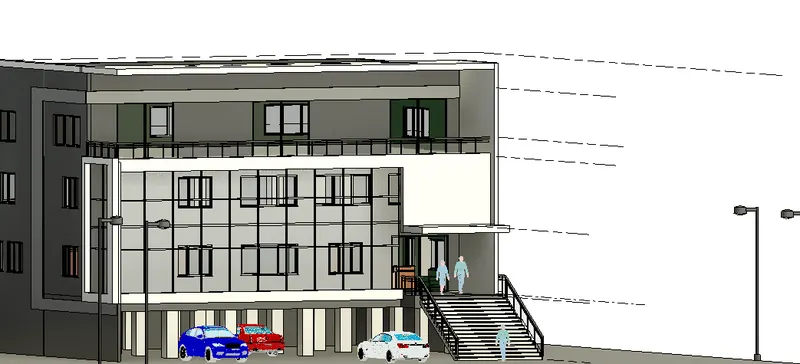

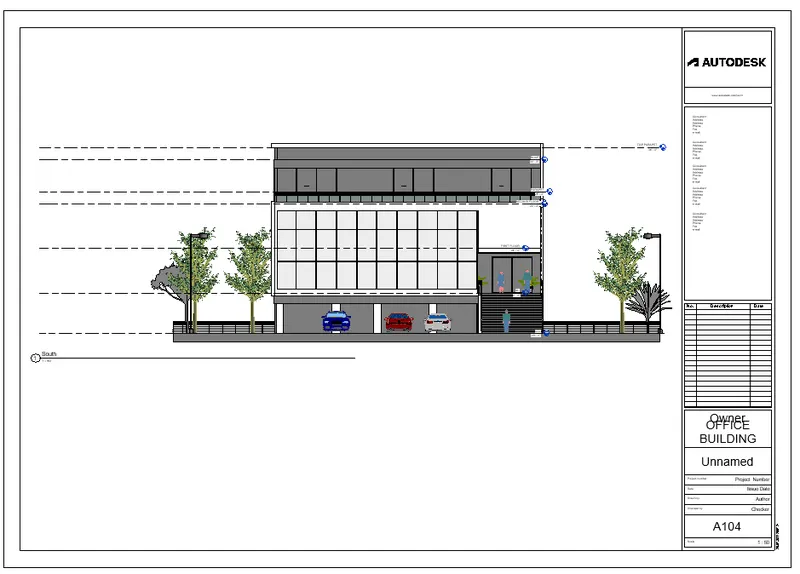

b. Elevations

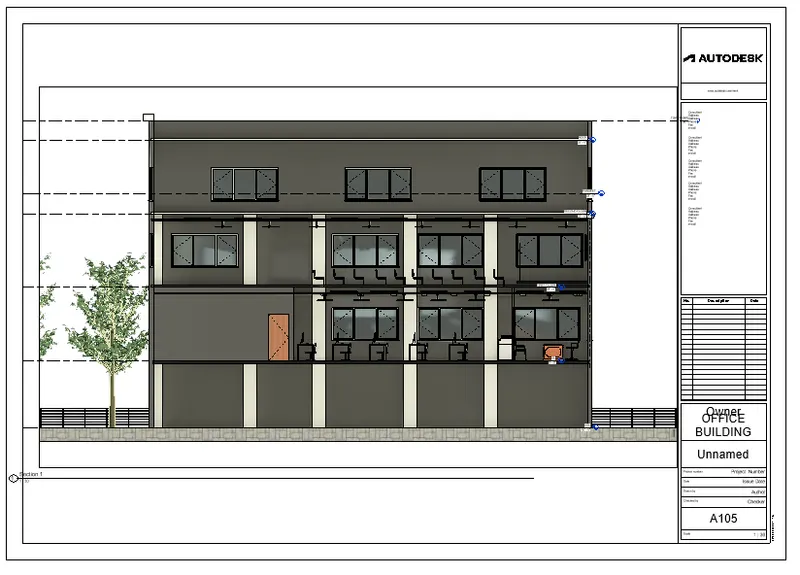

c. Sections

6) Using the Rendering settings, Render images of the 3D model produced and include the rendered images to the drawing sheets
a. Rendering from interior rooms
b. Rendering from out showing topographic features
c. Rendering through structural framing

ans-

- go to view and select position of view which wee want to render

- go to view tab > select render

- after rendering save the images with name

- go to view tab > select sheet

- drag the view from project browser into the sheets

- adjust the scale

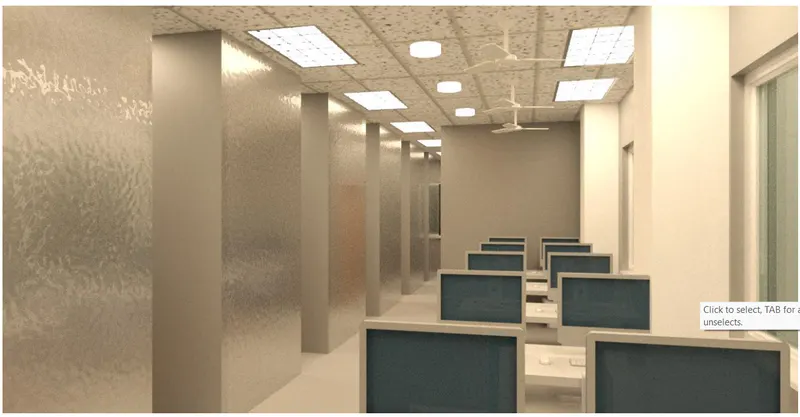

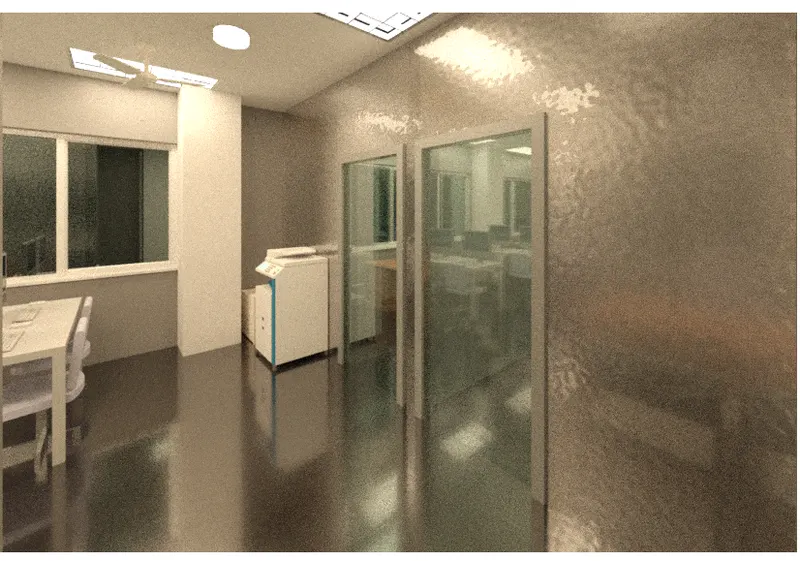

a. Rendering from interior rooms

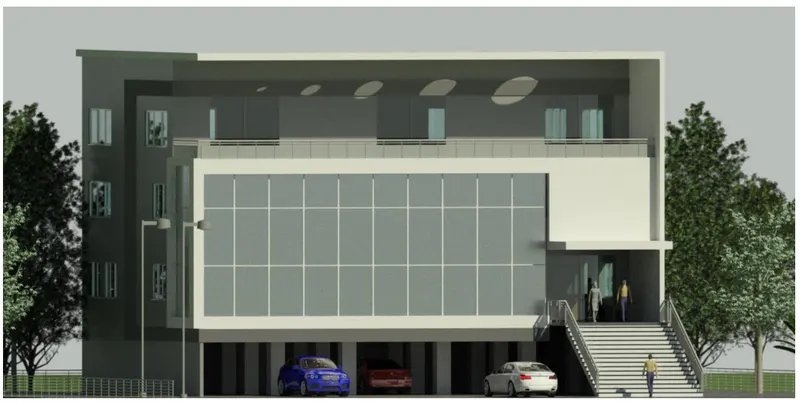

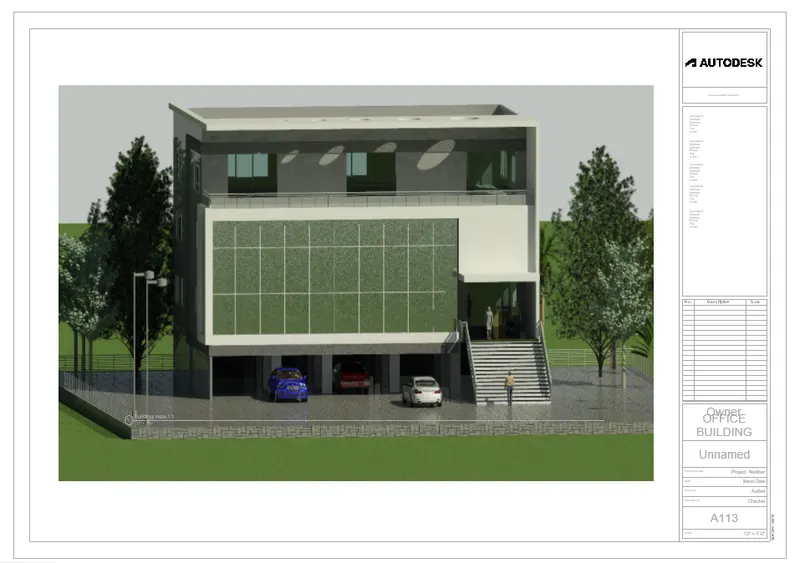

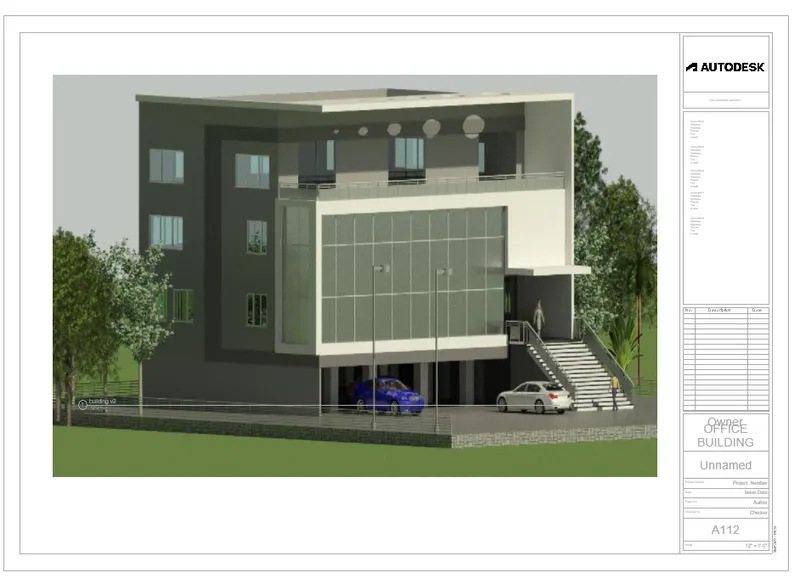

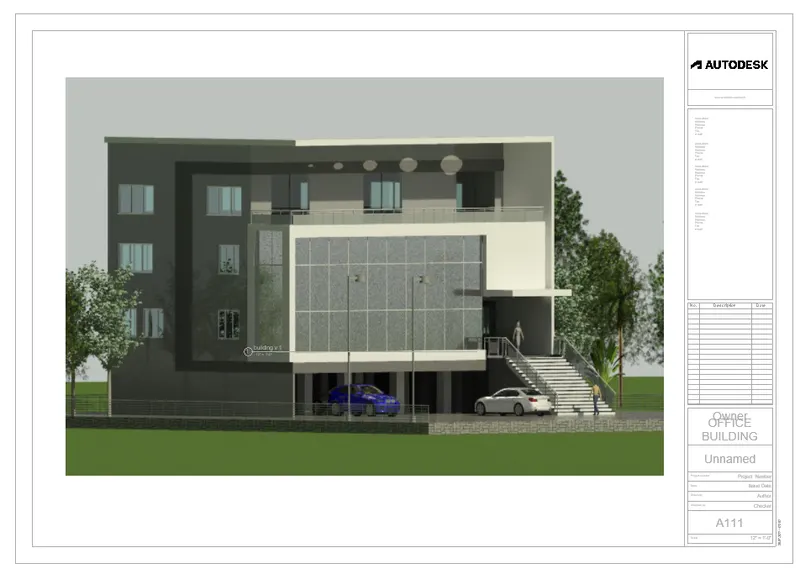

b. Rendering from out showing topographic features

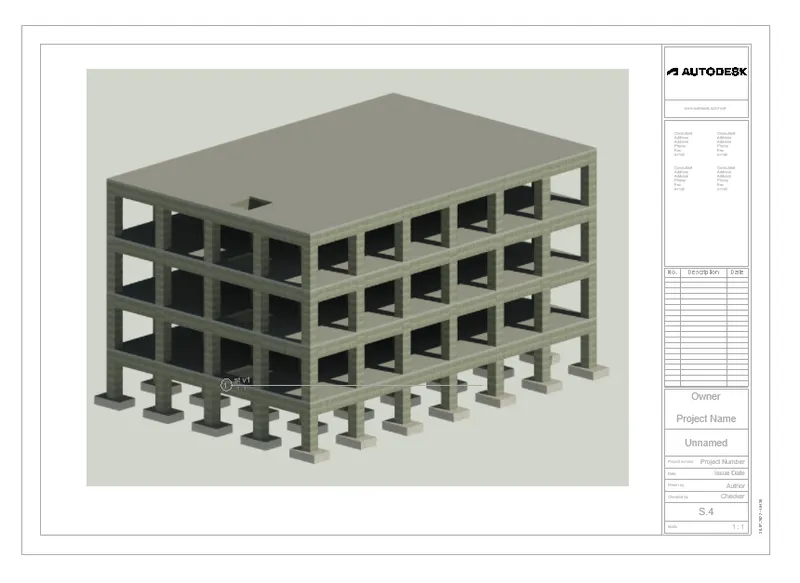

c. Rendering through structural framing

7) Print the set of drawing sheets created and submit the drawings from the architecture and structure model

- first open the render view we have saved

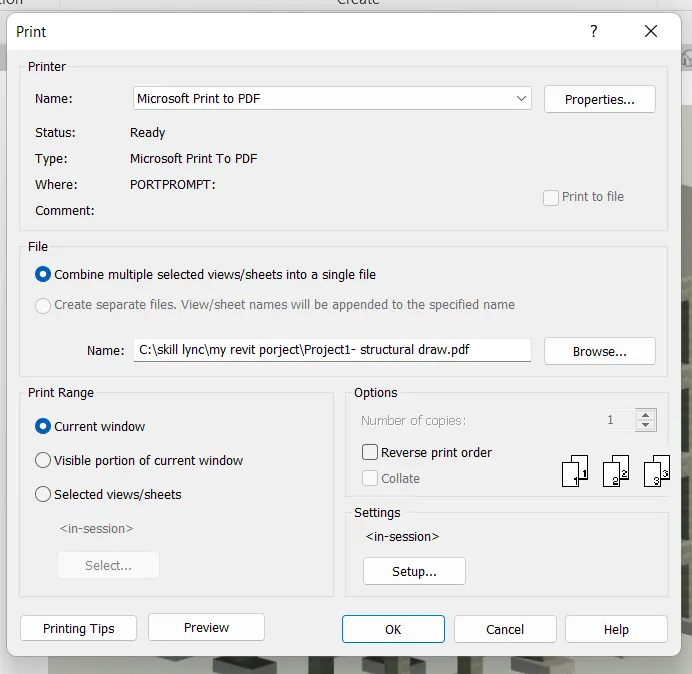

- go to file and select print option

- set the requirement of print and press ok

- save the file with name

RESULT :

We have created Architectural and Structural model with 3D rendering using REVIT.
