Creating Architectural and Structural model with 3D rendering using REVIT
1) Select the type of structure you want to build from one of the three below:
a. Multi-Unit Residential Apartment
b. Office Buildings
c. School
Ans- Here i am choose office building construction.
2) Assume reasonable assumptions for geographic and location details for your project modeling. Based on assumptions and type of structure selected identify the modeling requirements from NBC ?
Ans- My office building locataed in Lucknow city.
As per NBC guidline open space around the building not be less than 4.5 mtr.
The type of construction as type 2 construction ,the FAR value for the business building shall be taken as 2.5.
The plot size is taken as 65mX65m and individual floor area is 2025 sqm
The width of the road abutting the building is taken as 9 m.
3) Using the structural model, include the following components based on the type of structure selected

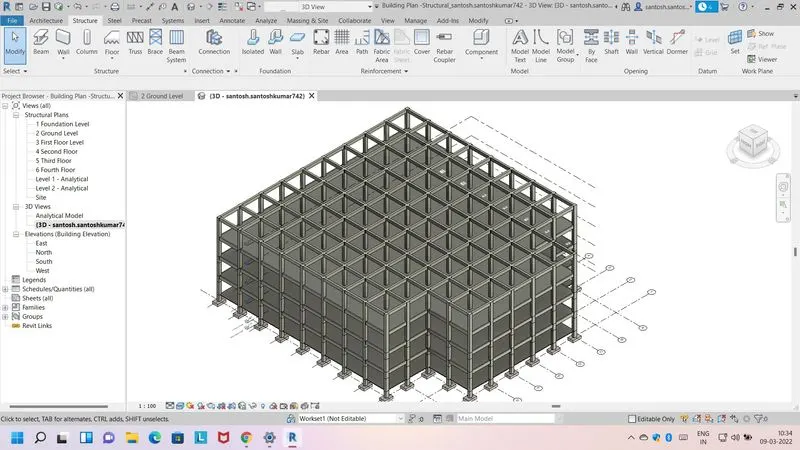

a. Foundation – Isolated / Wall/Matt Foundation
b. Columns
c. Beams Connected to Columns

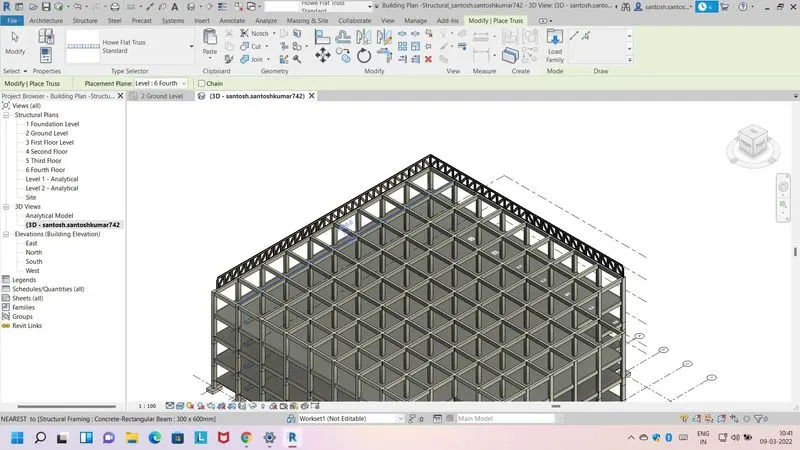

d. Roof Framing/ Truss
e. Floor / Decks
f. Floor Openings for Elevators and Stairs

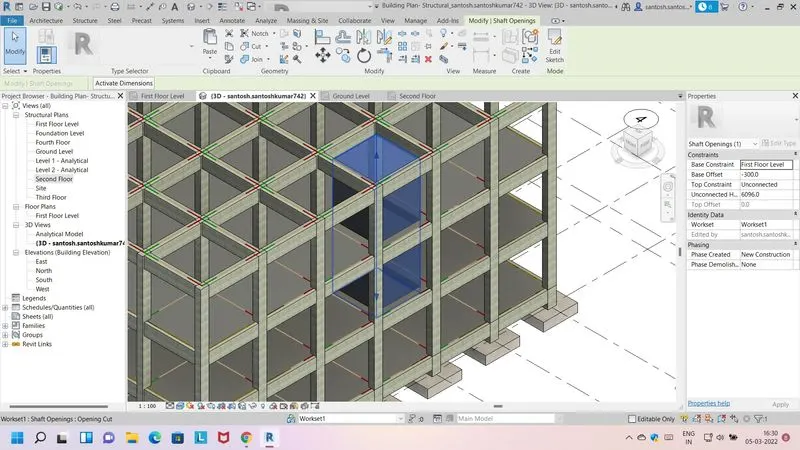

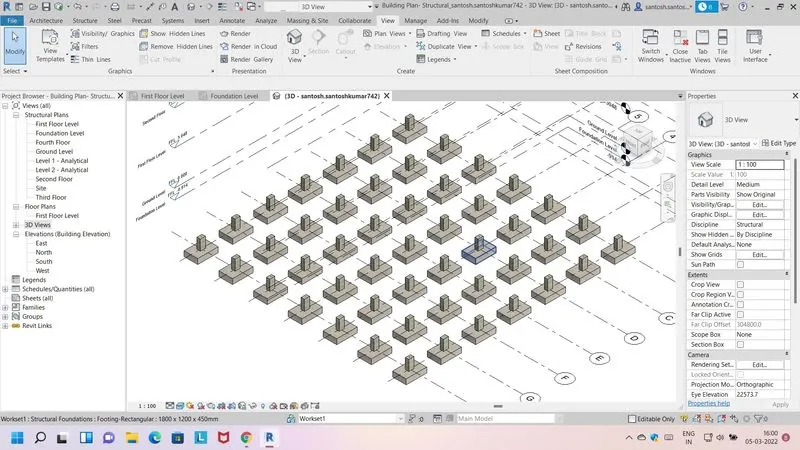

Ans - Creating Structural Model and Create Isolated Foundation columns,Beam connected to column,floor etc.

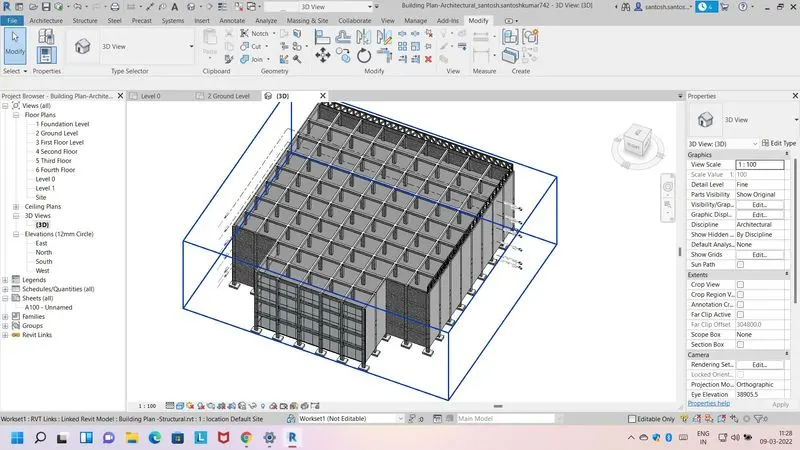

4) Using the architectural model, include the following components based on the type of structure selected
a. Wall Layout with appropriate material and finishing
b. Exterior façade with fancy finish
c. Interior partition walls to size rooms
d. Components to add details to a room ( Desk, Chair, Lighting, Plumbing fixtures)
e. Add components such as stairs Elevators

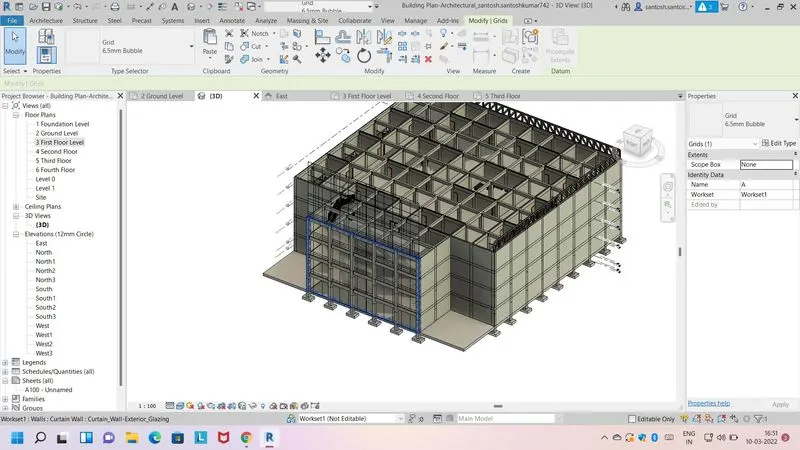

f. Have at-least one side of the building with curtain walls and glass panels
g. Include interior and exterior lighting fixtures

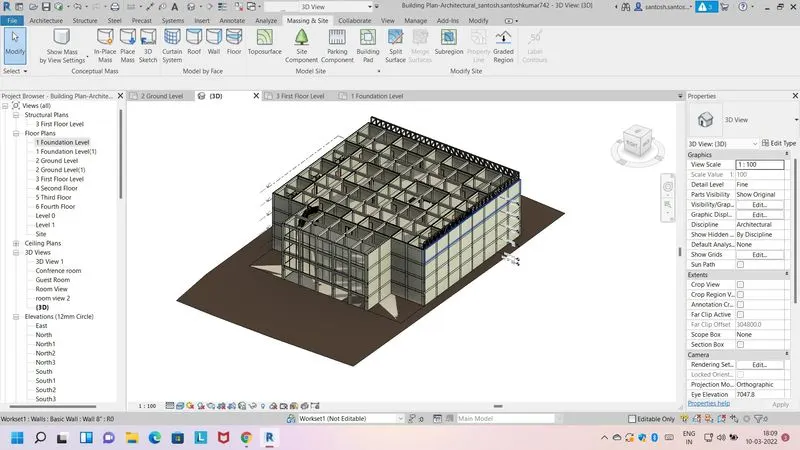

h. Place proper topographic components from outside ( Trees, Parking, Plants) to add details to the model

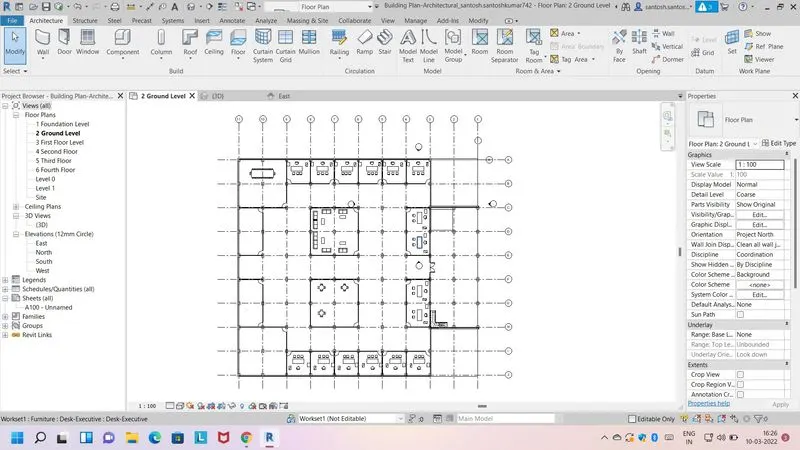

Ans- Creating all architectural Model and create all appropriate component.
5) Provide a set of drawings in an architectural and structural model to list the following details with categories and appropriate sheet templates included

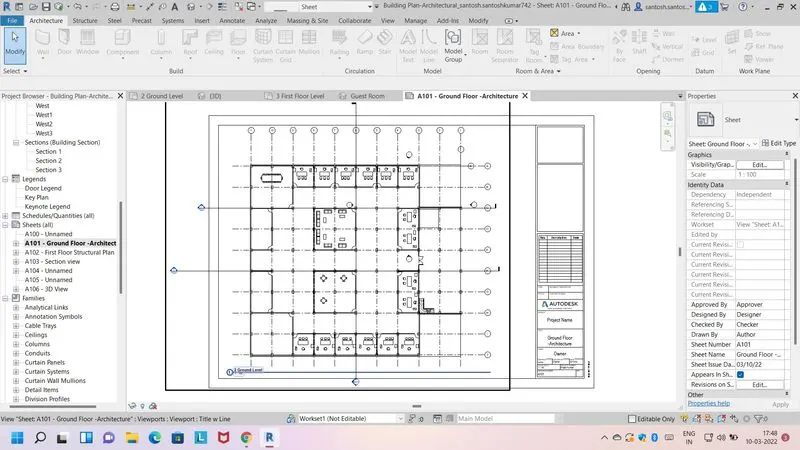

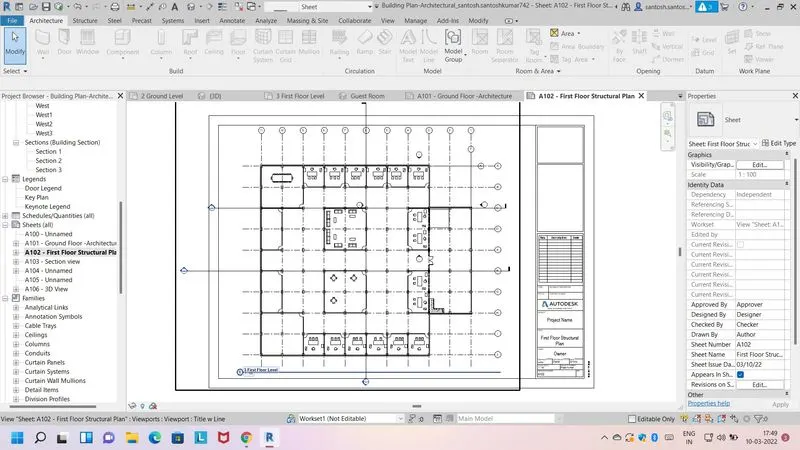

a. Floor Plans with Annotations
b. Elevations

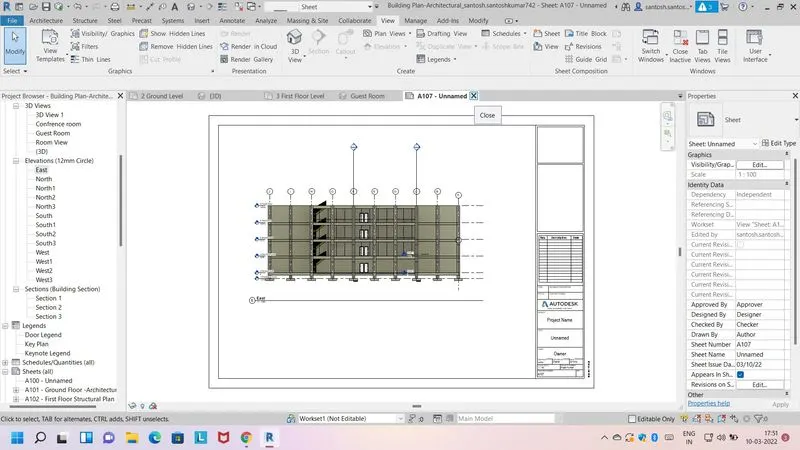

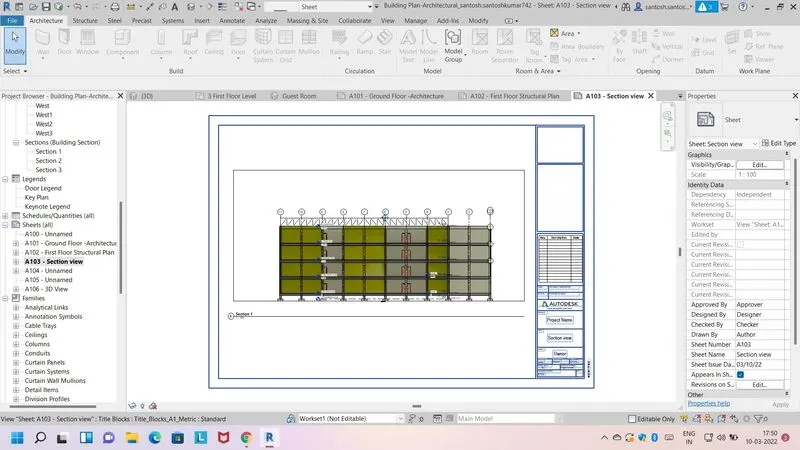

c. Sections
Ans -

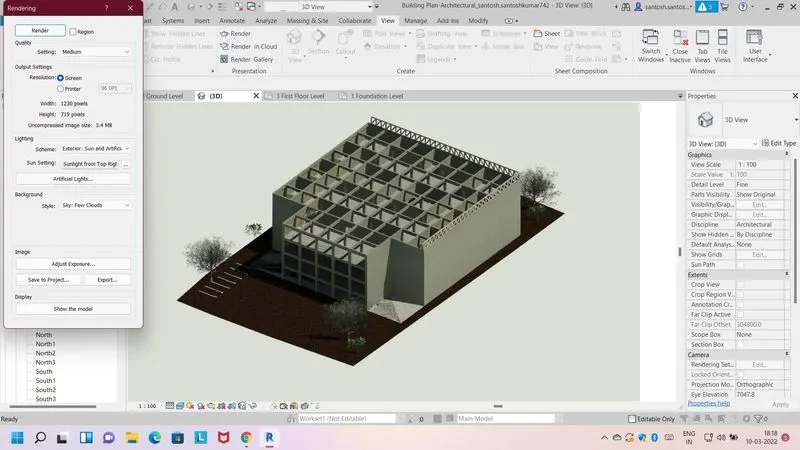

6) Using the Rendering settings, Render images of the 3D model produced and include the rendered images to the drawing sheets

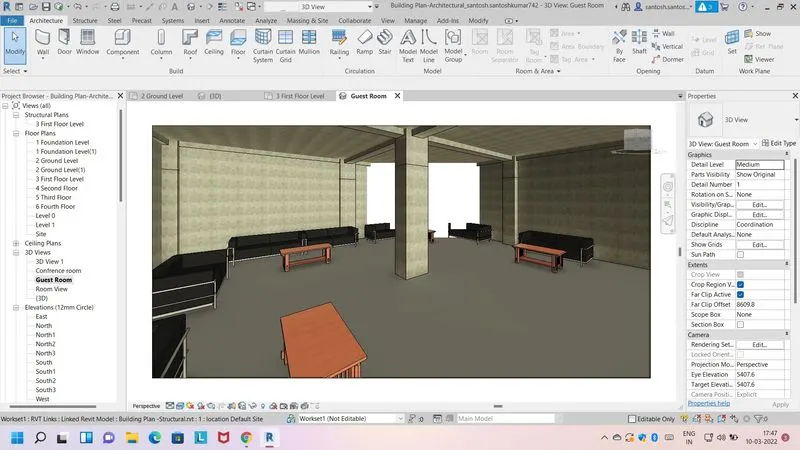

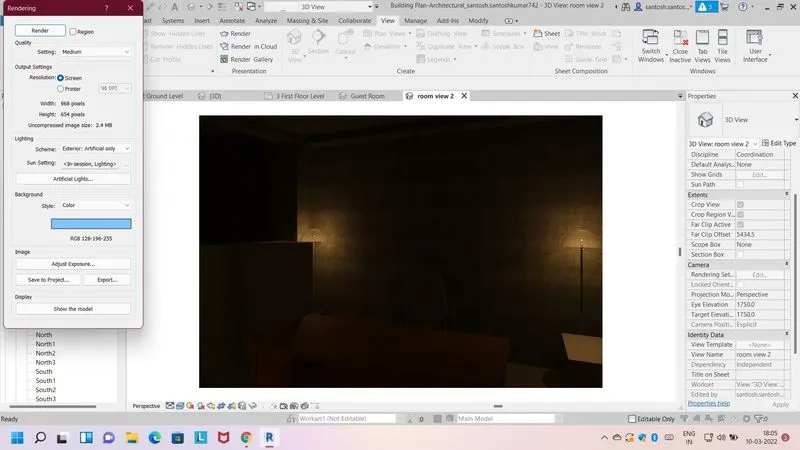

a. Rendering from interior rooms
b. Rendering from out showing topographic features
c. Rendering through structural framing
Ans-
7) Print the set of drawing sheets created and submit the drawings from the architecture and structure model ?
Ans- Print Drawing sheet in PDF

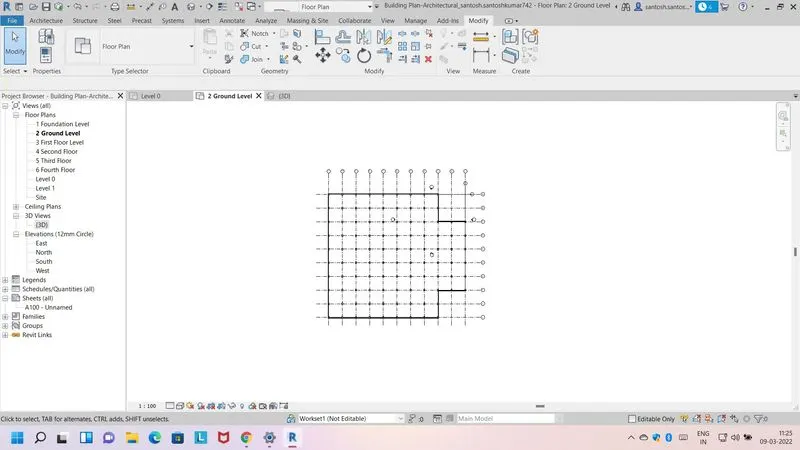

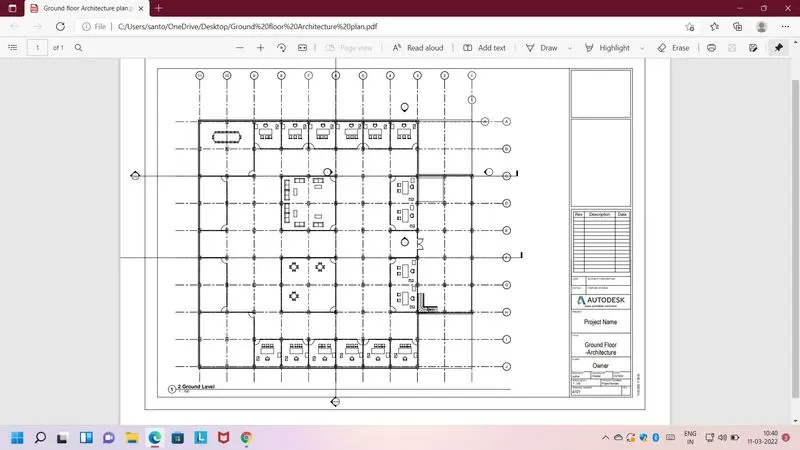

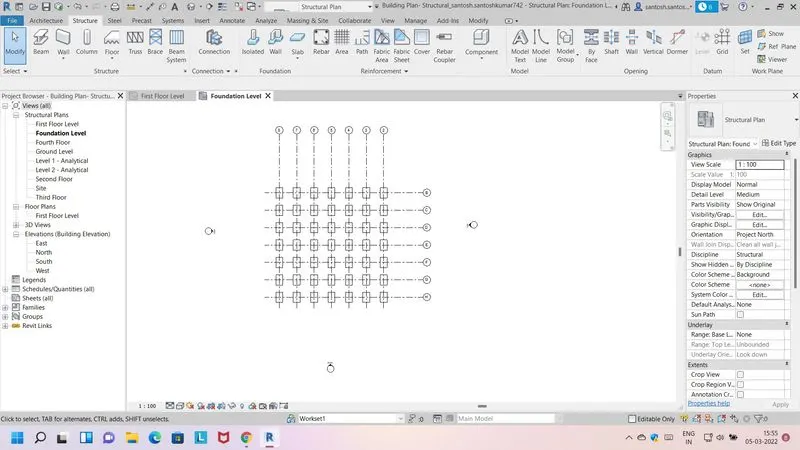

1 Architectural Plan-

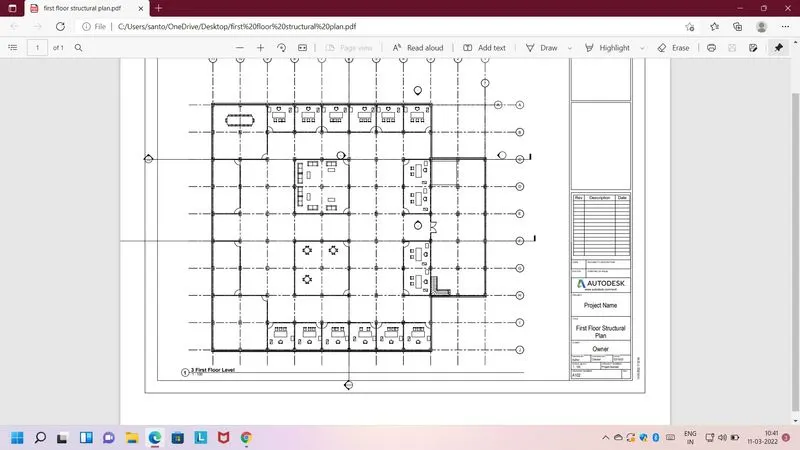

2- Structural Plan-
