Creating a Wardrobe detailed drawing, Floor Plan, Kitchen Layout and Column Detail using AutoCad

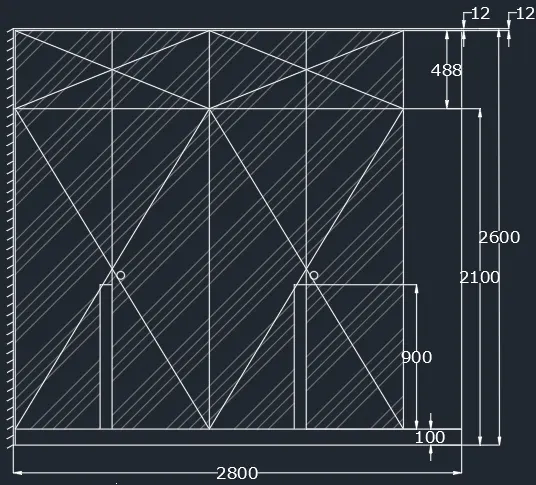

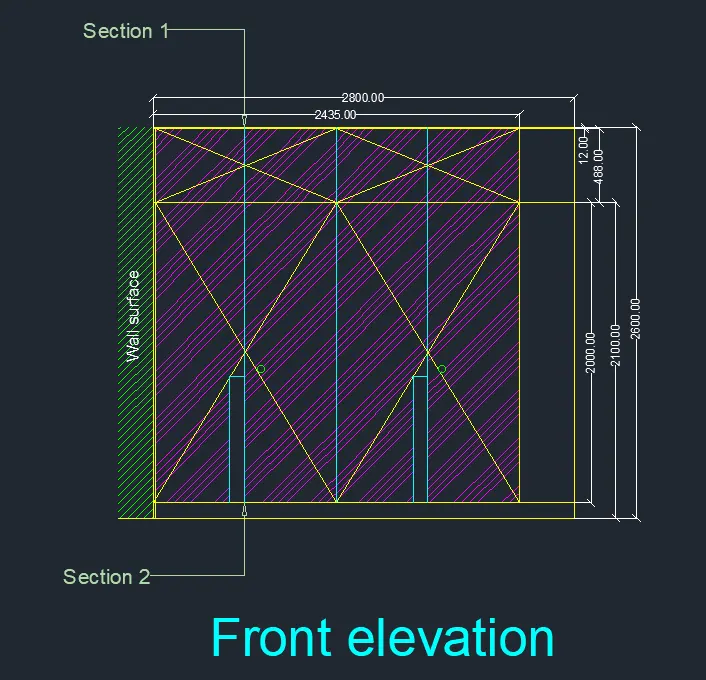

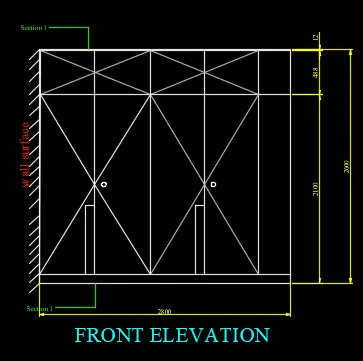

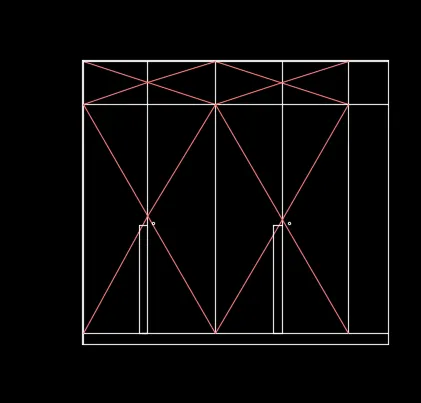

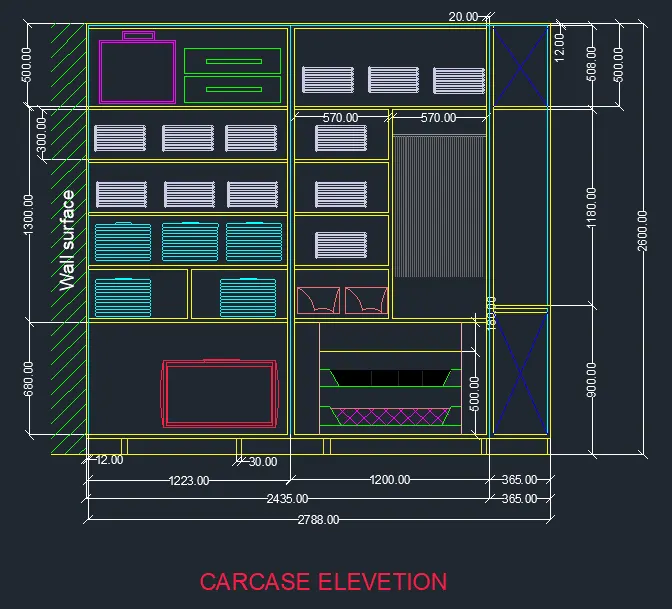

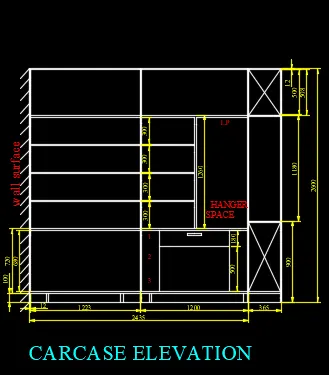

1) AIM: To Draw the elevation and details of a wardrobe a shown in the figure below,After sketching and to provide the dimensions and text with the use of layers

Procedure

Step 1

• Units are set to mm
• Limits and lim-max are also set
• Zoom command is also used

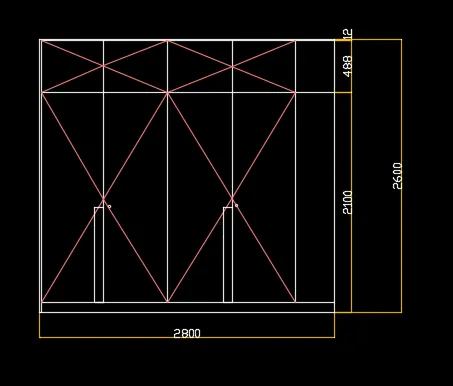

Step 2

• In the command line type rec>2800,2600
• In the command line type offset
• Offset from the top of dimensions 12 and 488mm

Step 3

• In the command line type offset
• Create the offset from the side at the distance of 608.75 and 365

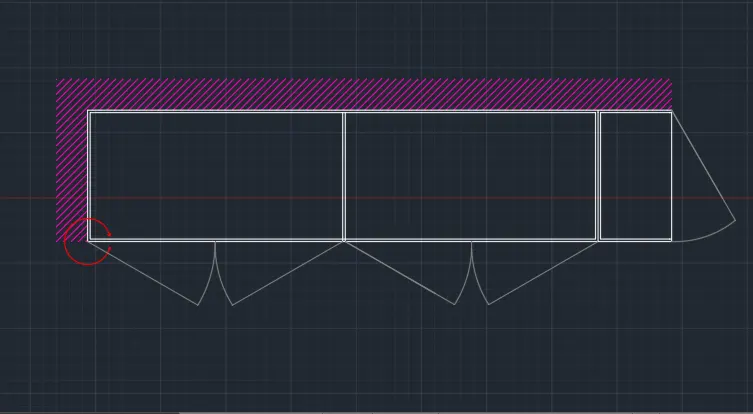

Step 4

• In the command line type L and by increasing the transparancy to create wall surface
• By using hatch give the hatch and give scale 20
• In the command line type q leader to mention the annotations

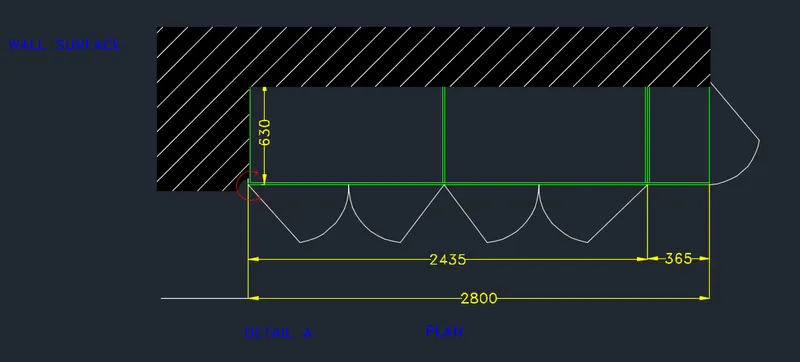

Step 5

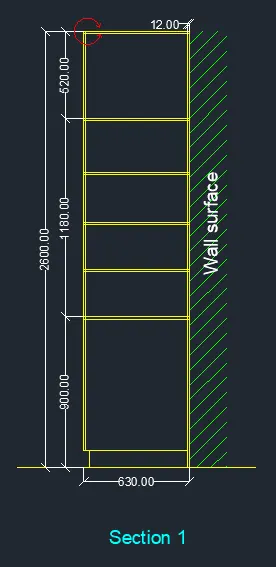

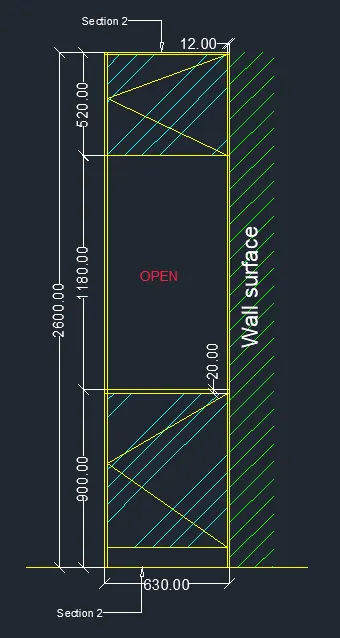

• In the command prompt type rectangle > 630X2800 mm
• In the command Prompt type q lader to give the annotations



Step 6

• In the command prompt type rectangle 2800X2600 mm
• With the help of line command drawers and cabinets are created
• For the drawers and cabinets give the gray colour dimension the drawing

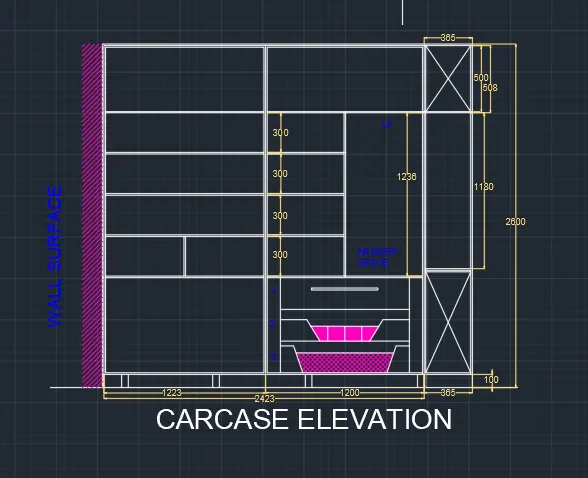

Step 7

• In the command prompt type rectangle and dimensions of 520 X 630 ,
• 1180X630
• 900X630 mm this is repeated 2 times
• Using line command the next of the lines are draw

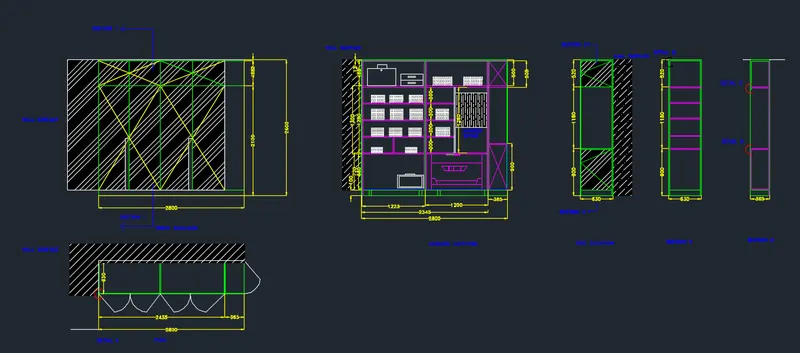

RESULT

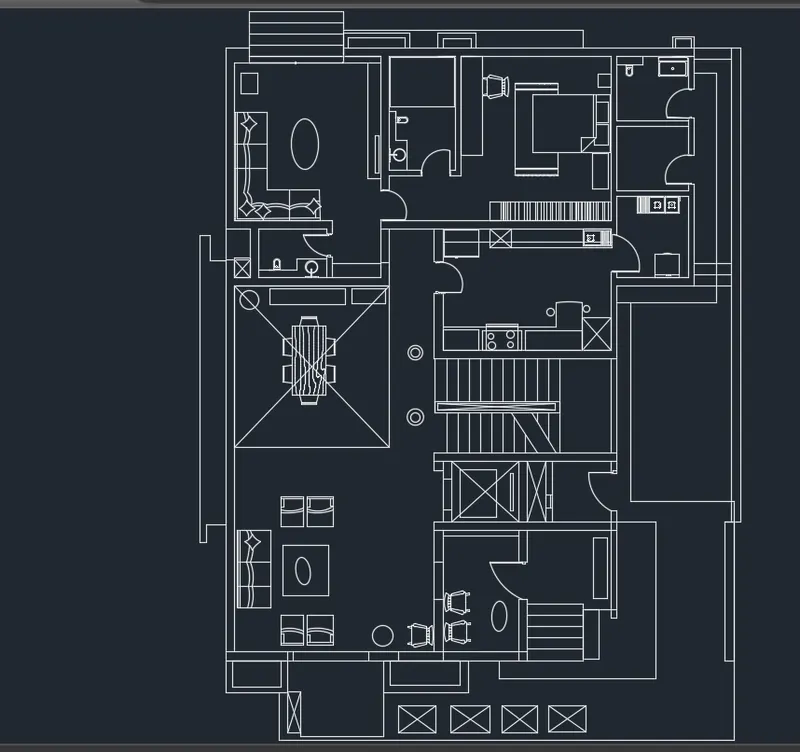

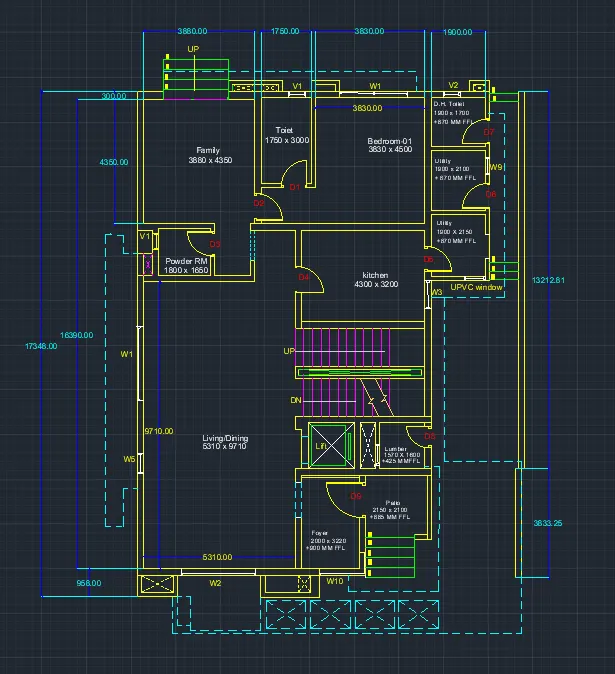

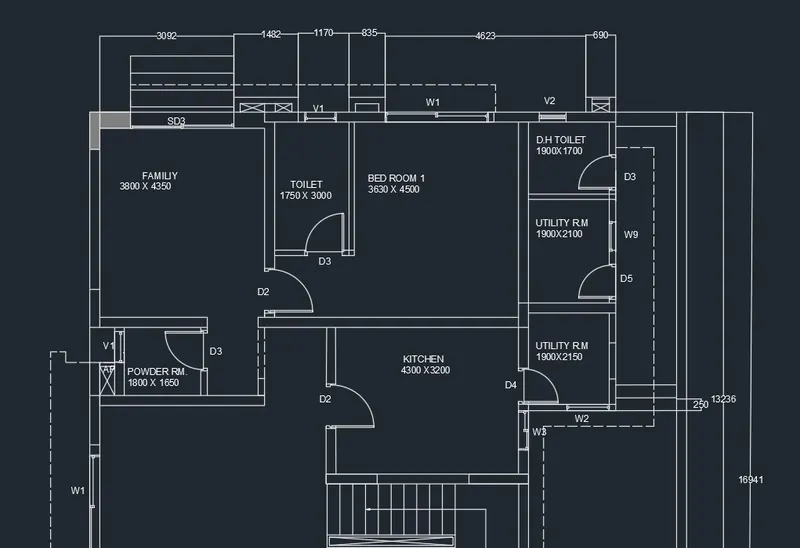

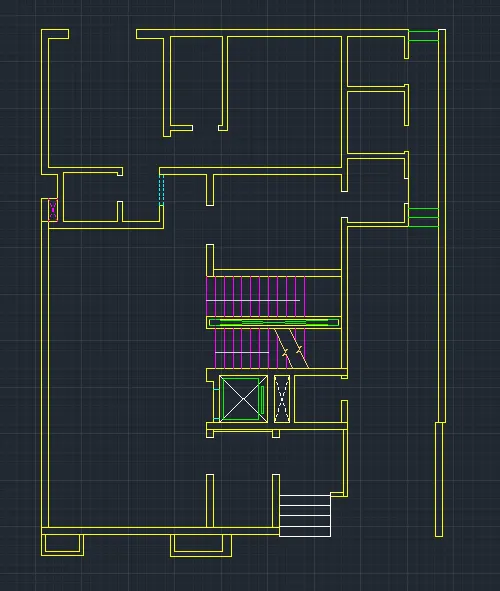

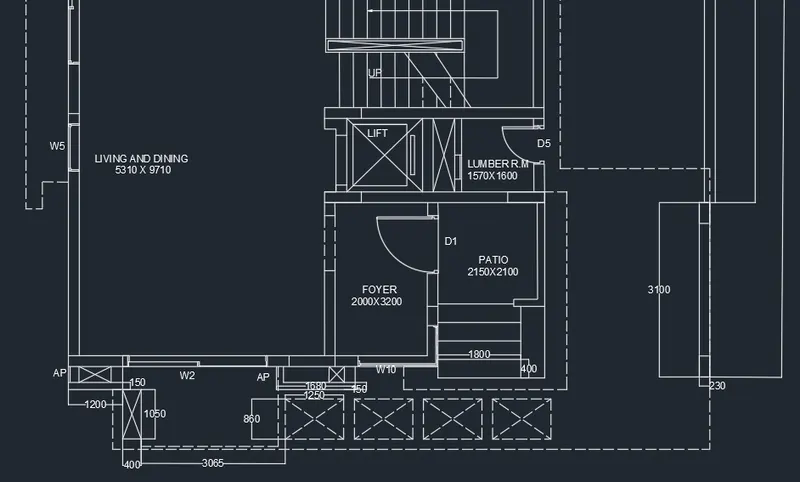

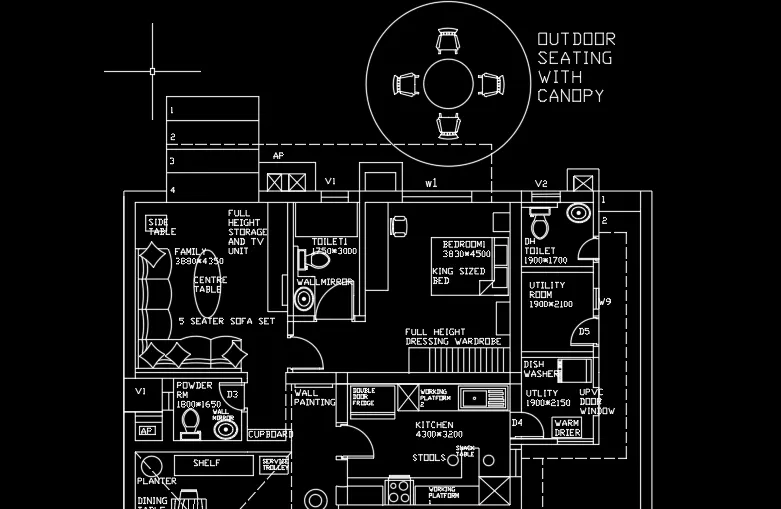

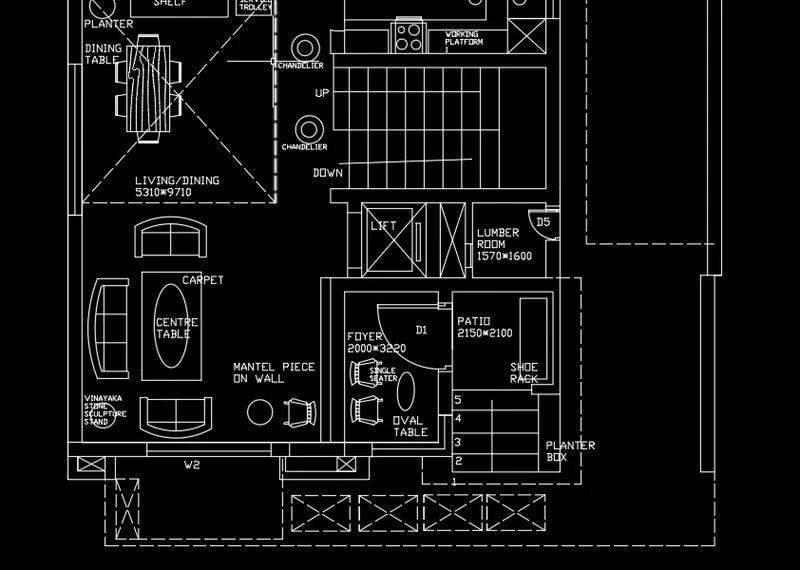

2) AIM: To Draw the given floor plan

Procedure

Step 1

• Set Limits and lim-max
• use zoom command
• units are set in mm

Step 2

• In the command prompt type XL to draw the infinite lines
• In the command prompt type offset the line for a particular distance
• using arc command doors are also crated
•

Doors

1. D1 - 1000 X 200 mm
2. D2 - 900 X 2100 mm
3. D3 - 800 X 2100 mm
4. D4 - 750 X 2100 mm
5. D5 - 700 X 2100 mm
6. D6 - 2256 X 2100 mm

Windows

1. W1 - 2700 X 1500 mm
2. W2 - 2500 X 1500 mm
3. W3 - 900 X 1500 mm
4. W5 - 1000 X 1500 mm
5. W9 - 800 X 1500 mm

Ventilators

1. V1 - 800 X 500 mm
2. V2 - 750 X 500 mm

Step 3

• To draw Canpoy

CIRCLE:

In the menu bar click on circle > center,Radius

Specify the center point as 10,10 and radius 452

In the menu bar click on the circle > Center , Radius

Specify the center point same as the previous circle (10,10) and radius 1398

SEATS:

In the menu bar click on the rectangle or in the command prompt tye rec

Specify the length of the rectangle as 662.3

Specify the width of the rectangle as 292.0

In the command prompt type FILLET > Radius > 100.00 ( To get curve edges in the corner)

In the menu bar > Circle > 2-Point ( 2 Points are the end points of the top line )

In the menu bar > Circle > center,diameter

Center is the mid point of the line, Diameter is 719.0

In the menu bar > Circle > Center,Diameter

Center is the mid point of the line,Diameter is772.2

Now,extend the center line and trim the extra's

In the menu bar click fillet>blend curves> and select the arc

In the menu bar click fillet> blend curves > and select the arc

In the menu bar click  fillet>blend curves>and select the arc



Step 4

Give the dimensions and anotations the drawing with the text where ever required

place the all elements of the drawing in the respective layers

RESULT





3)

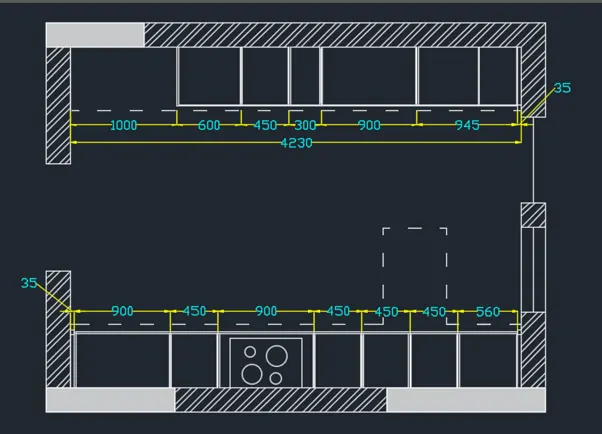

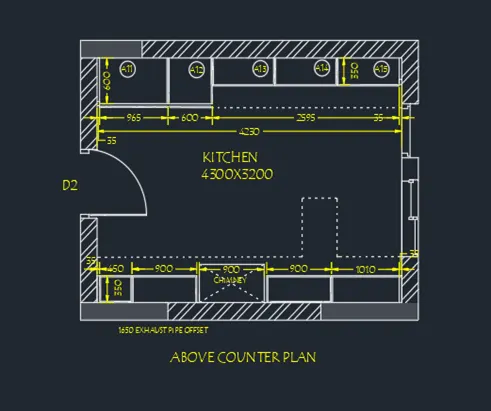

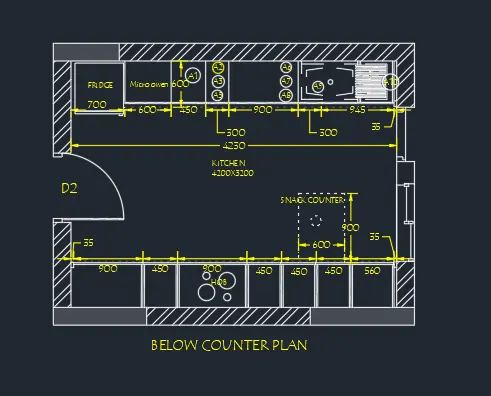

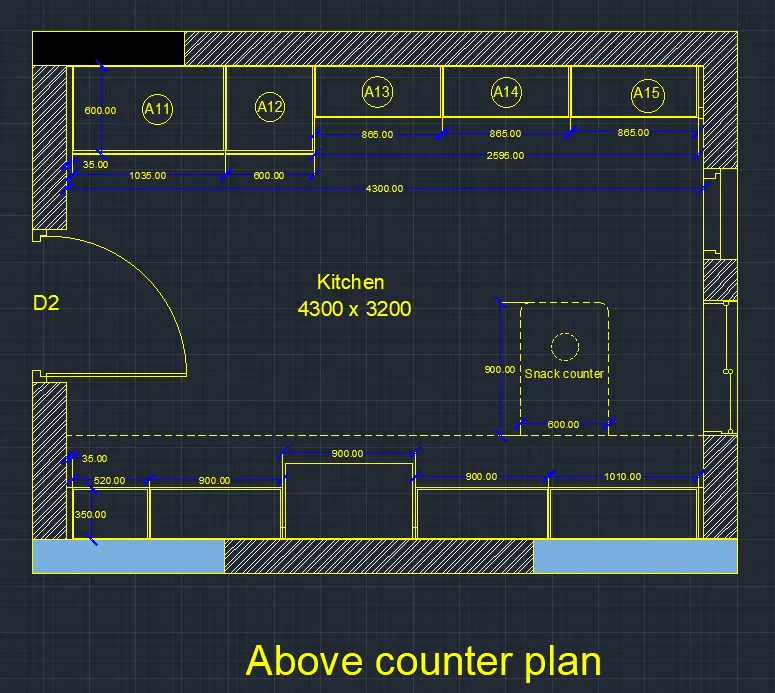

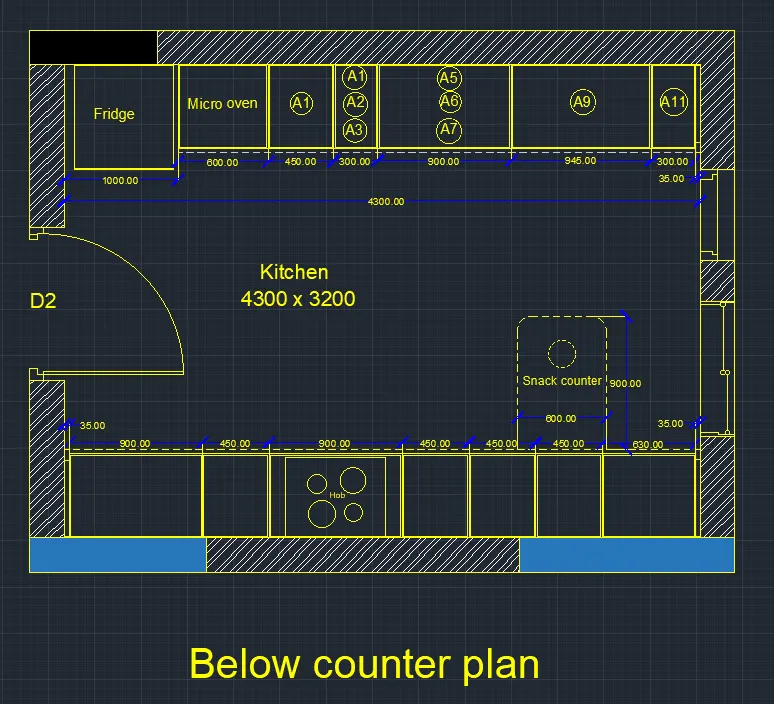

AIM : To create the kitchen layout and also use proper dimensions techniques to dimension the kitchen layout                also insert text wherever required

Procedure

Step 1

• Zoom command is also used
• Units are set in mm

Step 2

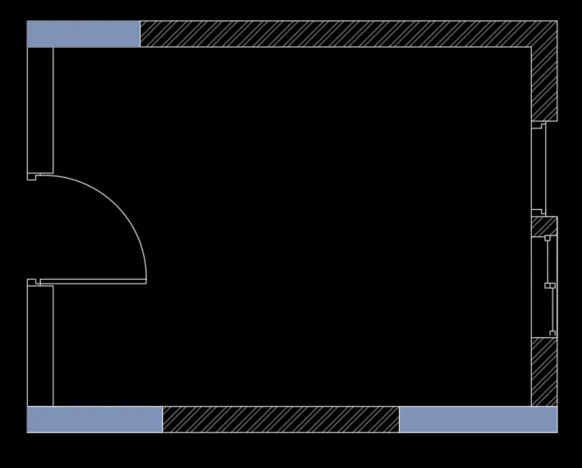

• In the command prompt type rec and the dimensions are 4734 X 3688 mm
• In the command prompt type offset and offset it to the distance of 250mm
• Using arc and line draw the door
• In the command prompt type Hatch to Hatch in the model

Step 3

• In the command prompt type rec>dimensions,to do the fridge
• In the command prompt type offset and offset it to the desired distance to get the micro oven
• In the command prompt type trim extra lines
• In the command prompt type offset and offset it to the horizontal distance of 350,450,900,450,450,and 560
• In the command prompt type offset and offset it to the vertical distance of 600
• In the command prompt type trim the extra lines
• in the command prompt type line type and load the dotted lines

Step 4

In the command promt type text to text the given annotations

In the command prompt type dimensions to given the dimensions to your plan

In the command prompt even the leader command is used to name the dimensions



RESULT



4)

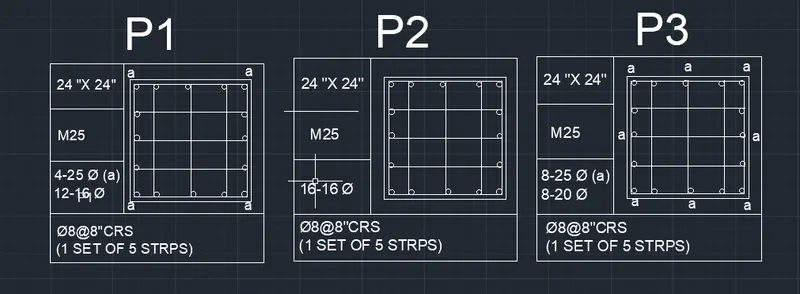

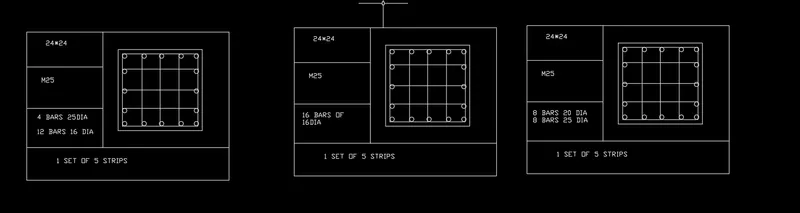

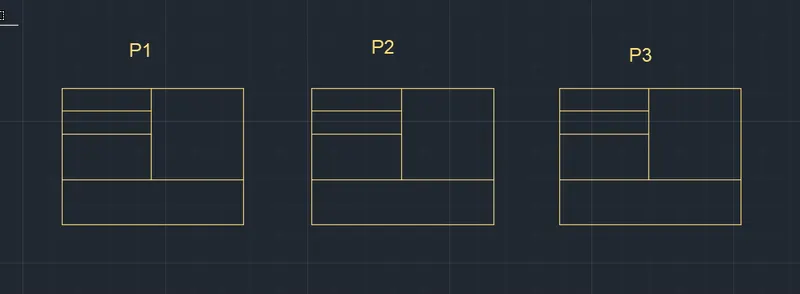

AIM: To sketch the coloumn details

Procedure

Step1

• Limits and lim-max are set
• Zoom command is also used
• Set units in mm

Step 2

• Using rectangle and line command draw the tables

Using text command text is given

In the command prompt type line to draw the reinforcement

In the command prompt type circles to draw the reinforcement

RESULT

5)

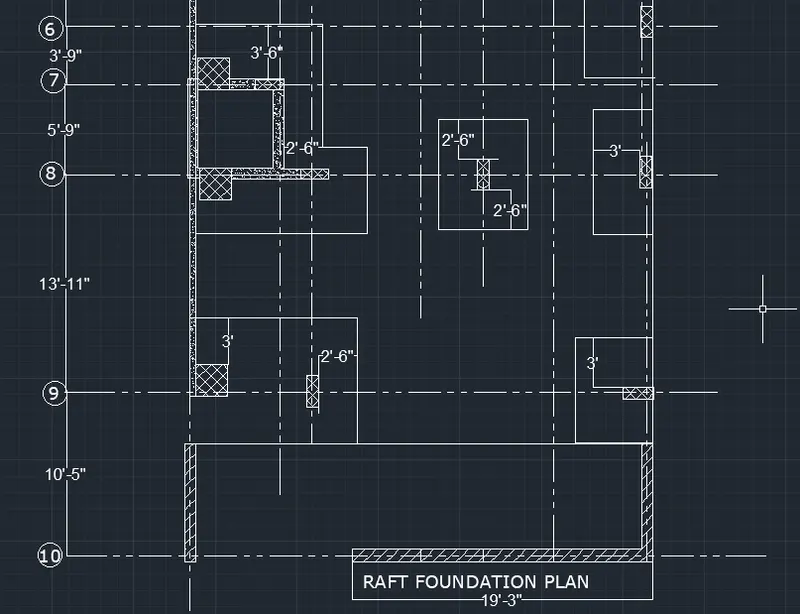

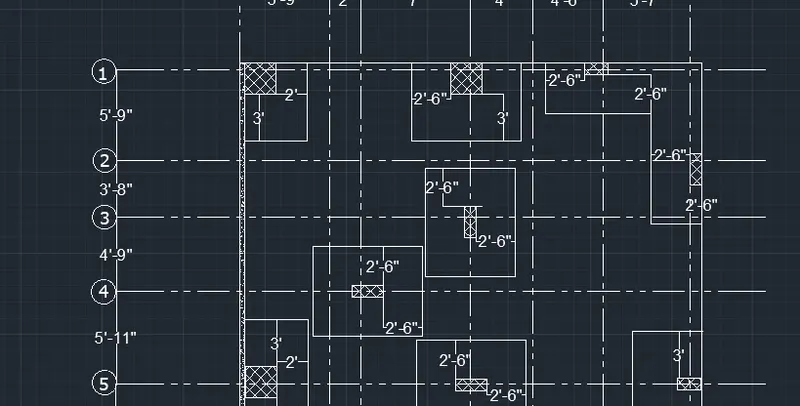

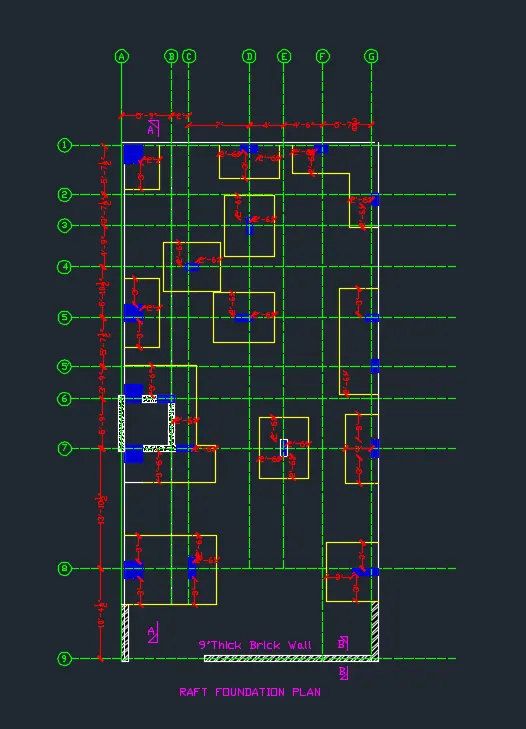

AIM : To draw the raft layout

Procedure

Step 1

• Set the units in Engineering > Inches
• Set Limits and lim-max
• USe zoom command

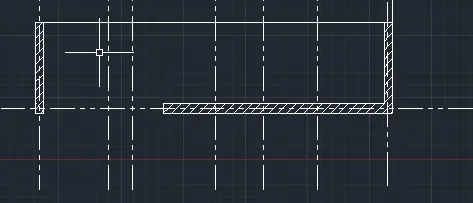

Step 2

• In the command prompt type rectangle dimensions are 21' - 7'' and 60'
• To get dotted lines click on line type and load the dotted lines > set current
• With the help of dotted lines and offset command the grids are drawn

 Step 3

In the command prompt offset the distance 4''

In the ribbon Hatch > AR-Conc

In the command prompt type rec > 2'X2'

In the command prompt type rec to draft the coloumn

In the ribbon bar select Hatch > ans 137 hatch the coloumn

In the ribbon bar select Hatch > ans 133 to hatch the walls





 In the ribbon tab > Annotate > text > text to text the given annotation

In the ribbon tab dimensions > To give the dimensions

RESULT
