Creating a Layout, Section and Elevation with dimensions using AutoCad

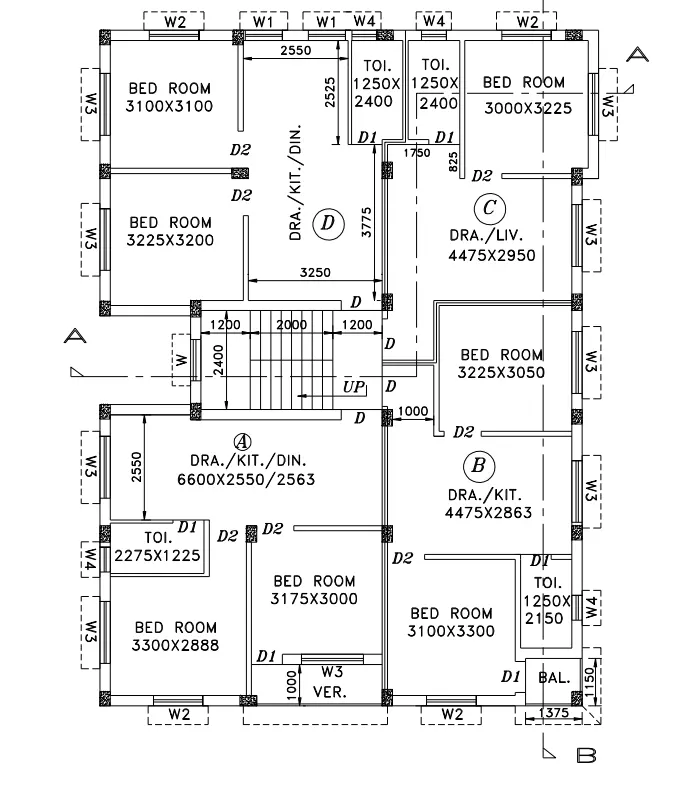

*AVERY DIMENSION GIVE IN THE DRAWING

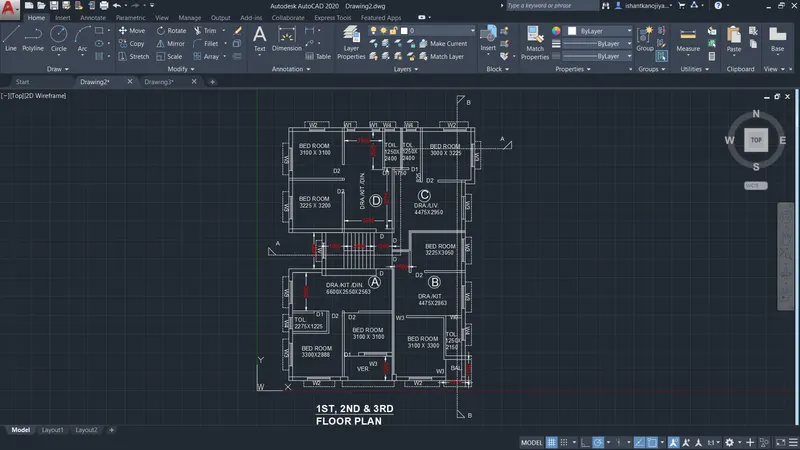

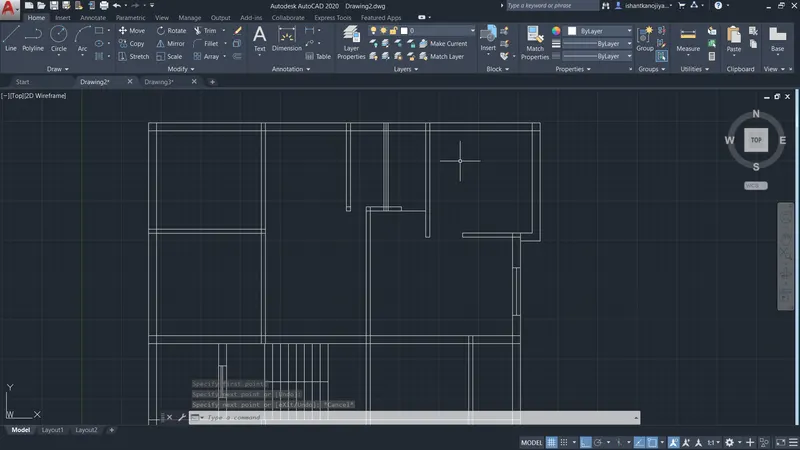

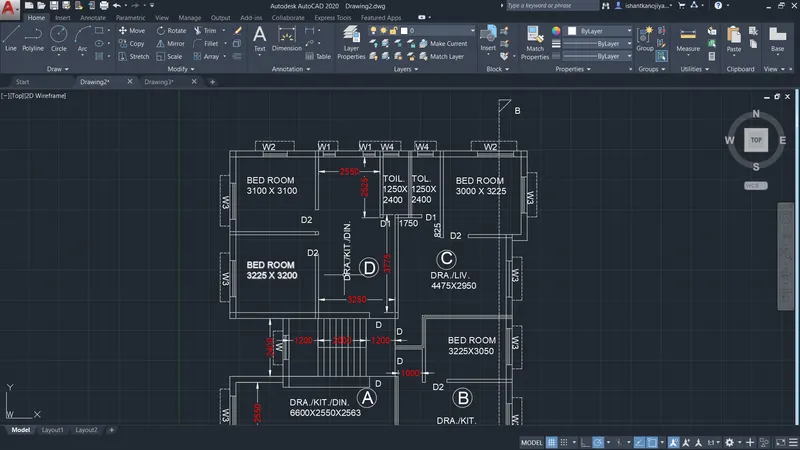

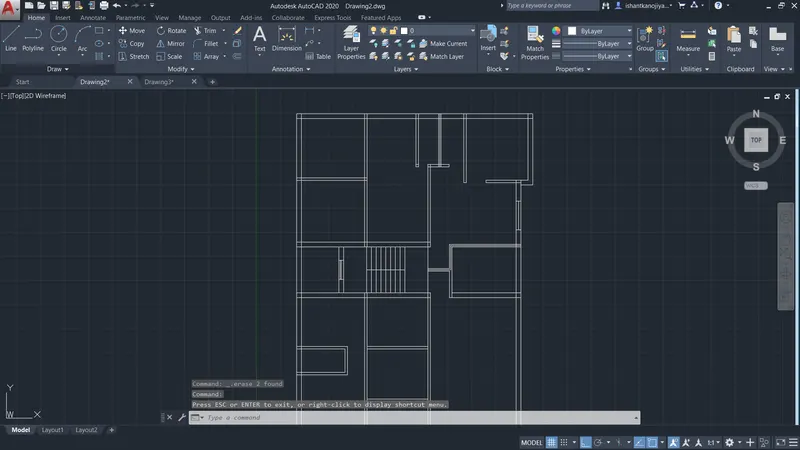

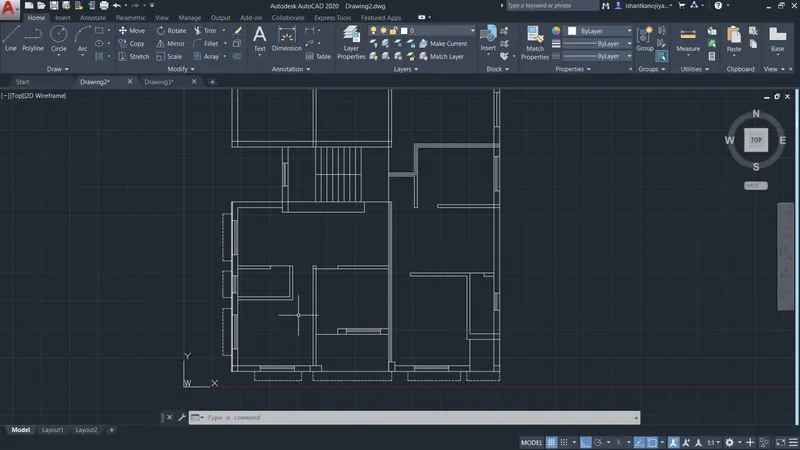

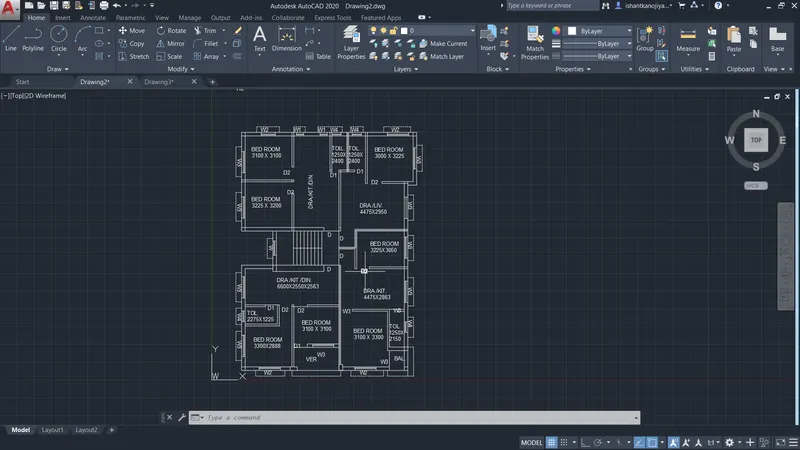

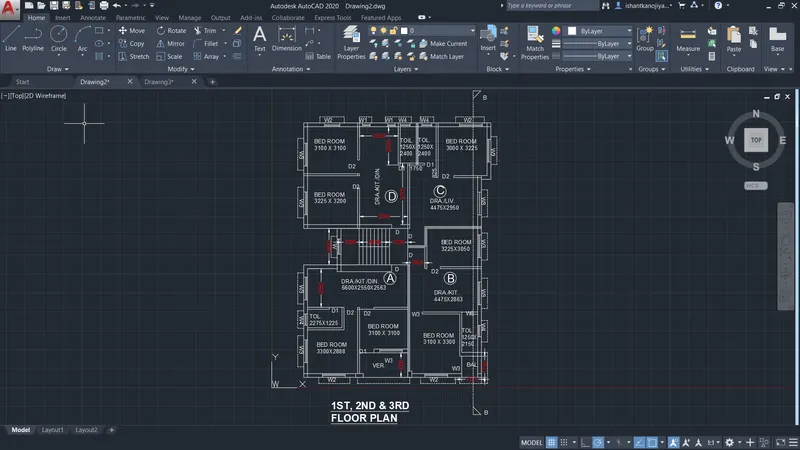

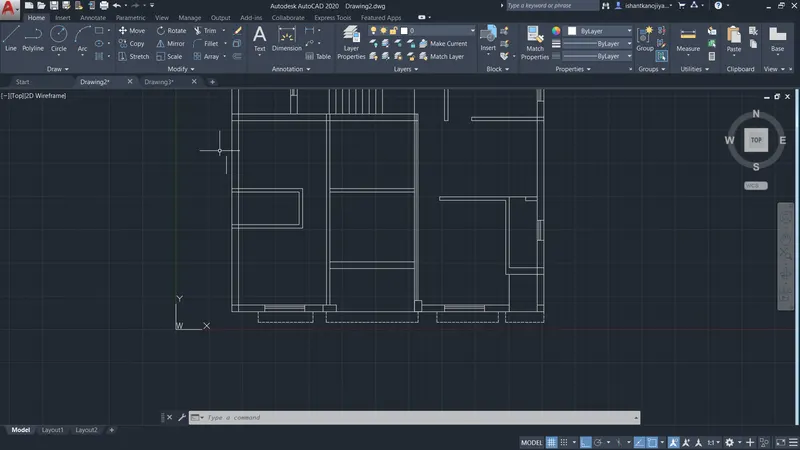

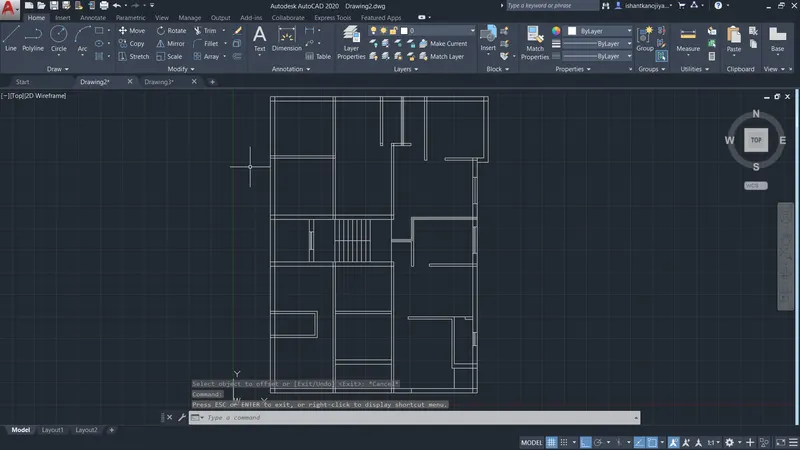

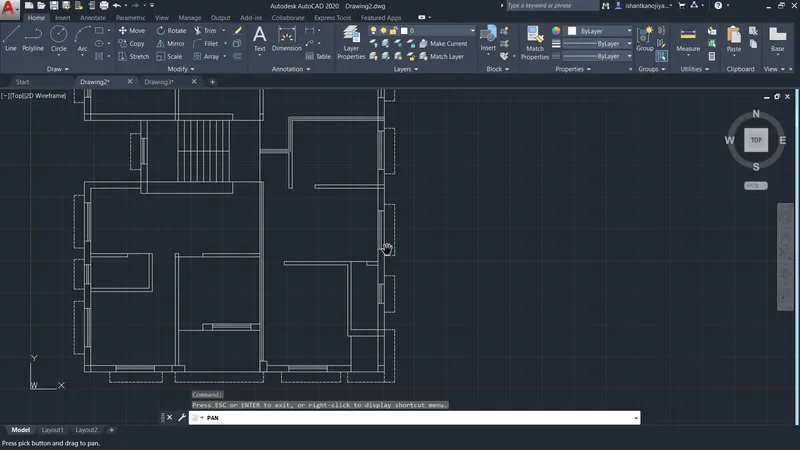

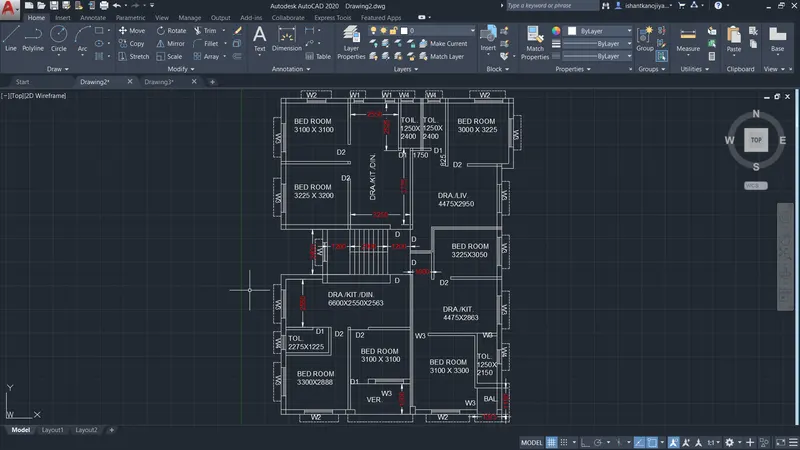

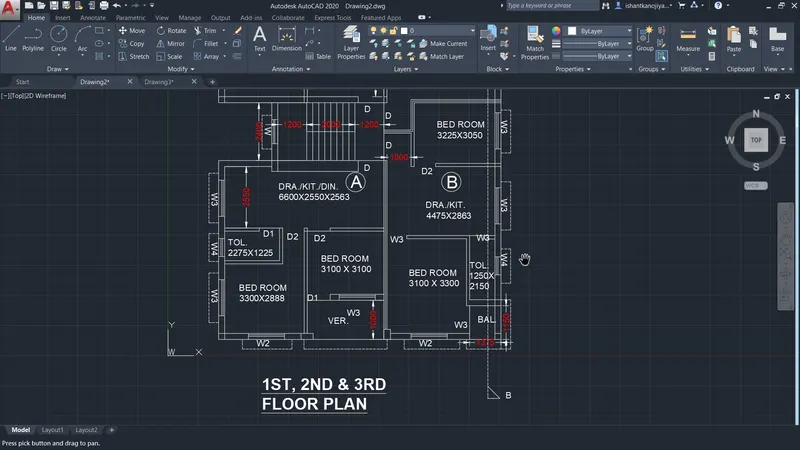

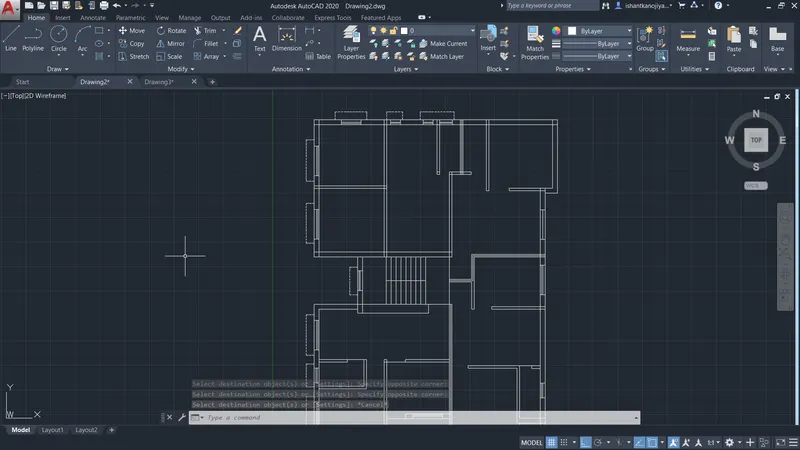

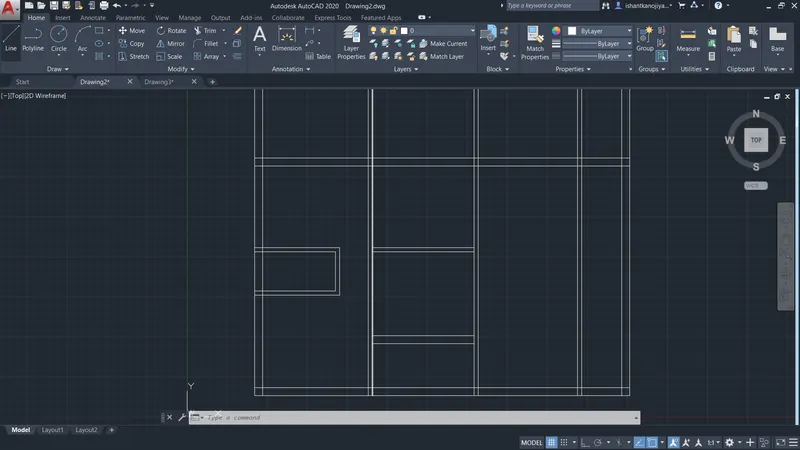

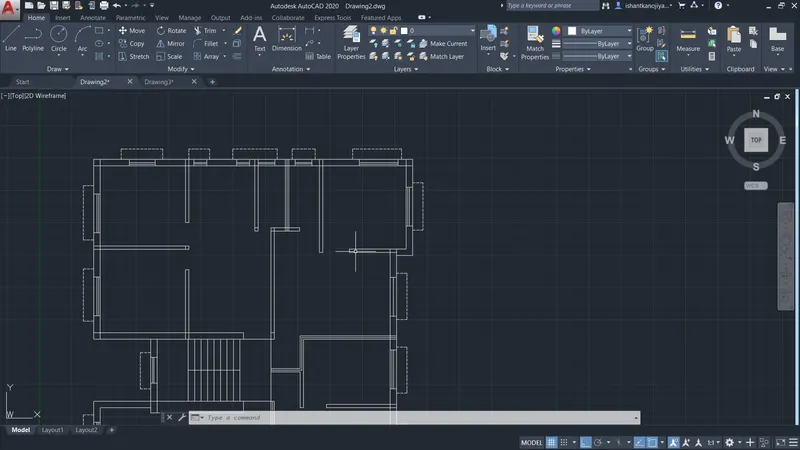

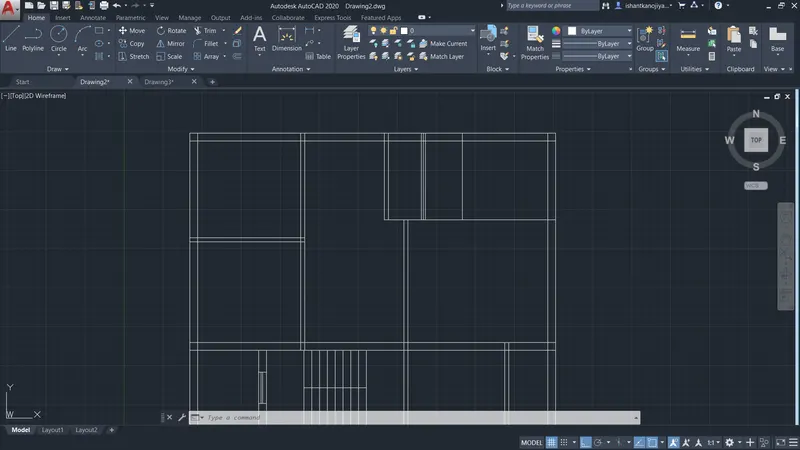

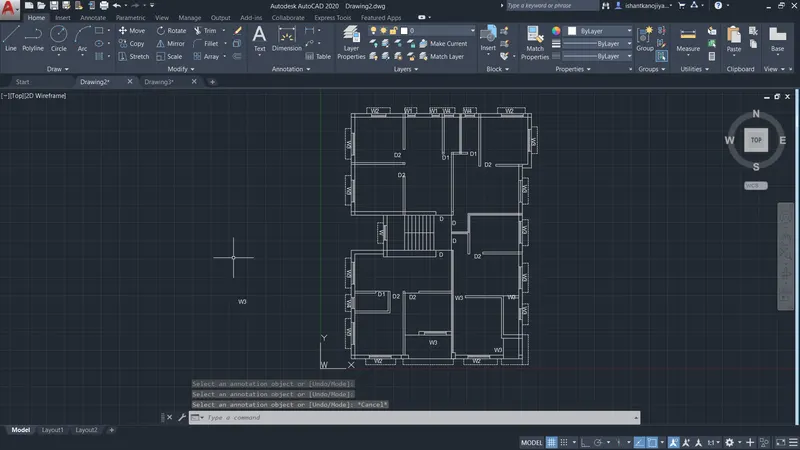

1. AIM: TO DRAW THE 1ST, 2ND & 3RD FLOOR PLAN USING AUTOCAD

PROCEDURE:

• FIRST SELECT UNIT COMMAND -> SELECT DECIMAL> SCALE MILEMITER > PRECISION 0.0 > PRESS OK

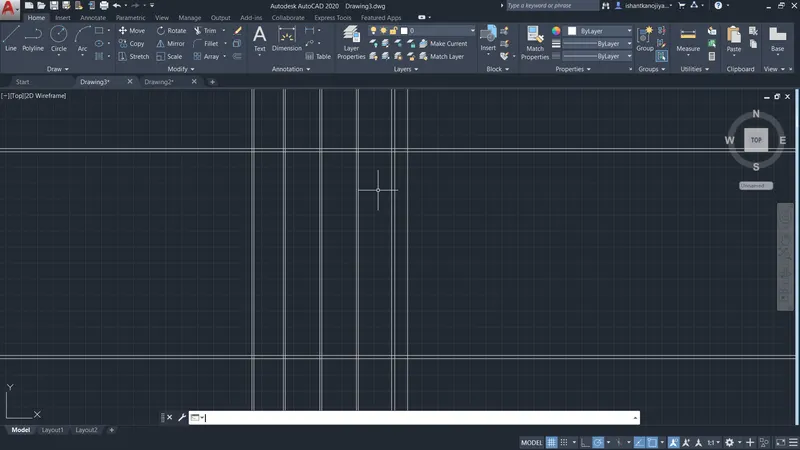

• SELECT XLINE COMMAND > SELECT VERTICAL LINE > SPECIFY FIRST POINR> PRESS ENTER
• SELECT XLINE COMMAND > SELECT HORIZONTAL LINE > SPEICFY FIRST POINT > PRESS ENTER
• SKETCH THE OUTER WALL(250MM) AND INNER WALL (130MM)

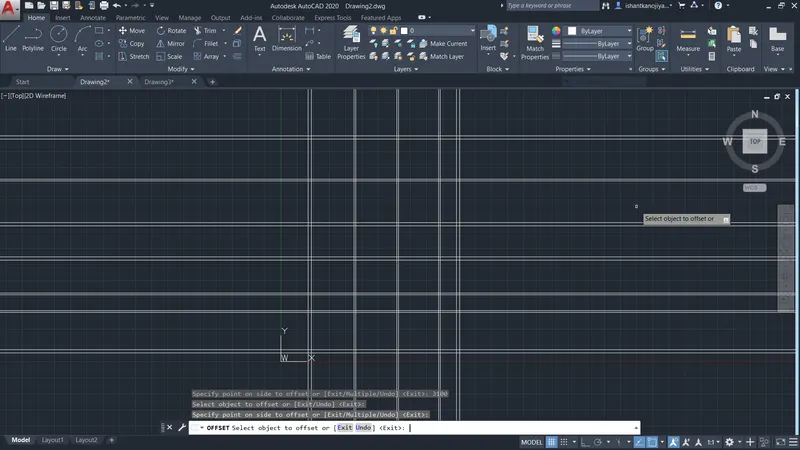

• USING OFFSET TOOL
• USING COPY TOOL

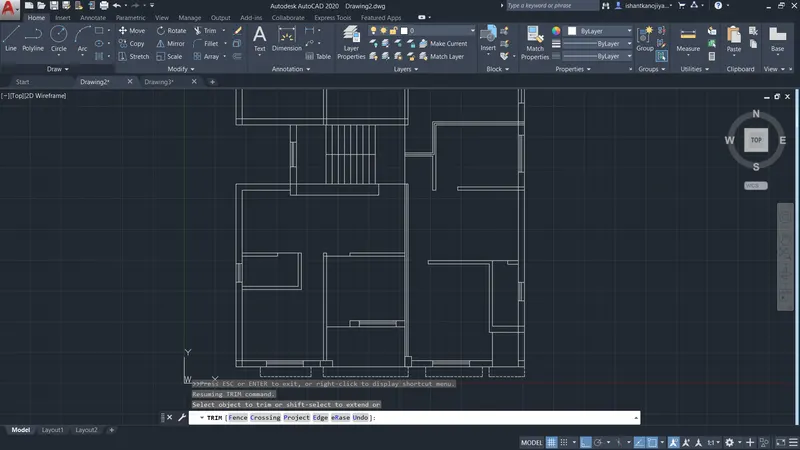

• USING TRIM COMMAND AND EXTEND COMMAND
•
•
•
•
•
•
•
• TRIM THE REST LINE
• SKETCH THE ALL WINDOWS AND DOORS AND PILER.
•
•
•
•
•
•
• USING SINGLE OR MULITLINE TEXT COMMAND FOR TEXTING
•
•
• USING DIM COMMAND TO DIMENSIONING THE LINE
•
• SKETCH REST DIAGRAM

RESULT:

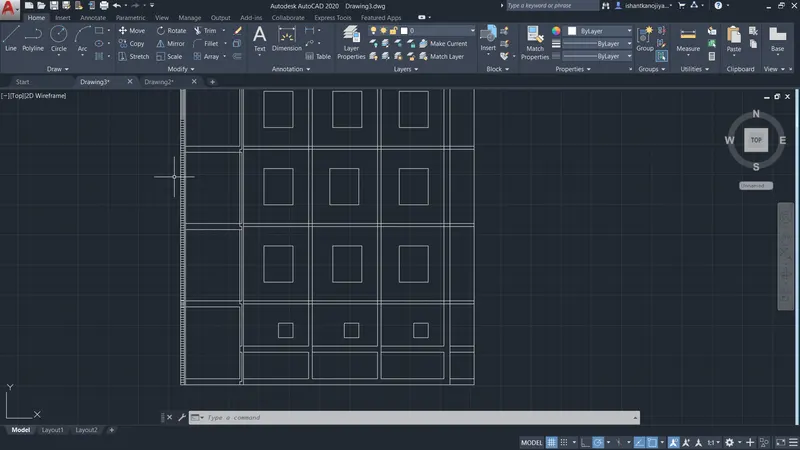

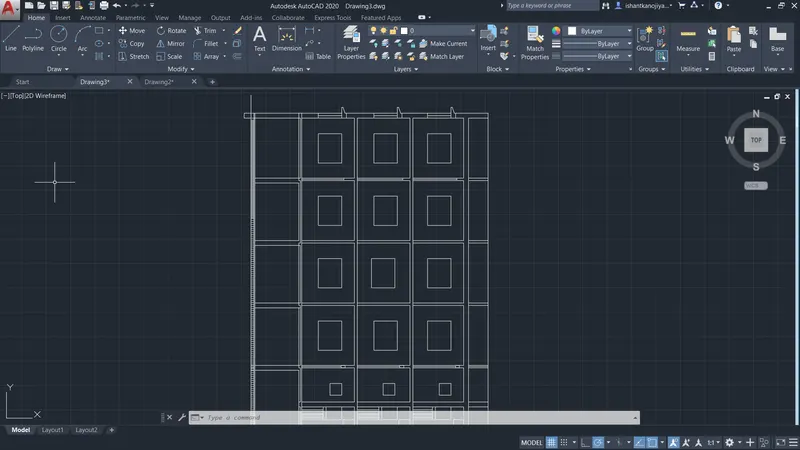

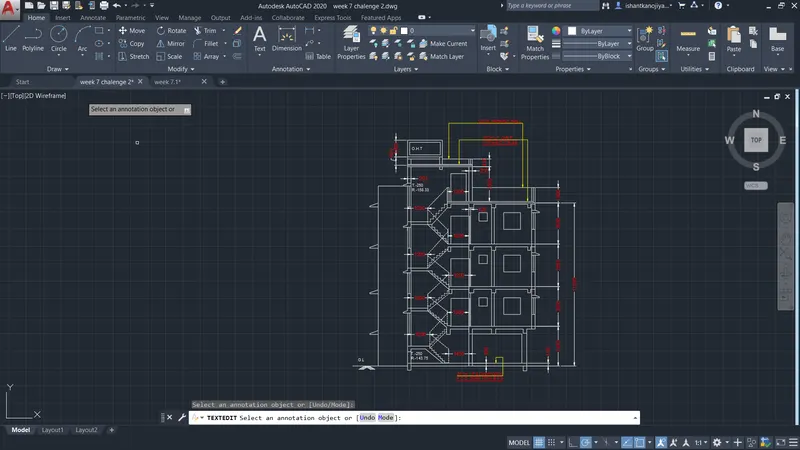

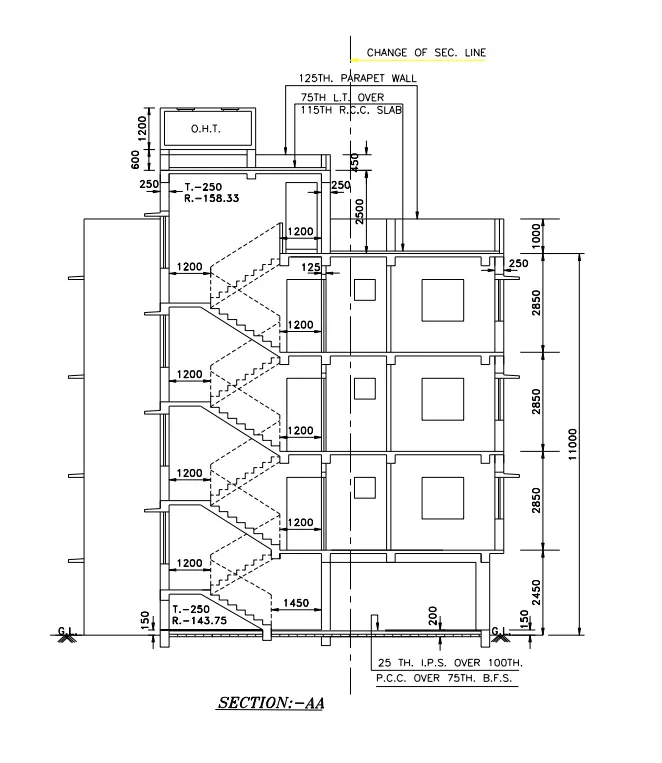

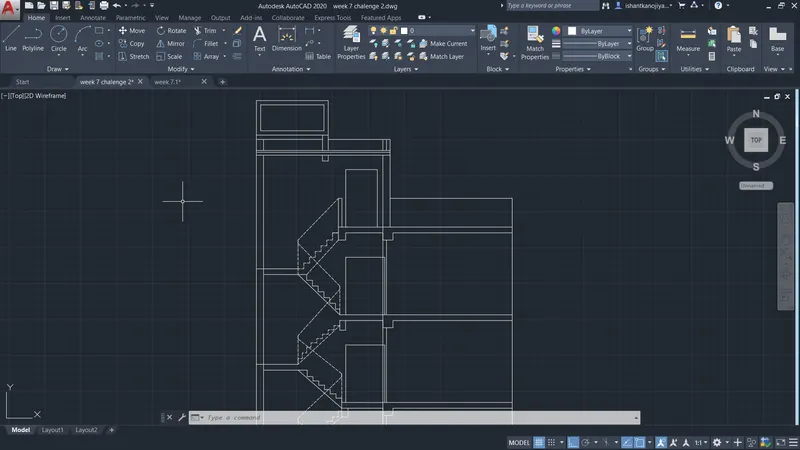

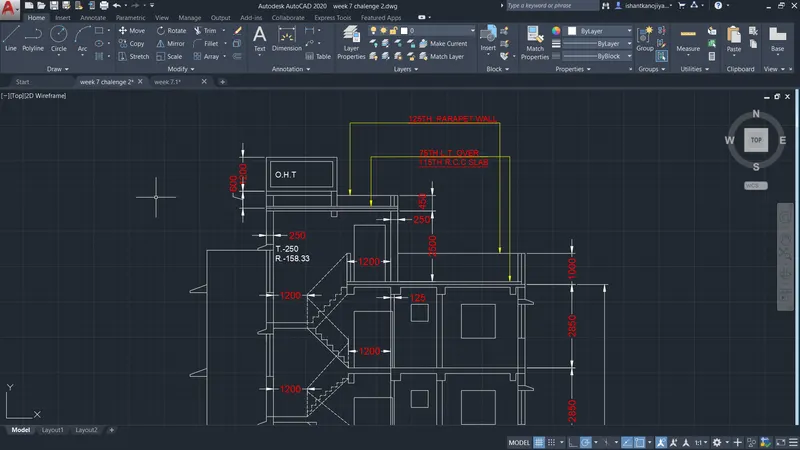

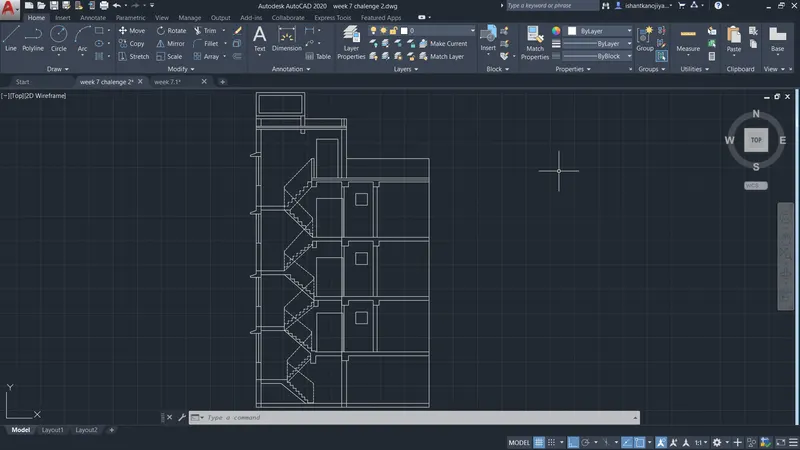

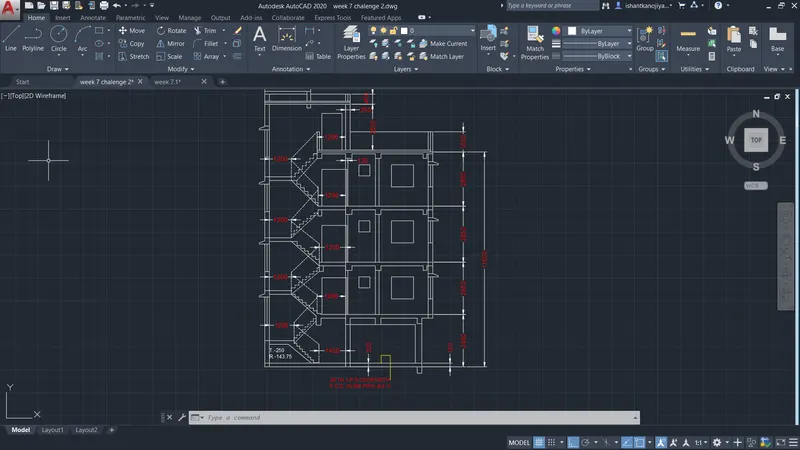

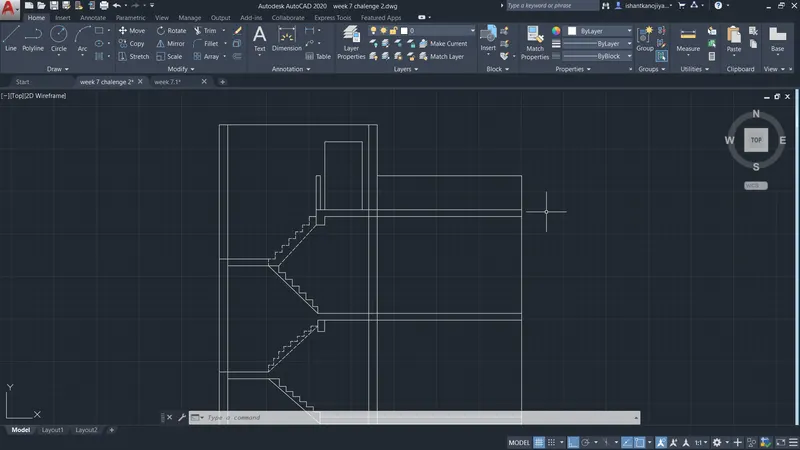

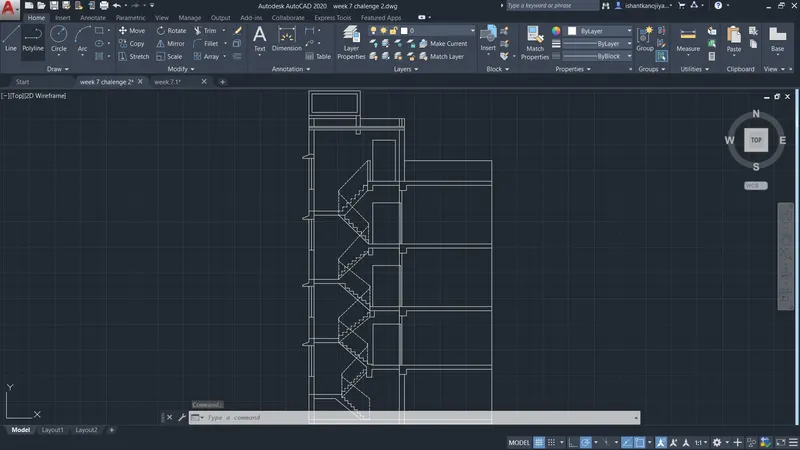

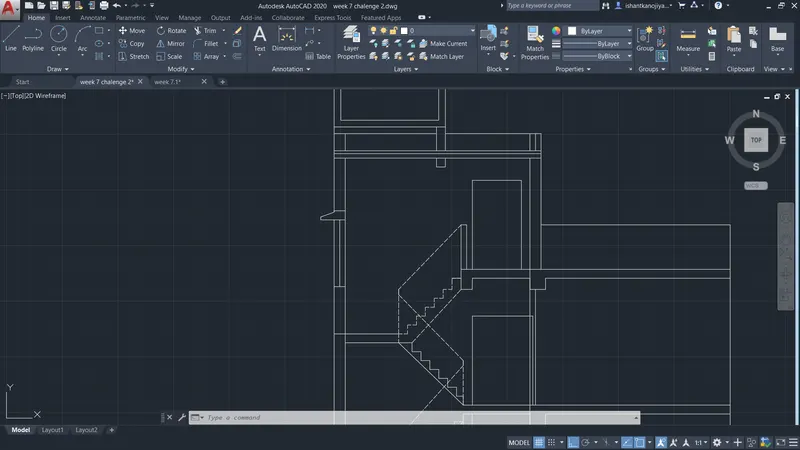

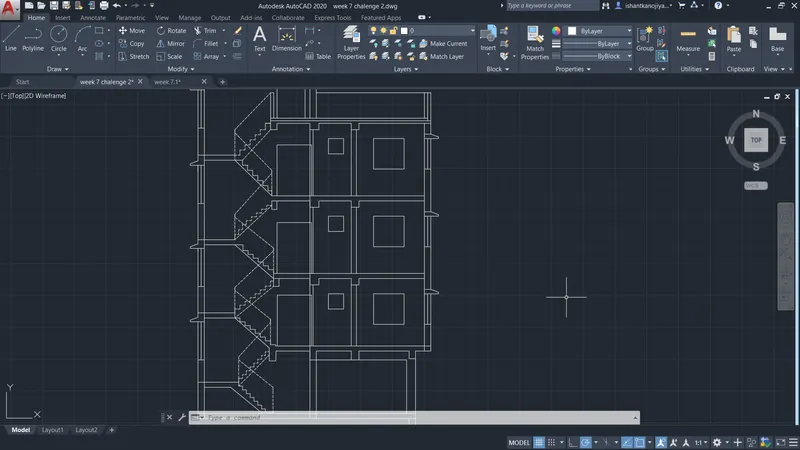

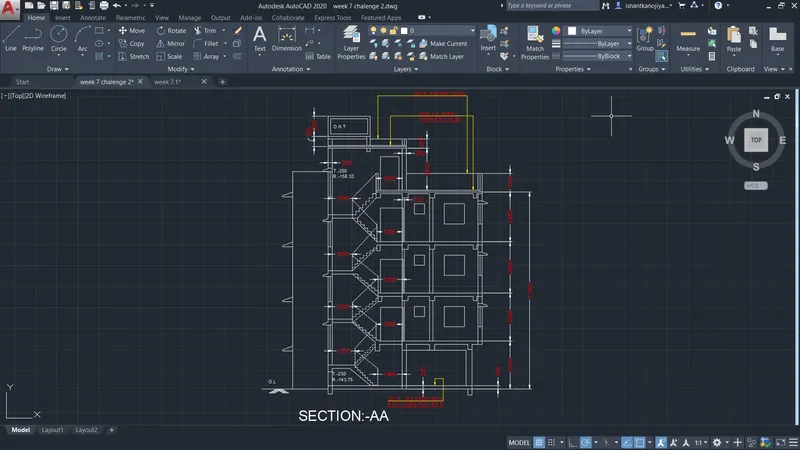

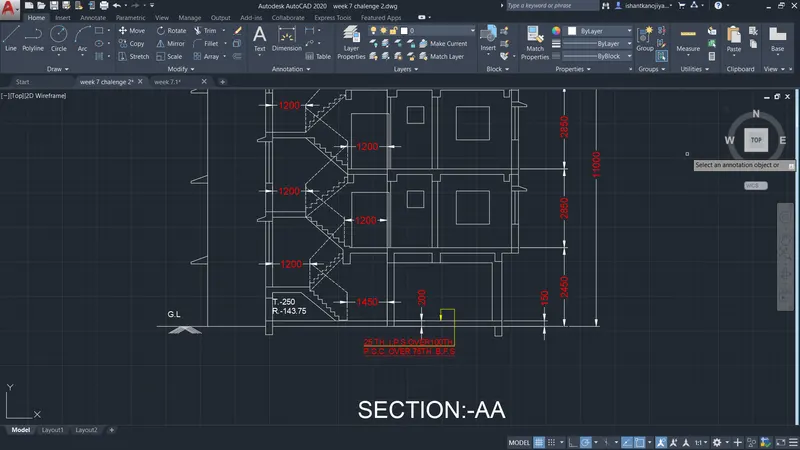

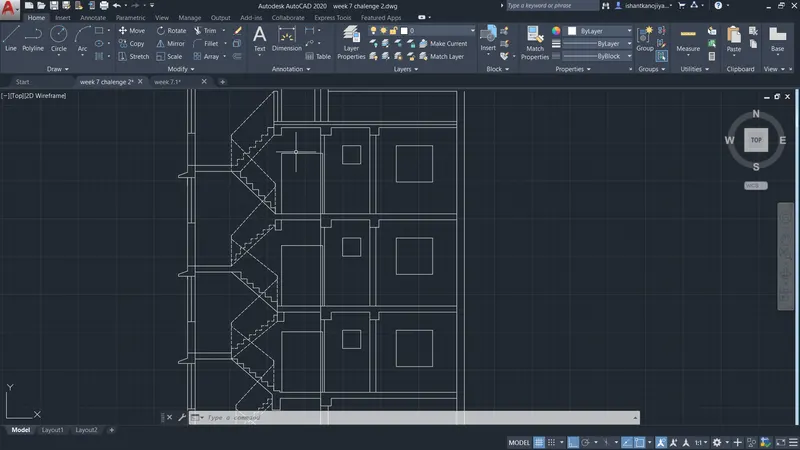

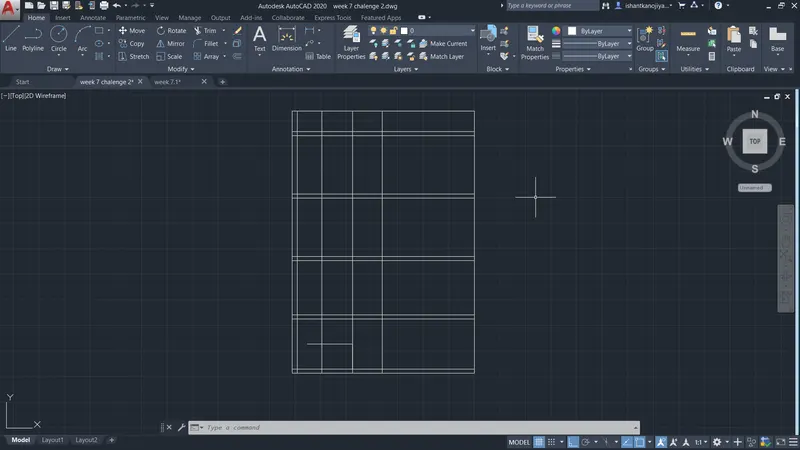

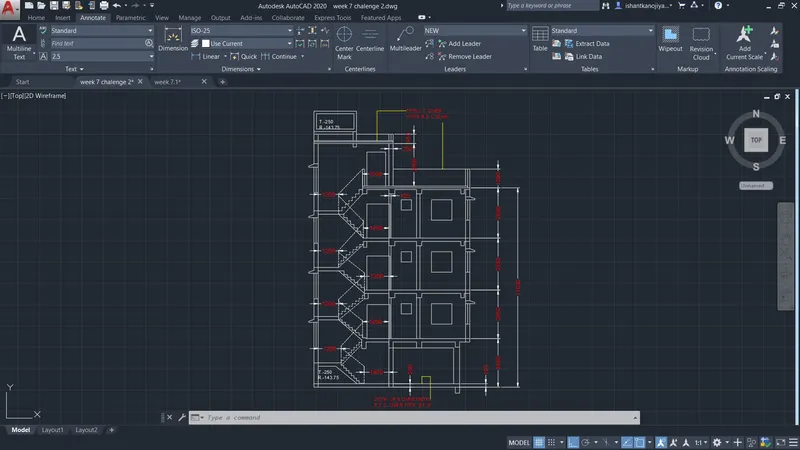

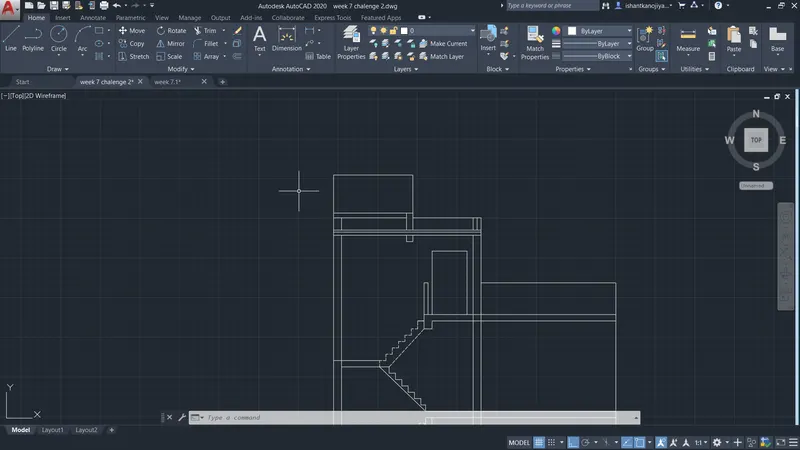

2. AIM: TO DRAW THE SECTION:- AA USING AUTOCAD

PROCEDURE:

• SELECT UNIT COMMAND > SELECT DECIMAL > PRECISION 0.0> SCALE MM> PRESS OK
• SELECT XLINE COMMAND> SELECT VERTICAL> SPECIFY POINT > PRESS ENTER
• SELECT XLINE COMMAND> SELECT VERTICAL > SPECIFY POINT > PRESS ENTER
• SELECT OFFSET TOOLS TO SKETCH THE WALL
• USING COPY TOOL
• USING TRIM COMMAND AND EXTEND COMMAND
•
•
•
•
•
•
•
•
•
•
• SEKETCH WINDOWS
•
•
•
•
•
• USING TRIM COMMAND TO TRIM THE EXTRA LINES
• USING DIMENSION TOOL TO DIMENSIONING THE LINES
•
•
•
• USING LEADER COMMAND
•

RESULT:

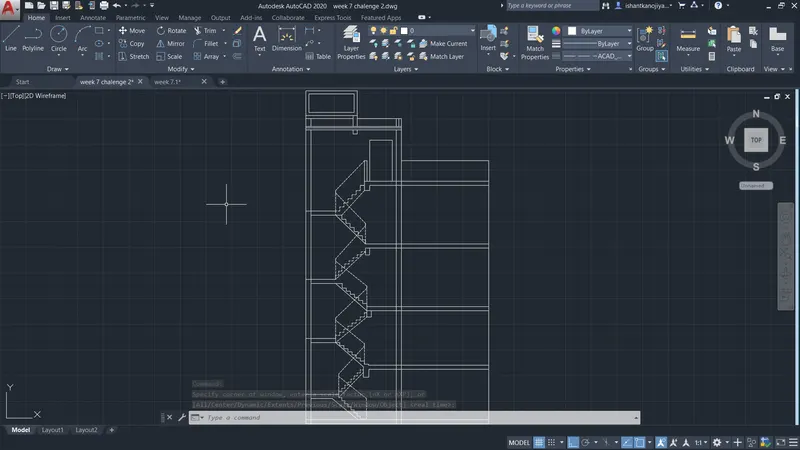

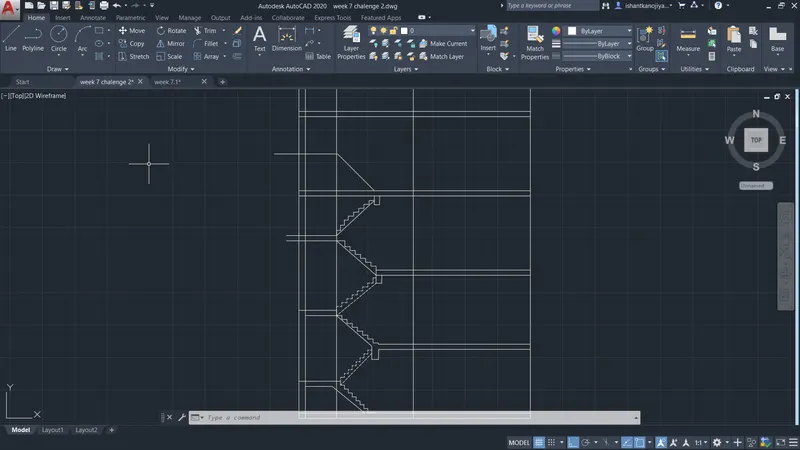

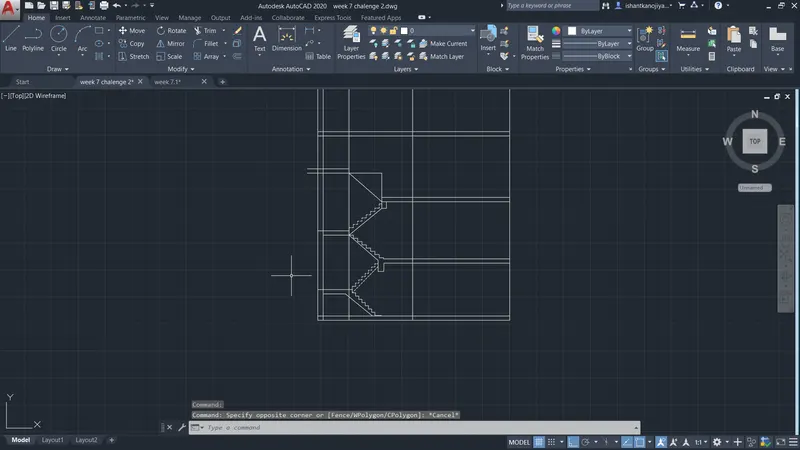

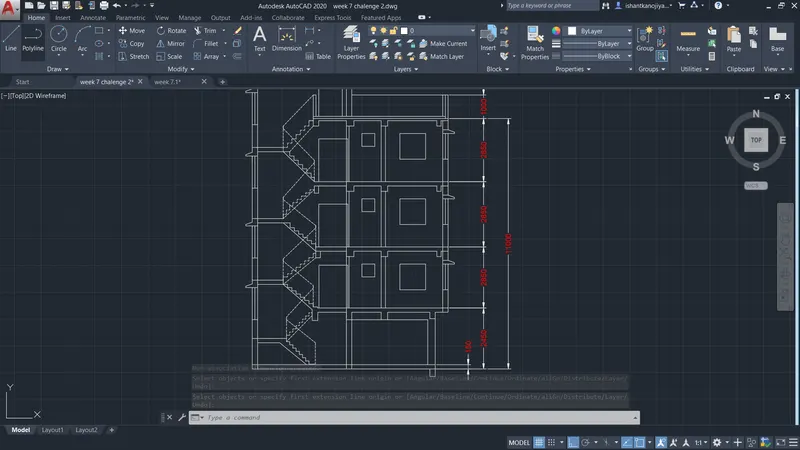

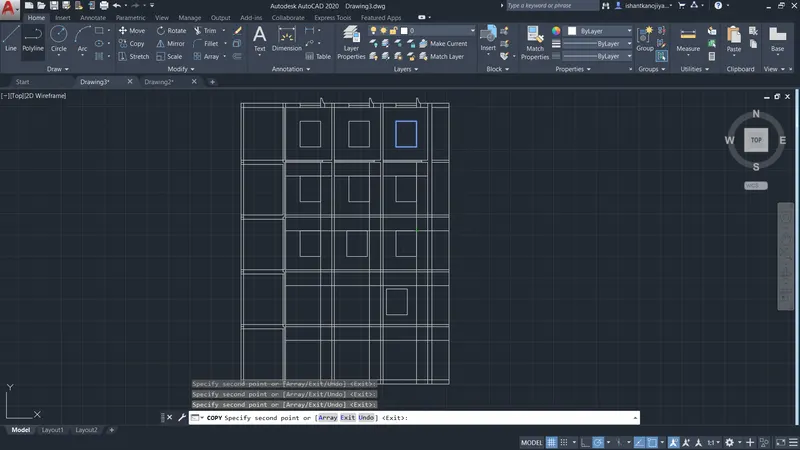

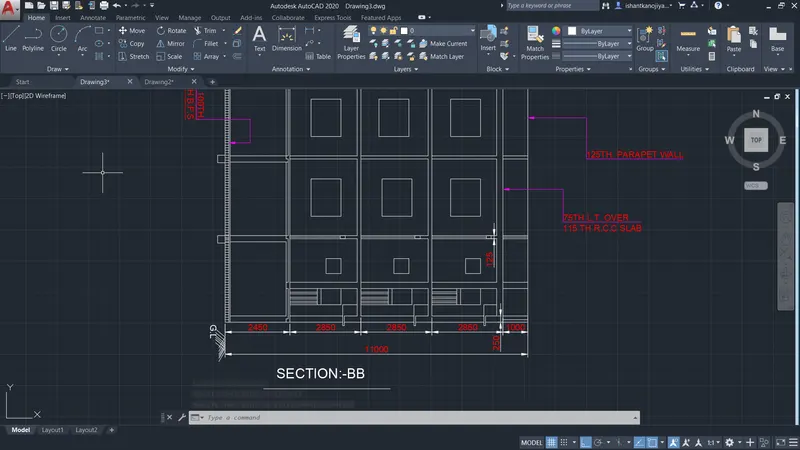

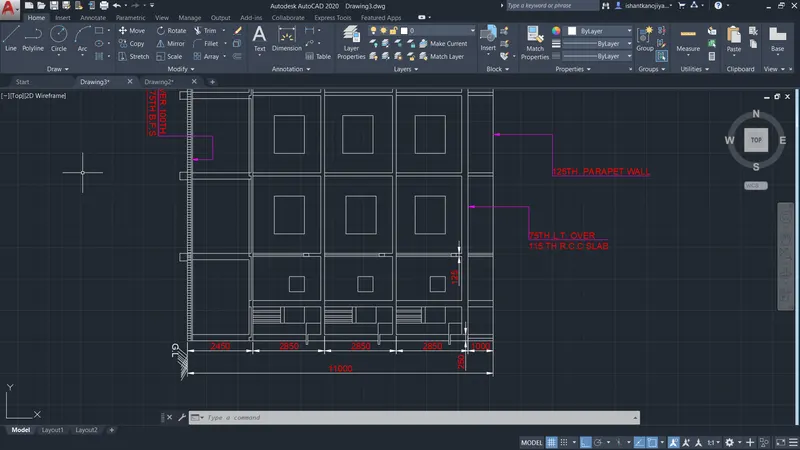

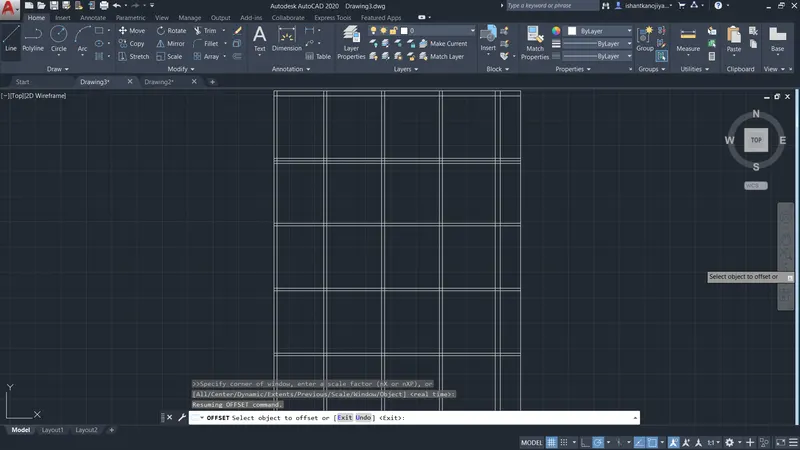

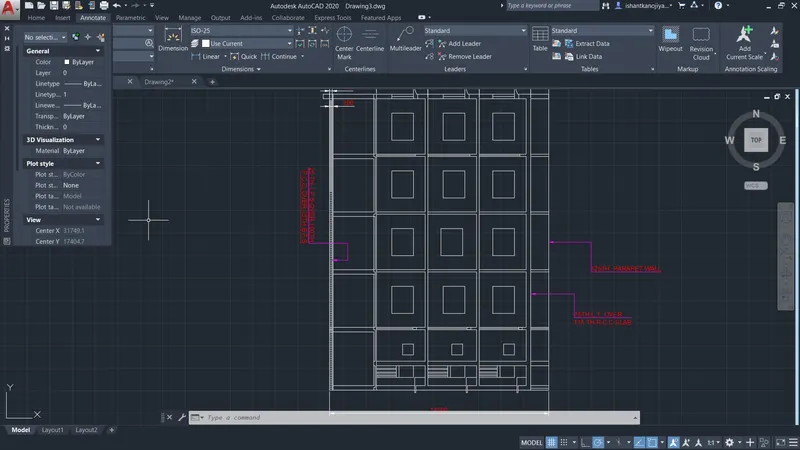

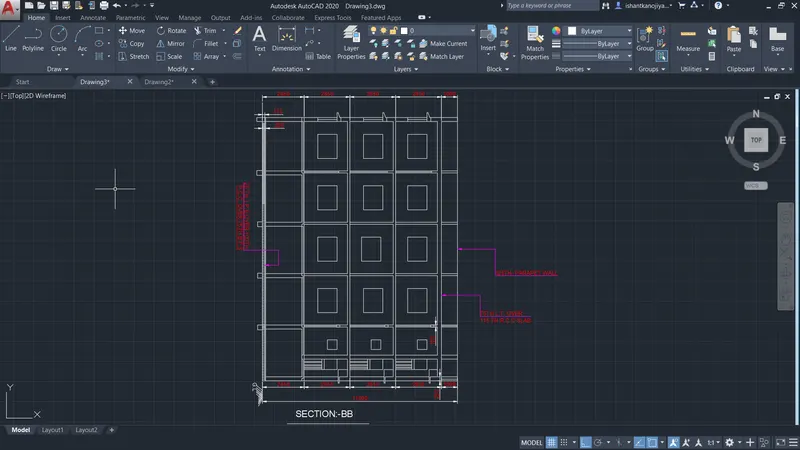

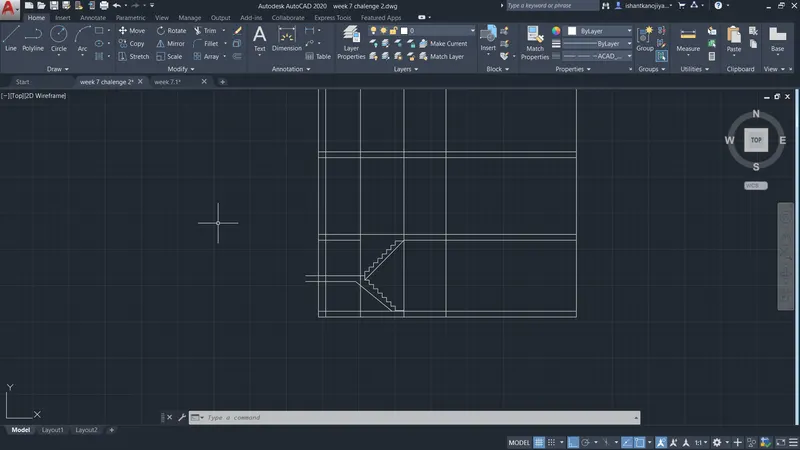

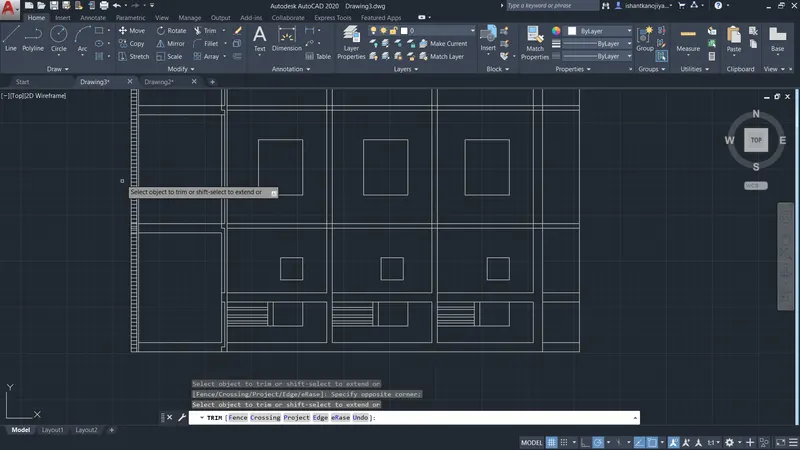

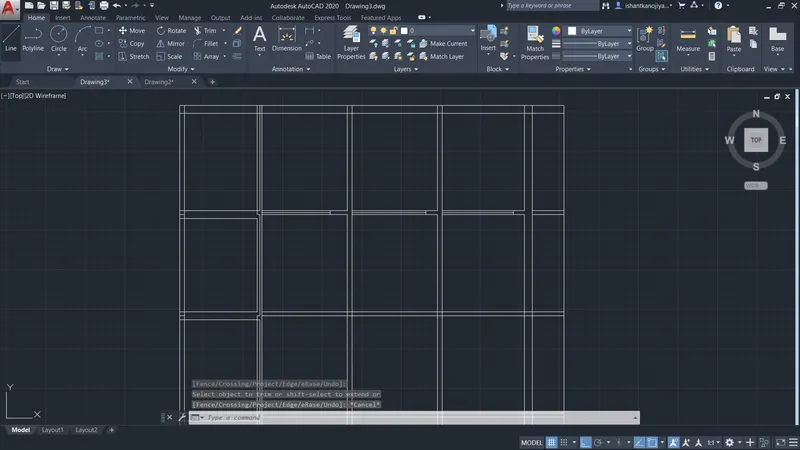

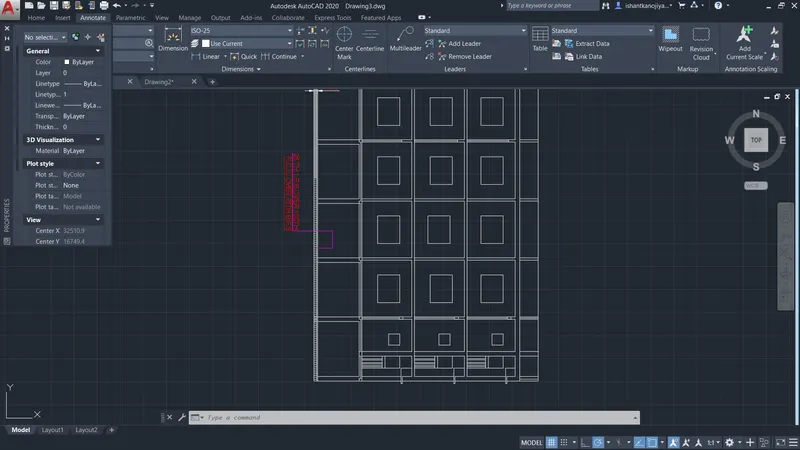

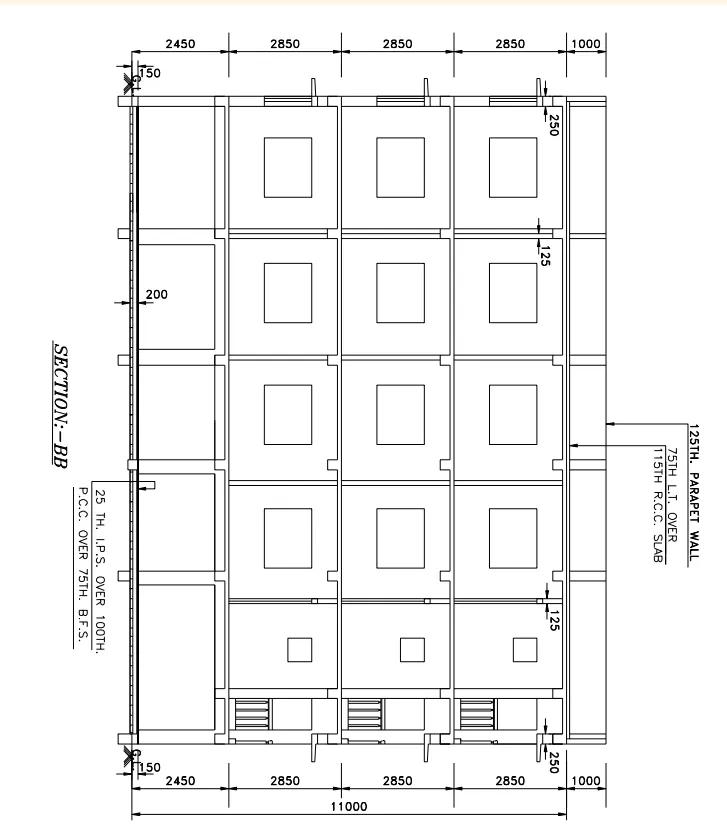

3. AIM: DRAW THE SECTION:-BB USING AUTOCAD.

PROCEDURE:

• ENTER UN COMMAND > SELECT DECIMAL> SELECT SCALE MM> SELECT PRECISION 0.0 > PRESS OK
• SELECT XLINE COMMAND > SELECT VERTICAL > SPECIFY POINT >PRESS ENTER
• SELECT XLINE COMMAND > SELECT HORIZONTAL > SPECIFY POINT > PRESS ENTER
• SELECT OFFSET COMMAND TO SKETCH THE EXTERIOR WALLS AND INTERIOR WALLS
• USING COPY TOOL
• USING TRIM COMMAND AND EXTEND COMMAND
•
•
•
• USING COPY TOOS FOR SKETCHING WINDOWS
•
•
•
•
•

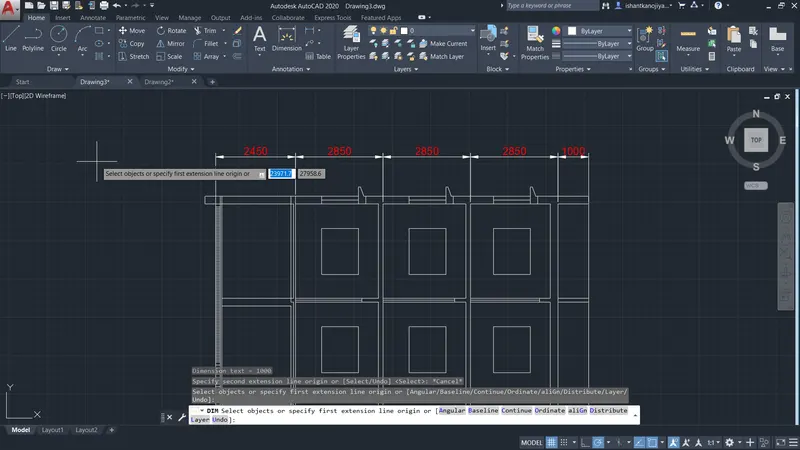

• USING DIMENSION TOOL TO DIMENSIONING THE LINE
•
• USING LEADER COMMAND TO POINT THE SECTION
•
•
•
•

RESULT:
