Challenge 9 : Project : Technical Surfacing Kia Sportage

Concept Modelling of a KIA SPORTAGE car

Objective- To model the complete car and apply various surface creating techniques and achieve good quality surfaces.

Introduction- We will make an entire model of kia Sportage, here we will be combing all the features and parts that we have made earlier.

Front and rear bumper, side fender etc. We already know how to achieve good quality surfaces on these parts, so what we will do here is that we will apply all necessary steps and techniques that we learned earlier and then we will attach/align all the parts together so that we can have good continuity.

Methodology-

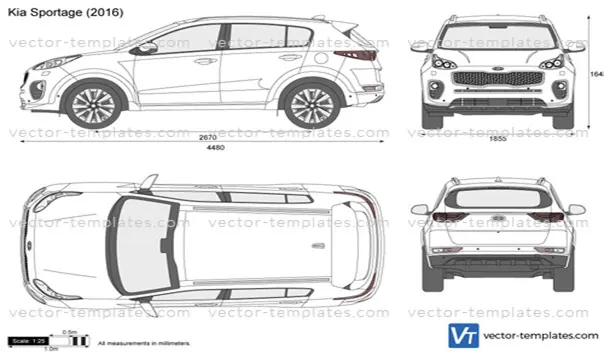

Images provided by Skill-Lync

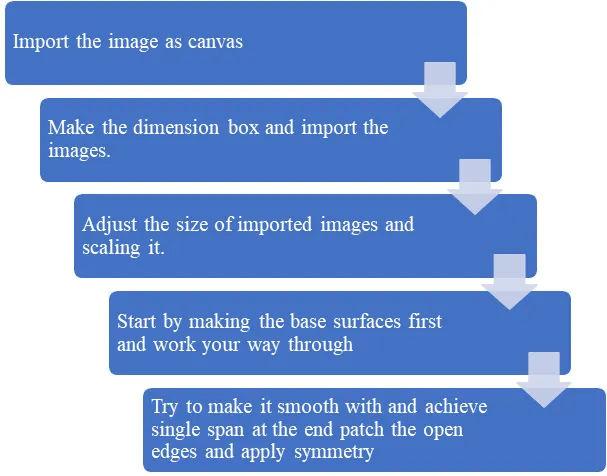

We will be following the above decided modelling sequence this is individual sequence it can be vary from person to person. As per flow chart we have already imported the images we have explained the steps described in the flow chart.

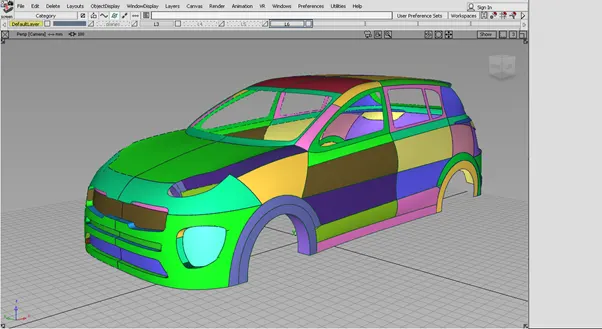

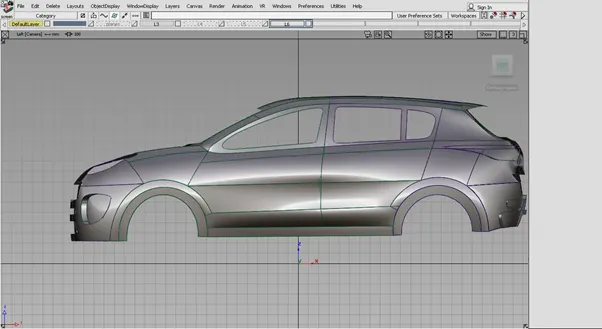

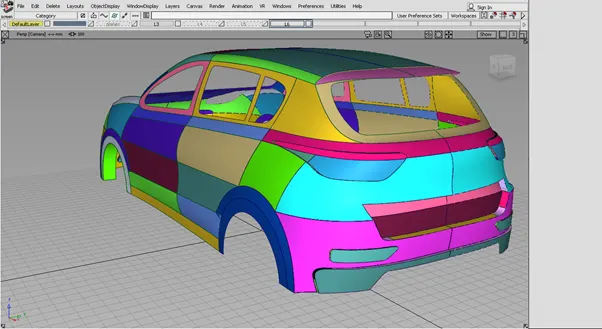

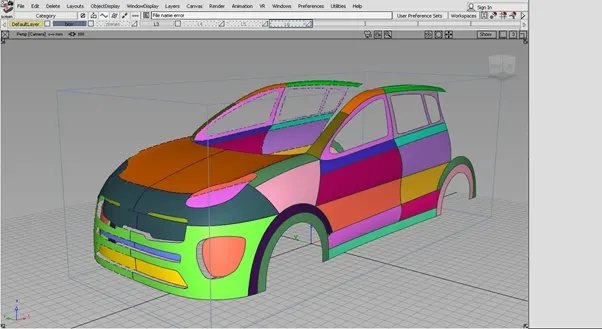

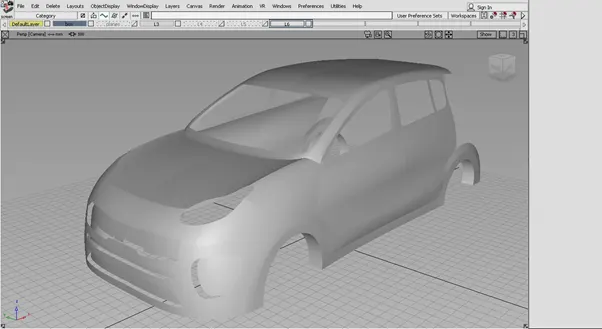

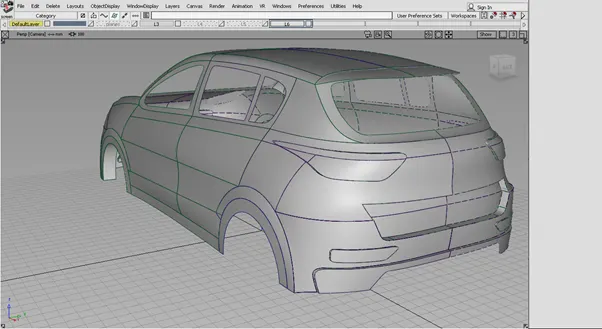

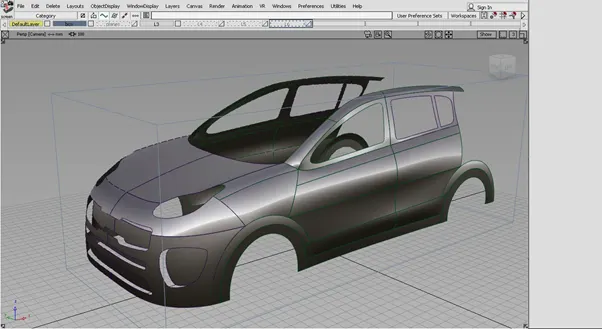

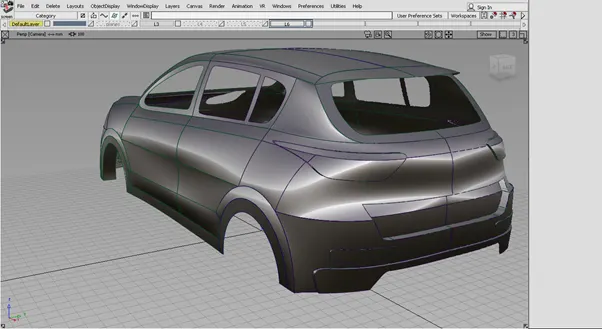

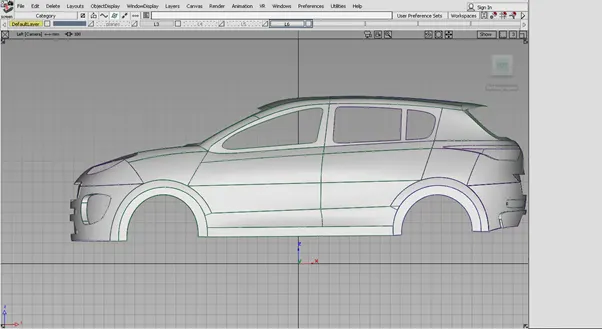

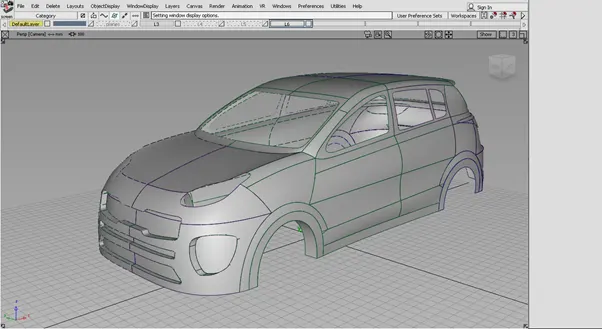

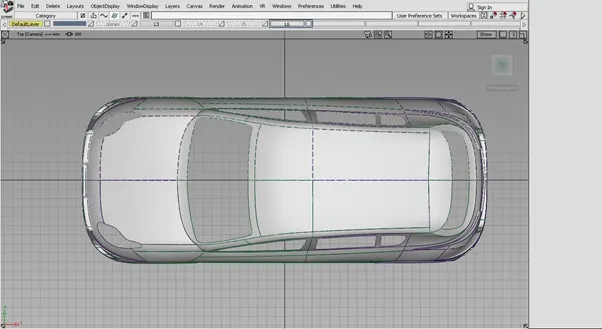

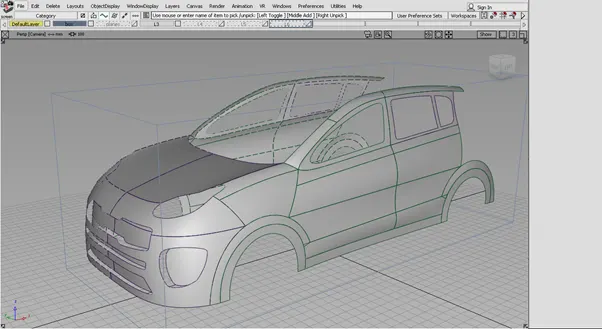

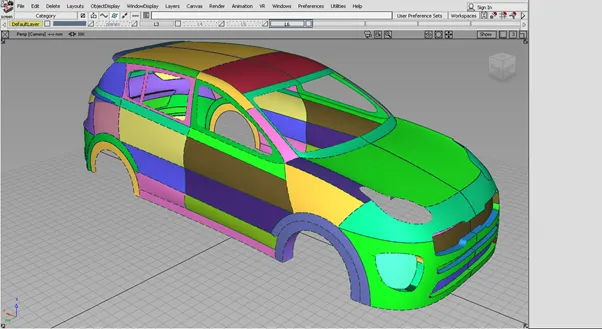

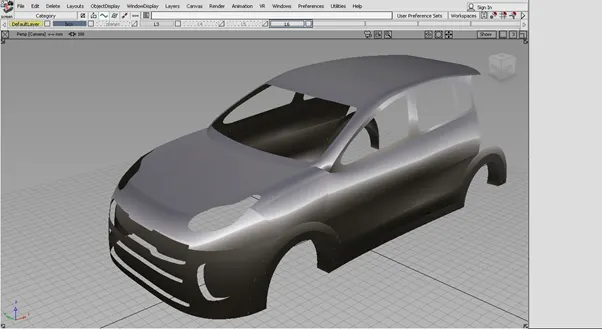

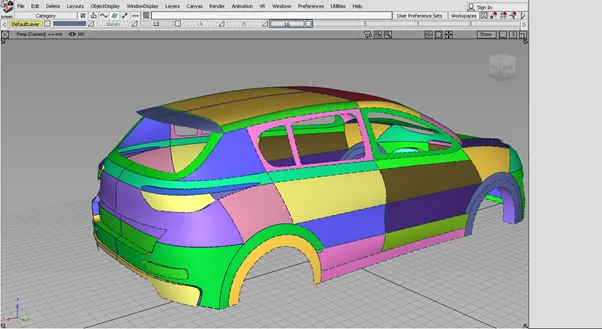

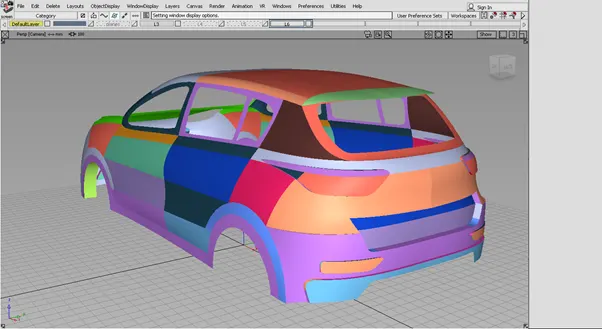

Work process-

Following features are used

1.CV curves

2.Blends

3.Align

4.Attach/Detach

5.Trim

6.Project

7.Duplicate

8.Circle

9.Extend

10.Square

11.Skin

12.Rail/Bi-Rail/M-Rail

13.Free-form blend

14.Surface fillet

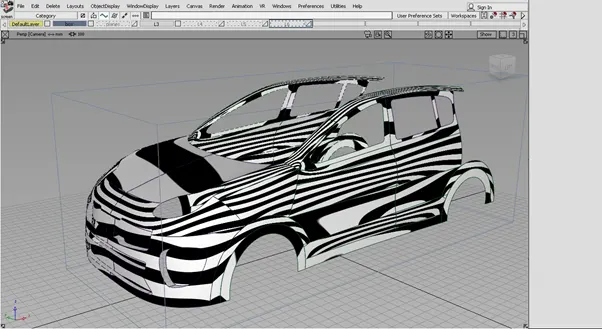

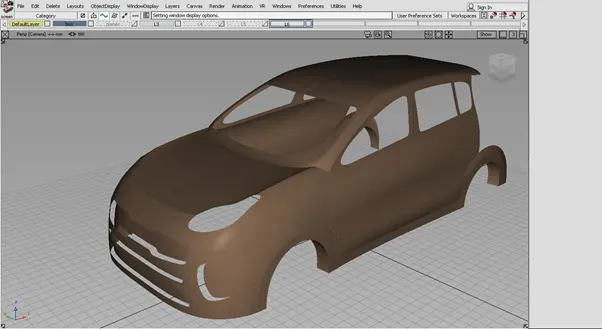

Conclusion- After performing this task we have learnt how to manage more data and work with multiple layers and work in a single workspace. By suppressing and un suppressing the layers and working on different parts then combining all together.
