Challenge 8 : Concept Modeling of Seats

Concept modelling of seat

Objective- To observe and experience the design of a seat and then perform required process to model the same.

Introduction- Some of the most parameters of any car where comfort is taken care of, is sitting more specifically seats. Seat plays an important role in comfort in facts its overall significance is to give comfort. So, it is really important that seats are well designed and as everyone sitting on it will be having different proportions and for this very reason, it should be customizable. We will be focusing on how to model a seat and our challenge here is we have only a perspective view and a side view.

Methodology-

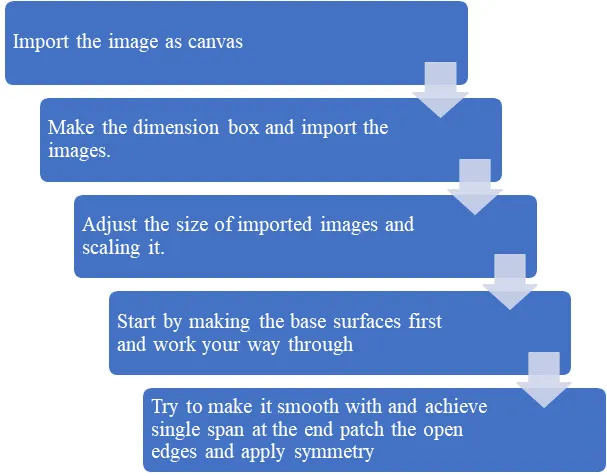

Work process-

1.We have made reference boxes; we have made this based on our own references since the dimension are not given

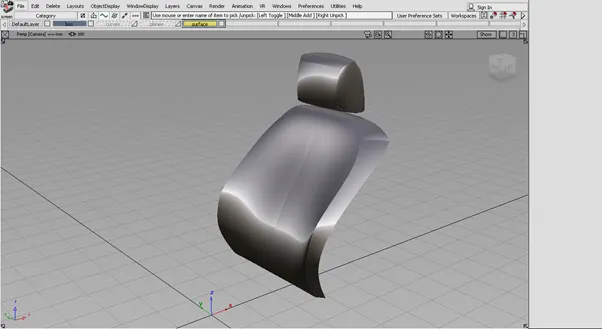

2.Next we started from side and made the head rest first which is fairly easy, we have used simple skin command since it is the easiest, we can use also surface features command.

3.Then we have made the backrest again simple tracing the lines and imaging the line which started from the headrest and goes till bottom then use rail consider the images.

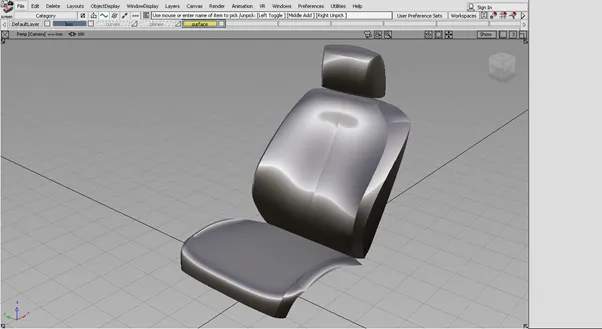

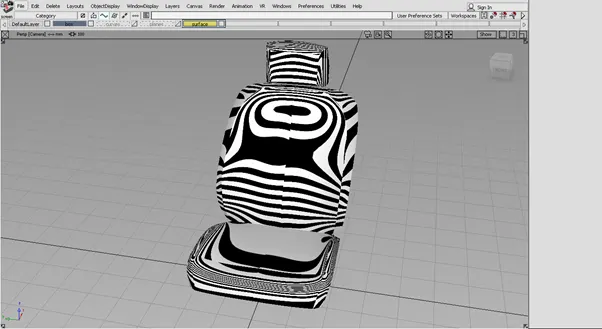

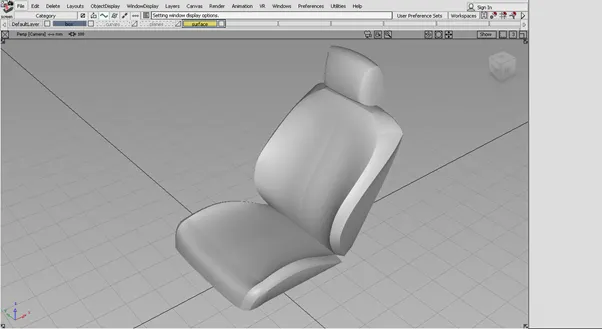

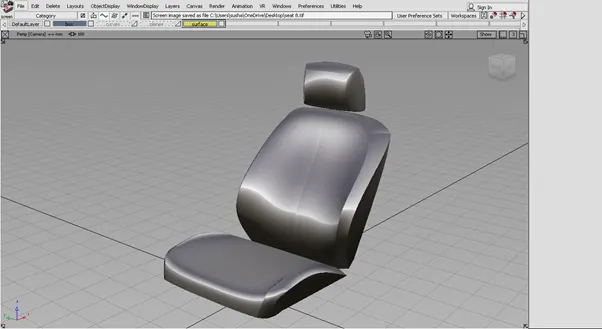

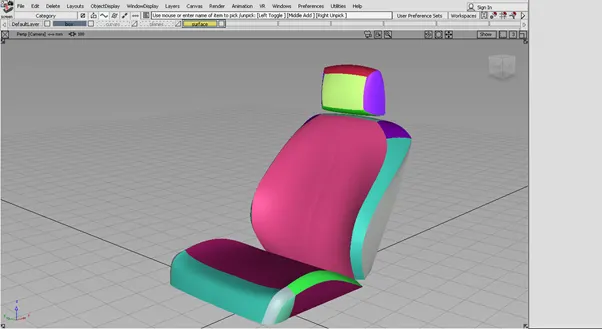

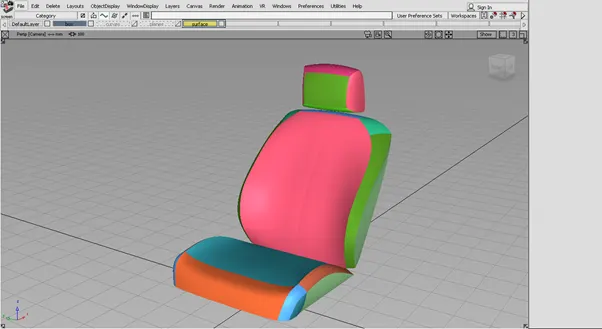

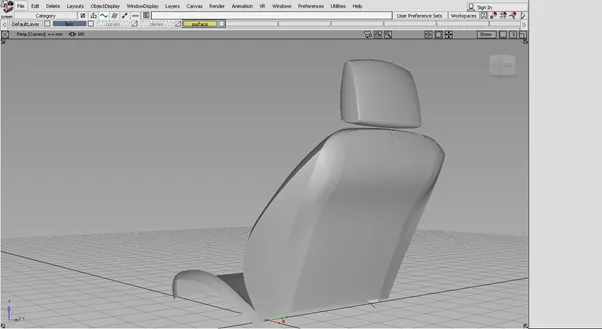

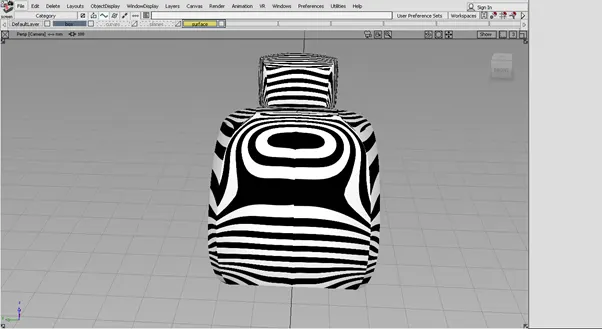

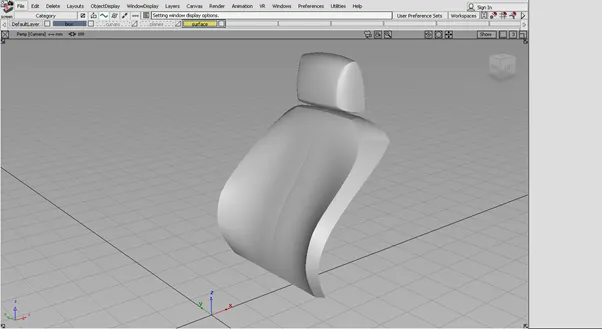

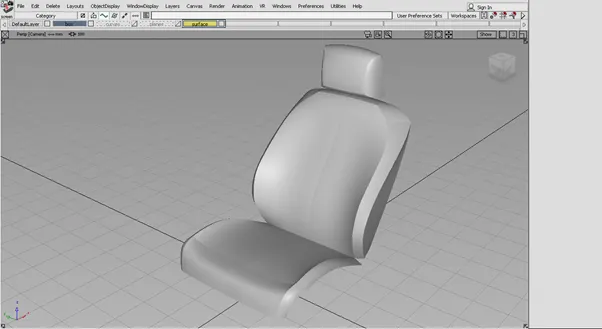

Now we will have to make some surfaces in such away that we can get the shape right of side portion we will extend some surfaces and intersect it then trim it to achieve the shape , consider the following images.

Conclusion-

Ability to model realistic and interactive part of an automobile is increased. Model planning and executing skill is increased.
