Challenge 5 : Concept Modeling of Car Bumper

1.TITTLE OF THE PROJECT:

Concept modelling of car bumper to the given blue print.

2.OBJECTIVE:

To achieve the better shape of car bumper through concept modelling.

3.INTRODUCTION:

Creating the good quality of front car bumper through concept modelling.To make good quality of shapes & achieve the continuity.

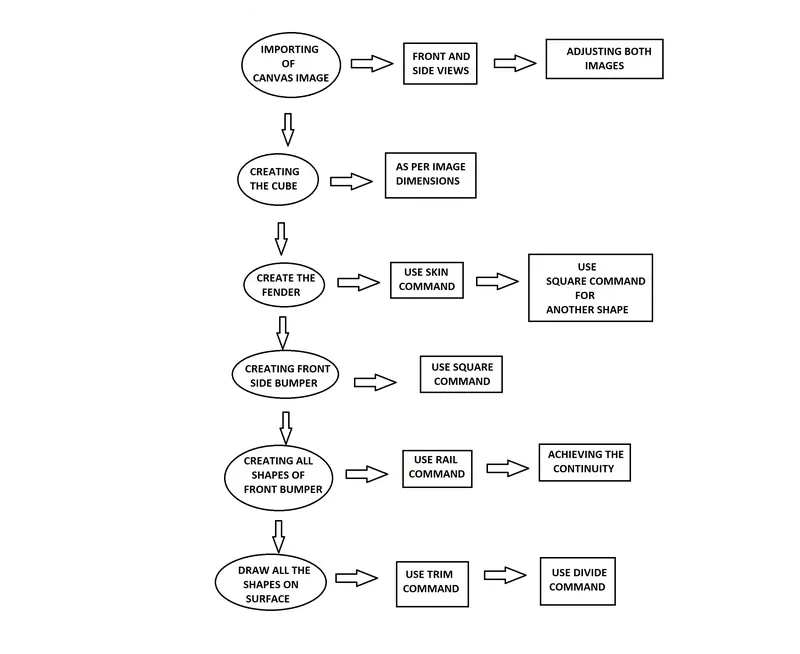

4.DESIGN METHODLOGY:

5.DESCRIPTION:

• Intially importing the canvas images of front & side views.
• Creating the cube(box) of all the dimensions of canvas images.
• Draw cv curve of the fender shape copy the same curve to generate shape and use skin surface command.
• Move the curves and surface to the visuallization of front view.
• Draw the curves of fender shape and use square surface command.(check the continuity position.)
• Draw the curve of front bumper increase the no of cvs and Align it to a straight line make it as G2,visualize the shape.
• Copy the same curve & use the square command.
• Draw all other shapes of front bumper and using of rail commands( check the continuity.)
• Use the Intersect command to the surface & trim the unwanted.
• Draw all the curves on surface Project the curves on surface & trim the unwanted.
• For some shapes use Divide command & move the surface to visualize shape.

TOOLS USED: 1.SKIN,SQUARE,RAIL - FOR SURFACE.

2.ALIGN- FOR CONTINUITY.

3.PROJECT

4.INTERSECT

5.DIVIDE.

6.UPLOADING OF IMAGE VIEWS:

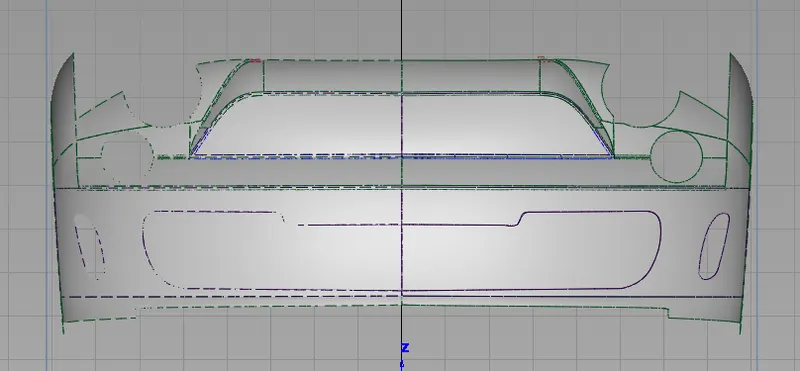

FRONT VIEW:

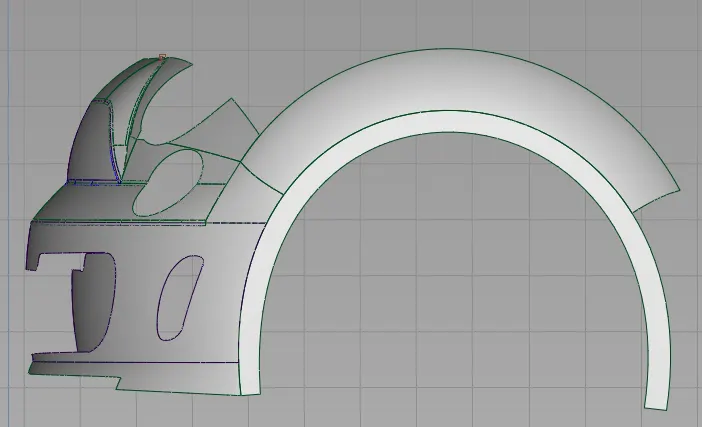

SIDE VIEW:

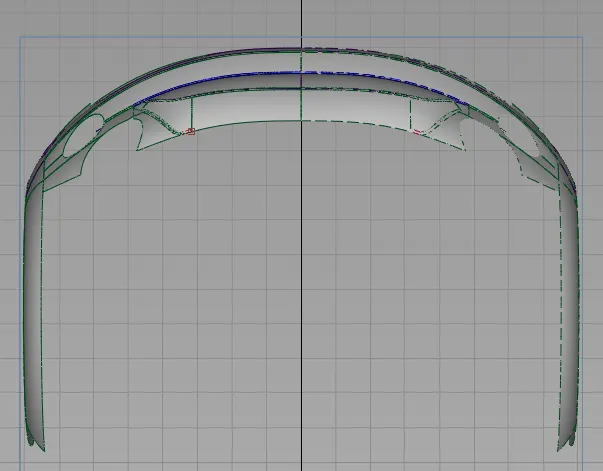

TOP VIEW:

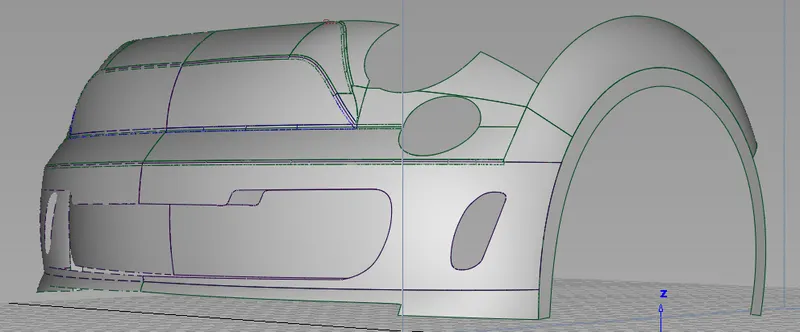

PERSPECTIVE VIEW:

7.CONCLUSION:

Thus, I have completed the front bumper of given blue print.

I used optional as rear bumper submitted as file.
