Calculating Thermochemical Properties using the 7 Term NASA Polynomials in MATLAB®
Aim- Calculating Thermochemical Properties using the 7 Term NASA Polynomials in MATLAB®
Objectives-
- To read and extract the data present in NASA’s thermodynamic data file “THERMO.dat”
- To calculate specific heat, entropy and enthalpy using NASA’s thermochemical polynomials for different species

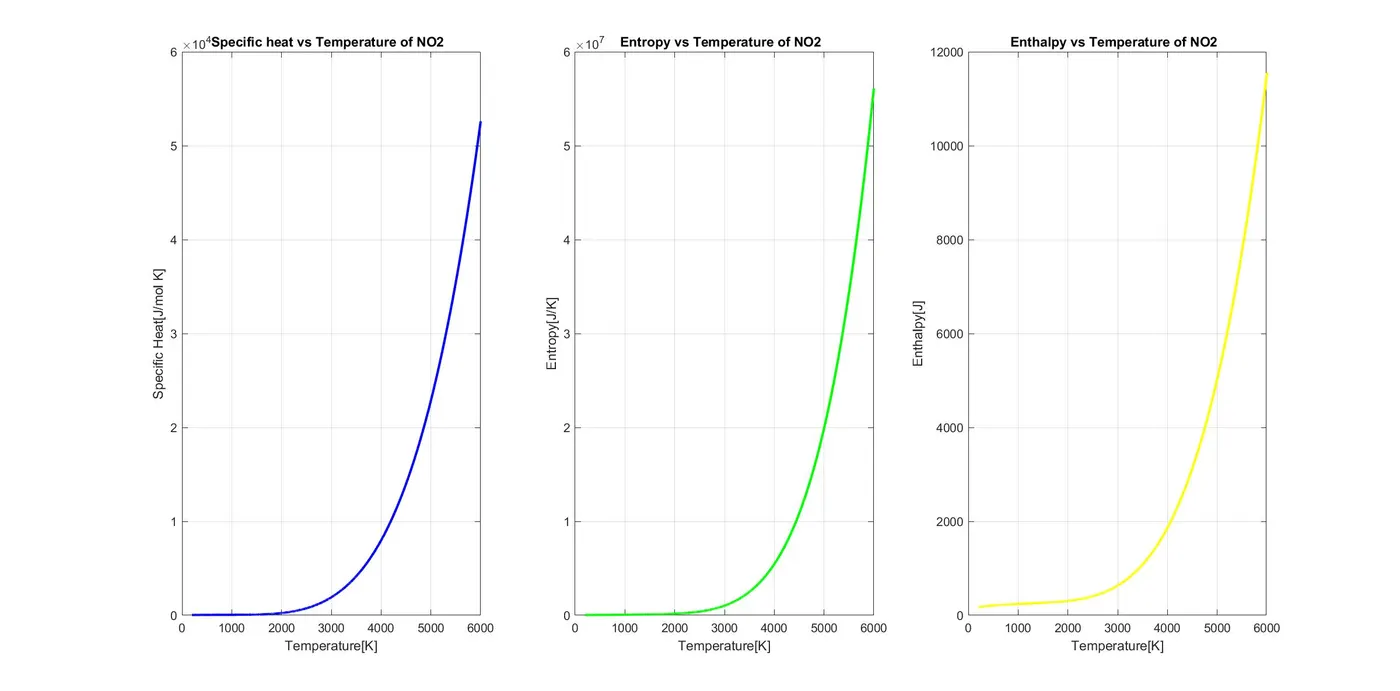

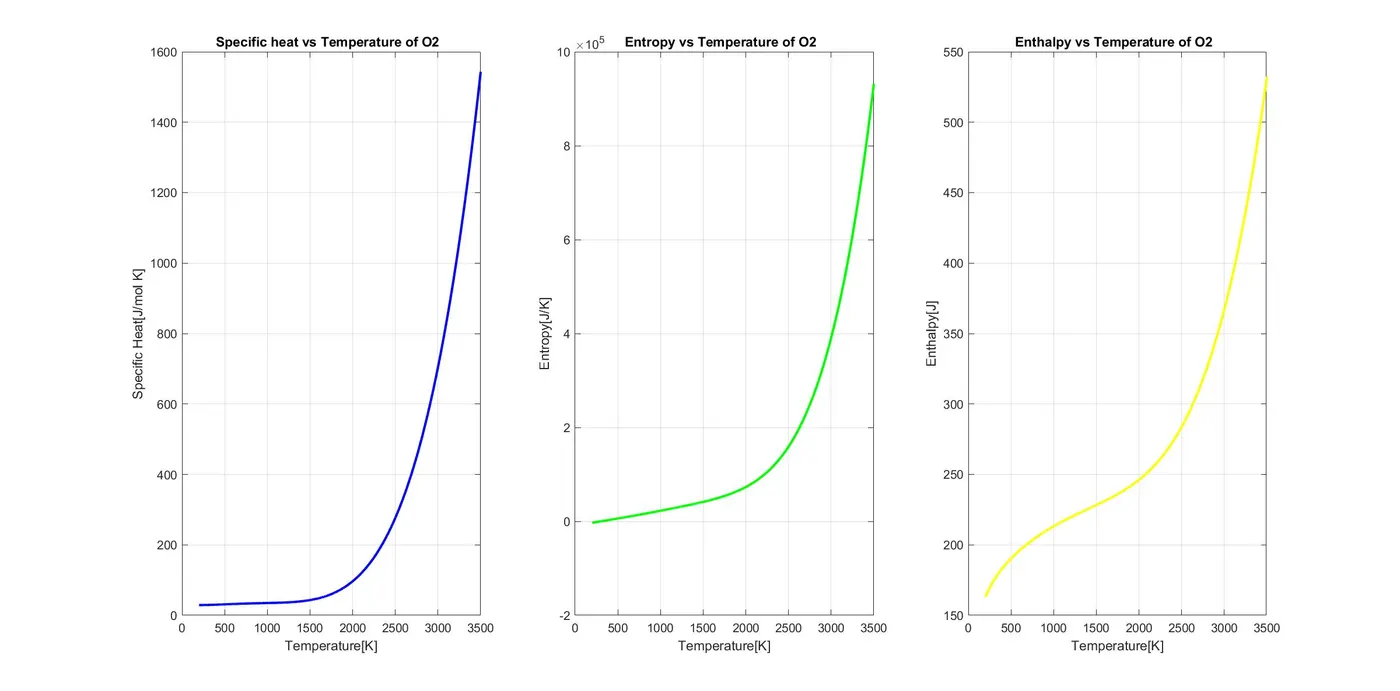

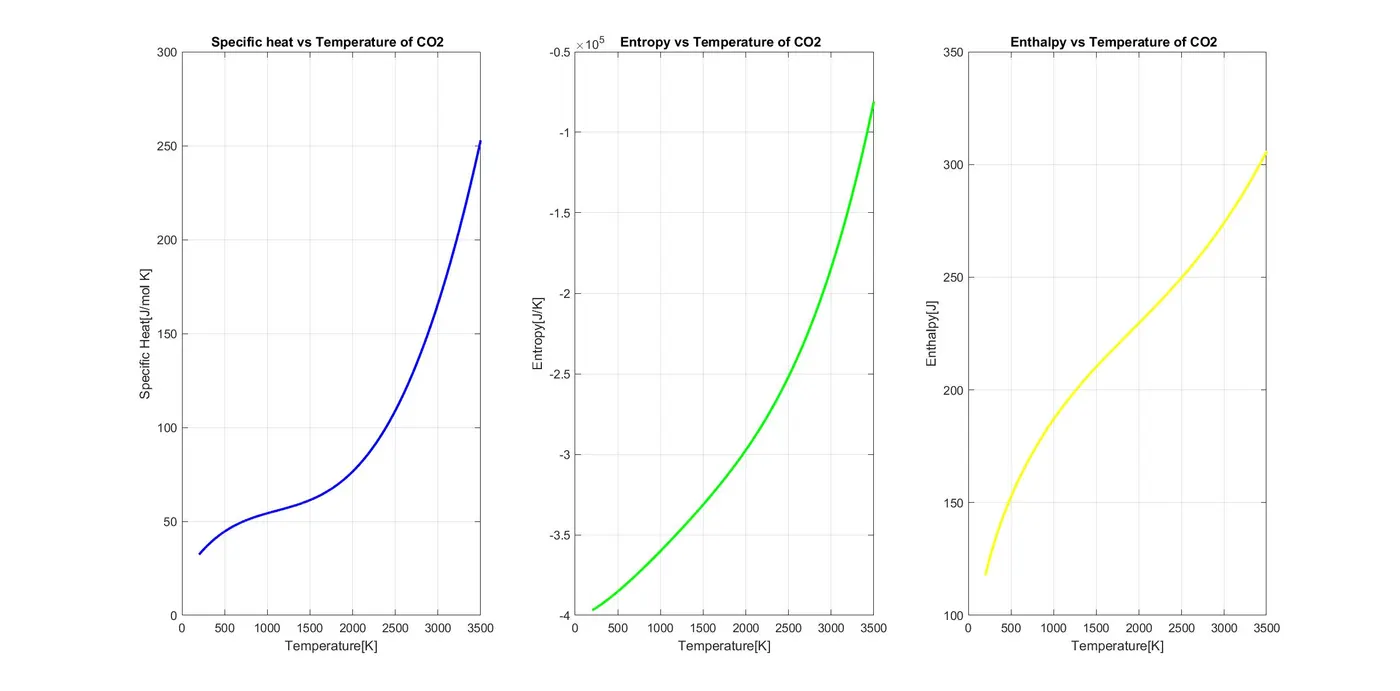

- To plot the calculated thermodynamic properties with local temperature ranges

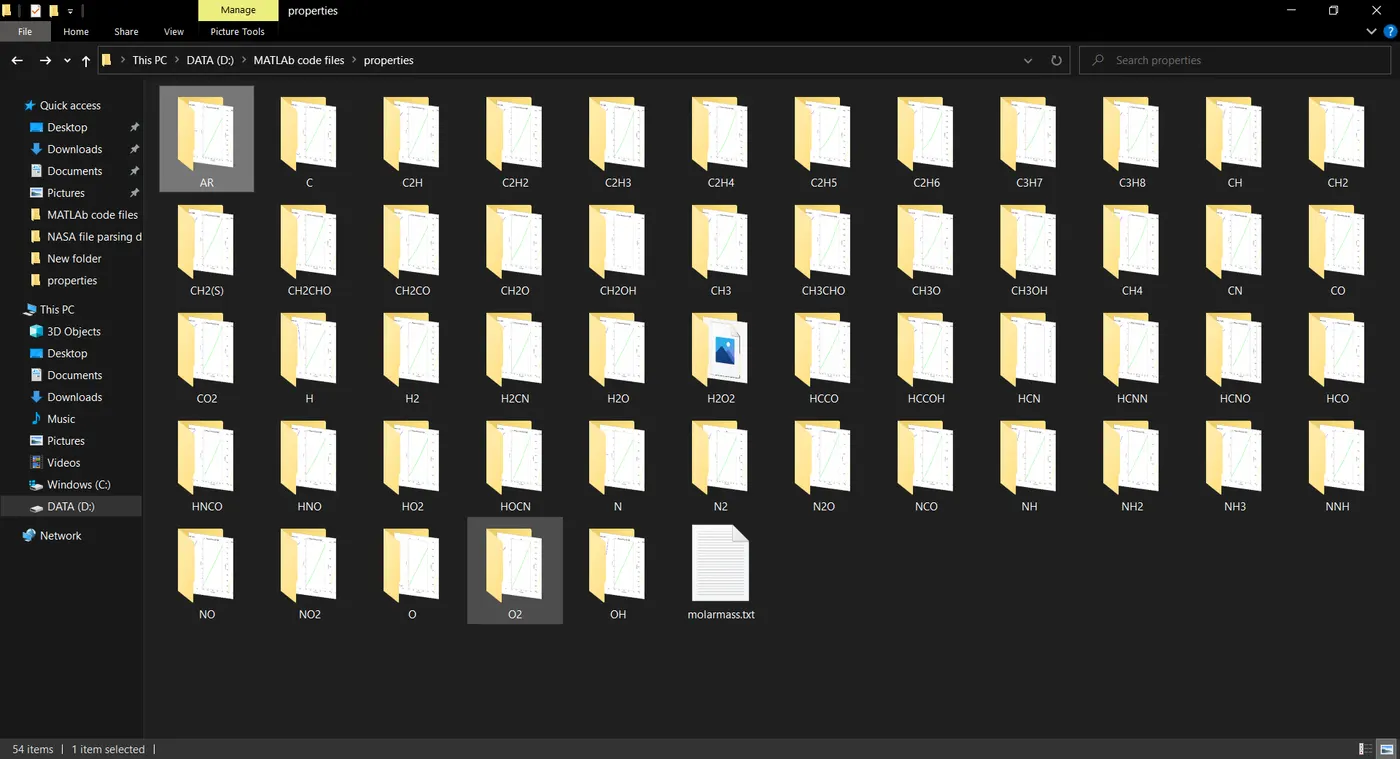

- To save the generated plots for each species as images in the appropriate directory

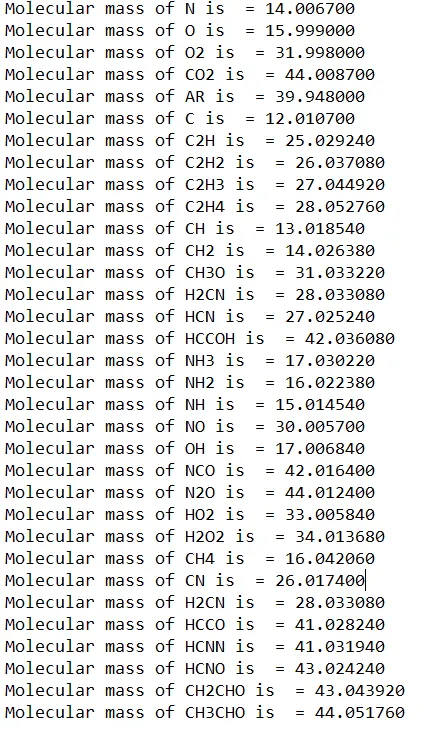

- To evaluate the molecular weight of the species
Introduction-
The thermodynamic properties, such as heat capacity, enthalpy and entropy are important when solving combustion-related problems. In 1961 Frank Zeleznik and Sanford Gordon invented a method for performing a simultaneous regression of the properties in order to approximate more than one property with a single polynomial. They ended up with the famous NASA 7 term polynomials.
The NASA polynomials have the form:
`(C_ p) /R = a _1 + a _2 T + a _3 T^ 2 + a _4 T ^3 + a_ 5 T^ 4`
`H /(R T) = a _1 + a _2 T/ 2 + a _3 T^ 2/ 3 + a _4 T ^3 /4 + a_ 5 T ^4/ 5 + a _6 /T`
`S /R = a _1 ln ( T ) + a _2 T + a _3 T ^2 /2 + a _4 T ^3/ 3 + a _5 T^ 4 /4 + a _7`
here,
- `a_1,a_2,a_3,a_4,a_5,a_6,a_7`are the numerical coefficients.
- Cp is specific heat.
- H is enthalpy
- S is entropy
- R is univeral gas constant
- T is temperature
Parsing-
Parsing a file means reading in a data stream of some sort. This aims at facilitating perfoming some kind of transformation on the data. NASA thermodynamic data file contains 14 coefficients of 53 gases and their corresponding temperatures. All those inputs are extracted to compute thermodynamic properties of the gases.
NASA thermodynamic Data-
- In the file second line denotes the global temperature range.
- From the sixth line or the first line for the compound starting letter denotes the compund like O, O2, H2, H etc and towards the end after the letter G, local temperature ranges are given for each compound.
- The first 7 numbers starting on the second line of each compounds entry (five of the second line and the first two of the third line) are the seven coefficients (a1 through a7) for the high-temperature range (above 1000 K).
- The following seven numbers are the coefficients (a1 through a7) for the low-temperature range (below 1000 K).
THERMO
300.000 1000.000 5000.000
! GRI-Mech Version 3.0 Thermodynamics released 7/30/99
! NASA Polynomial format for CHEMKIN-II
! see README file for disclaimer
O L 1/90O 1 G 200.000 3500.000 1000.000 1
2.56942078E+00-8.59741137E-05 4.19484589E-08-1.00177799E-11 1.22833691E-15 2
2.92175791E+04 4.78433864E+00 3.16826710E+00-3.27931884E-03 6.64306396E-06 3
-6.12806624E-09 2.11265971E-12 2.91222592E+04 2.05193346E+00 4
O2 TPIS89O 2 G 200.000 3500.000 1000.000 1
3.28253784E+00 1.48308754E-03-7.57966669E-07 2.09470555E-10-2.16717794E-14 2
-1.08845772E+03 5.45323129E+00 3.78245636E+00-2.99673416E-03 9.84730201E-06 3
-9.68129509E-09 3.24372837E-12-1.06394356E+03 3.65767573E+00 4
H L 7/88H 1 G 200.000 3500.000 1000.000 1
2.50000001E+00-2.30842973E-11 1.61561948E-14-4.73515235E-18 4.98197357E-22 2
2.54736599E+04-4.46682914E-01 2.50000000E+00 7.05332819E-13-1.99591964E-15 3
2.30081632E-18-9.27732332E-22 2.54736599E+04-4.46682853E-01 4
H2 TPIS78H 2 G 200.000 3500.000 1000.000 1
3.33727920E+00-4.94024731E-05 4.99456778E-07-1.79566394E-10 2.00255376E-14 2
-9.50158922E+02-3.20502331E+00 2.34433112E+00 7.98052075E-03-1.94781510E-05 3
2.01572094E-08-7.37611761E-12-9.17935173E+02 6.83010238E-01 4
OH RUS 78O 1H 1 G 200.000 3500.000 1000.000 1
3.09288767E+00 5.48429716E-04 1.26505228E-07-8.79461556E-11 1.17412376E-14 2
3.85865700E+03 4.47669610E+00 3.99201543E+00-2.40131752E-03 4.61793841E-06 3
-3.88113333E-09 1.36411470E-12 3.61508056E+03-1.03925458E-01 4
H2O L 8/89H 2O 1 G 200.000 3500.000 1000.000 1
3.03399249E+00 2.17691804E-03-1.64072518E-07-9.70419870E-11 1.68200992E-14 2
-3.00042971E+04 4.96677010E+00 4.19864056E+00-2.03643410E-03 6.52040211E-06 3
-5.48797062E-09 1.77197817E-12-3.02937267E+04-8.49032208E-01 4
HO2 L 5/89H 1O 2 G 200.000 3500.000 1000.000 1
4.01721090E+00 2.23982013E-03-6.33658150E-07 1.14246370E-10-1.07908535E-14 2
1.11856713E+02 3.78510215E+00 4.30179801E+00-4.74912051E-03 2.11582891E-05 3
-2.42763894E-08 9.29225124E-12 2.94808040E+02 3.71666245E+00 4
H2O2 L 7/88H 2O 2 G 200.000 3500.000 1000.000 1
4.16500285E+00 4.90831694E-03-1.90139225E-06 3.71185986E-10-2.87908305E-14 2
-1.78617877E+04 2.91615662E+00 4.27611269E+00-5.42822417E-04 1.67335701E-05 3
-2.15770813E-08 8.62454363E-12-1.77025821E+04 3.43505074E+00 4
C L11/88C 1 G 200.000 3500.000 1000.000 1
2.49266888E+00 4.79889284E-05-7.24335020E-08 3.74291029E-11-4.87277893E-15 2
8.54512953E+04 4.80150373E+00 2.55423955E+00-3.21537724E-04 7.33792245E-07 3
-7.32234889E-10 2.66521446E-13 8.54438832E+04 4.53130848E+00 4
CH TPIS79C 1H 1 G 200.000 3500.000 1000.000 1
2.87846473E+00 9.70913681E-04 1.44445655E-07-1.30687849E-10 1.76079383E-14 2
7.10124364E+04 5.48497999E+00 3.48981665E+00 3.23835541E-04-1.68899065E-06 3
3.16217327E-09-1.40609067E-12 7.07972934E+04 2.08401108E+00 4
CH2 L S/93C 1H 2 G 200.000 3500.000 1000.000 1
2.87410113E+00 3.65639292E-03-1.40894597E-06 2.60179549E-10-1.87727567E-14 2
4.62636040E+04 6.17119324E+00 3.76267867E+00 9.68872143E-04 2.79489841E-06 3
-3.85091153E-09 1.68741719E-12 4.60040401E+04 1.56253185E+00 4
CH2(S) L S/93C 1H 2 G 200.000 3500.000 1000.000 1
2.29203842E+00 4.65588637E-03-2.01191947E-06 4.17906000E-10-3.39716365E-14 2
5.09259997E+04 8.62650169E+00 4.19860411E+00-2.36661419E-03 8.23296220E-06 3
-6.68815981E-09 1.94314737E-12 5.04968163E+04-7.69118967E-01 4
CH3 L11/89C 1H 3 G 200.000 3500.000 1000.000 1
2.28571772E+00 7.23990037E-03-2.98714348E-06 5.95684644E-10-4.67154394E-14 2
1.67755843E+04 8.48007179E+00 3.67359040E+00 2.01095175E-03 5.73021856E-06 3
-6.87117425E-09 2.54385734E-12 1.64449988E+04 1.60456433E+00 4
CH4 L 8/88C 1H 4 G 200.000 3500.000 1000.000 1
7.48514950E-02 1.33909467E-02-5.73285809E-06 1.22292535E-09-1.01815230E-13 2
-9.46834459E+03 1.84373180E+01 5.14987613E+00-1.36709788E-02 4.91800599E-05 3
-4.84743026E-08 1.66693956E-11-1.02466476E+04-4.64130376E+00 4
CO TPIS79C 1O 1 G 200.000 3500.000 1000.000 1
2.71518561E+00 2.06252743E-03-9.98825771E-07 2.30053008E-10-2.03647716E-14 2
-1.41518724E+04 7.81868772E+00 3.57953347E+00-6.10353680E-04 1.01681433E-06 3
9.07005884E-10-9.04424499E-13-1.43440860E+04 3.50840928E+00 4
CO2 L 7/88C 1O 2 G 200.000 3500.000 1000.000 1
3.85746029E+00 4.41437026E-03-2.21481404E-06 5.23490188E-10-4.72084164E-14 2
-4.87591660E+04 2.27163806E+00 2.35677352E+00 8.98459677E-03-7.12356269E-06 3
2.45919022E-09-1.43699548E-13-4.83719697E+04 9.90105222E+00 4
HCO L12/89H 1C 1O 1 G 200.000 3500.000 1000.000 1
2.77217438E+00 4.95695526E-03-2.48445613E-06 5.89161778E-10-5.33508711E-14 2
4.01191815E+03 9.79834492E+00 4.22118584E+00-3.24392532E-03 1.37799446E-05 3
-1.33144093E-08 4.33768865E-12 3.83956496E+03 3.39437243E+00 4
CH2O L 8/88H 2C 1O 1 G 200.000 3500.000 1000.000 1
1.76069008E+00 9.20000082E-03-4.42258813E-06 1.00641212E-09-8.83855640E-14 2
-1.39958323E+04 1.36563230E+01 4.79372315E+00-9.90833369E-03 3.73220008E-05 3
-3.79285261E-08 1.31772652E-11-1.43089567E+04 6.02812900E-01 4
CH2OH GUNL93C 1H 3O 1 G 200.000 3500.000 1000.000 1
3.69266569E+00 8.64576797E-03-3.75101120E-06 7.87234636E-10-6.48554201E-14 2
-3.24250627E+03 5.81043215E+00 3.86388918E+00 5.59672304E-03 5.93271791E-06 3
-1.04532012E-08 4.36967278E-12-3.19391367E+03 5.47302243E+00 4
CH3O 121686C 1H 3O 1 G 300.00 3000.00 1000.000 1
0.03770799E+02 0.07871497E-01-0.02656384E-04 0.03944431E-08-0.02112616E-12 2
0.12783252E+03 0.02929575E+02 0.02106204E+02 0.07216595E-01 0.05338472E-04 3
-0.07377636E-07 0.02075610E-10 0.09786011E+04 0.13152177E+02 4
CH3OH L 8/88C 1H 4O 1 G 200.000 3500.000 1000.000 1
1.78970791E+00 1.40938292E-02-6.36500835E-06 1.38171085E-09-1.17060220E-13 2
-2.53748747E+04 1.45023623E+01 5.71539582E+00-1.52309129E-02 6.52441155E-05 3
-7.10806889E-08 2.61352698E-11-2.56427656E+04-1.50409823E+00 4
C2H L 1/91C 2H 1 G 200.000 3500.000 1000.000 1
3.16780652E+00 4.75221902E-03-1.83787077E-06 3.04190252E-10-1.77232770E-14 2
6.71210650E+04 6.63589475E+00 2.88965733E+00 1.34099611E-02-2.84769501E-05 3
2.94791045E-08-1.09331511E-11 6.68393932E+04 6.22296438E+00 4
C2H2 L 1/91C 2H 2 G 200.000 3500.000 1000.000 1
4.14756964E+00 5.96166664E-03-2.37294852E-06 4.67412171E-10-3.61235213E-14 2
2.59359992E+04-1.23028121E+00 8.08681094E-01 2.33615629E-02-3.55171815E-05 3
2.80152437E-08-8.50072974E-12 2.64289807E+04 1.39397051E+01 4
C2H3 L 2/92C 2H 3 G 200.000 3500.000 1000.000 1
3.01672400E+00 1.03302292E-02-4.68082349E-06 1.01763288E-09-8.62607041E-14 2
3.46128739E+04 7.78732378E+00 3.21246645E+00 1.51479162E-03 2.59209412E-05 3
-3.57657847E-08 1.47150873E-11 3.48598468E+04 8.51054025E+00 4
C2H4 L 1/91C 2H 4 G 200.000 3500.000 1000.000 1
2.03611116E+00 1.46454151E-02-6.71077915E-06 1.47222923E-09-1.25706061E-13 2
4.93988614E+03 1.03053693E+01 3.95920148E+00-7.57052247E-03 5.70990292E-05 3
-6.91588753E-08 2.69884373E-11 5.08977593E+03 4.09733096E+00 4
C2H5 L12/92C 2H 5 G 200.000 3500.000 1000.000 1
1.95465642E+00 1.73972722E-02-7.98206668E-06 1.75217689E-09-1.49641576E-13 2
1.28575200E+04 1.34624343E+01 4.30646568E+00-4.18658892E-03 4.97142807E-05 3
-5.99126606E-08 2.30509004E-11 1.28416265E+04 4.70720924E+00 4
C2H6 L 8/88C 2H 6 G 200.000 3500.000 1000.000 1
1.07188150E+00 2.16852677E-02-1.00256067E-05 2.21412001E-09-1.90002890E-13 2
-1.14263932E+04 1.51156107E+01 4.29142492E+00-5.50154270E-03 5.99438288E-05 3
-7.08466285E-08 2.68685771E-11-1.15222055E+04 2.66682316E+00 4
CH2CO L 5/90C 2H 2O 1 G 200.000 3500.000 1000.000 1
4.51129732E+00 9.00359745E-03-4.16939635E-06 9.23345882E-10-7.94838201E-14 2
-7.55105311E+03 6.32247205E-01 2.13583630E+00 1.81188721E-02-1.73947474E-05 3
9.34397568E-09-2.01457615E-12-7.04291804E+03 1.22156480E+01 4
HCCO SRIC91H 1C 2O 1 G 300.00 4000.00 1000.000 1
0.56282058E+01 0.40853401E-02-0.15934547E-05 0.28626052E-09-0.19407832E-13 2
0.19327215E+05-0.39302595E+01 0.22517214E+01 0.17655021E-01-0.23729101E-04 3
0.17275759E-07-0.50664811E-11 0.20059449E+05 0.12490417E+02 4
HCCOH SRI91C 2O 1H 2 G 300.000 5000.000 1000.000 1
0.59238291E+01 0.67923600E-02-0.25658564E-05 0.44987841E-09-0.29940101E-13 2
0.72646260E+04-0.76017742E+01 0.12423733E+01 0.31072201E-01-0.50866864E-04 3
0.43137131E-07-0.14014594E-10 0.80316143E+04 0.13874319E+02 4
H2CN 41687H 2C 1N 1 G 300.00 4000.000 1000.000 1
0.52097030E+01 0.29692911E-02-0.28555891E-06-0.16355500E-09 0.30432589E-13 2
0.27677109E+05-0.44444780E+01 0.28516610E+01 0.56952331E-02 0.10711400E-05 3
-0.16226120E-08-0.23511081E-12 0.28637820E+05 0.89927511E+01 4
HCN GRI/98H 1C 1N 1 G 200.000 6000.000 1000.000 1
0.38022392E+01 0.31464228E-02-0.10632185E-05 0.16619757E-09-0.97997570E-14 2
0.14407292E+05 0.15754601E+01 0.22589886E+01 0.10051170E-01-0.13351763E-04 3
0.10092349E-07-0.30089028E-11 0.14712633E+05 0.89164419E+01 4
HNO And93 H 1N 1O 1 G 200.000 6000.000 1000.000 1
0.29792509E+01 0.34944059E-02-0.78549778E-06 0.57479594E-10-0.19335916E-15 2
0.11750582E+05 0.86063728E+01 0.45334916E+01-0.56696171E-02 0.18473207E-04 3
-0.17137094E-07 0.55454573E-11 0.11548297E+05 0.17498417E+01 4
N L 6/88N 1 G 200.000 6000.000 1000.000 1
0.24159429E+01 0.17489065E-03-0.11902369E-06 0.30226245E-10-0.20360982E-14 2
0.56133773E+05 0.46496096E+01 0.25000000E+01 0.00000000E+00 0.00000000E+00 3
0.00000000E+00 0.00000000E+00 0.56104637E+05 0.41939087E+01 4
NNH T07/93N 2H 1 G 200.000 6000.000 1000.000 1
0.37667544E+01 0.28915082E-02-0.10416620E-05 0.16842594E-09-0.10091896E-13 2
0.28650697E+05 0.44705067E+01 0.43446927E+01-0.48497072E-02 0.20059459E-04 3
-0.21726464E-07 0.79469539E-11 0.28791973E+05 0.29779410E+01 4
N2O L 7/88N 2O 1 G 200.000 6000.000 1000.000 1
0.48230729E+01 0.26270251E-02-0.95850874E-06 0.16000712E-09-0.97752303E-14 2
0.80734048E+04-0.22017207E+01 0.22571502E+01 0.11304728E-01-0.13671319E-04 3
0.96819806E-08-0.29307182E-11 0.87417744E+04 0.10757992E+02 4
NH And94 N 1H 1 G 200.000 6000.000 1000.000 1
0.27836928E+01 0.13298430E-02-0.42478047E-06 0.78348501E-10-0.55044470E-14 2
0.42120848E+05 0.57407799E+01 0.34929085E+01 0.31179198E-03-0.14890484E-05 3
0.24816442E-08-0.10356967E-11 0.41880629E+05 0.18483278E+01 4
NH2 And89 N 1H 2 G 200.000 6000.000 1000.000 1
0.28347421E+01 0.32073082E-02-0.93390804E-06 0.13702953E-09-0.79206144E-14 2
0.22171957E+05 0.65204163E+01 0.42040029E+01-0.21061385E-02 0.71068348E-05 3
-0.56115197E-08 0.16440717E-11 0.21885910E+05-0.14184248E+00 4
NH3 J 6/77N 1H 3 G 200.000 6000.000 1000.000 1
0.26344521E+01 0.56662560E-02-0.17278676E-05 0.23867161E-09-0.12578786E-13 2
-0.65446958E+04 0.65662928E+01 0.42860274E+01-0.46605230E-02 0.21718513E-04 3
-0.22808887E-07 0.82638046E-11-0.67417285E+04-0.62537277E+00 4
NO RUS 78N 1O 1 G 200.000 6000.000 1000.000 1
0.32606056E+01 0.11911043E-02-0.42917048E-06 0.69457669E-10-0.40336099E-14 2
0.99209746E+04 0.63693027E+01 0.42184763E+01-0.46389760E-02 0.11041022E-04 3
-0.93361354E-08 0.28035770E-11 0.98446230E+04 0.22808464E+01 4
NO2 L 7/88N 1O 2 G 200.000 6000.000 1000.000 1
0.48847542E+01 0.21723956E-02-0.82806906E-06 0.15747510E-09-0.10510895E-13 2
0.23164983E+04-0.11741695E+00 0.39440312E+01-0.15854290E-02 0.16657812E-04 3
-0.20475426E-07 0.78350564E-11 0.28966179E+04 0.63119917E+01 4
HCNO BDEA94H 1N 1C 1O 1G 300.000 5000.000 1382.000 1
6.59860456E+00 3.02778626E-03-1.07704346E-06 1.71666528E-10-1.01439391E-14 2
1.79661339E+04-1.03306599E+01 2.64727989E+00 1.27505342E-02-1.04794236E-05 3
4.41432836E-09-7.57521466E-13 1.92990252E+04 1.07332972E+01 4
HOCN BDEA94H 1N 1C 1O 1G 300.000 5000.000 1368.000 1
5.89784885E+00 3.16789393E-03-1.11801064E-06 1.77243144E-10-1.04339177E-14 2
-3.70653331E+03-6.18167825E+00 3.78604952E+00 6.88667922E-03-3.21487864E-06 3
5.17195767E-10 1.19360788E-14-2.82698400E+03 5.63292162E+00 4
HNCO BDEA94H 1N 1C 1O 1G 300.000 5000.000 1478.000 1
6.22395134E+00 3.17864004E-03-1.09378755E-06 1.70735163E-10-9.95021955E-15 2
-1.66599344E+04-8.38224741E+00 3.63096317E+00 7.30282357E-03-2.28050003E-06 3
-6.61271298E-10 3.62235752E-13-1.55873636E+04 6.19457727E+00 4
NCO EA 93 N 1C 1O 1 G 200.000 6000.000 1000.000 1
0.51521845E+01 0.23051761E-02-0.88033153E-06 0.14789098E-09-0.90977996E-14 2
0.14004123E+05-0.25442660E+01 0.28269308E+01 0.88051688E-02-0.83866134E-05 3
0.48016964E-08-0.13313595E-11 0.14682477E+05 0.95504646E+01 4
CN HBH92 C 1N 1 G 200.000 6000.000 1000.000 1
0.37459805E+01 0.43450775E-04 0.29705984E-06-0.68651806E-10 0.44134173E-14 2
0.51536188E+05 0.27867601E+01 0.36129351E+01-0.95551327E-03 0.21442977E-05 3
-0.31516323E-09-0.46430356E-12 0.51708340E+05 0.39804995E+01 4
HCNN SRI/94C 1N 2H 1 G 300.000 5000.000 1000.000 1
0.58946362E+01 0.39895959E-02-0.15982380E-05 0.29249395E-09-0.20094686E-13 2
0.53452941E+05-0.51030502E+01 0.25243194E+01 0.15960619E-01-0.18816354E-04 3
0.12125540E-07-0.32357378E-11 0.54261984E+05 0.11675870E+02 4
N2 121286N 2 G 300.000 5000.000 1000.000 1
0.02926640E+02 0.14879768E-02-0.05684760E-05 0.10097038E-09-0.06753351E-13 2
-0.09227977E+04 0.05980528E+02 0.03298677E+02 0.14082404E-02-0.03963222E-04 3
0.05641515E-07-0.02444854E-10-0.10208999E+04 0.03950372E+02 4
AR 120186AR 1 G 300.000 5000.000 1000.000 1
0.02500000E+02 0.00000000E+00 0.00000000E+00 0.00000000E+00 0.00000000E+00 2
-0.07453750E+04 0.04366000E+02 0.02500000E+02 0.00000000E+00 0.00000000E+00 3
0.00000000E+00 0.00000000E+00-0.07453750E+04 0.04366000E+02 4
C3H8 L 4/85C 3H 8 G 300.000 5000.000 1000.000 1
0.75341368E+01 0.18872239E-01-0.62718491E-05 0.91475649E-09-0.47838069E-13 2
-0.16467516E+05-0.17892349E+02 0.93355381E+00 0.26424579E-01 0.61059727E-05 3
-0.21977499E-07 0.95149253E-11-0.13958520E+05 0.19201691E+02 4
C3H7 L 9/84C 3H 7 G 300.000 5000.000 1000.000 1
0.77026987E+01 0.16044203E-01-0.52833220E-05 0.76298590E-09-0.39392284E-13 2
0.82984336E+04-0.15480180E+02 0.10515518E+01 0.25991980E-01 0.23800540E-05 3
-0.19609569E-07 0.93732470E-11 0.10631863E+05 0.21122559E+02 4
CH3CHO L 8/88C 2H 4O 1 G 200.000 6000.000 1000.000 1
0.54041108E+01 0.11723059E-01-0.42263137E-05 0.68372451E-09-0.40984863E-13 2
-0.22593122E+05-0.34807917E+01 0.47294595E+01-0.31932858E-02 0.47534921E-04 3
-0.57458611E-07 0.21931112E-10-0.21572878E+05 0.41030159E+01 4
CH2CHO SAND86O 1H 3C 2 G 300.000 5000.000 1000.000 1
0.05975670E+02 0.08130591E-01-0.02743624E-04 0.04070304E-08-0.02176017E-12 2
0.04903218E+04-0.05045251E+02 0.03409062E+02 0.10738574E-01 0.01891492E-04 3
-0.07158583E-07 0.02867385E-10 0.15214766E+04 0.09558290E+02 4
END
Code Explanation-
Main Script- (main_script_parser.m)
%% ========================================================================
%-----------------------File Parsing Main Script---------------------------
clear all % Clears command history
close all % Closes all windows
clc % Clears command window
file=fopen('THERMO.dat','r');
fgetl(file);
temp_data=fgetl(file);
%------------------------Global temperature--------------------------------
t=strsplit(temp_data,' ');
temp_gl=str2double(t{2});
temp_gm=str2double(t{3});
temp_gh=str2double(t{4});
- The thermodynamic data file ‘THERMO.dat’ is opened using fopen command for reading.
- File is read line by line using fgetl
- For parsing the global temperature we split the line using strsplit function with delimiter as space.
- Thus global low, medium and high temperature are extracted from the cell array ‘t’ and converted to double precision numbers using str2double function.
%--------------------avoiding next three lines-----------------------------
for i=1:3
fgetl(file);
end
m=ftell(file);
c=0;
%------------------Finding number of compounds in the file-----------------
while ~feof(file)
tline = fgetl(file);
x=tline(1:3);
y='END';
if x==y
break
end
c=c+1;
end
nos=(c)/4;
fseek(file,m,'bof');
- Next three lines are avoided from the file using for loop and the position the pointer is recorded in the variable ‘m’ using ftell function also a counter variable ‘c’ is also declared.
- Now, for finding out the total number of compounds in the file we used while loop with feof function to test end of file, in the file ‘THERMO.dat’ END is written in the last line and by the logic to find no. of compounds these characters need to be skipped, break is used with if statement to do so.
- Each compound takes 4 lines, we counted the number of lines containing compound data (which is stored in variable ‘c’) and divide the total lines by 4 to get no. of compounds in the file.
- While computing the no. of compounds the file pointer has reached the end of the file to place it to the appropriate position we make use of fseek.
%-------------------------Taking input from the user-----------------------
prompt=('Enter the species namen');
x=input(prompt,'s');- To take input from the user input function is used.
%% ========================================================================
for i=1:nos
[temp,coeff,compound,inputs]=parser(file); %calling function
[Cp,S,H] = thermo_calculator(inputs); %calling function
T=inputs(15):inputs(17); %Temperature range
mm=mol_wt(compound); %calling function
if strcmpi(x,compound)
[P,Q,R]= plots_parsed(Cp,S,H,T,compound);
T=table(compound',mm','VariableNames',{'Compound','Molar Mass'});
disp(T)
f1=fopen('molarmass.txt','a');
W=sprintf('Molecular mass of %s is = %fn',compound,mm);
fprintf(f1,W);
fclose(f1);
end
end
- Now, we ran a for loop for the no. of compounds where calls are made to respective functions for parsing, plotting and calculating
- If condition is used along with strcmpi function for executing the user entered input.
- Also the molar mass of the compounds are saved in a text file.
main_script_parser.m-
%% ========================================================================
%-----------------------File Parsing Main Script---------------------------
clear all % Clears command history
close all % Closes all windows
clc % Clears command window
file=fopen('THERMO.dat','r');
fgetl(file);
temp_data=fgetl(file);
%------------------------Global temperature--------------------------------
t=strsplit(temp_data,' ');
temp_gl=str2double(t{2});
temp_gm=str2double(t{3});
temp_gh=str2double(t{4});
%--------------------avoiding next three lines-----------------------------
for i=1:3
fgetl(file);
end
m=ftell(file);
c=0;
%------------------Finding number of compounds in the file-----------------
while ~feof(file)
tline = fgetl(file);
x=tline(1:3);
y='END';
if x==y
break
end
c=c+1;
end
nos=(c)/4;
fseek(file,m,'bof');
%-------------------------Taking input from the user-----------------------
prompt=('Enter the species namen');
x=input(prompt,'s');
%% ========================================================================
for i=1:nos
[temp,coeff,compound,inputs]=parser(file); %calling function
[Cp,S,H] = thermo_calculator(inputs); %calling function
T=inputs(15):inputs(17); %Temperature range
mm=mol_wt(compound); %calling function
if strcmpi(x,compound)
[P,Q,R]= plots_parsed(Cp,S,H,T,compound);
T=table(compound',mm','VariableNames',{'Compound','Molar Mass'});
disp(T)
f1=fopen('molarmass.txt','a');
W=sprintf('Molecular mass of %s is = %fn',compound,mm);
fprintf(f1,W);
fclose(f1);
end
end
Extracting data from file-
Function- (parser.m)
function [temp,coeff,compound,inputs]=parser(file)
%%
p=fgetl(file);
line_1=p;
q=strsplit(line_1,'G');
s=strsplit(q{1},' ');
compound=convertCharsToStrings(s{1});
r=strsplit(q{2},' ');
temp_ll=str2double(r{2});
temp_lh=str2double(r{3});
temp_lm=str2double(r{4});
temp=table(temp_ll,temp_lm,temp_lh,'VariableNames',...
{'1','2','3'});
rows2vars(temp);- This function takes the file as input and returns temp,coeff,compound,inputs.
- From the first line of each compound we have extract compound name and local temperature ranges.
- We split the first line using the letter 'G' and further the local temperatures are extracted using space as the delimiter
%%
x=fgetl(file);
line_2=x;
a=strfind(line_2,'E');
c1=str2double(line_2(1:a(1)+3));
c2=str2double(line_2(a(1)+4:a(2)+3));
c3=str2double(line_2(a(2)+4:a(3)+3));
c4=str2double(line_2(a(3)+4:a(4)+3));
c5=str2double(line_2(a(4)+4:a(5)+3));
- For extracting coefficients from the second line we used strfind function to located letter 'E' after loacting it a variable stores its value from starting till position of 'E + 3' because all the coefficients have 3 values after E.
- Next coefficient is at a position of 'E+4' , so ending of the first coefficient becomes the starting of the next one and so on.
- Using the same logic in a similar fashion all the coefficients are extracted from the file.
%%
x=fgetl(file);
line_3=x;
b=strfind(line_3,'E');
c6=str2double(line_3(1:b(1)+3));
c7=str2double(line_3(b(1)+4:b(2)+3));
c8=str2double(line_3(b(2)+4:b(3)+3));
c9=str2double(line_3(b(3)+4:b(4)+3));
c10=str2double(line_3(b(4)+4:b(5)+3));
%%
x=fgetl(file);
line_4=x;
c=strfind(line_4,'E');
c11=str2double(line_4(1:c(1)+3));
c12=str2double(line_4(c(1)+4:c(2)+3));
c13=str2double(line_4(c(2)+4:c(3)+3));
c14=str2double(line_4(c(3)+4:c(4)+3));
%%
c={'c1' 'c2' 'c3' 'c4' 'c5' 'c6' 'c7'...
'c8' 'c9' 'c10' 'c11' 'c12' 'c13' 'c14'};
[coeff]=[c1 c2 c3 c4 c5 c6 c7 c8 c9 c10 c11 c12 c13 c14];
T=table(c',coeff','VariableNames',{'Coefficient','Value'});
inputs=[coeff,temp_ll,temp_lm,temp_lh];
parser.m-
function [temp,coeff,compound,inputs]=parser(file)
%%
p=fgetl(file);
line_1=p;
q=strsplit(line_1,'G');
s=strsplit(q{1},' ');
compound=convertCharsToStrings(s{1});
r=strsplit(q{2},' ');
temp_ll=str2double(r{2});
temp_lh=str2double(r{3});
temp_lm=str2double(r{4});
temp=table(temp_ll,temp_lm,temp_lh,'VariableNames',...
{'1','2','3'});
rows2vars(temp);
%%
x=fgetl(file);
line_2=x;
a=strfind(line_2,'E');
c1=str2double(line_2(1:a(1)+3));
c2=str2double(line_2(a(1)+4:a(2)+3));
c3=str2double(line_2(a(2)+4:a(3)+3));
c4=str2double(line_2(a(3)+4:a(4)+3));
c5=str2double(line_2(a(4)+4:a(5)+3));
%%
x=fgetl(file);
line_3=x;
b=strfind(line_3,'E');
c6=str2double(line_3(1:b(1)+3));
c7=str2double(line_3(b(1)+4:b(2)+3));
c8=str2double(line_3(b(2)+4:b(3)+3));
c9=str2double(line_3(b(3)+4:b(4)+3));
c10=str2double(line_3(b(4)+4:b(5)+3));
%%
x=fgetl(file);
line_4=x;
c=strfind(line_4,'E');
c11=str2double(line_4(1:c(1)+3));
c12=str2double(line_4(c(1)+4:c(2)+3));
c13=str2double(line_4(c(2)+4:c(3)+3));
c14=str2double(line_4(c(3)+4:c(4)+3));
%%
c={'c1' 'c2' 'c3' 'c4' 'c5' 'c6' 'c7'...
'c8' 'c9' 'c10' 'c11' 'c12' 'c13' 'c14'};
[coeff]=[c1 c2 c3 c4 c5 c6 c7 c8 c9 c10 c11 c12 c13 c14];
T=table(c',coeff','VariableNames',{'Coefficient','Value'});
inputs=[coeff,temp_ll,temp_lm,temp_lh];
end
Calculation of thermochemical properties for local temperature ranges-
Function- (thermo_calculator.m)
function [Cp,H,S]=thermo_calculator(inputs)
c1=inputs(1);
c2=inputs(2);
c3=inputs(3);
c4=inputs(4);
c5=inputs(5);
c6=inputs(6);
c7=inputs(7);
c8=inputs(8);
c9=inputs(9);
c10=inputs(10);
c11=inputs(11);
c12=inputs(12);
c13=inputs(13);
c14=inputs(14);
temp_ll=inputs(15);
temp_lm=inputs(16);
temp_lh=inputs(17);
T=temp_ll:temp_lh;
R = 8.314; %J/mol·K
if T >temp_lm
Cp =(c1 + c2*T + c3*T.^2 + c4*T.^3 +c5*T.^4).*R;
H = (c1 + c2*(T./2) + c3*(T.^2./3) + c4*(T.^3./4) + c5*(T.^4./5) +c6./T).*(R*T);
S = (c1*log(T) + c2*T + c3*(T.^2./2) + c4*(T.^3./3) + c5*(T.^4./4 + c7).*R );
else
Cp =(c8 + c9*T + c10*T.^2 + c11*T.^3 +c12*T.^4).*R;
H = (c8 + c9*(T./2) + c10*(T.^2./3) + c11*(T.^3./4) + c12*(T.^4./5) +c13./T).*(R*T);
S = (c8*log(T) + c9*T + c10*(T.^2./2) + c11*(T.^3./3) + c12*(T.^4./4 + c14)).*R ;
end
end- This fuction just simply takes the coefficients and local temperature ranges for each compound as input and returns thermochemical properties, calculated using NASA 7 term polynomial.
Plotting thermodynamic properties-
Function- (plots_parsed.m)
function [P,Q,R]= plots_parsed(Cp,S,H,T,compound)
figure('Name',sprintf('Thermodynamic Plots',1),'WindowState','Maximized')
subplot(1,3,1);
P=plot(T,Cp,'linewidth',2,'color','blue');
grid on
xlabel('Temperature');
ylabel('Specific Heat');
title(sprintf('Specific heat vs Temperature of %s ',compound));
subplot(1,3,2);
Q=plot(T,S,'linewidth',2,'color','green');
grid on
xlabel('Temperature');
ylabel('Entropy');
title(sprintf('Entropy vs Temperature of %s ',compound));
subplot(1,3,3);
R=plot(T,H,'linewidth',2,'color','yellow');
grid on
xlabel('Temperature');
ylabel('Enthalpy');
title(sprintf('Enthalpy vs Temperature of %s ',compound));
%% ================creating folder and saving plots======================
F=['D:MATLAb code filesproperties'];
cd(F)
E=pwd;
mkdir (compound);
f=fullfile(compound);
cd(f)
saveas(figure(1),[pwd '/plot.jpg']);
cd(E)
end - This function takes calculated specific heat, entropy, enthalpy and compound name as inputs as returns plots for each of the thermochemical property respectively.
- Also this function saves the generated plots the the local directory.
Folder creation and saving-
%% ================creating folder and saving plots======================
F=['D:MATLAb code filesproperties'];
cd(F)
E=pwd;
mkdir (compound);
f=fullfile(compound);
cd(f)
saveas(figure(1),[pwd '/plot.jpg']);
cd(E)
- Here mkdir generated folder as per the name of the species.
- Thus, whenever user enters input with species a folder gets generated.
- After creation of plots saveas is used to save it the directory created by mkdir.
- The directory is changed to the original directory to execute it again.
Calculation of molecular weight-
Function- (mol_wt.m)
function [mm] = mol_wt(compound)
elem=['C','H','O','N','A'];
atmwt=[12.0107,1.00784,15.999,14.0067,39.948];
mm=0;
cmpd=convertStringsToChars(compound);
for i=1:length(cmpd)
a=str2double(cmpd(i));
nos=isfinite(a);
for j = 1:length(elem)
if strcmp(cmpd(i),elem(j))
mm=mm+atmwt(j);
elseif nos==1
pos=cmpd(i-1);
prepos=str2double(cmpd(i));
e=elem(j);
if strcmp(pos,e)
hmm=atmwt(j)*prepos;
mm=mm+hmm-atmwt(j);
end
end
end
end
end- The logic used to calculate molar weight is as follows-
- Scan the species name and if we get a finite number at i then, go to i-1 and multiply the corresponding atomic weight of the compound with the finite number but we need to subtract atomic weight from the total molar weight as it is being added twice.
Results-
Plots-
Saved Images-
Molecular mass-
References-
- http://combustion.berkeley.edu/gri_mech/data/nasa_plnm.html
- https://www.researchgate.net/publication/289281167_Thermochemical_Data_for_Combustion_Calculations
- https://ntrs.nasa.gov/citations/19720021272
- https://www.grc.nasa.gov/WWW/CEAWeb/TP-2002-211556.pdf
- https://myengineeringworld.net
- https://cantera.org/science/science-species.html
