PROJECT:- BOEING 747-8

3D MOEDING OF BOEING 747-8 USING BY SOLIDWORKS SP5 SOFTWARE

OBJECTIVE:- BOEING PLANE HAS MANY COMPLEX PART SO LIKE MY OBJECTIVE TO ENHANCE MY 3D MOEDING SKILL

I DID COMPLETE ALL BOEING 747-8 PART AND ASSEMBLY TOO SO THIS IS BOOST MY DESINGING SKILL

INTRODUCTION:- INTRODUCTION ABOUT MY 3D BOEING 747-8 DESING

BOEING HAS NUMBER OF COMPLEX PART LIKE MAIN FLUSLARGE BODY, WINHSHEID, WINGSHEILS WIPER, PITOT TUBE, WINDOWS & DOORS, VERTICAL STABILIZER, HORIZONTAL STABILIZER, LIGHT ANTENNAS, WING, ENGINE AND LANDING GEAR.

BOEING 747-8 IS ABOUT 76.25 METER LONG INCREDIBLE FLYING MACHINE WHICH MANUFACTURING BY AMERICAN COMPENY BOEING. ITS HIGHLY POWEREFULL ENGINE GENREATE 1136 KN THRUST FOR TACKOFF.

ITS IS ONE OF THE BIGGEST PASSENGER AIR PLANE.

NOW HOW DID I START DESING BOEING 747-8

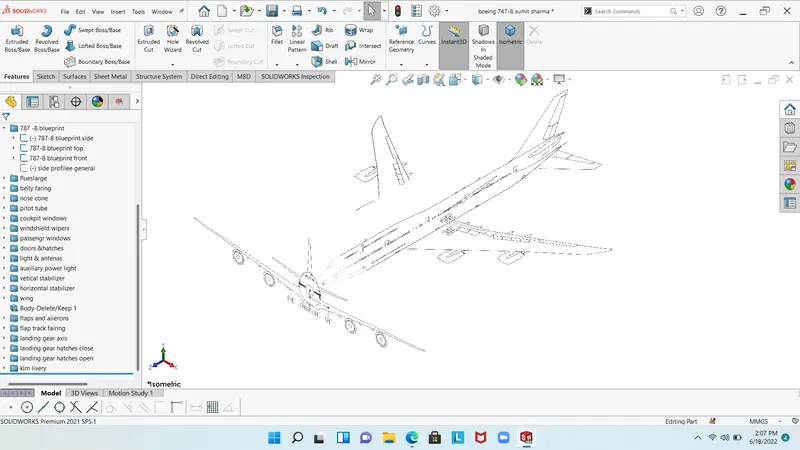

BLUEPRINT

WE HAVE THREE BLUEPRINT TYPE (FRONT VIEW TOP VIWE SIDE VIWE). FORST OF ALL WE HAVE TO INSERT ALL BLUEPRINT IN SOLIDWORKS SOFTWARE BY THE COMMAND OF INSEETING PICTURE AND MAINTANING ALL THRE PICTURES IN 1:1 RATIO ABOUT ORIGINE POINT

SELECTING PLANE, SKETCH, INSERT PICTURE

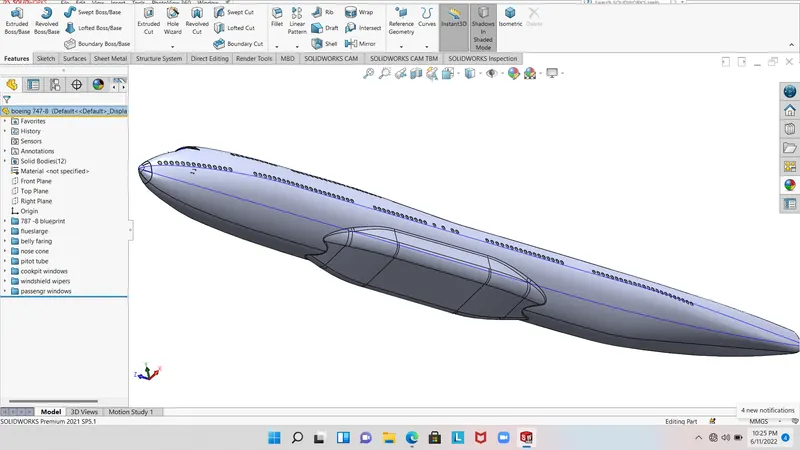

FLUSELARGE

BOEING 747-8 FLUSELARGE MAIN BODY IS CARRY ALL PASSENGER AND CREW

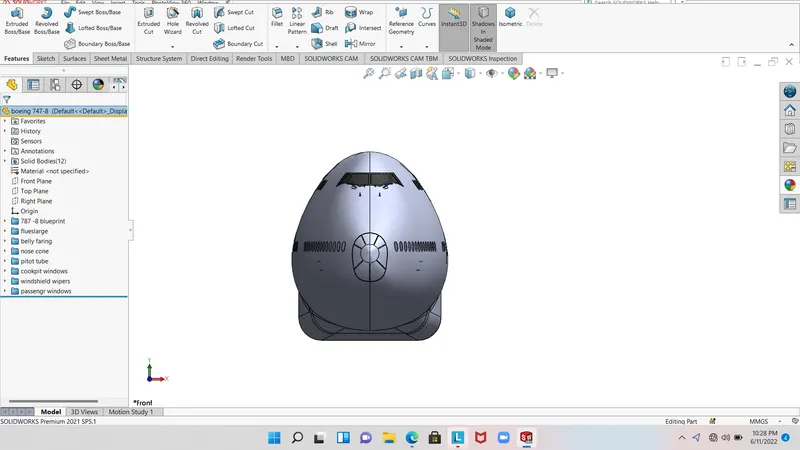

HOW I START MAKING FLUSE LARGE MAIN BODY IN SOILDWORKS SOFTWARE, FIRST I DRAW COMPLETE DOADY PETTERN OF SIDE BODY WITH THE HELP OF LINE SPLINE TOOL IN COMMAND MANAGER

I ROUGHLY DRAW ALL LINE AND THAN GIVE THEN DEIMENTION BY THE TOOL OF SMART DIMENTION

NOW I MAKING A SKETCH ON TOP VIEW WITH HELP OF LINE SPINE AND POINT IT IS IMPORTANT FOR MAKING BODY IN CURVE MANNER

NOW USED CURVE TOOL TO GENREATE CURVECTURE IN SIDE AND TOP VIWE

TIME TO USE REFERENCE PLANE WE HAVE USE AT LEAST 12 PLANE FOR GIVING A SHAPE FOR BEING 747-8 MAIN BODY

EVERY SECTION PLANE HAS AN SKECTH WITH SPINE HANDLE DIMENTION AND PIEAR SPINE WITH SIDE VIWE AND TOP VIWE SKETCH.

BELLY FAIRING

IN BOEING PLANE BELLY FARING USED FOR FIUL TANK AND MAIN LANDING GEAR

SO FOR MAKING BELLY FARING FIRST OF ALL I DRAW A PROFILE IN SIDE VIWE WITH HELP OF LINE COMMAND AND EXTRUDE IT THEN FILLET ALL THEIR EDAGE ACCORDING TO SPECIFICATION

IN BELLY FARING I INTRODUCE MY SELF WITH SPITE COMMAND. THIS TOOL USE FOR CUTTING UNNECCESSARY BODY AND CONSUME IT

FOR REMOVE BODY YOU HAVE TO FIRST SPLITE LINE AND SELECT ALL BODY WHICH IS YOU WANT TO CUT OUT

NOSE COSE

IN BOEING AIR PLANE NOSE CONE PLACE IN FRONT OF THE PLANE FOR INSURE OF CALIMATE CHANGE THOURH RADAR SYSTEM AND ALSO USE FOR BEAR THE FORCE WIND, IT IS VERY IMPORTAMNT FOR AERODYNAMIC CONDITION IN AIR PLANE

NOW HOW MAKING NOSE CONE IN SOLIDWORKS FOR BOEING 747-8 FORST OF ALL CREATE LINE ON SIDE PLANE AND JOIN BOTH OF FLUSELARGE LINE BY PIEARS TOOL AND MORROR IT SPILTE IT

NOW CREATE PROFILE OF NOSE IN TOP PLANE, CREATE CIRCULE AND THRE CENTRE LINE RANDOMLLY, JOIN THESE LINE TO SIDE PLANE LINES

SPILTE IT MORRORE IT

NOW DO SOME FILLTE ACCORDINGLLY SPECIFICATION

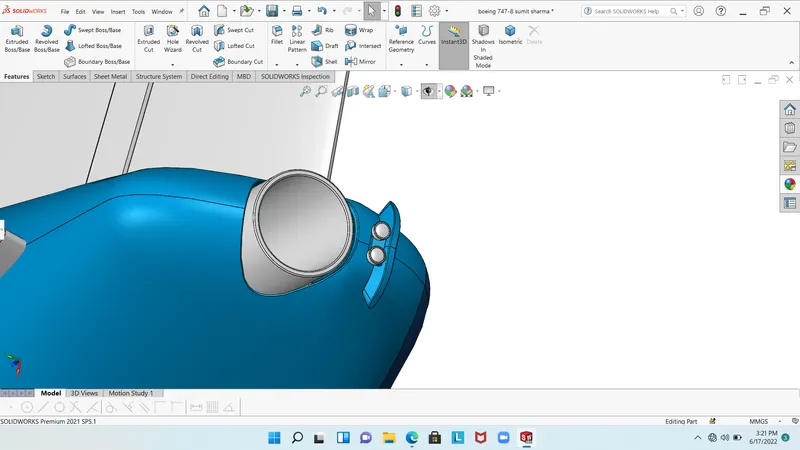

PITOT TUBE

PITOT TUBE USE FOR MESSURING FLIUD FLOW, IN BOEING PLANE IT USED FOR MESSURING FLOW OF WIND SPEED

TO MAKING PITOT TUBE YOU HAVE TO CREATE A CENTER LINE ON SIDE PLNAE. BOTH CENTER OF LINE JION BY SPLIDE,

ACTIVATE SPLIND HANDLE AND MORRORE IT

EXTRUDE THE PROFILE NOW TO OF EXTRUDE SOLID BODY DARW LINE AND SWEP BOSS WITH CIRCULER SETTING

IF YOU OPEN CIRCULER SETTING YOU DONT NEED TO CREATE SECOND PROFILE

FILLET IT WITH DOUBLE DISTANCE

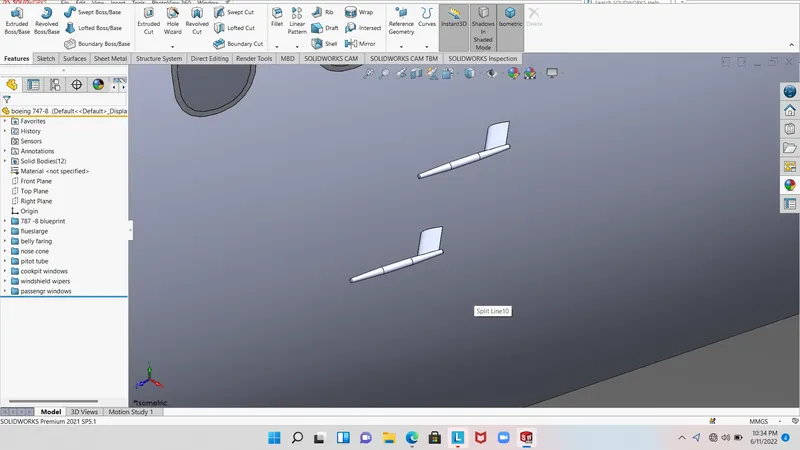

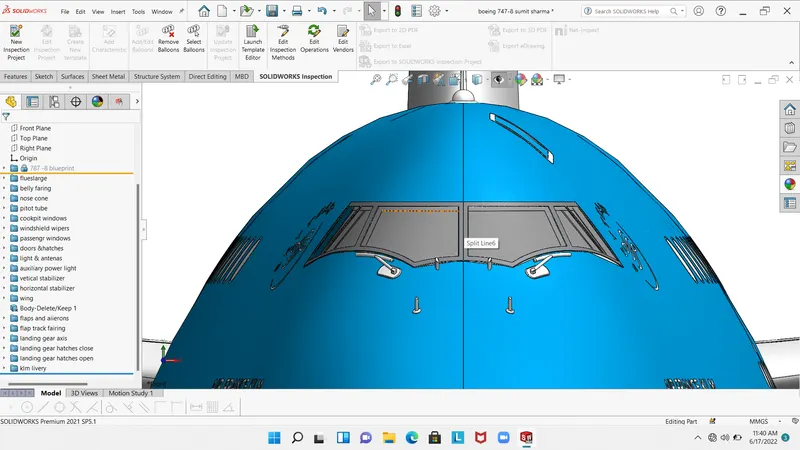

COOKPIT WINDOW AMD WINDOW WIPER

WINDOW OF PLANE USED FOR NAVIGATE THE DIRECTION, THE WINDOW OF COOKPIT IT MUST MADE WITH STONGE MATERIAL TO BEWARE FOR UNWANTED PARTICATE

CREATE PROFILE OF WONDOW WITH HELP PF BLUE PRINT AND SPLIT AND MADE 0 MM SURFECE, NOW USE THICKEND COMMAND FOR THICKEN WINDOW,

AS WELL AS CREATE WINDDOW WIPER PROFILE AND TRUN INTO 3D MODEL

PASSENGER WINDOW

FOR MAKING PASSENGER WINDOW YOU HAVE TO CREATE A PASSENER WINDOW PROFILE IN SAPRATE PART FLIE SAVE AS BLOCKE

NOW INSERT BLOCK AND USE OFF SET SURFECE OFFSET AND THICKEND COMMAND

NOW USE LINEAR PETTERN FOR NO OF ITEM

NOW MORRORE IT WITH SELECTE SIDE [LANE AND ALL WINDOWS

GIVE APPERIANS SIVER WITH BLACK ANF WITHE GLEASS

DOOR AND HATCHES

BOEING HAS 6 DOOR AND NO OF HATCHES

FOR BUIDING DOOR AND HATCHES FIRST OF ALL YOU HAVE CREATE PROFILE IN SEPRATE PART FILE

AND INSERT IT, NOW SPLITE IT DO SURFECE OFFESET WITH 0 MM AND THICKER THE PART WITH 10 MM

NOW FILLET IT ALL PROFILE

USED MORRORE AND LINEAR COMMAND FOR BUILDING BOLTH SIDE

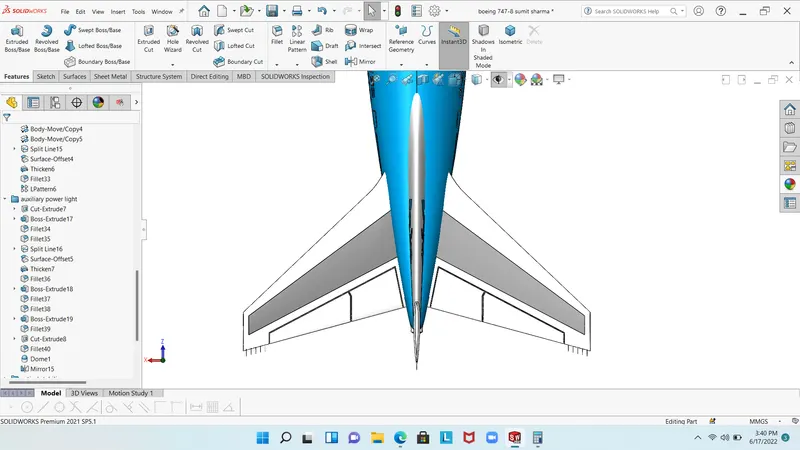

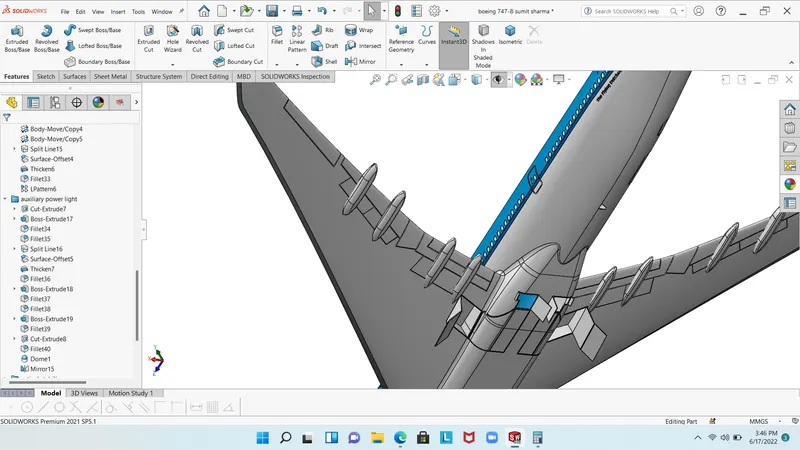

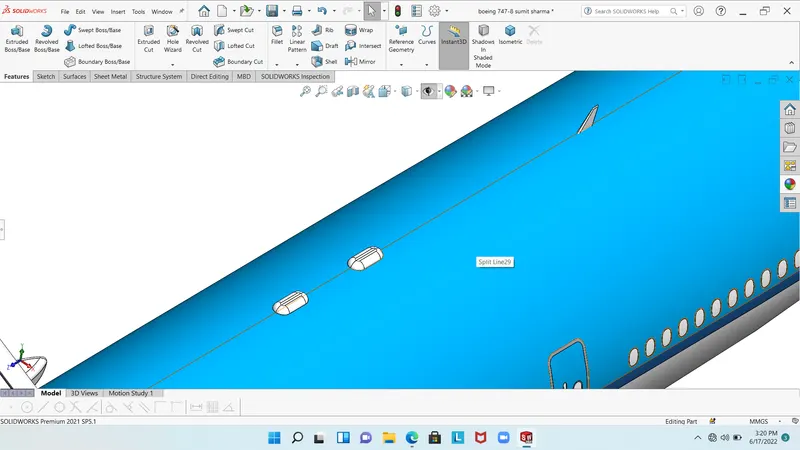

LIGHT ANTENNAS AND AUXILERY POWER UNIT

LIGHT AND ANTENNAS USE FOR NAVIGATING THE PLANE THROUGH CONTROL OFFICE IT SI VERY IMPORTANT TO EVERY PLANE HAS LIGHT AND ANTENNAS FOR AVIGATION

USED TOOL LINE SPLIT, SURFECE OFEESET, THICKER COMMAND AND MORRORE LINEARE PETTER FOR NO OF ITEM

AUXILIRY POWER UNIT

IT IS UDE IN PLANE LIKE EXCHUST TYPE AND CONTROL POWER

UESD TOOL LINE CERCIRLE, EXTRYDE, DOME, FILLET MORRORE

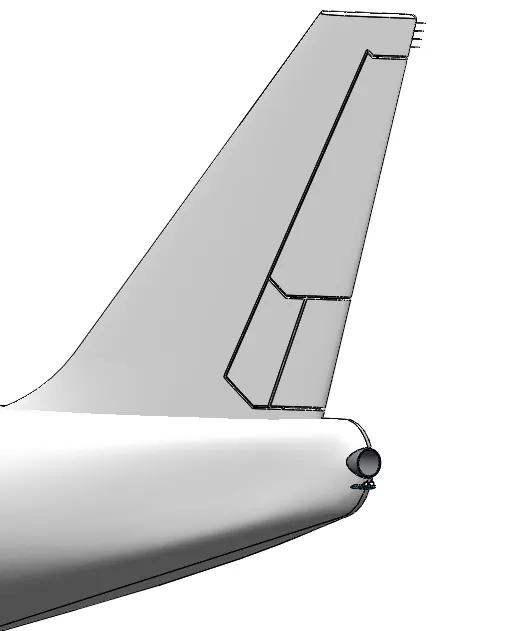

VERTICAL AND HORIZONTALE STBILISER

FOR EVERY PLANE THESE ARE MOST IMPORTANT FOR FLY

VERTICALT STABILISER USED FOR TRUN PLANE RIGHT DIRECTION AND LEFT DIRECTION IT ALMOST CONTROL PLANE AND BLANCE THE PLANE, IT IS USED ALSO LIKE AERODYNAMILLY FLOWMESS

HORIZONTALLE STABILISER

IT USED SIMILLER MANNER LIKE UP AND DOWN DIRECTION

USED TOOL

SPECIAL TOOL FOR FILLETE

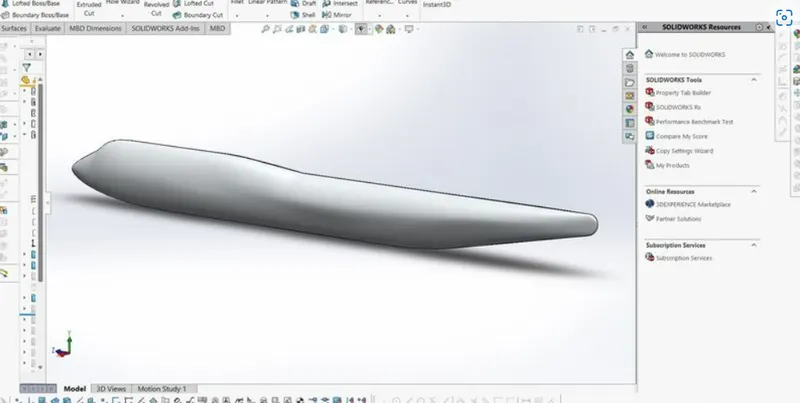

WING

BEOING 747-8 HAS LARGER WING WHICH IS USED FOR CONTROLING SPEED FOR PLANE NAD AS WELL AS LANDING THE PLANE

HOW TO BUILD WING IN SOLIDWORKS FIRST OF ALL SAW BLUEPRINT AND MAKE PROFLILE TOP AND SIDE PLANE

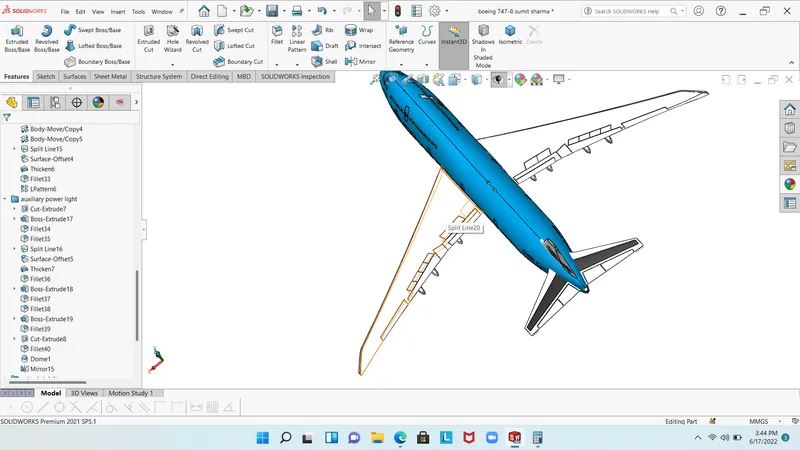

SPILT IT NOW MADE THREE CURVE BASE PROFILE USING COMMAND SPLIND AND USED SWEP BOSS BASE TO MAKE COMPLETE SOLID PROFILE DO SO BEST FILLET

AND MORRORED IT

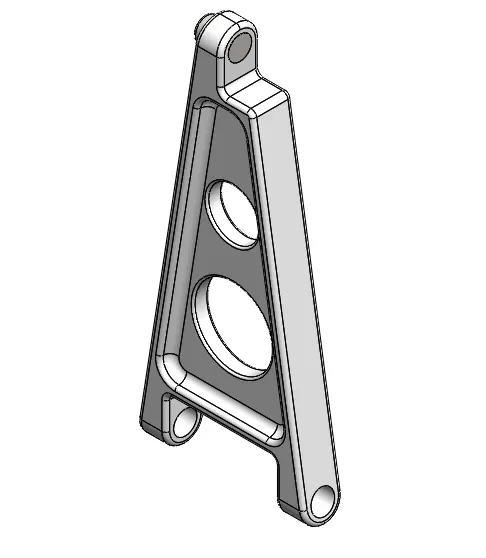

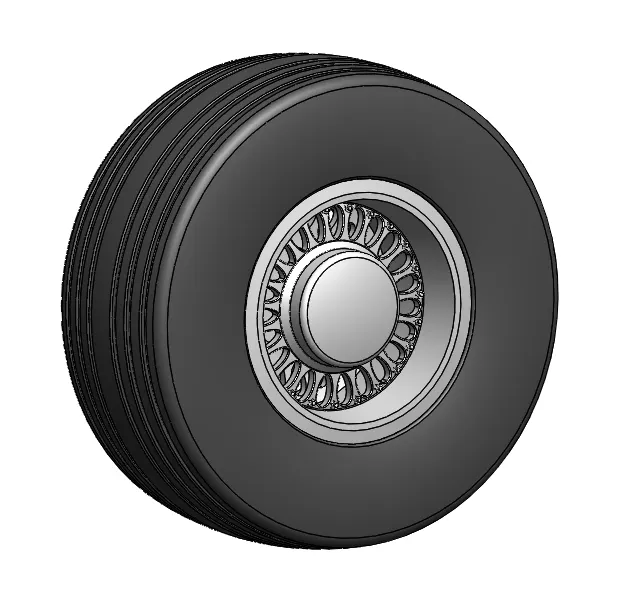

LANDING HATCHES CLOSE AND OPEN

LANDING HATCHES USED FOR COVER UP LANDING MAIN AND FRONT GEAR

TOOL FOR LINE, OFFSET LINE, SARFECE OFEESET EXTRUDE CUT, REFRENCE PLANE, THICKEN COMMAND

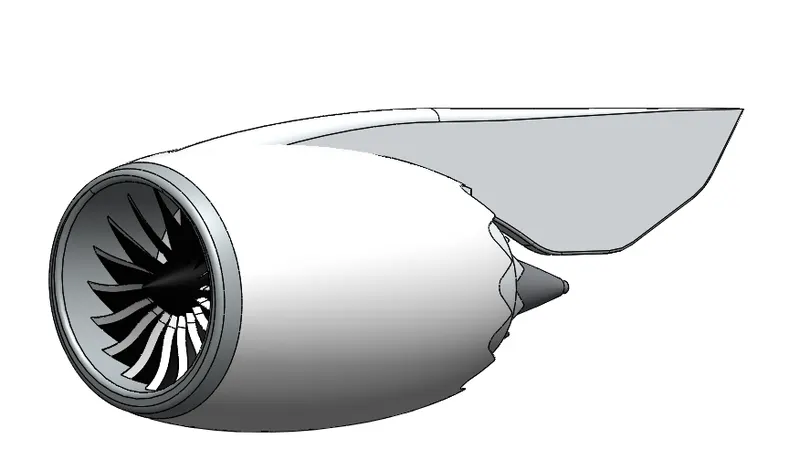

ENGINE

FOR MAKING 3D MODLE OF AIR PLANE ENGINE

FIRST YOU HAVE TO SELETE NEW ART FILE AND OPEN ENGINE BLUEPRINT

NOW DRAW AN CENTRE LINE IN CENTRE OF ORIGINE AND MAKE COVER THE ENGINE BLUEPRINT OF ONE SIDE NOE USED REVOLE BOSS BASE COMMAND IN FEATURE MANEGER

SPECIAL TOOL LINE SPLIND, MORRORE, CIRCULER PETTERN, BODY CUT

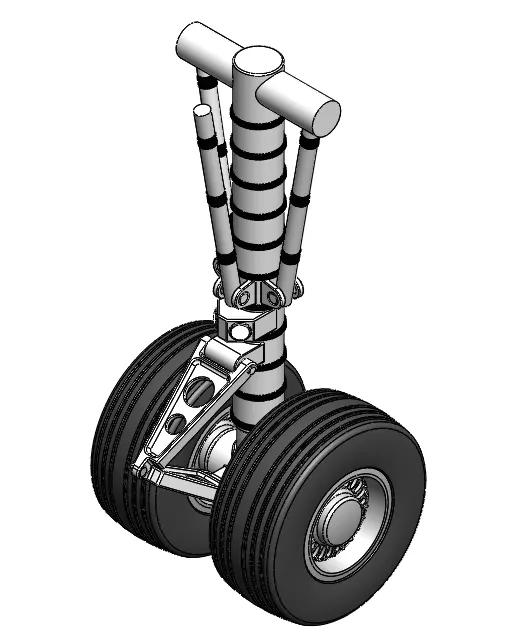

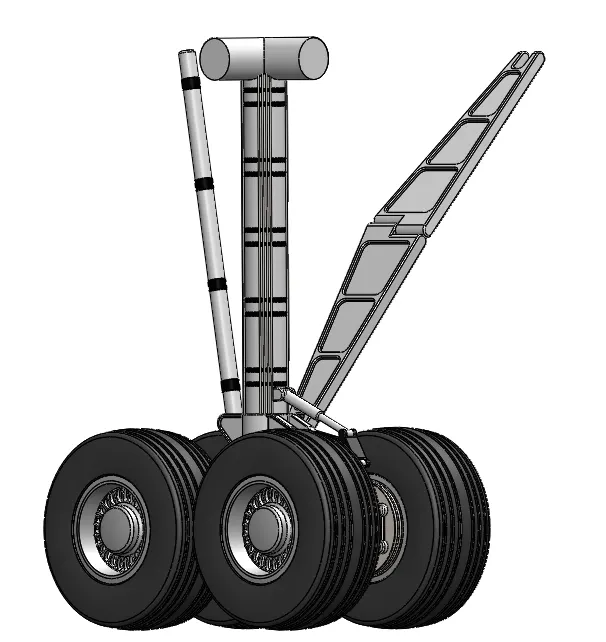

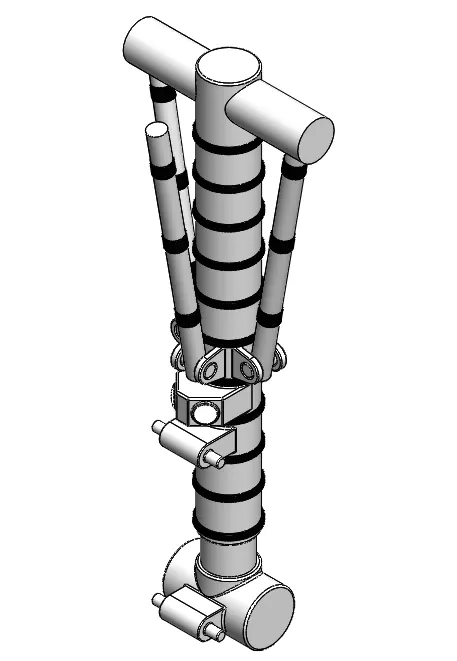

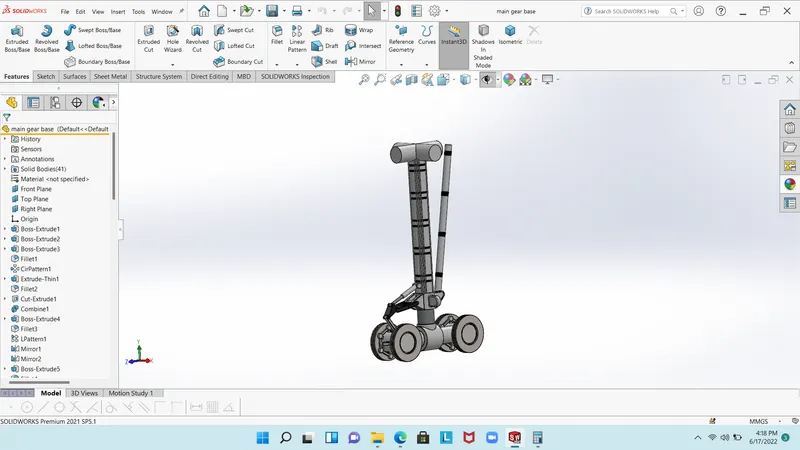

NOSE GEAR AND MAIN GEAR ASSEMBLY

FOR ASSEMBLY YOU INSERTS SUB PART OF BODY PART AND MAKE REALATION BY AXIS AND COINCEDENT

USE PLANE FOR MAKE SINGLE LINE

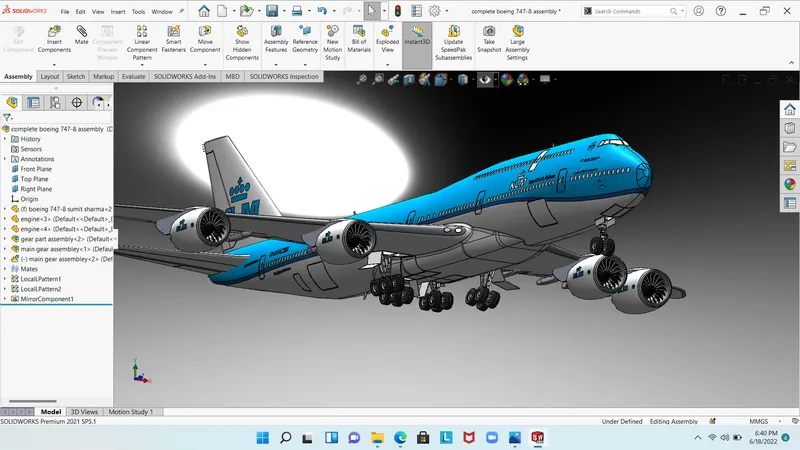

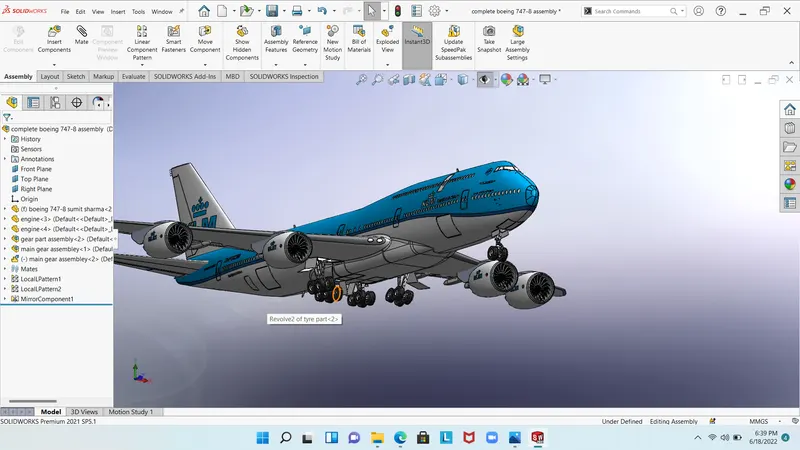

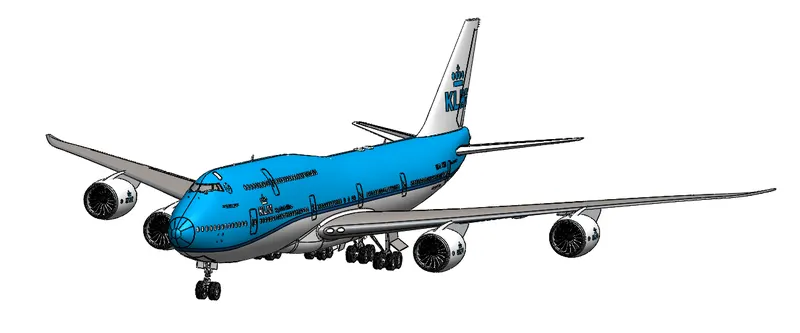

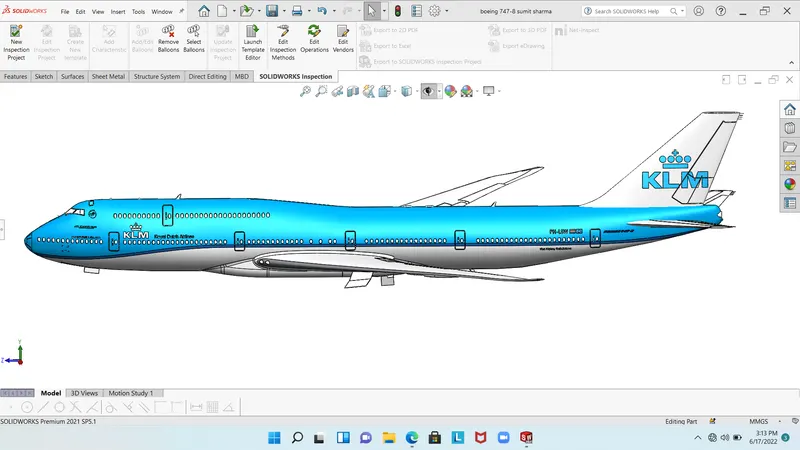

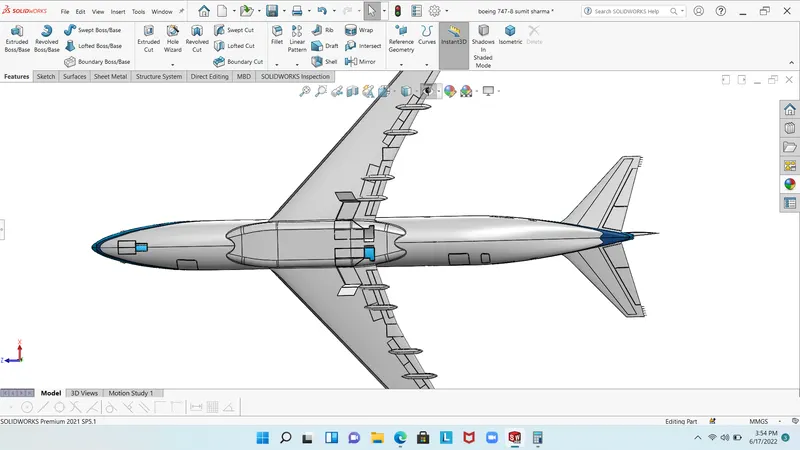

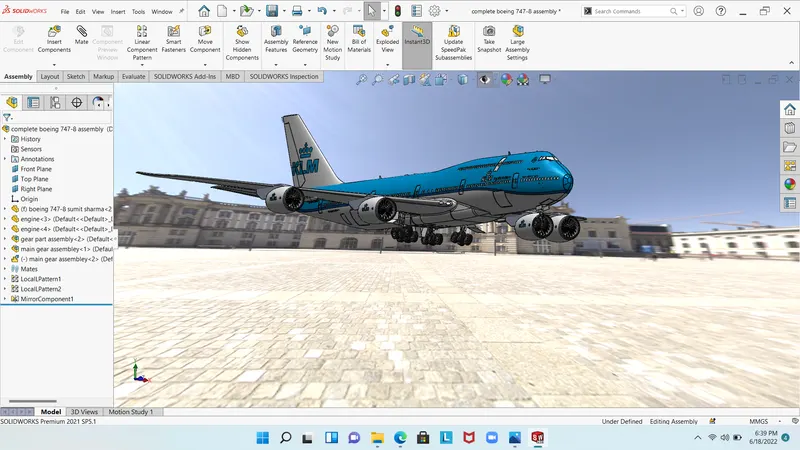

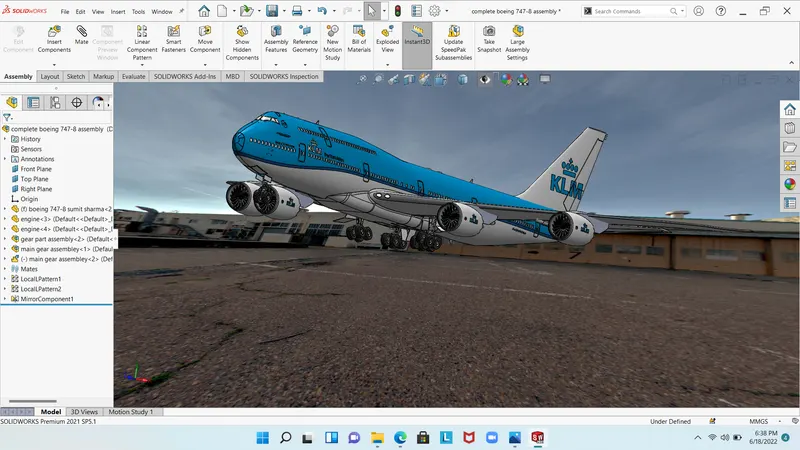

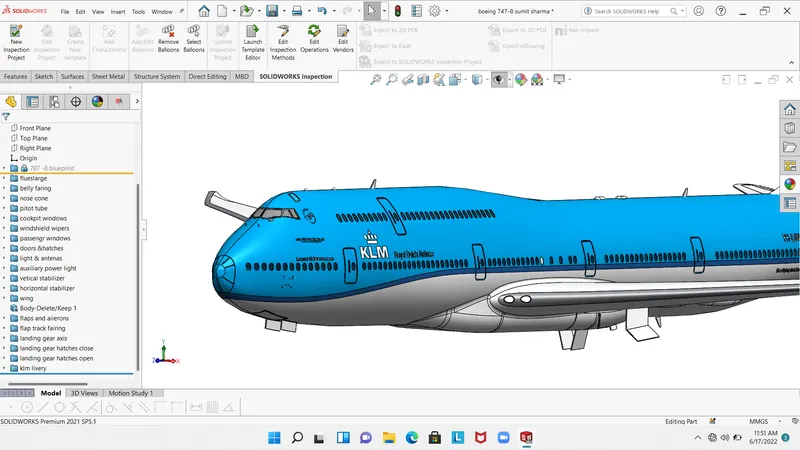

FINAL ASSEMBLY

USED REFERNCE AXIS

PLANE

MATE

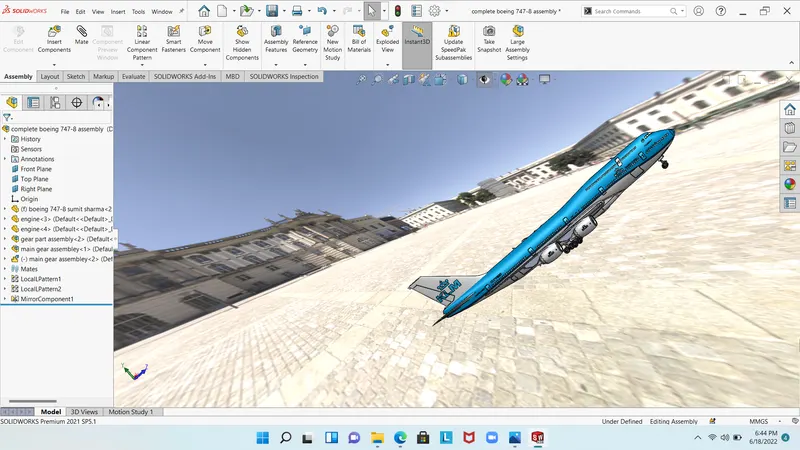

AND INSERT ALL SUBPART USED COMMAND MATE FOR FINAL ASSEMBLY

CONCLUSION

FINALLY I MADE ALL PART OF BOEING 747-8 AND I HOPE IT IS ECXACTLY LIKE ORIGINAL DESIGNE
