Bird Strike - Project - 2

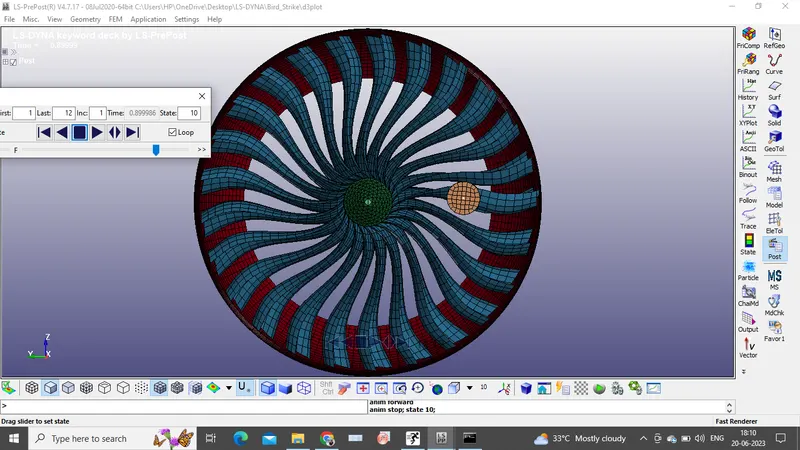

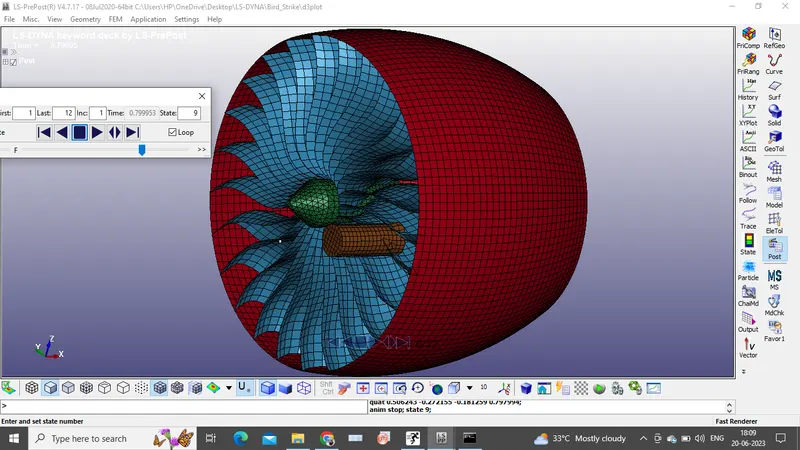

Aim:

Perform the Brid strike simulation and arrange the file using *include keyword.

Procedure:

1)Initially, the given .k file is opened in the LS-prepost. MAT card and SECTION cards are assigned to the parts.

2)Contact are created between the blades, hub and also between bird and the blades, using *contact_spotweld and *contact_automatic_surface_surface keyword.

3)Control_termination and database keywords are specified for output and the input file is solved.

4)Different (.K)files are created for every part. Starting with casing (node_id:104102, element_id:503968, part:1001)

5)All the keywords such as section, mat, contact, initial, control keywords are created seperatly.

6)All the (.k) files are are compiled as main.dyn file using *include keyword.

Conclusion:
